Shaolin Heavy Machinery Specializes In The Production Of High Efficiency And Energy Saving Jaw Crusher With Conveyor
- Category: >>>
- Supplier: Henan Shaolin Heavy Machines Co. Ltd.
Share on (1601204541369):
Product Overview
Description
Main equipment introduction
Product Description:
Shaolin Heavy Machinery Specializes In The Production Of High Efficiency And Energy Saving Jaw Crusher With Conveyor

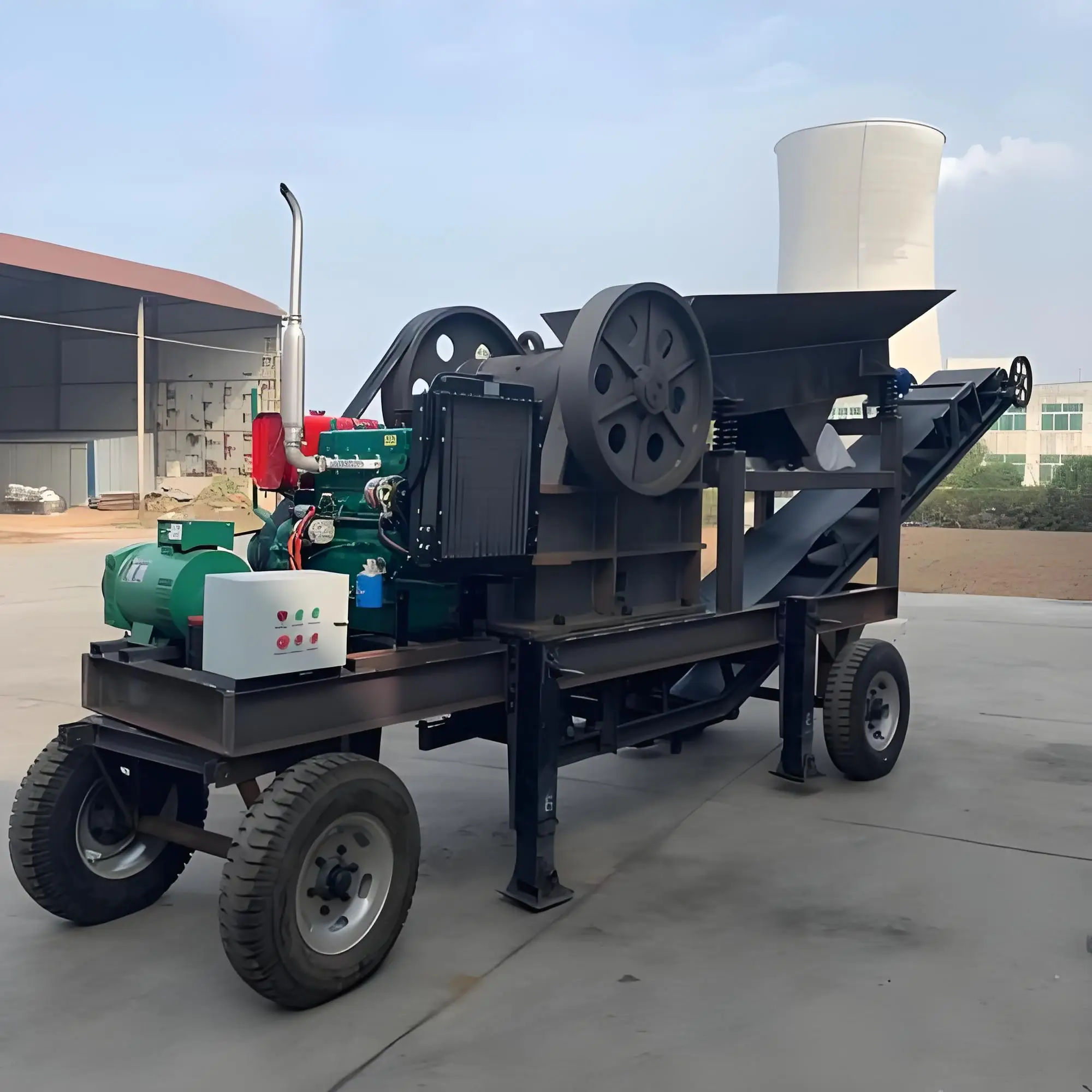

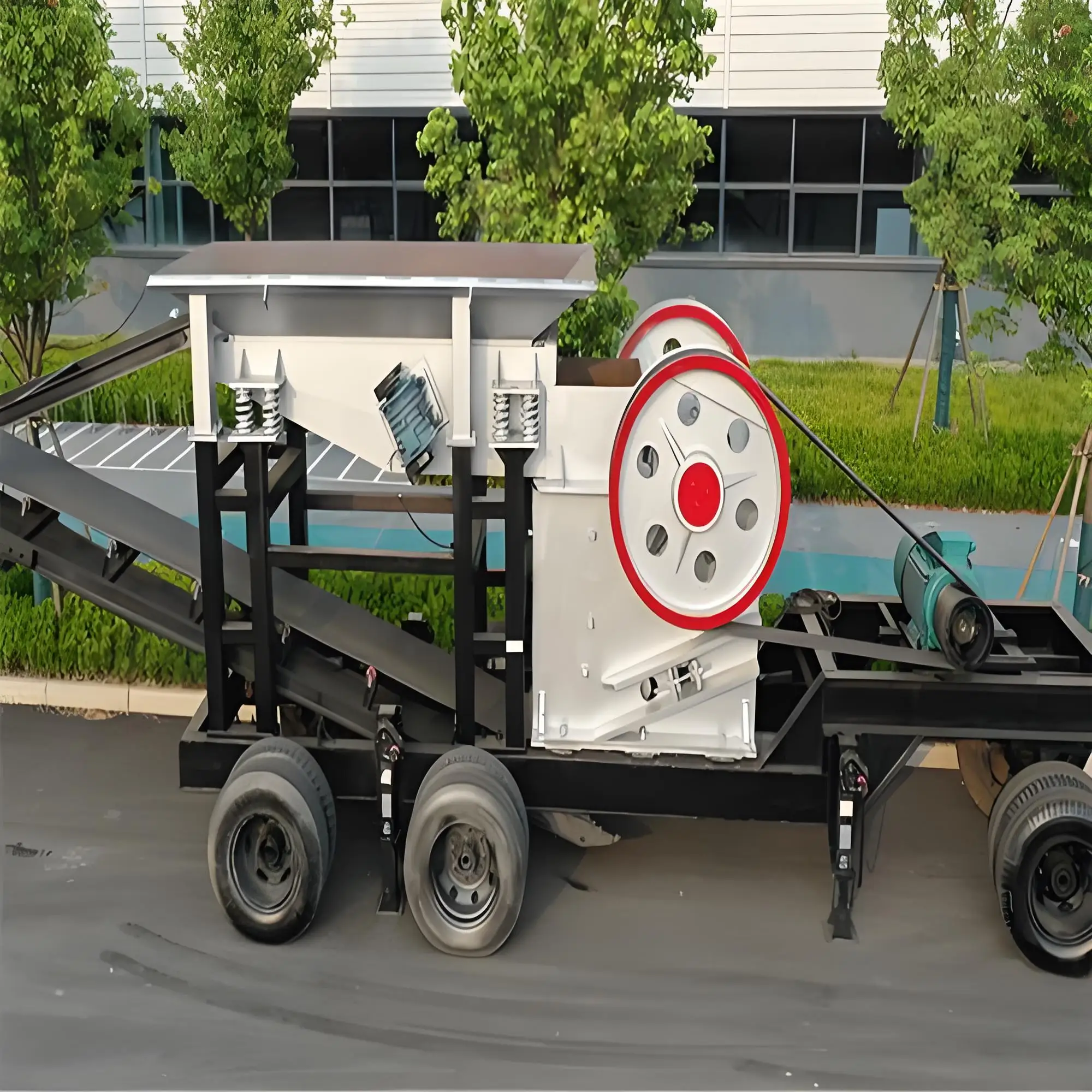

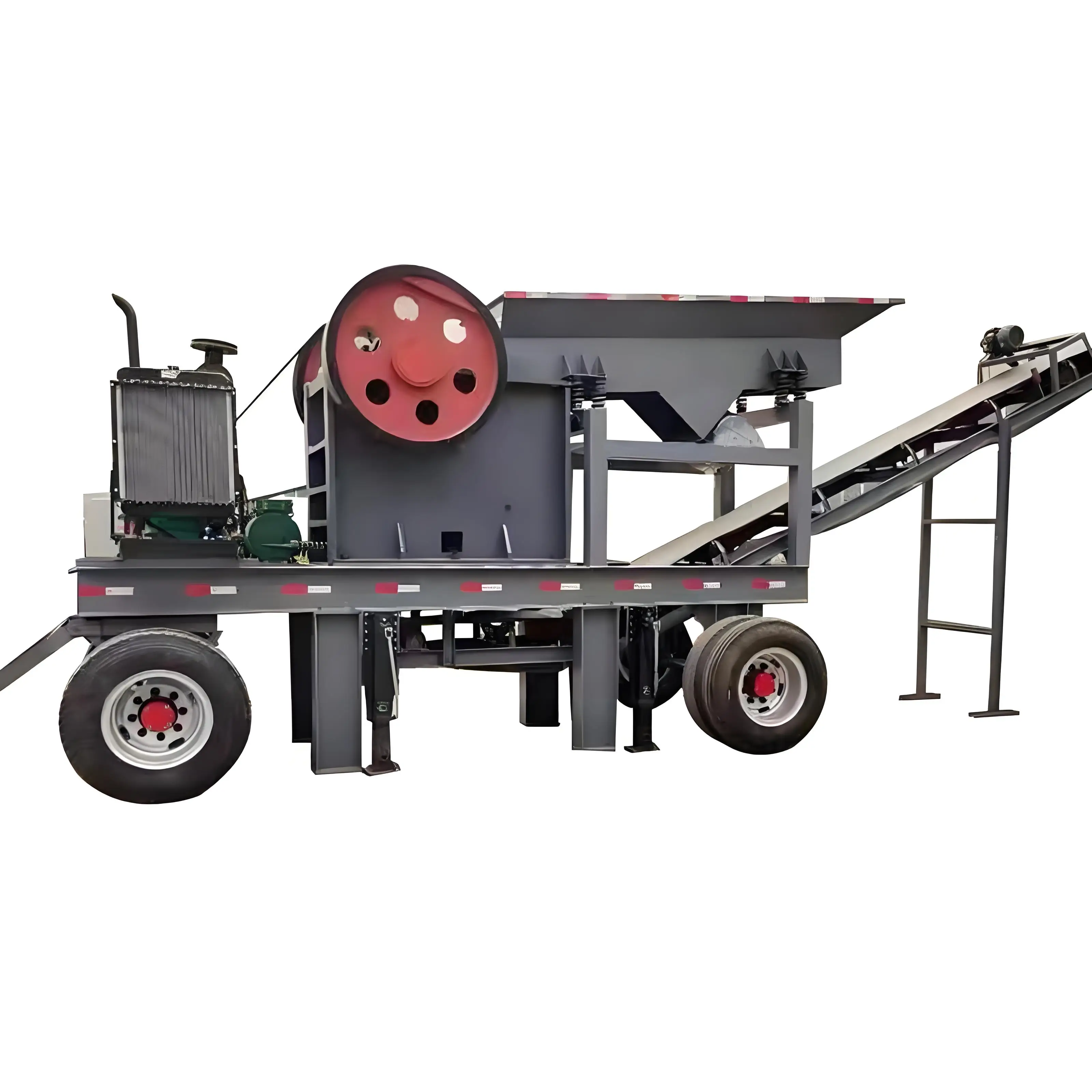

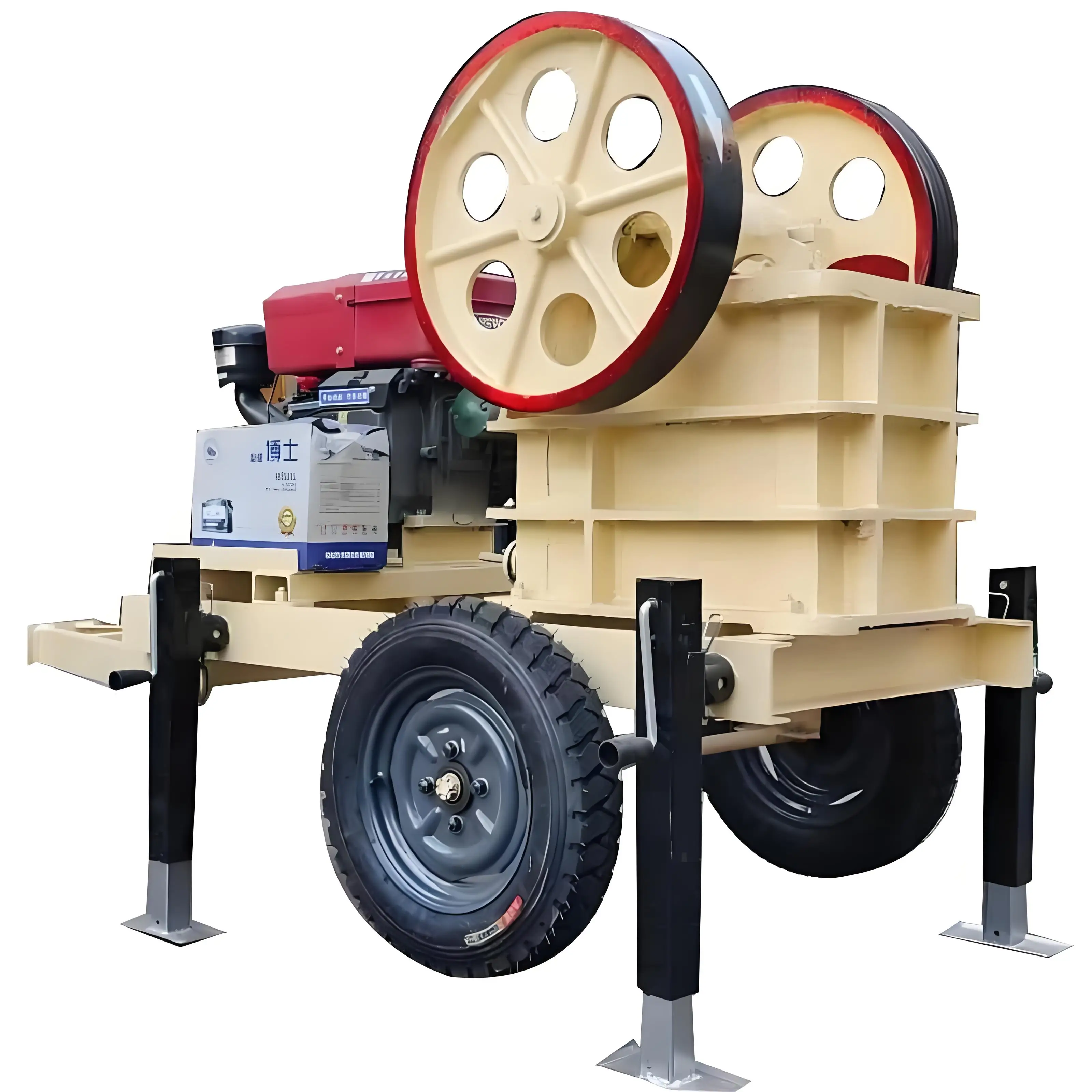

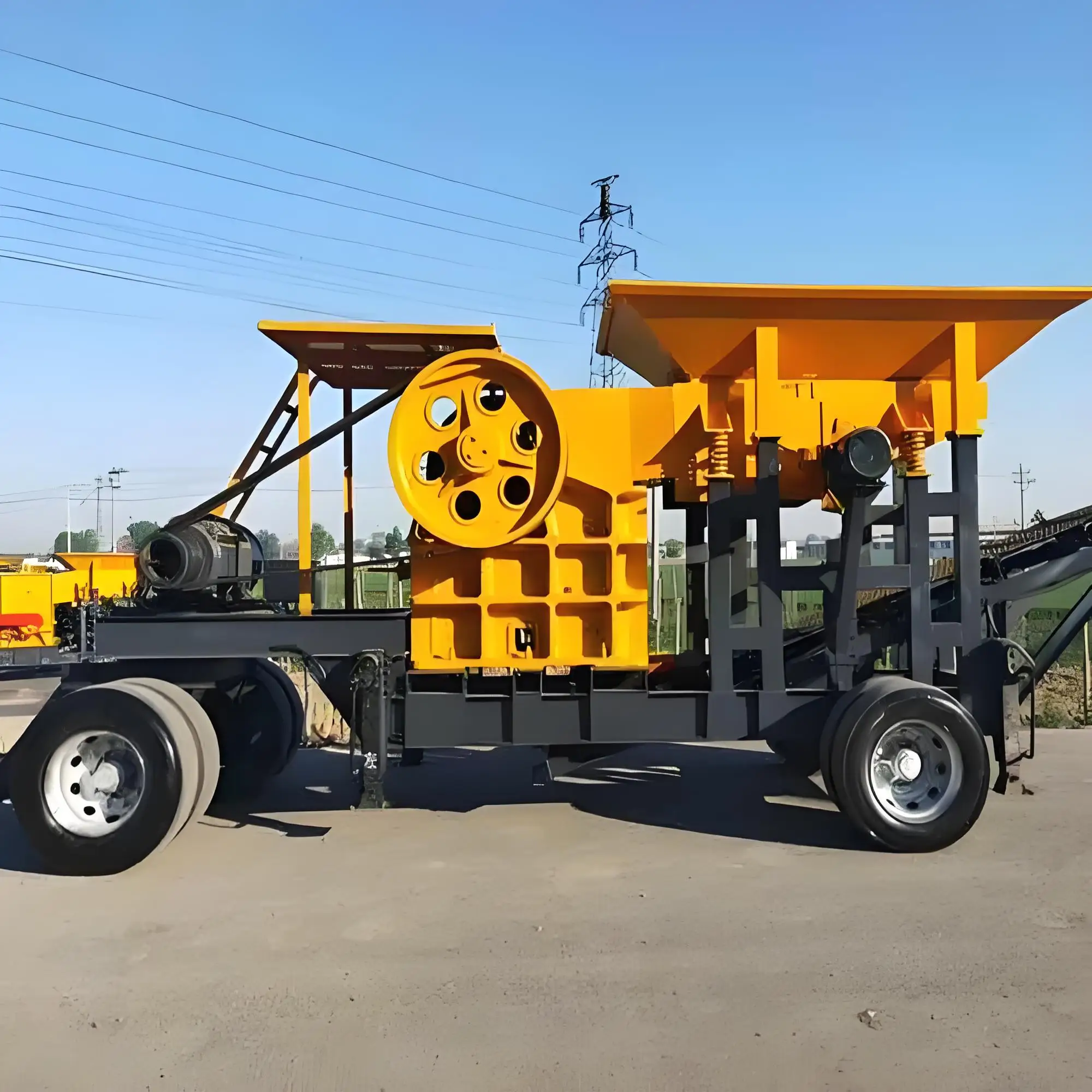

A small mobile tire jaw crusher is a portable crushing plant, usually used in construction sites, quarries, waste treatment plants, etc. The "jaw" design refers to the type of jaw crusher that has a jaw-like component in the crushing chamber. The tire design makes it portable, allowing it to be moved from location to location without the need for a fixed installation. This type of crusher is typically used to crush materials such as large rocks, ores, or construction waste into smaller particles for transportation, disposal, or reuse.
Advantage:
1. Portability: Due to the tire type design, it can be easily moved to different sites or locations with high flexibility.
2. Easy to operate: Compared with fixed crushing plant, small mobile tire jaw crusher is usually easier to install and operate without complicated infrastructure.
3. Cost saving: no need to build complex infrastructure, reducing construction costs, and at the same time, it can be shared and used between different sites, improving the efficiency of resource utilization and reducing costs.
4. Flexibility: able to work in different environments and operating conditions, applicable to various scenarios, such as construction sites, quarries, waste treatment plants, etc.
5. High efficiency: with high crushing efficiency, it is able to quickly crush raw materials into the required particle size and improve production efficiency.
6. Customizability: According to different needs and working conditions, it can be customized and designed to meet specific crushing requirements and improve applicability and efficiency.
2. Easy to operate: Compared with fixed crushing plant, small mobile tire jaw crusher is usually easier to install and operate without complicated infrastructure.
3. Cost saving: no need to build complex infrastructure, reducing construction costs, and at the same time, it can be shared and used between different sites, improving the efficiency of resource utilization and reducing costs.
4. Flexibility: able to work in different environments and operating conditions, applicable to various scenarios, such as construction sites, quarries, waste treatment plants, etc.
5. High efficiency: with high crushing efficiency, it is able to quickly crush raw materials into the required particle size and improve production efficiency.
6. Customizability: According to different needs and working conditions, it can be customized and designed to meet specific crushing requirements and improve applicability and efficiency.
Product Parameter
Model number | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | Processing capacity (t/h) | Motor power (kw) | Gross weight (t) | Apparent size Length x width x height (mm) |
PE-150X250 | 150X250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720X660X850 |
PE-250X400 | 250X400 | 210 | 20-60 | 5-21 | 15 | 2.8 | 1300X1090X1270 |
PE-500X750 | 500X750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980X2080X1870 |
PE-750X1060 | 750X1060 | 630 | 80-140 | 110-320 | 110 | 29 | 2660X2430X2800 |
PE-1200X1500 | 1200X1500 | 1020 | 150-350 | 400-800 | 160-220 | 100.9 | 4200X3300X3500 |
PE-1500X1800 | 1500X1800 | 1200 | 220-350 | 500-1000 | 280-355 | 139 | 5160X3660X4248 |
PEX-250X750 | 250X750 | 210 | 25-60 | 13-35 | 22 | 5.5 | 1380X1750X1540 |
PEX-250X1000 | 250X1000 | 210 | 25-60 | 16-52 | 37 | 9.7 | 2140X1660X1500 |
PEX-300X1300 | 300X1300 | 250 | 20-90 | 16-105 | 55 | 15.6 | 2720X1950X1600 |
Introduction to process
How it works:
The motor drives the belt and pulley, and makes the moving jaw move up and down through the eccentric shaft. When the moving jaw rises, the Angle between the elbow plate and the moving jaw becomes larger, so as to push the moving jaw plate close to the fixed jaw plate. At the same time, the material is crushed by extrusion, rubbing and grinding. When the moving jaw goes down, the Angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the broken material is discharged from the lower mouth of the crushing chamber of the jaw crusher.

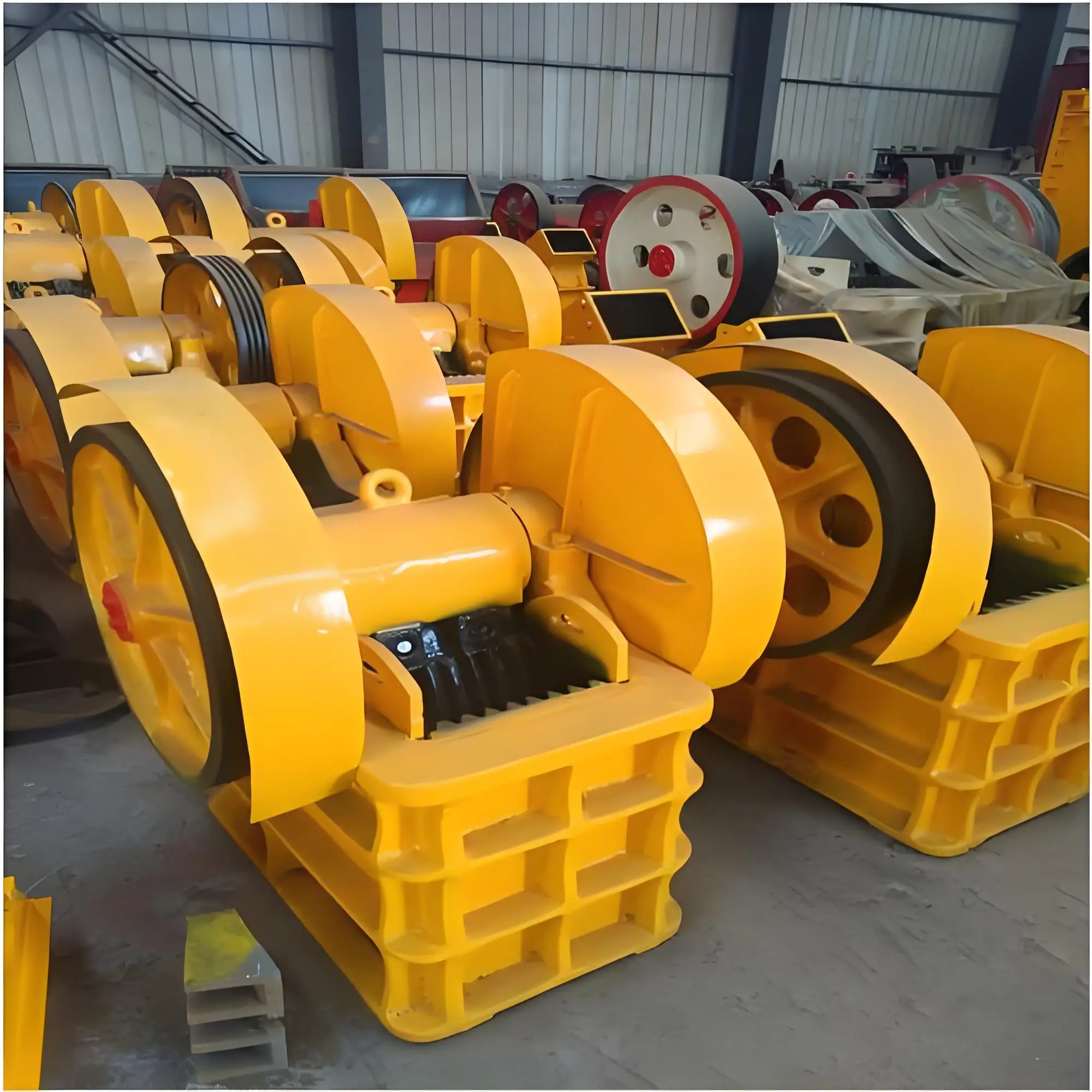

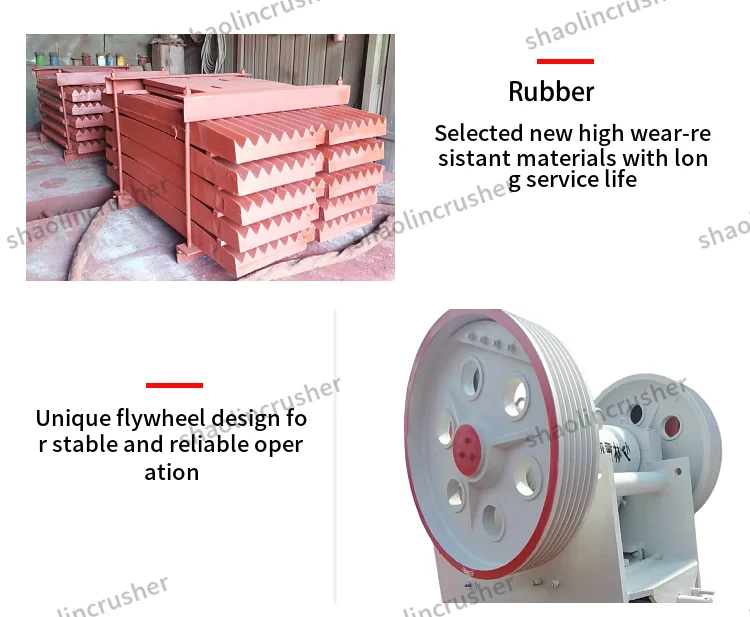

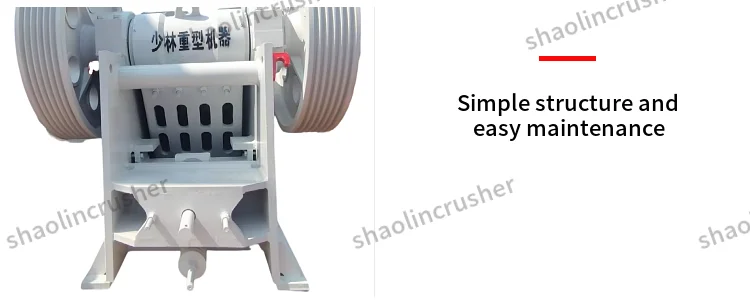

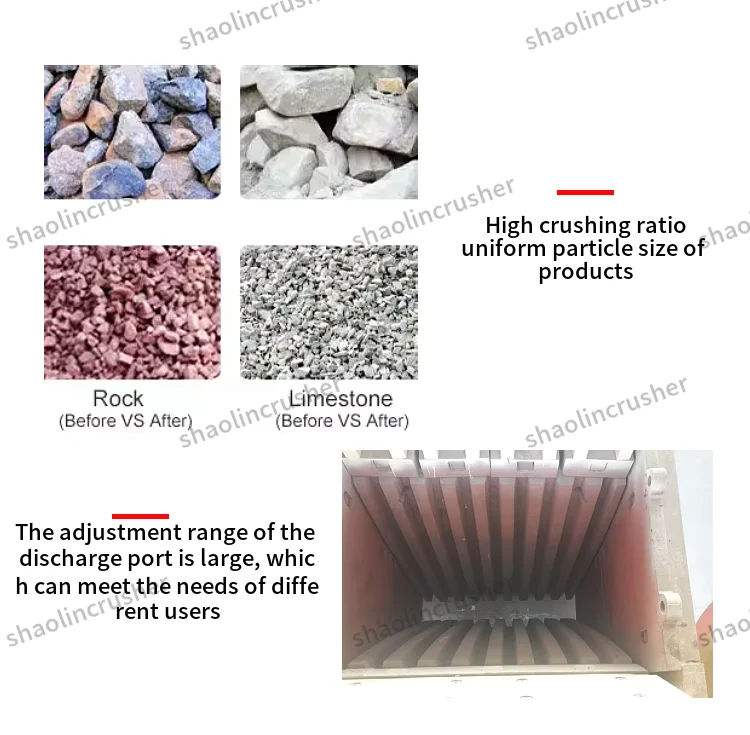

Accessories display
Application site

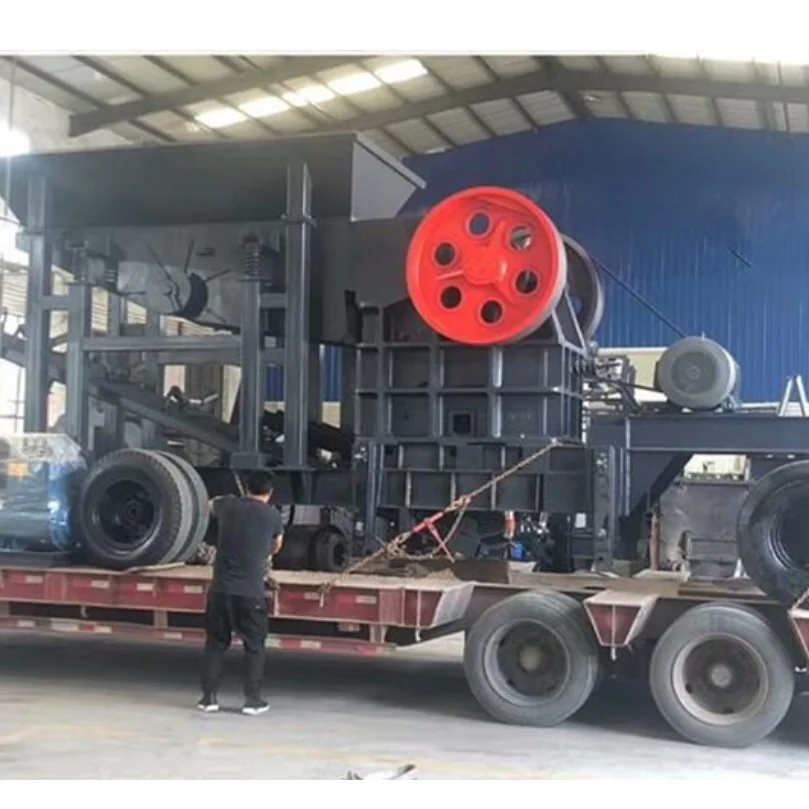

Product packaging

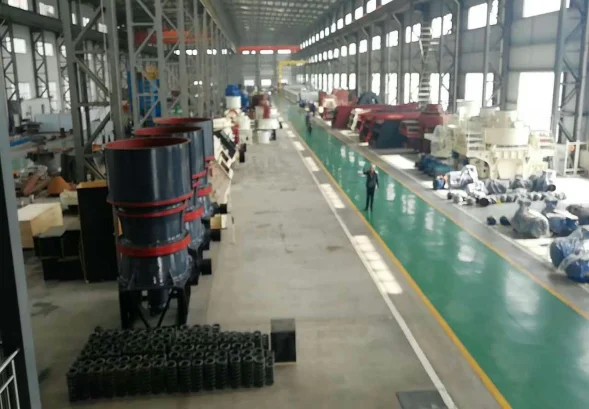

Company Profile:
Henan Shaolin Heavy Machinery Co., Ltd. is an enterprise integrating scientific research, production, marketing and service, specializing in the production of complete sets of mechanical equipment for mining, ore dressing, metallurgy and building materials. Founded in August 1973, the company has been engaged in mining machinery manufacturing for 50 years, specializing in Service in China's mining and building materials, mineral processing, metallurgy, powder and other industries, the main products are various specifications and models of crusher, ball mill, grading flotation machine, magnetic separator, dryer, rotary kiln, ultra-fine plant and other production lines, 288 kinds of products in the industry. Since 2011, the company is committed to the research and development and marketing of high-tech products, relying on scientific research units and universities, as well as domestic high-end industry associations of the expert team platform, and strive to build a set of equipment research and development, process research, technological transformation, project design, mechanical support, installation and commissioning, production and energy saving, etc., and in 2013, it gradually became the most scientific research, design, environmental protection and one-stop comprehensive mining industry in China. In 2013, it gradually became the most scientific research, design, environmental protection and one-stop comprehensive service enterprise in China's mining industry, and in 2015, its sales exceeded 300 million yuan.
For a long time, the company adheres to the design concept of leading technology and advanced equipment, and currently cooperates with 38 scientific research units in China to jointly research and develop and produce roller presses, micro powder mills, suspension furnaces and other products to provide customers with new processes, technological transformation, standard excess, energy saving and protection and environmental protection services. The company's existing product sales cover the central and western provinces and radiate across the country.
For a long time, the company adheres to the design concept of leading technology and advanced equipment, and currently cooperates with 38 scientific research units in China to jointly research and develop and produce roller presses, micro powder mills, suspension furnaces and other products to provide customers with new processes, technological transformation, standard excess, energy saving and protection and environmental protection services. The company's existing product sales cover the central and western provinces and radiate across the country.
FAQ
Q1： Are you a factory or a trading company?
A1: We are factory direct sales, the company was founded in 1973, don't worry about the shell company!
Q2: Where were your products exported to before?
A2: Our products have been exported to Africa, South Asia, South America, Middle East and so on.
Q3： How will you help customers to install the equipment?
A3： Our senior engineers will guide the installation and training service on site!
Q4： How about after-sales service?
A4： The product warranty period is 12 months!
Q5：How to replace the wearing parts of the equipment?
A5: The wearing parts are purchased from our factory in China, we will train you how to replace it!
A1: We are factory direct sales, the company was founded in 1973, don't worry about the shell company!
Q2: Where were your products exported to before?
A2: Our products have been exported to Africa, South Asia, South America, Middle East and so on.
Q3： How will you help customers to install the equipment?
A3： Our senior engineers will guide the installation and training service on site!
Q4： How about after-sales service?
A4： The product warranty period is 12 months!
Q5：How to replace the wearing parts of the equipment?
A5: The wearing parts are purchased from our factory in China, we will train you how to replace it!
