Product Overview
Description
Product Description
UM503

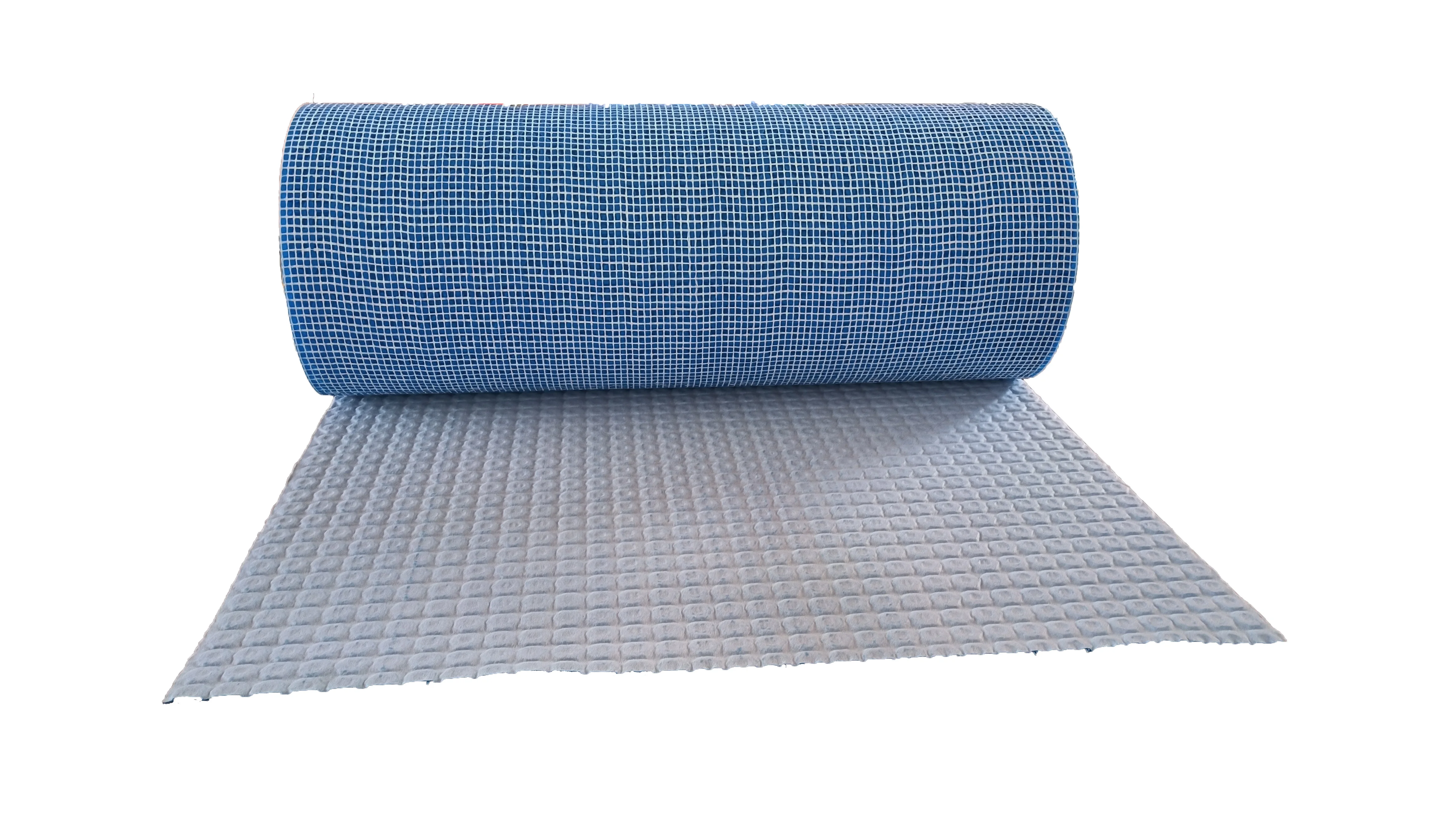

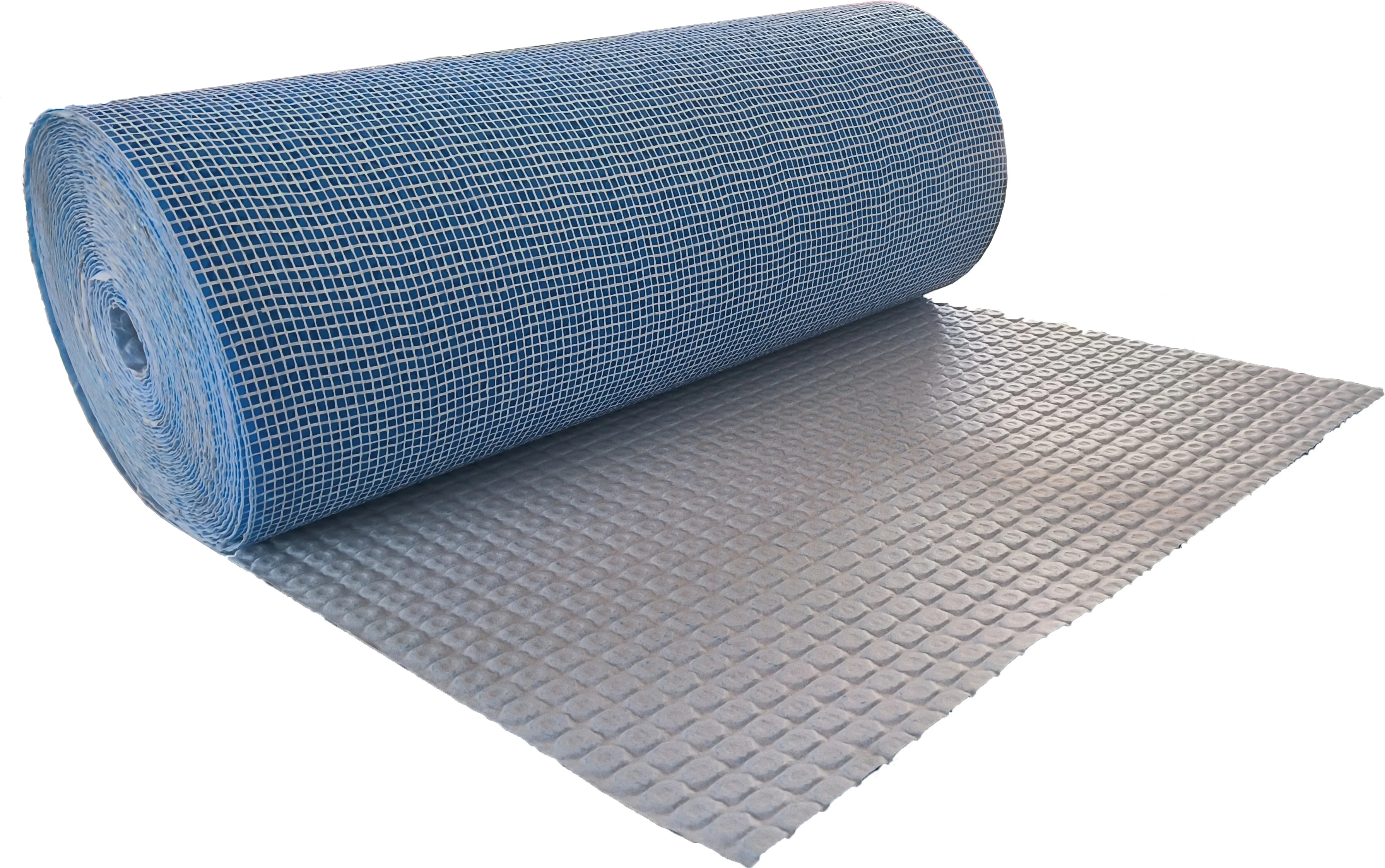

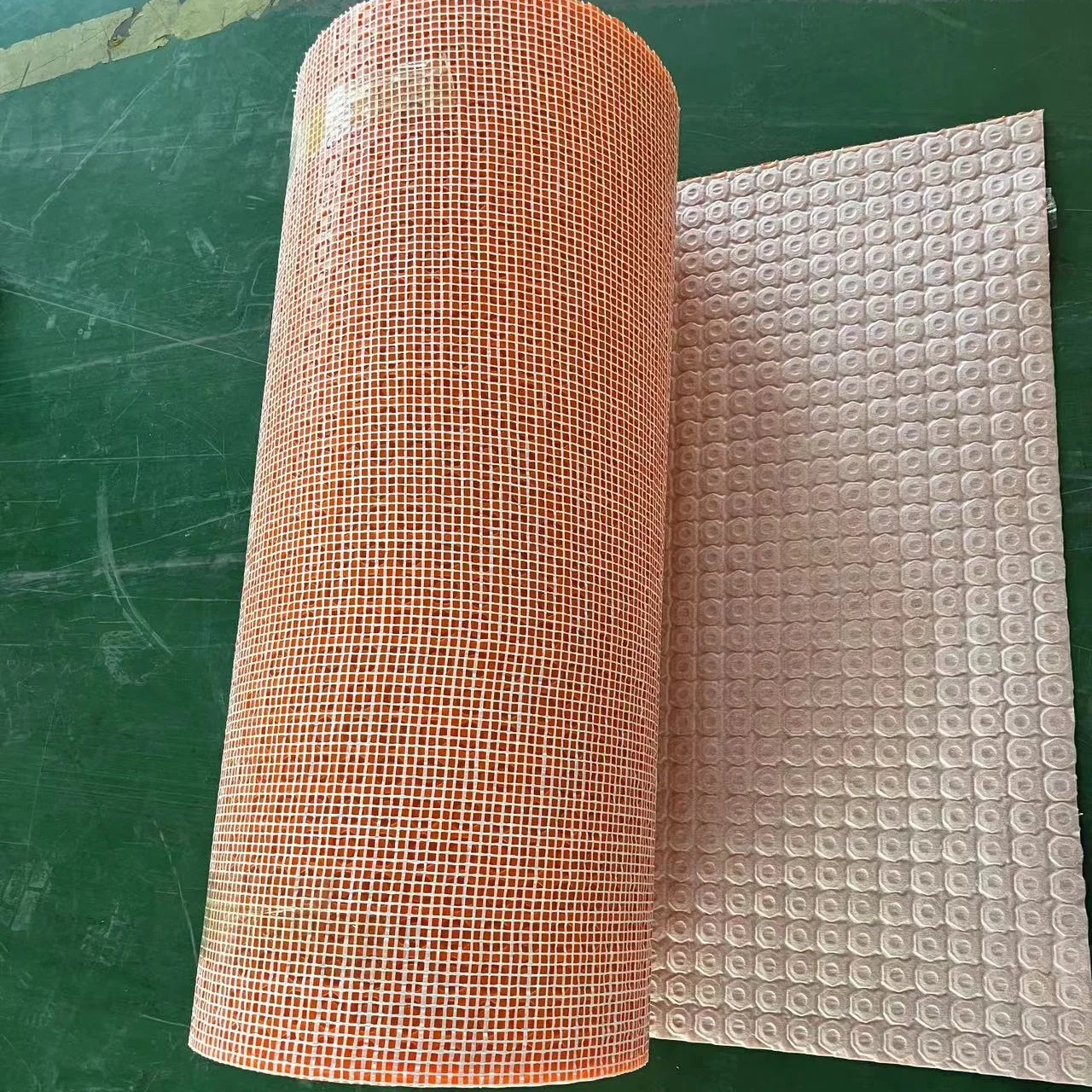

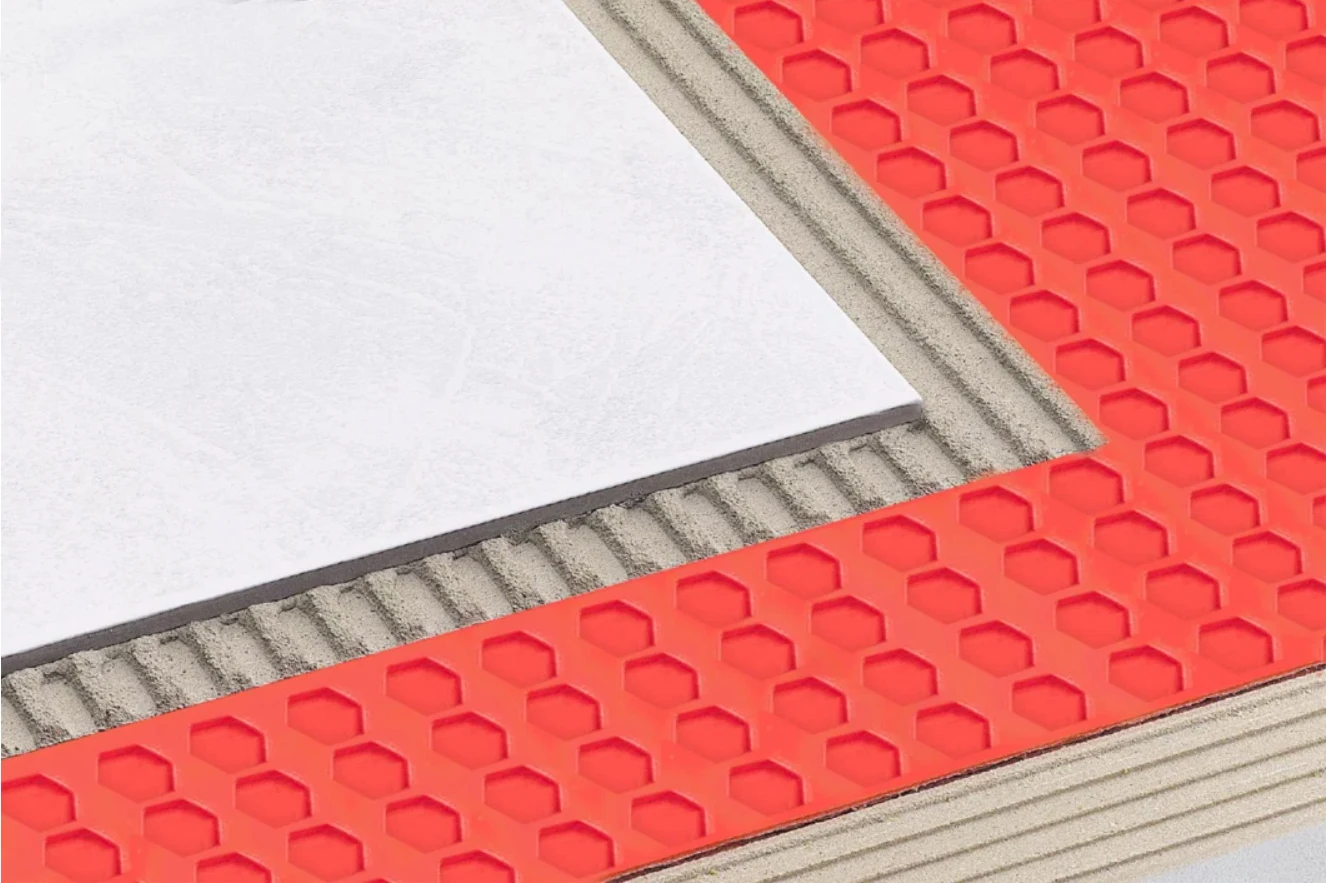

This uncoupling membrane is essential to the process of ceramic tile or stone tile installation as it keeps the tiles from cracks and fractures. This uncoupling membrane underlayment is used to uncouple the tiles from the substrate and keep the stress or movement from reaching the tiles and is also a great moisture barrier
underlayment that keeps water and moisture from seeping through the substrates.
Details of UM503
Product Features:

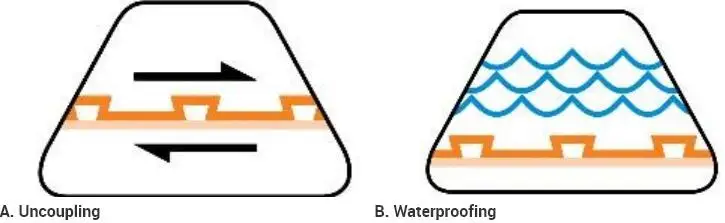

Uncoupling

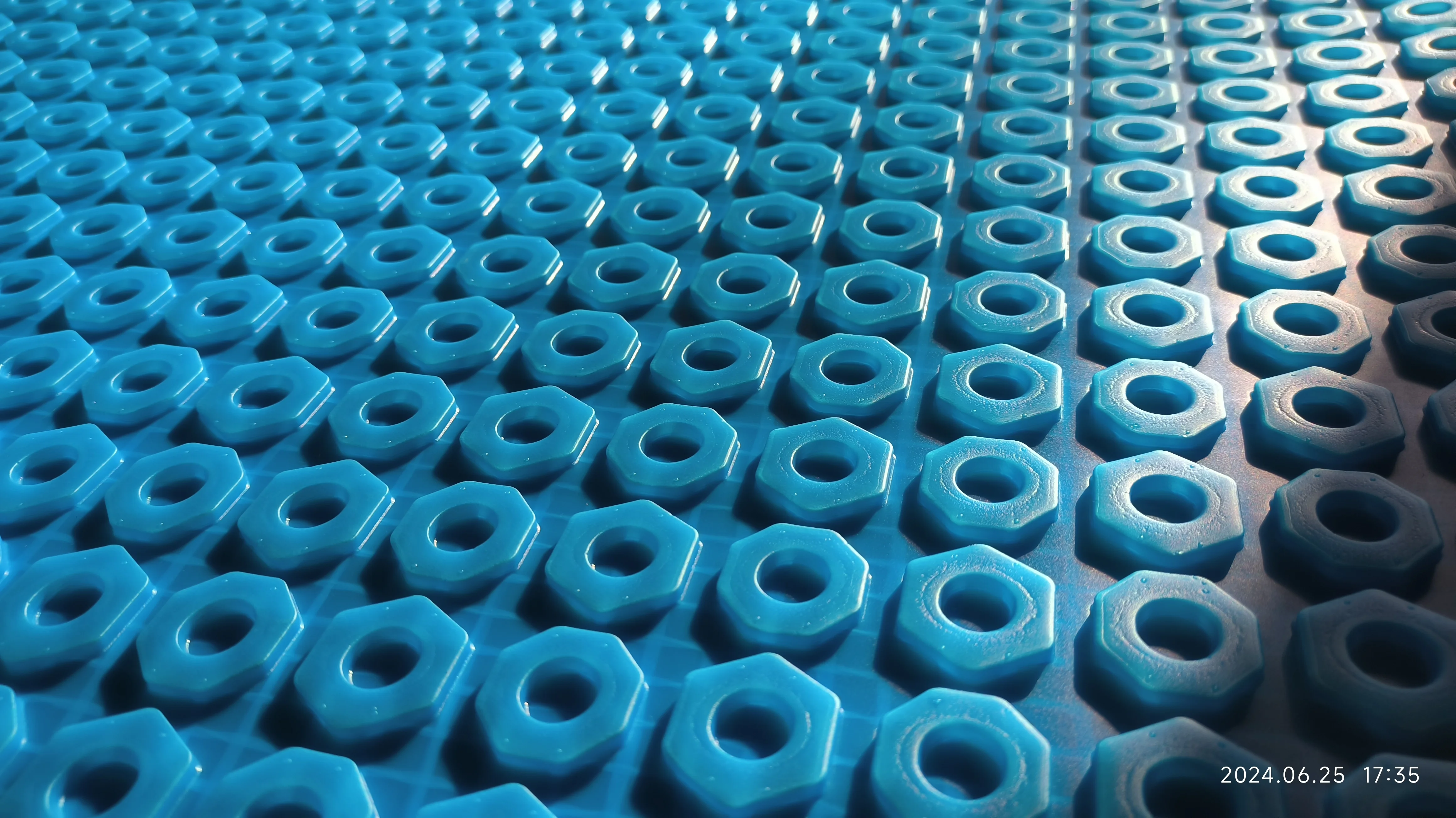

It provides uncoupling through its open rib structure, which allows for in-plane movement that effectively neutralizes the
differential movement stresses between the substrate and the tile, thus eliminating the major cause of cracking and delaminating
of the tiled surface.
differential movement stresses between the substrate and the tile, thus eliminating the major cause of cracking and delaminating
of the tiled surface.
Waterproof membrane
It provides reliable waterproofing in interior and exterior applications. Its polyethylene composition protects the substrate from
moisture penetration, which is particularly important in today's building environment where most substrates are moisture
sensitive.
moisture penetration, which is particularly important in today's building environment where most substrates are moisture
sensitive.

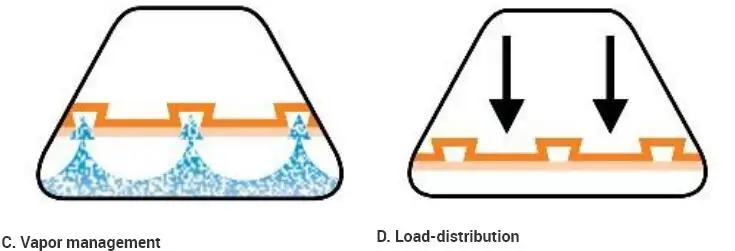

The distinguishing feature of this uncoupling membrane is the existence of free space created by the configured channels on the
underside of the matting. The free space provides a route for excess moisture and vapor to escape from the substrate that could
otherwise cause damage to the tile layer above. Thus, it effectively manages moisture beneath the tile covering.
underside of the matting. The free space provides a route for excess moisture and vapor to escape from the substrate that could
otherwise cause damage to the tile layer above. Thus, it effectively manages moisture beneath the tile covering.
It is virtually incompressible within the tile assembly, the advantages of uncoupling are achieved without sacrificing point load
distribution capabilities. The ability of membrane installations to support and distribute heavy loads while preserving the
integrity of the tiles surface has been verified through extensive laboratory and field testing, including applications exposed to
vehicular traffic.
distribution capabilities. The ability of membrane installations to support and distribute heavy loads while preserving the
integrity of the tiles surface has been verified through extensive laboratory and field testing, including applications exposed to
vehicular traffic.
Product | Underfloor heating mat-UM503 |
Material | polyethylene(PE)film; polypropylene (PP) nonwoven |
Roll Size | 1mx30m ,1mx20m,1mx10m |
Weight | 675g/sqm |
Thickness | 3.6mm |
Packing | wrapped in plastic film |
Color | Orange, Red or others |

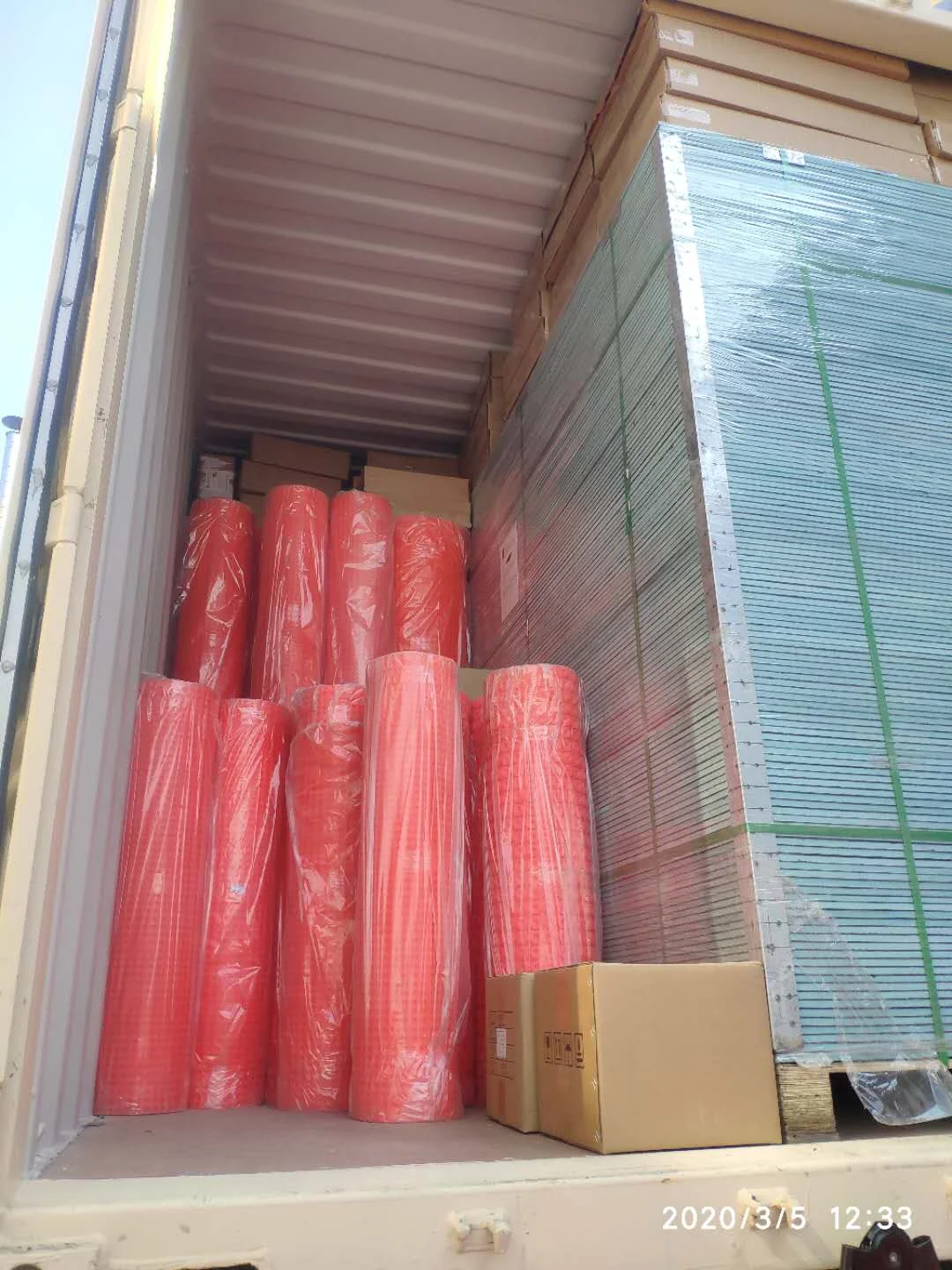

Product packaging
