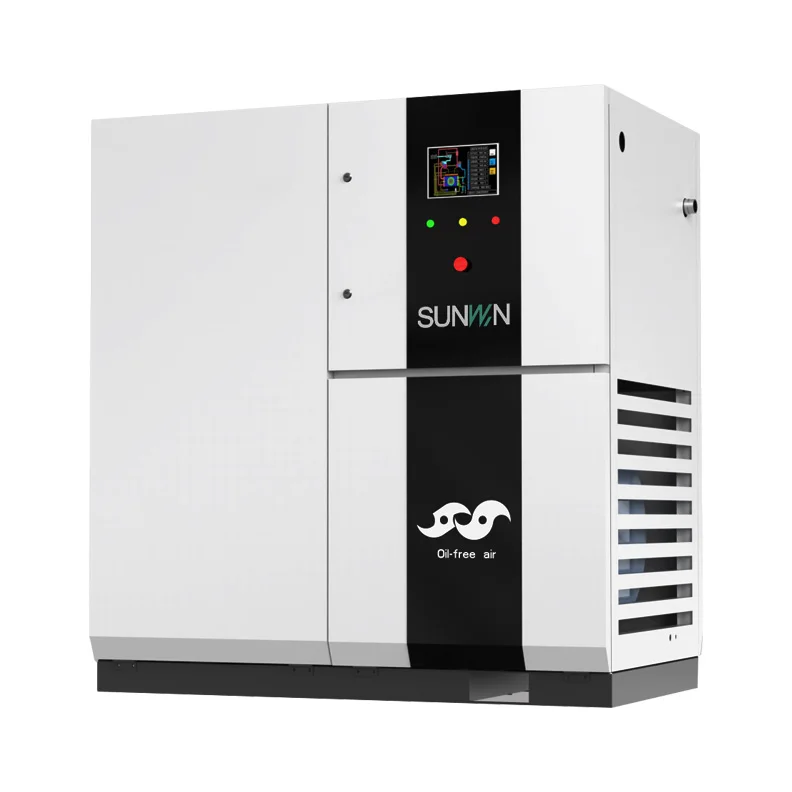

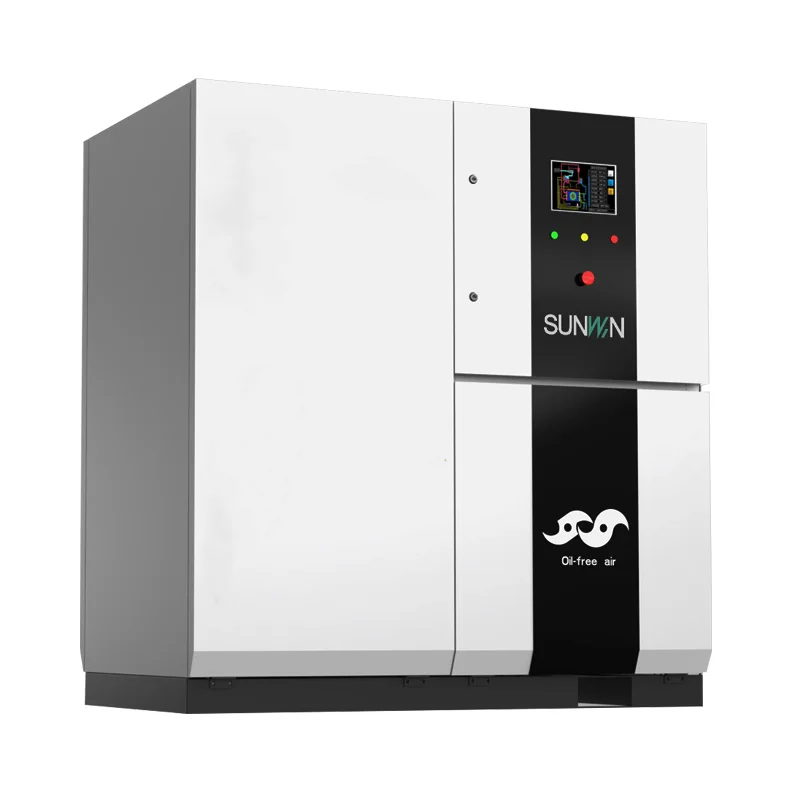

ZT18 8160005903 7.5 bar P series Atlas Oil Free Rotary Tooth Air Compressors with Advanced Technology
- Category: >>>
- Supplier: Shanghai Sunwin Industry Co. Ltd.
Share on (1601204592091):
Product Overview
Description
Oi free rotary tooth compressors have been developed specifically for applications where air quality end products and production processes are critical.
Oil-free rotary tooth compressors utilize a two-stage rotary tooth rotor compression and motor drive, where the cathode and anode rotors rotate towards each other with decreasing free space, resulting in an increase in pressure for efficient air compression. Terminal with a unique claw structure, it achieves the highest level of exhaust discharge capacity within its range.
Oil-free rotary tooth compressors utilize a two-stage rotary tooth rotor compression and motor drive, where the cathode and anode rotors rotate towards each other with decreasing free space, resulting in an increase in pressure for efficient air compression. Terminal with a unique claw structure, it achieves the highest level of exhaust discharge capacity within its range.
Product
Meeting all requirements of oil-free compressors, providing clean compressed air.By incorporating a compressor terminal with a unique claw structure, it achieves the highest level of exhaust discharge capacity within its range. Additionally the use of air-cooled two-stage compression mechanisms and the latest control methods enhances durability and energy efficiency.
Advantages
High-quality Air
100% oil free air to safeguard your production
Efficiency
State-of-the-art technologies to save time and costs
Complete Solution
Plug& play package for simplified installation and ownership
Reliability & Expertise
Optimized components and easy maintenance
Superb Operator Experience
70 dBA(Low noise levels), compact design
Non-stop Supply: Designed to operate continuously, ensuring a steady flow of compressed air.
High-Quality Air: Guarantees pure, contaminant-free air, critical for sensitive applications.
High-Quality Air: Guarantees pure, contaminant-free air, critical for sensitive applications.
Oil-Free Design: Eliminates the risk of oil contaminating the air supply, which is vital in industries where even trace amounts of oil can compromise product quality or safety.
Cost Savings: Energy-efficient performance reduces operational costs, contributing to a lower total cost of ownership.
Environmental Impact: Less energy consumption also translates to a smaller carbon footprint.
Environmental Impact: Less energy consumption also translates to a smaller carbon footprint.
Reduced Downtime: High reliability and fewer maintenance requirements mean less downtime for repairs.
Lower Maintenance Costs: Simplified design and robust components result in fewer parts to replace and maintain.
Lower Maintenance Costs: Simplified design and robust components result in fewer parts to replace and maintain.

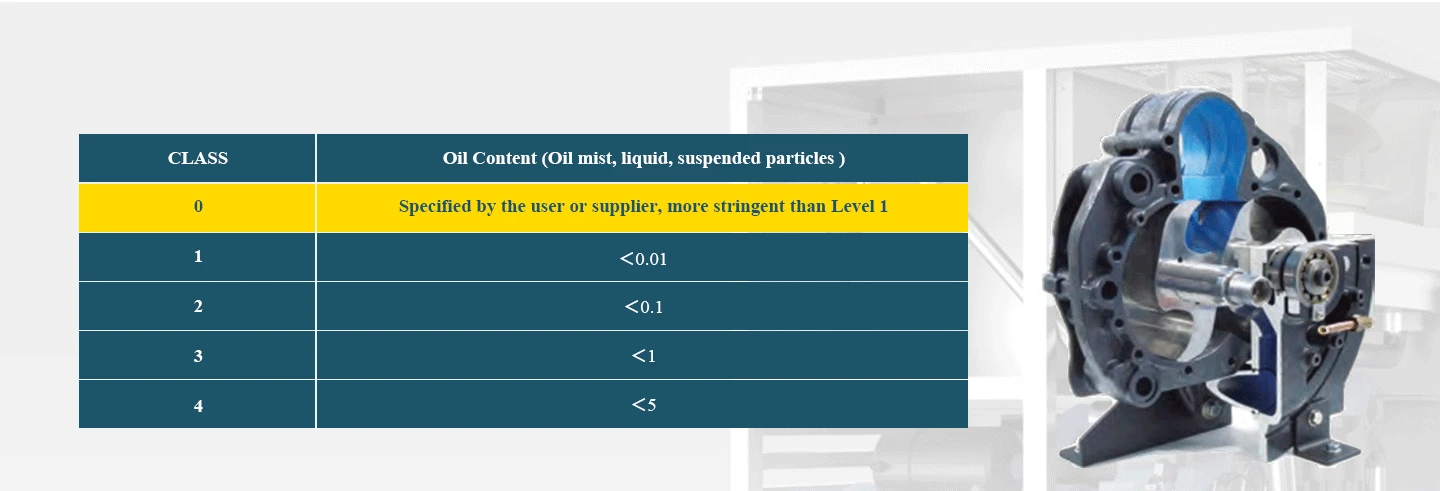

The current IS08573 -1(2010-RRB- grade (five major grades and their corresponding maximum concentrations of total oil content)

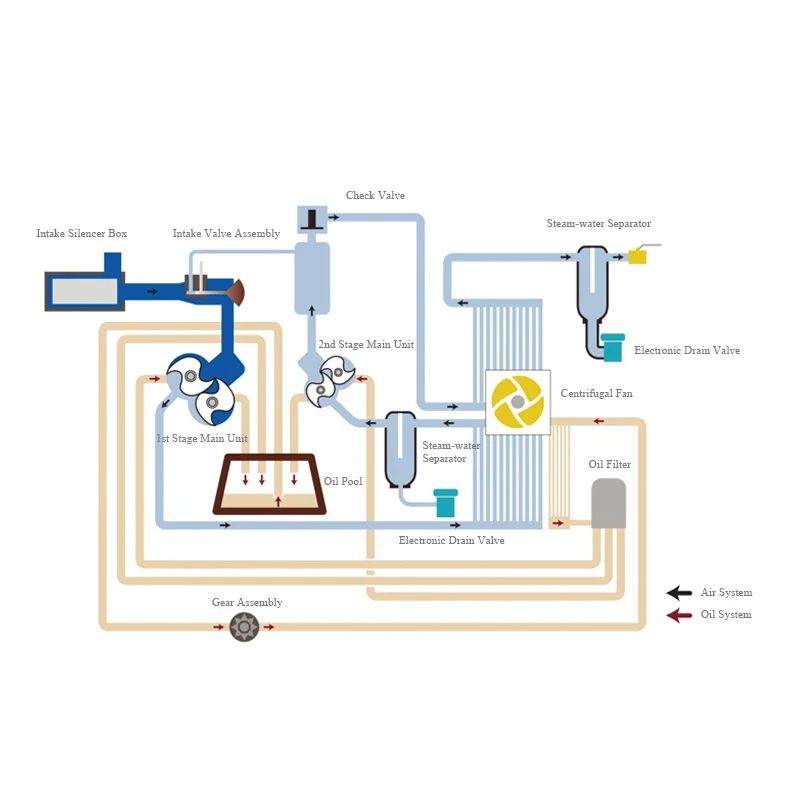

Technical Flow

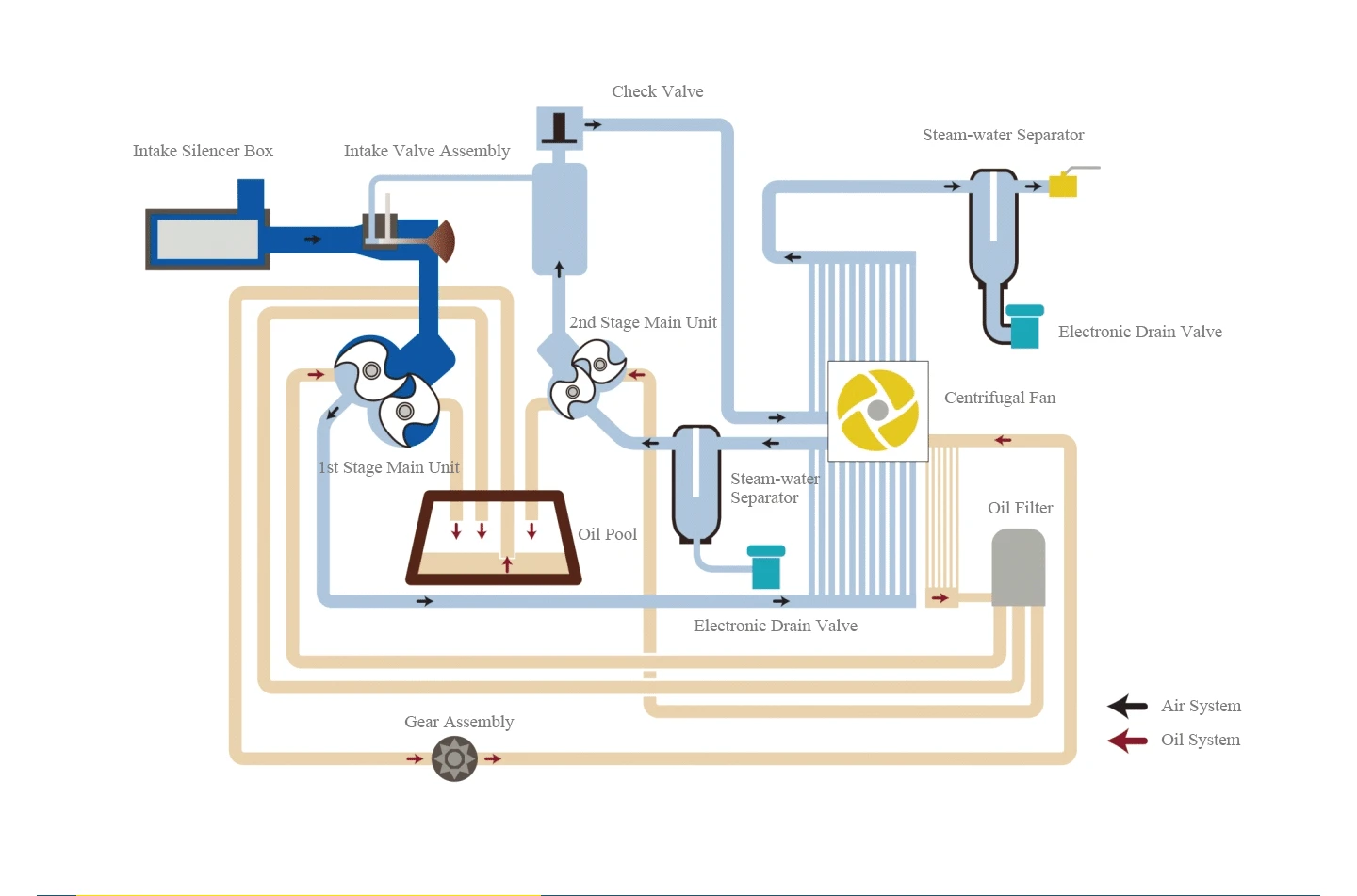

Working Principle

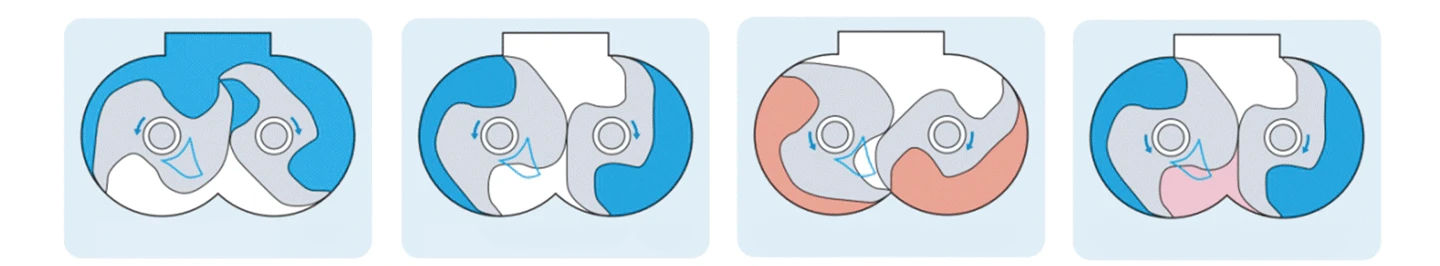

1、Intake
The screws rotate to draw in and compress the air.
2、Compression Begins
The air is separated by the teeth of the male and female screws, initiating compression.
3、Compression
The male and female screws rotate in opposite directions to compress the air.
4、Exhaust
The discharge port, sealed by the female screw, opens to expel the compressed air.

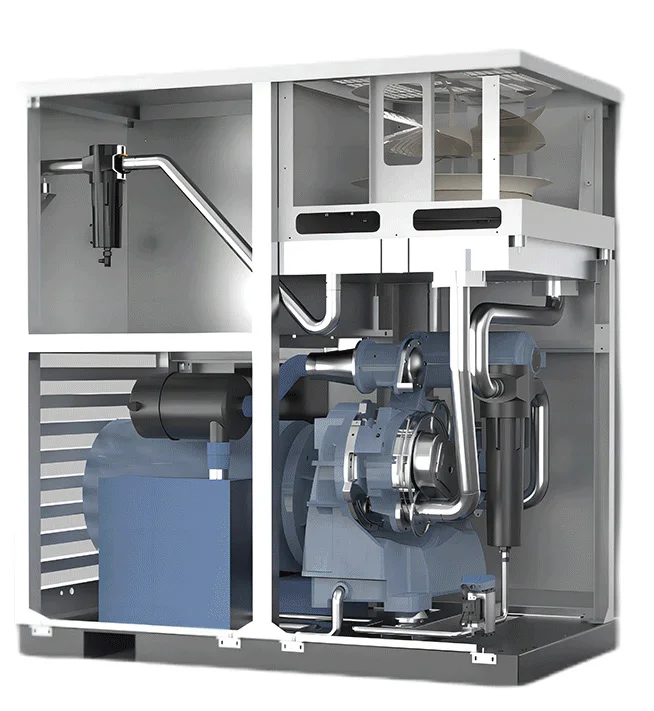

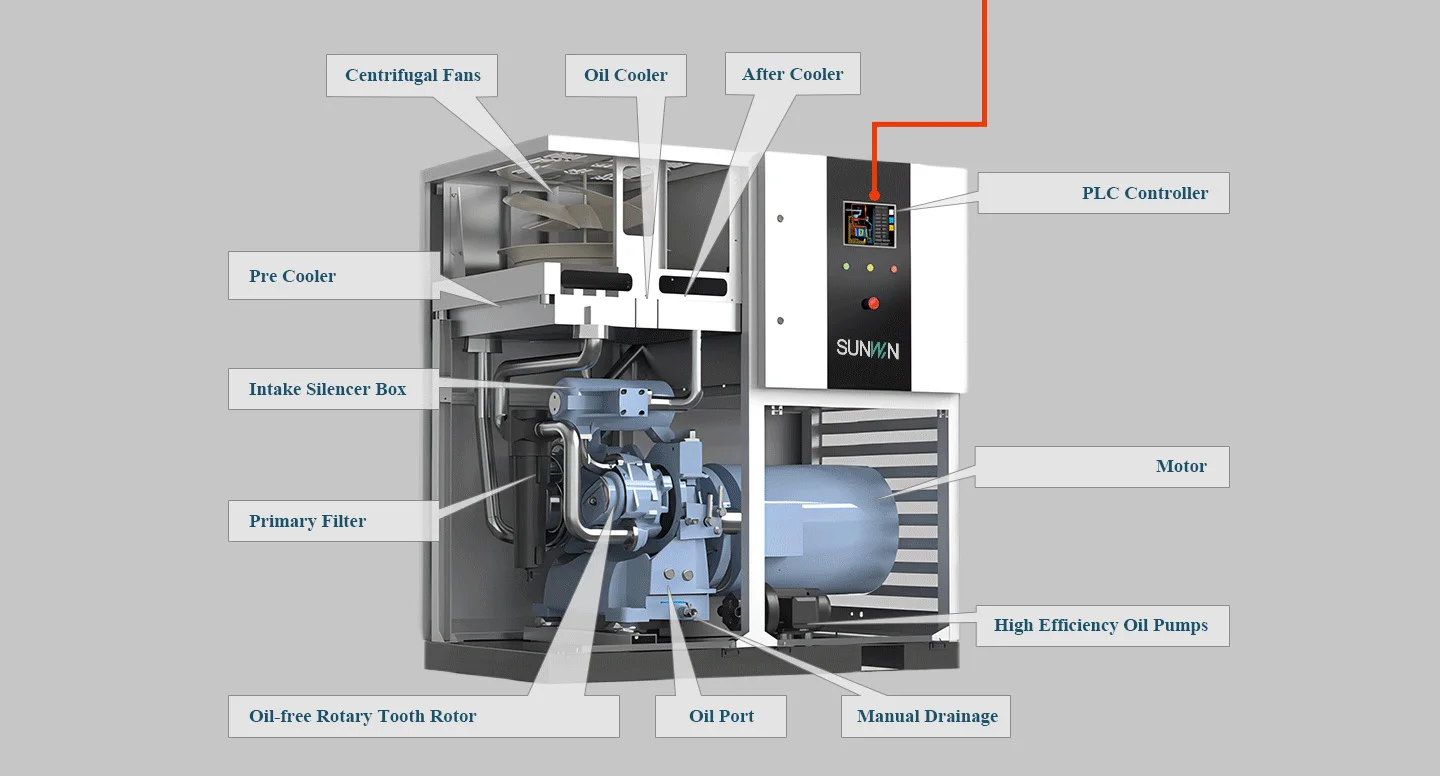

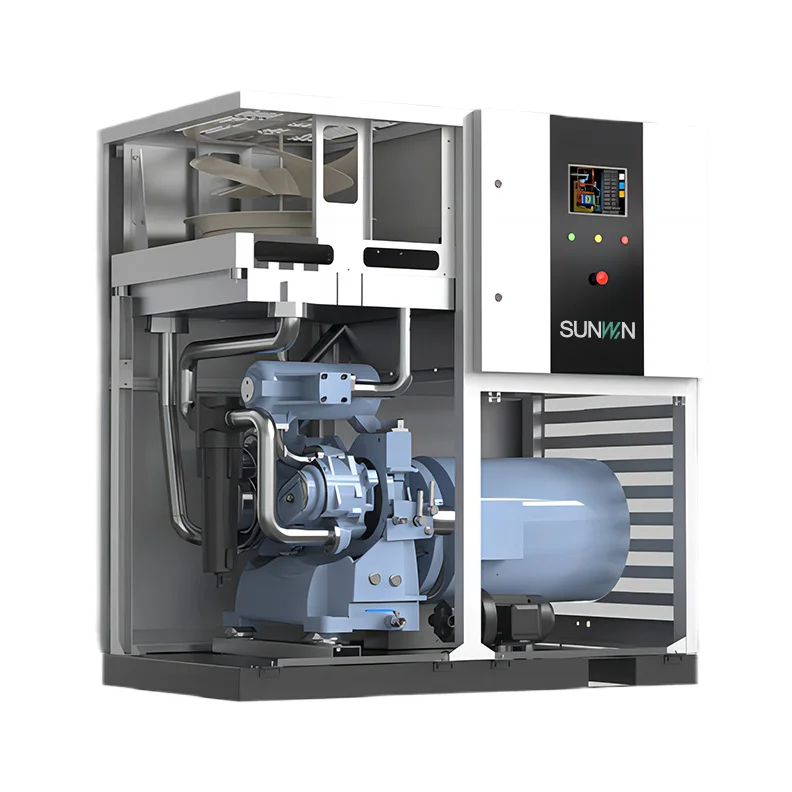

Intermediate Cooler, After Cooler, and
Oil Cooler
Oil Cooler
Horizontally layout inside the enclosure
Boosted by the acoustic resonant chamber
Greatly reduces the noise emitted by the motor and main unit
Boosted by the acoustic resonant chamber
Greatly reduces the noise emitted by the motor and main unit

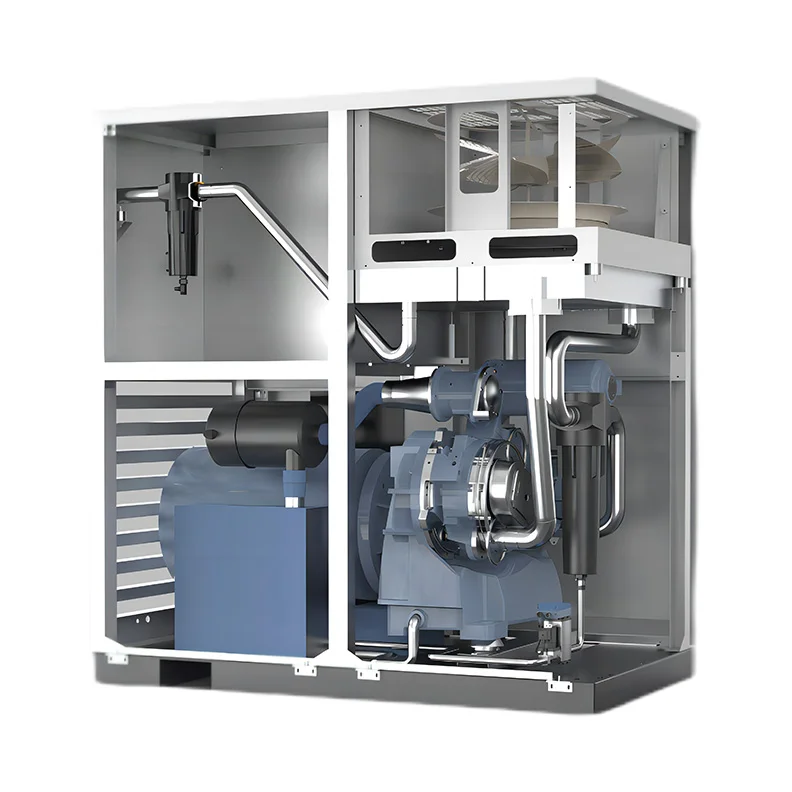

Thick Soundproof Outer Cover
Greatly reduces the high-frequency compression noise of oil-free main units and motor noise
IE-4 High-efficiency Energy-saving Motor
Precision flange installation
Reduce the transmission energy loss between the main motor and the variable speed gearbox
The main motor series adopts IP55 protection level motor
Reduce the transmission energy loss between the main motor and the variable speed gearbox
The main motor series adopts IP55 protection level motor
Cascade Two-stage Rotary Screw
Compression Main Unit
Compression Main Unit
Compared to single-stage compression main unit systems, lower energy consumption
Higher compression efficiency
Quick attainment of low-energy consumption operating conditions during unloading
Higher compression efficiency
Quick attainment of low-energy consumption operating conditions during unloading
Standard-equipped Main Unit Rotor Blow-off Protection Device
All series of oil free rotary tooth compressor units are equipped with a standard main unit rotor dry gas blow-off protection
device Eliminates the risk of equipment corrosion and damage due to moisture during standby periods in the rotation cycleIntelligent Control Electrical Drive System

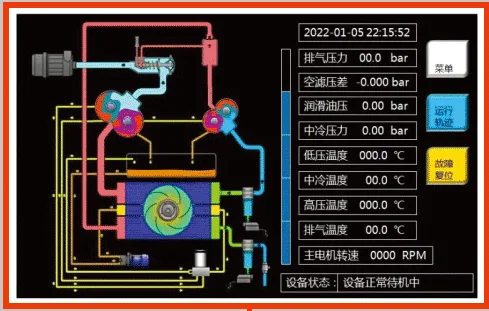

SD start-up workshop 3D system
Equipped with star-delta configuration to reduce the large impact current and mechanical parts’ rigid impact, greatly extending the lifespan of the mechanical transmission system
Equipped with star-delta configuration to reduce the large impact current and mechanical parts’ rigid impact, greatly extending the lifespan of the mechanical transmission system
Centrifugal Fan
Utilizes high-flow, low-speed centrifugal fans
While ensuring effective cooling performance of the equipment, the overall exhaust noise of the unit is greatly reduced
While ensuring effective cooling performance of the equipment, the overall exhaust noise of the unit is greatly reduced
Lubricating Oil Pump
Independent axial piston lubricating oil pump
Ensures that the bearings and gears of the main unit are protected by oil film under any operating conditions
Ensures that the bearings and gears of the main unit are protected by oil film under any operating conditions
Air Filter
Uses imported high-capacity filter cores of high-quality German technology, with a cyclone pre-filtering system to ensure 99.5%
filtration efficiency for SAE fine particle removal. SAE submicron filtration efficiency reaches 99.9%, providing long service
life, high reliability, and extended replacement cycles Supported by the inlet acoustic resonance silencer box, ensuring excellent
sound insulation and noise reduction effects
filtration efficiency for SAE fine particle removal. SAE submicron filtration efficiency reaches 99.9%, providing long service
life, high reliability, and extended replacement cycles Supported by the inlet acoustic resonance silencer box, ensuring excellent
sound insulation and noise reduction effects
Application
Technical Specification of Oil Free Rotary Tooth Compressor

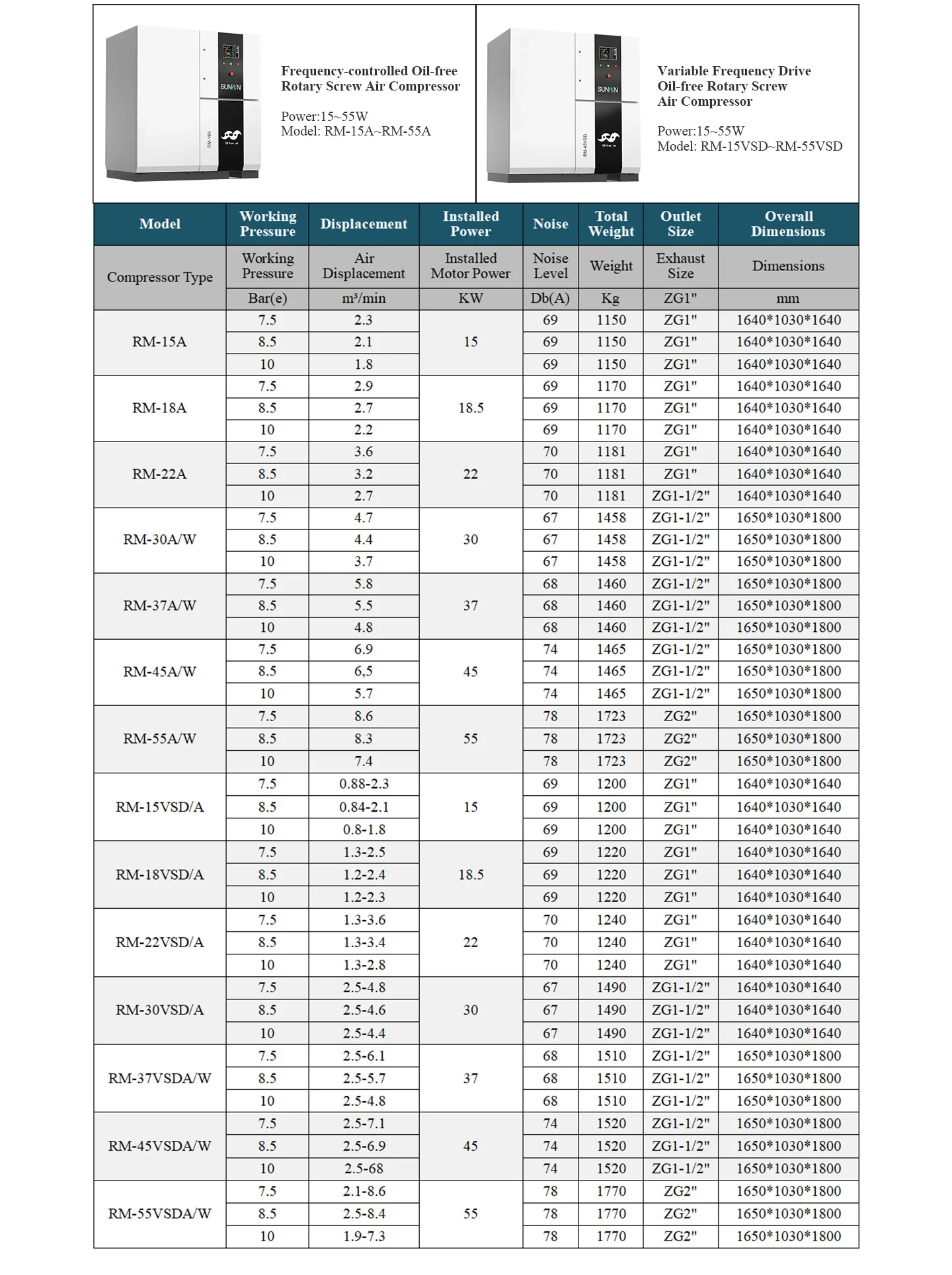

Product Parameters
Model | Working Pressure | Displacement | Installed Power | Noise | Total Weight | Outlet Size | Overall Dimensions |
Compressor Type | Working Pressure | Air Displacement | Installed Motor Power | Noise Level | Weight | Exhaust Size | Dimensions |
Bar(e) | m³/min | KW | Db(A) | Kg | ZG1" | mm | |
RM-15A | 7.5 | 2.3 | 15 | 69 | 1150 | ZG1" | 1640*1030*1640 |
8.5 | 2.1 | 69 | 1150 | ZG1" | 1640*1030*1640 | ||
10 | 1.8 | 69 | 1150 | G1" | 1640*1030*1640 | ||
RM-18A | 7.5 | 2.9 | 18.5 | 69 | 1170 | ZG1" | 1640*1030*1640 |
8.5 | 2.7 | 69 | 1170 | ZG1" | 1640*1030*1640 | ||
10 | 2.2 | 69 | 1170 | ZG1" | 1640*1030*1640 | ||
RM-22A | 7.5 | 3.6 | 22 | 70 | 1181 | ZG1" | 1640*1030*1640 |
8.5 | 3.2 | 70 | 1181 | ZG1" | 1640*1030*1640 | ||
10 | 2.7 | 70 | 1181 | ZG1-1/2" | 1640*1030*1640 | ||
RM-30A/W | 7.5 | 4.7 | 30 | 67 | 1458 | ZG1-1/2" | 1650*1030*1800 |
8.5 | 4.4 | 67 | 1458 | ZG1-1/2" | 1650*1030*1800 | ||
10 | 3.7 | 67 | 1458 | ZG1-1/2" | 1650*1030*1800 | ||
RM-37A/W | 7.5 | 5.8 | 37 | 68 | 1460 | ZG1-1/2" | 1650*1030*1800 |
8.5 | 5.5 | 68 | 1460 | ZG1-1/2" | 1650*1030*1800 | ||
10 | 4.8 | 68 | 1460 | ZG1-1/2" | 1650*1030*1800 | ||
RM-45A/W | 7.5 | 6.9 | 45 | 74 | 1465 | ZG1-1/2" | 1650*1030*1800 |
8.5 | 6.5 | 74 | 1465 | ZG1-1/2" | 1650*1030*1800 | ||
10 | 5.7 | 74 | 1465 | ZG1-1/2" | 1650*1030*1800 | ||
RM-55A/W | 7.5 | 8.6 | 55 | 78 | 1723 | ZG2" | 1650*1030*1800 |
8.5 | 8.3 | 78 | 1723 | ZG2" | 1650*1030*1800 | ||
10 | 7.4 | 78 | 1723 | ZG2" | 1650*1030*1800 | ||
RM-15VSD/A | 7.5 | 0.88-2.3 | 15 | 69 | 1200 | ZG1" | 1640*1030*1640 |
8.5 | 0.84-2.1 | 69 | 1200 | ZG1" | 1640*1030*1640 | ||
10 | 0.8-1.8 | 69 | 1200 | ZG1" | 1640*1030*1640 | ||
RM-18VSD/A | 7.5 | 1.3-2.5 | 18.5 | 69 | 1220 | ZG1" | 1640*1030*1640 |
8.5 | 1.2-2.4 | 69 | 1220 | ZG1" | 1640*1030*1640 | ||
10 | 1.2-2.3 | 69 | 1220 | ZG1" | 1640*1030*1640 | ||
RM-22VSD/A | 7.5 | 1.3-3.6 | 22 | 70 | 1240 | ZG1" | 1640*1030*1640 |
8.5 | 1.3-3.4 | 70 | 1240 | ZG1" | 1640*1030*1640 | ||
10 | 1.3-2.8 | 70 | 1240 | ZG1" | 1640*1030*1640 | ||
RM-30VSD/A | 7.5 | 2.5-4.8 | 30 | 67 | 1490 | ZG1-1/2" | 1640*1030*1640 |
8.5 | 2.5-4.6 | 67 | 1490 | ZG1-1/2" | 1640*1030*1640 | ||
10 | 2.5-4.4 | 67 | 1490 | ZG1-1/2" | 1640*1030*1640 | ||
RM-37VSDA/W | 7.5 | 2.5-6.1 | 37 | 68 | 1510 | ZG1-1/2" | 1650*1030*1800 |
8.5 | 2.5-5.7 | 68 | 1510 | ZG1-1/2" | 1650*1030*1800 | ||
10 | 2.5-4.8 | 68 | 1510 | ZG1-1/2" | 1650*1030*1800 | ||
RM-45VSDA/W | 7.5 | 2.5-7.1 | 45 | 74 | 1520 | ZG1-1/2" | 1650*1030*1800 |
8.5 | 2.5-6.9 | 74 | 1520 | ZG1-1/2" | 1650*1030*1800 | ||
10 | 2.5-6.8 | 74 | 1520 | ZG1-1/2" | 1650*1030*1800 | ||
RM-55VSDA/W | 7.5 | 2.1-8.6 | 55 | 78 | 1770 | ZG2" | 1650*1030*1800 |
8.5 | 2.5-8.4 | 78 | 1770 | ZG2" | 1650*1030*1800 | ||
10 | 1.9-7.3 | 78 | 1770 | ZG2" | 1650*1030*1800 |
