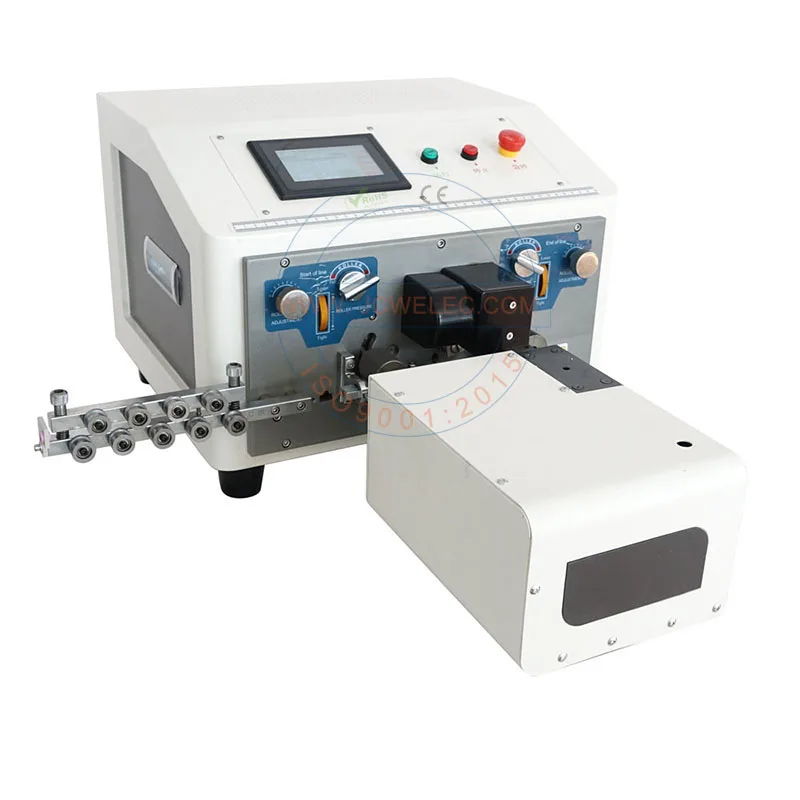

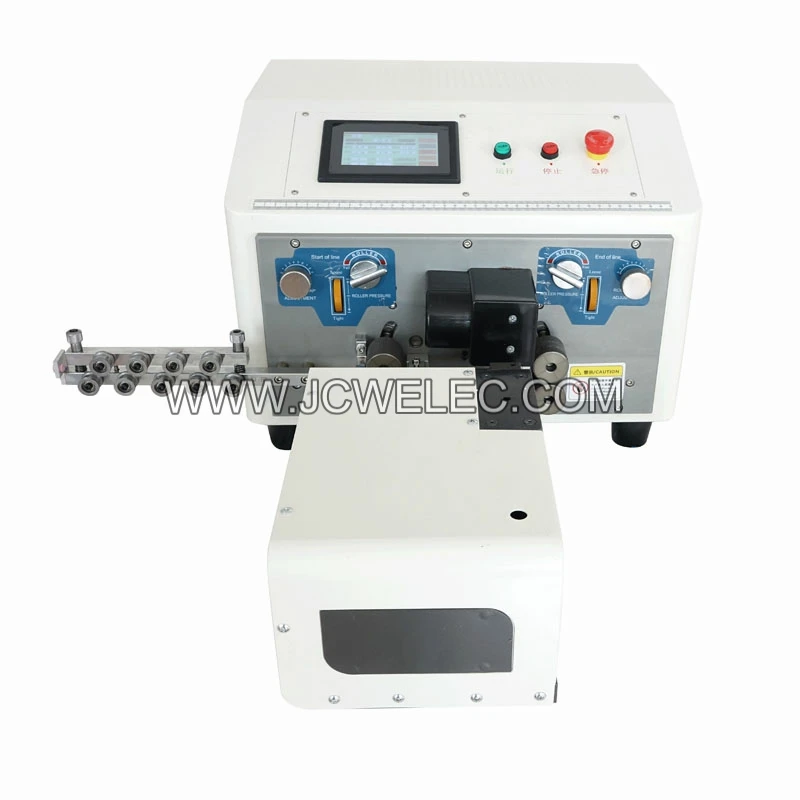

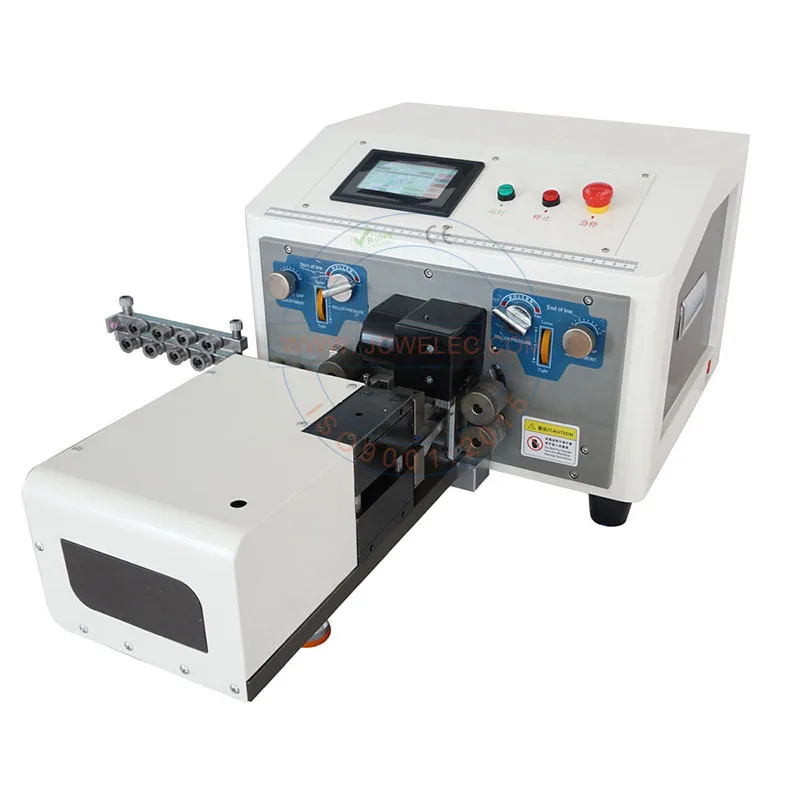

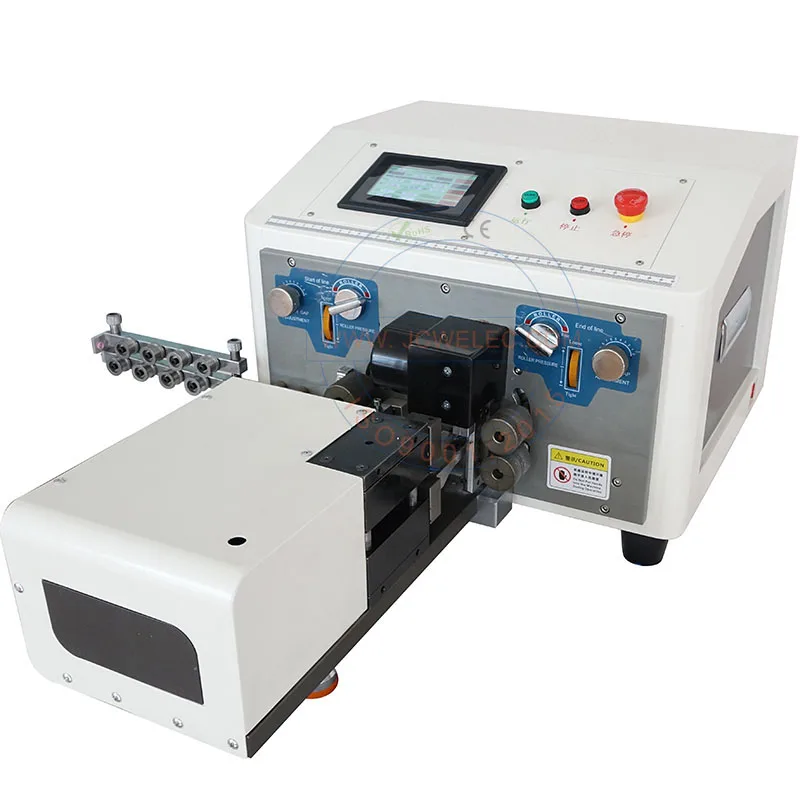

JCW CS14 Data Cable Making Machine Electric Wire Cable Making Machine
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1601204682477):
Product Overview
Description
Model | JCW-CS14 Automatic Multi-core Cable Cutting Stripping and Twisting Machine |
Function | Flat multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Outer jacket stripping, Inner core stripping, Wire twisting, Twist force |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Cable size | 2 - 7 mm in width |
Cutting length ( L ) | 0.1 - 999999 mm |
Cutting length accuracy | 0.002 x L |
Multi-core cable | Round |
Outer jacket stripping length | Leading ( right ) side: 80 mm [ partial stripping ] Trailing ( left ) side: 50 mm [ partial stripping ] |
Inner core stripping length | 30 mm at dual-ends |
Production rate | 1000 pcs/h by 100mm wire length |
Compatible peripherals | Cable unwinder |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | Machine: L 460 x W 780 x H 350 mm Wire straightener: 250mm |
Weight | 47 KG |
Specialist in processing multicore cable

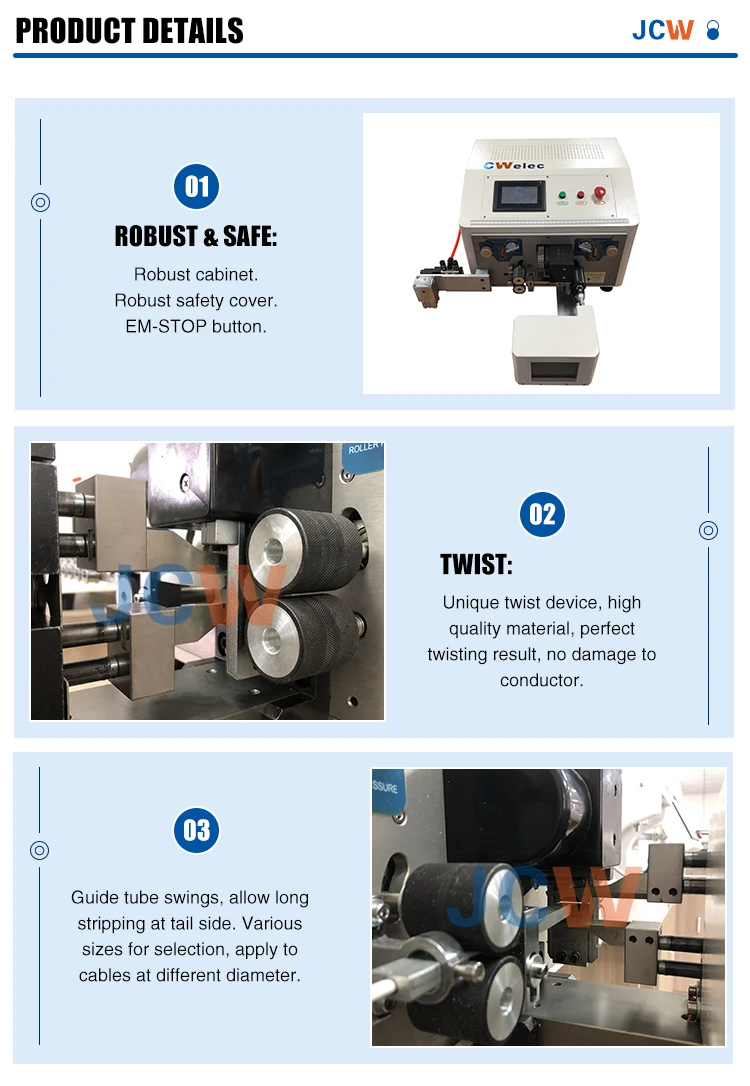

The JCW-CS14 is a fully programmable bench-top cut & strip machine for processing 2 cores flat multicore cable up to 7 mm in width, it perfectly cut and strip both of outer jacket and inner cores, and twist conductors at one time. All of the parameters such as wire cutting length, stripping length, twisting length, etc. can be accurately entered and stored for future recall at anytime. The JCW-CS14 cut & strip machine adopts high torque stepper motors, robust twisting station.
Easy to use
Each of the JCW-CS14 cutting and stripping machine comes with an English display, the display language is customizable.
User-friendly interface and color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- Data library saves 100 programs, you can name each one by a wish.
- Automatic one-touch calibration function for cutting length.
- Quickly change guide tubes and cutter blades.
The JCW-CS14 is a fully programmable bench-top cut & strip machine for processing 2 cores flat multicore cable up to 7 mm in width, it perfectly cut and strip both of outer jacket and inner cores, and twist conductors at one time. All of the parameters such as wire cutting length, stripping length, twisting length, etc. can be accurately entered and stored for future recall at anytime. The JCW-CS14 cut & strip machine adopts high torque stepper motors, robust twisting station.
Easy to use
Each of the JCW-CS14 cutting and stripping machine comes with an English display, the display language is customizable.
User-friendly interface and color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- Data library saves 100 programs, you can name each one by a wish.
- Automatic one-touch calibration function for cutting length.
- Quickly change guide tubes and cutter blades.
Q1: Are you a factory or a trading company?
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
Q3:Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
