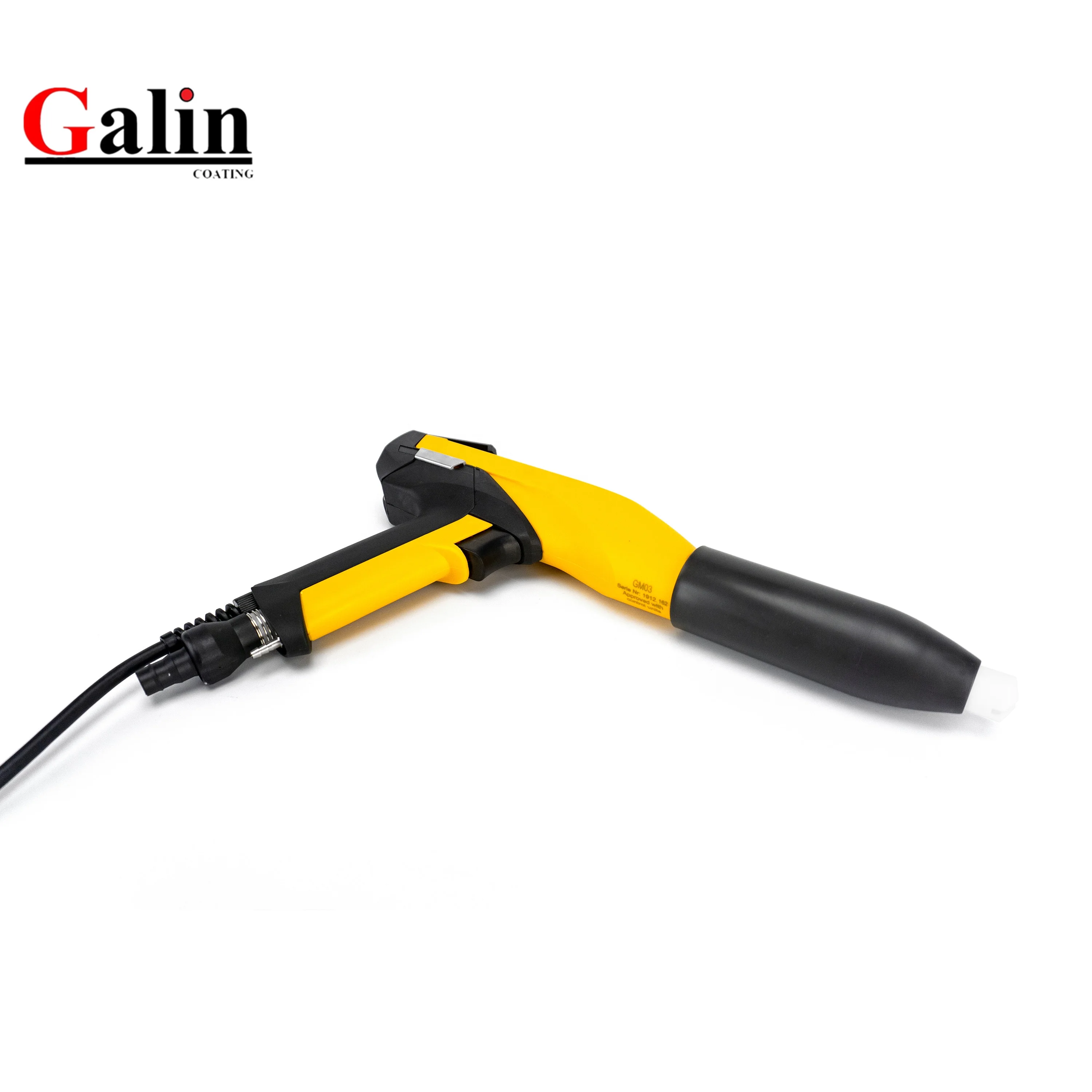

Gema optiflex gun GM03 price for powder coating machine
- Category: >>>
- Supplier: Weifang Galin Powder Coating Equipment Co. Ltd.
Share on (1601204752820):
Product Overview
Description
DETAILS IMAGES
High Powder Output Rate: Experience exceptional powder output efficiency with our advanced powder coating gun. Achieve high throughput and superior coverage, ensuring optimal material utilization and reduced application time. Enhance productivity with rapid and consistent powder delivery, perfect for industrial applications requiring efficient powder coating solutions.

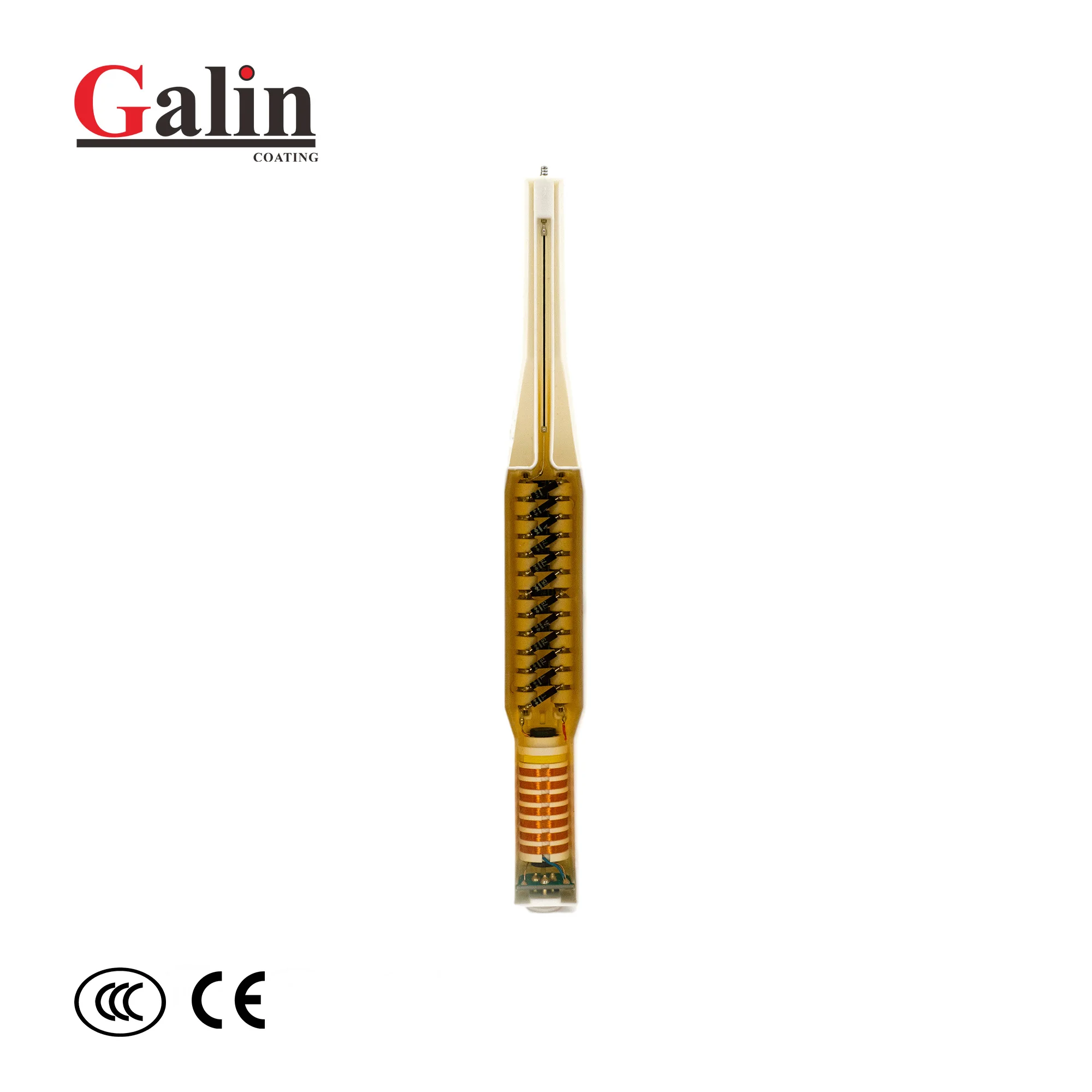

High-Precision Atomization Function: Built-in high-quality cascade.The sprayed powder is very fine and does not produce particles. Not only the quality is guaranteed but also the aesthetics is enhanced.It can not only effectively prevent corrosion and extend the service life of metal devices,but also looks very beautiful.
Adjustable Nozzle Types: Equipped with various types of nozzles, the spraying area can be adjusted arbitrarily, and it can perfectly handle both flat metal
and irregularly shaped metal.
Unique design: Professional ergonomic design, it feels very good to hold and you won't feel tired even after long-term use.
High-Precision Atomization Function: Built-in high-quality cascade.The sprayed powder is very fine and does not produce particles. Not only the quality is guaranteed but also the aesthetics is enhanced.It can not only effectively prevent corrosion and extend the service life of metal devices,but also looks very beautiful.
Adjustable Nozzle Types: Equipped with various types of nozzles, the spraying area can be adjusted arbitrarily, and it can perfectly handle both flat metal
and irregularly shaped metal.
Unique design: Professional ergonomic design, it feels very good to hold and you won't feel tired even after long-term use.
TECHNICAL DATA
Nominal input voltage | eff.10V |
Frequency | 18khz (average) |
Max. surface temperature | 85 °C (+185 °F) |
Nominal output voltage | 100kV |
Polarity | negative(optional positive) |
Max. output current | 100 µA |
Temperature range | 0 °C - +40 °C (+32 °F - +104 °F) |

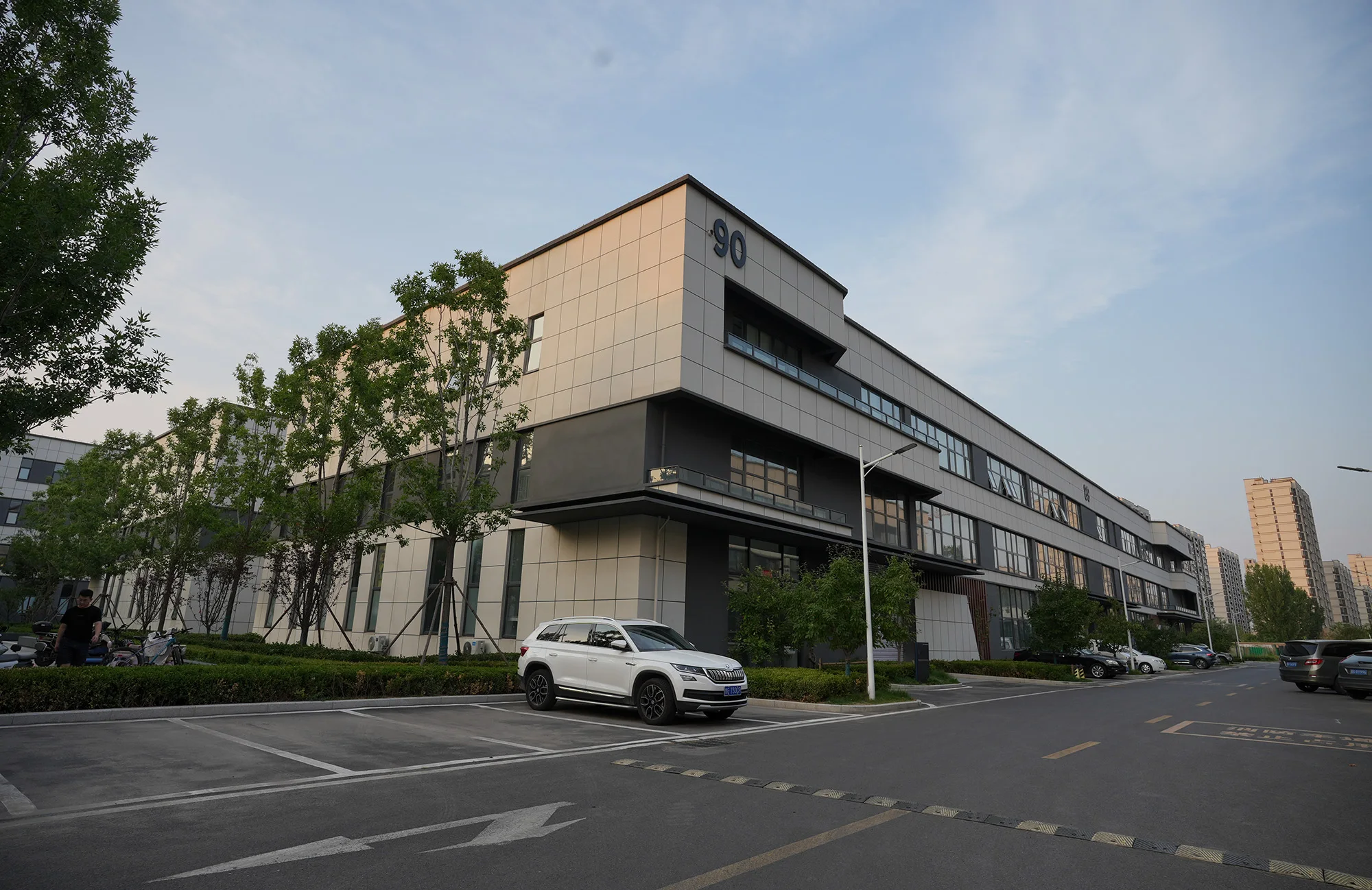

COMPANY PROFILE
Weifang Galin Powder Coating Equipment CO., LTD
Thank you very much for your interest in our company's products. We specialize in the production of powder coating equipment and related spare parts. In addition to our own brand Galin, we can also produce the parts you need,like Gema,Nordson, powder coating,gun shell,nozzle,cascade,injector,,extension and so on.
Our company's purpose is to provide customers with "low cost, high quality" equipment, so we guarantee to provide you with the lowest price plan. I hope you can contact us through the chat window, I will answer you online 24 hours a day and give you a additional discounts.

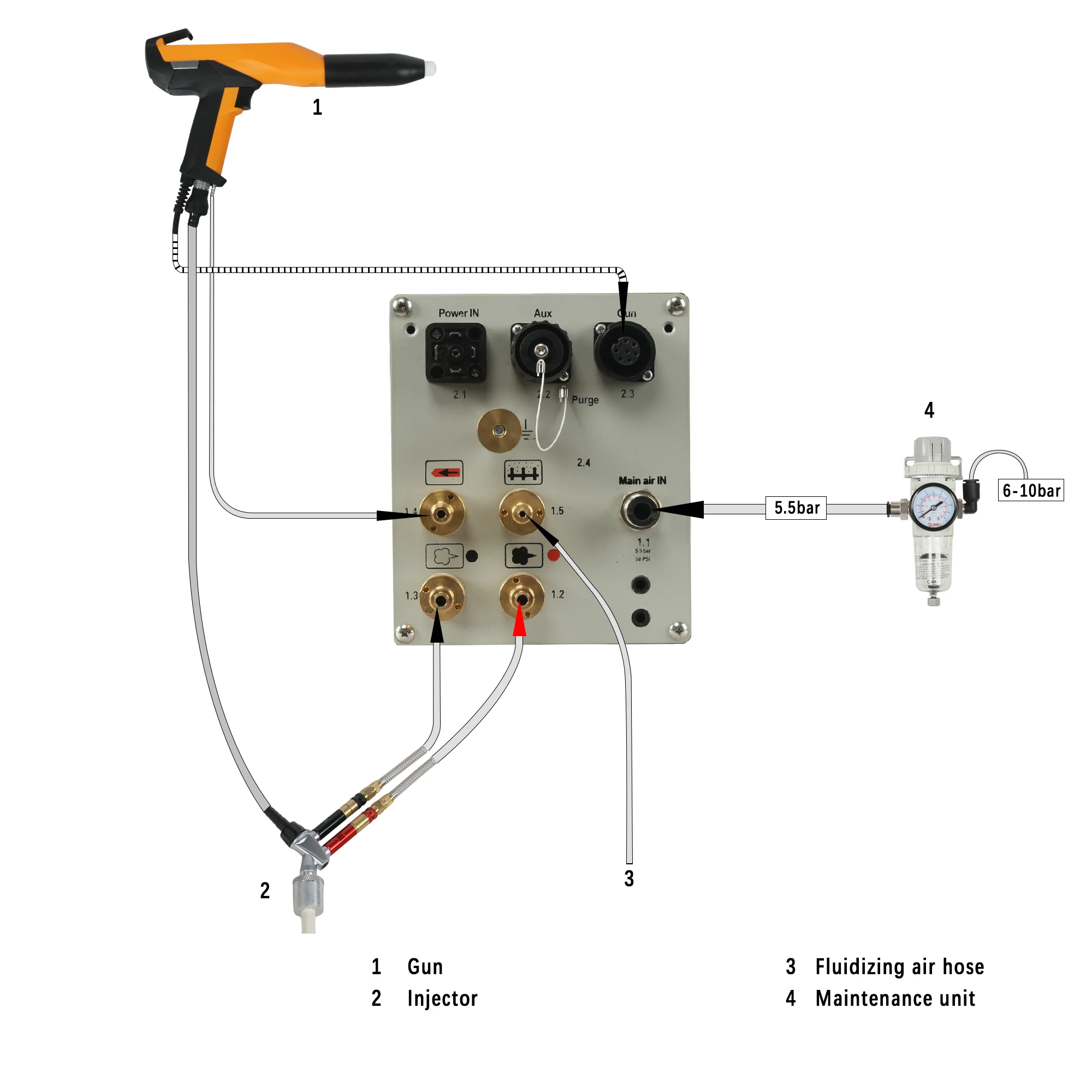

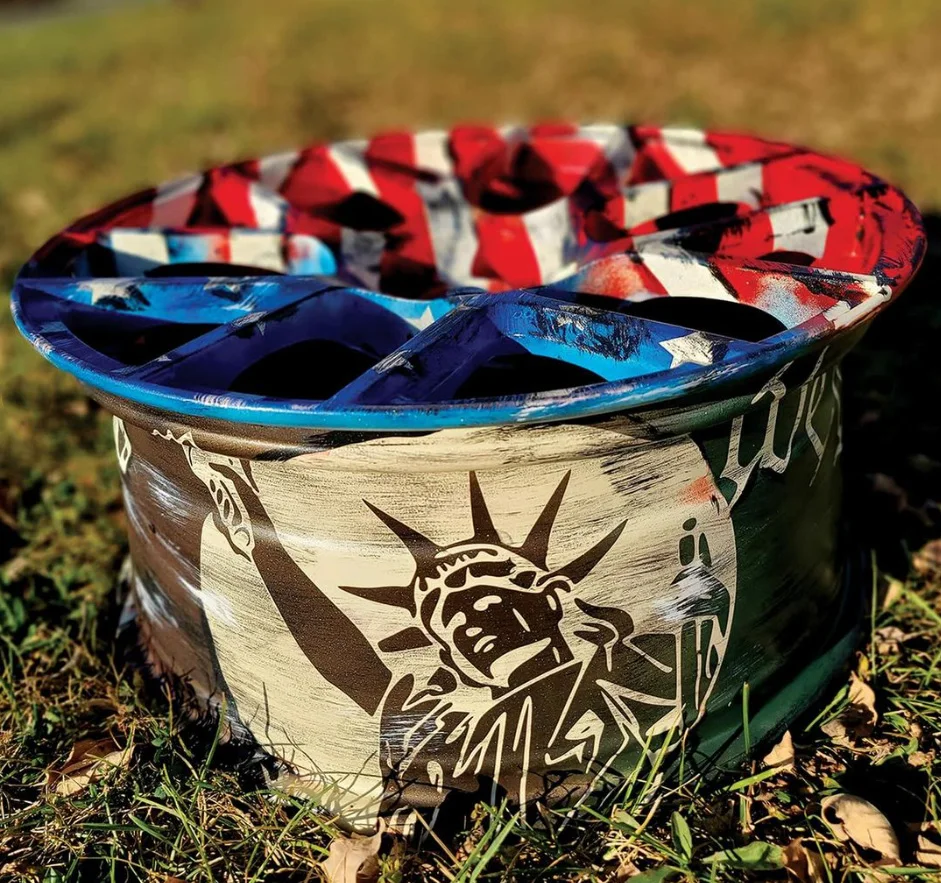

APPLICATION SCENARIO

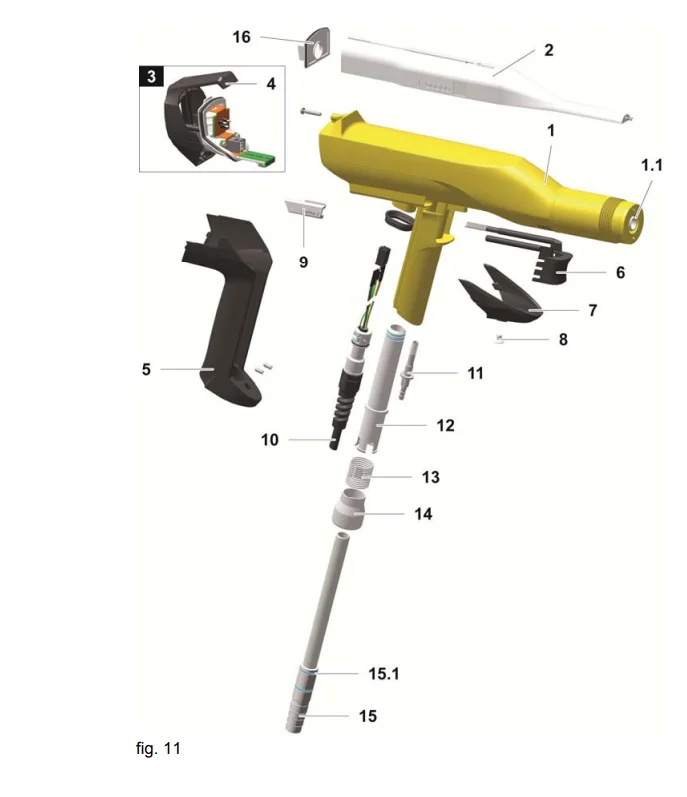

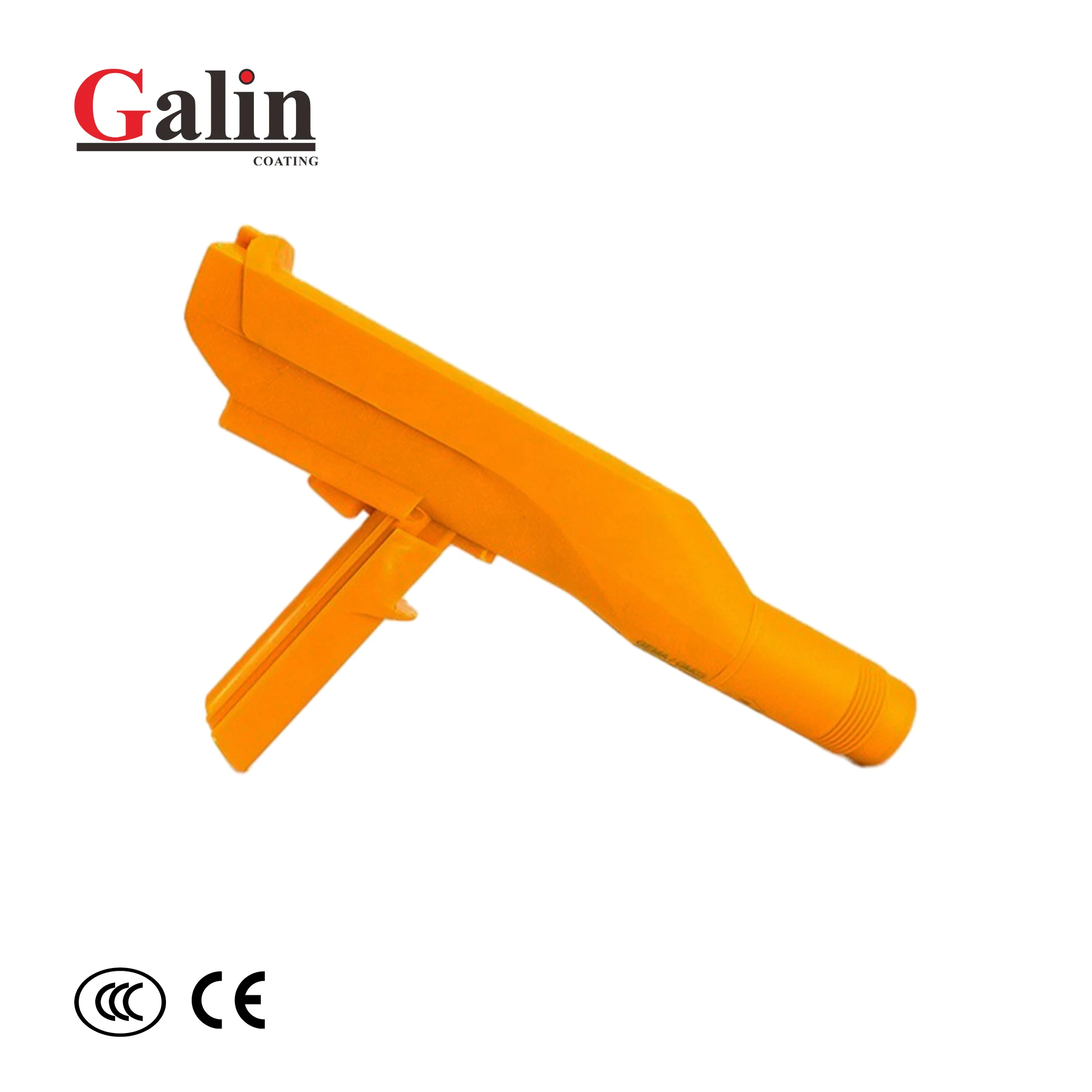

Galin GM03 – gun body | ||||
1 | Gun body (without pos. 1.1) | 1012 530 | ||
1.1 | Powder tube | 1012 527 # | ||
2 | Cascade – complete, negative polarity | 1007 231 | ||
3 | Print holder – complete | 1007 216 | ||
4 | End plate with hook | 1007 217 | ||
5 | Grip end plate – complete | 1007 961 | ||
6 | Gun trigger – complete | 1007 213 | ||
7 | Trigger cover | 1007 212 | ||
8 | Countersunk-head screw – M4x6 mm | 1000 845 | ||
9 | SuperCorona connection | 1007 238 | ||
10 | Gun cable 2 m – complete | 1007 963 | ||
Gun cable 6 m – complete | 1007 964 | |||
Gun cable 12 m – complete | 1007 965 | |||
11 | Electrode rinsing air connection | 1000 804 | ||
12 | Powder tube – complete | 1012 539 # | ||
13 | Compression spring | 1001 488 | ||
14 | Clip ring | 1007 960 | ||
15 | Hose connection – Ø 11-12 mm, complete (incl. pos 15.1) | 1012 537 # | ||
15.1 | O-ring for pos. 15 | 1000 822 # | ||
16 | Cascade space gasket | 1007 635# | ||
# Wearing part | ||||
FAQ
1)Q: How to delivery?
A: By sea for big order ,by courier for small order.
2)Q:how can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
3)Q: What about the warranty time?
A: One year for main parts (not including the wearing parts.)
4)Q: What is the delivery time?
A: For powder coating parts or powder coating machines, normally 1-3 working days. For standard powder coating booths and ovens, normally 7-15 working days.powder coat For custom powder coating systems or lines, normally 20-40 working days.
5)Q:What should I do if I don't know how to install it?
A:If you encounter any problems during the installation process, you can contact our sales staff at any time. 24-hour service for you.
2)Q:how can we guarantee quality?
A:Always a pre-production sample before mass production;Always final Inspection before shipment.
3)Q: What about the warranty time?
A: One year for main parts (not including the wearing parts.)
4)Q: What is the delivery time?
A: For powder coating parts or powder coating machines, normally 1-3 working days. For standard powder coating booths and ovens, normally 7-15 working days.powder coat For custom powder coating systems or lines, normally 20-40 working days.
5)Q:What should I do if I don't know how to install it?
A:If you encounter any problems during the installation process, you can contact our sales staff at any time. 24-hour service for you.
