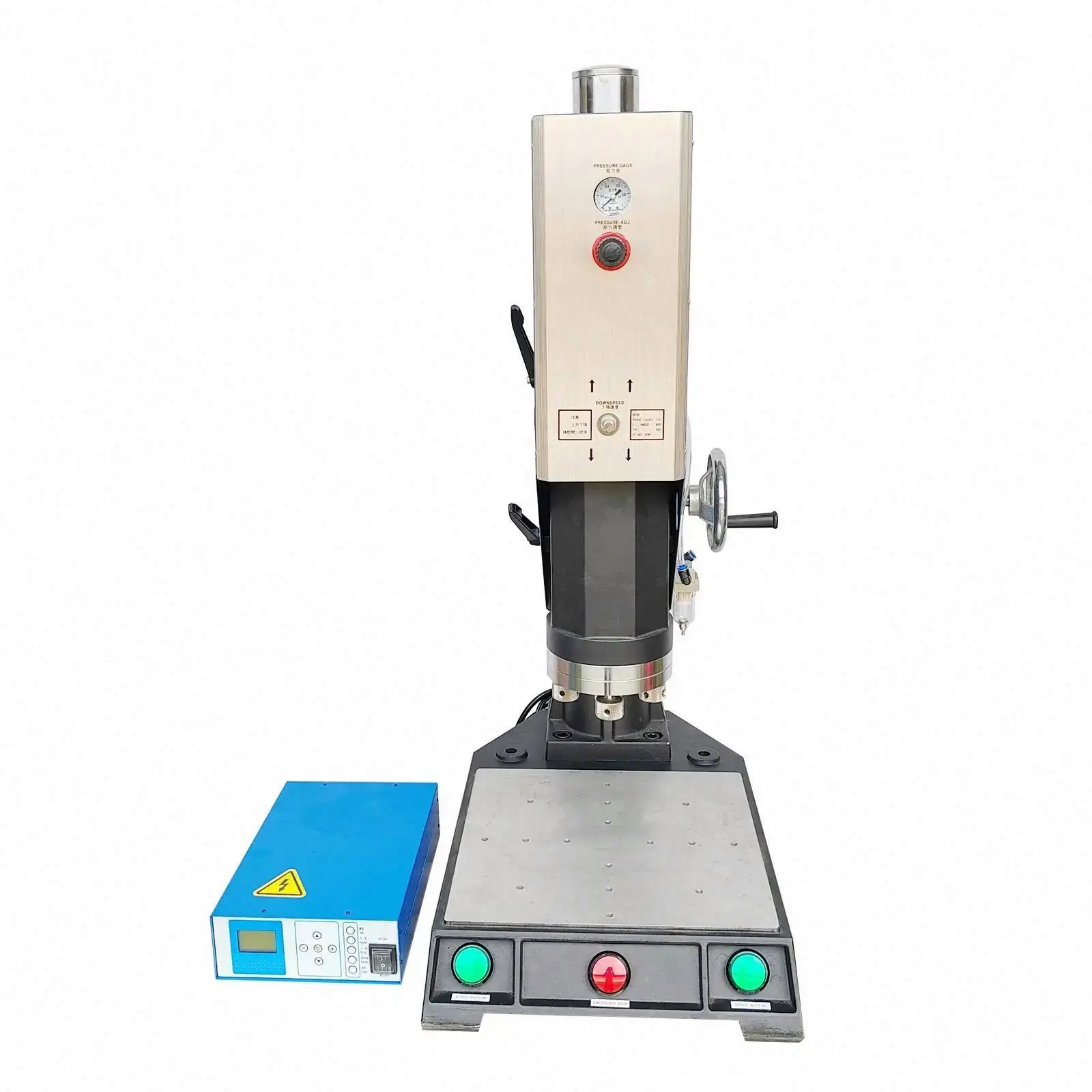

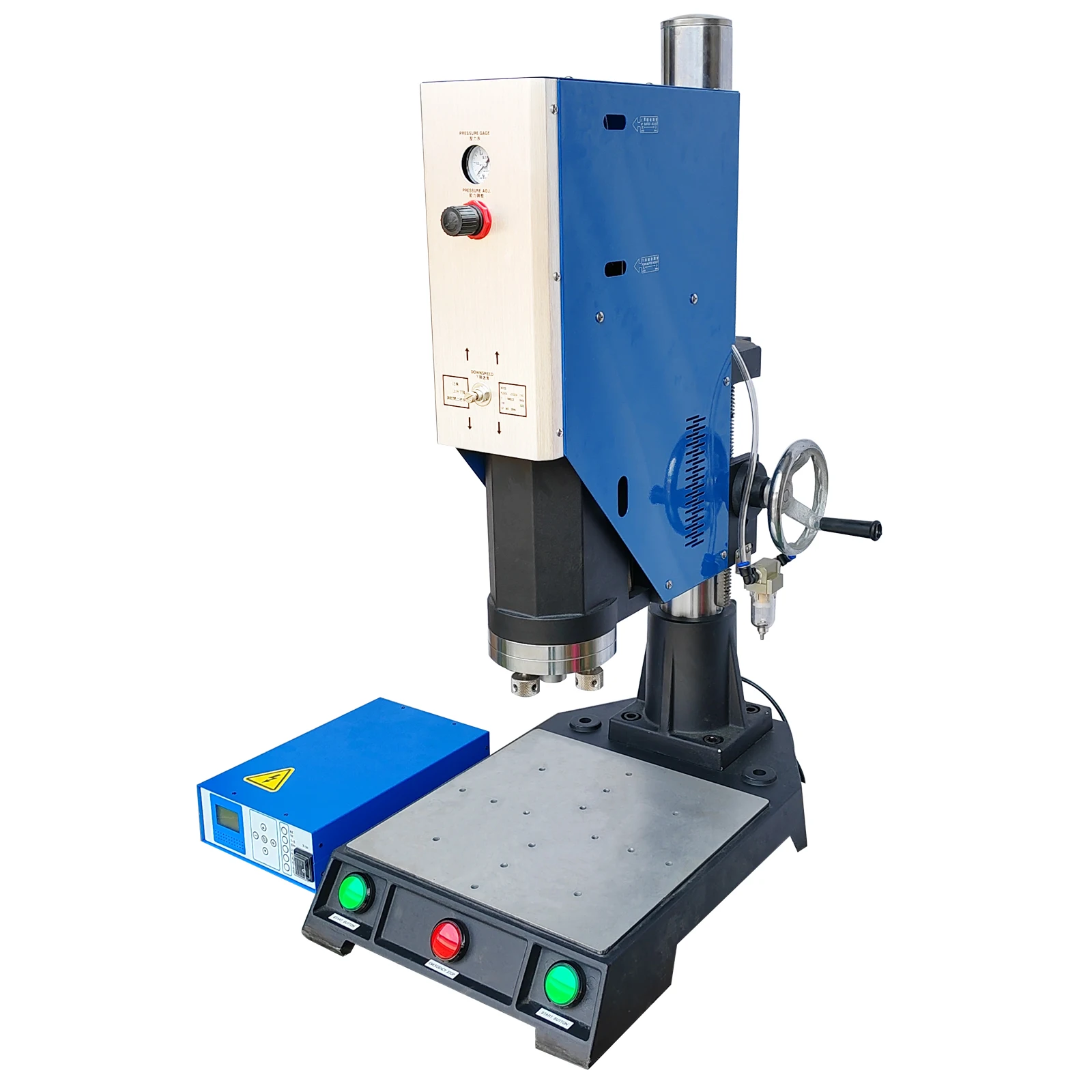

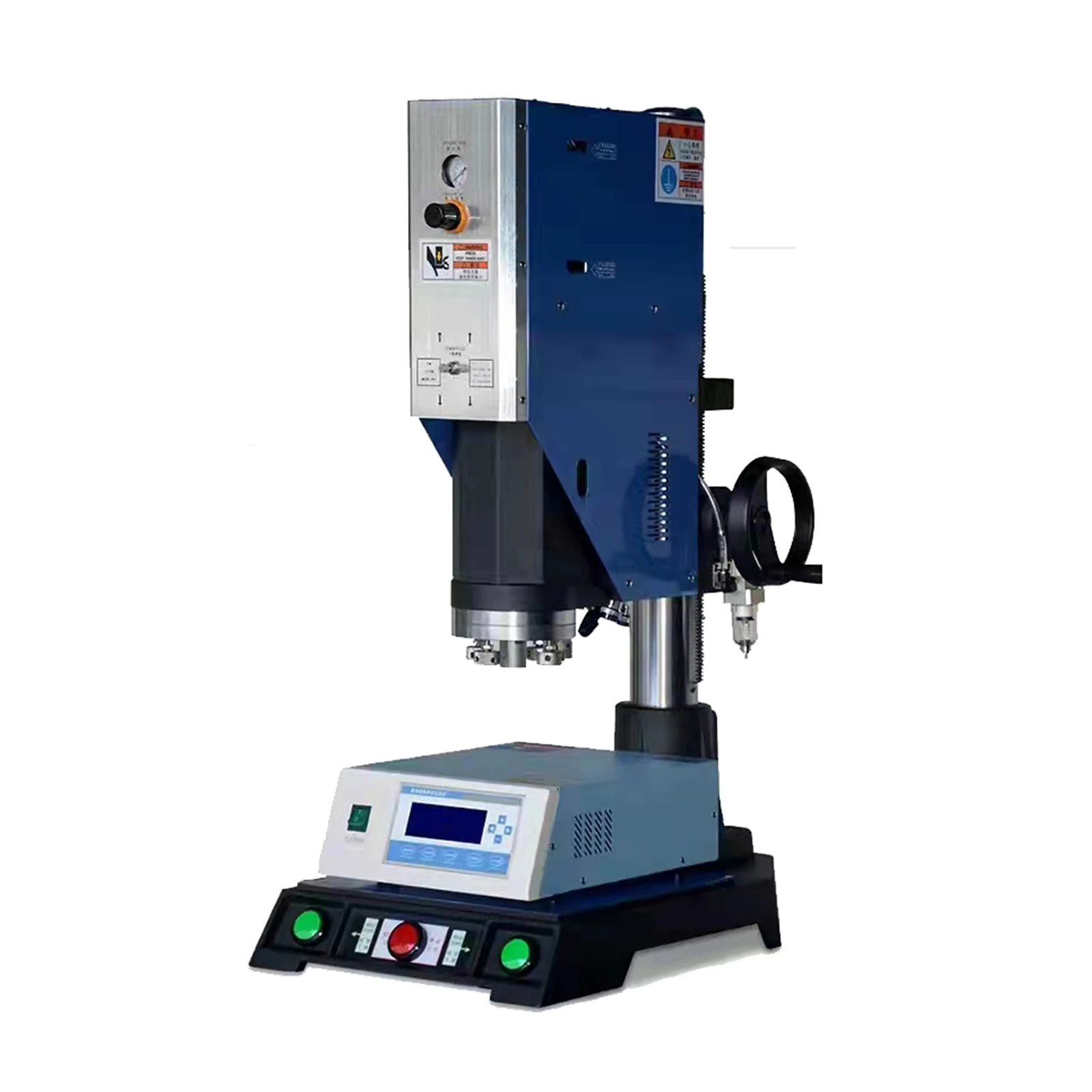

Automatic Ultrasonic plastic welder welding machine Equipment for PSA grading card slab coins case

Share on (1601204859166):


Price:$1,200.00 - $1,480.00

Quantity:


Product Overview

Description



Product Description












Features:
1. The automatic frequency modulation function enables the ultrasonic generator to automatically track and compensate the frequency change of the welding head.When the temperature is too high, if there are wear or foreign matter on the surface of welding head, this frequency change will occur.
2. Built-in automatic constant-amplitude system, automatic compensation for different air pressure changes and voltage fluctuations, stepless adjustment of ultrasonic amplitude from 50% to 100%, to meet the requirements of different welding workpieces.
3. Using IGBT for power amplification, the reaction is fast, which is more than 100 times faster than the traditional silicon power tube, so the protection function is better.
4, Fast welding speed, welding of high strength, good sealing,
5. To replace the traditional welding/bonding process, low cost, clean pollution-free and does not damage the work piece;
6. stable welding process, easy operation, easy maintenance.
7. light, free of load when all have resonance, do not need to adjust the welding head frequency.
8. aluminum/titanium radial pole, sonic, strong stability.
9.Machine is equipped with Airtac cylinders and Airtac magnetic valves, stable performance.

Application:

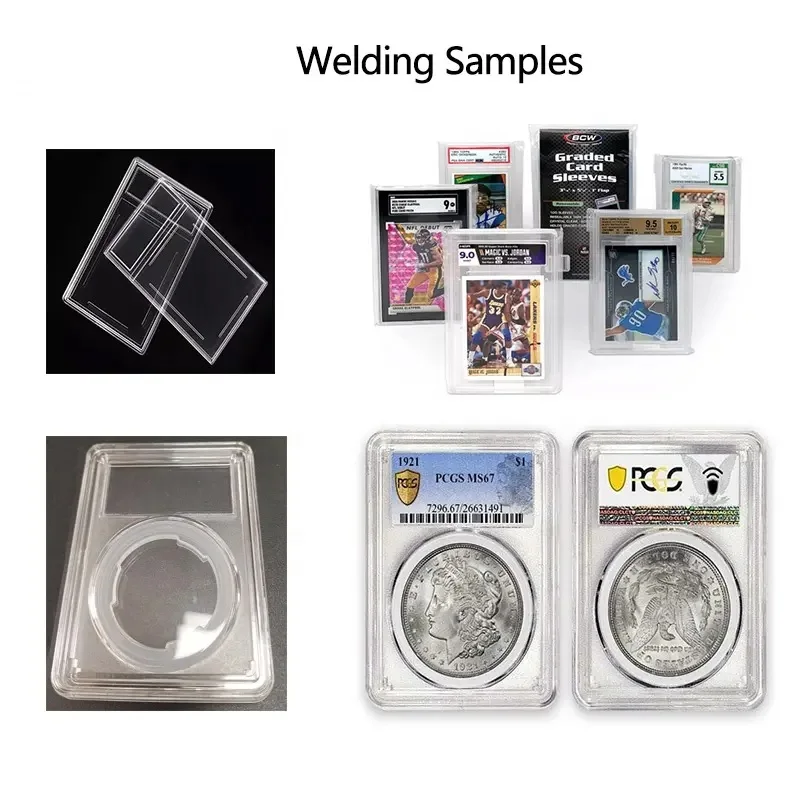

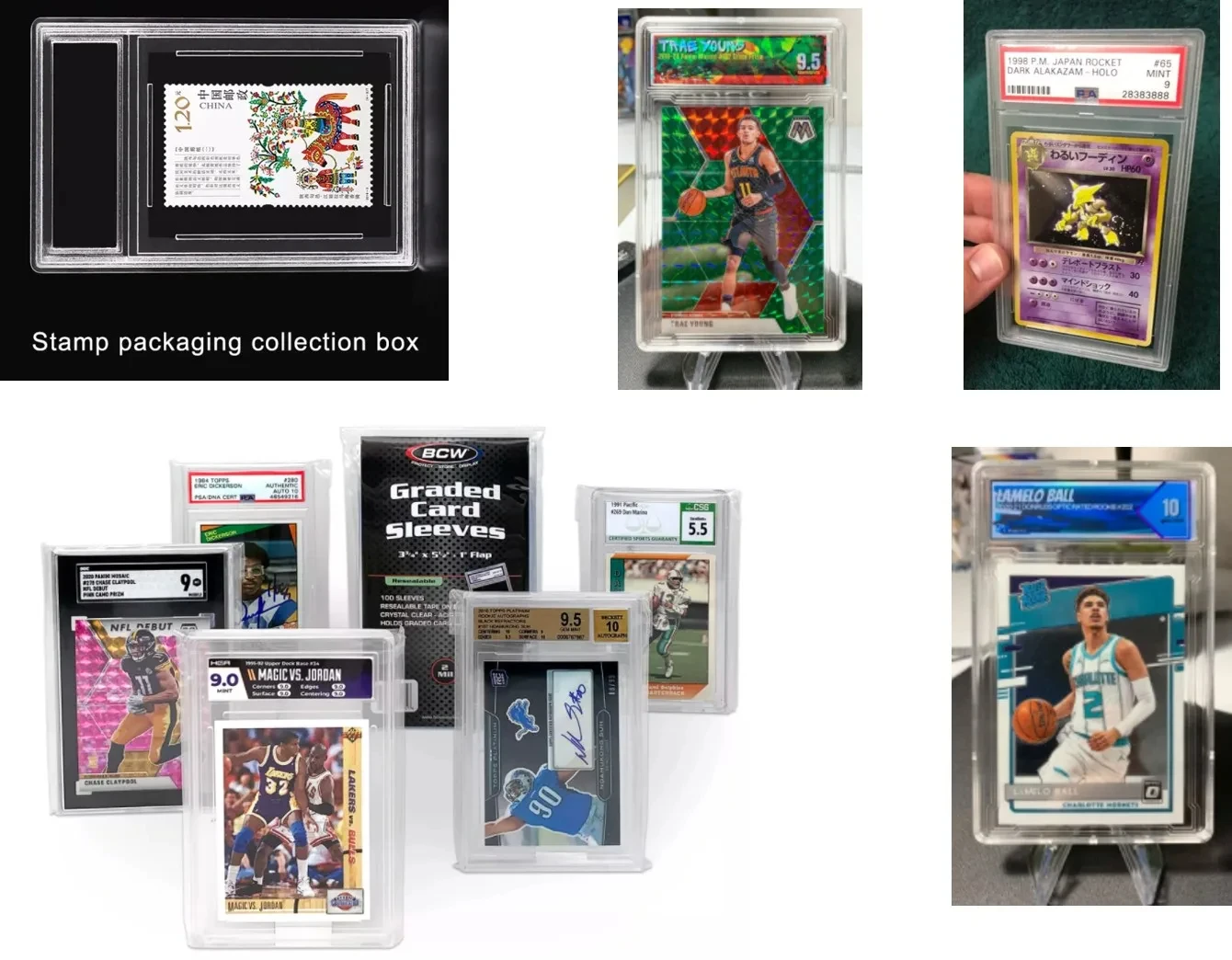

Applicable to ABS, PC, PE, PP, PS, PVC, SAM, acrylic, cellulose, nylon, etc.Widely used in automotive industry, electronic industry, medical industry, household appliances industry, no cloth clothing, office supplies, packaging industry, toy industry, etc.Below with mold/horn and samples for reference.


Machine Parameter


Model
2020W
Power supply
AC220V 50Hz
Power
2000W
Frequency
20KHz
Horn journey
75mm
Delay time
0.00--9.99s
Welding time
0.00--9.99s
Cooling time
0.00--9.99s
Net weight
70KG
Machine size
430*650*980mm
