Split pressurized open loop flat plate solar water heater collector system for house domestic hot water 150 500 liters
Split pressurized open loop flat plate solar water heater collector system for house domestic hot water 150-500 liters
Split pressurized open loop flat plate solar water heater collector system for house domestic hot water 150-500 liters
Split pressurized open loop flat plate solar water heater collector system for house domestic hot water 150-500 liters

Split pressurized open loop flat plate solar water heater collector system for house domestic hot water 150 500 liters

Share on (1601204867807):


Price:$500.00

Quantity:


Product Overview

Description

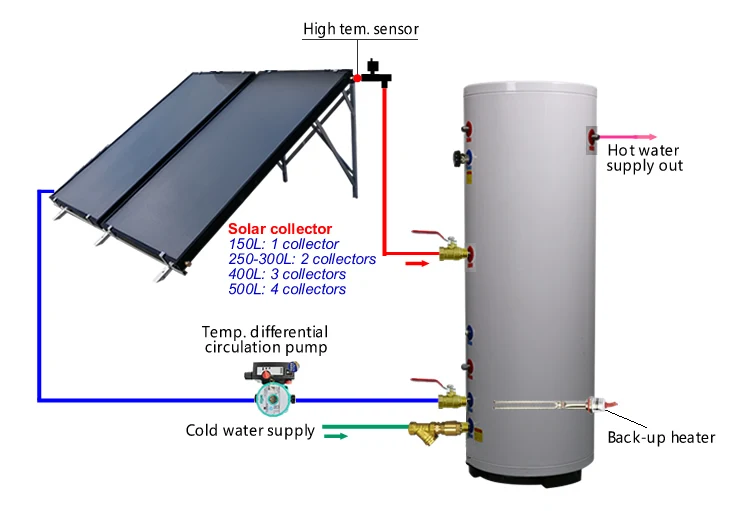

SOLARSHINE split systems provide an effective way to get hot water from the sun. Equipped with high-efficiency collectors, intelligent system controller or working station, and pressurized water tanks, our split systems are always smart choices for harvesting hot water from the sun and saving our heating cost.






IMG_20190622_165108







.jp588g





Features:


·System capacity available: 150L/200L/250L/300L/400L.

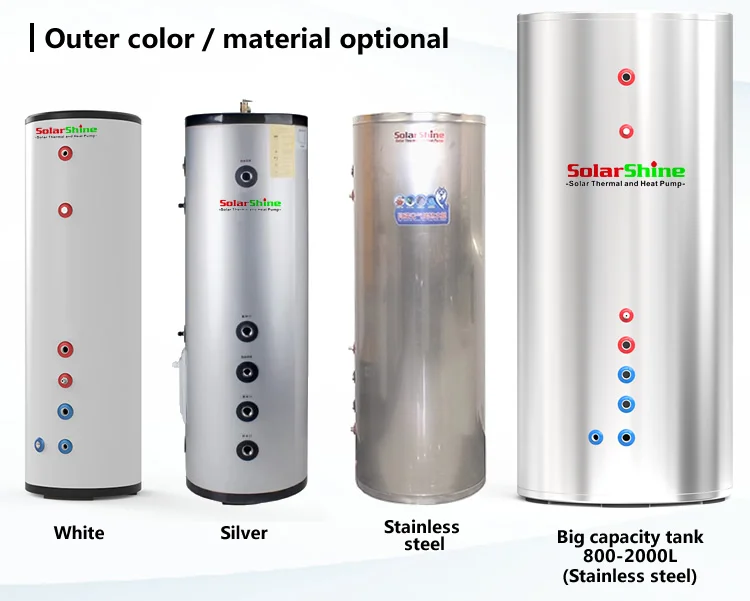

·Equipped with pressurized water storage tanks (cylinders) with  elegant and safe design.
·Water tank inner is made of SUS304 high grade stainless steel.
· Strong mounting support bracket.


·Easy installation and maintenance.
·Full automatic temperature differential control system.
·Automatic start / stop auxiliary electric heater under preset timing and temperature level.
·With electric heater in water tank, ensure adequate hot water supplying at cloudy or rainy days.


1

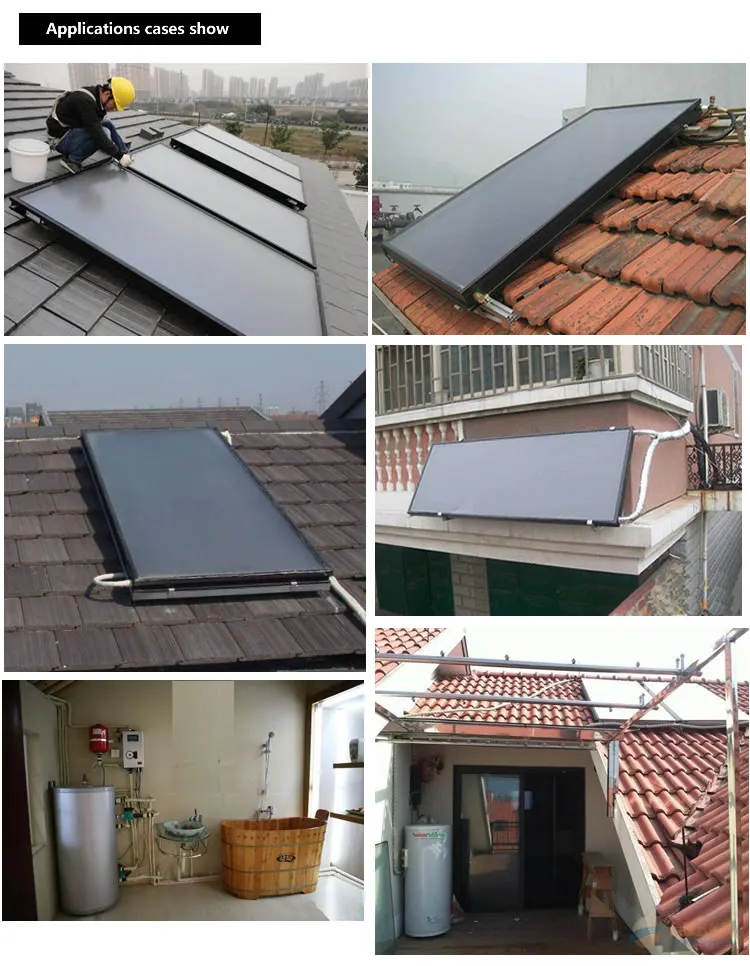

case show






SPECIFICATION AND PRICE QUOTATION











































































































PART



Model



PB-OS-150-2.0



PB-OS-200-2.4



CS-250-4.0



CS-300-4.0



CS-400-6.0



1. Storage


Tank



Capacity



150 Liters



200 Liters



250 Liters



300 Liters



400 Liters



 Ext. Size(mm)



Φ470x 1545



Φ520x 1545



Φ560 x 1625



Φ560 x 1925



Φ700 x 1625



Inner material



SUS304 2B


1.2mm



SUS304 2B


1.5mm



SUS304 2B


 1.5mm



SUS304 2B


1.5mm



SUS3042B 1.8mm



Heat


Exchanger


Coil



N/A



Tank out cover material



White color anti-rust painting



Insulation



High density polyurethane

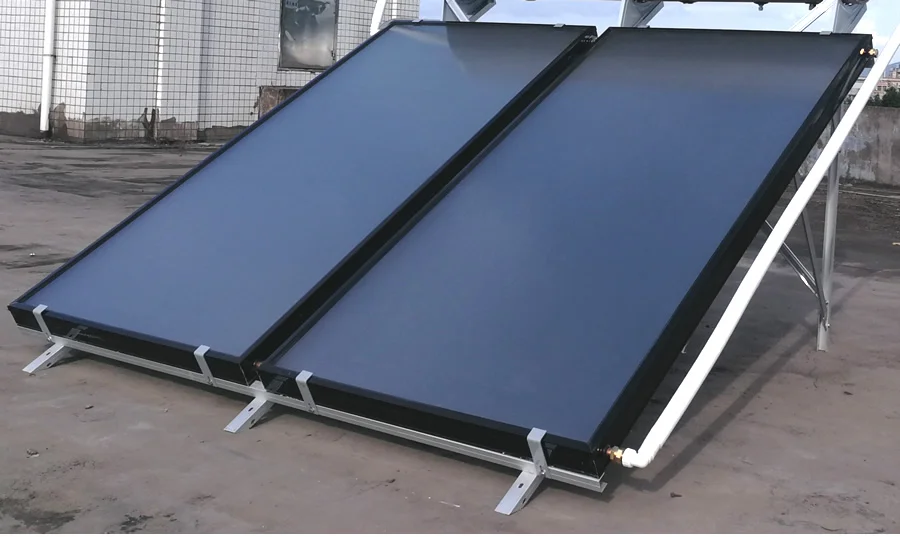

2. Solar Collector


(2 model options)

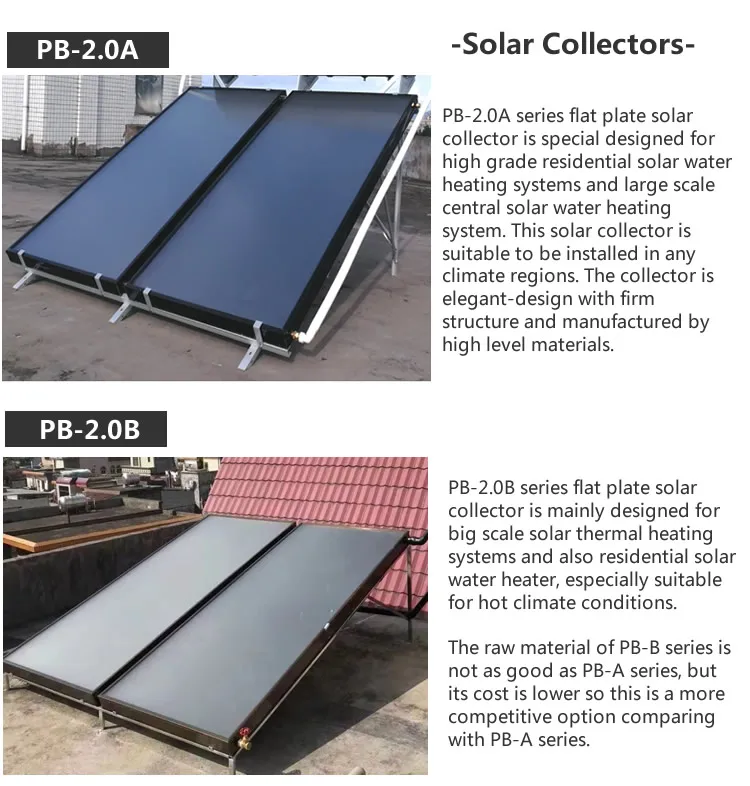

Collector Model*



PB-2.0A


PB-2.0B



PB-2.4A



PB-2.0A


PB-2.0B



Collector Size(mm)



A:2000x1000x80


B:2000x1000x70



2000x1200x80



A:2000x1000x80


B:2000x1000x70



Collector quantity



1 x 2.0M2



1 x 2.4M2



2 x 2M2



3 x 2M2



Total Collector Area



2.0M2



2.4M2



4M2



6 M2



3. Controller and pump

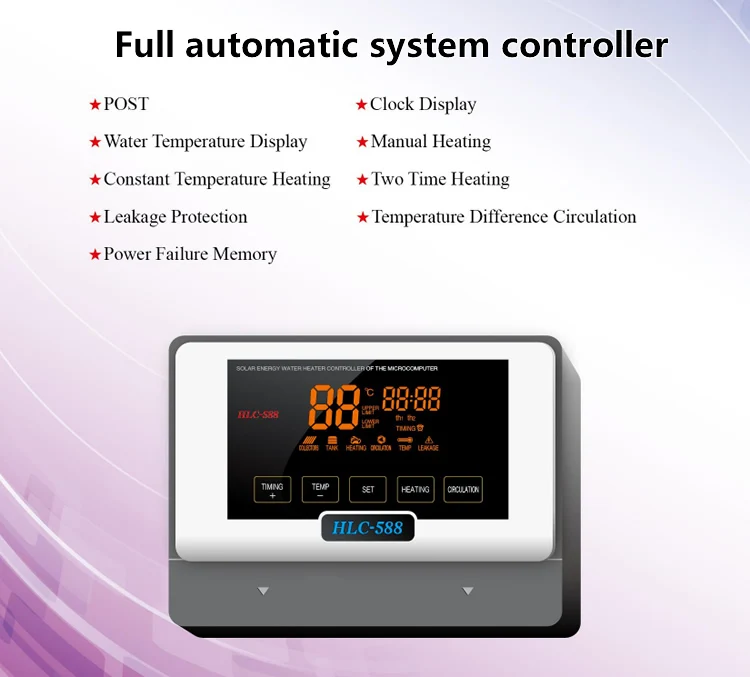

HLC588 automatic controller and water circulation pump



4. Mounting bracket



N/A



5. Auxiliary Electric  Heater



1.5KW



1.5KW



2KW



3KW



3KW

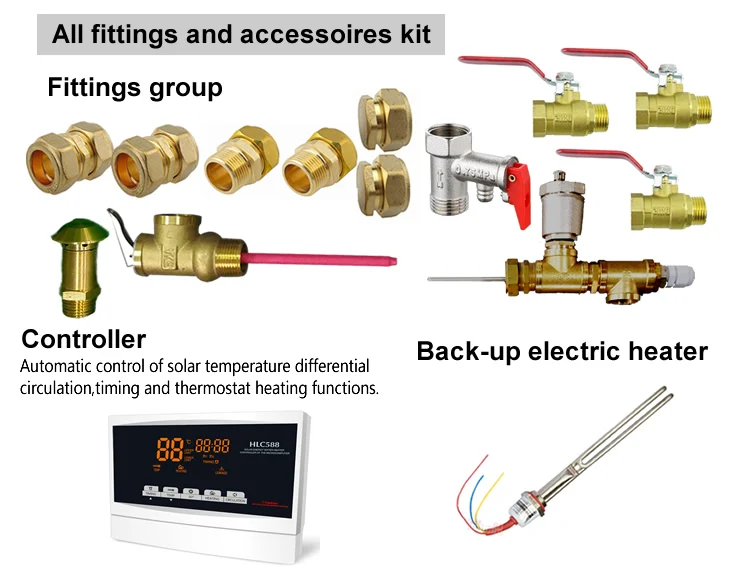

6. Fitting



Brass fitting / Valve / airvent, etc.



Container loading quantity


 20/40HQ container



40/95Sets



35/ 82Sets



30/65 Sets



25/58 Sets



20/45 Sets

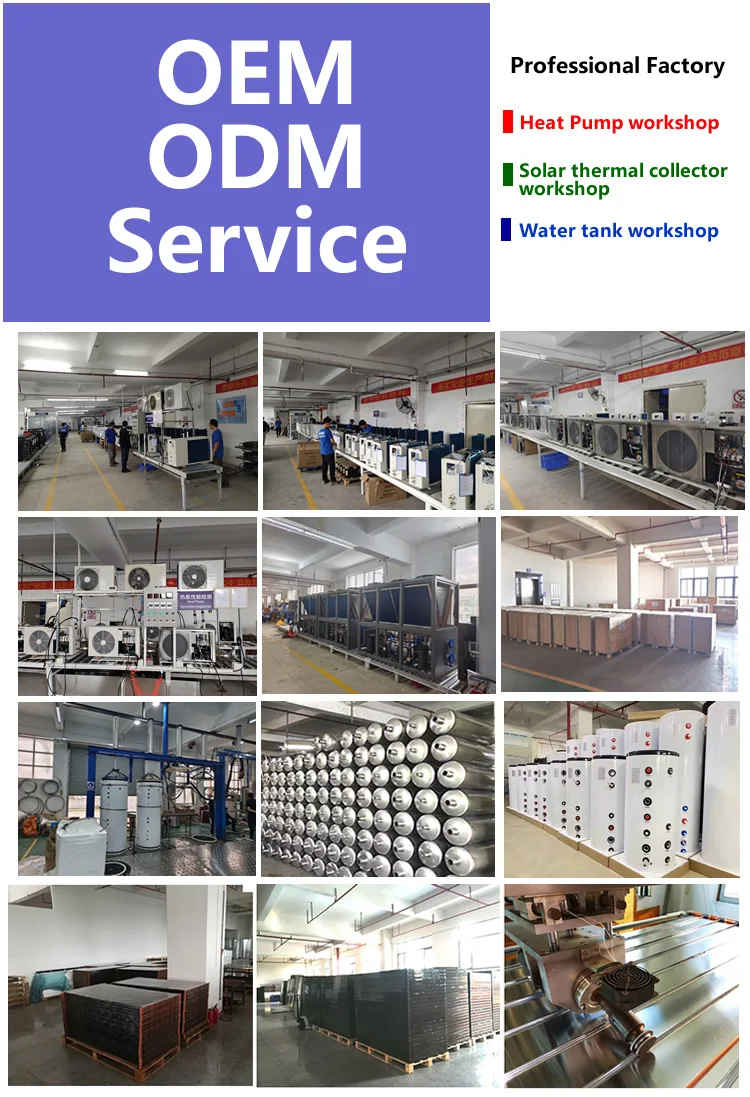

- OUR FACTORY
