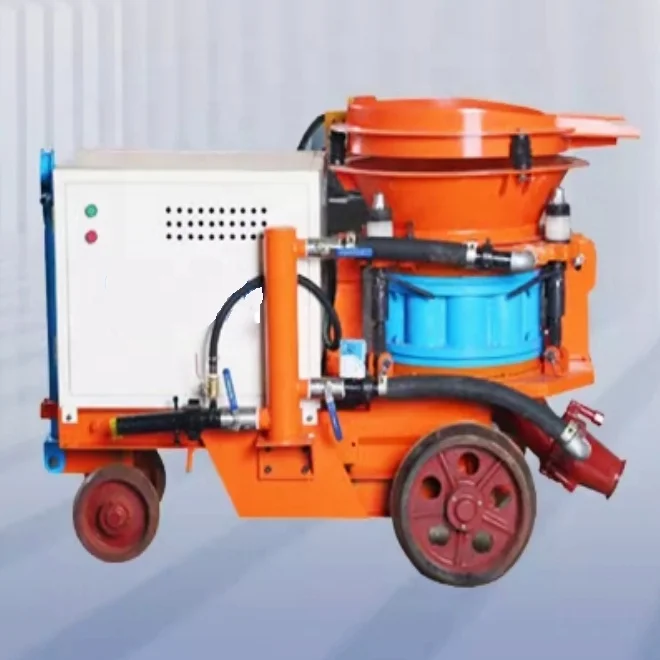

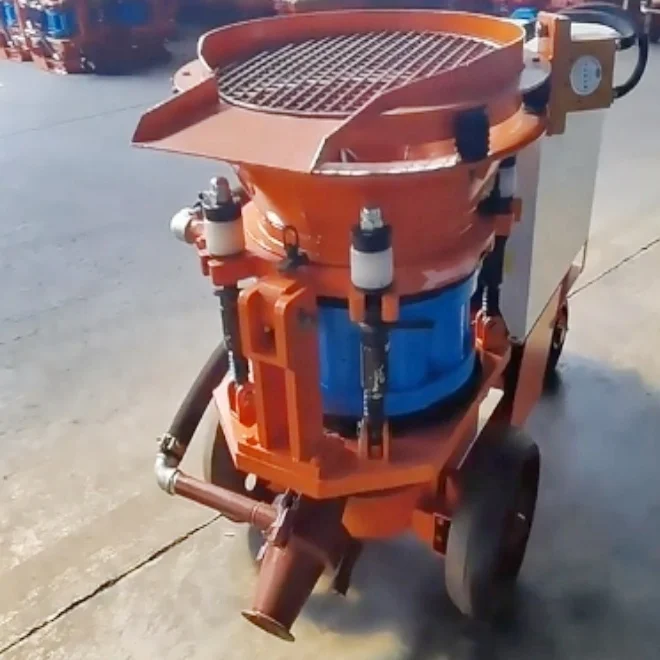

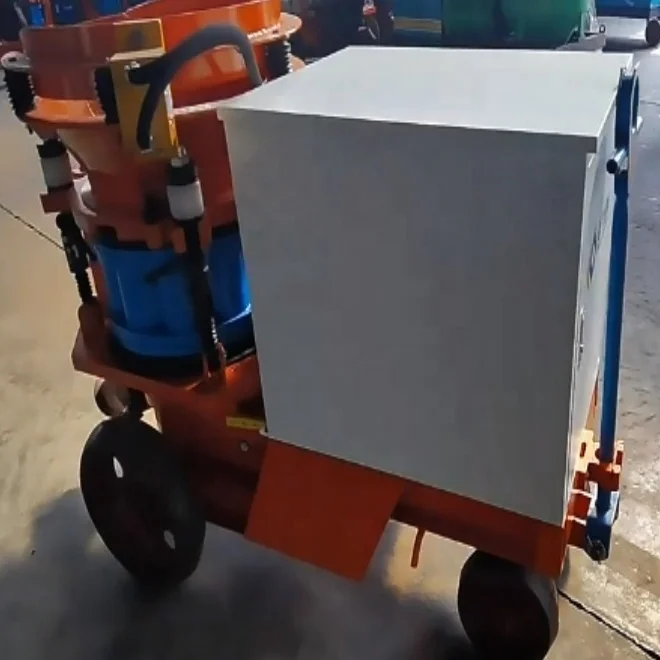

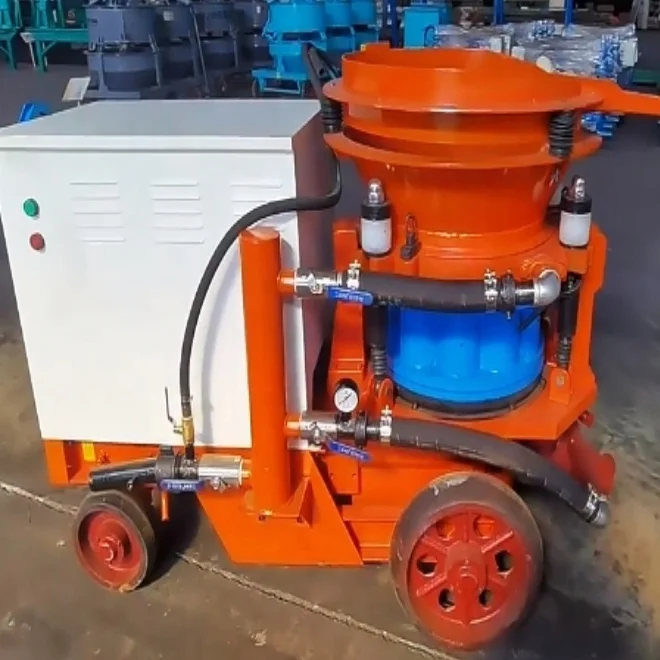

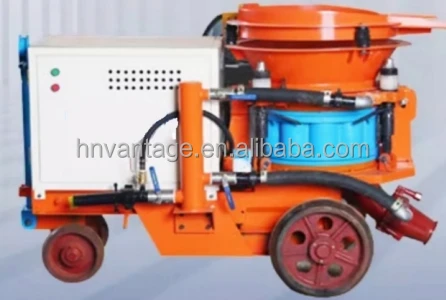

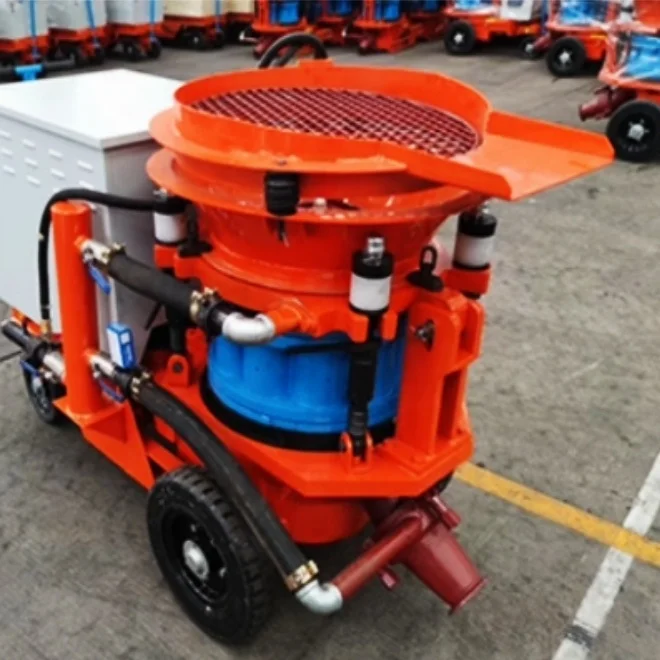

200m High Pressure Dry Concrete Shotcrete Mortar Spraying Pump Machine for sale
- Category: >>>
- Supplier: Zhengzhou Vantage Machinery Co. Ltd.
Share on (1601204972817):
Product Overview
Description
PRODUCT OVERVIEW
Specially Designed for Concrete Grouting Jobs
The concrete shotcrete grouting machine is a device for concrete spraying construction. It is also known as a concrete jet or concrete jet pump. It is widely used in concrete protection, repair and waterproof treatment in construction, tunnels, subways, bridges and other projects. It is usually composed of a spray gun, conveying system and a stirring system. The spray gun is responsible for spraying concrete to the surface where it needs to be treated. The conveyor system includes a conveyor tube and pressure pump to transport the concrete from the mixing system to the spray gun.
The mixing system consists of a concrete mixer and a water -added device for mixing and adjusting the properties of concrete slurry.
FEATURES AT A GLANCE
*Rapid Outlet Speed
*Advanced Technolody
*Reasonale Structure
*Stable Performance
*Easy Operation and Maintainence
*Long Service Life
*Availability of Spare parts
PRODUCT SPECIFICATIONS

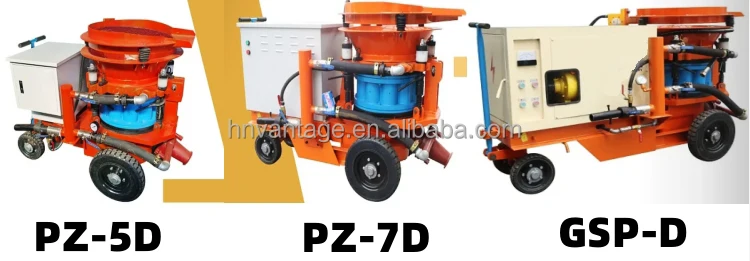

MODEL | PZ-5D | PZ-7D | GSP-D | ||
Productive capacity（m3/hour） | 5 | 7 | 7 | ||
Working Pressure （Mpa） | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | ||
Outlet Pipe Inner Diameter （mm） | 51 | 57 | 57 | ||
Max.Delivery Distance(Horizontal/Vertical) (m） | 200/20 | 200/20 | 300/20 | ||
Max. Aggregate Size(mm) | 20 | 20 | 20 | ||
Water &Cement Ratio | 0.4-0.45 | 0.4-0.45 | 0.4-0.45 | ||
Max. Air Consumption （m³/min.） | 8 | 12 | 12 | ||
Main Motor Power (Kw) | 5.5 | 7.5 | 7.5 | ||
Loading Height(mm） | 1100 | 1100 | 1100 | ||
Sutitable Power Supply | 380V50HZ or Customized | ||||
Overall Dimension (mm) | 145x710x1100 | 1660x800x1100 | 1850x720x1110 | ||
Machine Weight(kg) | 650 | 800 | 860 | ||

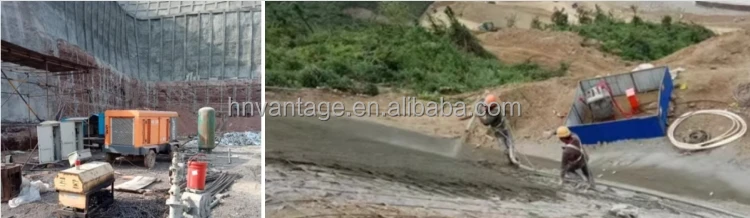

CUSTOMER CASES

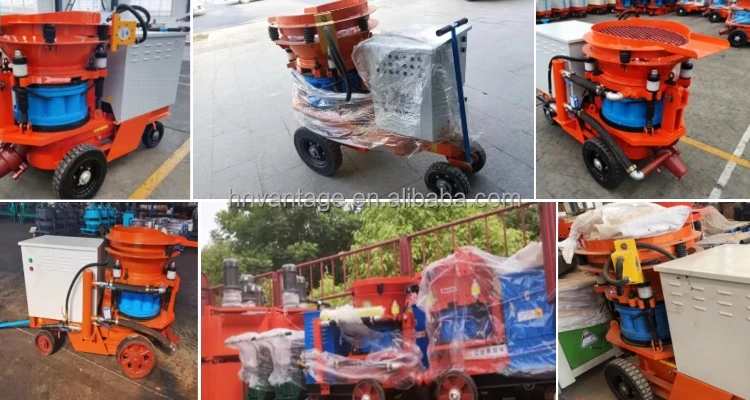

PACKING AND DELIVERY

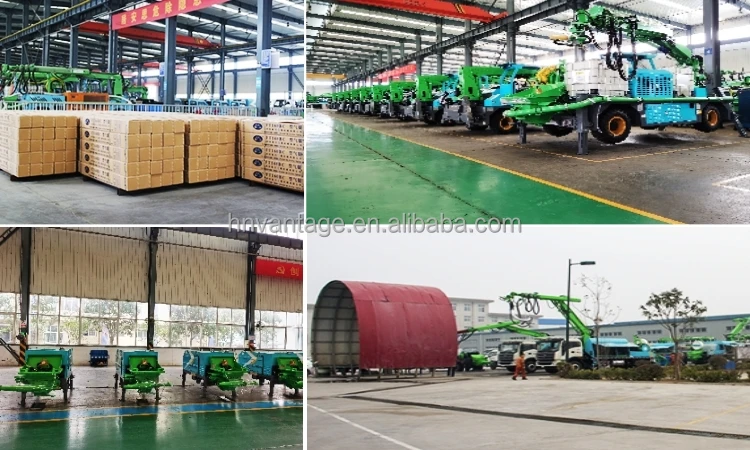

ABOUT US
ZHENGZHOU VANTAGE MACHINERY CO.LTD has accumulated rich practical experience in the manufacture of shotcrete anchor supporting equipment, and has created a group of high-quality workers. Now we have three national invention patents and more than 50 utility model patents. our products are famous for excellent quality in the shotcrete support industry. The well-known products are: wet spray truck series, automatic loading shotcrete unit series, wet spray machine series, dry concrete jet machine series, rock drill, drill, drill pipe series, grouting machine series, steel machinery series, sand blast pipe rubber products series and coal mine products.
With good product quality, reasonable sales price, good after-sales service, our company has been praised by domestic and foreign customers, sales network all over the country, and exported to Southeast Asian countries and regions. Established a full-time after-sales service team headed by our DGM, we can provide intimate service for every customer in a timely and fast manner.
FAQ
Q1. What is the basic information requested for the Customer before purchasing?
A1: Flow rate&Air Volume, Pressure, Project Purpose, Application Environment, Ideal capacity.
Q2. What about your product warranty?
A.Our warranty is 12 month. we will provide timely, high-quality technical services and price discount on spare parts to ensure continuous safe and high-quality equipment operation.

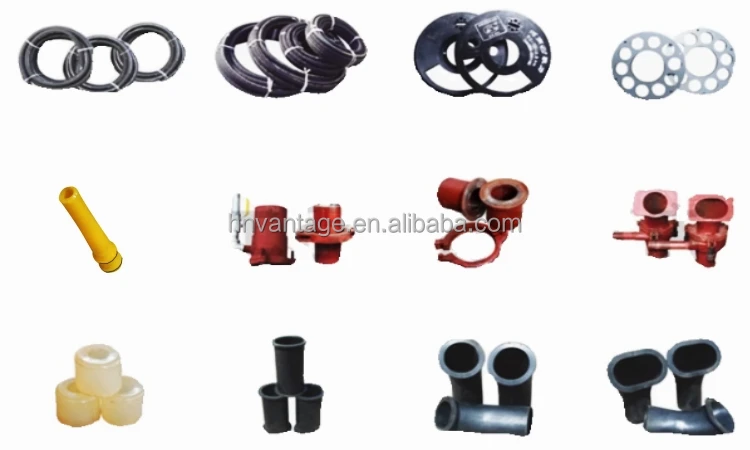

Q3. Do you also provide related shotcrete hoses and spares parts?
A3: Yes, we also manufacture our own brand rubber hoses specially for shotcreting with high quality 51mm,57mm.
A1: Flow rate&Air Volume, Pressure, Project Purpose, Application Environment, Ideal capacity.
Q2. What about your product warranty?
A.Our warranty is 12 month. we will provide timely, high-quality technical services and price discount on spare parts to ensure continuous safe and high-quality equipment operation.
Q3. Do you also provide related shotcrete hoses and spares parts?
A3: Yes, we also manufacture our own brand rubber hoses specially for shotcreting with high quality 51mm,57mm.
Q4. What are your general terms of payment?
A4. T/T or Alibaba Trade Assurance
Q5. How soon will you delivery after placing the order?
A5. Normally 7-10days.
A4. T/T or Alibaba Trade Assurance
Q5. How soon will you delivery after placing the order?
A5. Normally 7-10days.
