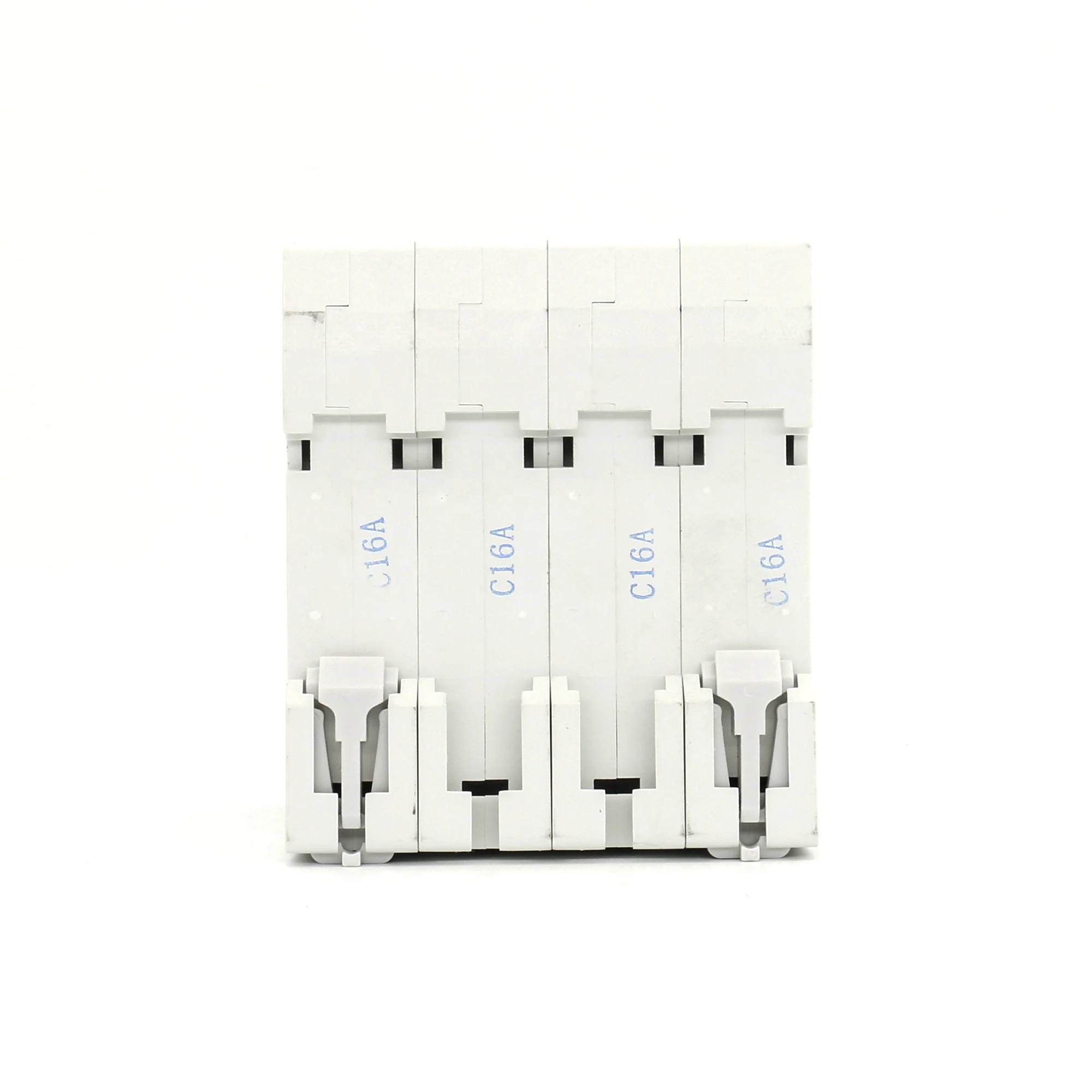

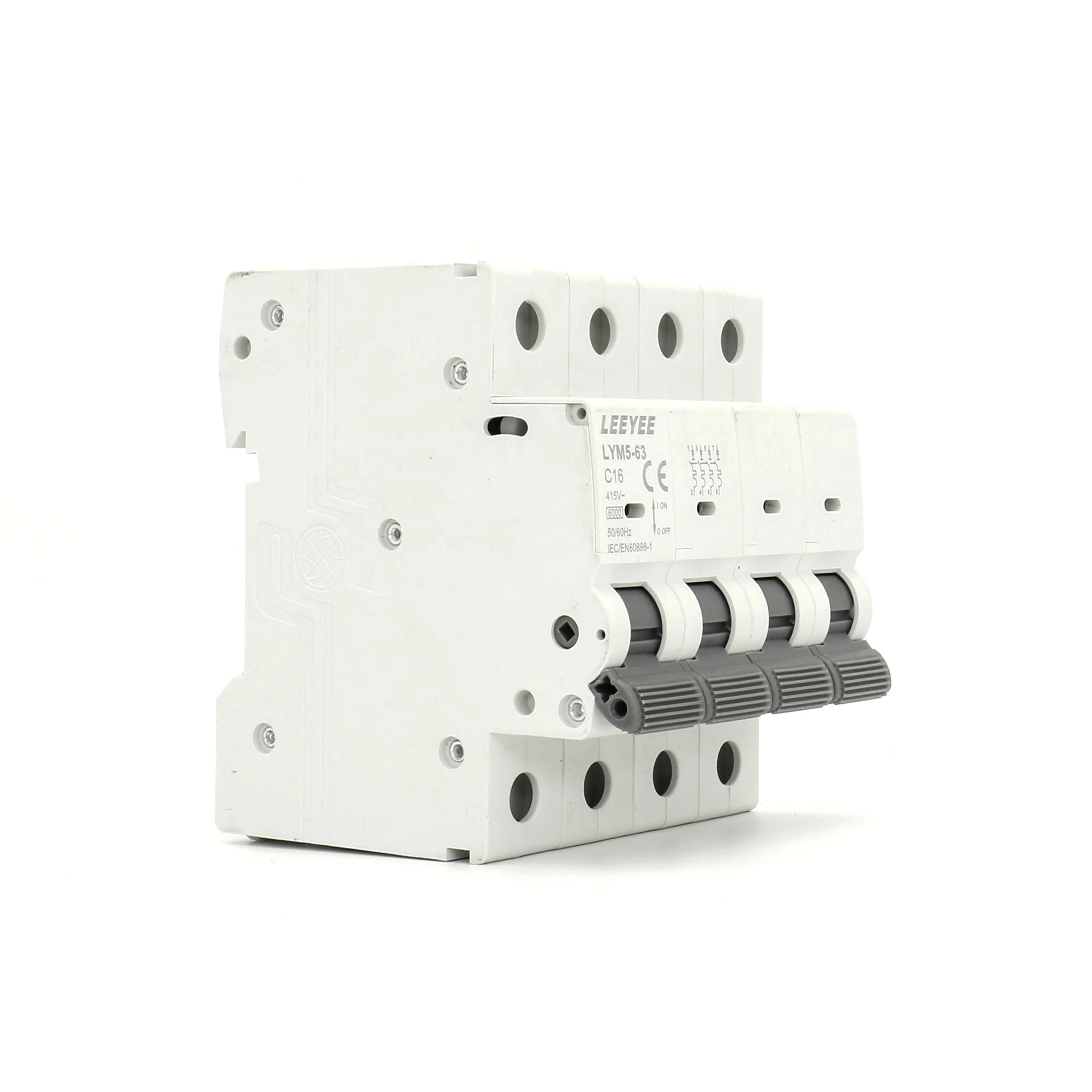

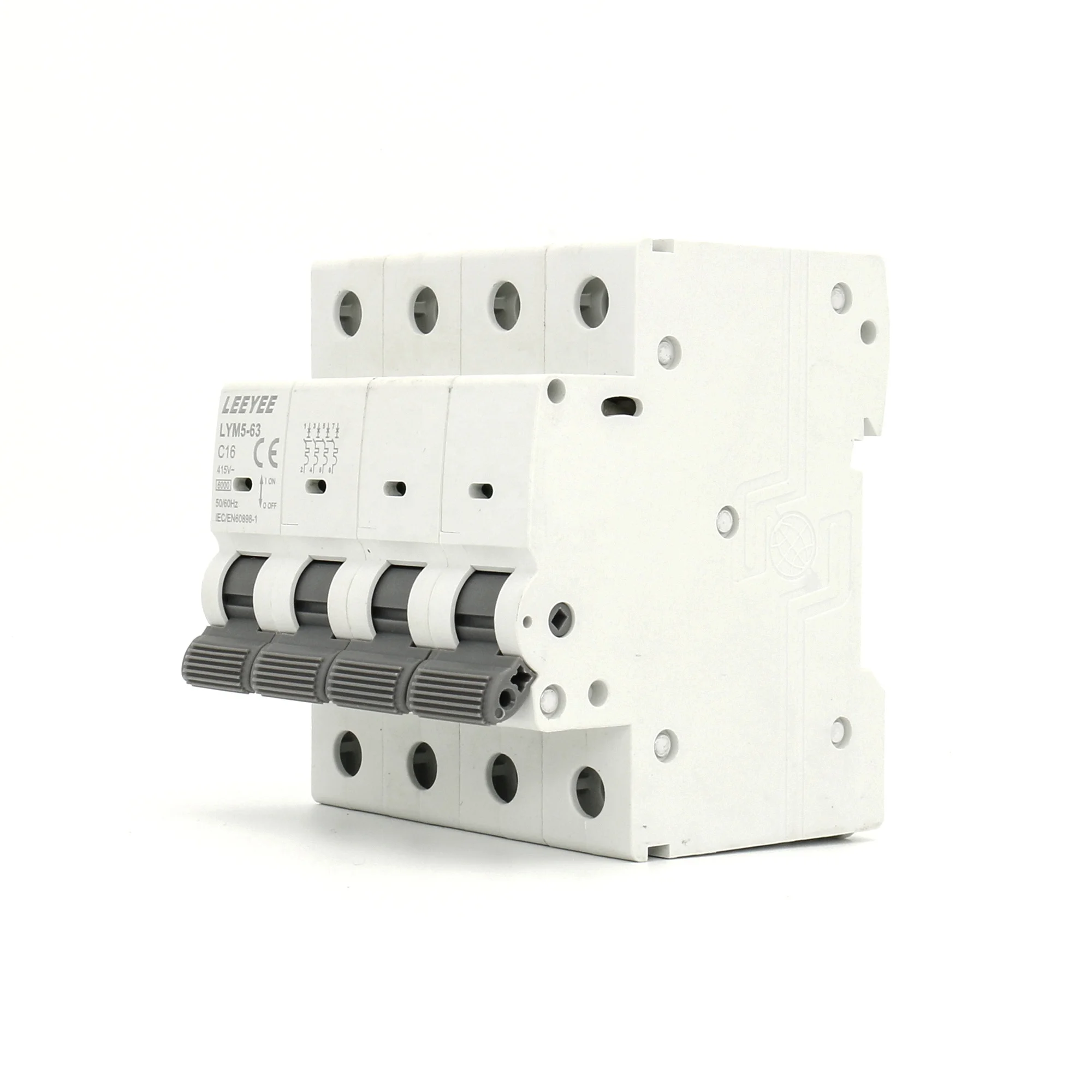

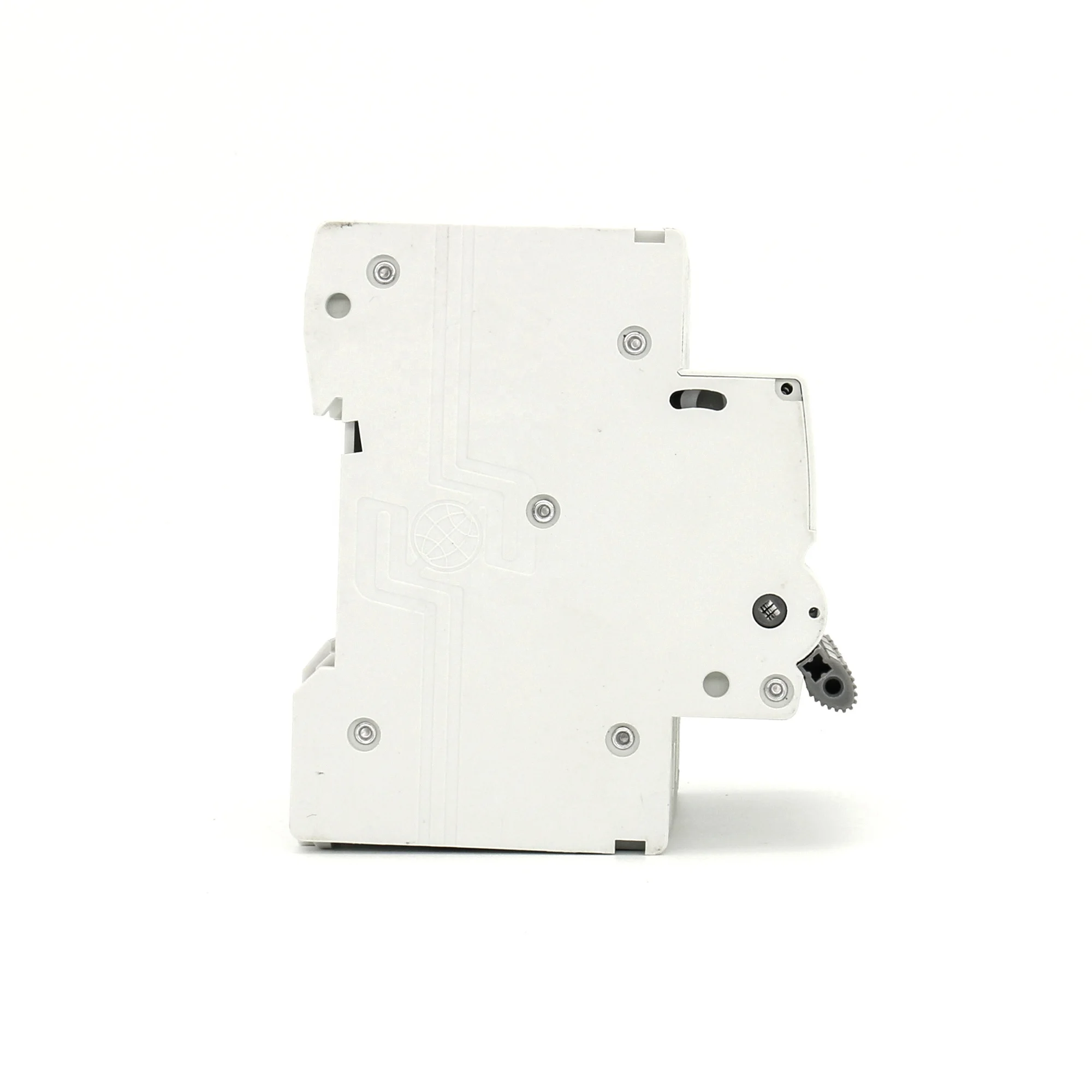

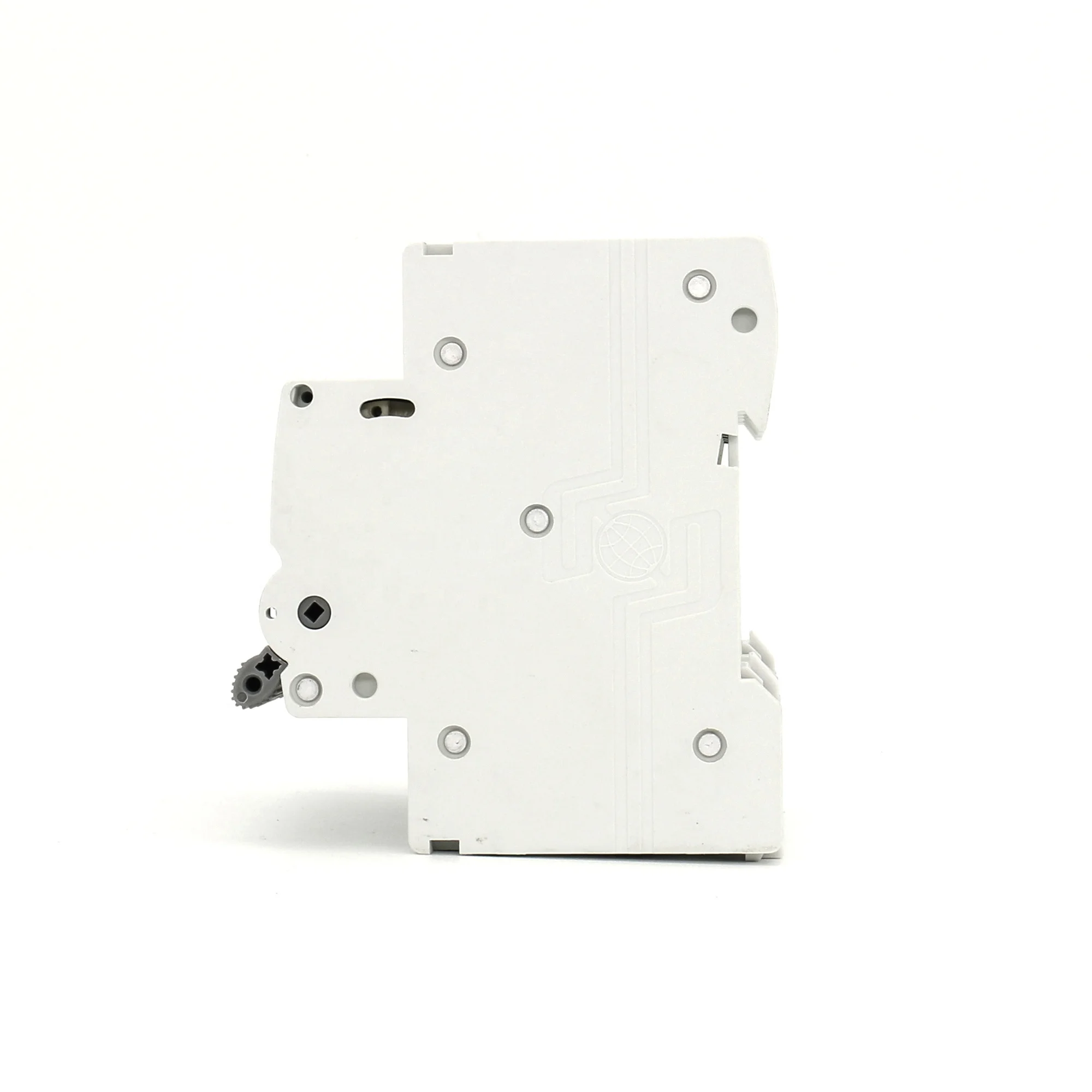

Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers
Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers

Low Price OEM AC 415V 6kA 35mm Din Standard Rail 3 Phase MCB Miniature Circuit Breaker 1P 2P 3P 4P Breakers

Share on (1601205002509):


Price:$3.24 - $4.85

Quantity:


Product Overview

Description



Specification details


Construction and Feature
High short-short capacity 6KA.
Designed to protect circuit carrying big current up to 6ЗA.
Contact position indication.
Used as main switch in household and similar installation.
Technical Data
Rated Current: 6A,10A,16A,20A,25A,32A,40A,50A,63A
Rated Voltage: 230/400VAC(240/415)
Rated Frequency: 50/60Hz
Number of Pole: 1P,2P,3P,4P(1P+N,3P+N)
Module size: 18mm
Curve type: B,C,D Type
Breakering capacity: 6000A
Optimumoperating temperature: -5°C to 40°C
Terminal Tightening torque: 5N-m
Terminal Capacity(top): 25mm2
Terminal Capacity(bottom): 25mm2
Electro-mechanical endurance: 4000 cycles
Mounting: 35mm DinRail
Suitable Busbar: PiN Busbar


Model
LYM5-63-C16
Rated voltage
230/400V AC(240/415)
Pole No
1P,2P,3P,4P(1P+N,3P+N)
Rated Current(A)
6A,10A,16A
Curve type
B,C,D Type
Breakering capacity
6000A
Compliance
IEC60898-1      EN60898-1
Rated frequency
50/60Hz






More Surge protectors




Delivery




FAQ


1. Who are we?
We are based in Zhejiang, China, start from 2010,selling surge protectors to overseas. There are total about 101-200 people in our factory.

2.How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?

AC Surge Protective Device,DC Surge Protective Device,Power Distribution Unit,Signal Surge Protective
Device,T1 Surge Protective Device

4. Why should you buy from us not from other suppliers?
Over 12 years factory, professional manufacture in dc surge protector, ac surge protector, signal surge protector,surge protection box,lightning rod, lightning strike counter and related lightning products, CE TUV certificated. OEM and ODM service supply.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type:T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
