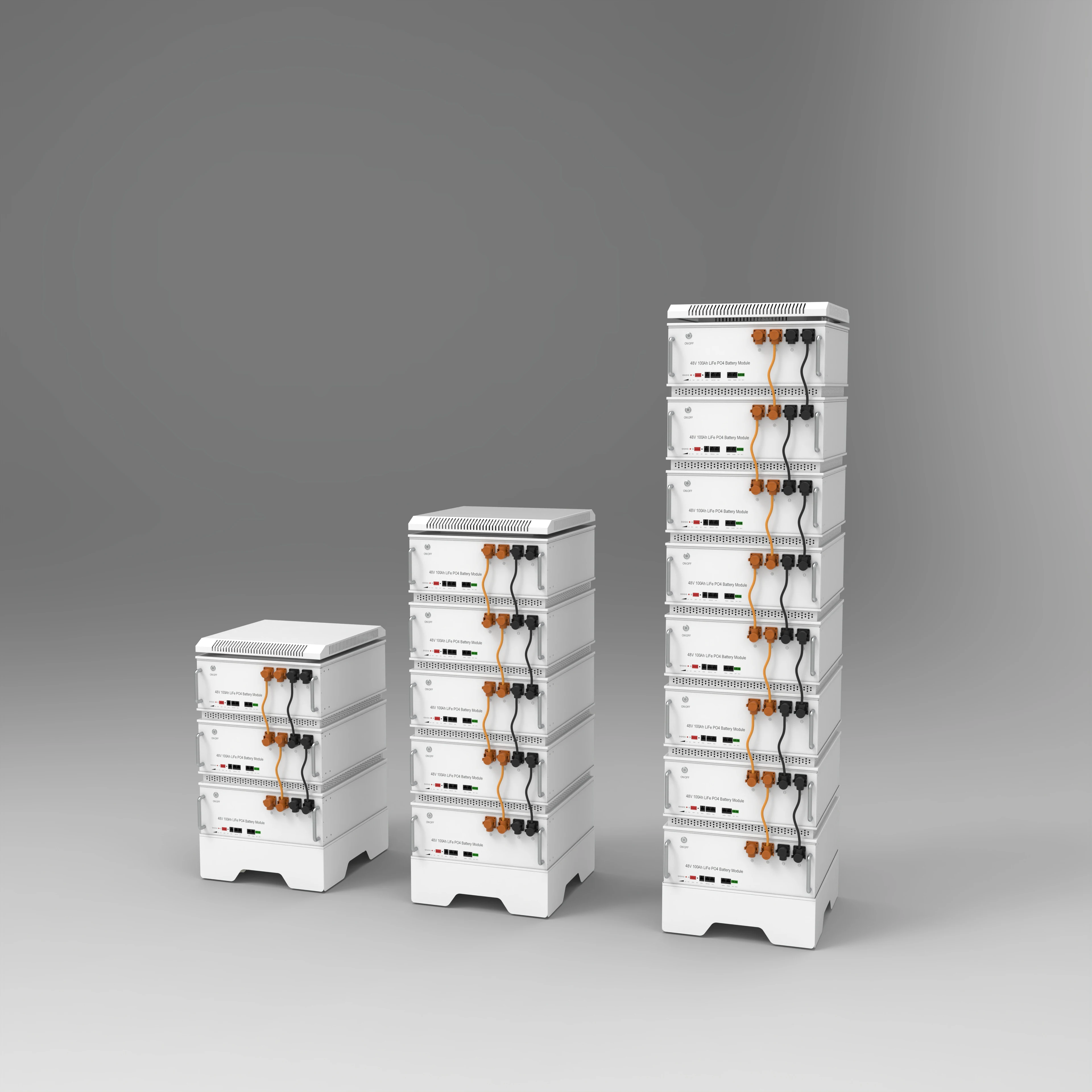

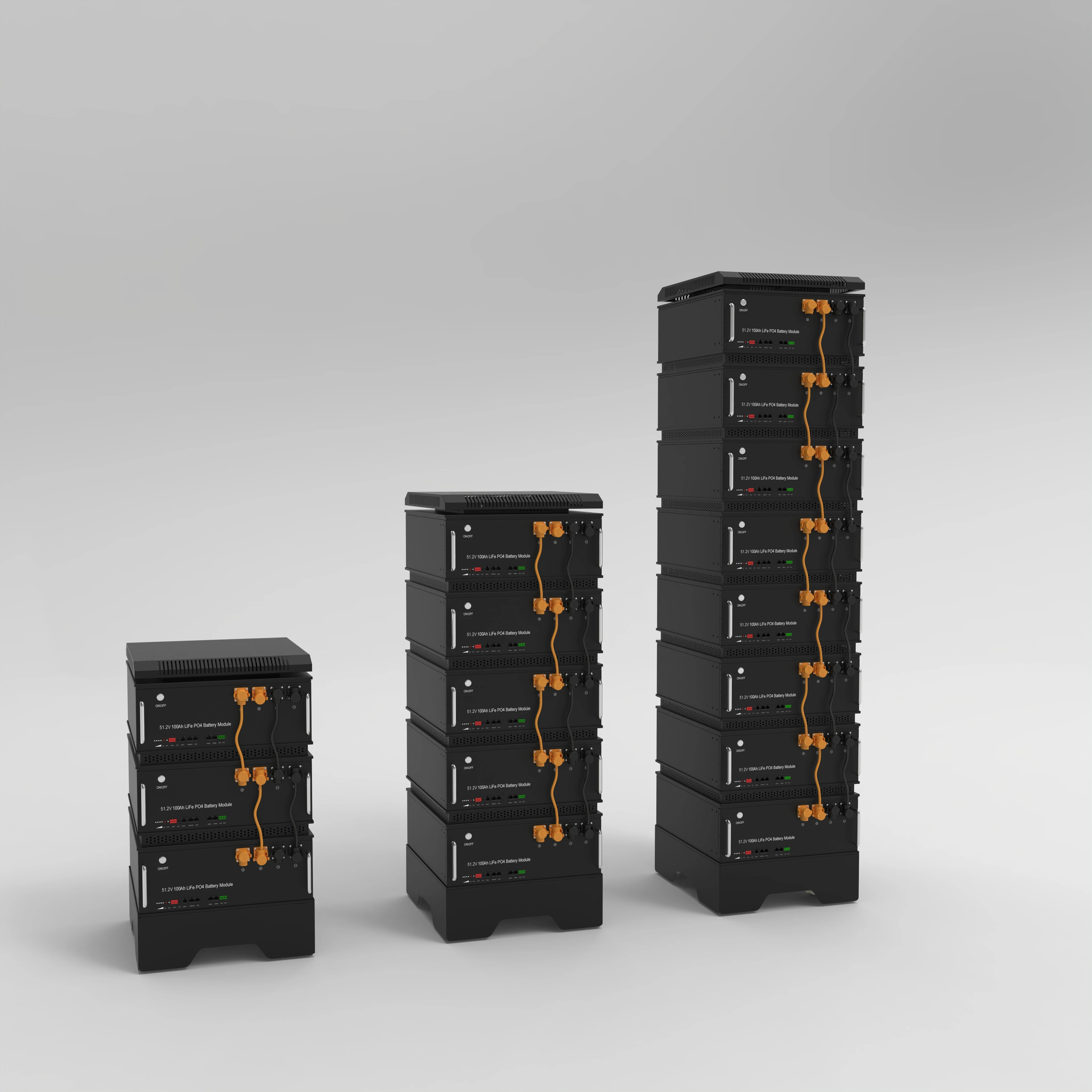

Low Voltage Modulized Residential 48V 100Ah 200Ah 5kwh 10kwh Solar Energy Systems stack rack battery
- Category: >>>
- Supplier: Changlion Industry LLCChanglion LLC
Share on (1601205010653):
Product Overview
Description
We are the manufacturer of battery pack.
All technical parameters can be customized, any function can be added according to your needs.Please give us all your detailed requirements , we will reply immediately, and provide the most favorable price.Contact us!
BRAND NEW GRADE A LIFEPO4 BATTERY CELLS
1.Intergrated smart BMS with self balance for each serial of cells
2.The safest LiFePo4 Battery. no fire and no explosions 3.IP65 Rating Triple hardware protection
4.Cells cycle times 6000 cycles
Super Long 15-20 years working lifespan
5.Plug in and Play Plug in batteries then working.
2.The safest LiFePo4 Battery. no fire and no explosions 3.IP65 Rating Triple hardware protection
4.Cells cycle times 6000 cycles
Super Long 15-20 years working lifespan
5.Plug in and Play Plug in batteries then working.
Product model | PXRM-2.5Kwh | PXRM-5Kwh | PXRM-10Kwh | PXRM-15Kwh | |||
Product specification | 51.2V50Ah | 51.2V100Ah | 51.2W200Ah | 51.2V280Ah | |||
Nominal voltage | 51.2V-16s | 51.2V | 51.2V | 51.2V-16s | |||
Nominal capacity | 50Ah | 100Ah | 200Ah | 280Ah | |||
Cell type | (LFP) | (LFP) | (LFP) | (LFP) | |||
Standard charge voltage | 58.5V(adiustable) | 58.4V(adiustable) | 58.4V(adiustable) | 58.6V(adiustable) | |||
Max charge current | 50A | 80A | 80A | 150A | |||
Max discharge current | 50A | 100A | 100A | 150A | |||
Display | LCD(Optional) | LCD(Optional) | LCD(Optional) | LCD(Optional) | |||
Communication interface | RS485、RS233、CAN(Optional) | RS485、RS232、CAN(Optional) | RS485、RS232、CAN(Optional) | RS485、RS234、CAN(Optional) | |||
Cycle life | >6000 Cycles(80%DOD) | >6000 Cycles(80%DOD) | >6000 Cycles(80%DOD) | >6000 Cycles(80%DOD) | |||
Charge temperature range | 0-65C | 0-65C | 0-65C | 0-65C | |||
Discharge temperature range | -20-65℃ | -20-65℃ | -20-65℃ | -20-65℃ | |||
Colour | Black | Black | Black | Black | |||
Dimensions | 442×400X133MM | 442×430X178MM | 442×520X320MM | 620×550X230MM | |||
Wight | About 26Kg | About 47.5Kg | About 82Kg | About 148Kg | |||
Max.recommended DOD | 90% | ||||||
IP rating | IP 65 | ||||||
Battery Protection | Over-current/Over-voltage/Short circuit/Under-voltage | ||||||
GRADE A BATTERY
LiFepo4 battery over charge, over discharge, over current, short circuit does not burn, high temperature resistance does not decompose.
Two installation methods
Battery box and bms are all with weld fixation, more secure and stable, bms supports 16 parallels.
Battery box and bms are all with screws fixation,it's easy to check battery pack condition anytime,bms support 16 parallels.
BUILT-IN SMART BMS
Our LiFePO4 battery has built-in BMS(Battery Management System)to protect it fromovercharge,over-discharge,over-current,and short circuit with excellent self-discharge rate.Built-in high temp cut off prevents charging over 122 F(50 C).
