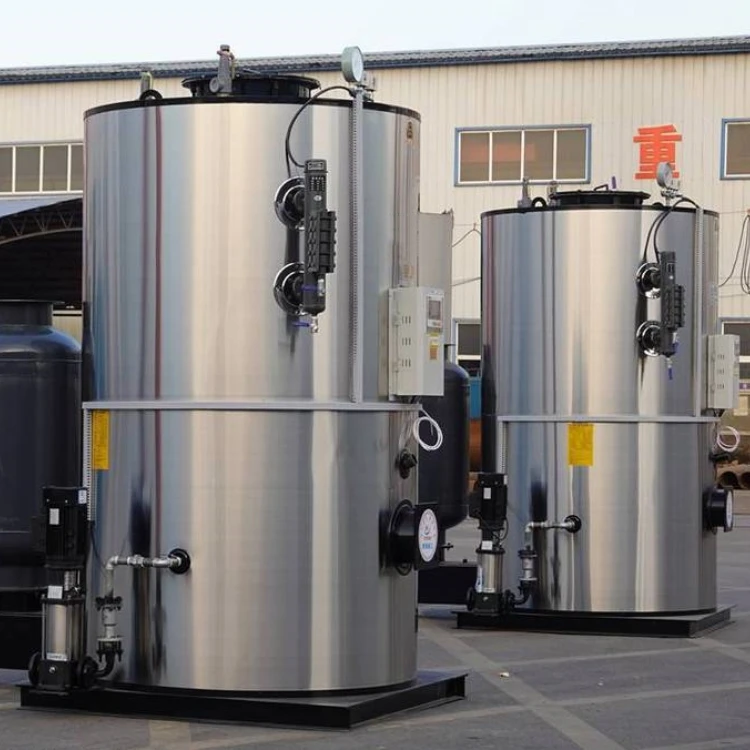

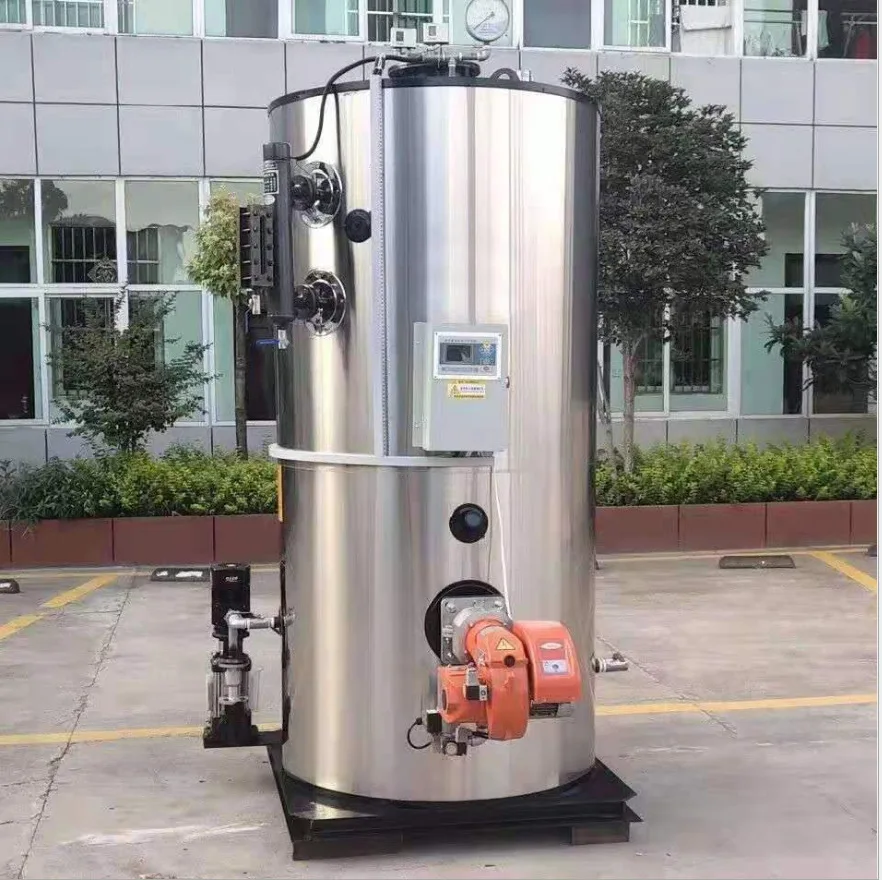

Energy saving commercial small vertical gas fired hot water boiler for heating
- Category: >>>
- Supplier: Xinxiang Xinda Boiler Container Co. Ltd.
Share on (1601205011803):
Product Overview
Description
Product Description

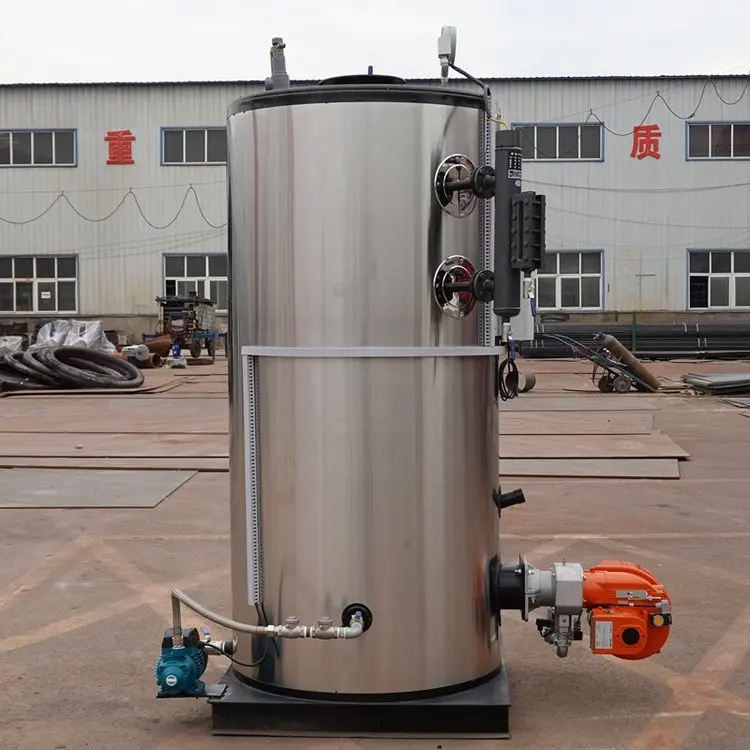

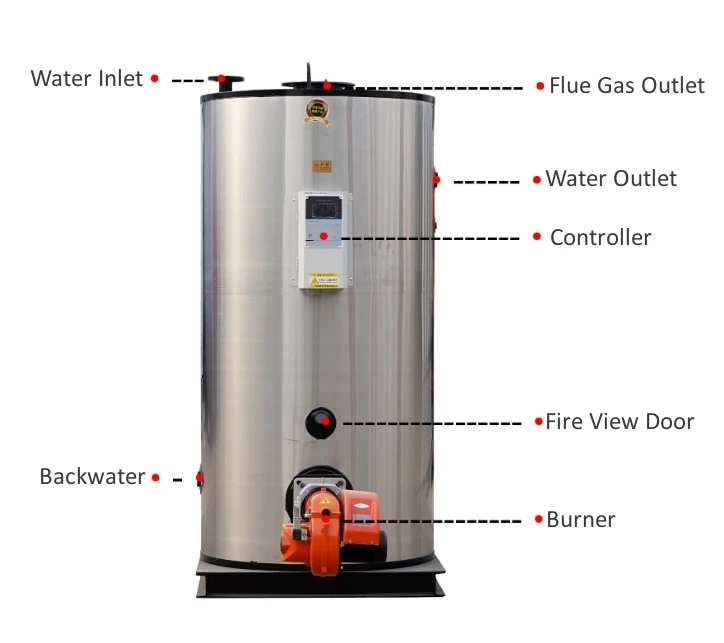

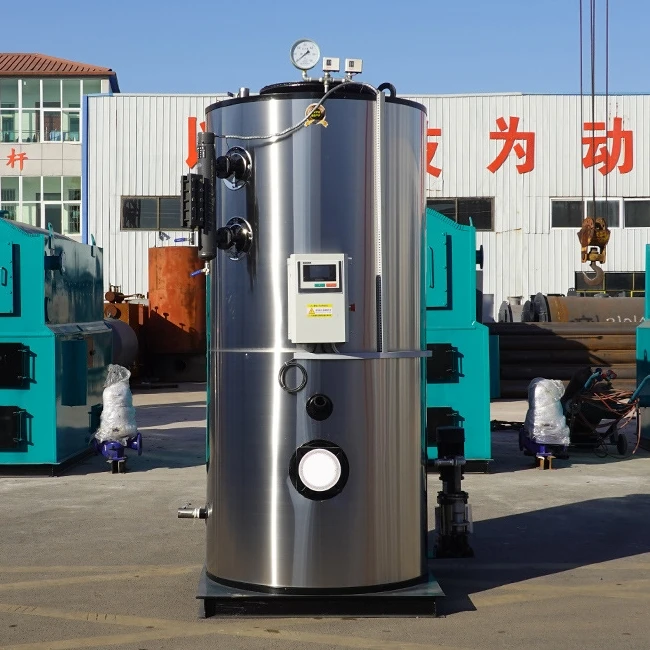

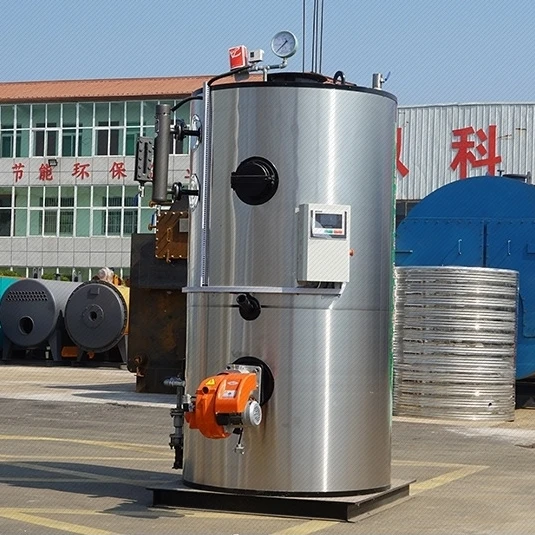

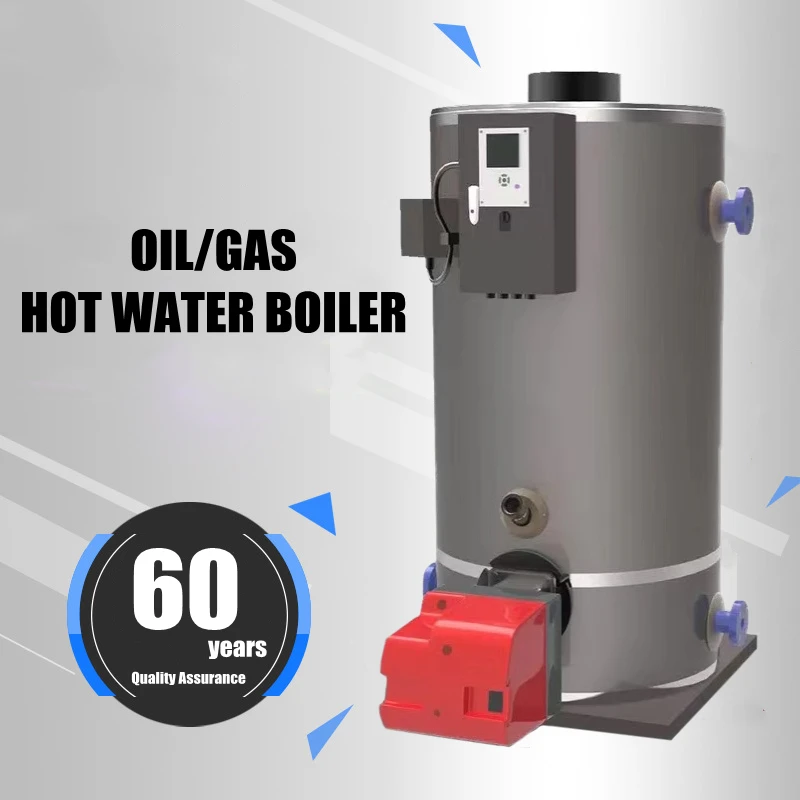

Energy saving commercial small vertical gas fired hot water boiler for heating
Vertical gas oil hot water boiler achieves the advantages of full combustion, no pollution, convenient operation, and convenient installation; this type of boiler has high thermal efficiency, large output, strong load adaptability, high degree of automation, convenient operation, safe and reliable operation. An ideal high-efficiency, low consumption, low-pollution green product.
Model: CLHS
Structure: three pass fire tube wet back
Rated Boiler Power: 0.09-0.7MW
Rated Pressure: Atmospheric pressure
Rated Temperature:85/60℃
Heating sources are: liquefied petroleum gas, natural gas, diesel oil.

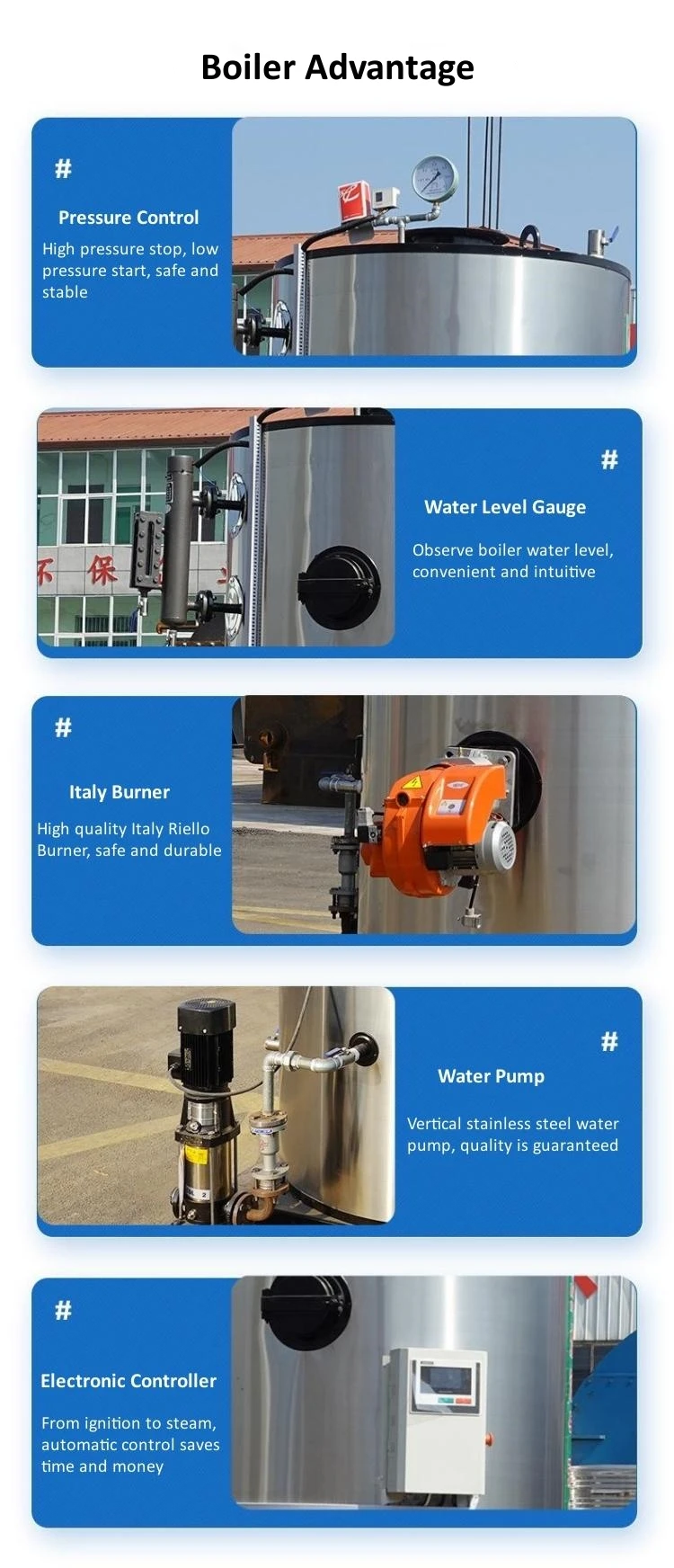

Product Features:
*High automation: prompt start and stop, high reliability.
*High automation: prompt start and stop, high reliability.
*High thermal efficiency: complete burning, stable output, better adaptability to variable load.
*Easy installation: All heaters are assembly structure which is easy for installation by just connecting devices with pipes.
*Easy operation: Fully automatic computer control, remote control makes boiler operation easier and simpler. Controller with imitation screen display controls the functions of auto igniting, burning, circulation pumps control, alarm, etc.
*Cost saving: With the characteristics of high temperature and low pressure, it could reduce the pressure rating of the equipment, and could reduce the investment costs of the equipment.
*Energy saving: It make use of the closed-circuit forced circulation to provide heat, which couldn’t come into contact with the atmosphere, which prolongs the service life.
*Easy installation: All heaters are assembly structure which is easy for installation by just connecting devices with pipes.
*Easy operation: Fully automatic computer control, remote control makes boiler operation easier and simpler. Controller with imitation screen display controls the functions of auto igniting, burning, circulation pumps control, alarm, etc.
*Cost saving: With the characteristics of high temperature and low pressure, it could reduce the pressure rating of the equipment, and could reduce the investment costs of the equipment.
*Energy saving: It make use of the closed-circuit forced circulation to provide heat, which couldn’t come into contact with the atmosphere, which prolongs the service life.
Technical Parameters
Type | CLHS0.09 | CLHS0.12 | CLHS0.21 | CLHS0.24 | CLHS0.35 | |||||
Boiler power | 0.09MW | 0.12MW | 0.21MW | 0.24MW | 0.35MW | |||||
Rated heat supply | 50,000 kcal | 100,000 kcal | 150,000 kcal | 200,000 kcal | 300,000 kcal | |||||
Return Outlet temp. | 85℃ | |||||||||
Return water temp. | 60℃ | |||||||||
Efficient | >93% | |||||||||
Diesel oil Consumption | 5.2kg/h | 10.6kg/h | 16.2kg/h | 22.3kg/h | 32kg/h | |||||
Natural gas consumption | 6m³/h | 12.5m³/h | 20.3m³/h | 26.7m³/h | 39.5m³/h | |||||
LPG consumption | 4.9kg/h | 9.8kg/h | 15.1kg/h | 21kg/h | 30.8kg/h | |||||
Voltage | 220v | |||||||||
Outlet valve | DN40 | DN50 | DN50 | DN50 | DN50 | |||||
Returnwater valve | DN40 | DN50 | DN50 | DN50 | DN50 | |||||
Technical parameters of this product are subject to change due to the improvement of product performance without prior notice. | ||||||||||
Application
Packing & Delivery

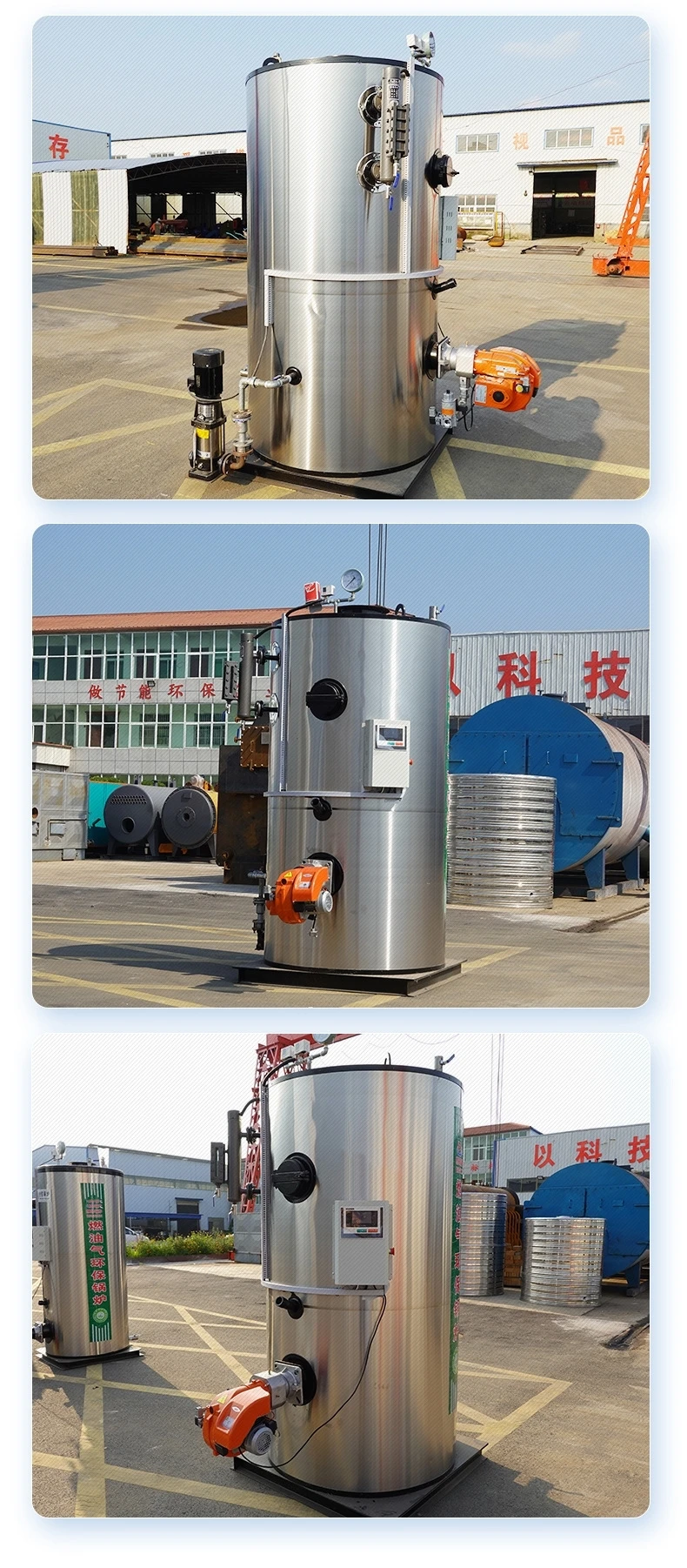

Factory Pictures
Certifications
ISO 9001:2015: We are ISO 9001:2015 certified, which means our quality management system has been recognized as meeting international standards. This certification ensures that our boilers are manufactured consistently to the highest quality standards.
CE Marking: Our products carry the CE marking, signifying that they comply with all relevant European health, safety, and environmental protection legislation. This allows us to sell our boilers within the European Economic Area.
These certifications demonstrate our commitment to delivering high-quality, safe, and reliable boilers to our customers worldwide. Your satisfaction is our top priority.
CE Marking: Our products carry the CE marking, signifying that they comply with all relevant European health, safety, and environmental protection legislation. This allows us to sell our boilers within the European Economic Area.
These certifications demonstrate our commitment to delivering high-quality, safe, and reliable boilers to our customers worldwide. Your satisfaction is our top priority.

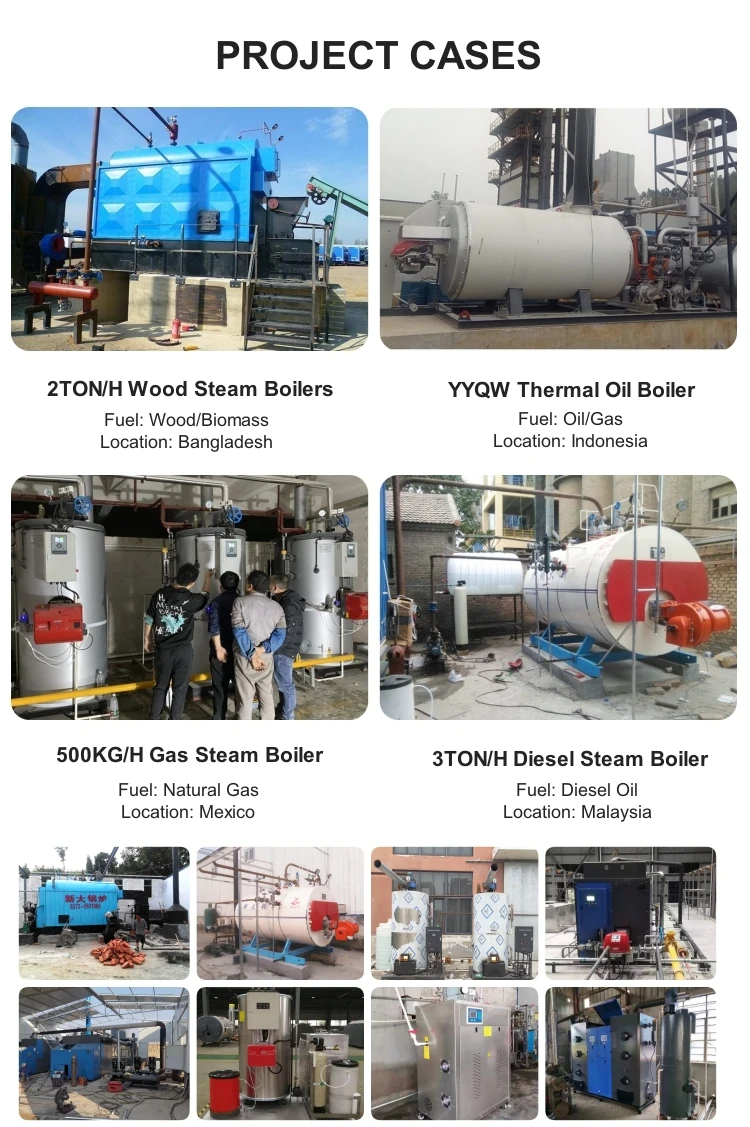

Successful Cases
Our Service
FAQ
Q1: Are you a trading company or manufacturer?We are a trading company, meanwhile, we are the exclusive export agent and marketing & sales representatives for our core cooperating manufacturers, with an even better price than that of a regular factory.
Q2: How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Q3. Can you provide OEM service?
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate.
3). Order amount USD 10000 or more.
Q4: What is the warranty period?
During the warranty period, if there is a problem caused by a quality problem, we will repair or replace the damaged parts free of charge. If the problem is caused by the customer, we will provide spare parts at the lowest cost.
Q2: How long is your delivery time?
Generally, it is 10-15 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock and need production, also it is according to the required quantity.
Q3. Can you provide OEM service?
Yes, we do but need to meet below conditions 1). the brand not being registered in China. 2). Your brand registration certificate.
3). Order amount USD 10000 or more.
Q4: What is the warranty period?
During the warranty period, if there is a problem caused by a quality problem, we will repair or replace the damaged parts free of charge. If the problem is caused by the customer, we will provide spare parts at the lowest cost.
