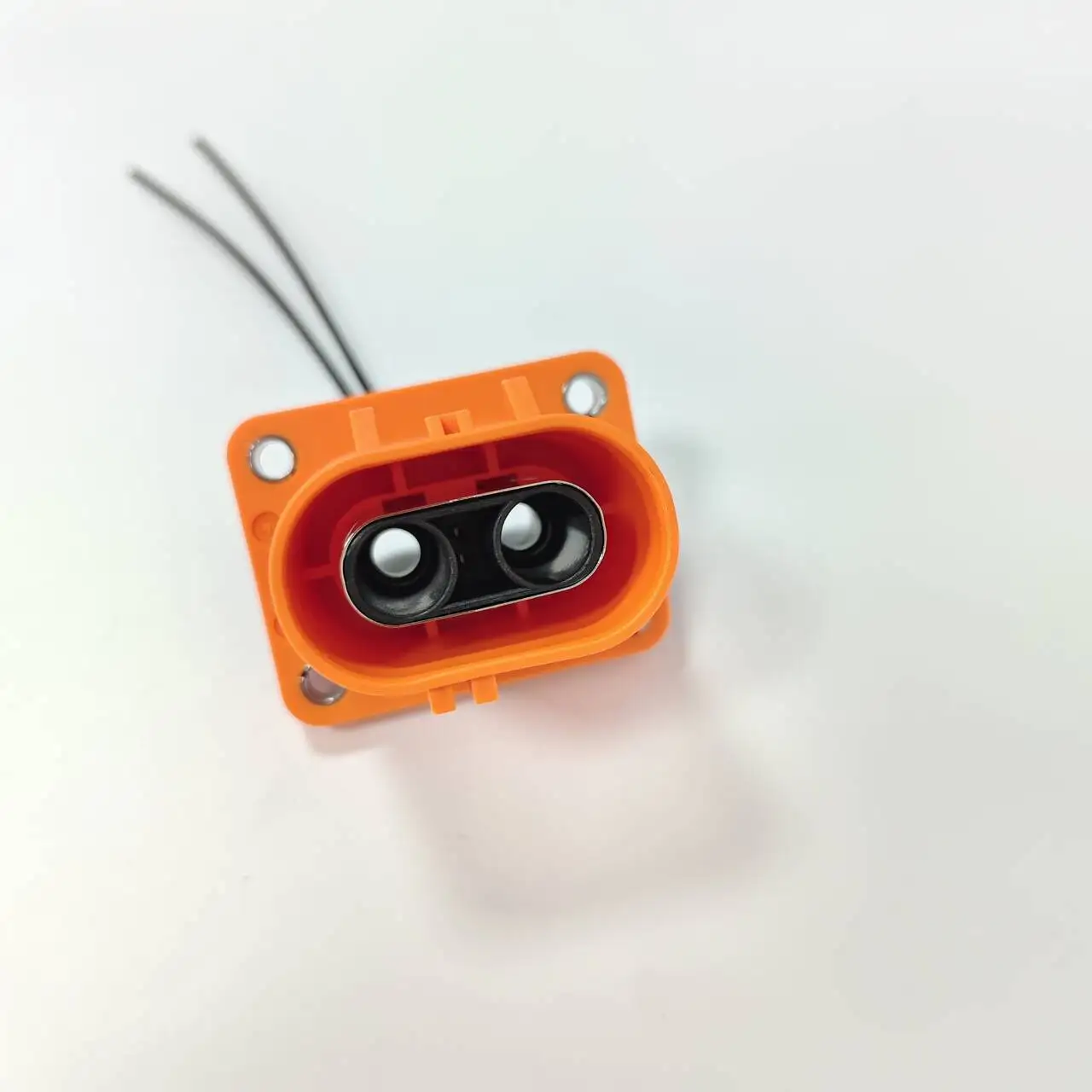

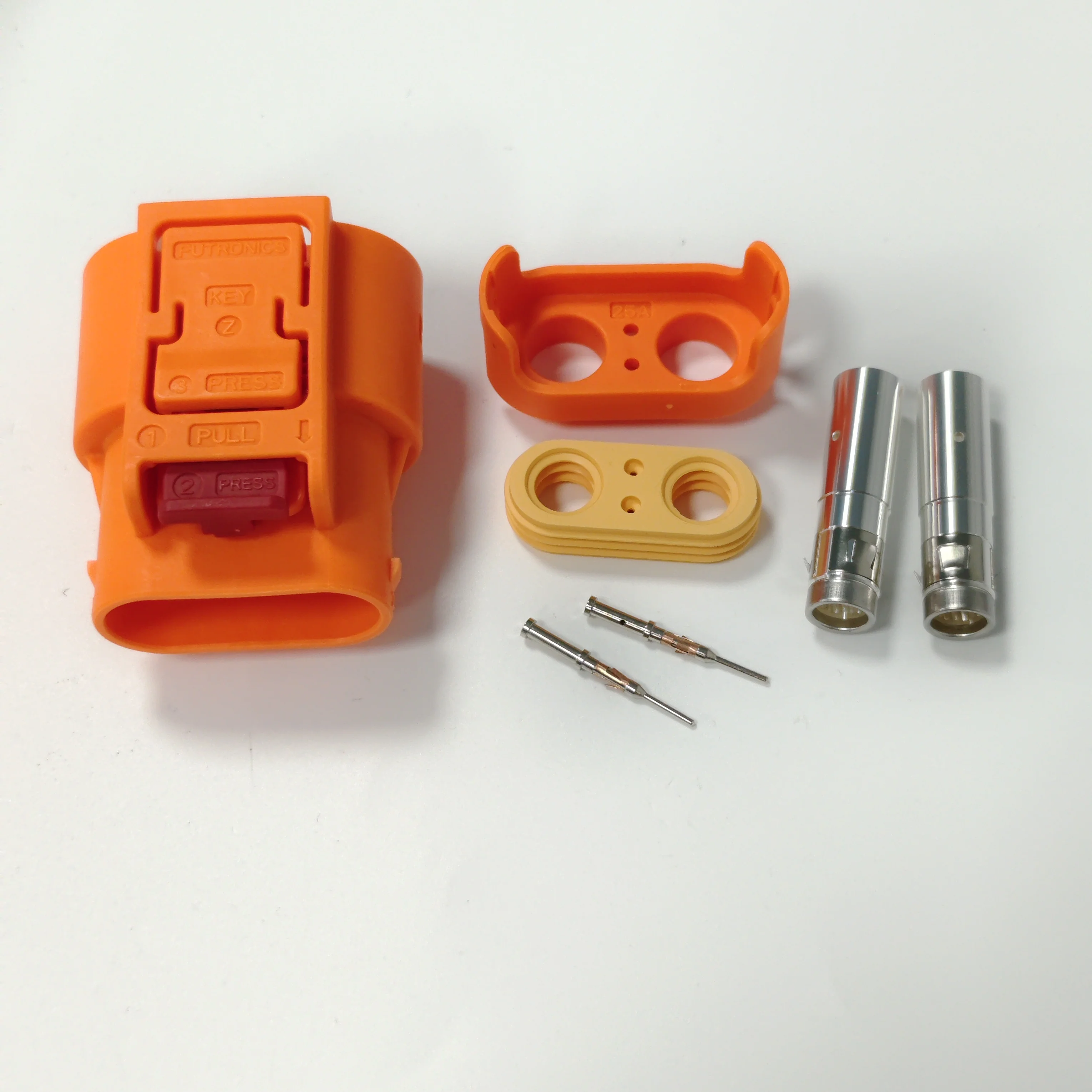

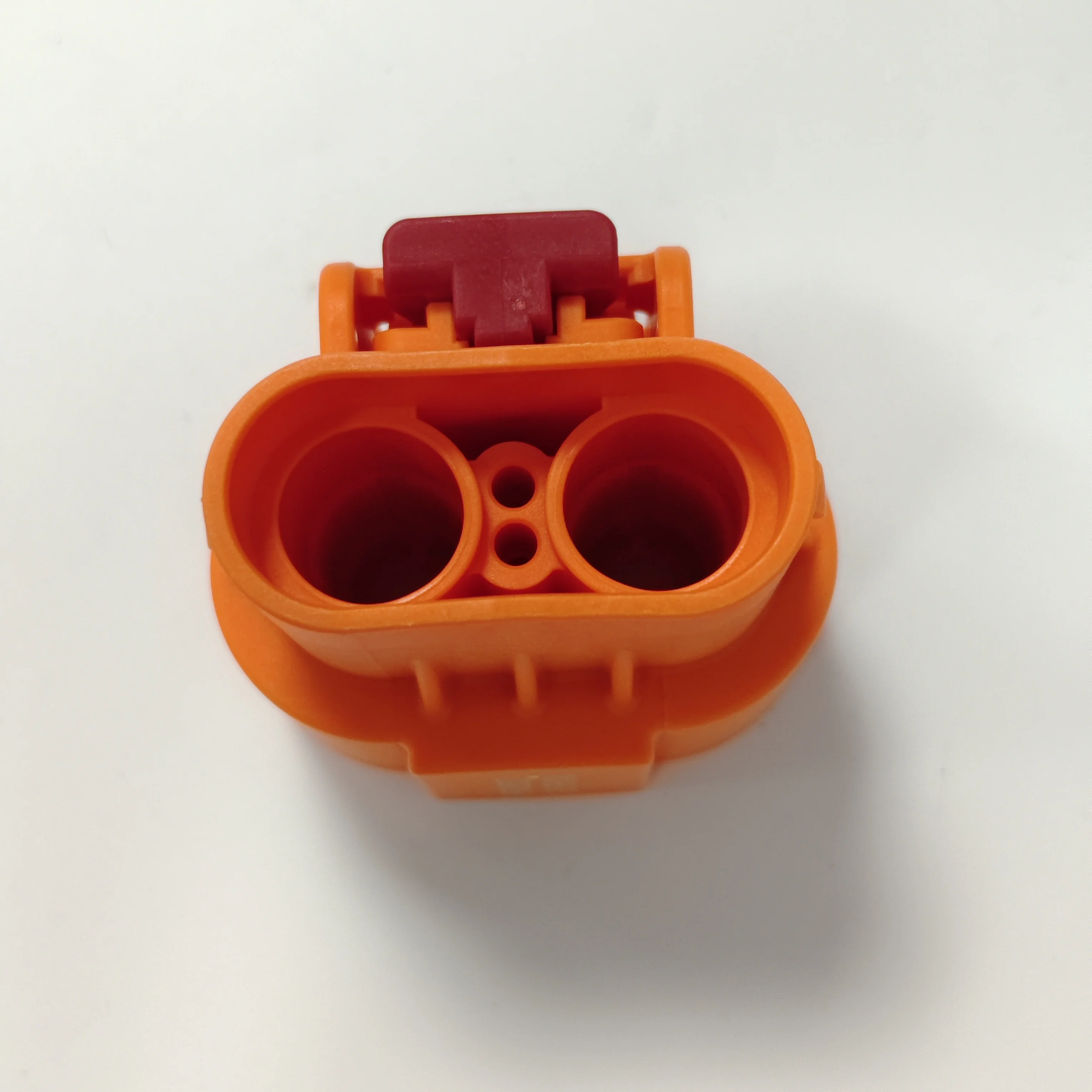

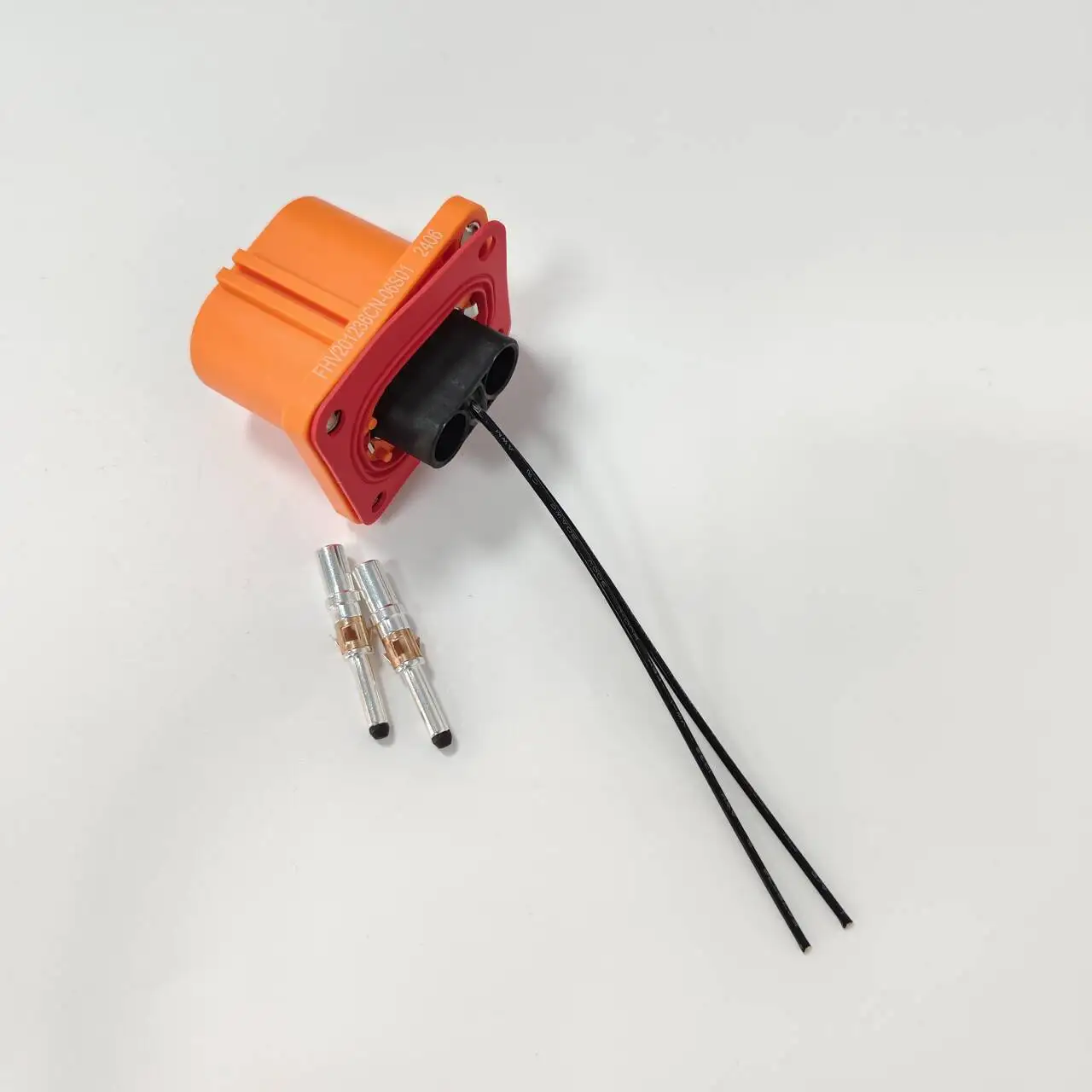

2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362
2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362
2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362
2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362
2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362
2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362

2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362

Share on (1601205014756):


Price:$19.99 - $29.50

Quantity:


Product Overview

Description


2poles 50a HV Connectors Wiring Harness Connectors Ev Connector HVSL362


HVIL Connector





-BMS/Energy Storage     -EV/HEV     -Rail Mass Transit     -Process Control/Automation     -Heavy Equipment









Related Products


HVIL Connector

















 If You Still Not Found a Suitable Product, Please  Contact Us>>









Product Description


Full Series HVIL Series Connector


All types of High Voltage Connector from OEM Manufacturer in China

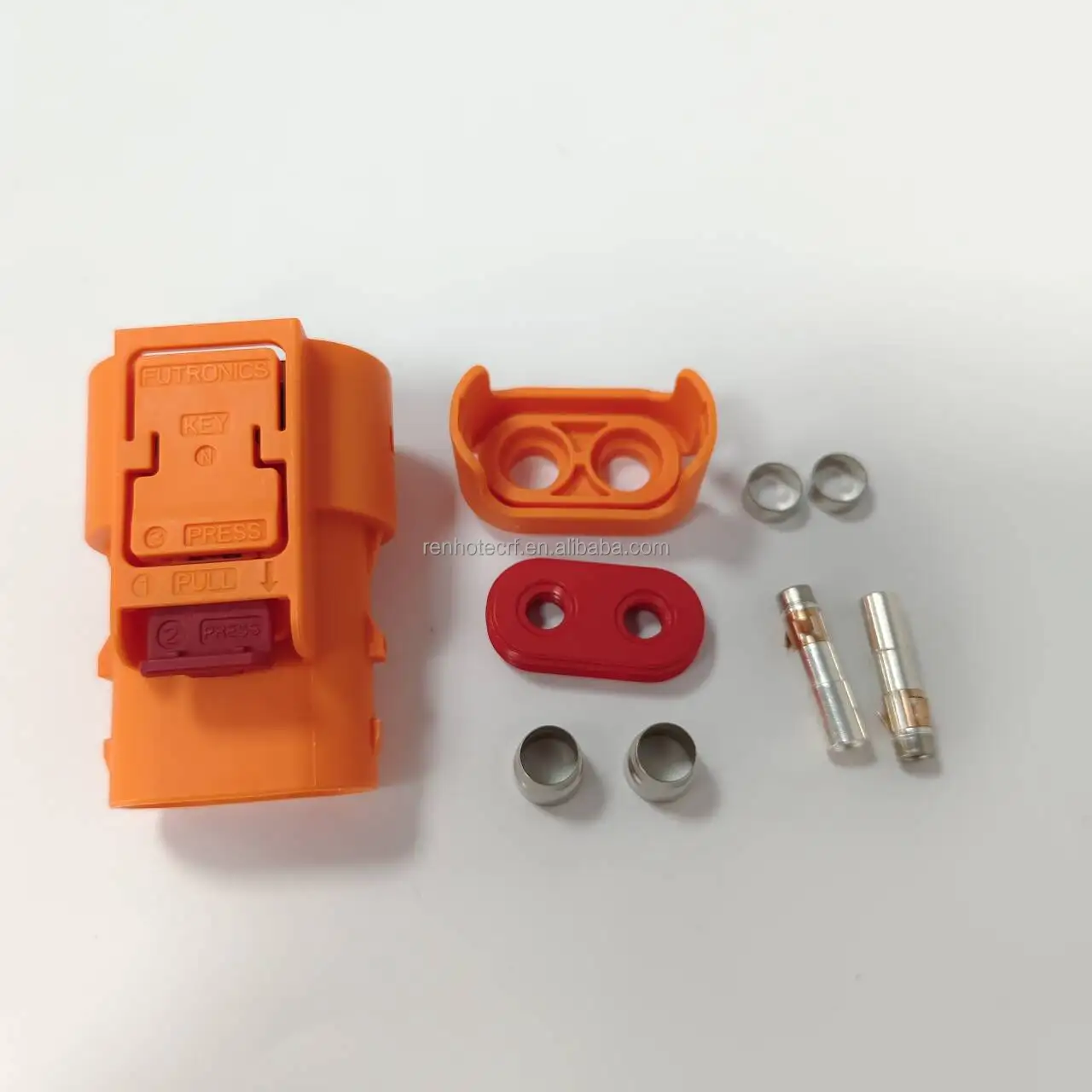

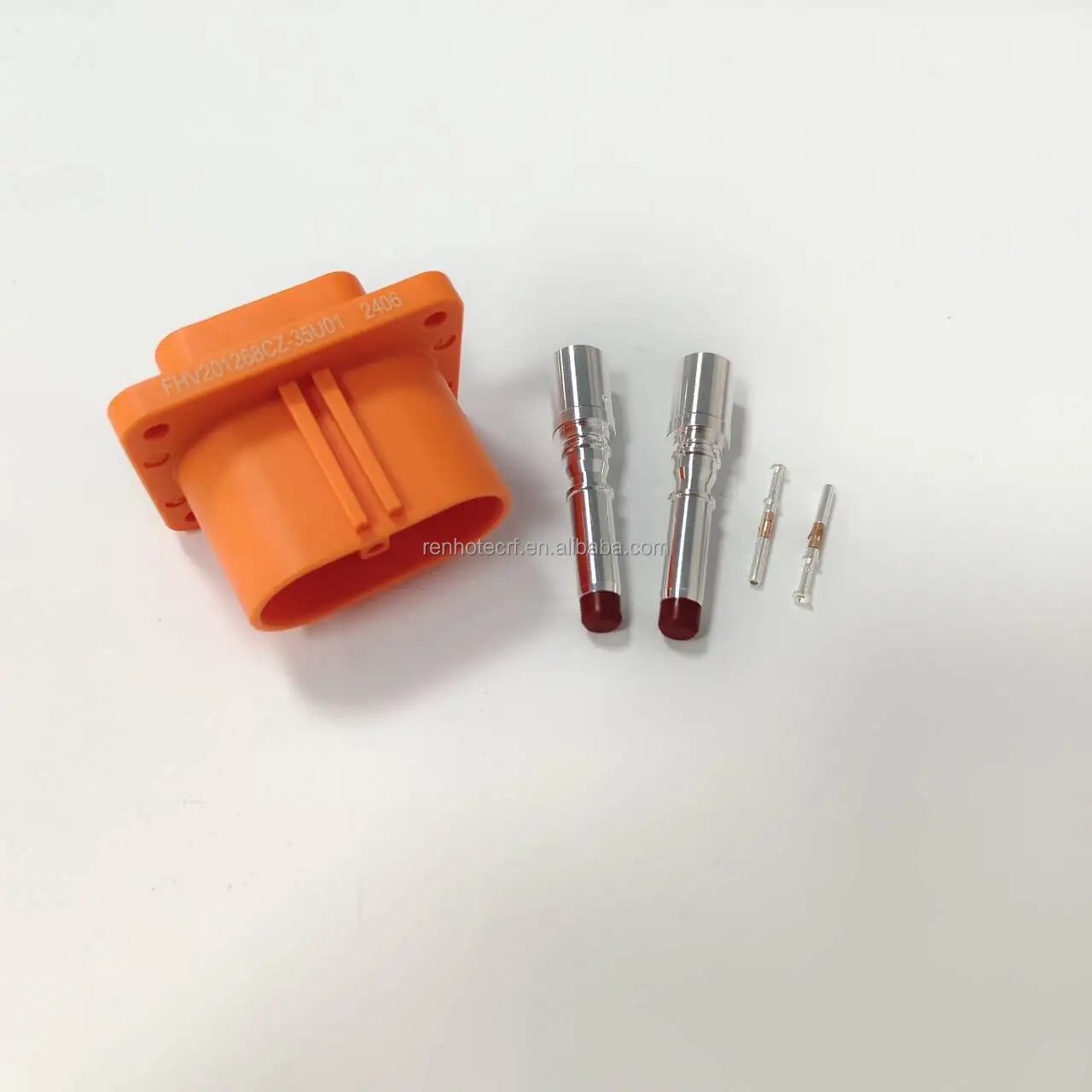

2 (5).jpg2 (1).jpg2 (2).jpg2 (3).jpg2 (4).jpg










Excellent Electrical Insulation
Secondary buckle
Various Wire Diameter Application
Multi Misplug-proof and Key Position Design





Products Benefits


Touch Proof
360°Rotating Plug
Compactrobust Design
Various Termination Options
Three Color are available
Quick Lock and Press-to- Release Design








Products Feature

































HVIL Series
Current




50a
GenderPlug / Socket
Number of Positions 2Pin
OrientationStraight / Right Angle
Body MaterialPlastic
applicationfor battery, inverters, junction boxes, power distribution boxes.



HVIL Connector


































































































Renhotec All HVIL Connectors
Products SeriesRated CurrentPositionShell materialsOrientation
HVIL2323A Max2PA66Straight
3PA66Straight
HVIL3535A Max2Zinc AlloyStraight
3Zinc AlloyStraight
HVIL5050A Max2PA66Straight
HVIL125125A Max1Zinc AlloyStraight
2PA66Straight/ Right Angle
HVIL150150A Max2PA66Straight
HVIL200200A Max1Zinc AlloyStraight/ Right Angle
2PA66Straight/ Right Angle
HVIL250250A Max1Zinc AlloyStraight/ Right Angle
HVIL400400A Max1Zinc AlloyStraight/ Right Angle
HVIL500500A Max1Zinc AlloyStraight/ Right Angle



















Electrical PerformanceRated Voltage  960V AC/1000V DC
Rated Current  16A,35A,50A,125A,150A,200A,250A,400A,500A
Withstand Voltage  3000V AC
Insulation Resistance  ≥500MΩ
Cable Gauge  2.5-150m2
Mechanical PerformanceConnection Type  Terminal machine
Mating Cycles  >100
Shielding  360
Salt Spray  MAX 96h
Flammability Rating  UL94 V-0
Positions  1/2/3pin
Environmental PerformanceIP Degree  IP67 IP6K9K(Mated)
Operating Temperature  -40℃~125℃





How to Order


 HVIL Connector






If You Still Not Found a Suitable Product, Please  Contact Us>>




Company Information






HVIL Connector

COMPANY INFORMATION


Renhao Weiye Technology (Wuhan) Co., Ltd.




- Have More Than 16 Years Experience on Electronic Connectors and Has Achieved Good Reputation in the Industry.                                                                                                                                                     - We Acquired ISO 9001, ROHS, IP Waterproof Test ,Environment and Management Systems Certification to Ensure High Quality. Please Contact Us Free for More Details if Interested.                          - in Addition, You Are Always Welcome to Visit Our Office and Factory for Face to Face Conversation!










Certificate





HVIL Connector








Production Equipment


 HVIL Connector





Why Choose Us






Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence"


and values "trust, quality, service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are ROHS, REACH compliant. HVIL Connector


Packing Details  :


1. Our standard packing: Individual part with transparent PE bag with label;


2. OEM package available


Shipping Methods  :


1. Samples and Small quantity order


FedEx/DHL/UPS/TNT/SF ,Door to Door.


2. Batch goods : Express, By Air, by Sea or by Rail


3. FCL: Airport/Seaport/Railway Station receiving


Lead Time: 1-7 working days for samples; 7-15 working days for mass
