Milk Pasteuriser/Small Milk Processing Line/Milk Pasteurizer and Homogenizer
$1,280.00-1,500.00
Stainless steel food grade 3000L/H Pasteuriser Machine for milk
- Category: >>>
- Supplier: Liaoning Koen Machinery Co. Ltd.
Share on (1601205035706):
Product Overview
Description
Products Description
Tube sterilizer & Pipeline pasteurization
Product Introduction
The tubular UHT sterilization machine is widely used in fully automatic systems for both sterile and non sterile heat treatment of liquid food. The viscosity range of the product is large and can adapt to fibers and particles. Our company's UHT sterilization machine series has a production capacity of 1-30 t/h, with a typical sterilization temperature of 90-140 ℃. It can be connected to any filling machine (sterile or other types). The sterilization machine and control system are installed on the chassis, and the control components are all products, including PLC programmable controllers and industrial control screens, steam pressure reducing and regulating valves, diversion valves, stabilizing valves, material pumps, and hot water pumps. All liquid fittings such as other valves and fittings are selected with high quality and reliability.
Points for attention
The new tubular sterilizer mainly consists of a material system, a high-temperature hot water system, and a degassing system (optional). Suicide bacteria aseptic system (optional) and control system pressure homogenization system (optional) · CIP system: composed of other systems. 1. The process parameters required for selecting a tubular sterilizer include material properties, sterilization process, special requirements, etc. Auxiliary equipment: air storage tank, air compressor, water storage, boiler. (To be provided by the customer or customized by our company)
Process
Feeding (25-40℃) → Pre-heater (70-75℃) → Sterilize (125-135℃) → Keep for 6s → Recovery → Cooling to (75-80℃) → Filling machine (If
sterilize not enough, Back to sterilize).
sterilize not enough, Back to sterilize).
Working principle:
The product after being preheated, heated, sterilized, and cooled during the processing. Then can to the filling step. The product through the tube at a certain flow rate in the heating exchanger. The cooling medium/heating medium through the shell at certain flow rate of the heat exchanger. This machine can automatically control the main data such as sterilization temperature.
Heat with high-temperature and high-pressure water to ensure that the product is sterilized under relatively mild conditions, so that the material components will not be damaged.
The product after being preheated, heated, sterilized, and cooled during the processing. Then can to the filling step. The product through the tube at a certain flow rate in the heating exchanger. The cooling medium/heating medium through the shell at certain flow rate of the heat exchanger. This machine can automatically control the main data such as sterilization temperature.
Heat with high-temperature and high-pressure water to ensure that the product is sterilized under relatively mild conditions, so that the material components will not be damaged.
Feature
1. The pH value of the usage environment is 1-14, and the viscosity range is extremely suitable for sterile production of fresh milk, pasteurized milk, yogurt color milk, fruit juice, tea drinks, grape longevity wine, ice cream, soy milk, milk drinks, jam, soy sauce products, etc. After being treated by the UHT sterilization system, the quality or freshness of the product can be maintained at room temperature for 3-6 months (without adding any preservatives), without the need for refrigeration chains
2. Equipment fully automatic or semi-automatic computer control, touch LCD screen operation
3. Instantaneous processing to maintain the original flavor of the product:
4. PID temperature control system, sterilization temperature is continuously recorded in real-time on the recorder
5. The heat treatment process of the product is uniform, with a heat recovery rate of up to 90%;
6. There are no contact points or hygiene dead corners inside the pipe, and the product will not adhere to the pipe. The corrugated pipe forms high turbulence during the sterilization process, and has a self-cleaning effect during the material flow process, so it is not easy to form scale and pollution inside the pipe
7; Longer continuous running time and better CIP self-cleaning effect
8. Less spare parts and lower operating costs;
9. Convenient pipeline maintenance: The equipment is made of sanitary grade stainless steel, which is reliable and can withstand high product pressure
1. The pH value of the usage environment is 1-14, and the viscosity range is extremely suitable for sterile production of fresh milk, pasteurized milk, yogurt color milk, fruit juice, tea drinks, grape longevity wine, ice cream, soy milk, milk drinks, jam, soy sauce products, etc. After being treated by the UHT sterilization system, the quality or freshness of the product can be maintained at room temperature for 3-6 months (without adding any preservatives), without the need for refrigeration chains
2. Equipment fully automatic or semi-automatic computer control, touch LCD screen operation
3. Instantaneous processing to maintain the original flavor of the product:
4. PID temperature control system, sterilization temperature is continuously recorded in real-time on the recorder
5. The heat treatment process of the product is uniform, with a heat recovery rate of up to 90%;
6. There are no contact points or hygiene dead corners inside the pipe, and the product will not adhere to the pipe. The corrugated pipe forms high turbulence during the sterilization process, and has a self-cleaning effect during the material flow process, so it is not easy to form scale and pollution inside the pipe
7; Longer continuous running time and better CIP self-cleaning effect
8. Less spare parts and lower operating costs;
9. Convenient pipeline maintenance: The equipment is made of sanitary grade stainless steel, which is reliable and can withstand high product pressure

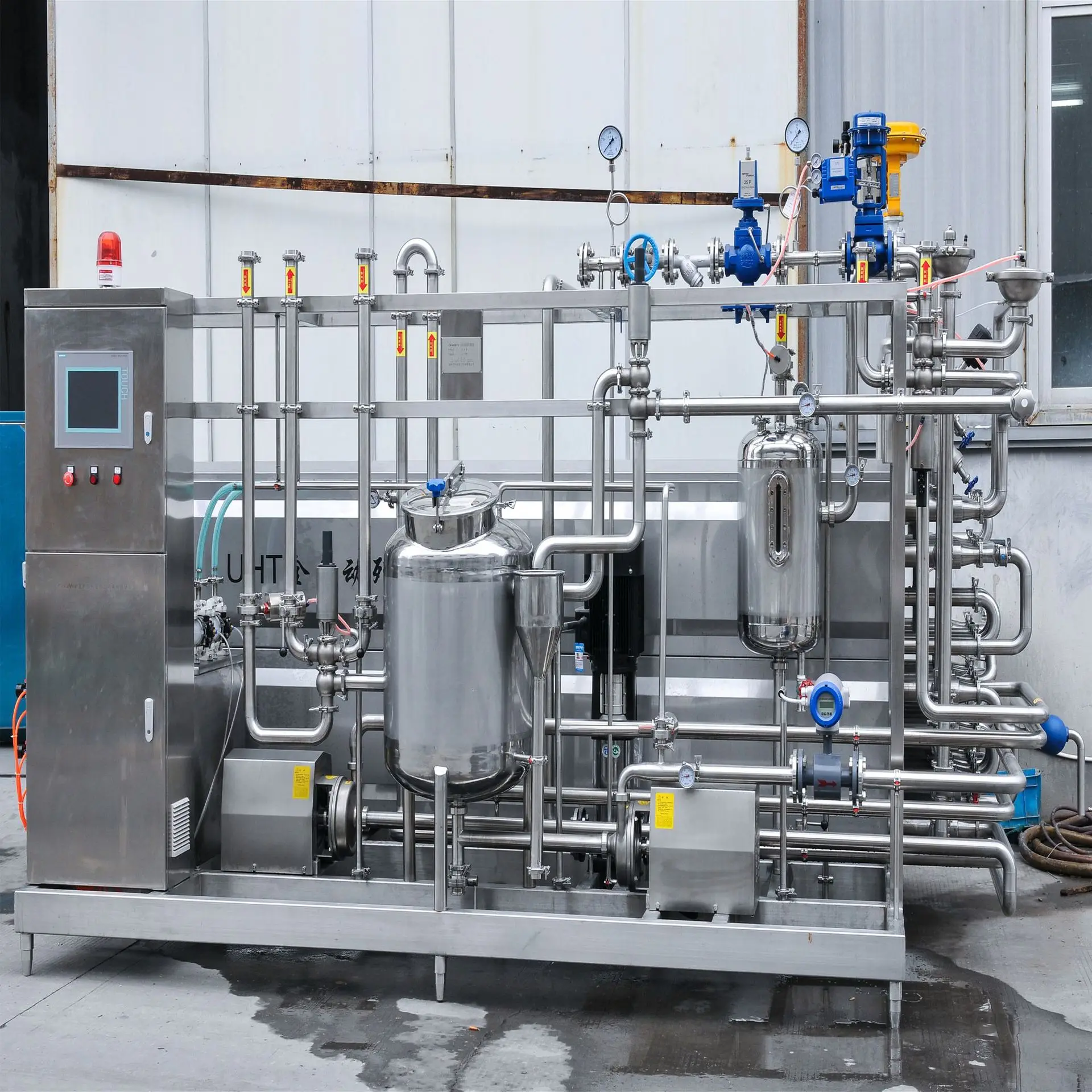

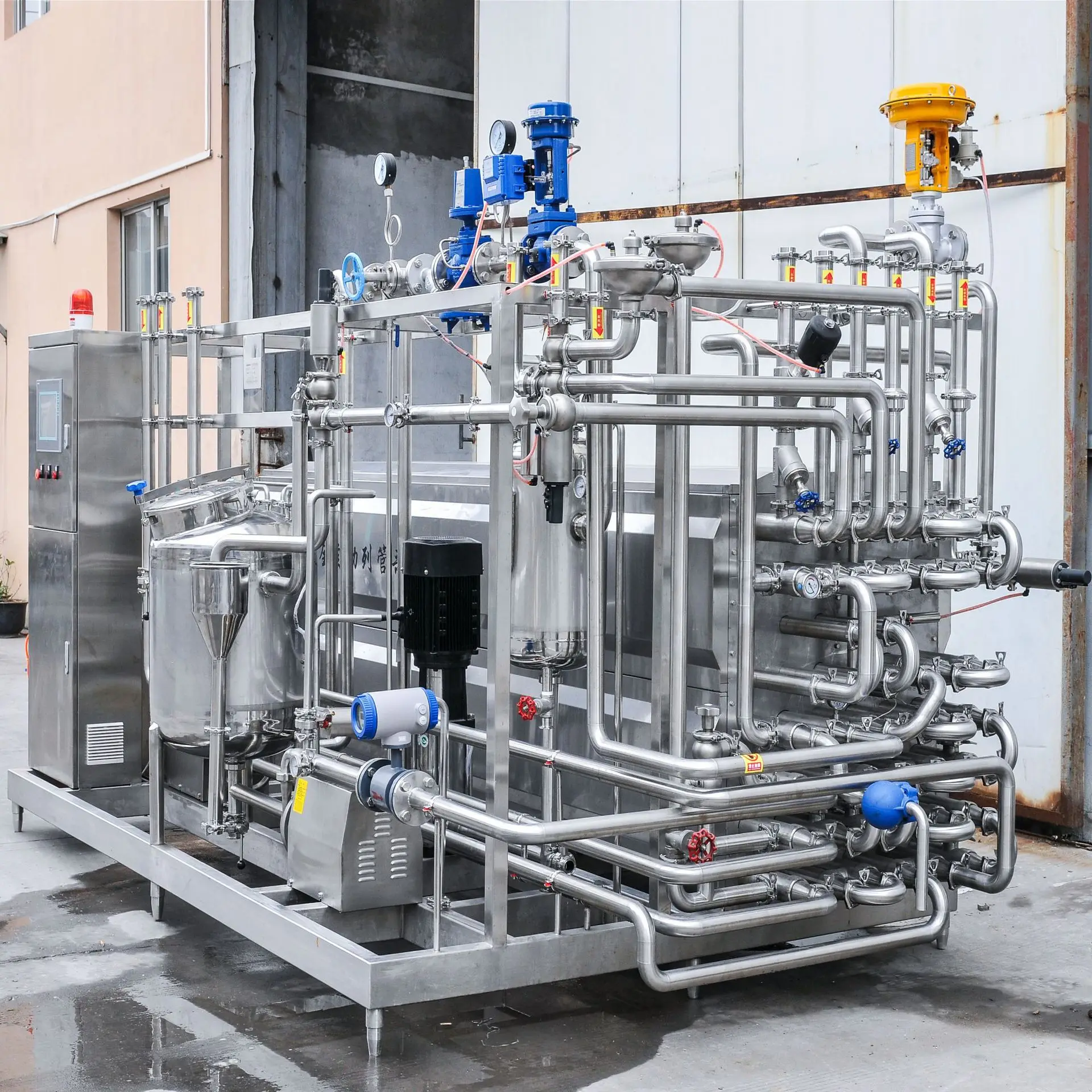

Details Images
Product Paramenters
Model | Capacity(L/H) | Total power(kw) | Steam consumption (kg/h) | Size(mm) | Weight(kg) |
KN-UHT-1 | 1000 | 4.5 | 200 | 4000×1600×2100 | 2000 |
KN-UHT-2 | 2000 | 5.5 | 500 | 4500x1800x2200 | 2500 |
KN-UHT-3 | 3000 | 6.5 | 600 | 4500x1800x2200 | 3000 |
KN-UHT-5 | 5000 | 8.0 | 800 | 4600×2000×2200 | 3500 |
KN-UHT-6 | 6000 | 9.0 | 950 | 4600x2000x2400 | 3800 |
KN-UHT-7 | 7000 | 10.5 | 1200 | 4600x2200x2400 | 4000 |
KN-UHT-8 | 8000 | 12.5 | 1400 | 5000x2400x2500 | 4200 |
Note:We can customize the equipment according to customer requirements.
Recommend Products
Packing

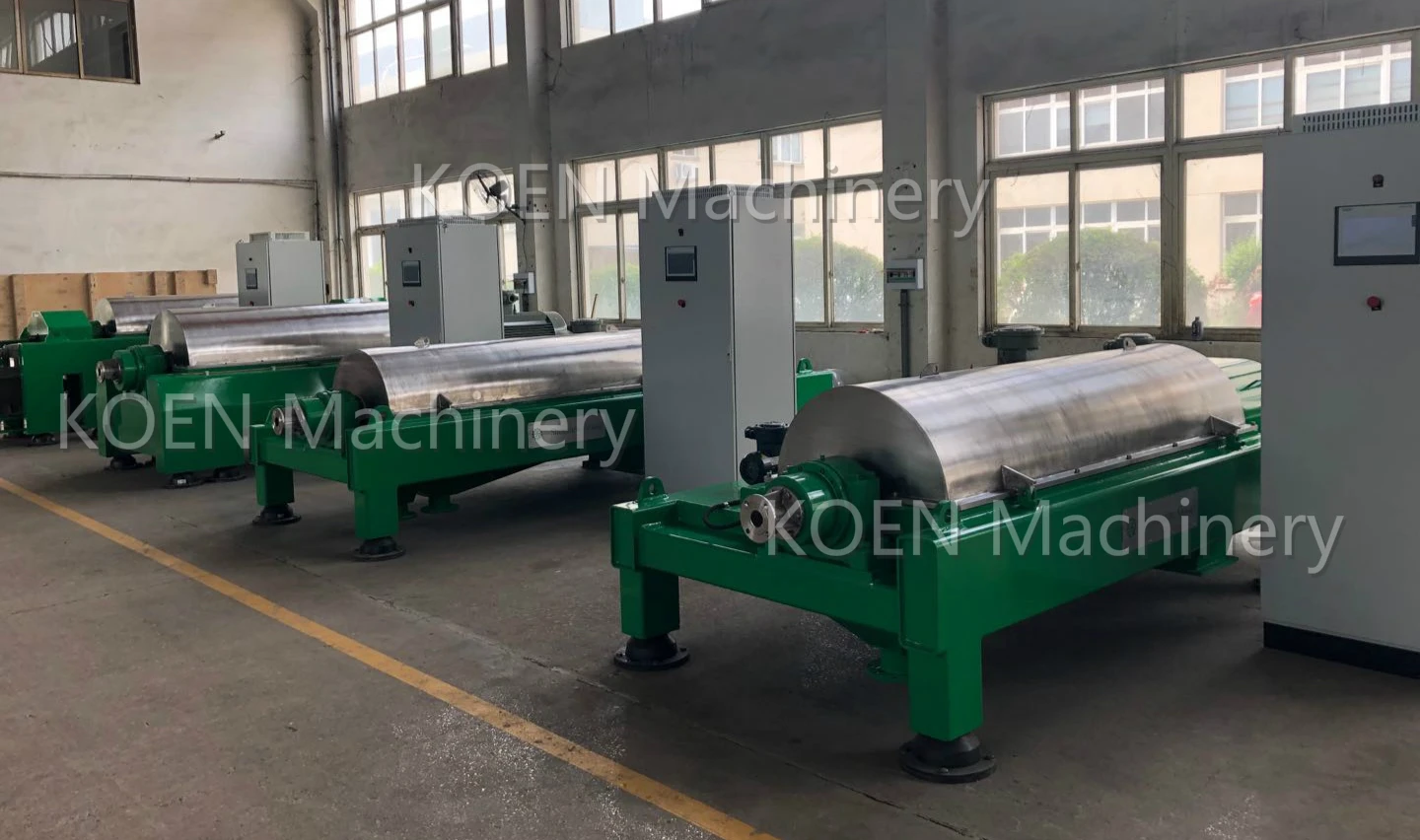

Company Profile

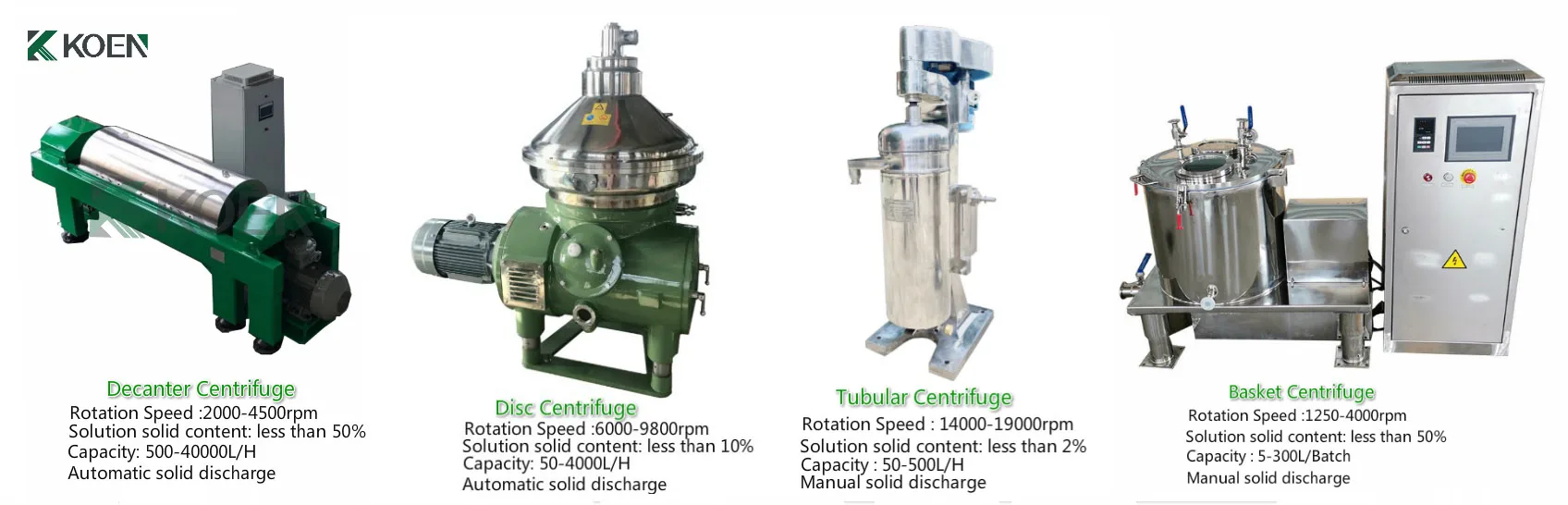

Koen Machinery Co.,Ltd, We are the professional manufacturer of centrifuge separator machinery, separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the whole
set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and chemical
project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia ,Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and chemical
project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia ,Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
