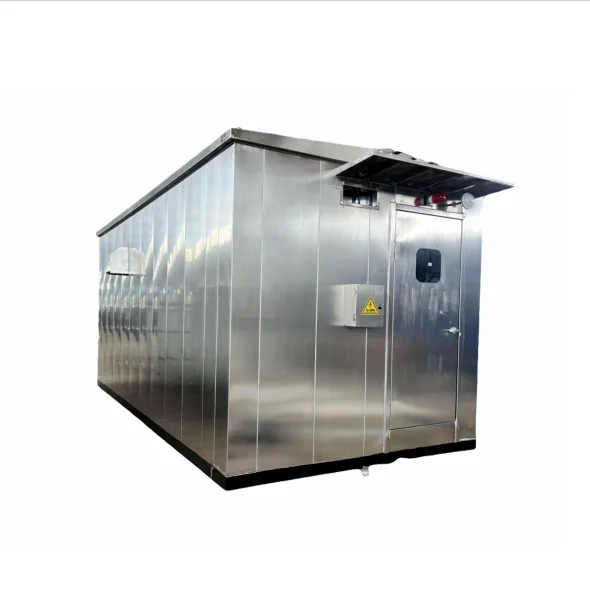

Explosion proof 40 feet container for natural gas metering station.
- Category: >>>
- Supplier: Dezhou Sailing Import And Export Co. Ltd.
Share on (1601205047482):
Product Overview
Description
Specification
product name | Customized size explosion-proof analysis cabin container |
material quality | 304 stainless steel |
skeleton | 10 # to 12 # channel steel or I-beam |
floor | Made of 4-6mm steel plates |
Distribution facilities | Explosion proof electrical |
External dimensions | Determine based on user needs |
Lightning Protection Level | Level 4 |

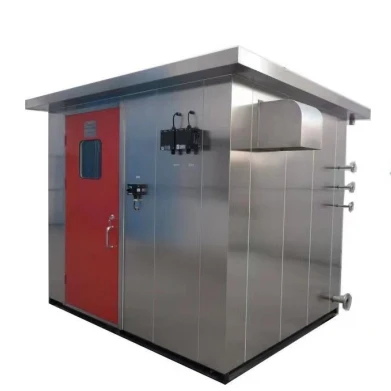

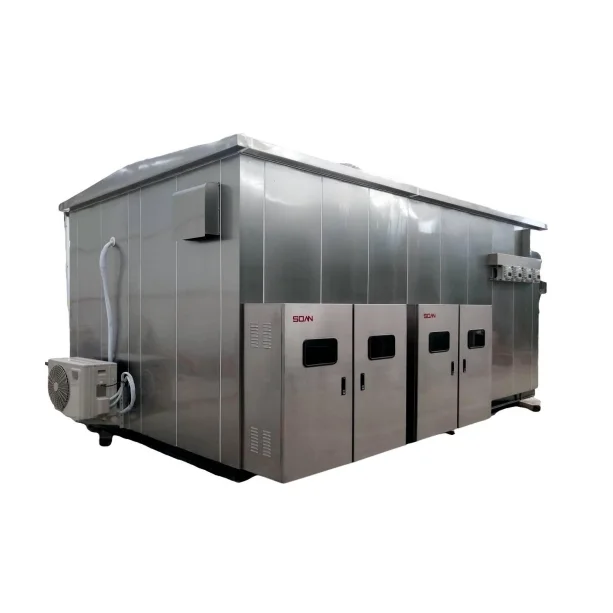

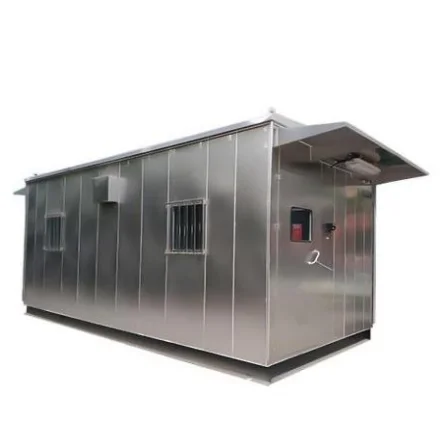

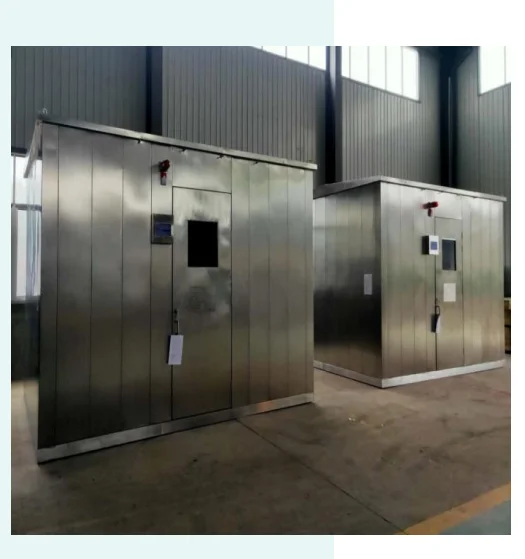

Product Description

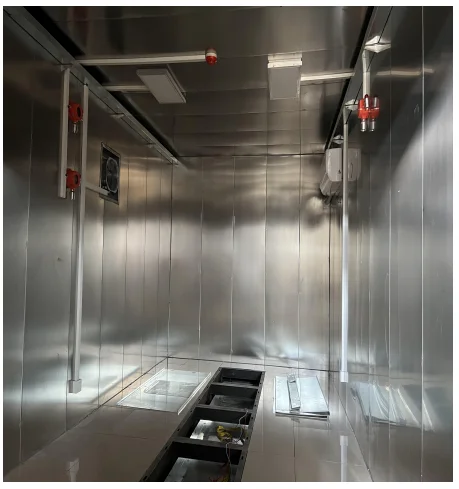

The analysis container may also be referred to as the on-site analyzer container. It is a closed structure on which the analyzer is mounted, and the analyzer is operated and maintained in the cabin. Since the in-line analyzer is installed in the industrial site, different degrees of climate and environmental protection are required to ensure the instrument's serviceability and benefit maintenance. The analysis hut is produced because of this, it can be full of the special environmental elements required by the line analyzer to form a suite of systems, such as temperature, humidity, dust and explosion protection, etc. A very large facility is provided for on-site installation, operation and maintenance of line analyzer meters
Product Process
1. Channel steel is used as the main frame of the base, and channel steel or I-steel is used as the support beam under the floor keel. The main frame, floor keel and support beam are welded and connected to ensure that the floor does not vibrate when the maintenance personnel move around the room. The roof frame and main beam are made of channel steel, and channel steel is used as the main beam and roof keel support in the width direction, and are welded and connected to prevent distortion. The roof has A certain slope, the slope is at least 4%, can be A-type or a slope structure, is not allowed to use a flat roof, to prevent rainwater accumulation
2. The external wall panel uses stainless steel, galvanized sheet and other related profiles and plates, the internal and external walls and the inner and outer tops are filled with flame etardant insulation materials, the thickness of the insulation layer is generally 70 ~ 75mm, and the materials are in line with the relevant national institutions. When the galvanized steel plate is
used, the surface spray treatment must be carried out, and the spray color is white or international gray
used, the surface spray treatment must be carried out, and the spray color is white or international gray
Power Distribution System

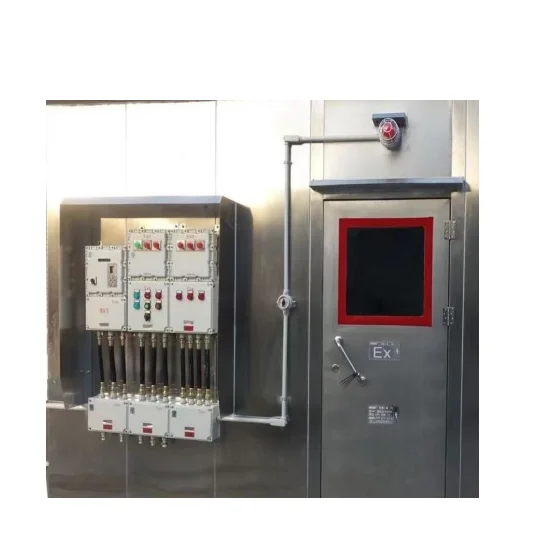

Distribution for the pipeline system, the box interior using flameproof, explosion-proof line overall layout, explosion-proof electrical installation and line all use explosion-proof accessories connection, its level to meet the national standard requirements
Lighting System
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

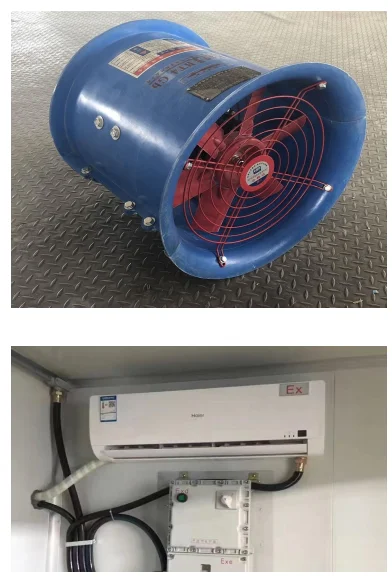

Ventilation System
The forms of ventilation are divided into natural ventilation and positive pressure ventilation.
Whether the explosion-proof form of the electrical equipment in the container, including the analyzer, meets the explosion-proof hazardous area level we define in the cabin. If it cannot be satisfied, we must use positive pressure ventilation.
Whether the explosion-proof form of the electrical equipment in the container, including the analyzer, meets the explosion-proof hazardous area level we define in the cabin. If it cannot be satisfied, we must use positive pressure ventilation.
If all electrical equipment can meet the defined explosion-proof hazardous area level, we can consider using enhanced natural ventilation, that is, adding fans to enhance ventilation.

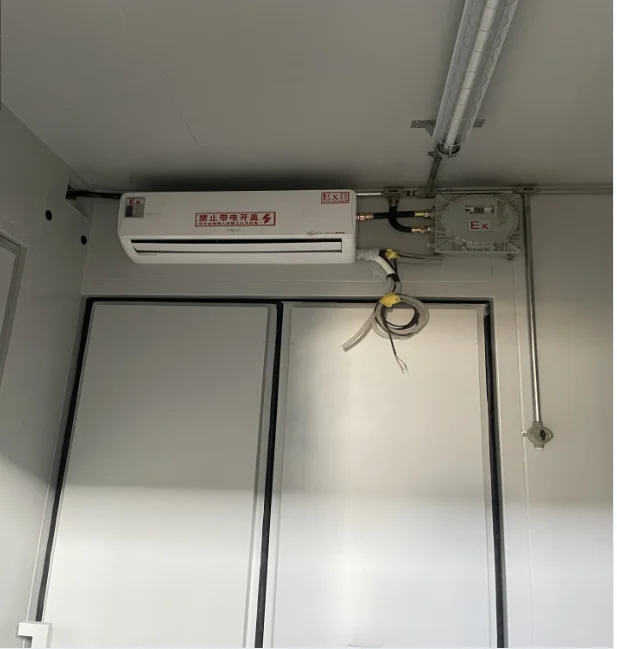

The container is equipped with explosion-proof air conditioning of the corresponding brand, interlocked with temperature and humidity sensors, with preset temperature control and energy saving
Alarm System
The flammable gas alarm system needs to select the corresponding detector according to the corresponding flammable gas medium in the detected environment. Select corresponding detectors and their installation locations and methods for different media and locations. And when the gas medium concentration in the analysis cabin reaches a certain value (generally 1 to 25 of the lower explosion limit), it will alarm and control related equipment to prevent fire and explosion accidents.
Its detectors and alarm controllers are products that have passed the inspection by the National Fire Electronic Products Quality Supervision, Inspection and Testing Center and comply with the current relevant national technical standards.
Product Features
1. It has the advantages of shockproof, anti-static, anti-spark, dust-proof, and anti-interference, etc., providing a good operating environment for the instrument and enhancing the reliability of the system.
2. Fully closed system, overall explosion-proof function, dustproof, waterproof, anti-static and anti-spark functions create a safe environment for on-site analysis.
3. It has the functions of constant temperature, constant humidity, anti-vibration, and isolation from environmental pollution.
4. Overall grounding, grounding resistance <4Ώ
5. It has the functions of resisting environmental corrosion and on-site interference.
Related Products
Anaerobic Explosion-proof Container
Steam Generating Container
Nitrogen Equipment Container
Living Container
Hazardous & Chemicals Container
Fumigation Equipment Container
Real Fire Test container
Chemical Analysis Container
Prefabricated Cabin

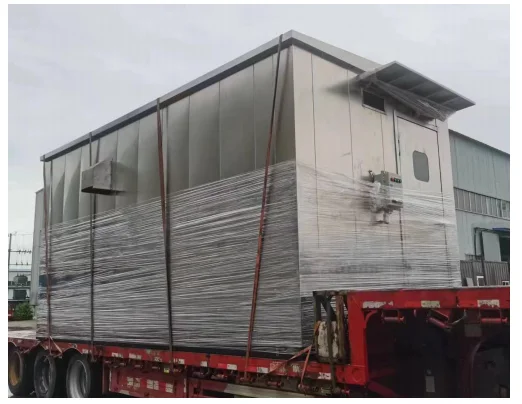

Packing & Delivery
Company Profile
The company mainly operates special equipment containers such as electrical equipment boxes, water treatment equipment containers, functional containers, power generation containers, and power prefabricated cabins, as well as container-type mobile houses, camping containers, modular containers, and ordinary land transportation containers (standard containers and non-standard containers) , professional manufacturing of wingspan containers, and sales of various accessories for containers. Our company has a complete production process, including shearing, stamping, partial assembly, final assembly, welding, sandblasting, painting, decoration, etc., all processed and produced by well-trained professional production workers with rich technical and practical experience.
