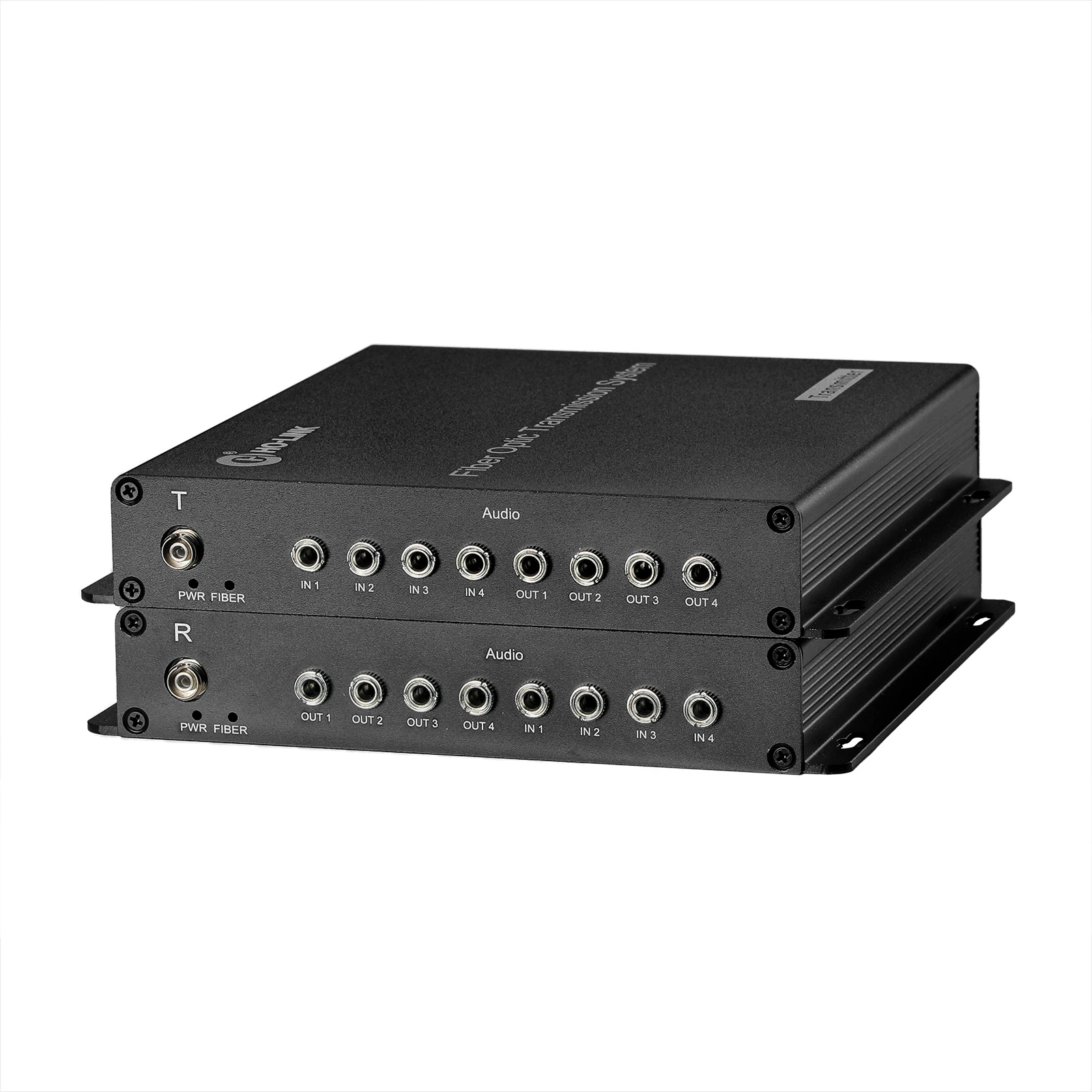

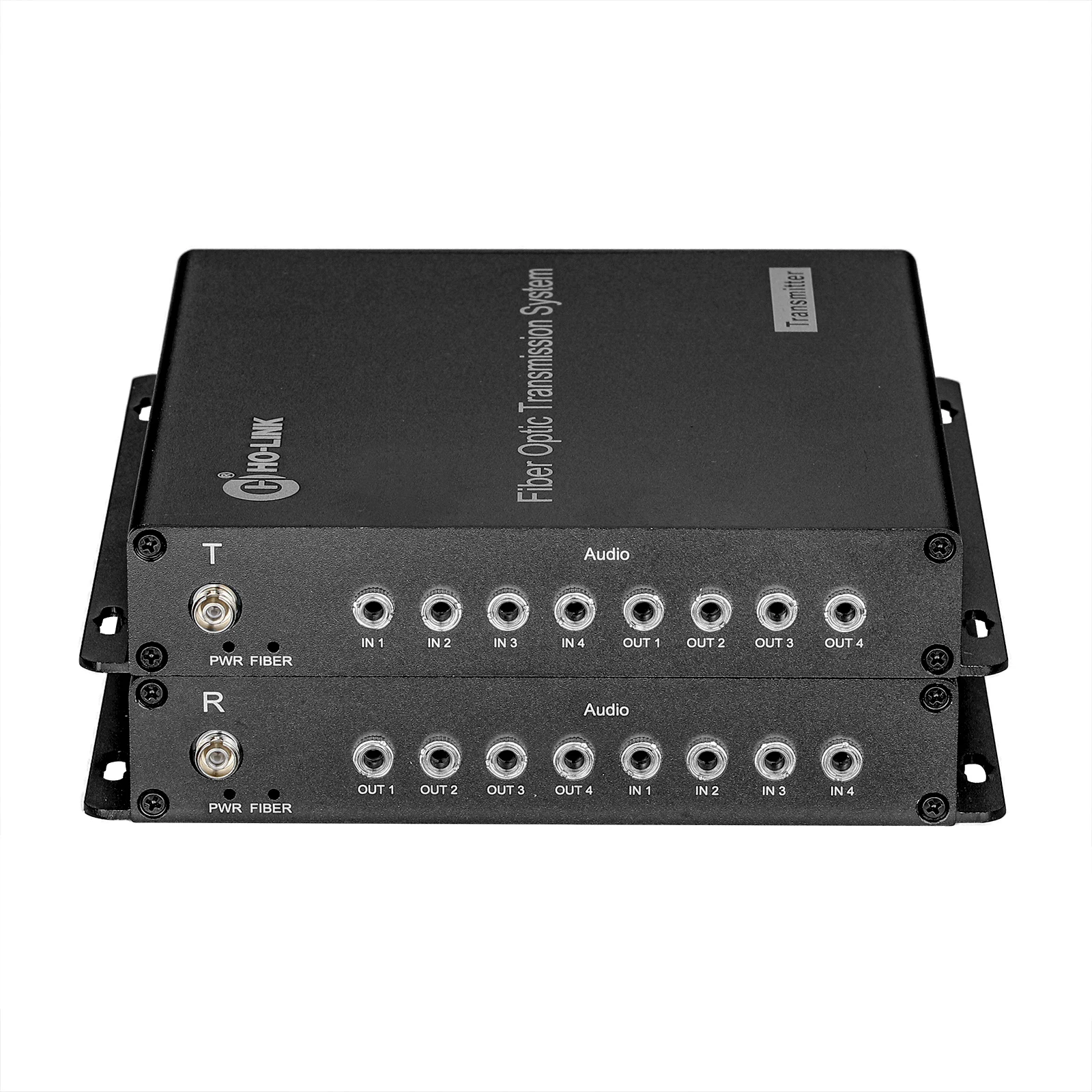

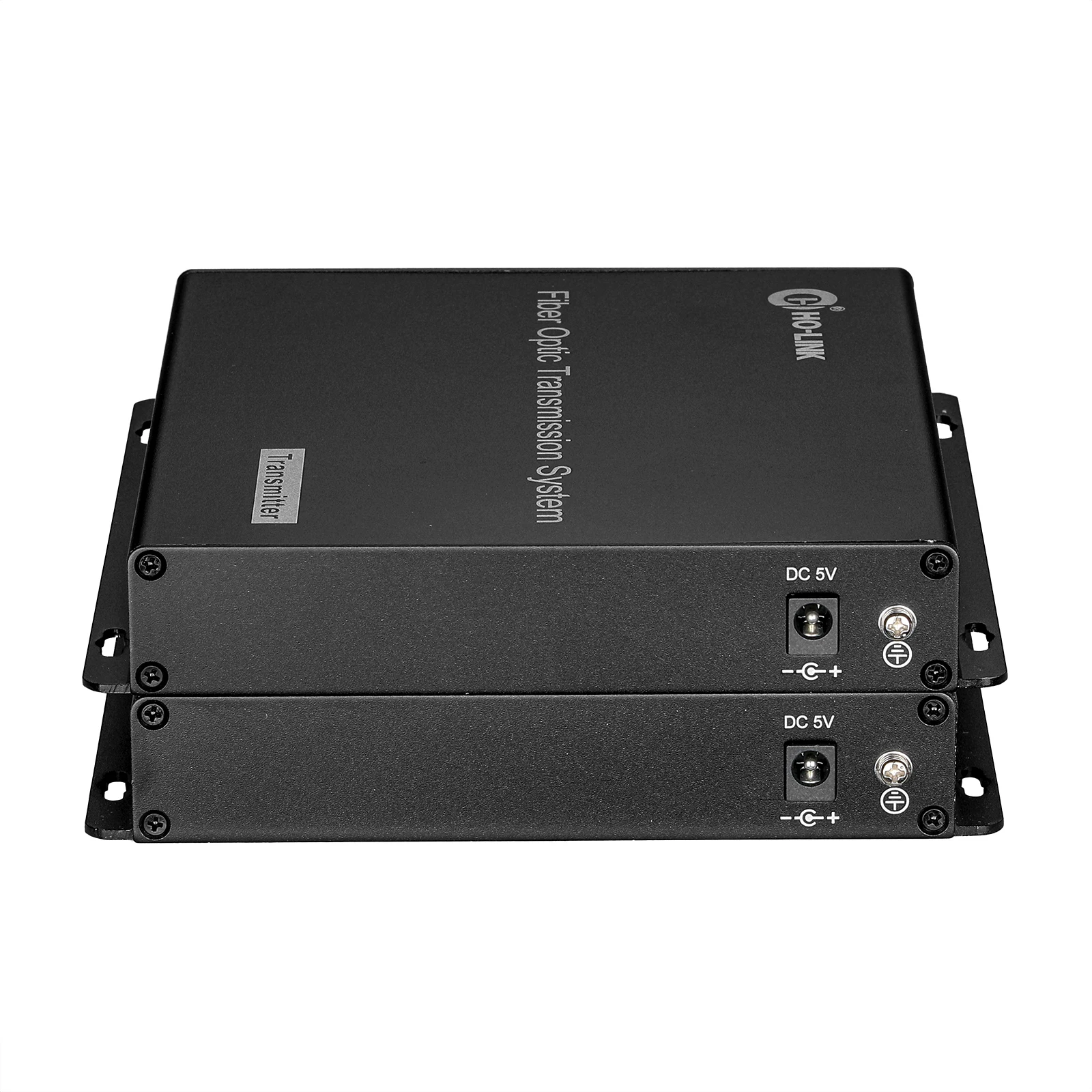

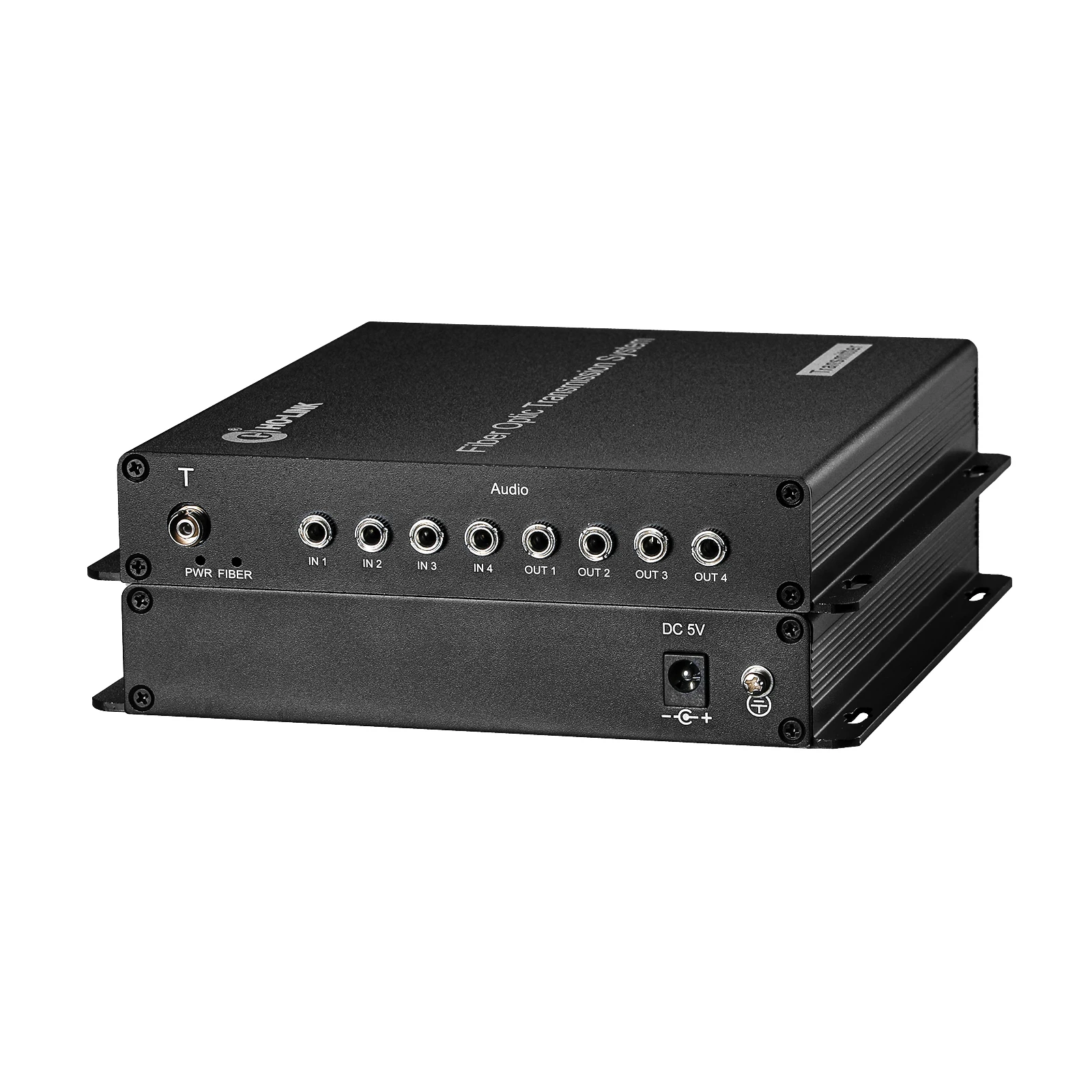

4 channel bidirectional 3.5mm stereo audio 20KM FC fiber single fiber single mode 3.5mm Audio Fiber Optic Converter

Product Overview

Description

Unbalanced Analog Audio to Fiber Optical Converter



Overview

Unbalanced analog audio optical transceiver is a single chip stereo analog data fiber optical converter that uses bit-stream converter (ADC) technology.  The low power consumption and low voltage requirements make the device ideal for use in low-voltage and low-power portable data and audio devices.



Audio Specification

1.Full-size output sine wave, 997 Hz;  MCLK = 12.288 MHz.  Fs basic probability mode = 48 kHz, SCLK = 3.072 MHz,

2.Measurement bandwidth 10hz to 20khz;  Fs is high rate mode = 96 kHz,



Features

Multi-format Output Interface

1.Compatible with I2S bus and MSB format

2.Serial output up to 24 bits



Advanced Audio Configuration

1.Stereo single - end input configuration

2.High linearity, dynamic range and low distortion



General Functions and Features

1.Supports 1 to 32 channels of unbalanced analog audio forward/bidirectional transmission

2.Using FPGA, digital coding/decoding and clock recovery technology, high integration and high stability

3.Single and multi-mode compatible, multi-mode transmission distance 1KM, single-mode transmission distance 20KM, customized transmission distance of up to 100KM

4.LED status indicator to monitor the running status of the device

5.Plug and play, no setup required

6.Devices are used in pair. Note that devices are distinguished between transmitter and receiver





Technical Indexes

Fiber index
Wavelength	1310nm&1470nm~1610nm(selection is based on device function)
Tx power	>-7db
Rx sensitivity	>-24db
Fiber connector	FC(SC,ST,LC, optional)
Audio index
Dynamic bandwidth	96dB
Total harmonic distortion (THD)	-88dB
Signal-to-noise ratio	-88dB
Signal-to-noise ratio(S/N)	-82dB
Sampling frequency	48kHz
Audio A/D sampling	24 Bit
Frequency response	10~20kHz
Gain mismatch between channels	0.1dB
Gain error	±5%
Gain drift	100 ppm/°C
Amplitude-frequency characteristic	≤±0.5 dB
Audio input/output impedance	600  balance
Audio maximum input/output voltage	0~2V
Operating index
Operating temperature	-20 to 70°C
Storage temperature	-40 to 80°C
Relative humidity	5 to 95%(non-condensing)
Working life	>100,000hours
Power supply mode
Desktop	DC 5V
Rack-mounted	AC 110~240V 50/60Hz



Printed indicator status description

Transmitter
POWER	Off:powered off On:powered on
FIBER	Off:fiber optical signal is blocked or excessive attenuation On:fiber signal is received properly



Receiver
POWER	Off:powered off On:powered on
FIBER	Off:fiber optical signal is blocked or excessive attenuation On:fiber signal is received properly
