MPO/MTP Fiber Optic Patchcord Jumper Elite OSP product hyper scale date center Connector
- Category: >>>
- Supplier: Chaozhou Shangwei Technology Co. Ltd.
Share on (1601205127112):
Product Overview
Description
Products Description

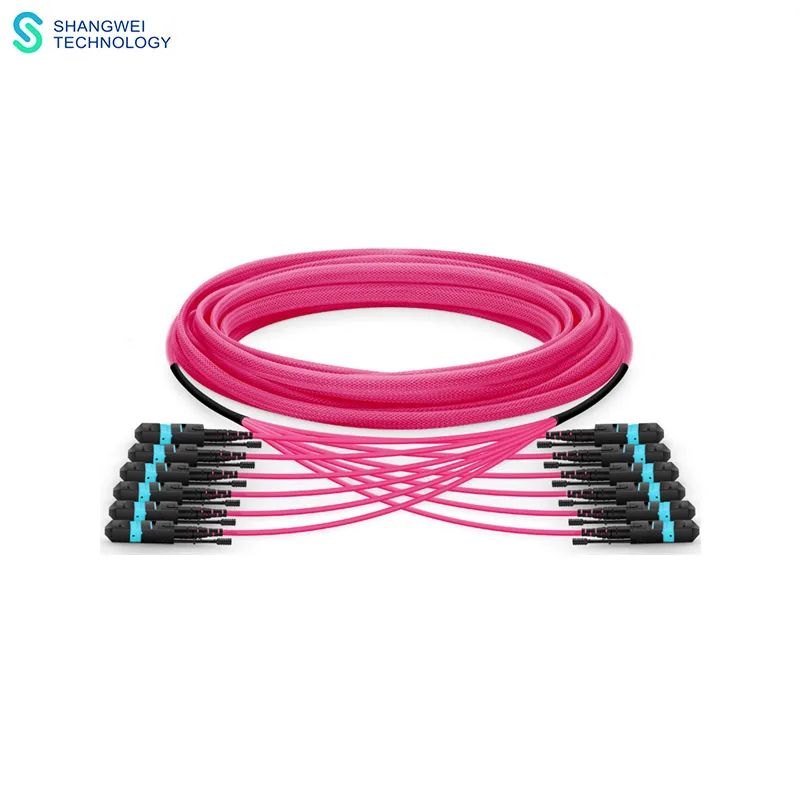

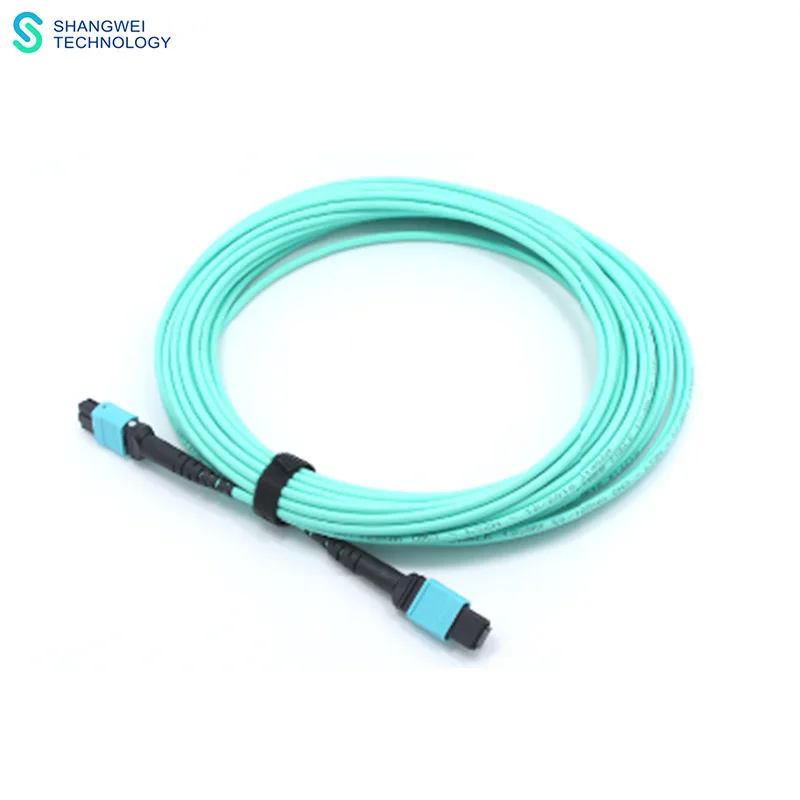

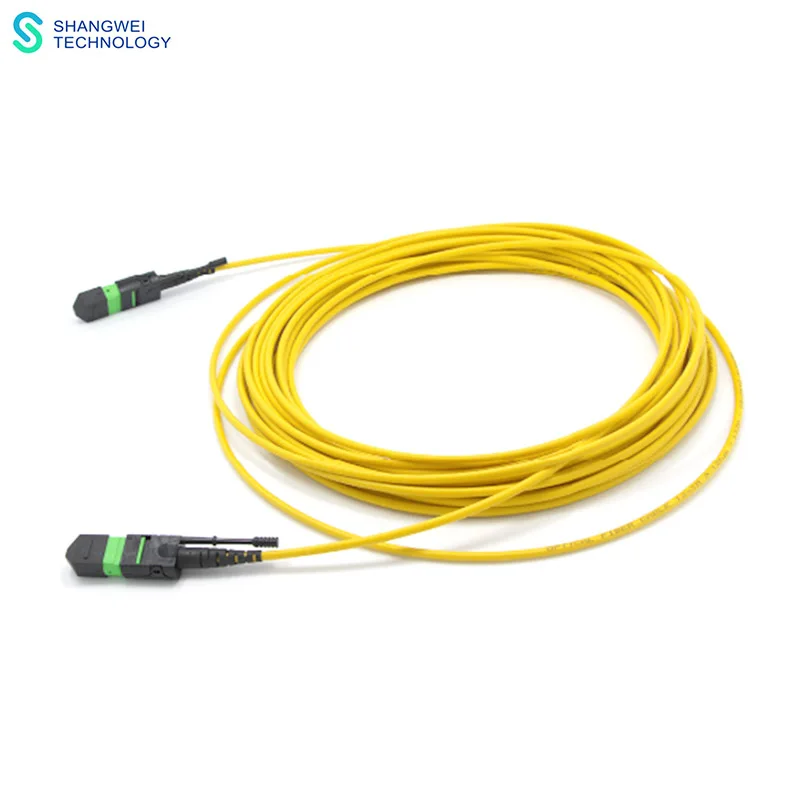

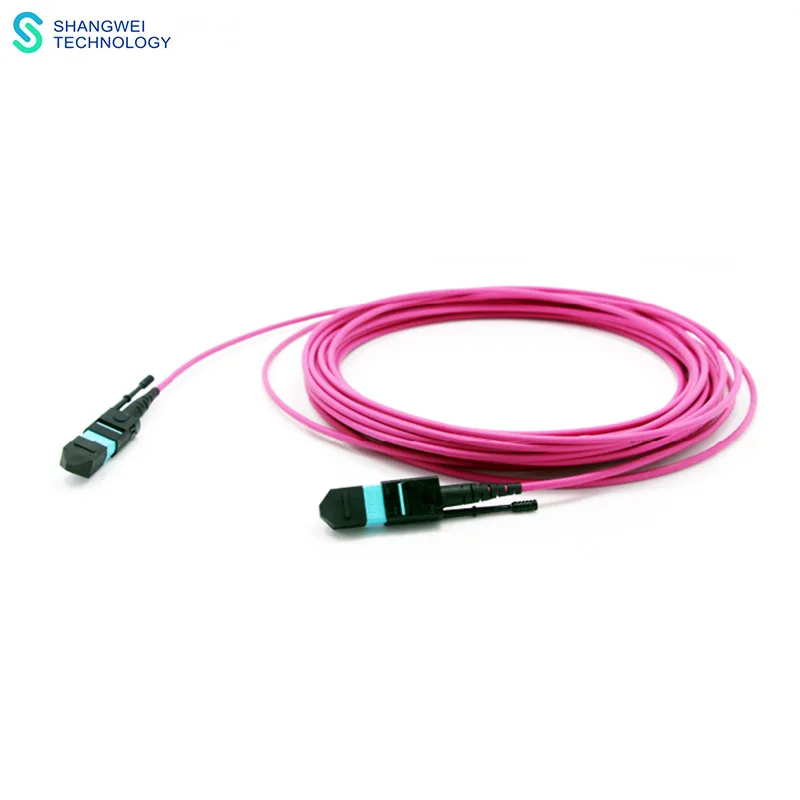

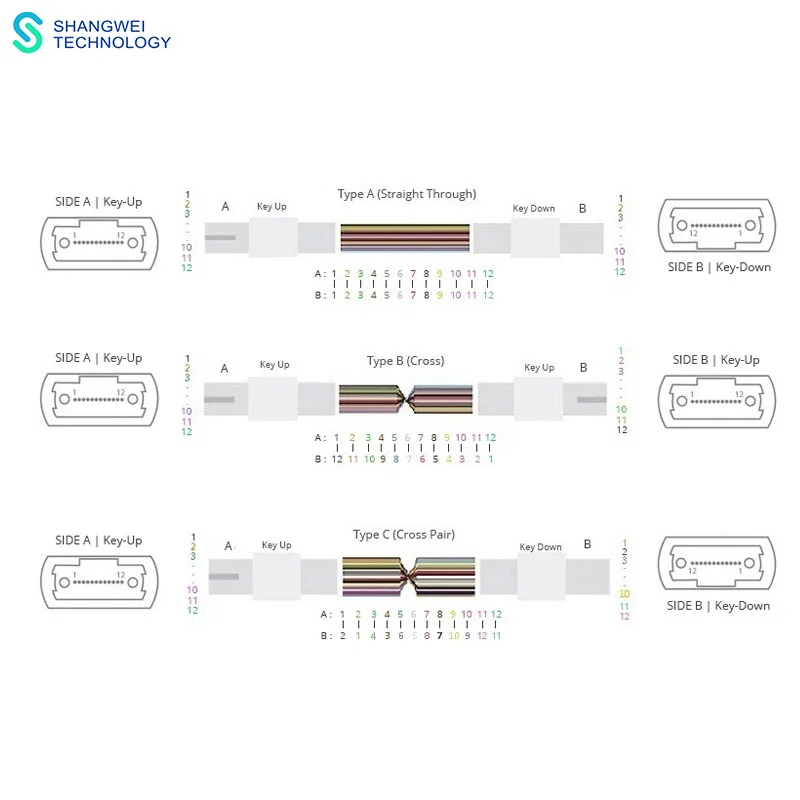

MPO patchcords

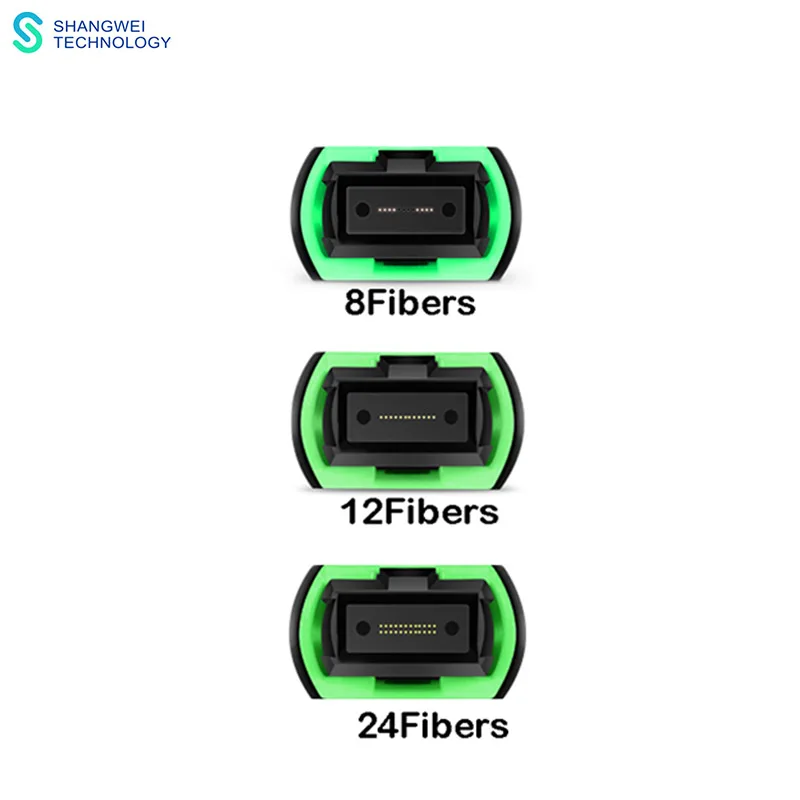

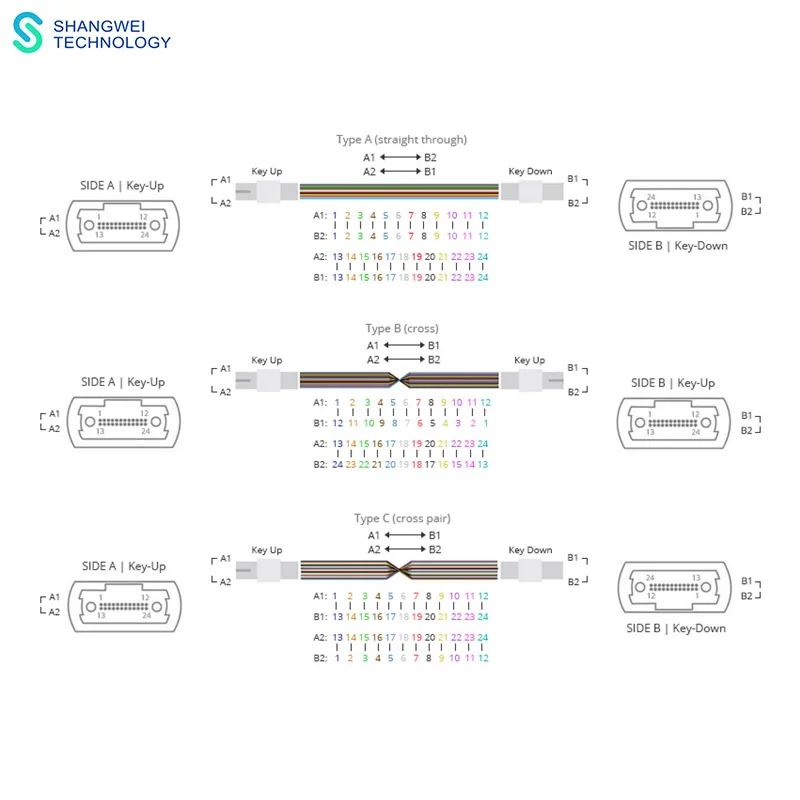

MPO patchcords pre-terminated cable refers to the use of MPO 12F/24F connector at both ends of the cable, or the other end is using LC/SC connector.
Product Paramenters
MPO Connector Praramenters | ||||
Spec items. | Single mode (APC 8-degree polished) | Multimode (PC Flat polish) | ||
Insertion loss (MPO) (IEC 61300-3-34) | Standard loss：≤0.75dB(max),≤0.35dB(Typical) Super Low loss： ≤0.35dB(max), ≤0.20dB(Typical) | Standard loss： ≤0.6dB(max), ≤0.35(Typical) Super Low loss： ≤0.35dB(max),≤0.20dB(Typical) | ||
Return loss(MPO) | ≥60dB（8degree polishing） | ≥25dB | ||
Durability | <0.3dBtypical change, 200 matings | |||
Interchangeability | ≤0.2dB | |||
Tensile strength | >70N | |||
Operating Temperature | -40 to + 85°C | |||
MPO End-Face 3D Interference Index | ||||||||
Item (IEC-61300-3-30) | Minimum | Maximum | ||||||
Radius of curvature (mm) | ROC-X(ABS) | 2000 | \\ | |||||
ROC-Y(ABS) | 50mm | \\ | ||||||
Angle | Angle-X | -0.2° | -0.2° | |||||
Angle-Y | APC | 7.85° | 8.15° | |||||
PC | -0.2° | -0.2° | ||||||
Fiber height (nm) | 1000nm | 3500nm | ||||||
Max.DH.All Fiber: | -300nm | 300nm | ||||||
DH.Adj: | -300nm | 300nm | ||||||
DH.Ave Fiber: | -300nm | 300nm | ||||||
Core Dip: | SM | N/A | N/A | |||||
MM | -200nm | 300nm | ||||||
Similar products
Recommend Products
Company Profile
Founded in August 2021, GDS is becoming a verified national Hi-tech enterprise, headquartered in Chaozhou with manufacturing location in Nanjing. We specialize in the manufacturing fiber optic products and accessories range.
GDS is one of the industry leaders in research and development, we focus on delivering high quality customer service and is accredited with ISO:9001 certificate. All our products are being exported to many oversea customers, such as USA, South America, India, Japan & Switzerland.
GDS is one of the industry leaders in research and development, we focus on delivering high quality customer service and is accredited with ISO:9001 certificate. All our products are being exported to many oversea customers, such as USA, South America, India, Japan & Switzerland.
GDS offers a wide range of highly competitive passive fiber optics products, including the standard and customized
connectivity parts. Our main product is: Fiber Optic Connectors (patch-cords and pigtails), single fiber connector & multi-fiber Connector (MPO), Adapters, Splitters, water-proof connectors. A strong research and development team delivers our customers with high quality products, while our post-sales team provides comprehensive service. All our products are qualified with the Network Access License, issued by the Ministry of Industry and Information Technology of the People's Republic of China.
connectivity parts. Our main product is: Fiber Optic Connectors (patch-cords and pigtails), single fiber connector & multi-fiber Connector (MPO), Adapters, Splitters, water-proof connectors. A strong research and development team delivers our customers with high quality products, while our post-sales team provides comprehensive service. All our products are qualified with the Network Access License, issued by the Ministry of Industry and Information Technology of the People's Republic of China.

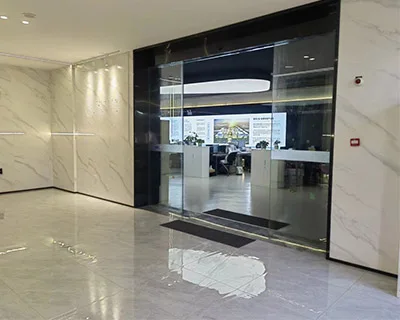

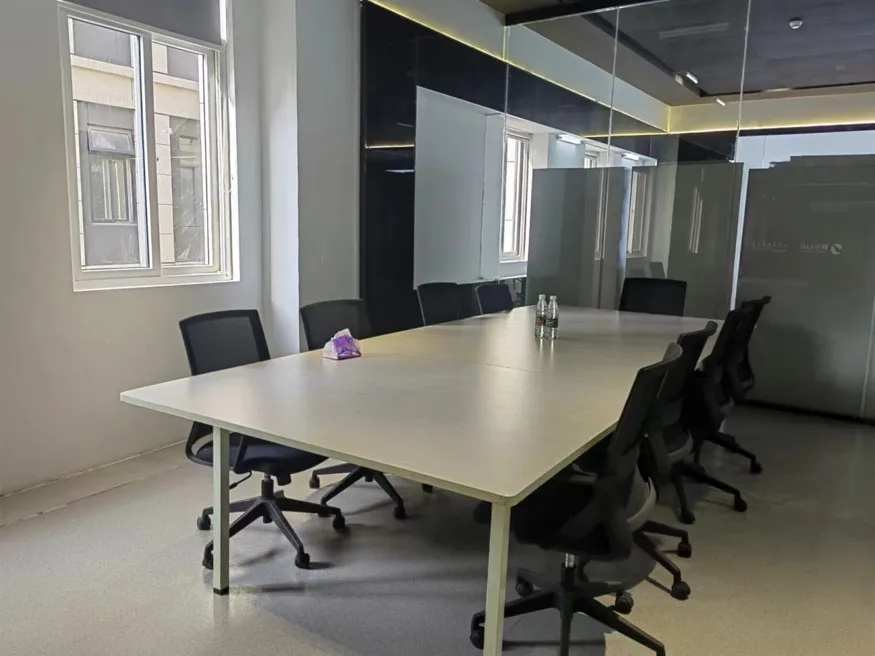

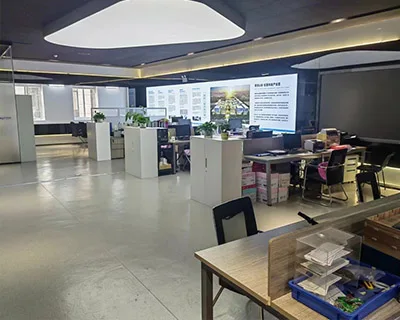

Sales teams working office
GDS have many professional sales to support your international business.

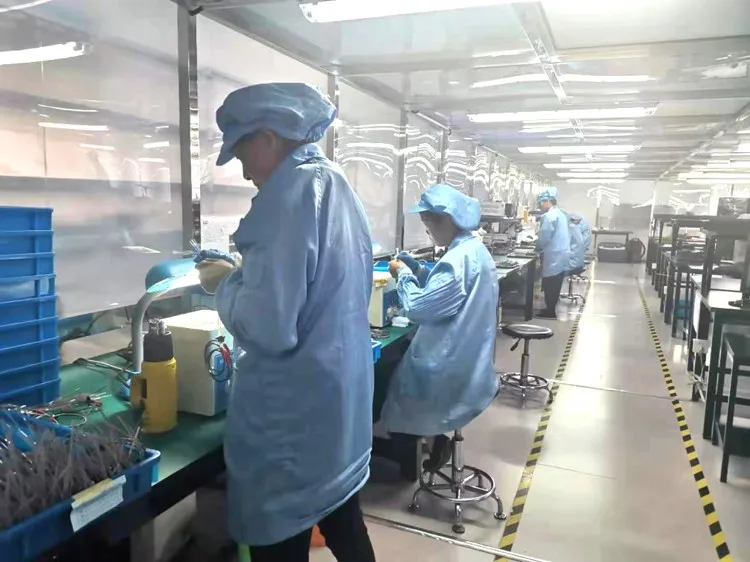

Manufacturing Technique

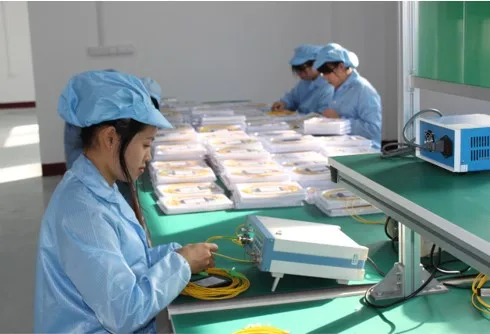

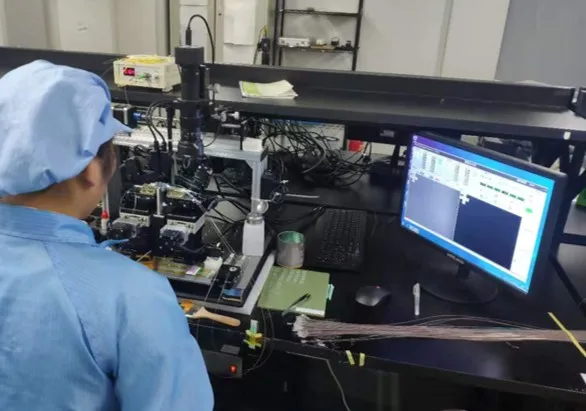

FA & Splitter production line

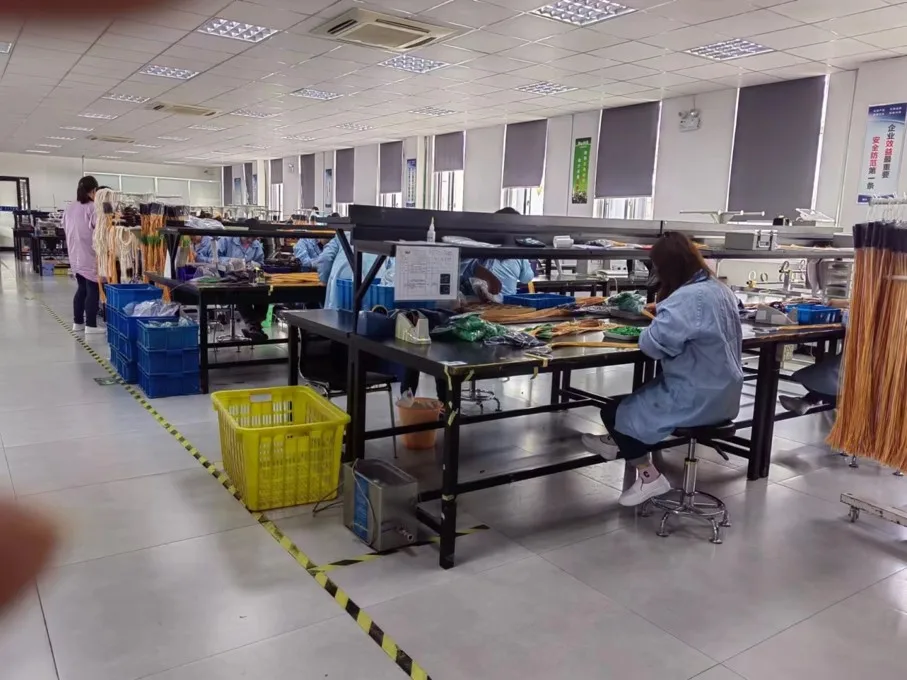

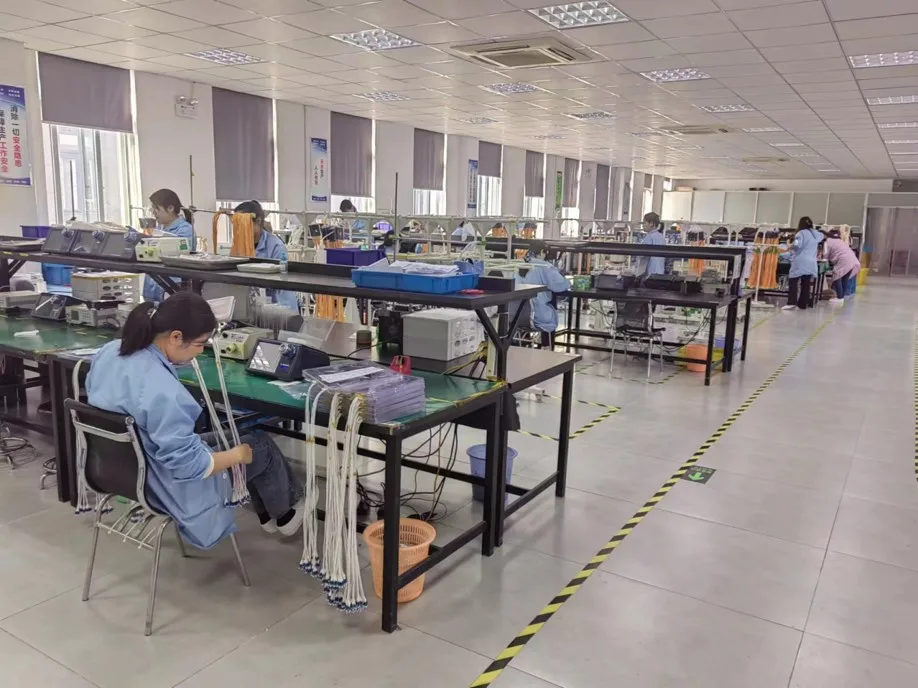

MPO & Patchcord production line

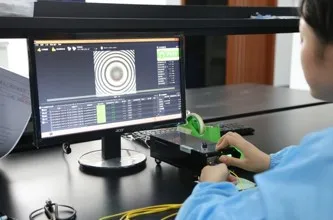

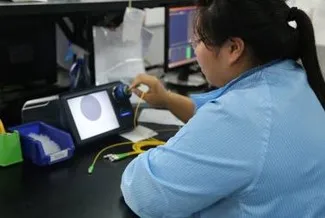

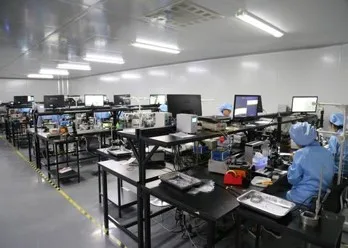

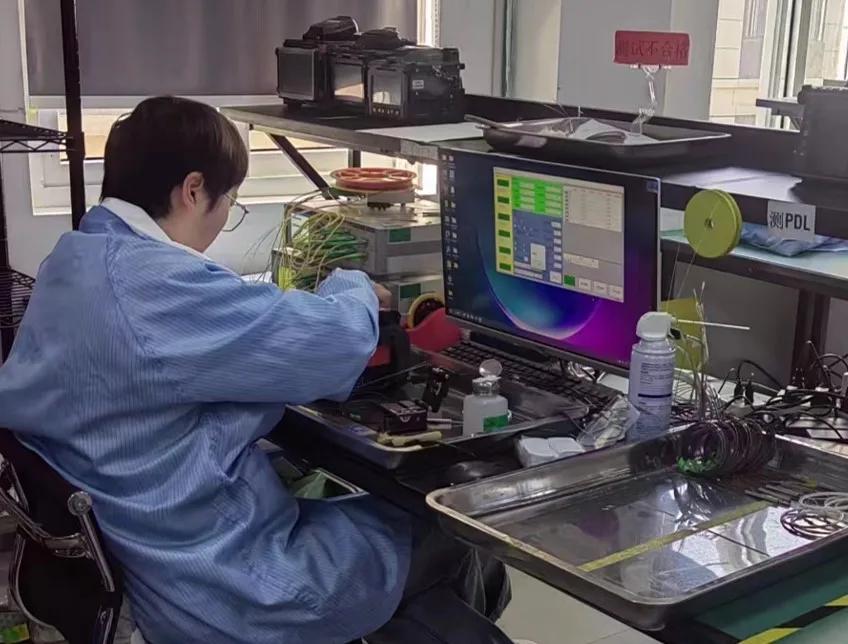

Inspection lab
