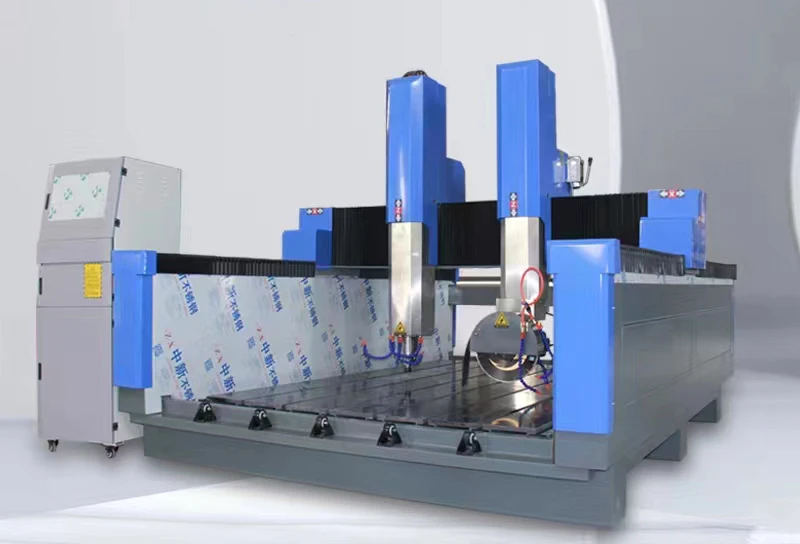

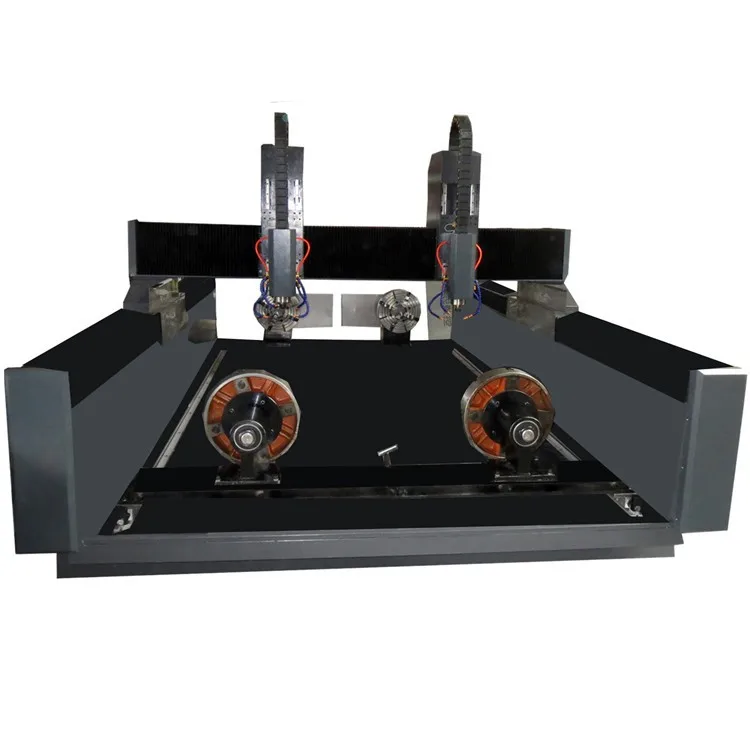

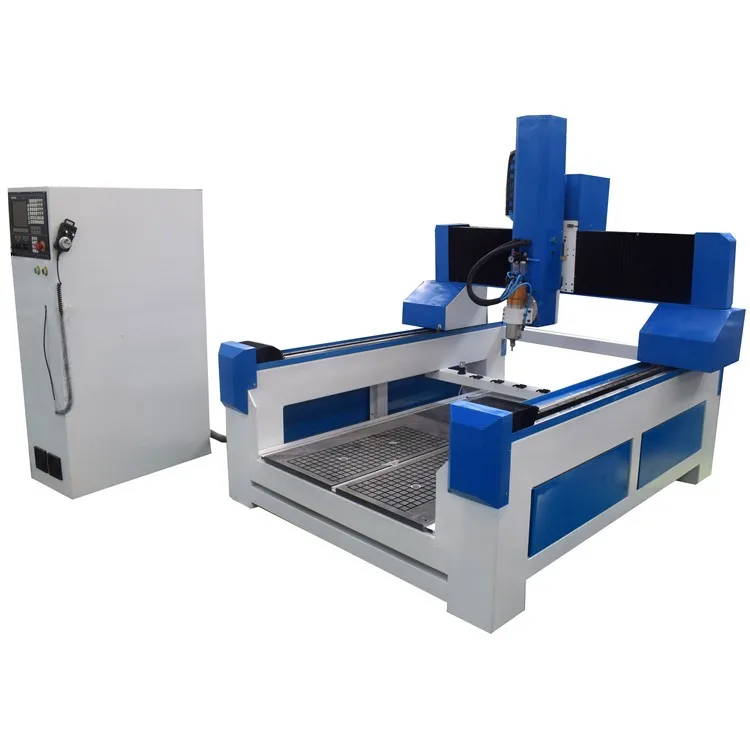

Multifunction 4 axis CNC stone engraving machine stone carving machine for stone sculptures marble granite engraving
- Category: >>>
- Supplier: Jinan Firmcnc Equipment Co. Ltd.
Share on (1601205156090):
Product Overview
Description
Stone Engraving Machine stone Cnc Router marble Granite Tombstone Milestone Floor Tile Stone 3 Axis Cnc Stone Router 3d Engraving
Machine Cnc Router Machine Router Cnc
Machine Cnc Router Machine Router Cnc
Product Description
Standard model have FM1325 (2500*1300mm); FM1530, FM2030, FM2040 etc, support customized.
Stone engraving machine main feature:
Stone engraving machine main feature:
# With heavy welded thick bed structure, with water tank table, professional heavy structure for stone engraving
# Taiwan HIWIN square guide rails 25MM, helical rack transmission for x and y axis, ball screw for Z axis
# Stepper motor and driver,can be optional easy servo motor and driver, also pure servo motor and driver
# With heavy welded thick bed structure, with water tank table, professional heavy structure for stone engraving
# Taiwan HIWIN square guide rails 25MM, helical rack transmission for x and y axis, ball screw for Z axis
# Stepper motor and driver,can be optional easy servo motor and driver, also pure servo motor and driver
Stone engraving machine main feature:
# 5.5KW water cooling spindle, bigger power, engraving speed faster
# Aluminum T-slot table with PVC, with water tank table
# DSP control system or Ncstudio control system, can be also optional other better control system
# Auto oil lubricating system to lubricate the guide rails
# Aluminum T-slot table with PVC, with water tank table
# DSP control system or Ncstudio control system, can be also optional other better control system
# Auto oil lubricating system to lubricate the guide rails
Stone engraving machine main feature:
# Stainless steel water slot cooling system, ensuring the tools get the adequate cooling, prolong the tools life time, getting the
more better engraving effect.
# Continuing working after the break point/power failure, lower the rejection rate.
# Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
more better engraving effect.
# Continuing working after the break point/power failure, lower the rejection rate.
# Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Specification
Model | FM1325 | FM1530 | FM2030 | FM2040 | |||
Working area | 1300 x 2500mm | 1500 x 3000mm | 2000 x 3000mm | 2000 x 4000mm | |||
Control system | NCstudio / DSP | ||||||
Spindle power | 3.5KW / 5.5KW / 7.5KW | ||||||
Rail guide | Y. Z-axis 25 rail(Y-axis dual track),X-axis 30 rail | ||||||
Motor and drivers | Leadshine stepper motor and drivers ( Servo motor optioanl) | ||||||
Table | T-slot table add water tank | ||||||
Inverter | 5.5KW full power Fuling inverter | ||||||
MAX. Traveling Speed | ≥40000mm/min | ||||||
MAX. Working Speed | ≥20000mm/min | ||||||
Software | Artcam software | ||||||
Working voltage | AC380V/3P/50Hz | ||||||
Main Parts:

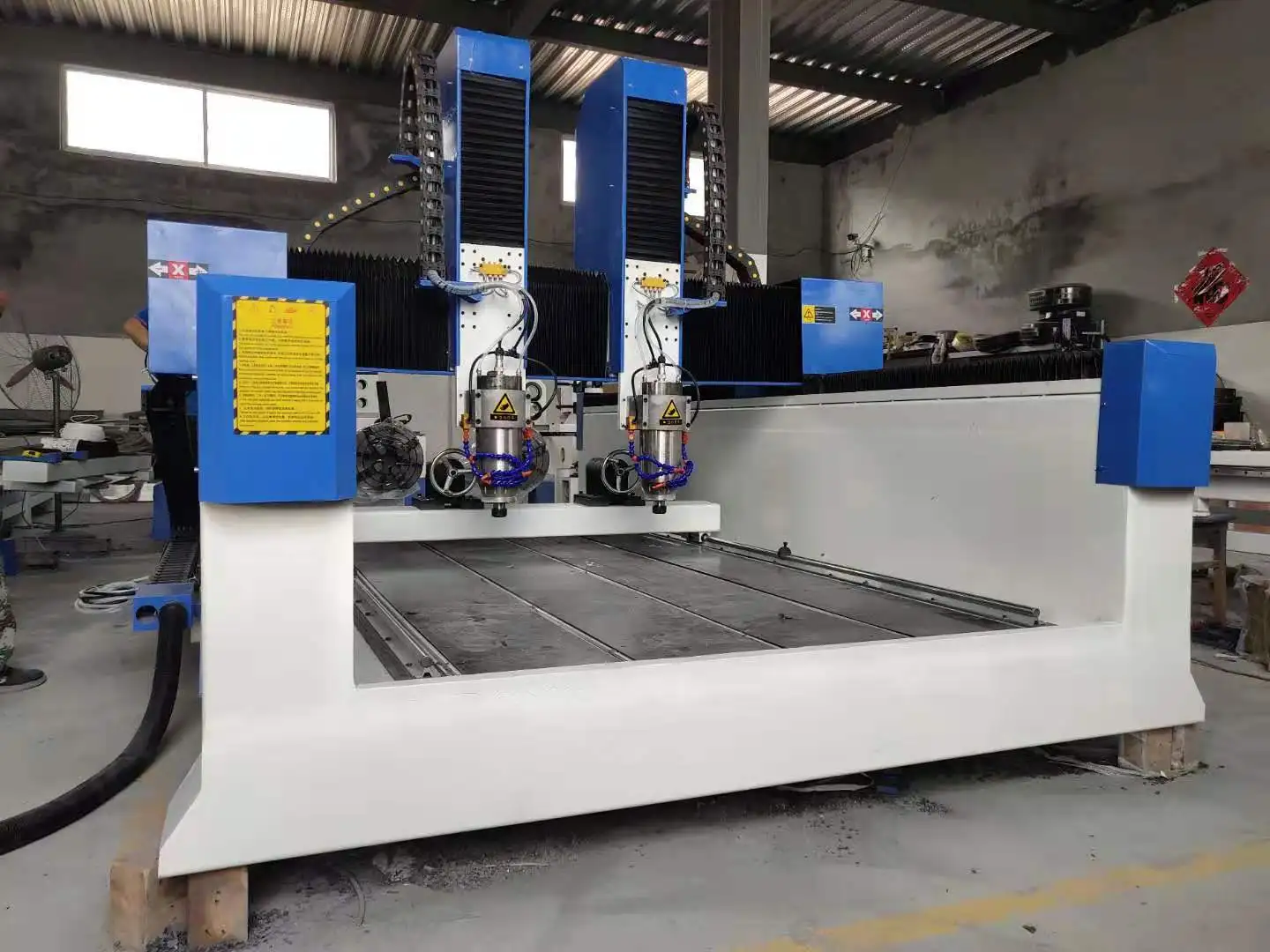

Heavy machine bed
Thick welded steel bed structure, Gantry moving, more fast, stable, uniformity, no shaking for the whole machine.

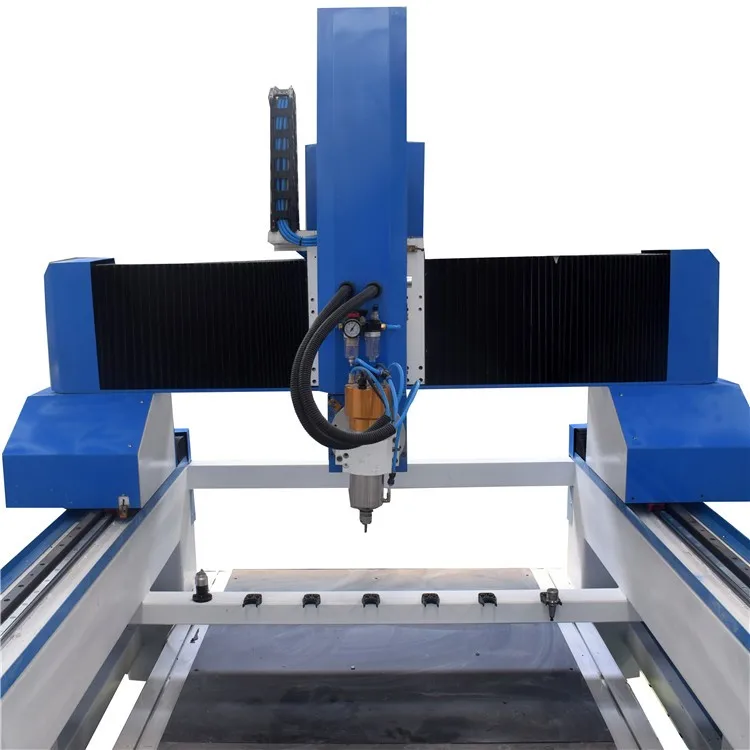

Spindle
Big power spindle, greating cutting indensity, high efficiency, lowe noise.
Main parts:
Step motor and Taiwan HIWIN square guide rails 25 size
Helical rack transmission

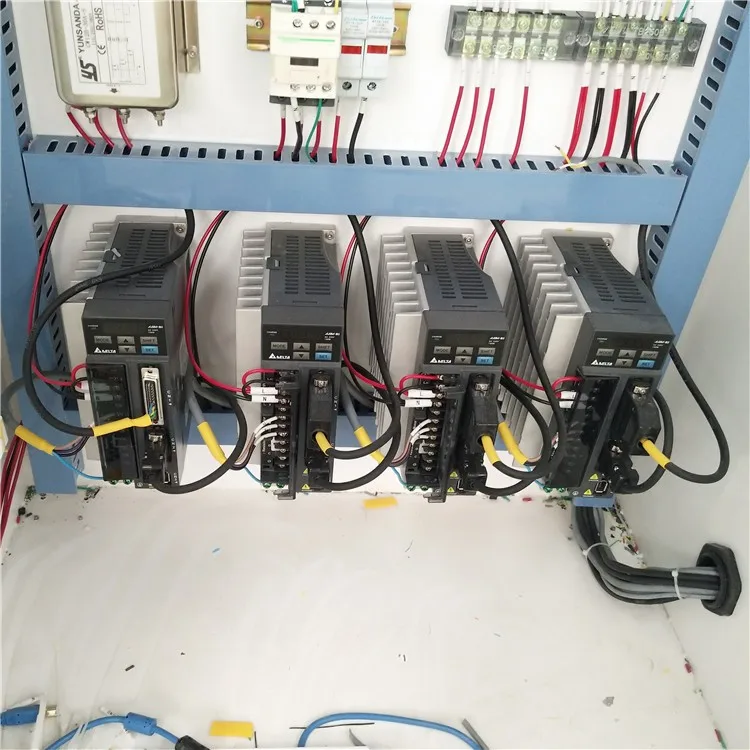

Can choose servo motor
Can choose servo motor
Main parts:

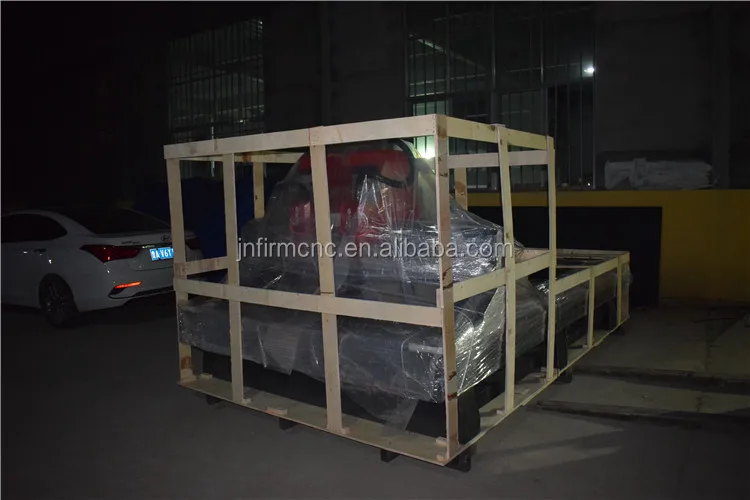

Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Main parts:
If purchase one set machine, can choose LCL
If purchase more sets, can chosoe FCL.
If purchase more sets, can chosoe FCL.
Samples:
Company Profile
Jinan FIRMCNC Equipment Co.,Ltd is situated in Jinan city, Shandong province, we have devoted to cnc router industry more than 18 years,with strong technical strength and perfect service network in industrial,it provides one-stop solution of cnc wood router processing equipments,services and customized application for different requirements.our machines obtained humanity design,advanced technology, rich cnc router solutions,better users experience and European standard etc.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Our products including cnc wood router, wood lathe, wood cutting machine, cnc lathe, mould cnc milling machine, fiber laser cutting machine, co2 laser machine, laser marking marking machine, plasma cutting machine, edge banding machine, sliding saw table etc.
Besides, we have 10 modern production and processing workshops, our 2 R&D teams,2 after-sale service teams.our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business.
Recommend Products
FAQ
Q1.Can you recommend a stone cnc machine to me ?
Yes, In order to give you a suitable fiber laser cutting machine, pls tell me your working area ? processing materials ? Then
perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video?
Yes,we will send it together with machine.
Q3.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q4.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working one year without any broken .
Q5.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at your factory, you only need to pay the round air tickets cost and accommodation for technician.
Yes, In order to give you a suitable fiber laser cutting machine, pls tell me your working area ? processing materials ? Then
perfect suitable machine will be recommend.
Q2.Do you have operation manual and working video?
Yes,we will send it together with machine.
Q3.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .
Q4.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
During the period of warranty, we will free send broken parts to you, after warranty, we can offer agent price for parts. usually for all parts can perfect working one year without any broken .
Q5.Does your engineer do aftersale service at abroad? how much cost?
Yes, our technician can do training and after sale service at your factory, you only need to pay the round air tickets cost and accommodation for technician.
