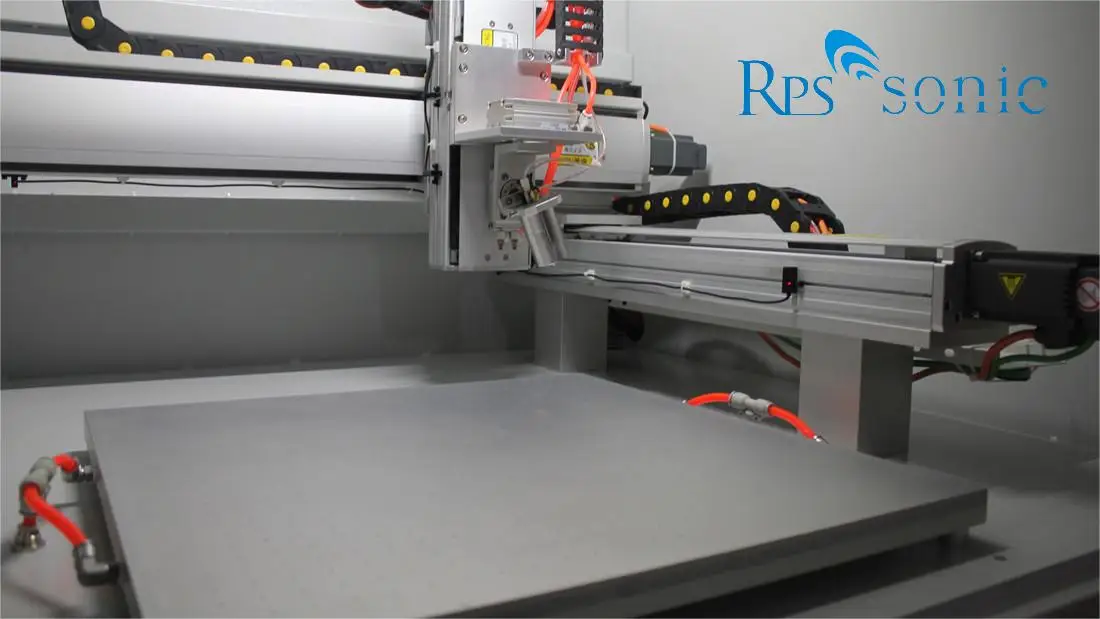

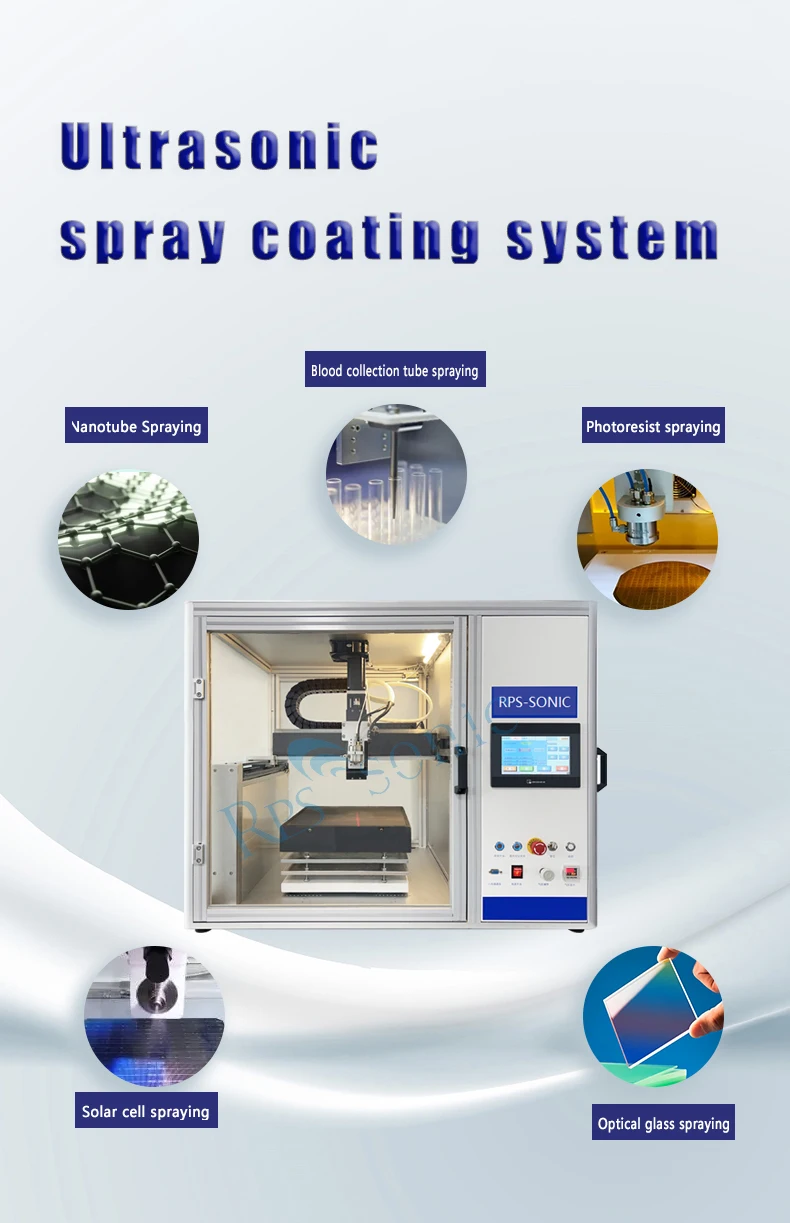

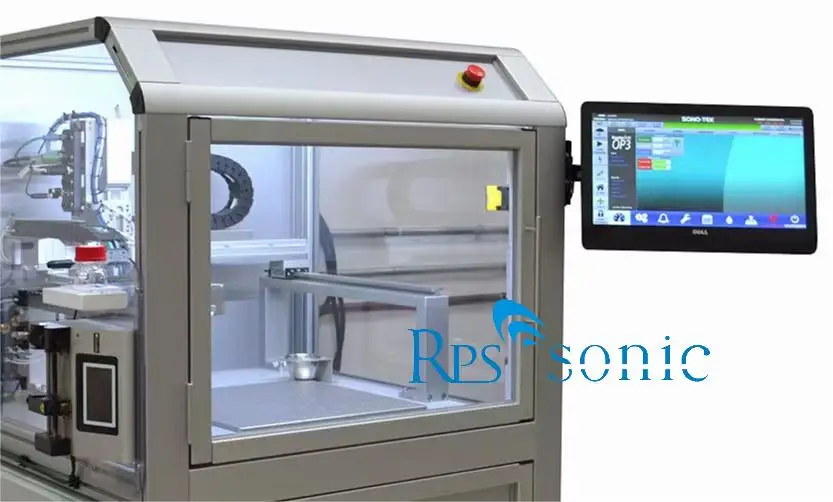

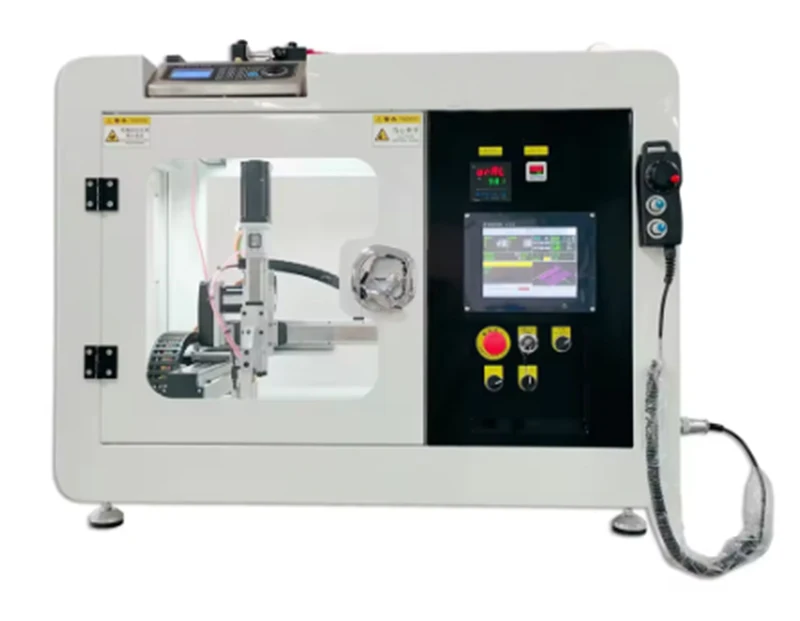

High Efficiency Industry Ultrasonic Atomization Machine ultrasonic Spray Nozzle for electronic components coating
- Category: >>>
- Supplier: Hangzhou Lanben Trade Co. Ltd.
Share on (1601205163447):
Product Overview
Description
An ultrasonic spray nozzle, also known as an ultrasonic atomizer, is a device that utilizes ultrasonic vibrations to generate a fine spray or mist of liquid droplets. It is commonly used in applications such as coating, humidification, fuel injection, and chemical reactions.
Here's how an ultrasonic spray nozzle typically works:
1. Ultrasonic transducer: The core component of an ultrasonic spray nozzle is an ultrasonic transducer. It usually consists of a piezoelectric element, such as a piezoceramic disk, that can convert electrical energy into mechanical vibrations. When an alternating current (AC) voltage is applied to the piezoelectric element, it causes it to vibrate at ultrasonic frequencies,typically in the range of 1 to 100 megahertz (MHz).
2. Liquid supply: The liquid to be sprayed is supplied to the ultrasonic spray nozzle. It can be a solution, suspension, or any
other liquid that needs to be atomized into small droplets.
3. Vibrating plate: The ultrasonic transducer is coupled to a vibrating plate or diaphragm. This plate is typically made of a
thin metal or ceramic material and acts as a surface for the liquid to rest upon.
4. Cavitation and atomization: As the ultrasonic transducer vibrates, it induces high-frequency pressure waves in the liquid resting on the vibrating plate. These pressure waves create microscopic cavitation bubbles in the liquid. Cavitation is the rapid formation and collapse of bubbles in a liquid due to pressure changes. When the bubbles collapse, they generate localized shockwaves and intense energy. This energy disrupts the liquid surface, causing it to break up into small droplets.The size of the droplets can be controlled by adjusting the parameters of the ultrasonic vibrations.

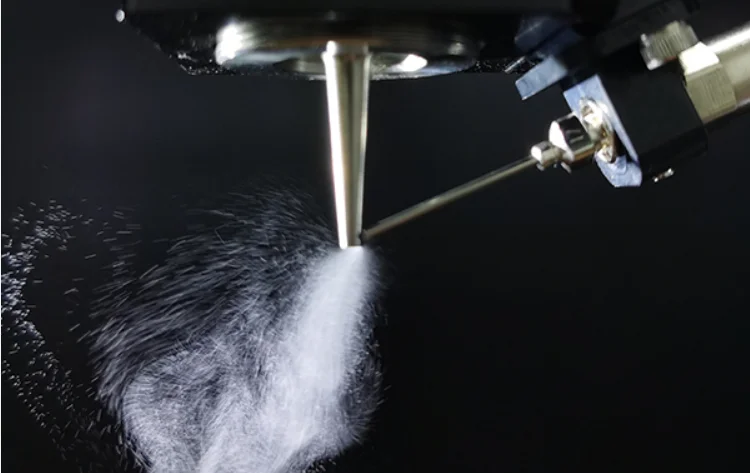

5. Spray formation: The liquid droplets generated by the cavitation process are then expelled from the ultrasonic spray nozzle as
a fine mist or spray. The spray can be directed to a specific target or area as required.
1. Ultrasonic transducer: The core component of an ultrasonic spray nozzle is an ultrasonic transducer. It usually consists of a piezoelectric element, such as a piezoceramic disk, that can convert electrical energy into mechanical vibrations. When an alternating current (AC) voltage is applied to the piezoelectric element, it causes it to vibrate at ultrasonic frequencies,typically in the range of 1 to 100 megahertz (MHz).
2. Liquid supply: The liquid to be sprayed is supplied to the ultrasonic spray nozzle. It can be a solution, suspension, or any
other liquid that needs to be atomized into small droplets.
3. Vibrating plate: The ultrasonic transducer is coupled to a vibrating plate or diaphragm. This plate is typically made of a
thin metal or ceramic material and acts as a surface for the liquid to rest upon.
4. Cavitation and atomization: As the ultrasonic transducer vibrates, it induces high-frequency pressure waves in the liquid resting on the vibrating plate. These pressure waves create microscopic cavitation bubbles in the liquid. Cavitation is the rapid formation and collapse of bubbles in a liquid due to pressure changes. When the bubbles collapse, they generate localized shockwaves and intense energy. This energy disrupts the liquid surface, causing it to break up into small droplets.The size of the droplets can be controlled by adjusting the parameters of the ultrasonic vibrations.
5. Spray formation: The liquid droplets generated by the cavitation process are then expelled from the ultrasonic spray nozzle as
a fine mist or spray. The spray can be directed to a specific target or area as required.
Voltage | 220V 50/60HZ |
Spray area | 200*200*100mm |
Positioning method | laser |
Ultrasonic nozzle | Customized |
Machine size | 980*700*950mm |
Control mode | XYZ three-axis linkage |
Features
Uniform coating: uniformity >95%
Saving raw materials: raw material utilization rate is over 85%, 4 times that of traditional air spray nozzle
High control accuracy of coating thickness : 20 nm to tens of micron coatings can be precisely sprayed.
Non clogging
Anti-corrosion nozzle
High precision, high controllable spray.
Saving raw materials: raw material utilization rate is over 85%, 4 times that of traditional air spray nozzle
High control accuracy of coating thickness : 20 nm to tens of micron coatings can be precisely sprayed.
Non clogging
Anti-corrosion nozzle
High precision, high controllable spray.
1.What’s the horn material?
It’s made by titanium alloy.
2.What’s the frequency can you provide of the ultrasonic sprayer?
We have 20kHz,40kHz,50kHz,60kHz,100kHz.

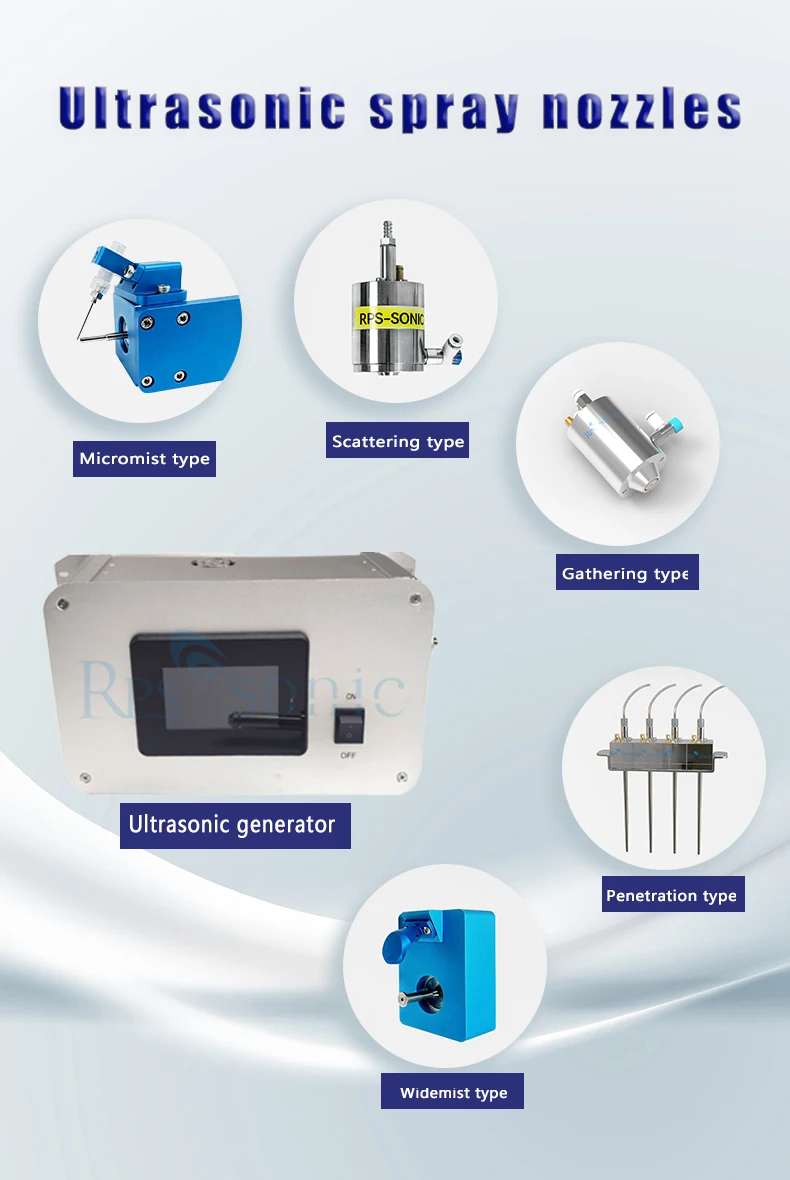

3.What different types of nozzles do you have?
Wide type/Gathering type/long mouth type/Scattering type
4.Can the device work continuously?
Yes ,it can work 24hours continue as long as cooling measures are taken.
5. What cooling measures can be used?
Air cooling by Air compressor.
6. What's the time of delivery?
For spray nozzle system 7-14 work days,for automatic machine20-30 working days.
7.Are you manufacturer or trader?
Yes,We manufacturer all kinds ultrasonic equipment.Welcome to visit us.
8.What's the warranty of your ultrasonic spray coating equipment?
All generatornt one year warranty.
9.How can you guarantee the production quality?
We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each ultrasonic sprayer before the delivery.
It’s made by titanium alloy.
2.What’s the frequency can you provide of the ultrasonic sprayer?
We have 20kHz,40kHz,50kHz,60kHz,100kHz.
3.What different types of nozzles do you have?
Wide type/Gathering type/long mouth type/Scattering type
4.Can the device work continuously?
Yes ,it can work 24hours continue as long as cooling measures are taken.
5. What cooling measures can be used?
Air cooling by Air compressor.
6. What's the time of delivery?
For spray nozzle system 7-14 work days,for automatic machine20-30 working days.
7.Are you manufacturer or trader?
Yes,We manufacturer all kinds ultrasonic equipment.Welcome to visit us.
8.What's the warranty of your ultrasonic spray coating equipment?
All generatornt one year warranty.
9.How can you guarantee the production quality?
We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each ultrasonic sprayer before the delivery.
