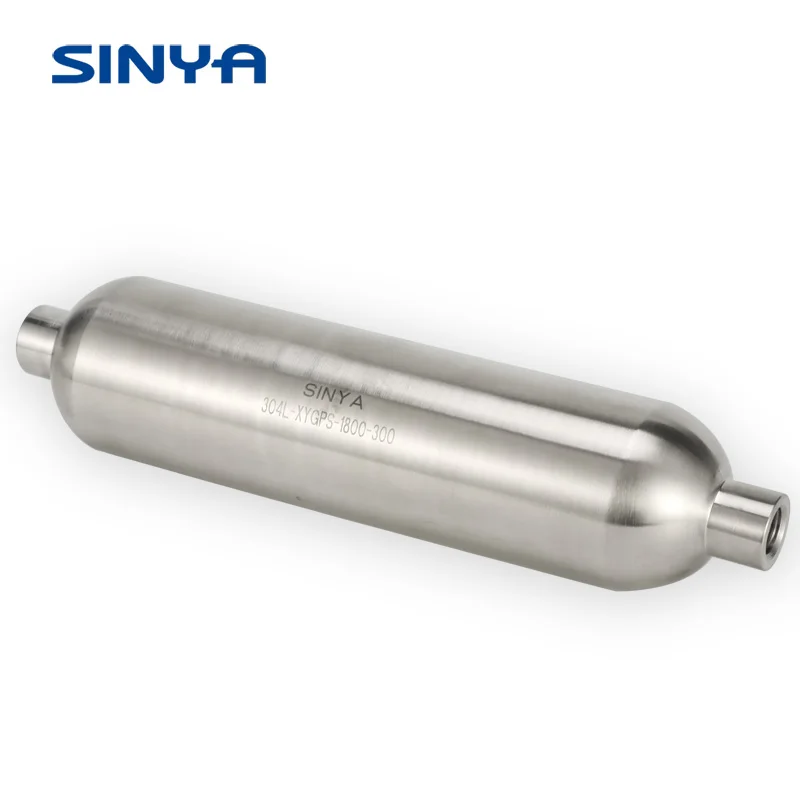

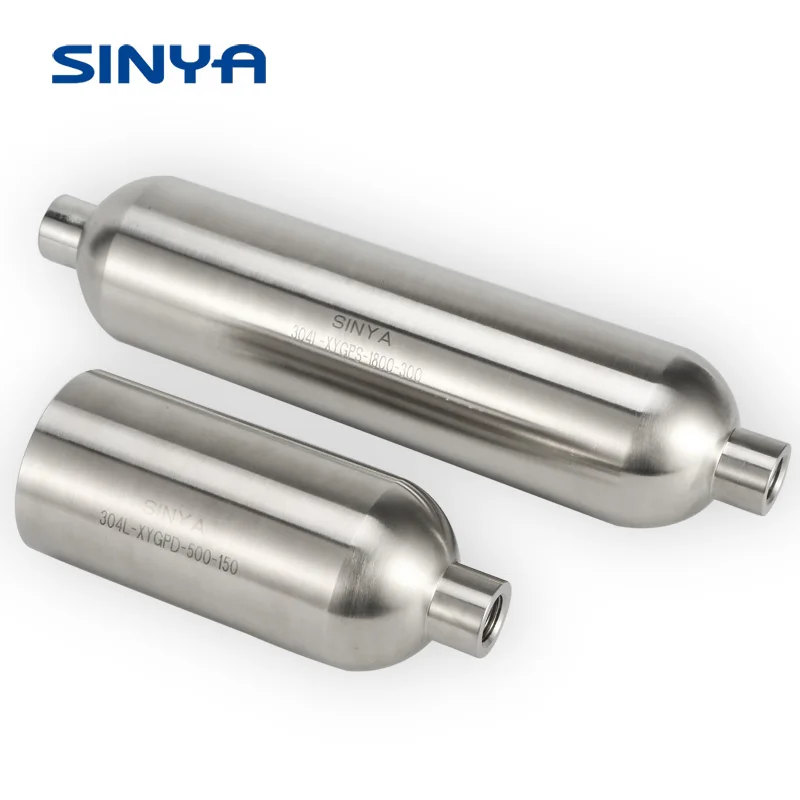

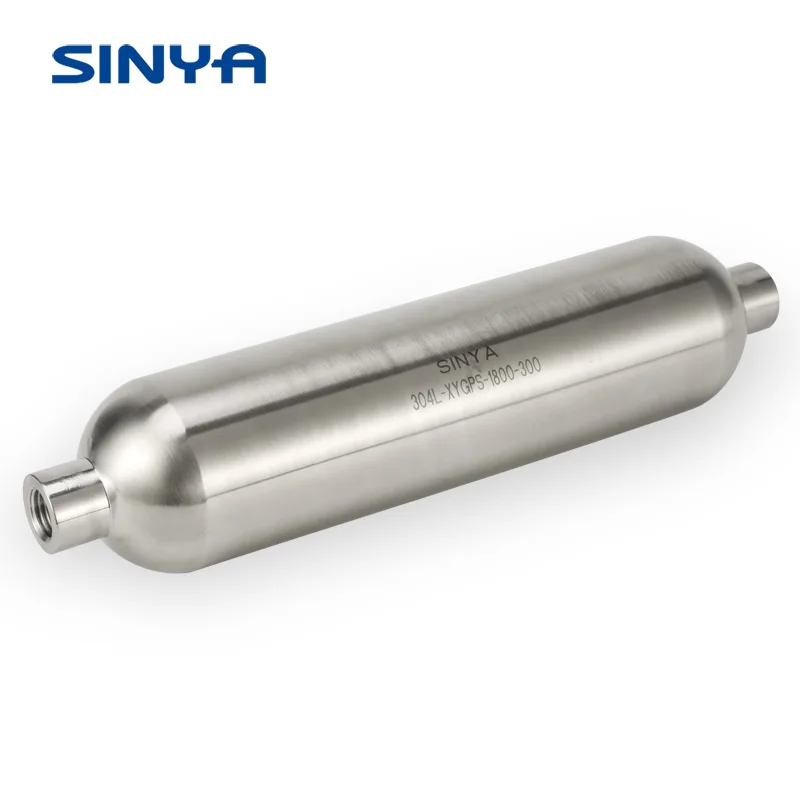

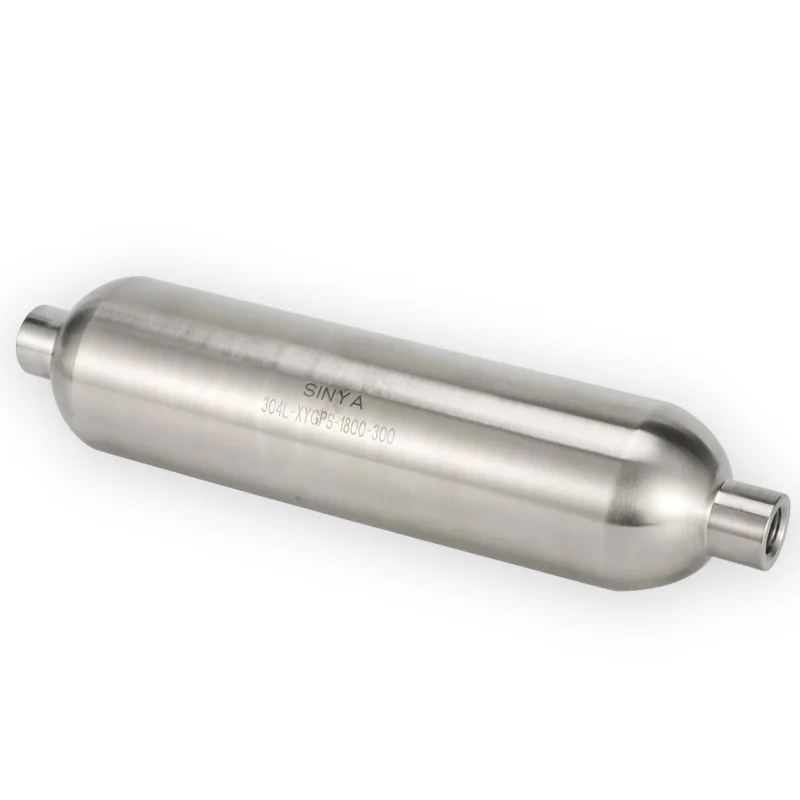

Double Ended Miniature Sample Cylinders
- Category: >>>
- Supplier: Yangzhong Xinya Automatic Control Engineering Co. Ltd.
Share on (1601205164256):
Product Overview
Description
Product Description
1.316l stainless steel and alloy 400316l stainless steel and alloy 400 | ||||||||
2.working pressure up to 5000 psig (344 bar) | ||||||||
3.Sizes from 10 to 3785 cm3 (1 gal)Sizes from 10 to 3785 cm3 (1 gal) | ||||||||
4.Body made of seamless tubing provides consistent wall thickness, size, and capacity. | ||||||||
5.Smooth internal neck transition allows easy cleaning and eliminates trapped ̀ uids. | ||||||||

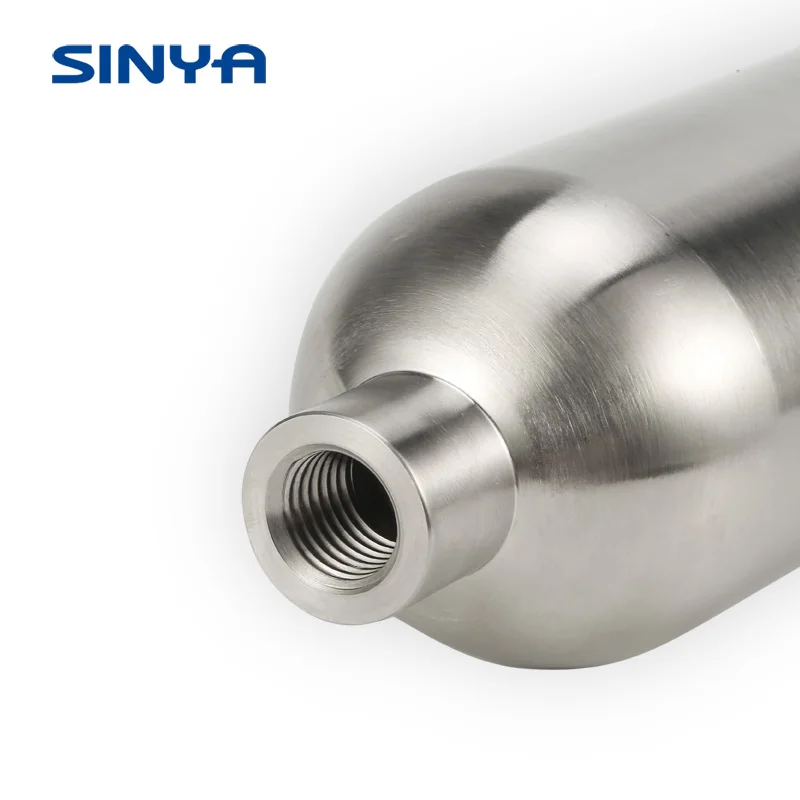

6.Cold-formed female NPT threads provide greater strength. | ||||||||
7.Heavy-wall end connections provide strength andresist ̀ aring. | ||||||||
8. Full-penetration gas tungsten arc-weld construction provides leak-tight sample containment. | ||||||||
9.50, 300, and 500 cm3 sizes meet a variety of sampling needs. | ||||||||
10.Stainless steel construction resists intergranular corrosion. | ||||||||
11.cylinders are hydrostatically proof tested at 1000 psig (69 bar) minimum. | ||||||||
Material | 316L SS | 316L SS、304L SS | 304L SS | Alloy 400 | 304L SS | ||||
Specifications | XYGPS-5000 | XYGPS-1800 | XYGPSD-1800 | XYGPS-1800 | XYGPD-500 | ||||
Temperature℃（°F） | Working Pressure psig (bar) | ||||||||
-53（65）to 37（100） | 5000(344) | 1800(124) | 1800(124) | 1800(124) | 500(34.4) | ||||
93（200） | 3960(272) | 1360(93.7) | 1360(93.7) | 1580(108) | 500(34.4) | ||||
148（300） | 3570(245) | 1230(84.7) | 1230(84.7) | 1490(102) | 500(34.4) | ||||
204（400） | 3290(226) | 1130(77.8) | 1130(77.8) | 1430(98.5) | 500(34.4) | ||||
260（500） | 3060(210) | 1050(72.3) | 1050(72.3) | 1420(97.8) | 500(34.4) | ||||
315（600） | 2920(201) | 1000(68.9) | 1000(68.9) | 1420(97.8) | 500(34.4) | ||||
343（650） | 2870(197) | 980(67.5) | 980(67.5) | 1420(97.8) | 500(34.4) | ||||
371（700） | 2810(193) | 970(66.8) | 970(66.8) | 1420(97.8) | 500(34.4) | ||||
398（750） | 2750(189) | 950(65.4) | 950(65.4) | 1410(97.1) | 500(34.4) | ||||
426（800） | 2700(186) | 930(64.0) | 930(64.0) | - | 500(34.4) | ||||
454（850） | 2640(181) | - | - | - | - | ||||

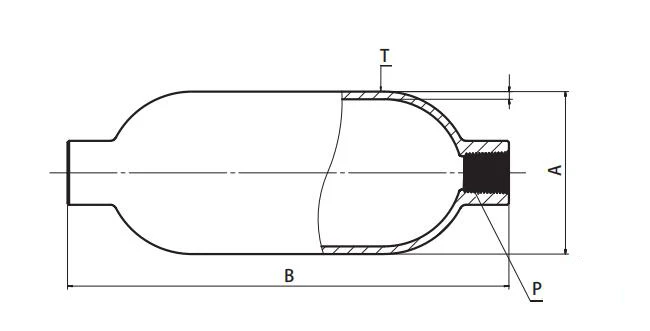

Order Information | Specifications | Internal volume (cm3) ±5 | P (NPT) | Size in.(mm） | ||||||||||
A | N | T | ||||||||||||
Single-endedcylinders | ||||||||||||||
304L-XYGPD-500-150 | 304L SS/ XYGPD-500 | 500（34.4） | 150 | 1/4 | 2.00(50.8) | 4.88 (124) | 0.093 (2.4) | |||||||
304L-XYGPD-500-300 | 300 | 8.62 (219) | ||||||||||||
304L-XYGPD-500-500 | 500 | 13.6 (345) | ||||||||||||
Double-EndedCylinders | ||||||||||||||
304L-XYGPS-1800-40 | 1800（124） | 40 | 1.25 (31.8) | 3.88 (98.6) | 0.070 (1.8) | |||||||||
304L-XYGPS-1800-50 | 50 | 1/4 | 1.50 (38.1) | 3.75 (95.2) | 0.093 (2.4) | |||||||||
304L-XYGPS-1800-75 | 75 | 4.94 (125) | ||||||||||||
304L-XYGPS-1800-150 | 150 | 2.00 (50.8) | 5.25 (133) | |||||||||||
304L-XYGPS-1800-300 | 300 | 8.94 (227) | ||||||||||||
304L-XYGPS-1800-400 | 400 | 11.4 (290) | ||||||||||||
304L-XYGPS-1800-500 | 500 | 13.8 (351) | ||||||||||||
304L-XYGPS-1800-1000 | 1000 | 1/4 | 3.50 (88.9) | 10.9 (277) | 0.180 (4.6) | |||||||||
304L-XYGPS-1800-1000 | 1/2 | |||||||||||||
304L-XYGPS-1800-2250 | 2250 | 1/4 | 4.00 (102) | 17.2 (437) | 0.206 (5.2) | |||||||||
304L-XYGPS-1800-2250 | 1/2 | |||||||||||||
304L-XYGPS-1800-3785 | 3785 | 1/4 | 26.7 (678) | |||||||||||
304L-XYGPS-1800-3785 | 1/2 | |||||||||||||
316L-XYGPS-1800-150 | 316L SS/ XYGPS-1800 | 1800（124） | 150 | 1/4 | 2.00(50.8) | 5.25 (133) | 0.093 (2.4) | |||||||
316L-XYGPS-1800-300 | 300 | 8.94 (227) | ||||||||||||
316L-XYGPS-1800-500 | 500 | 13.8 (351) | ||||||||||||
316L-XYGPS-1800-150 | 316L SS/ XYGPS-5000 | 5000（344） | 150 | 1.90(48.2) | 8.00 (203) | 0.240 (6.1) | ||||||||
316L-XYGPS-1800-300 | 300 | 14.5 (368) | ||||||||||||
316L-XYGPS-1800-500 | 500 | 23.5 (597) | ||||||||||||
合金400-XYGPS-1800-150 | Alloy400/ XYGPS-1800 | 1800（124） | 150 | 2.00(50.8) | 5.25 (133) | 0.093 (2.4) | ||||||||
合金400-XYGPS-1800-300 | 300 | 8.94 (227) | ||||||||||||
Alloy400-XYGPS-1800-500 | 500 | 13.8 (351) | ||||||||||||
