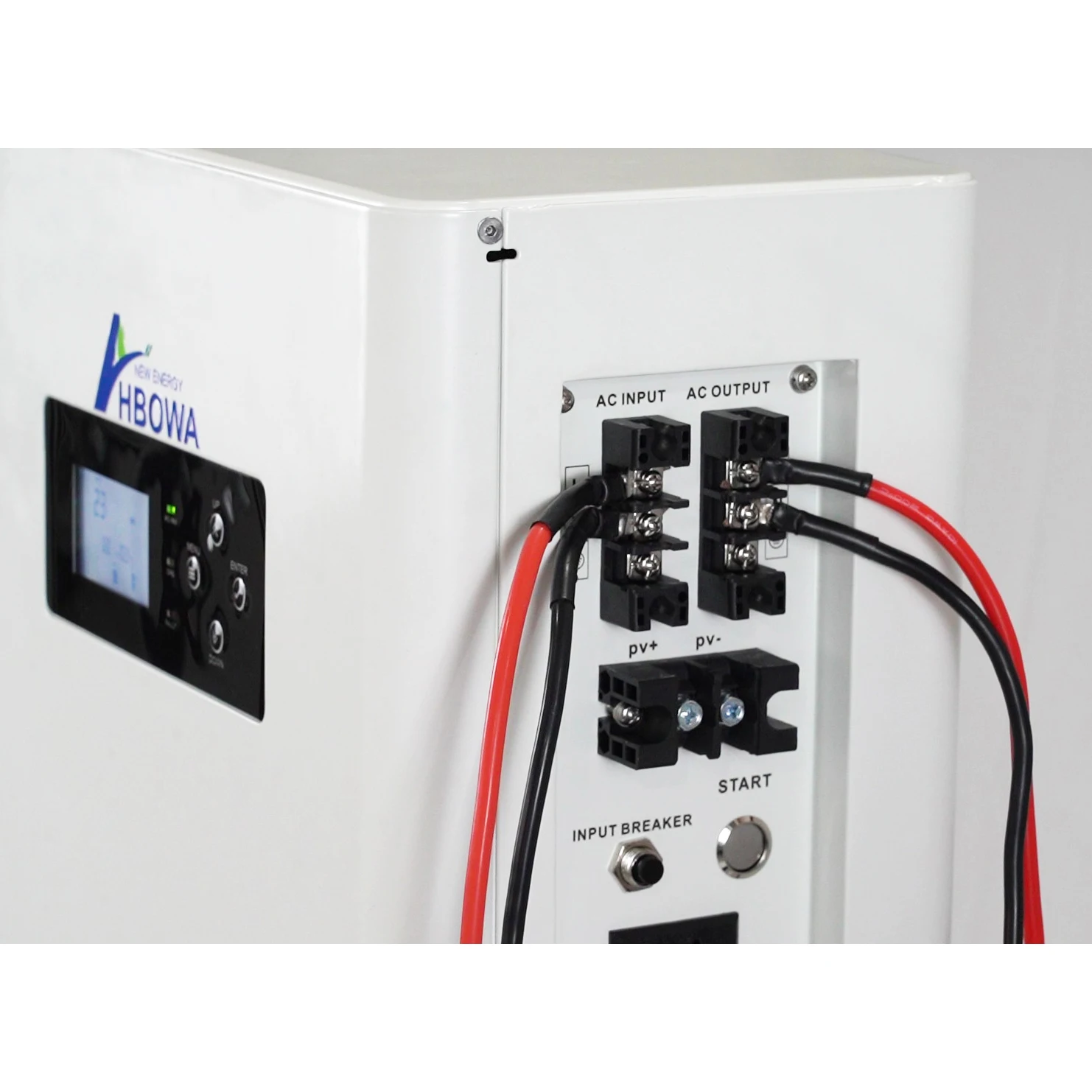

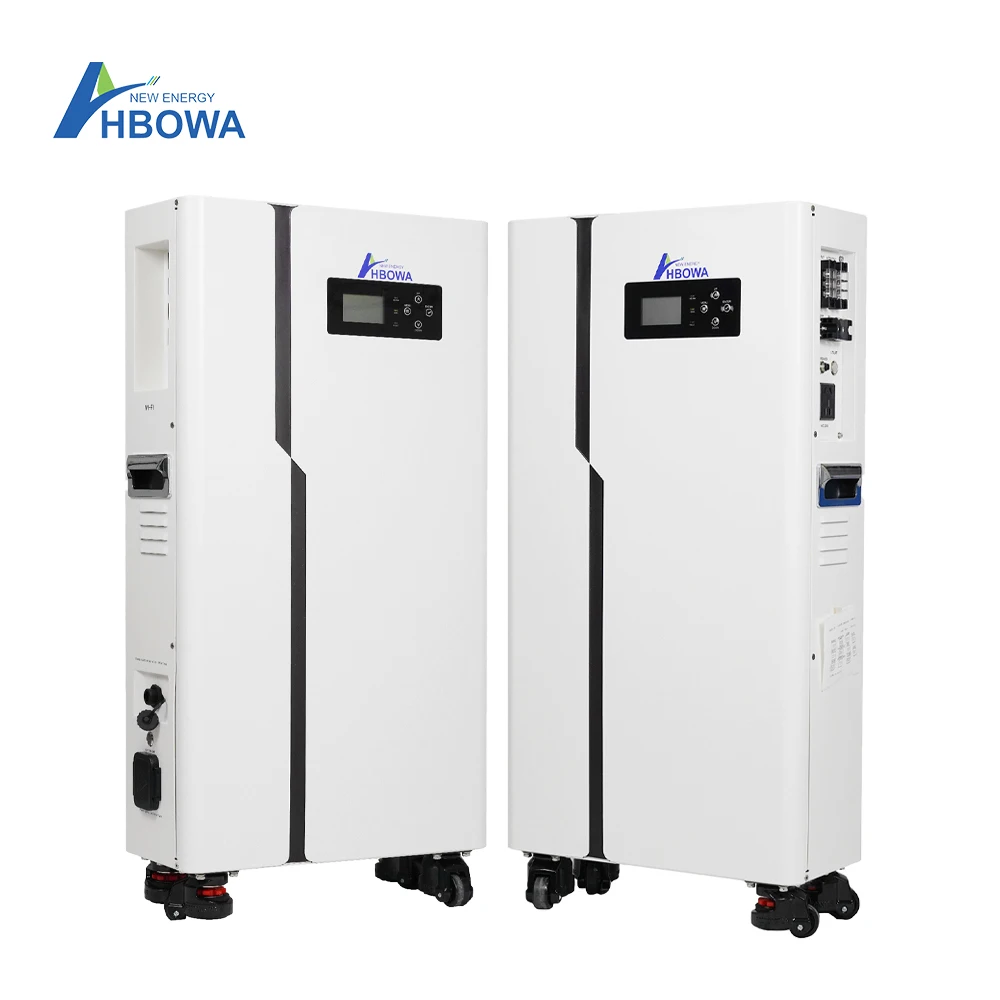

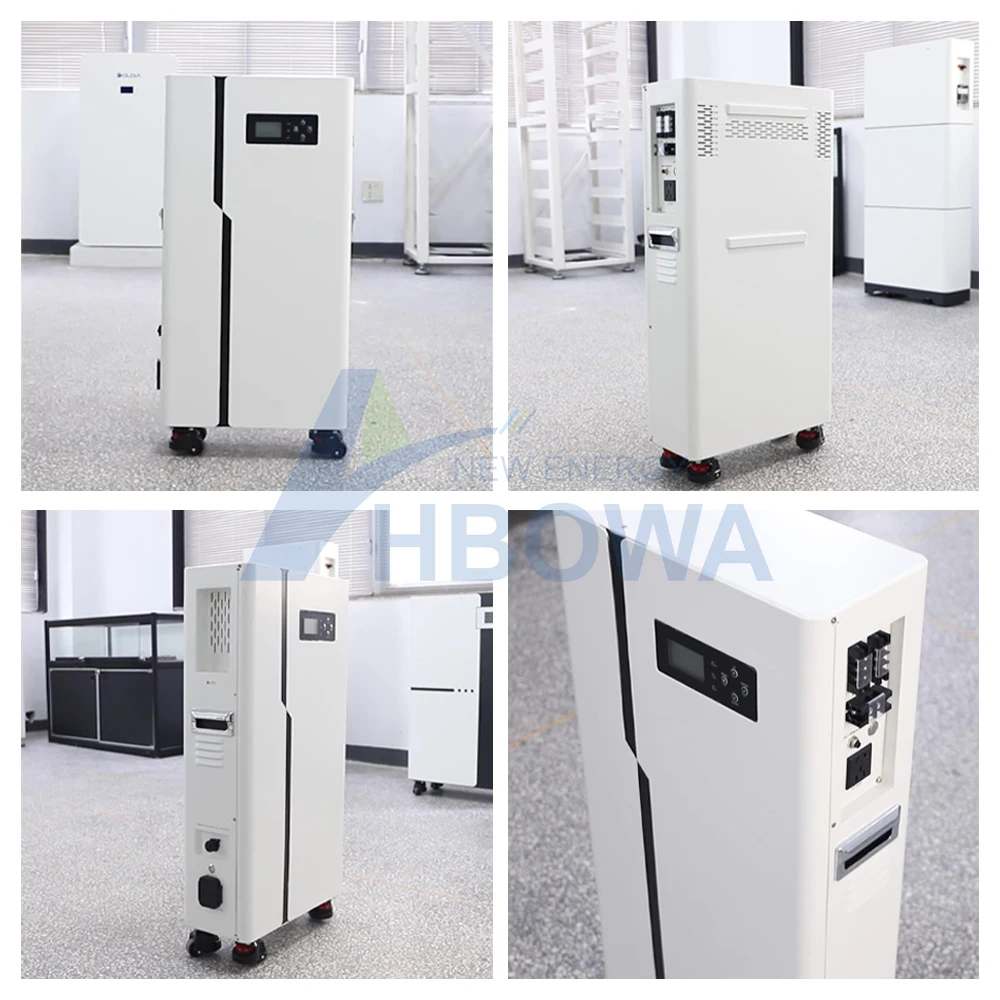

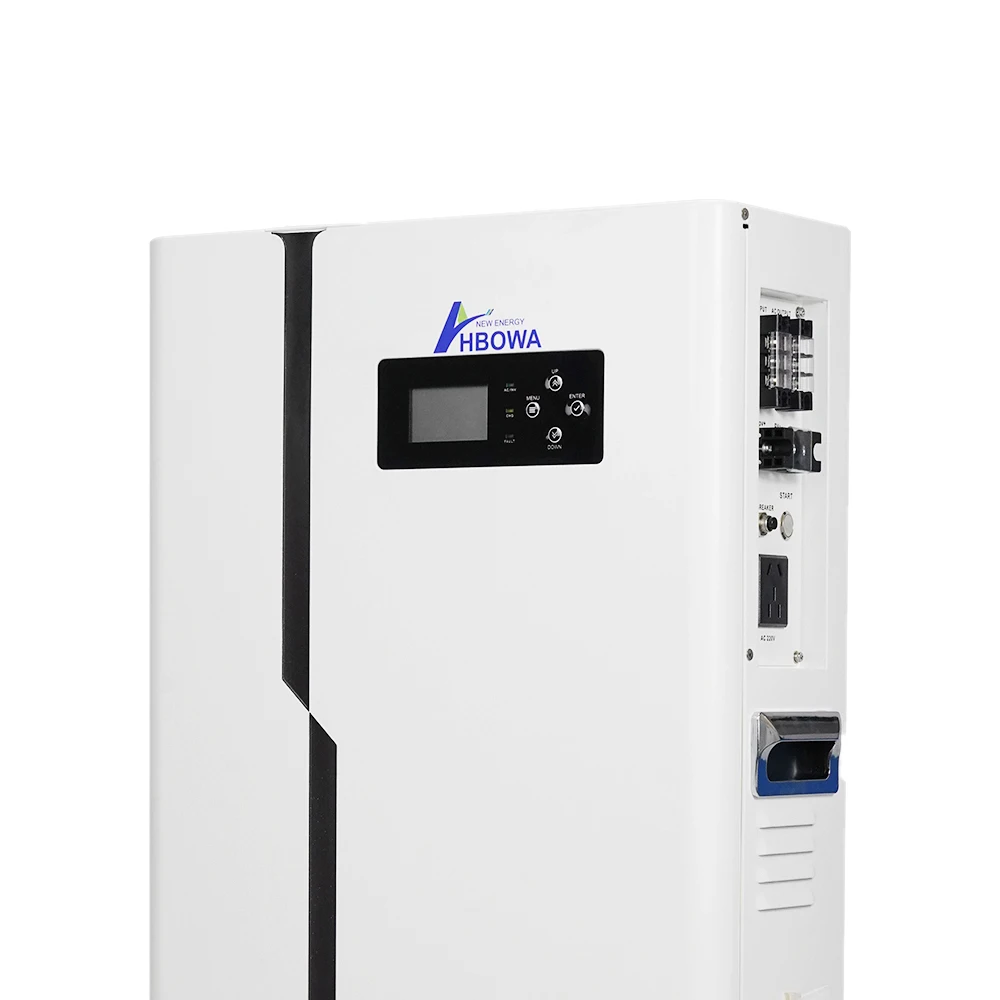

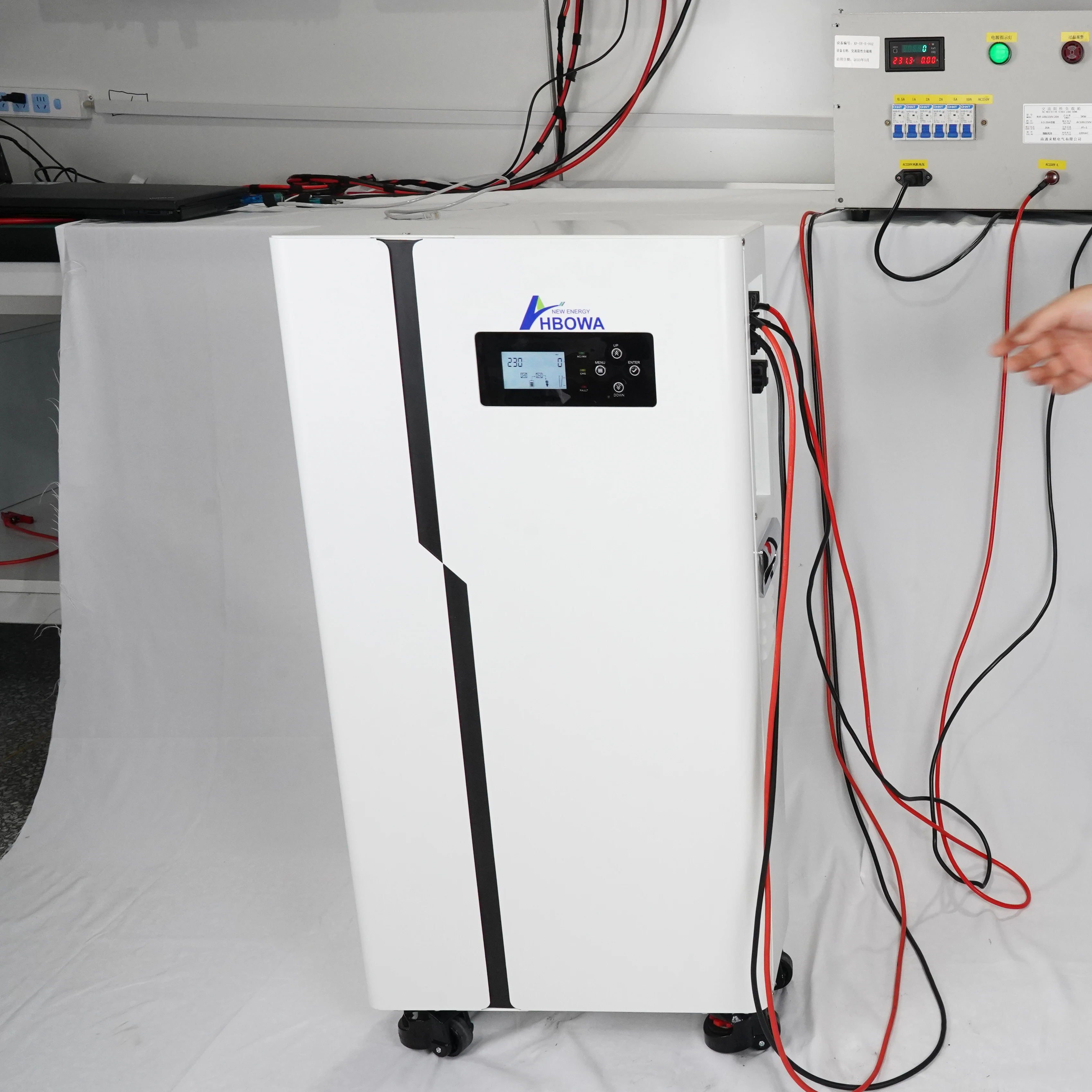

HBOWA Energy Storage System Power Solar Battery Power 3kW Inverter With 2.5Kwh Battery All in one energy storage Battery
- Category: >>>
- Supplier: Suzhou Preta Intelligence and Technology Co. Ltd
Share on (1601205187552):
Product Overview
Description
Product Description
Specification
Energy Storage System All-in-one Battery (Home) | ||||
Model | XPF 3kW+2.5kWh All-in-one | |||
AC Output | Rated output power | 3000W | ||
Output waveform | pure sine wave | |||
frequency | 50Hz±3 or 60Hz±3 | |||
Output voltage | 220V-240VAC±5% | |||
Output socket | Multifunctional (Japanese, American, European, Australian style optional) | |||
Soft startup | yes | |||
Waveform distortion | THD<3% | |||
Protective function | Battery undervoltage, overvoltage protection, output overload protection, overtemperature protection, short circuit protection, anti-reverse connection protection | |||
Parallel interface | Anderson | Number of parallel connections: 2 | ||
Communication | WIFI | |||
AC input | Mains power input | 230V AC voltage (50Hz/60Hz) | ||
Switch | AC Inverter Switch, DC Li-ion Battery Switch | |||
Display | Display content | LED smart display | ||
Lithium batteries | Battery Type | 100Ah LiFePO4 battery | ||
Rated Capacity | 25.6V/100Ah | |||
Battery voltage range | 21.6V-28.8V | |||
Minimum charging current | 5A | |||
Maximum continuous charging current | 100A | |||
Maximum continuous discharge current | 100A | |||
Maximum pulse discharge current | 100A(1s) | |||
Normal temperature cycle life | 6000 cycles at 25°C at room temperature | |||
Smart cooling method | Smart fan cooling | |||
working temperature | -20~60°C | |||
Storage temperature | -20-55"C | |||
Humidity | Maximum 90%, non-condensing | |||
Useful years | 8-10 years | |||
Product dimensions | 410*840*195mm | |||
Weight | 50kg | |||
Certification Standard | ||||
Safe Certifications | CE,FCC, CCC | |||
Shipping Certificates | UN 38.3, UN 3480, Class 9 | |||
Introduction:
This 25.6V 100Ah 2.5KWh 3KW all-in-one energy storage system consists of a 2.5kwh lifepo4 lithium battery and a 3kw off grid inverter. The lithium battery can be installed as a wall-mounted type or an on-floor type, which is space-saving and a top choice for home energy power backup. HBOWA uses a brand new grade A lithium iron phosphate battery with a long cycle life of more than 6000 times, the built BMS system expands the lifespan of the battery to 10 years, and we support 5 to 10 years warranty. The battery equipped with the inverter eliminates the need to worry about battery pairing and inverter protocols, making home energy storage more convenient and faster, making it ideal choice for remote areas with unstable grid power.
Features:
2) Cathode material is made from LiFePO4 with safety performance and long cycle life.
3) Battery management system (BMS) has protection functions including over- discharge, over-charge, over-current and high/low temperature.
4) The system can automatically manage charge and discharge state and balance voltage of each cell.
5) Adopted self-cooling mode rapidly reduced system entire noise.
6) The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge
7) Multi-functional LED intelligent digital screen display

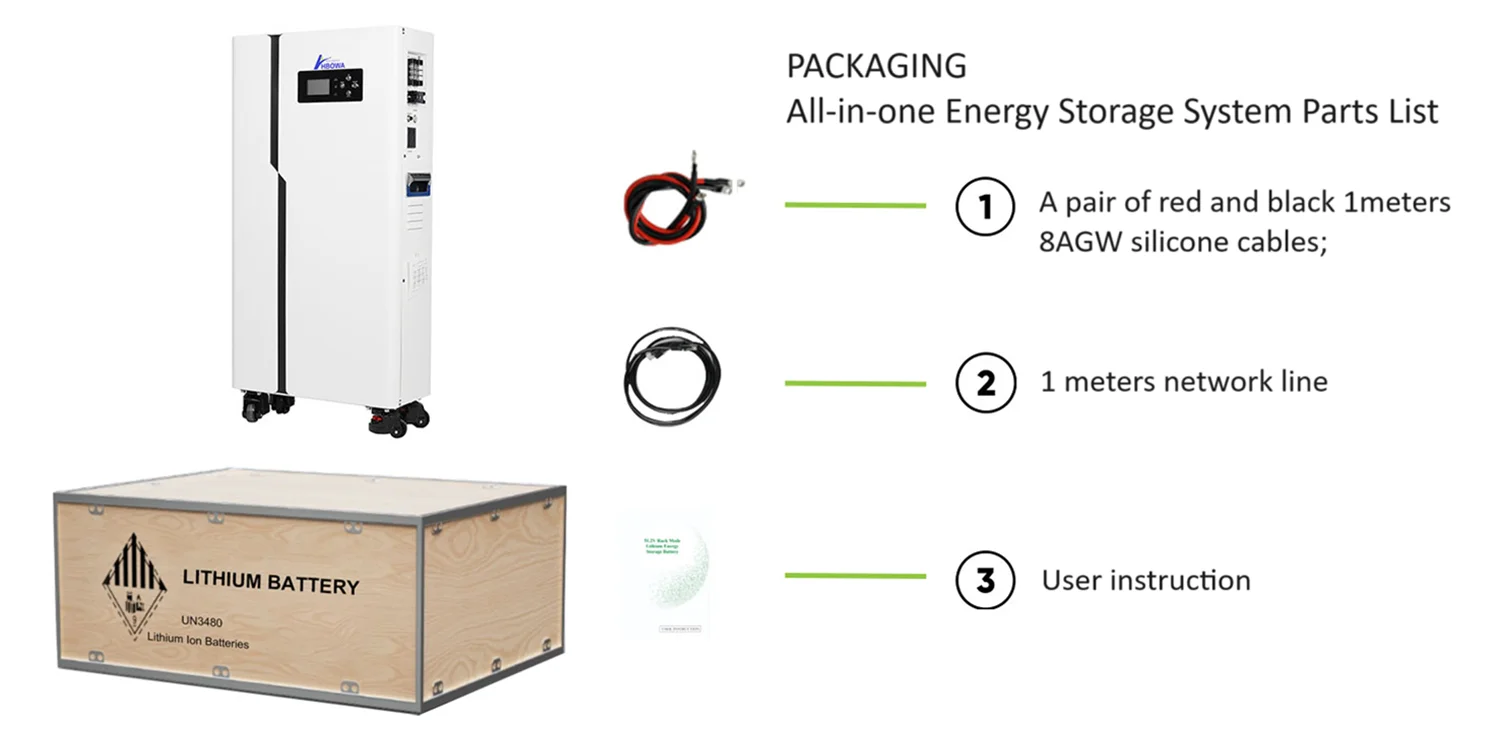

Packing & Delivery
