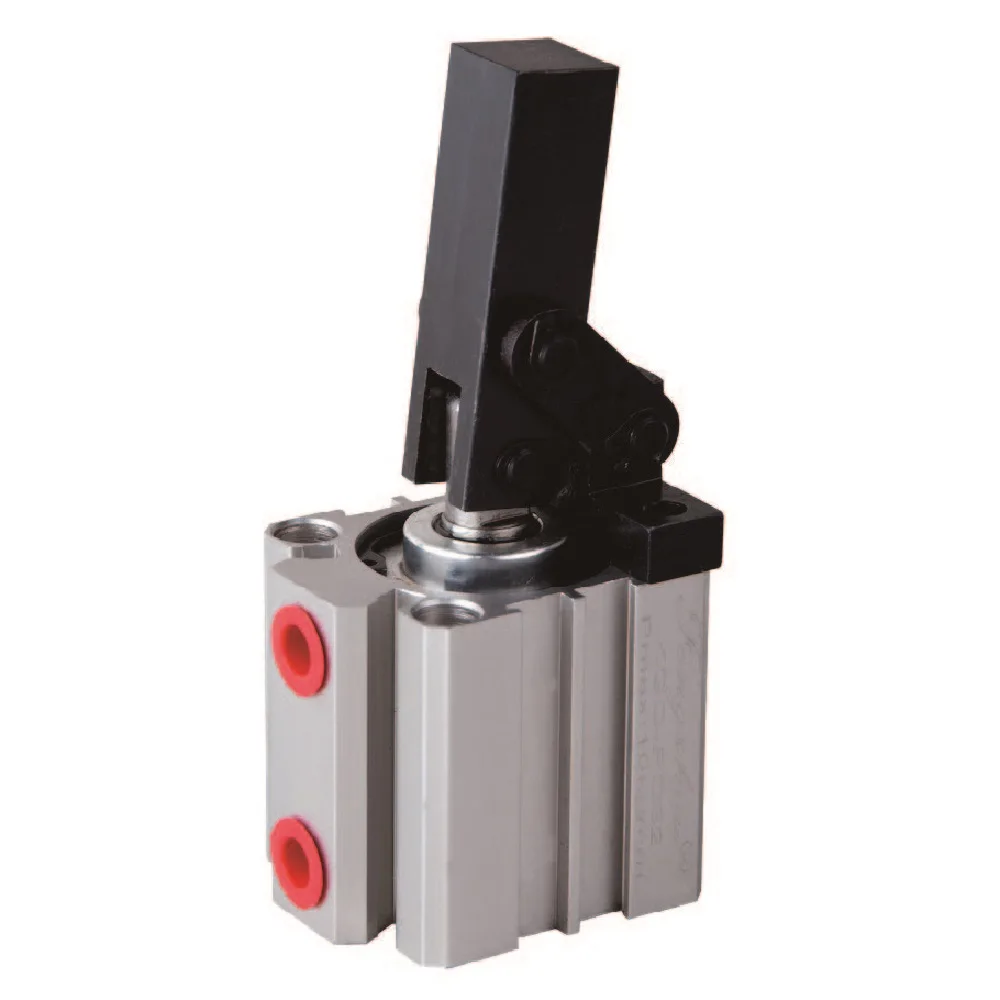

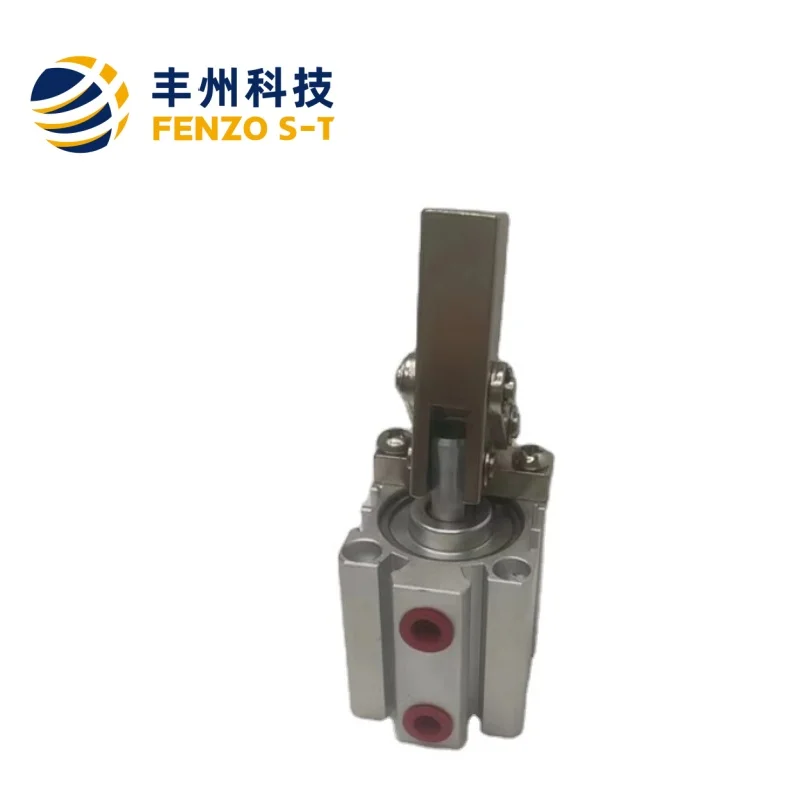

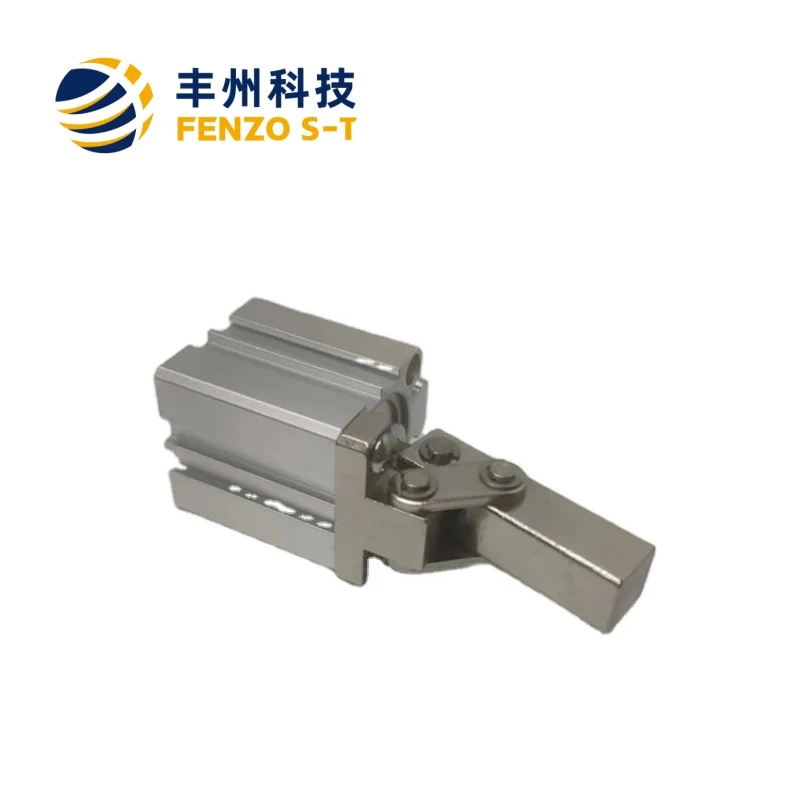

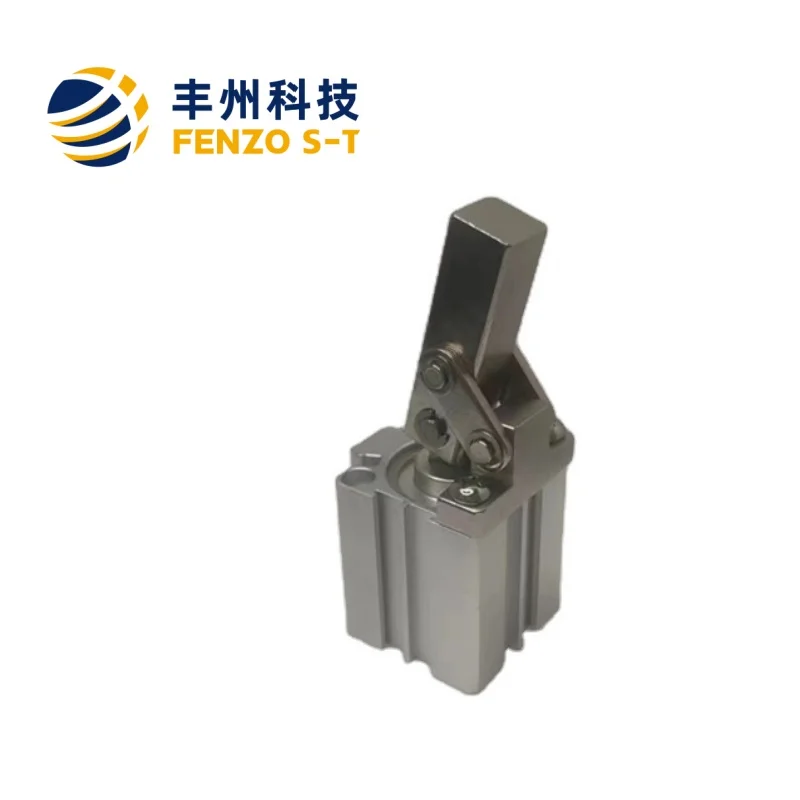

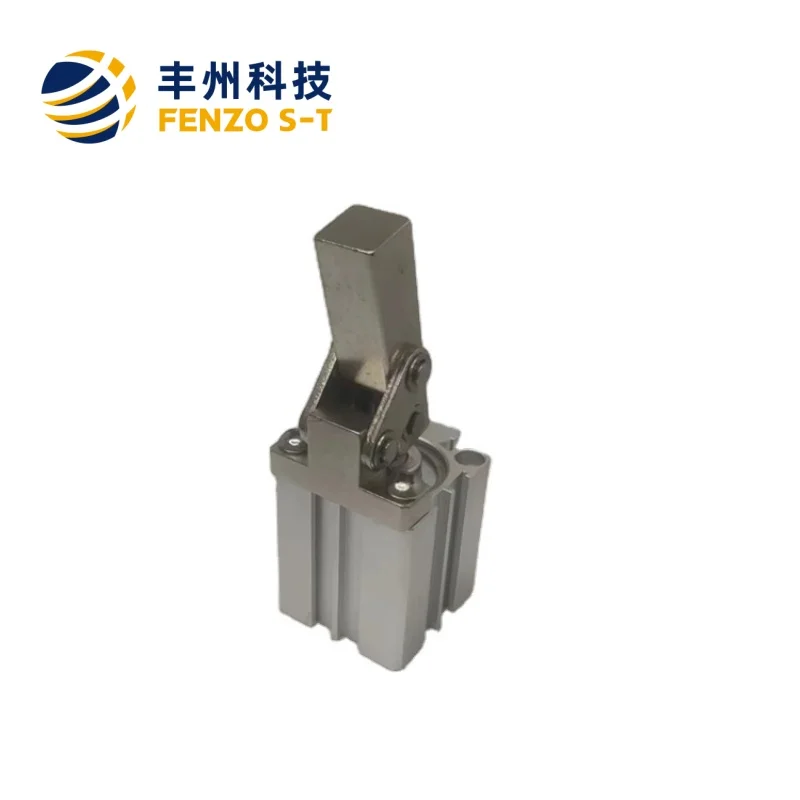

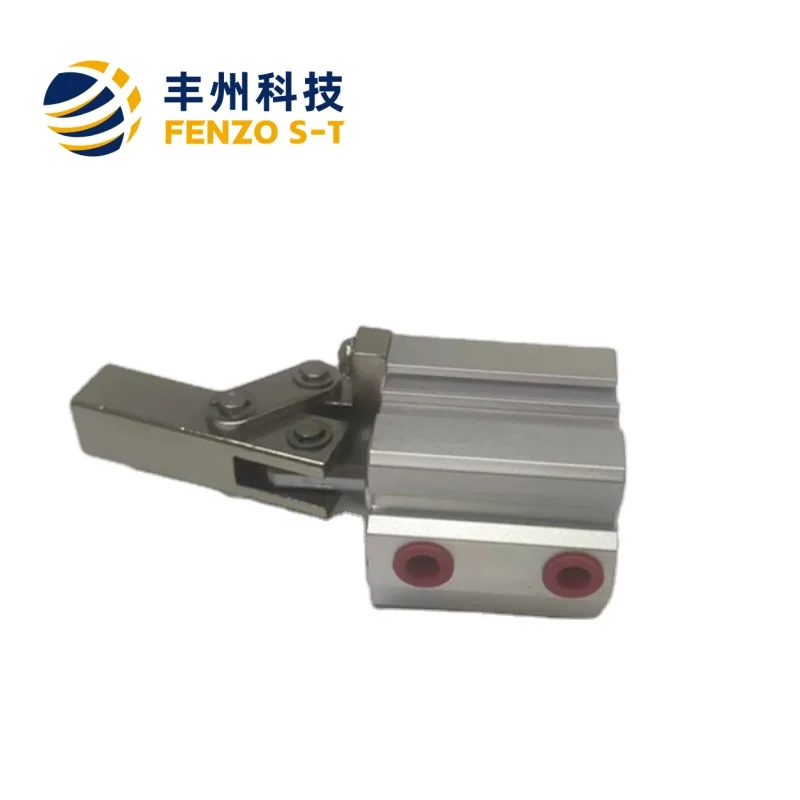

Clamping lever cylinder KGG PG hydraulic cylinder body, pneumatic cylinder tube new and original
- Category: >>>
- Supplier: Zhejiang Fengzhou Precision Manufacturing Co. Ltd.
Share on (1601205221301):
Product Overview
Description
Products Description

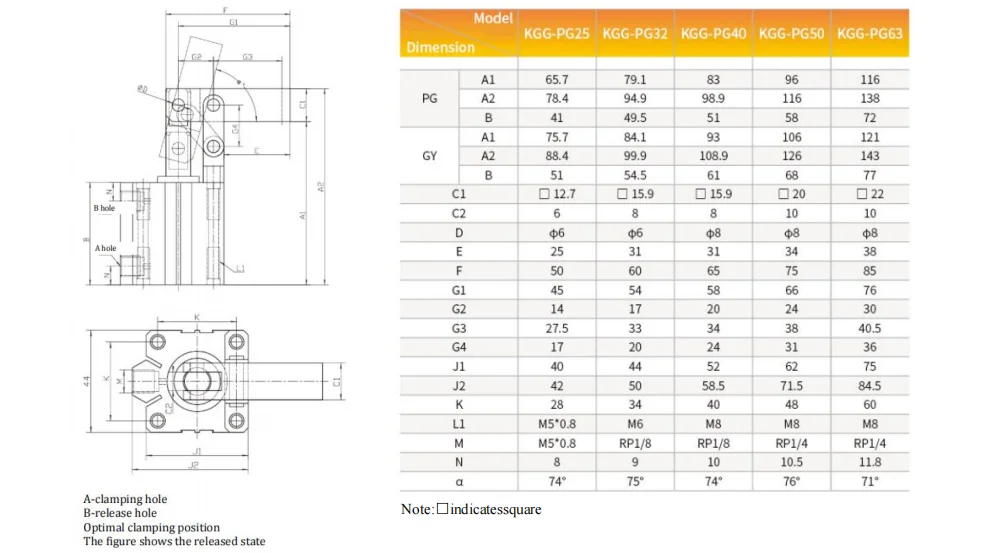

KGG-PG
Products Features
*Precautions:

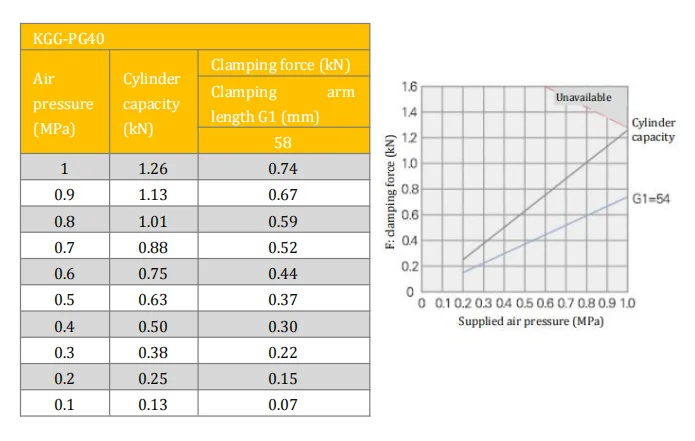

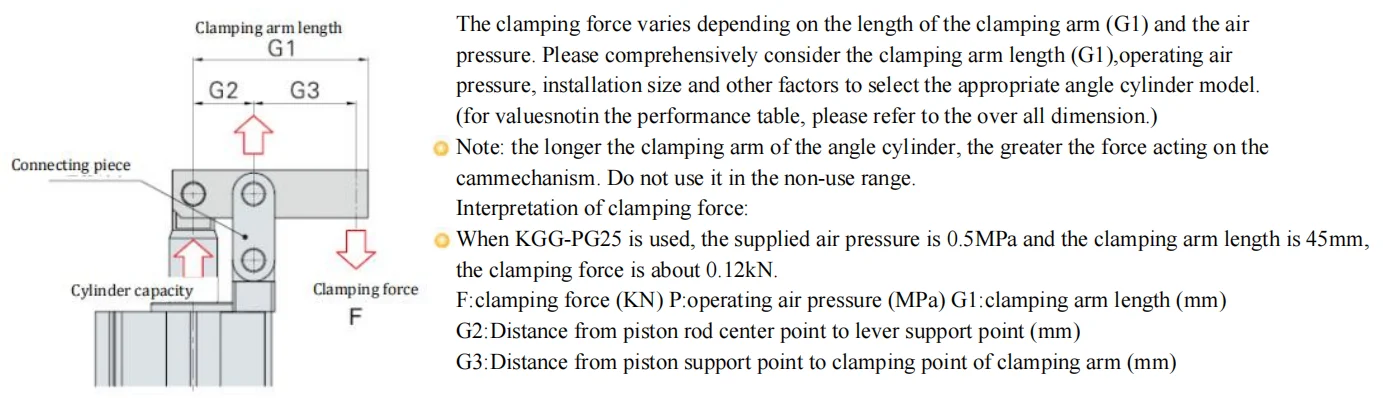

2.The clamping force indicates the clamping capacity of the clamping arm when it is clamped in the horizontal position.
3.Please use it under the supplied air pressure suitable for the length of the clamping arm.
KGG-PG/GY | Bore of Cylinder (mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 | ||||
Diameter of Piston Rod (mm) | Φ10 | Φ12 | Φ16 | Φ20 | Φ20 | |||||
Stroke (mm) | 20 | 25 | 25 | 30 | 35 | |||||
Pressure Area Pull/Push (cm2) | 4.91 | 8.04 | 12.57 | 19.63 | 31.17 | |||||
Theoretical Clamping Force (6KN/cm2) | 15 | 25 | 44 | 71 | 136 | |||||
Max Operation Pressure (KN/cm2) | 8 | |||||||||
Operation Pressure Range (KN/cm2) | 1.5 - 7 | |||||||||
KGG-SG | Bore of Cylinder (mm) | Φ25 | Φ32 | Φ40 | Φ50 | Φ63 | ||||
Diameter of Piston Rod (mm) | Φ14 | Φ16 | Φ20 | |||||||
Stroke (mm) | 20 | 28 | 30 | 30 | ||||||
Pressure Area Pull/Push (cm2) | 4.91 | 8.04 | 12.57 | 19.63 | 31.17 | |||||
Theoretical Clamping Force (6KN/cm2) | 13.2 | 30.3 | 47 | 80 | 117 | |||||
Max Operation Pressure (KN/cm2) | 10 | |||||||||
Operation Pressure Range (KN/cm2) | 1.5 - 7 | |||||||||
Packing & Delivery
2. Carton Packing

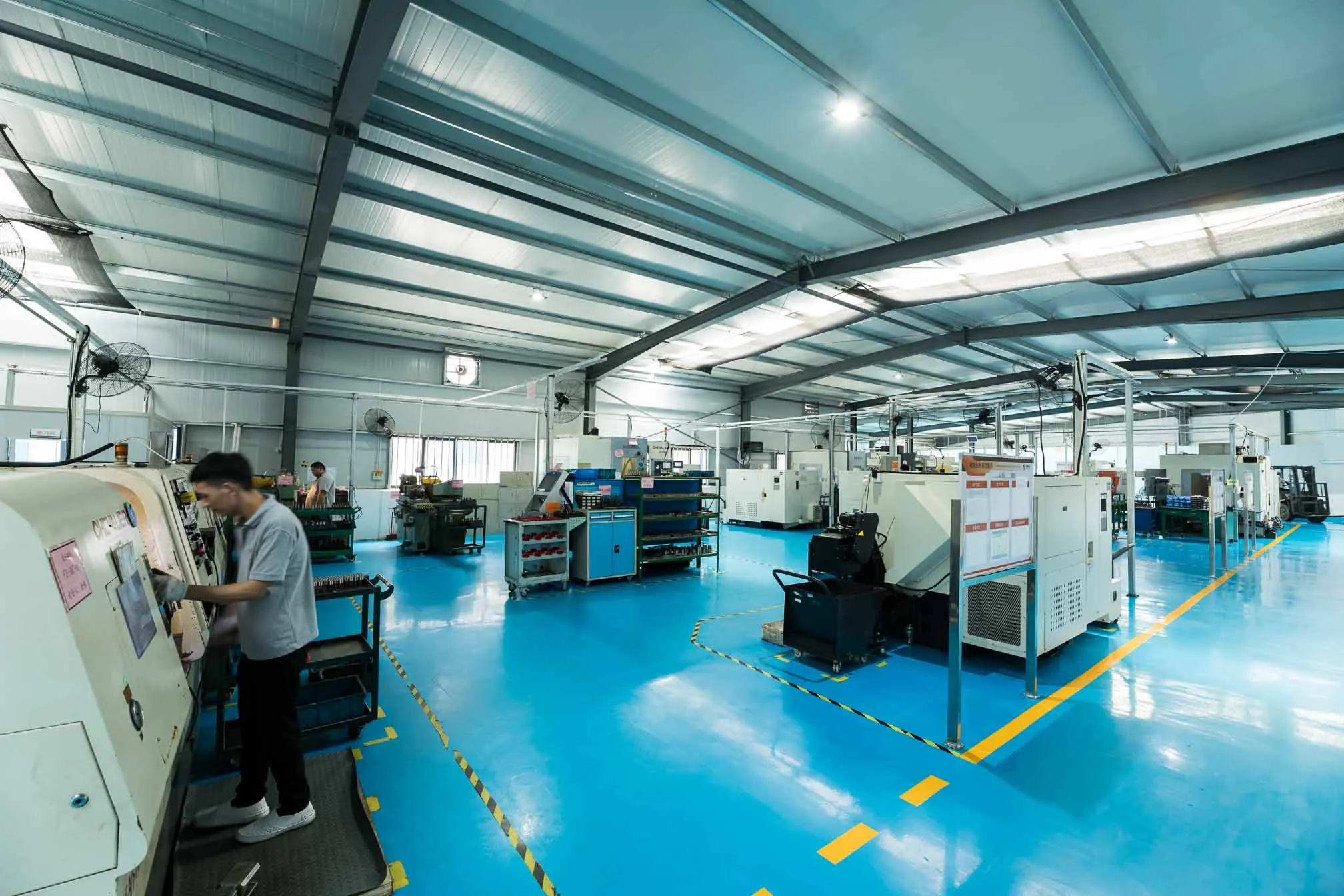

Company Profile
Since its foundation in 2005, FENZO P.M has aimed at designing and manufacturing high precision workholding devices for CNC machining and other processing operations. Today, we have grown into a domestically leading workholding tools manufacturer with abundant resources covering partnered R&D institutes, sales network, media platform and database. We offer complete workpiece clamping solutions that are precisely oriented to the industrial processing needs for quick, secure and precise workpiece workholding.

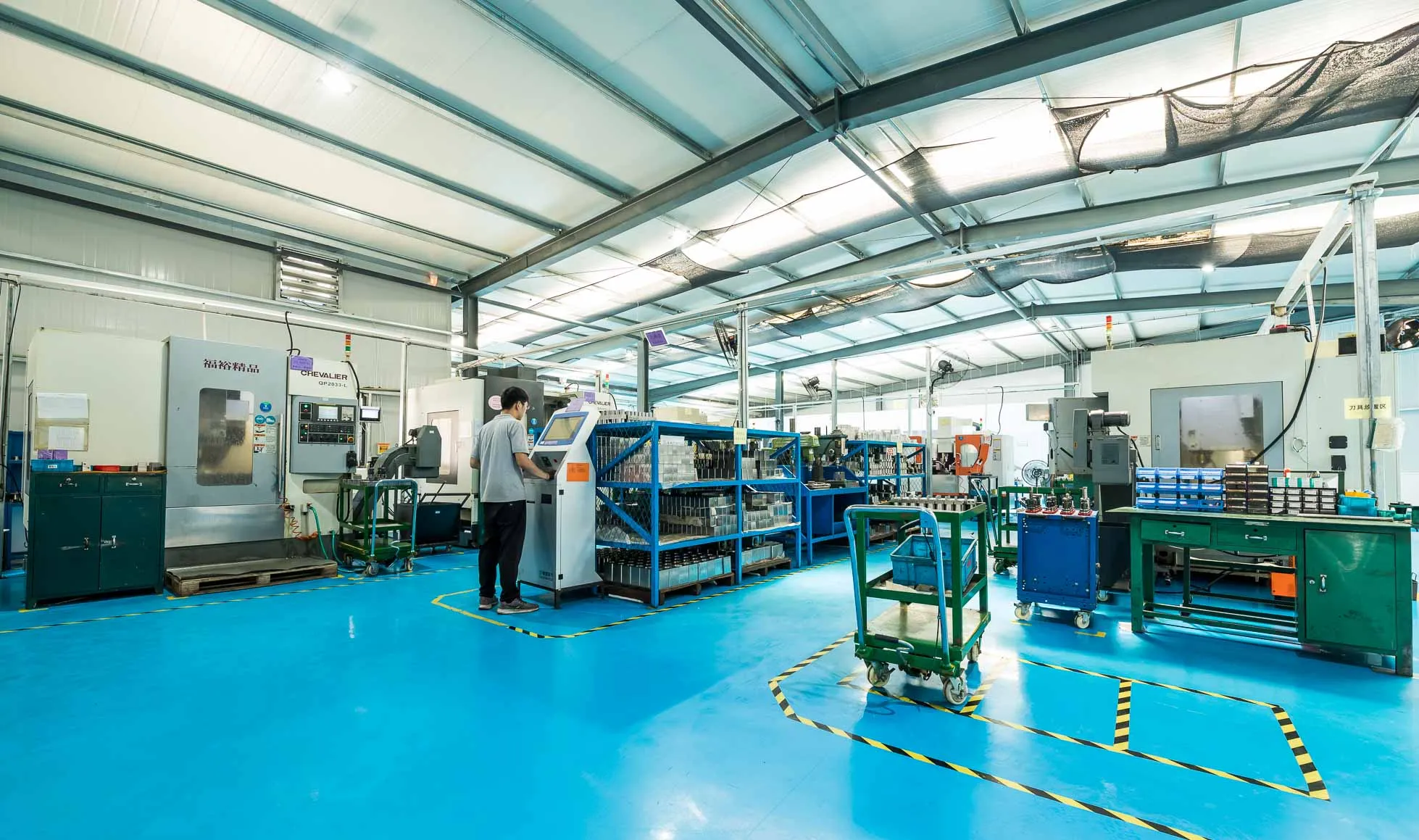

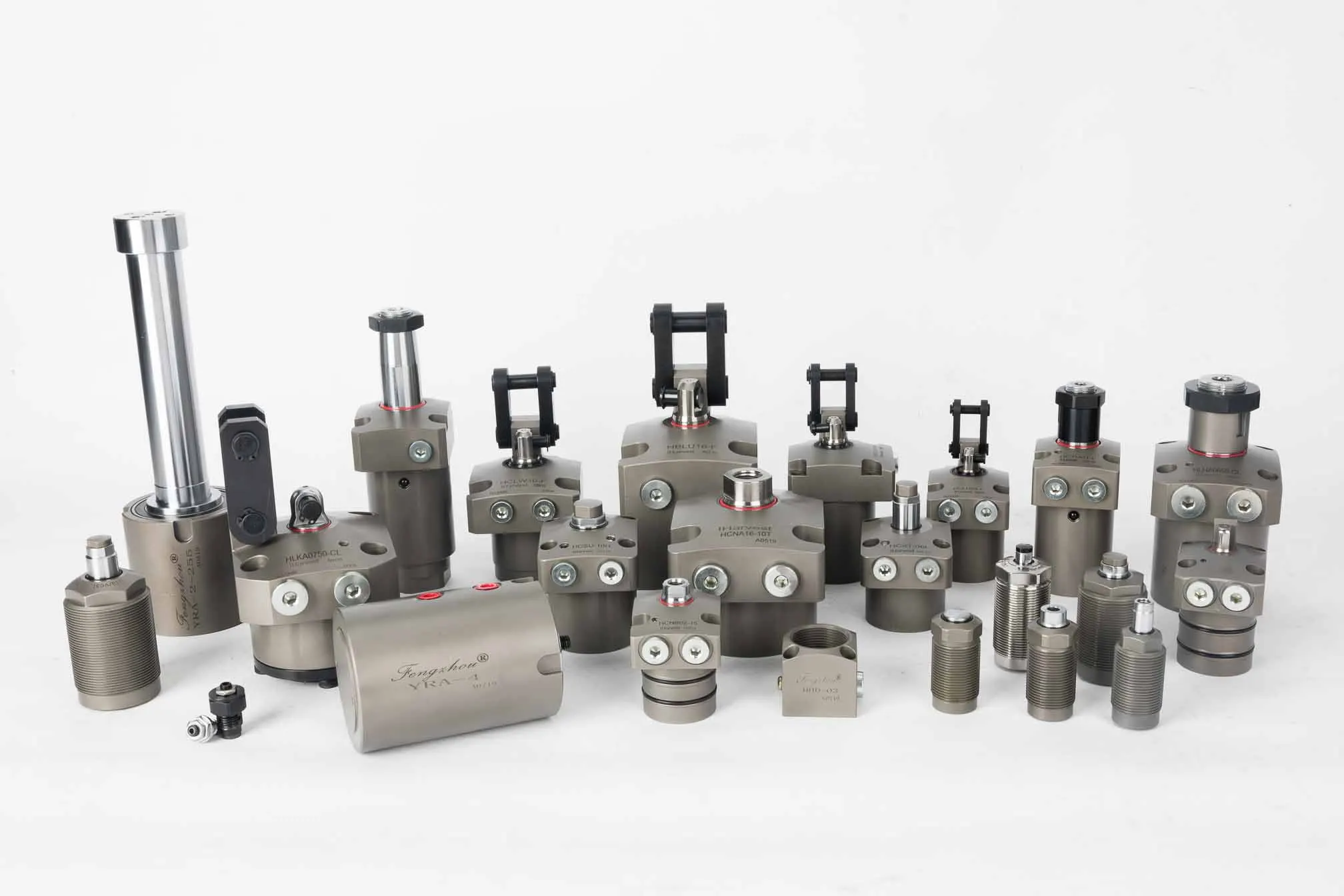

The product Teams
Technical Teams
Marketing Team

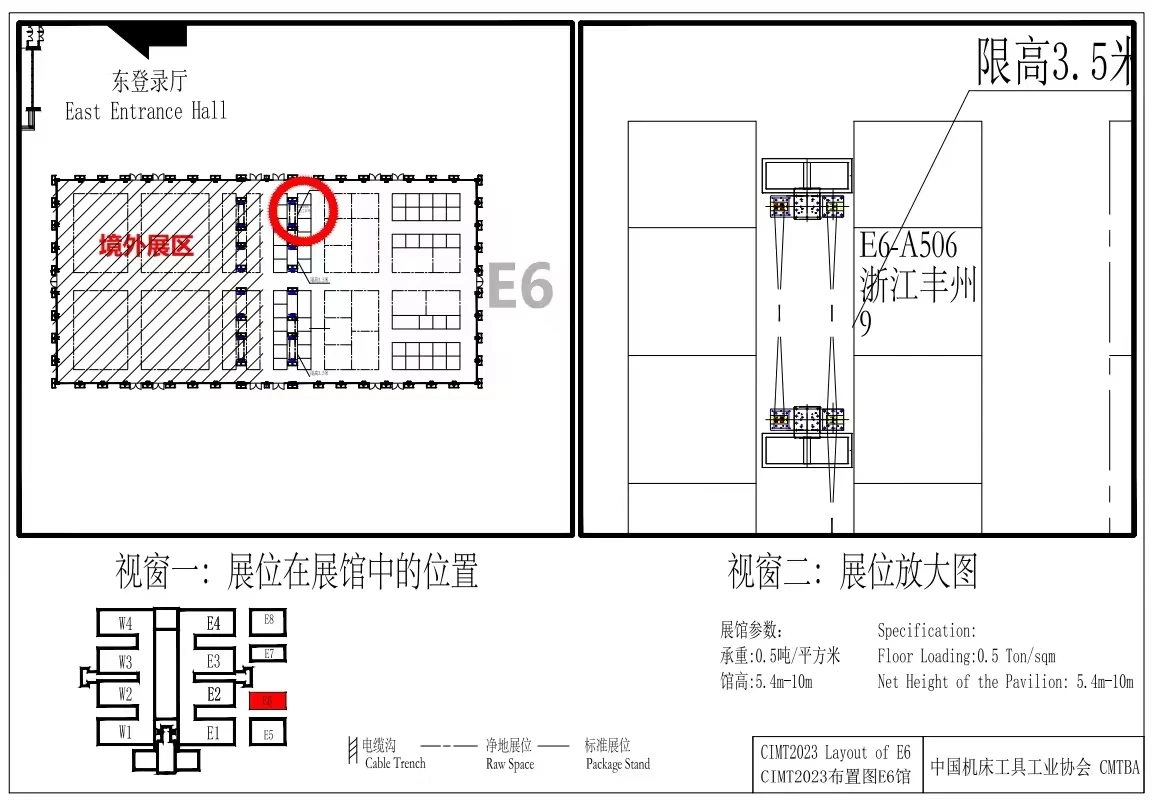

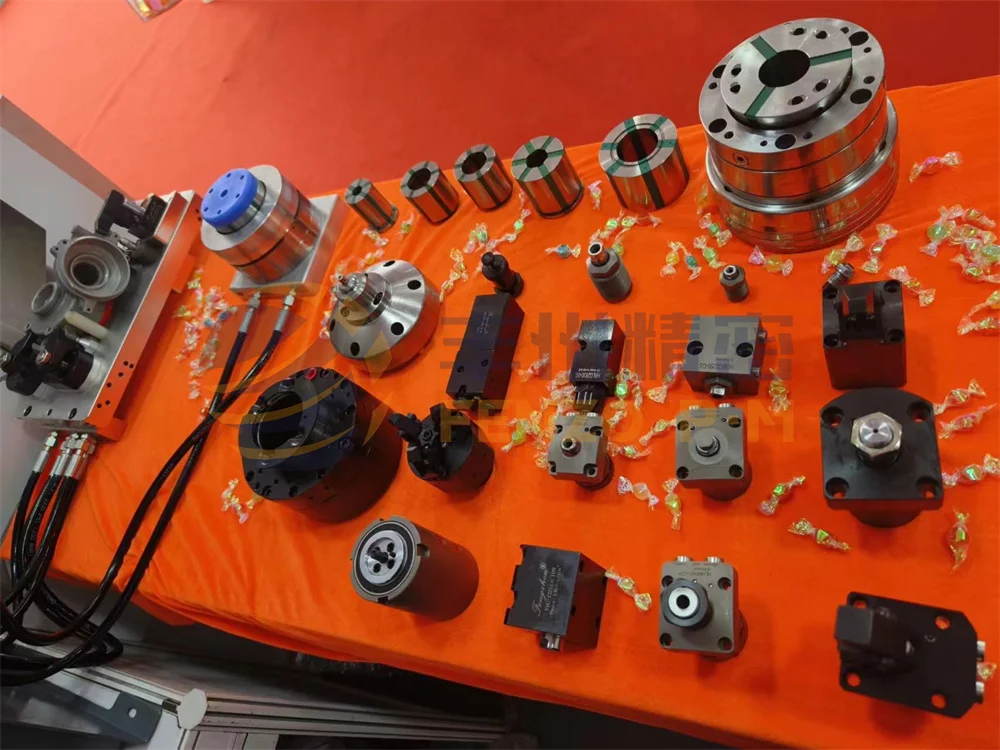

Exhibition
Certifications
FAQ
Q1: Can I get some samples?
A: Yes, We are willing to provide you the samples to know our quality. but the shipping fee need to bear from you.
Q2: Do you have the products in stock?
A: We have the standard products in stock.
Q3: How does your factory do the quality control?
A: we can provide a tailored workholding solution to satisfy your specific workpiece clamping application needs.The video of delivery inspection will provide by us.
Q4: How can I make sure the products is fit to my machine?
A: We have the professional technical team to serve you, and 3D drawing make the details.
Q5: How can I trust you?
FENZO P.M has the nearly 20 years of experience in the fixture field, we can provide a tailored workholding solution to satisfy your specific workpiece clamping application needs.
