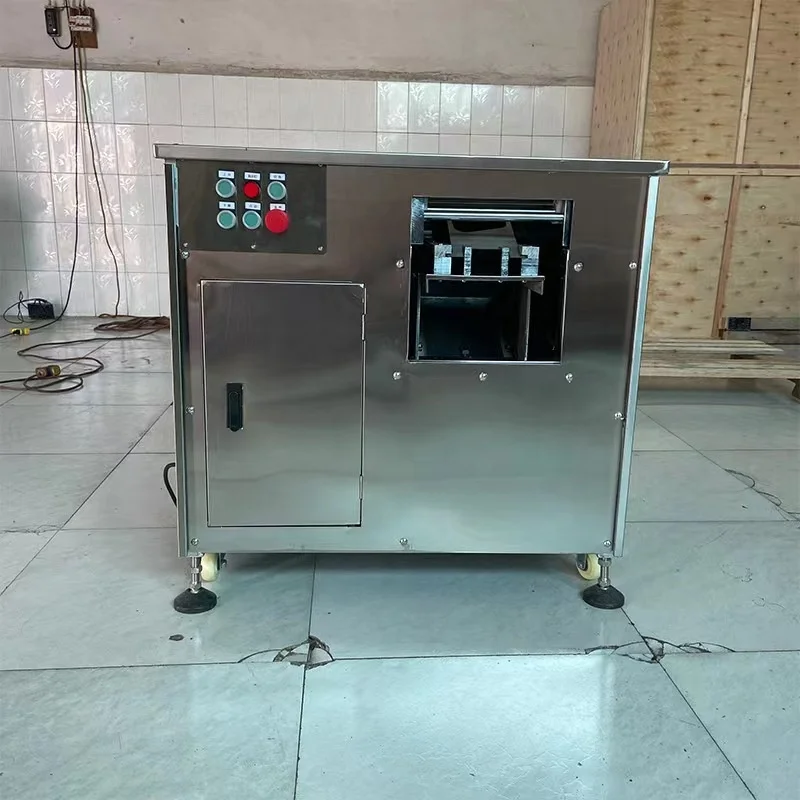

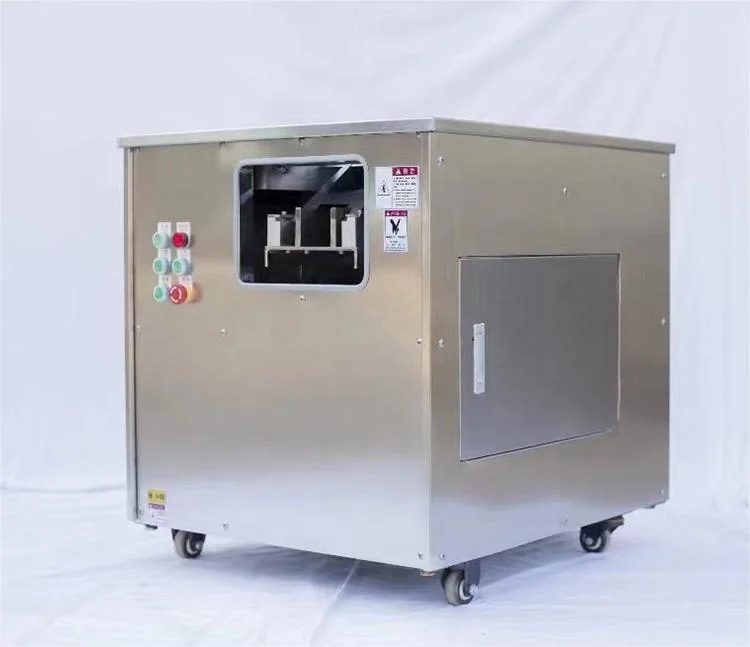

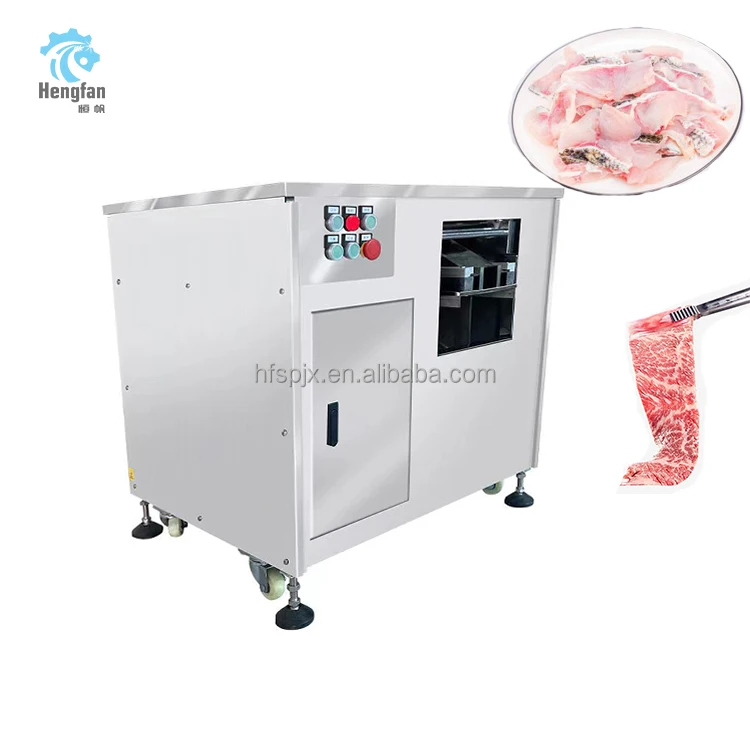

Automatic Meat Slicer Fish Slicing Machine for Cod Anchovy Trout Salmon Catfish Tilapia Sashimi Slice Cutting Slicer Machine
- Category: >>>
- Supplier: Chengdu Hengfan Food Machinery Co. Ltd.
Share on (1601205223124):
Product Overview
Description
Product Description
Brief Introduction:
The beveled fish slicer machine is made of a variety of knives to cut the fillet obliquely, the speed of
the fillet is adjustable, and the automatic slicing is a one-time forming machine, with a high degree of automation, simple
operation and high work efficiency. It has low vibration and low noise during operation, and is a new type of special machine for making fish fillets.
the fillet is adjustable, and the automatic slicing is a one-time forming machine, with a high degree of automation, simple
operation and high work efficiency. It has low vibration and low noise during operation, and is a new type of special machine for making fish fillets.
Feature:
1. This automatic fish and meat slicer machine is a new type of intelligent equipment for processing fish.
2. It can process and slice a variety of fresh fish without bones within 5 kg (fish over 5 kg can be customized).
dried fish,slightly frozen fish, fresh meat, tripe, pork liver, beef liver, sausage, squid, pork belly, etc. such as: salmon
fish,Tilapia,Sardine,silver carp, grass carp, carp, black fish, sea bass, mandarin fish, etc.
3. Truely realizes the automatic oblique cutting of fish fillets, which is safe and fast, and solves the time-consuming,
labor-intensive, low-efficiency, unsafe and other problems of traditional manual operation of cutting fish fillets.
4.This Fish filleting cutting machine comes standard with a slope of 30° and a thickness of above 1.5 mm;the range can be customized.
2. It can process and slice a variety of fresh fish without bones within 5 kg (fish over 5 kg can be customized).
dried fish,slightly frozen fish, fresh meat, tripe, pork liver, beef liver, sausage, squid, pork belly, etc. such as: salmon
fish,Tilapia,Sardine,silver carp, grass carp, carp, black fish, sea bass, mandarin fish, etc.
3. Truely realizes the automatic oblique cutting of fish fillets, which is safe and fast, and solves the time-consuming,
labor-intensive, low-efficiency, unsafe and other problems of traditional manual operation of cutting fish fillets.
4.This Fish filleting cutting machine comes standard with a slope of 30° and a thickness of above 1.5 mm;the range can be customized.
Product Paramenters
Name | Automatic fish and meat slicer |
Model | HFX-280 |
Capacity | 280pcs/min |
Voltage | 220 v/50 hz |
Power | 1kw |
Cutting thickness | > 1.5mm,customized |
Weight | 210 kg |
Dimension | 820*720*820 mm |
Default slope and thickness | 30 ° 2.5mm |
Miter cutting angle | 25 ~ 45 °miter cutting (customized)， The smaller the bevel, the wider the fillet |

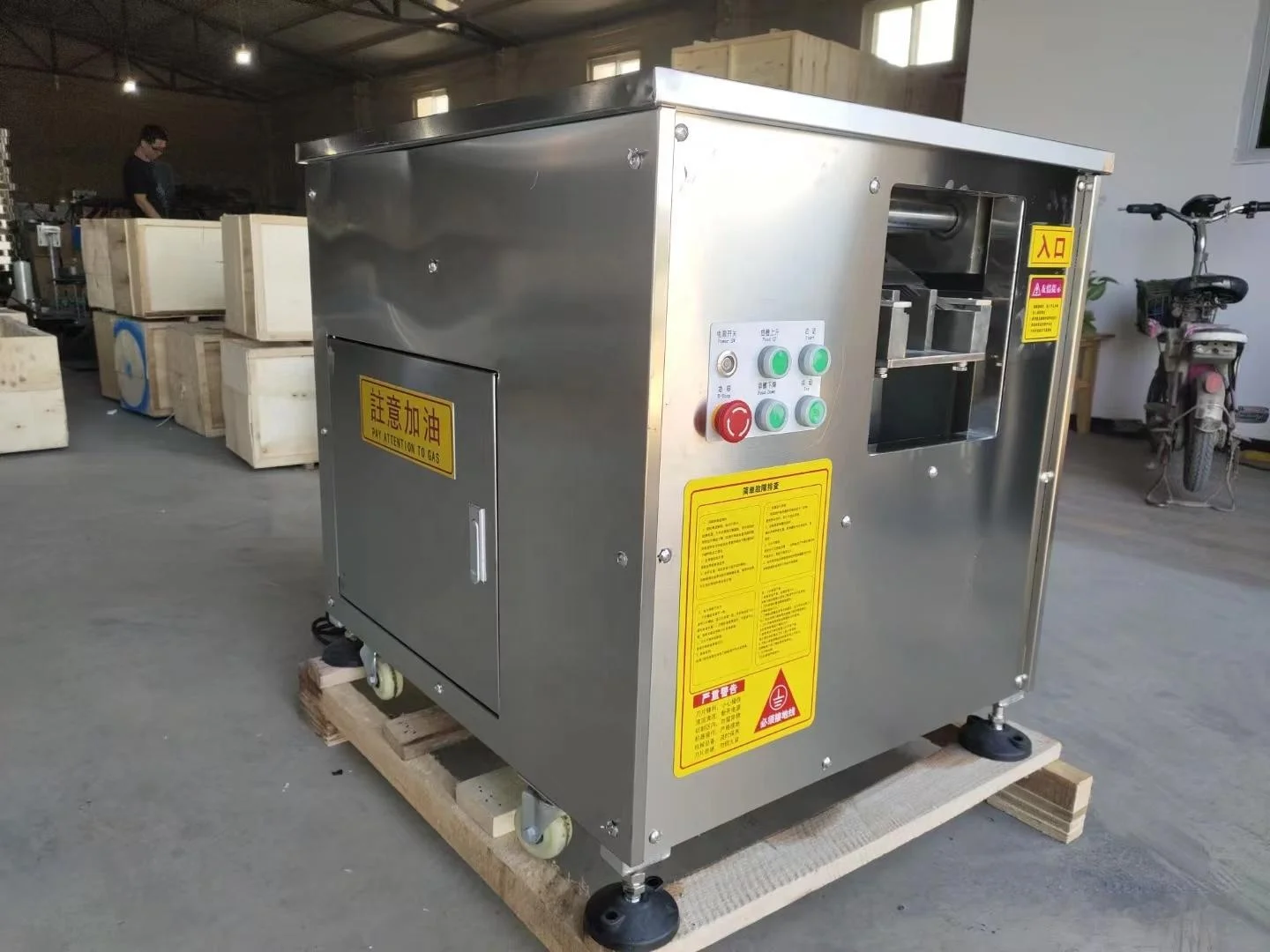

Details Images

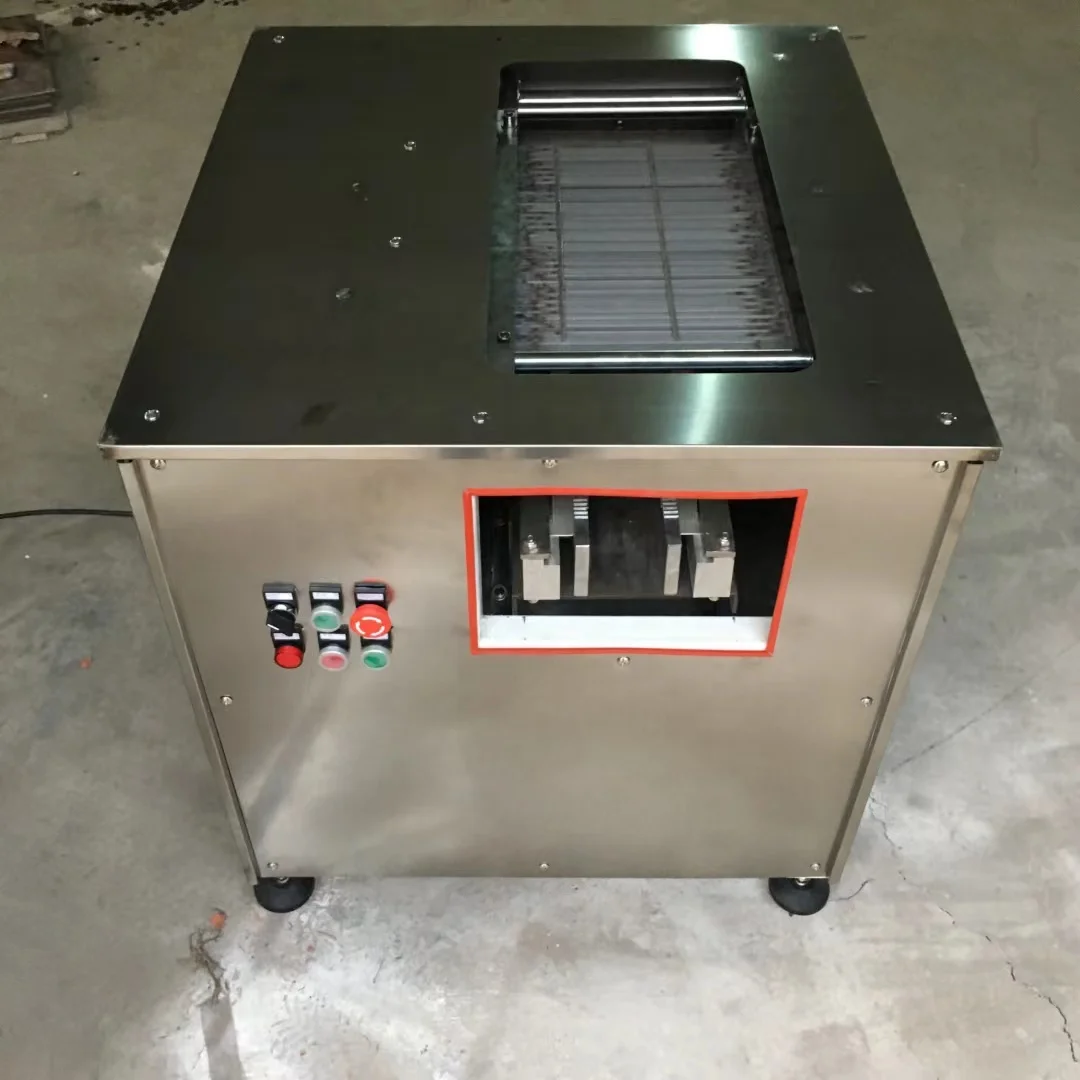

Fish feeder
Easy to put in,Start the machine,Ready to fillet

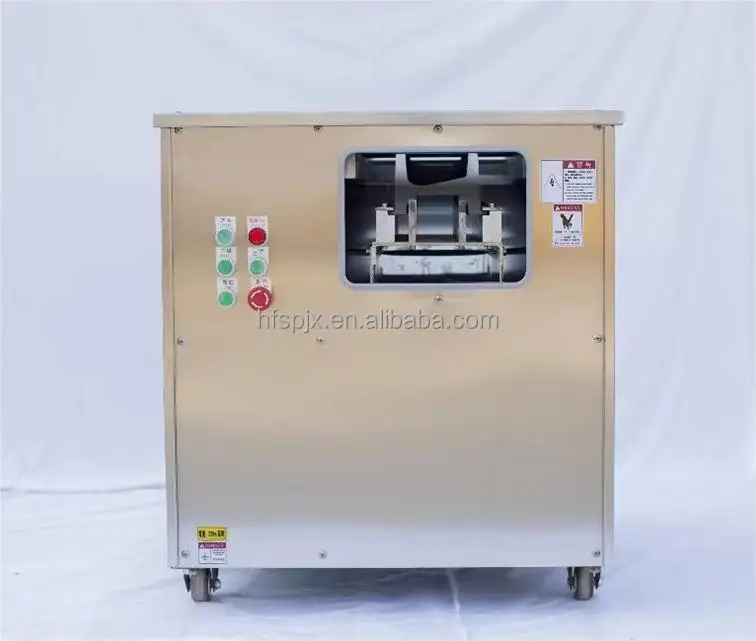

Operation control panel
Rise, fall, emergency stop.Ensure safety in operation

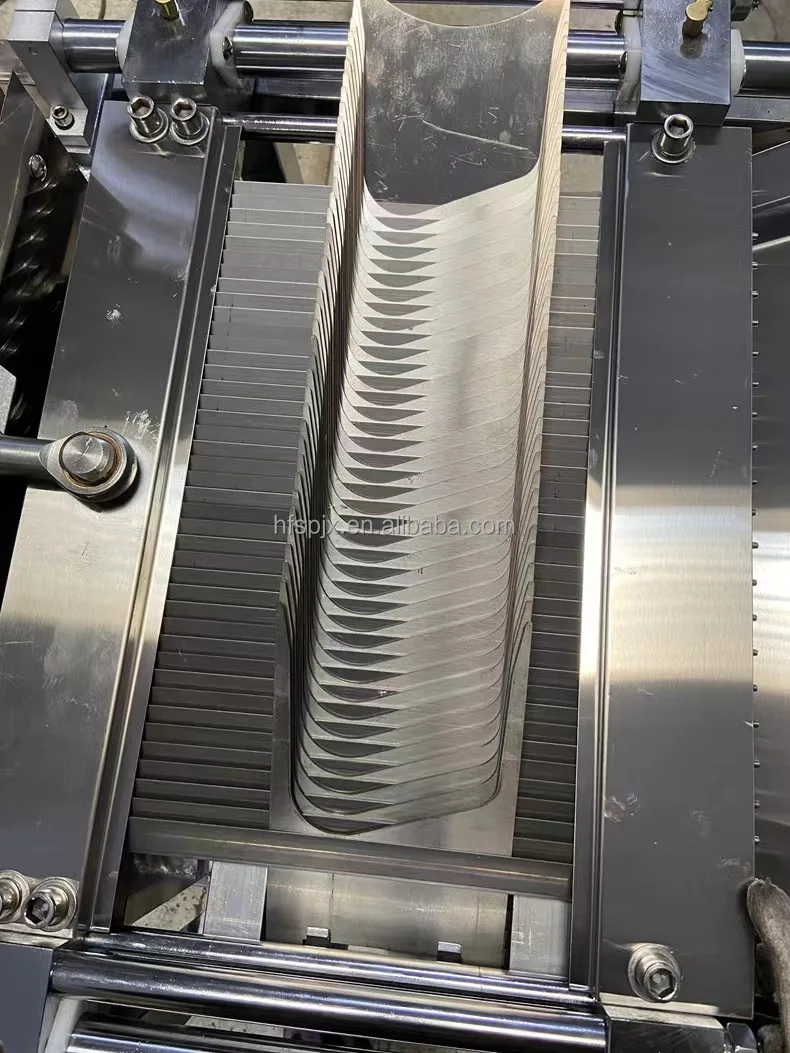

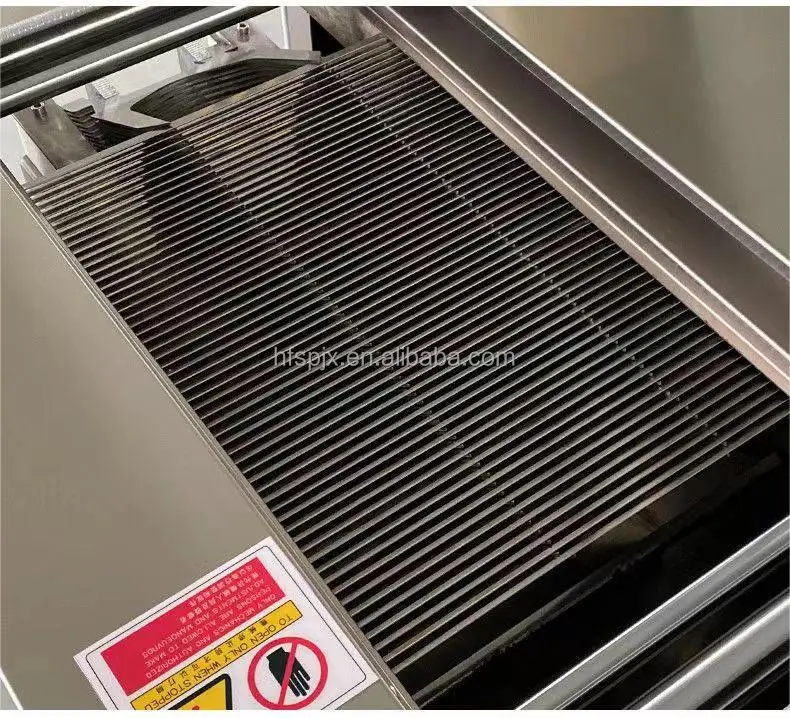

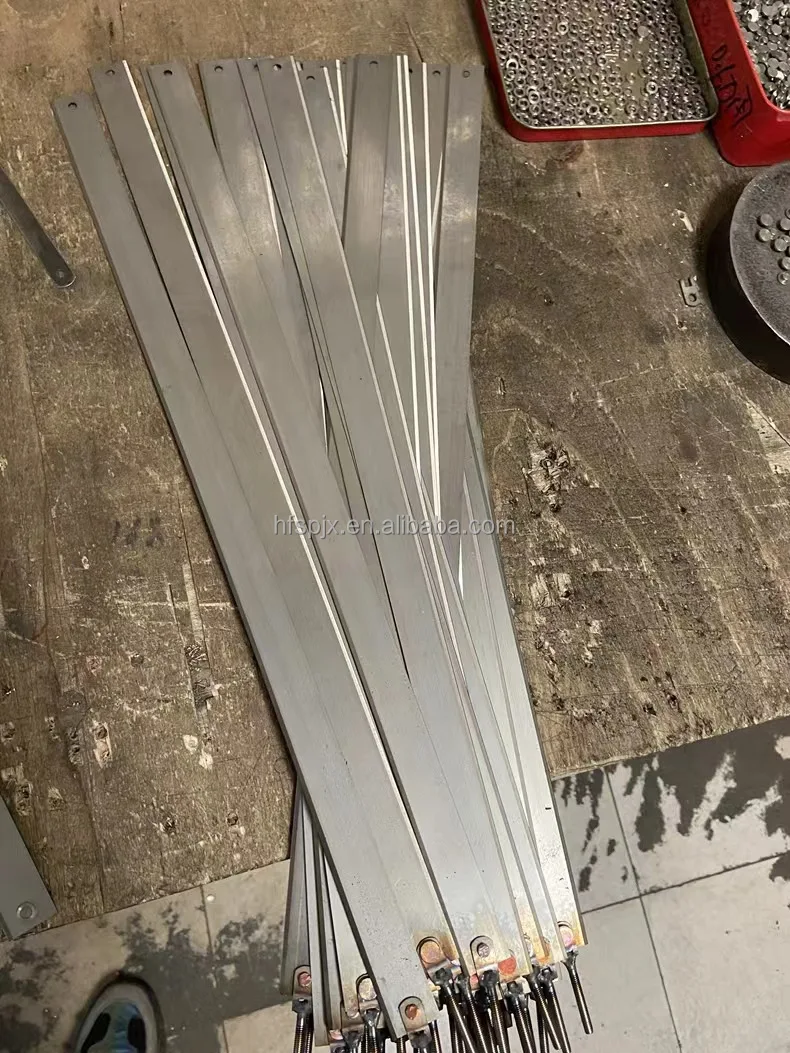

Precision blade set
Reliable material，Non-stick fish body，One time molding
Wheel
Convenient installation,Easy to move
fish weight | Fish length | Blade slope | slice thickness | fillet length | Number of fillets |
1.5kg | 330mm | 30° | 2mm | 5-6cm | 55 |
1.5kg | 330mm | 30° | 2.5mm | 5-6cm | 47 |
1.5kg | 330mm | 30° | 1.5mm | 5-6cm | 66 |
1.5kg | 330mm | 30° | 1.8mm | 5-6cm | 59 |
1.5kg | 330mm | 30° | 3.5mm | 5-6cm | 38 |
1.5kg | 330mm | 30° | 3mm | 5-6cm | 44 |
1.5kg | 330mm | 40° | 1.75mm | 4-5cm | 80 |
1.5kg | 330mm | 40° | 2mm | 4-5cm | 73 |
1.5kg | 330mm | 40° | 2.3mm | 4-5cm | 66 |
1.5kg | 330mm | 40° | 3mm | 4-5cm | 55 |
1.5kg | 330mm | 20° | 2mm | 10-12cm | 38 |
1.5kg | 330mm | 30° | 4.5mm | 5-6cm | 30 |
1.5kg | 330mm | 30° | 4.5mm | 5-6cm | 30 |
Note:
Slicing thickness can be customized at any time, (cutting thickness between 2-10mm can be customized) the smaller the slope, the wider the fillet, the default size of the slope and thickness is 30 degrees 2.5mm.
Slicing thickness can be customized at any time, (cutting thickness between 2-10mm can be customized) the smaller the slope, the wider the fillet, the default size of the slope and thickness is 30 degrees 2.5mm.
Application
It can process and slice a variety of fresh fish without bones within 5 kg (fish over 5 kg can be customized).dried fish,slightly frozen fish, fresh meat, tripe, pork liver, beef liver, sausage, squid, pork belly, etc. such as: salmon
fish,Tilapia,Sardine,silver carp, grass carp, carp, black fish, sea bass, mandarin fish, etc.
fish,Tilapia,Sardine,silver carp, grass carp, carp, black fish, sea bass, mandarin fish, etc.
Product show
