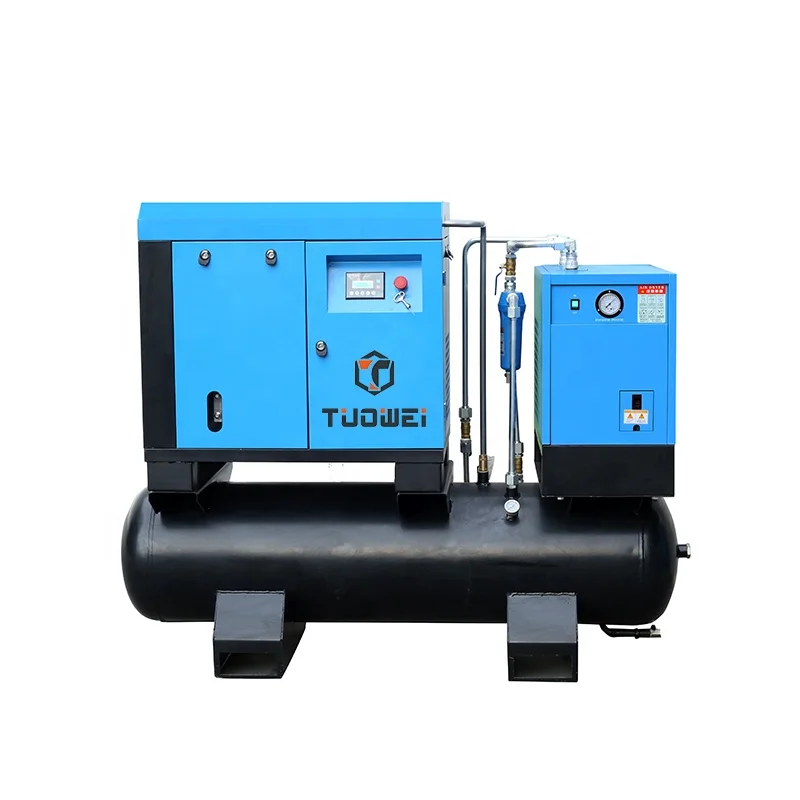

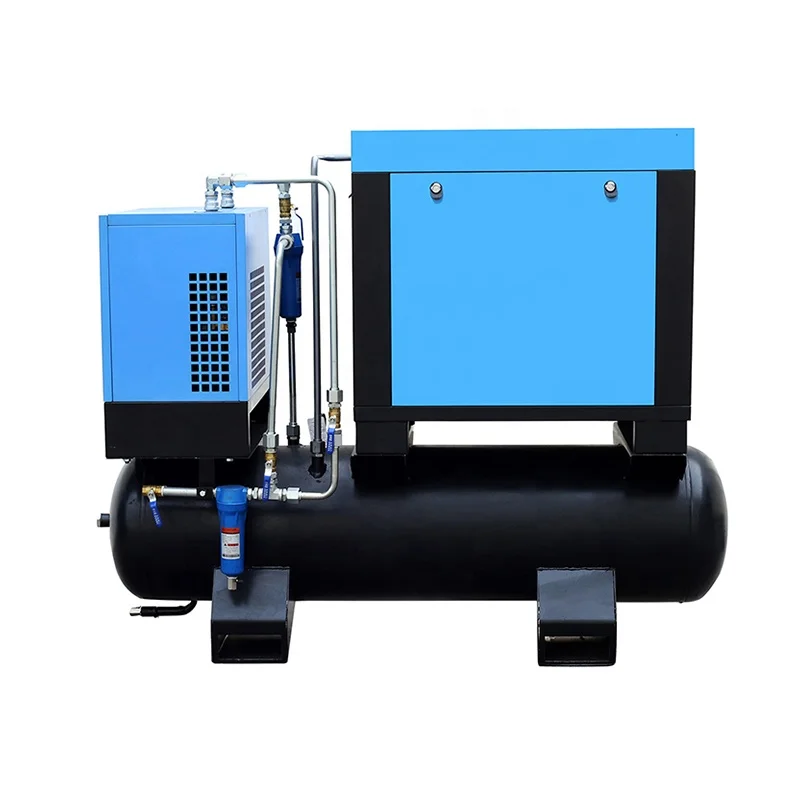

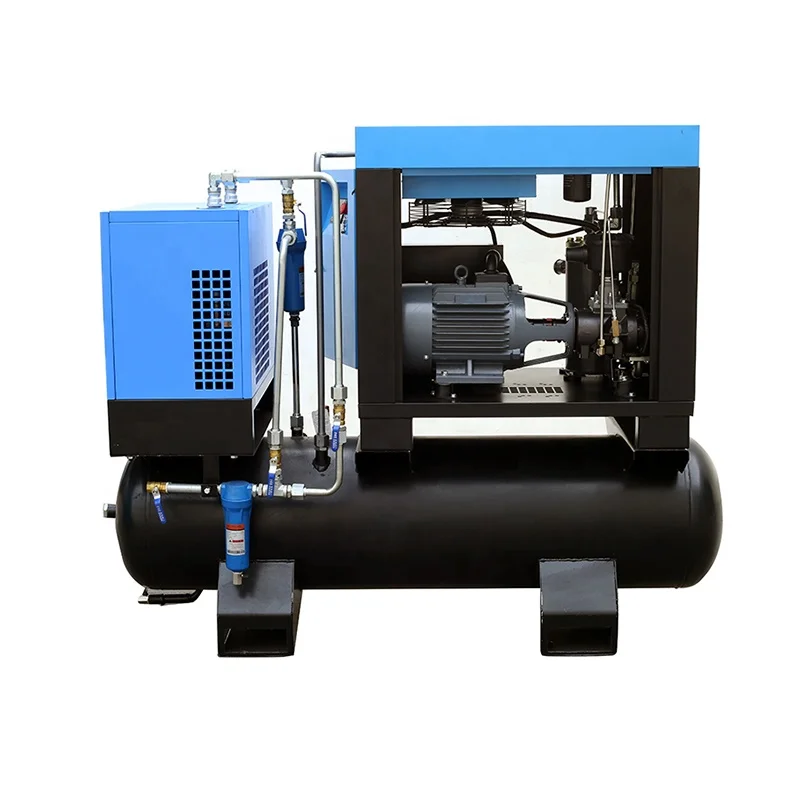

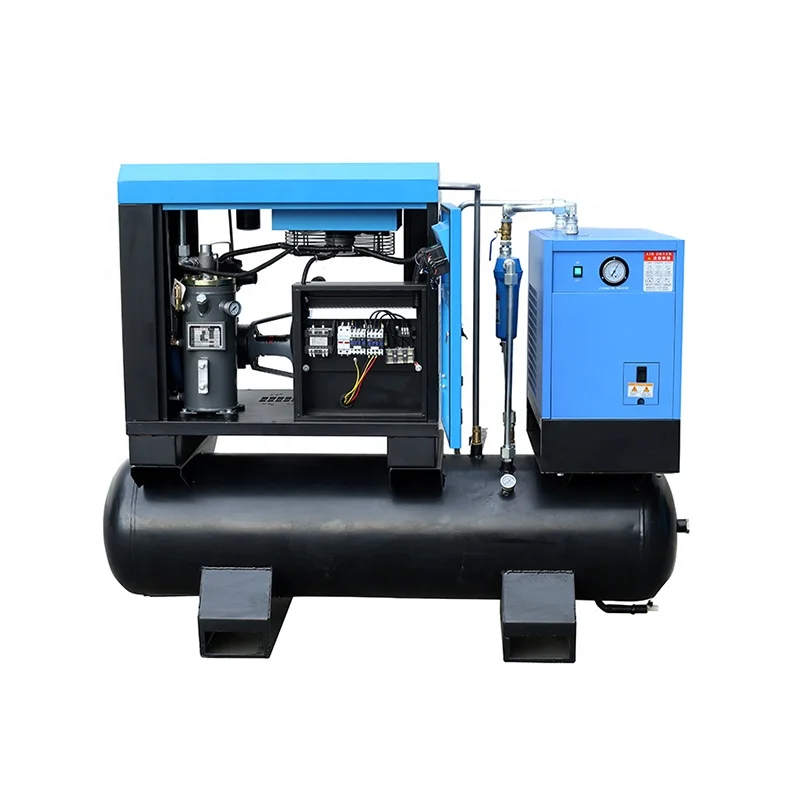

7.5 kW 10 Hp 10bar Low Noise Industrial Screw Air Compressor With Air Dryer And 300l Air Tank
- Category: >>>
- Supplier: Fuzhou Tuowei Mechanical & Electrical Equipment Co. Ltd.
Share on (1601205277265):
Product Overview
Description
Product Description
7.5 kW 10 Hp 10bar Low Noise Industrial Screw Air Compressor With Air Dryer And 300l Air Tank

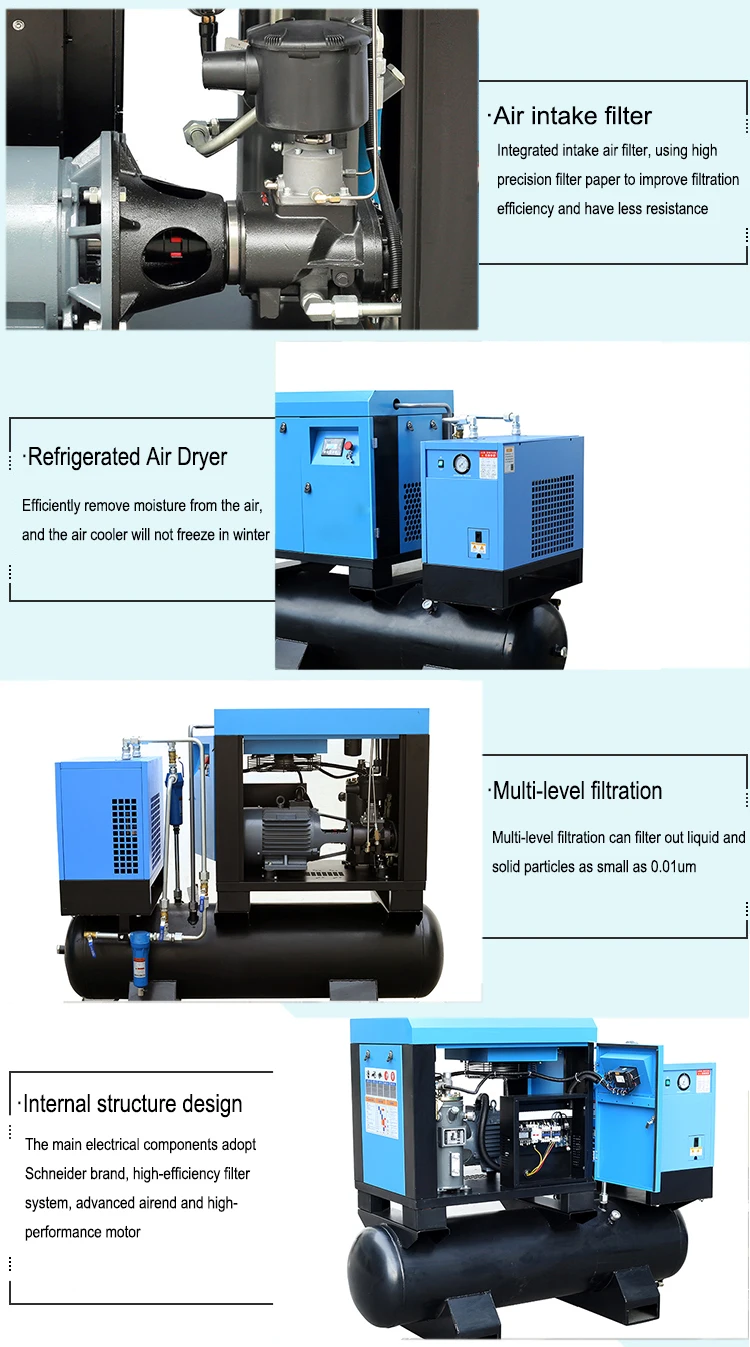

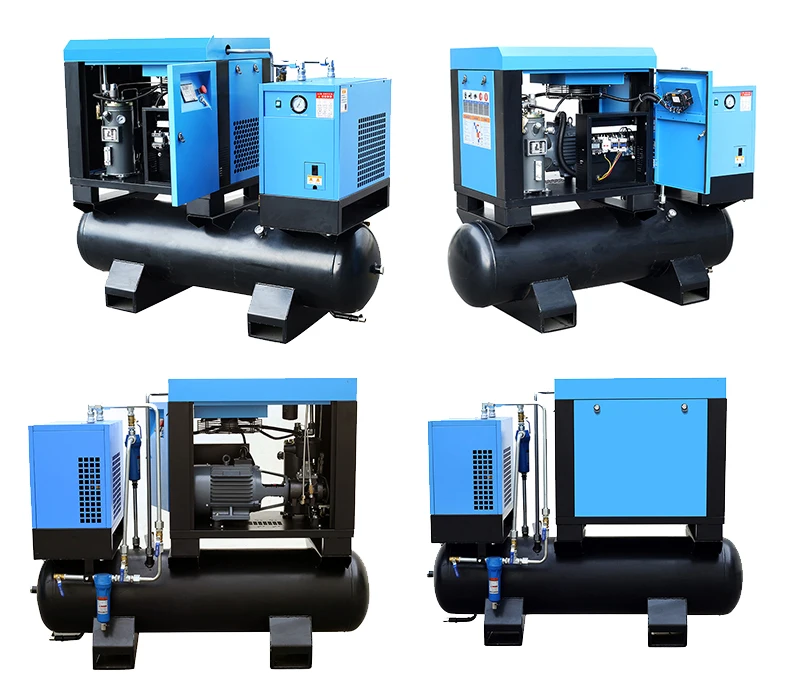

The combined screw air compressor is assembled by screw air compressor, refrigerated air dryer, air storage tank and precision filter
.Main features:
1. Efficient performance, convenience, and space saving
2. High efficiency and reliable quality
3. Power: 7.5~37KW
4. Pressure: 7~16bar
5. Capacity: 0.8~3.6m3/min
| Model | Motor Power | Working Pressure | Capacity | Dimension(mm) | Net Weight | Air Outlet Pipe Diameter | NOISE dB(A) | Air tank | Motor Protection Class | |||
| kw/hp | Psi | bar | Cfm | m3/min | L*W*H | KGS | ||||||
| SGAT08 | 7.5/10 | 116 | 8 | 39 | 1.1 | 1990*750*1405mm | 300 | G3/4" | 68±2dB | 350L | IP54 | |
| 145 | 10 | 32 | 0.9 | |||||||||
| 174 | 12 | 28.3 | 0.8 | |||||||||
| SGAT15 | 15/20 | 116 | 8 | 81 | 2.3 | 1850*750*1640mm | 300 | G3/4" | 68±2dB | 350L | IP23 | |
| 145 | 10 | 74 | 2.1 | |||||||||
| 174 | 12 | 67.1 | 1.9 | |||||||||
| SGAT22 | 22/30 | 116 | 8 | 53 | 3.6 | 2050*850*1780mm | 600 | G1" | 72±2dB | 350L | IP23 | |
| 145 | 10 | 46 | 3.2 | |||||||||
| 174 | 12 | 95.3 | 2.7 | |||||||||
| SGAT08PM | 7.5/10 | 116 | 8 | 39 | 1.1 | 1990*750*1405mm | 300 | G3/4" | 68±2dB | 350L | IP54 | |
| 145 | 10 | 32 | 0.9 | |||||||||
| 174 | 12 | 28.3 | 0.8 | |||||||||
| SGAT15PM | 15/20 | 116 | 8 | 81 | 2.3 | 1850*750*1640mm | 300 | G3/4" | 68±2dB | 350L | IP23 | |
| 145 | 10 | 74 | 2.1 | |||||||||
| 174 | 12 | 67.1 | 1.9 | |||||||||
| SGAT22PM | 22/30 | 116 | 8 | 53 | 3.6 | 2050*850*1780mm | 600 | G1" | 72±2dB | 350L | IP23 | |
| 145 | 10 | 46 | 3.2 | |||||||||
| 174 | 12 | 95.3 | 2.7 | |||||||||
Company Information
FAQ
Q1: What is the rotor speed for the air end?
A1: 2980rmp.
Q2: What's your lead time?
A2: usually, 5-7 days. (OEM orders: 15days)
Q3: Can you offer water cooled air compressor?
A3: Yes, we can (normally, air cooled type).
Q4: What's the payment term?
A4: T/T, L/C, Western Union, etc. Also we could accept USD, RMB, and other currency.
Q5: Do you accept customized voltage?
A5: Yes. 380V/50Hz/3ph, 380V/60Hz/3ph, 220V/50Hz/3ph, 220V/60Hz/3ph, 440V/50Hz/3ph, 440V/60Hz/3ph, or as per your requests.
Q6: What is your warranty for air compressor?
A6: One year for the whole air compressor(not including the consumption spare parts) and technical supports can be provided according to your needs.
Q7: Can you accept OEM orders?
A7: Yes, OEM orders are warmly welcome.
Q8: How about your customer service and after-sales service?
A8: 24hrs on-line support, 48hrs problem solved promise.
Q9: Do you have spare parts in stock?
A9: Yes, we do.
Q10: What kind of initial lubrication oil you used in air compressor?
A10: TOTAL 46# mineral oil.
