Other Packaging Materials Die Cutting Creasing Matrix Adhesive

Share on (1601205298044):


Price:$15.00 - $18.00

Quantity:


Product Overview

Description



Product Description


China Channel Hot Seller Creasing Matrix For Die Cutting
Features
1.PIKE is our brand and have competitive price with high quality.
2.Accurate locator – ensures perfect registration
3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
4. Finger lift adhesive tape – backing paper easily and quickly removed
5. Imported and strong adhesive tape removes cleanly from the plate after use, will not move about during die cutting jobs
6.Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.
8.World’s most advanced creasing matrix made from Fibre for long-run job with average punching times from 80,000-80,000
Notes: OEM and special sizes are available upon customer's demands.
Packing :50pcs/box,10boxes/carton
MOQ: 1box
Specification Selection
For instance:the thickness of the cardboard:0.52mm;the thickness of creasing rules:0.71mm,according to calculation formula:A=0.52≈0.5(mm);B=0.52*1.5+0.71=1.49≈1.5(mm),so we should choose the size of 0.5*1.5

Method to choose creasing matrix size for corrugated paper.Size table(subjct to 23.8mm die-cutting rules).

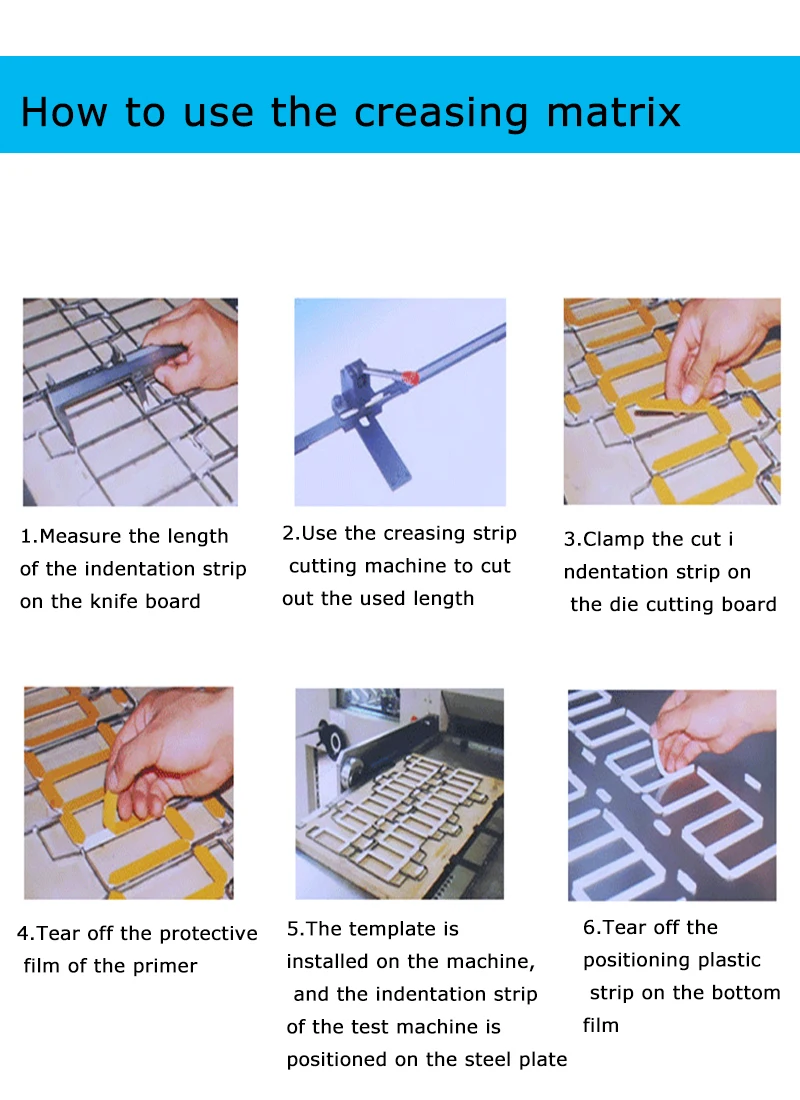

Use Method Of Creasing Matrix
1.Measure the length of the creasing rule.
2.Mark the measurement and cut the matrix.
3.Mount the cut piece onto the creasing rule with locator.
4.Remove backing strip to revel adhesive membrane
5.Lock into press&index machine to place matrix on machine to place matrix on opposing platen.
6.Remove locator strip by pulling firmly upwards.
7.Mitre to suitable angle.


Specification


item
value
Model Number
Customize
Place of Origin
China
Brand Name
PIKE
Product Name
China Channel Hot Seller Creasing Matrix For Die Cutting
Application
Die Cutting Corrugated Carton Box
Material
PVC,Paperbased Fiber ,Fiberglass
Size
Customized Size
Usage
Corrugated Box Making
Packing
Carton Box
Color
Milk White
MOQ
1 box
Feature
Durable
Keywords
Creasing Matrix For Die Cutting


Packing & Delivery




Packing:50pcs/box,10boxes/carton
Shipping:
(1)By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
(2)By Sea:21~45working days
(3)By Air:3~7working days
(4)By Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .



Company Profile




Jiaqi Youpin (Guangzhou) Industry and Trade Co., Ltd was founded in 2009.We are main do printing consumables,such as creasing matrix,ceramic anilox roller,diecutting rules,cleaning of anilox roller etc.The Company is committed to improving domestic&foreign packaging and printing technology,focus on Diecutting and Flexo-printing,work closely with international renowned partners to supply the advanced technology and high-quality materials.We provide solutions and excellent technology service for the customers with advanced production equipment,high production efficiency and quality products.We will, as always, Adhere to the principle of "good faith management", and "quality comes from focus and quality creates success". with high quality products, favourable prices, advanced service network, to provide customers with reliable, stable, good cooperative environment.






FAQ


1. who are we?
We are based in Guangdong, China, start from 2020,sell to Eastern Europe(50.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
creasing matrix,ceramic anilox roller,tesa tape,rubber roller,die making machine

4. why should you buy from us not from other suppliers?
Jiaqi Youpin (Guangzhou) Industry and Trade Co., Ltd was founded in 2009.We have more than 10 years of flexo customer and offset customer printing experience.we has our own factory and technical tearm.we can offered our professional solutions to our custom

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English
