DZH Series Horizontal Biomass Gasification Boiler
- Category: >>>
- Supplier: Henan Yuji Boiler Vessel Co. Ltd.
Share on (1601205312379):
Product Overview
Description
Product Description

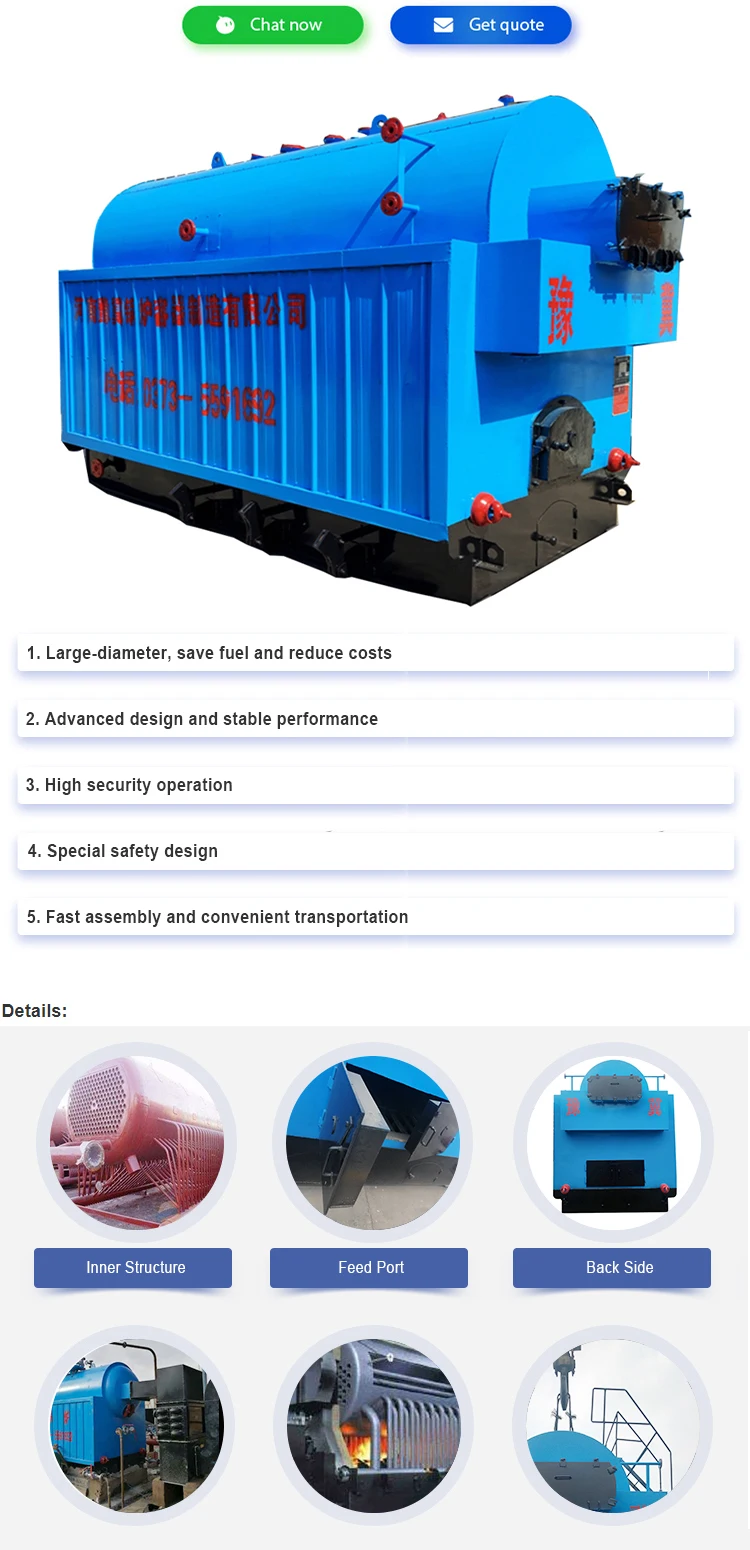

DZH Series Horizontal Biomass Gasification Boiler
DZH series boiler is designed with single drum boiler with fire tube and water pipe. It has fast heat conduction, fast rise of steam pressure, movable grate as combustion equipment, and manual or mechanical fuel delivery mode. It is flexible and controllable by human beings. It is suitable for direct combustion of biomass of various shapes and has strong adaptability to fuel.
This series of boilers adopt the latest science and technology such as arched tube sheet and spiral corrugated smoke pipe, which effectively improves the overall efficiency of the boiler, and prevents the occurrence of grate coking, tube sheet leakage and other failures.
PS: we can customize boiler products for you according to the fuel, steam quantity and steam pressure required by customers.
PS: we can customize boiler products for you according to the fuel, steam quantity and steam pressure required by customers.
Steam output:
Steam volume: 0.5t/h-20t/h
Steam pressure: 0.7mpa-2.5mpa (optional as required)
Steam temperature: 0 ℃ - 226 ℃
Fuel: coal, anthracite, bituminous coal, lignite, etc.
Hot water output:
- Rated Power: 0.7~7Mw
- Work Pressure: 0.7~1.25Mpa
- Rated outlet temperature: 95~115°C
PS: Customizable according to the fuel, steam quantity and steam pressure.

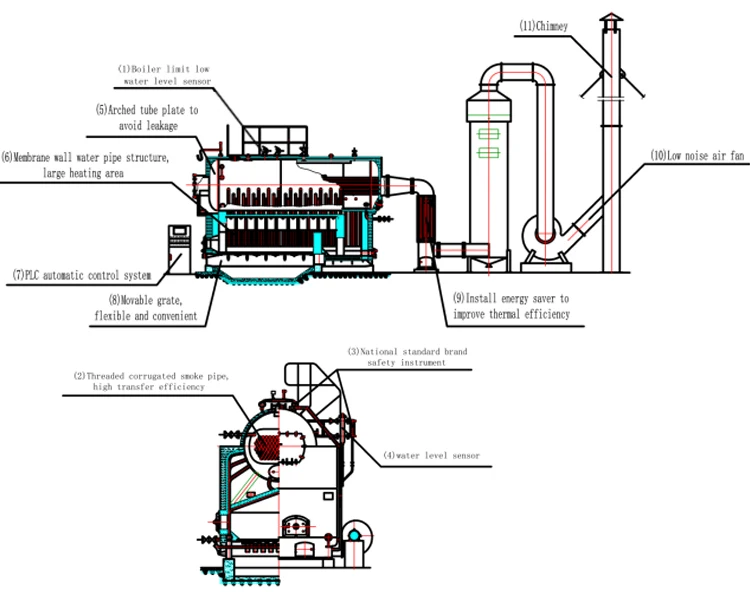

Structure and parameters:
- Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation
- The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
| DZH Steam Boiler | |||||||
| Model | Rated evaporation(t/h) | Rated pressure(MPa) | Steam temperature(℃) | thermal efficiency (%) | Fuel consumption (kg/h) | Size L×W×H (m) | Weight(t) |
| DZH 1-0.7/1.0-AII | 1 | 0.7/1.0 | 193/204 | ≥83 | 176.6 | 4.3×1.9×2.9 | 13.6 |
| DZH 2-1.0/1.25-AII | 2 | 1.0/1.25 | 193/204 | ≥83 | 352.3 | 5.14×2.5×3.1 | 18 |
| DZH 3-1.25/1.6-AII | 3 | 1.25/1.6 | 193/204 | ≥83 | 522.5 | 5.63×2.7×3.3 | 23 |
| DZH 4-1.25/1.6-AII | 4 | 1.25/1.6 | 193/204 | ≥83 | 697 | 5.92×2.7×3.5 | 25.3 |
| DZH 6-1.25/1.6-AII | 6 | 1.25/1.6 | 193/204 | ≥83 | 1044 | 6.2×3.0×3.58 | 31 |
| DZH 8-1.25/1.6-AII | 8 | 1.25/1.6 | 193/204 | ≥83 | 1396 | 6.8×3.4×3.6 | 34 |
| DZH 10-1.25/1.6-AII | 10 | 1.25/1.6 | 193/204 | ≥83 | 1744 | 7.5×3.4×3.7 | 39 |
| DZH Hot Water Boiler | |||||||
| Model | Rated power(mw) | Rated pressure(MPa) | thermal efficiency (%) | Fuel consumption (kg/h) | Water supply temperature(℃) | Return water temperature(℃) | Weight(t) |
| DZH0.7-0.7/95/70 | 0.7 | 0.7 | ≥83 | 174.3 | 95 | 70 | 13.6 |
| DZH1.4-1.0/95/70 | 1.4 | 1 | ≥83 | 348.6 | 95 | 70 | 18 |
| DZH2.1-1.0/95/70 | 2.1 | 1 | ≥83 | 517 | 95 | 70 | 23 |
| DZH2.8-1.0/95/70 | 2.8 | 1 | ≥83 | 687.2 | 95 | 70 | 25.3 |
| DZH4.2-1.25/95/70 | 4.2 | 1.25 | ≥83 | 1023.8 | 95 | 70 | 31 |
| DZH5.6-1.25/115/70 | 5.6 | 1.25 | ≥83 | 1374 | 115 | 70 | 34 |
| DZH7-1.25/115/70 | 7 | 1.25 | ≥83 | 1708 | 115 | 70 | 39 |

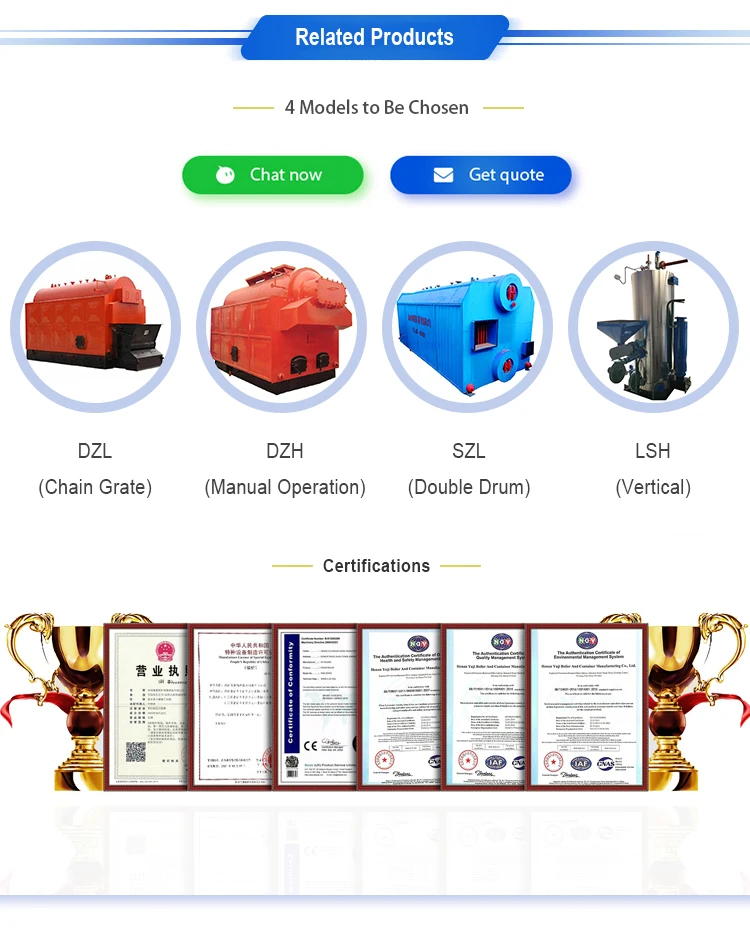

Related Products
Packaging & Shipping

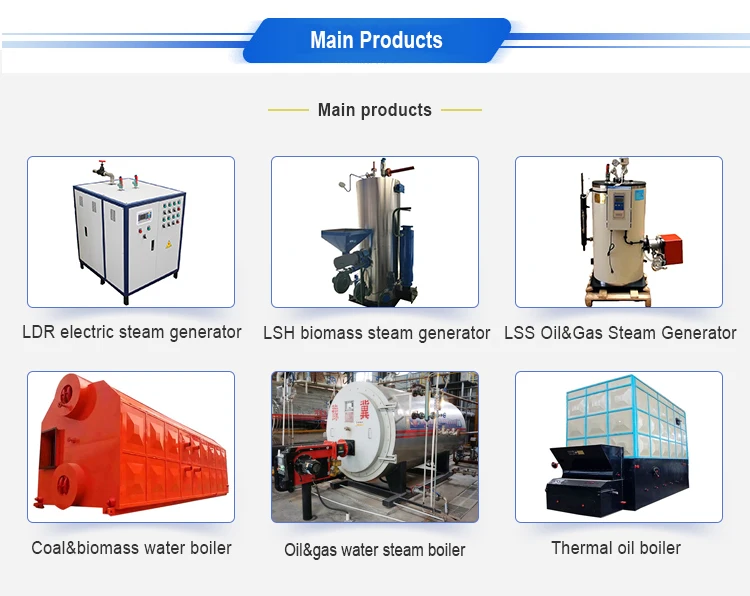

Main Products
Company Information
Henan Yuji Boiler Vessel Co., Ltd. is the general administration of quality supervision, inspection and quarantine of the People’s Republic of China approved the boiler and pressure vessel designated manufacturing enterprise, The company passes ISO 9001 international quality system certification, and gains the EU CE and other international certification ect.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
Customer Feedback
FAQ
Q. Are you manufacturer?
A: Yes, we are professional manufacturer of boiler and pressure vessels in Henan, China.
Q: Do you have any Certificate?
A: Yes. Our boiler have got China GB ISO certificates and CE certificate of EU. We also can provide ASME, GHOST and other necessary certificates if you need.
Q: How can I pay you?
A: T/T, Western Union, Money Gram and Ali Trade Assurance is better.
Q: What about the delivery time?
A: 5-10 working days for single machine, and 30-40 working days for bulk order and door to door delivery service is also available.
Q. What about the warranty?
A: We provide 1 year warranty for free and life-long time maintenance
Q. What about installation?
A: We provide 1 or 2 technicians overseas services for installation, debugging and training.
Q. What about the boiler fuel?
A: We provide boiler can use coal, charcoal, wood, rice husk, straw, biomass pellet, diesel, light oil, natural gas, city gas, liquefied gas etc.
