Product Overview
Description
Highlights
Product Description
Real Time Smart Active Balancer 2S-24S 1A 2A 5A 10A Balance Current LTO Lithium ion LiFePO4 Battery Super Capacitor Equalizer
Real-time, active, energy transfer type equilibrium, after reaching the equilibrium, the voltage difference between single cells ≤3mV, supports 2-24 series lithium battery pack supports 2-16 series lithium battery pack
Single voltage acquisition range :1V-5V,
accuracy ±3mV
Support li-ion, LiFePo4, lead acid, ultra-capacitors and other battery types;
The equalization current is set independently within the range of 0.8A-10A and does not depend on the voltage difference of the single battery;

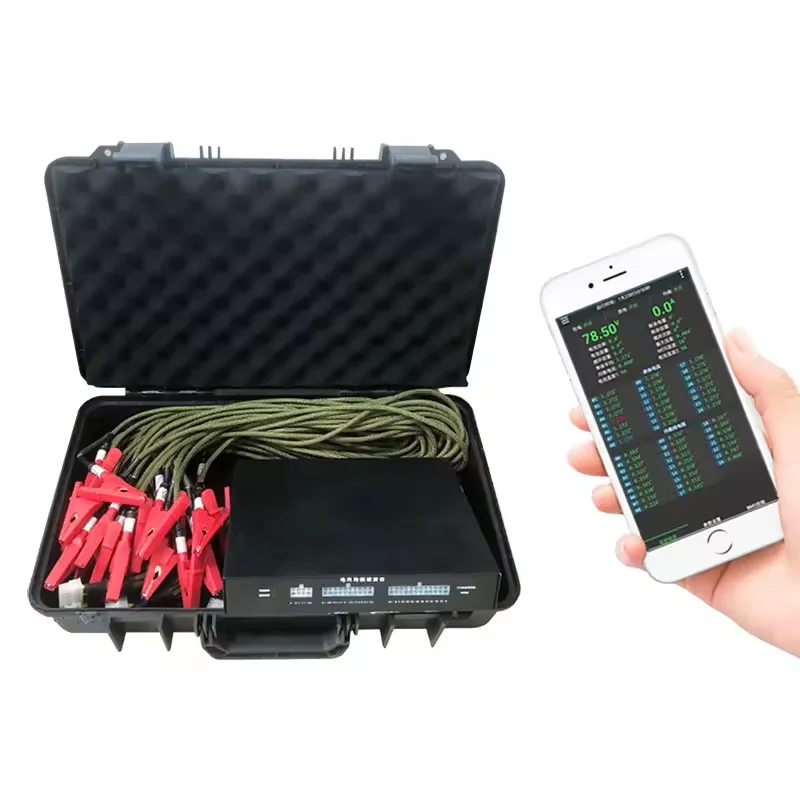

It supports equilibrium cascade, which is applicable to more than 24 battery packs. Theoretically, it can support BT communication in infinite cascade. It is equipped with mobile phone APP to check the status of battery cells in real time.
Balanced wire resistance detection, abnormal contact is found in advance
Power supply range :40V-100V
Super self protection function, it will not burn down the balancer even if equalizer wire arbitrarily connected
accuracy ±3mV
Support li-ion, LiFePo4, lead acid, ultra-capacitors and other battery types;
The equalization current is set independently within the range of 0.8A-10A and does not depend on the voltage difference of the single battery;
It supports equilibrium cascade, which is applicable to more than 24 battery packs. Theoretically, it can support BT communication in infinite cascade. It is equipped with mobile phone APP to check the status of battery cells in real time.
Balanced wire resistance detection, abnormal contact is found in advance
Power supply range :40V-100V
Super self protection function, it will not burn down the balancer even if equalizer wire arbitrarily connected

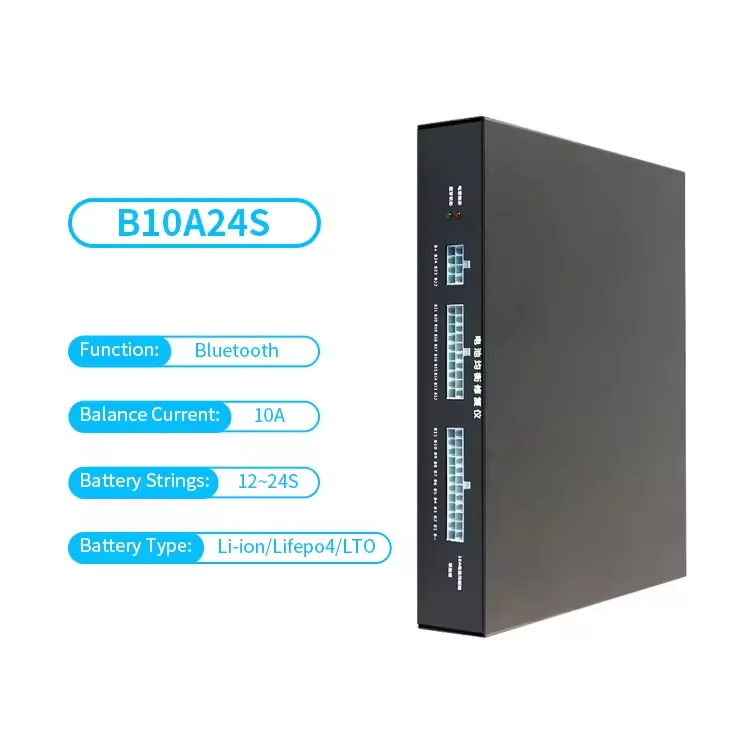

Model | OSN-B10A24S |
Size | 143×135×38mm |
Active balance current | 10A |
Single cell voltage | 1V~5V |
Single cell voltage difference after balance | less than 5mV |
Voltage scale | 40V~100V |
Working temperature | -30 degree to 90 degree |
Application series | 2S~24S |
Applications
Our Company
Located in a Chinese high-tech city of Shenzhen, OSN POWER TECH LIMITED is a pioneer in R&D, manufacturing of Lifepo4 and other Li-ion batteries. Since its founding in 2008, OSN has always insisted on providing total power solutions to customers in the field of electric vehicles / power tools / backup power / energy storage power/ smart device with strong expertise and advanced automation equipment.
OSN has been awarded as Hi-Tech Company, and OSN batteries have been approved by UL, CE, RoHs, UN38.3 and compliant with many other international standards. With the quality control goal of “Zero Defects”, we have developed an original digital automatic measuring & analytic system and process statistical control system.
Base on quality products, attractive design, reasonable price and excellent services, we have won praises from thousands of satisfied customers all over the world.
Multi - channel automatic sorting machine
Matching of cells according to voltage and inner resistance
Automatic welding Fixture
Automatic welder
QC inspection
OSN working staff
Certifications
Packing & Delivery
Packing
Compliant with Lithium battery package regulation for overseas transportations
Delivery
+sea shipment (about 1 month)
+air shipment to major airports all over the world
+ UPS, DHL,FedEx,EMS,etc
