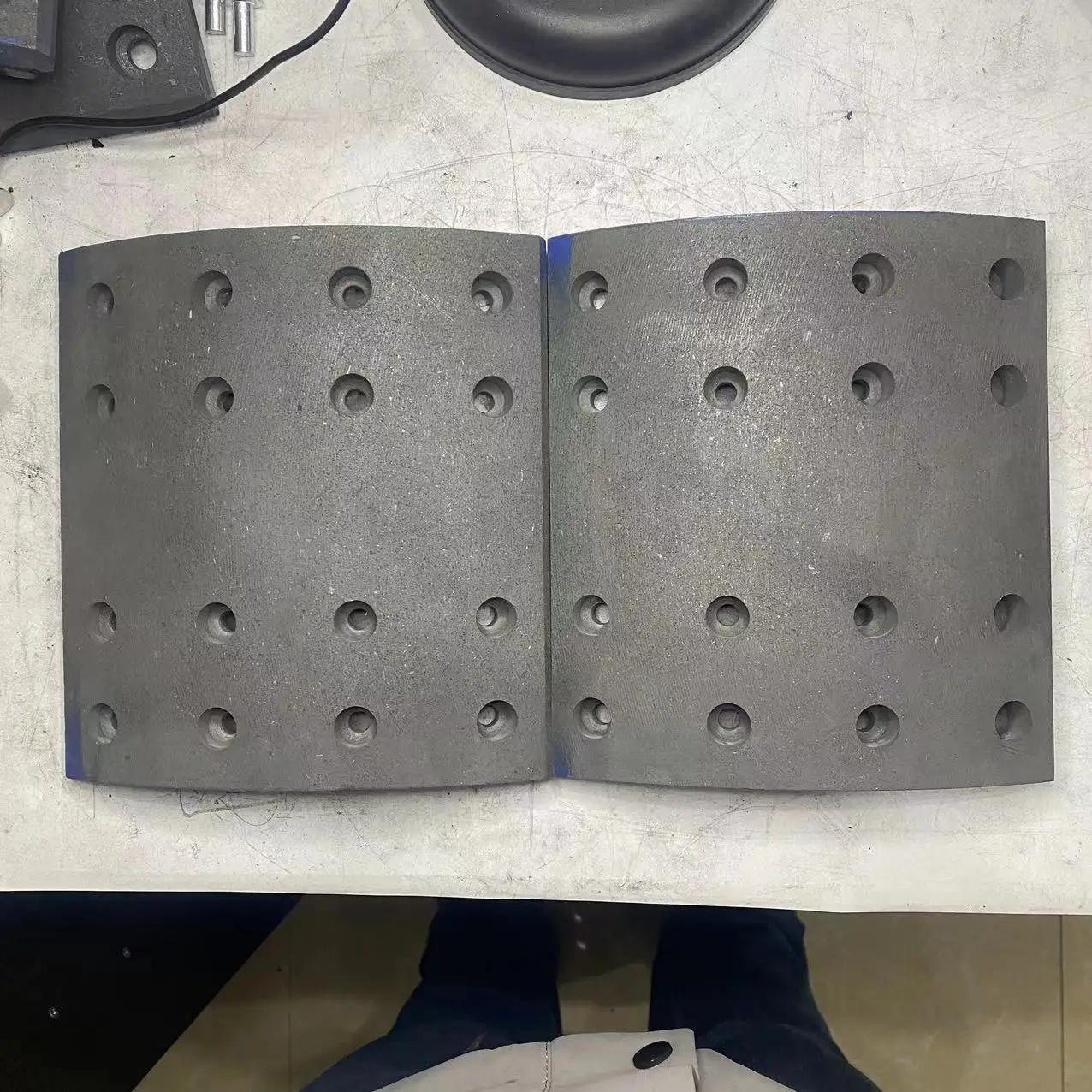

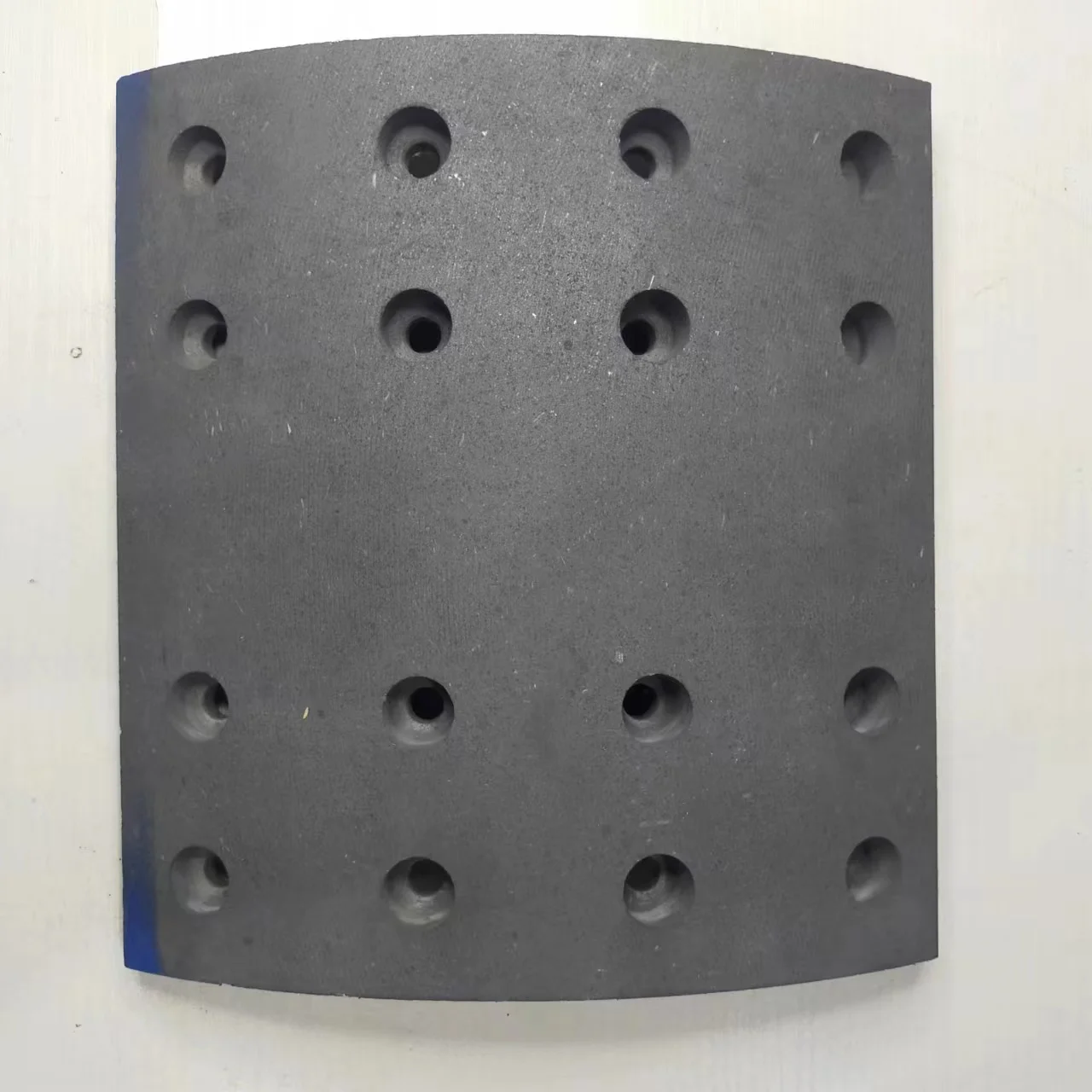

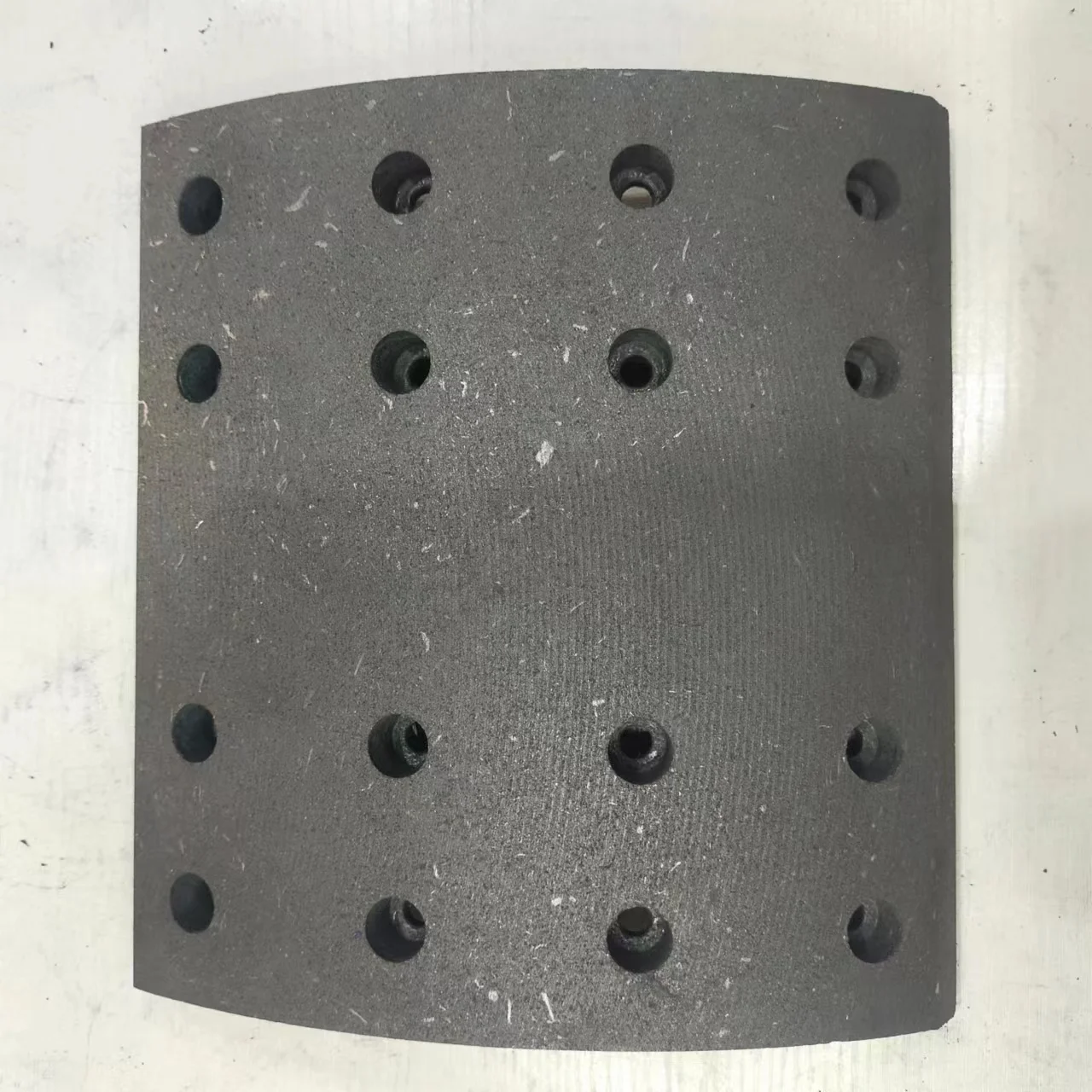

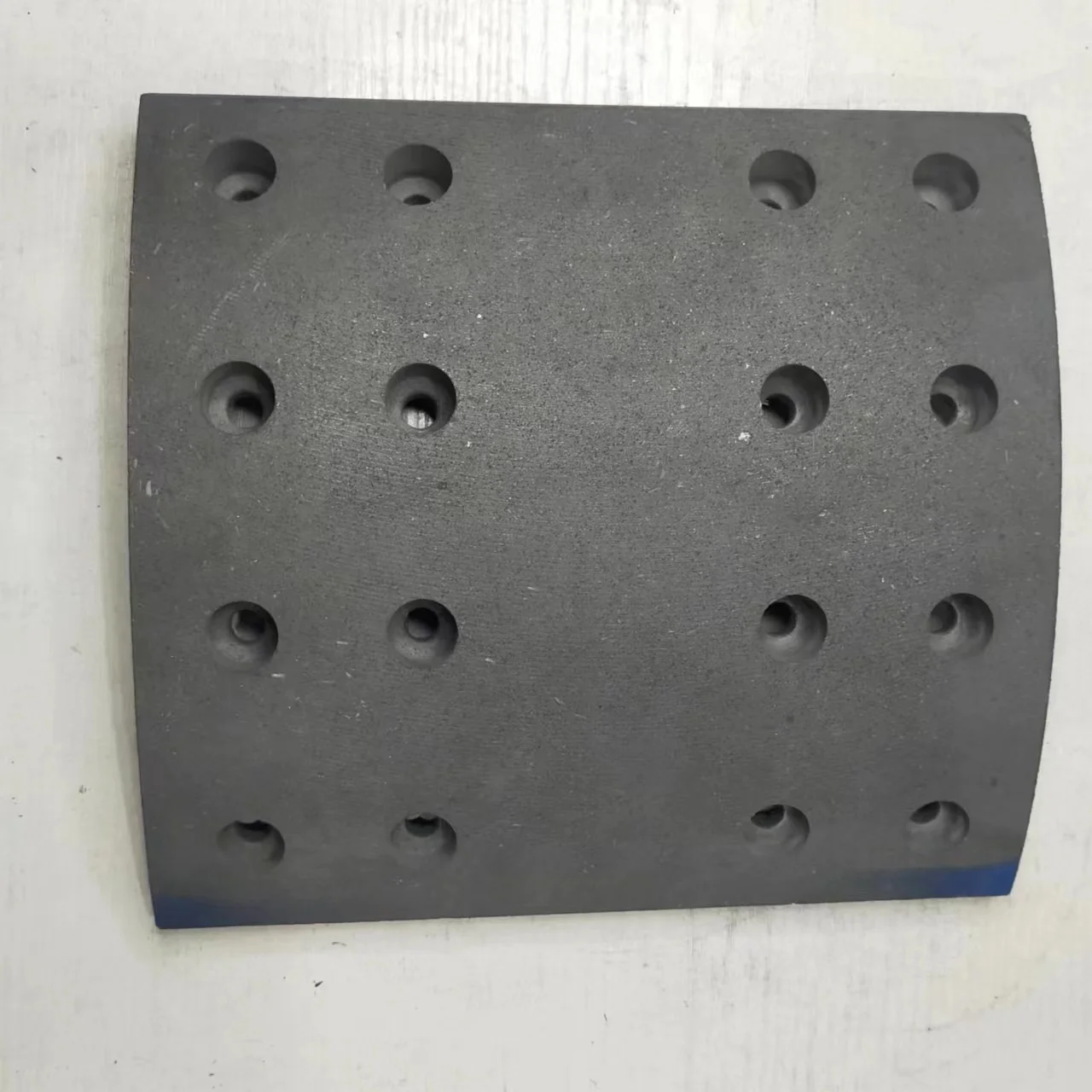

Truck Brake System Parts Rear Axle Ceramic Low Metal Asbestos Free Brake Linings 19890 19891 for DAF
- Category: >>>
- Supplier: Hubei Longyun Auto Co. Ltd.
Share on (1601205355504):
Product Overview
Description

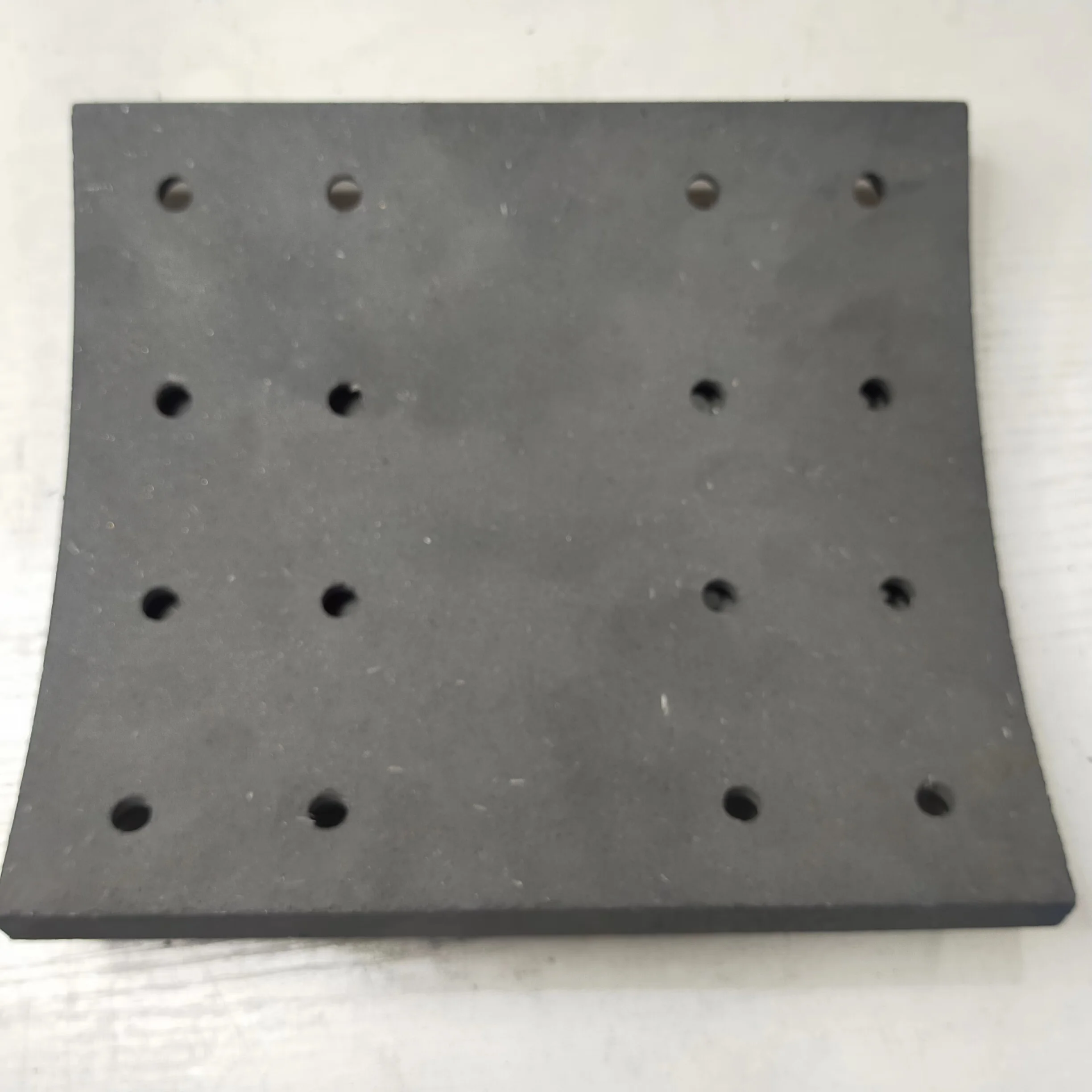

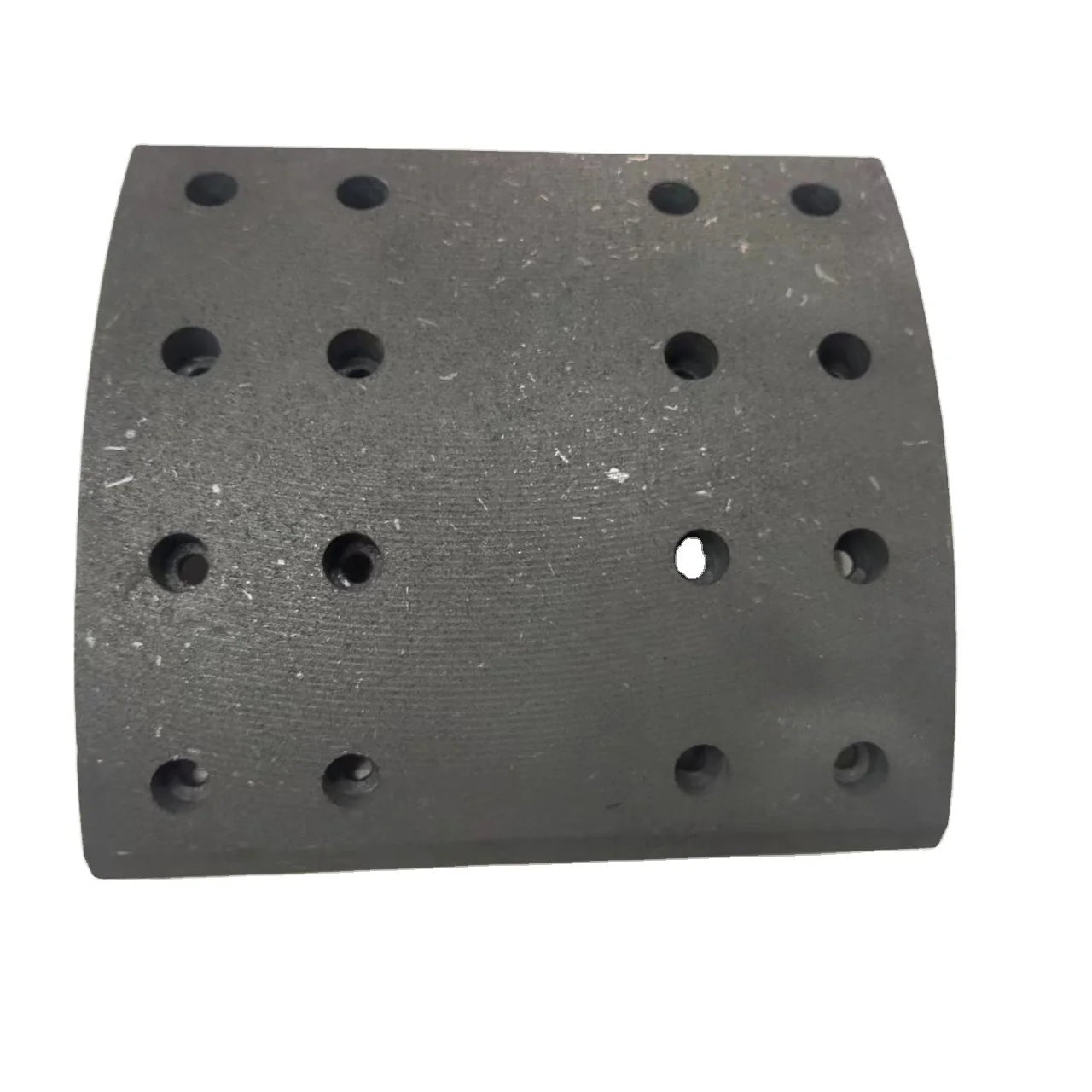

19890 19891 BRAKE LINING Our factory mainly produces a wide range of the asbestos-free drum brake pads.
In the production process of brake pads, it mainly goes through several stages such as raw material selection and mixing, high-temperature hot pressing, and hot press molding. We strictly control every production process.

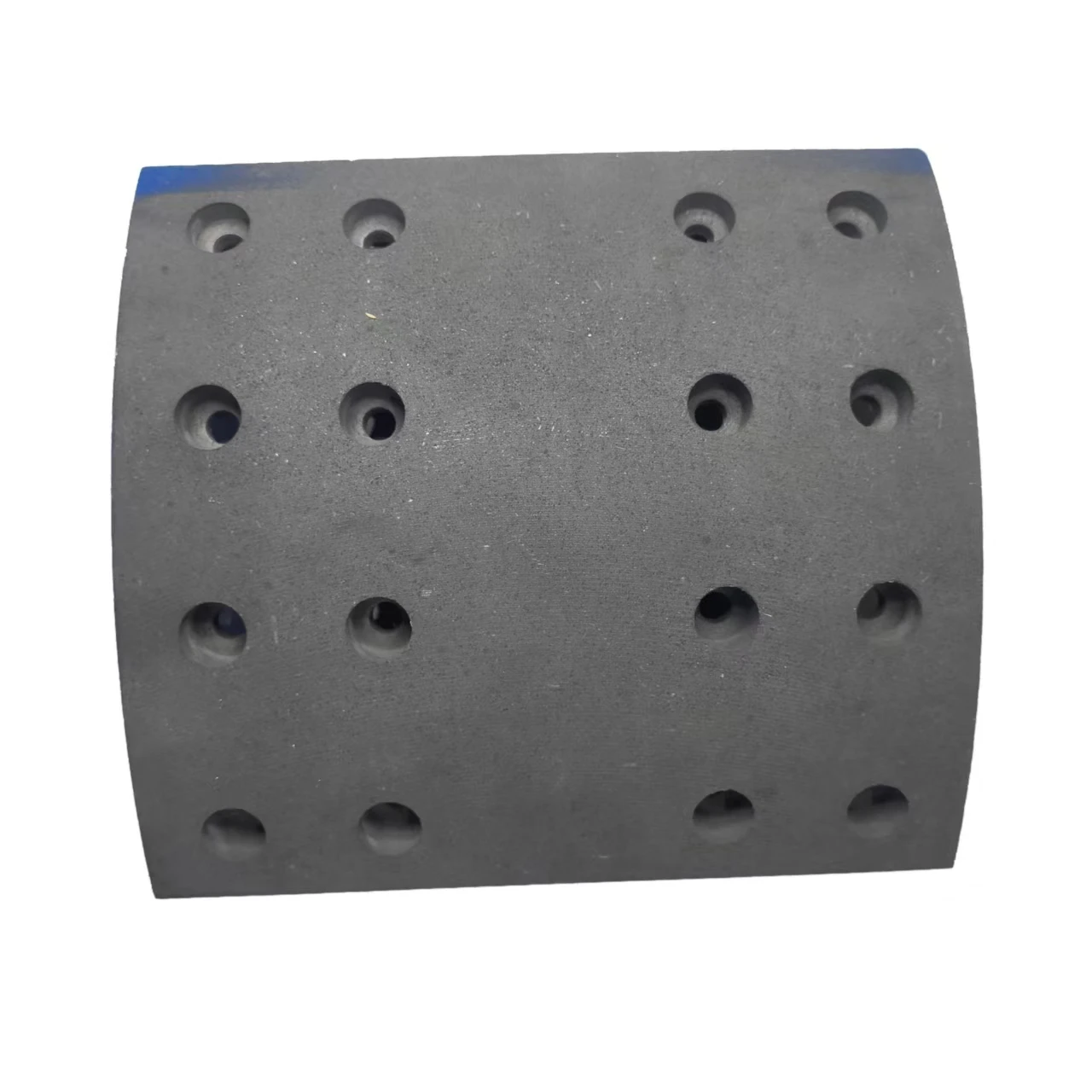

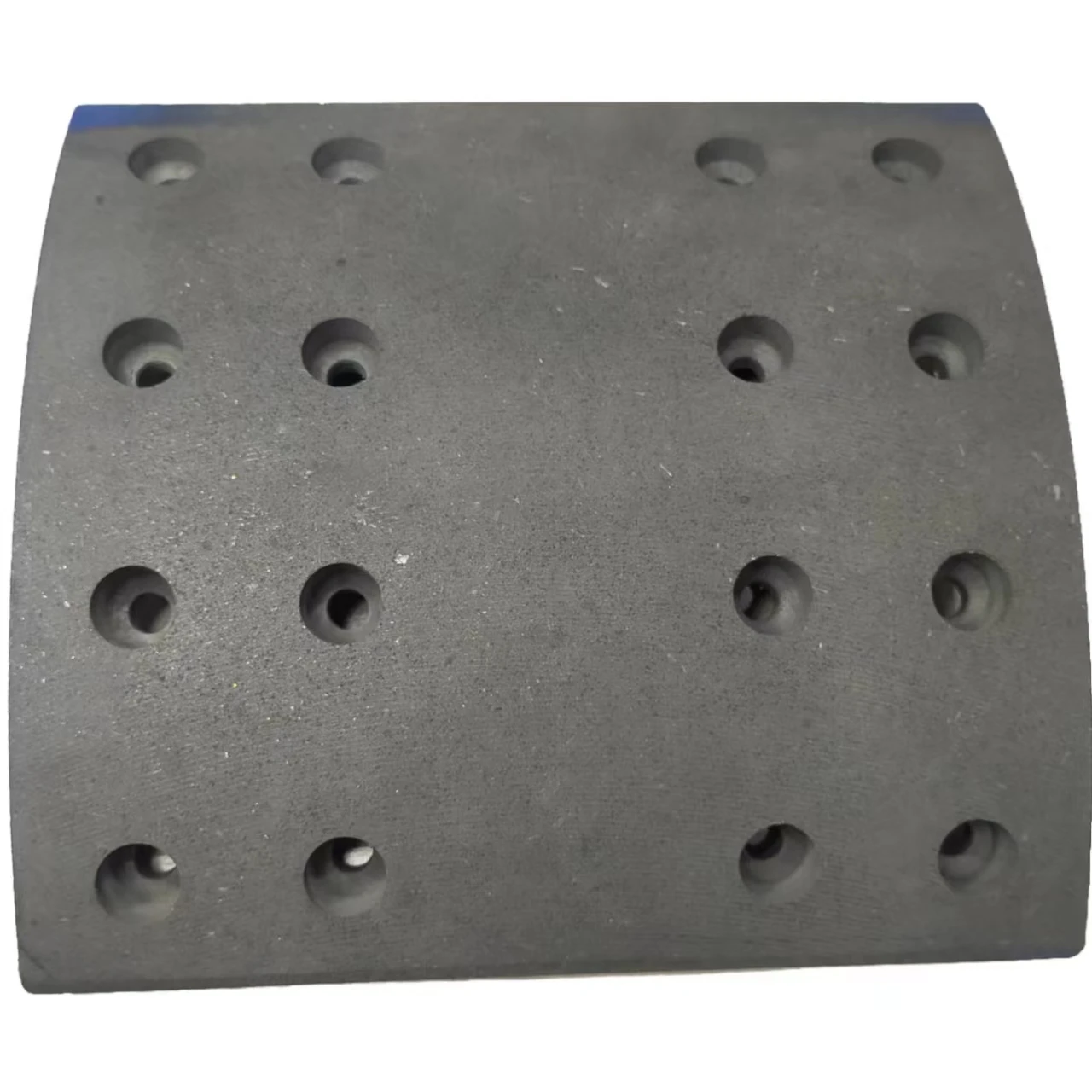

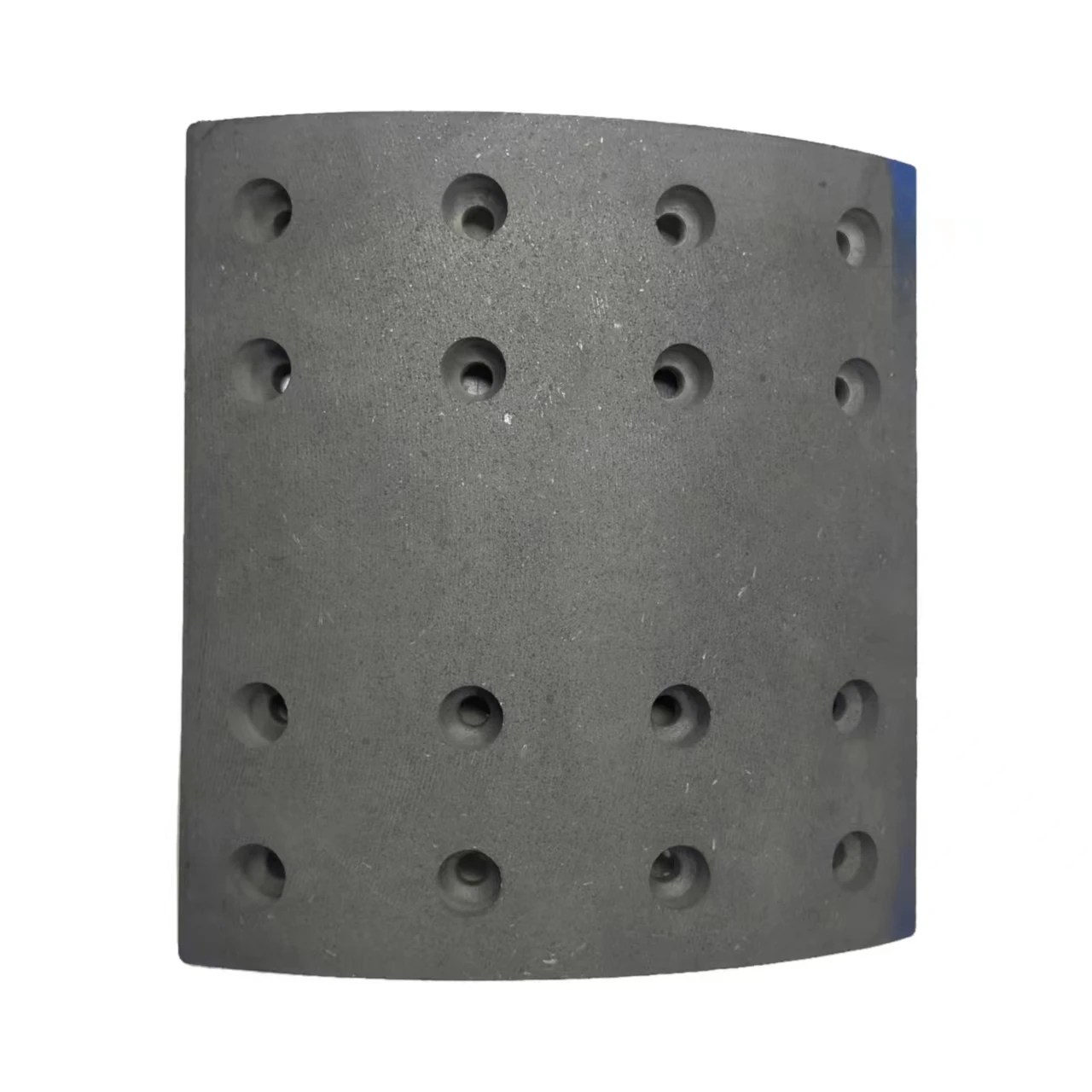

19890 19891 Brake pads are formed by hot pressing at high temperatures.
It is mainly suitable for DAF truck models .
As a high-end brake pad, 19890 brake pads can make the car's braking performance better after installation, and can also be enjoyed in high temperature environments. In addition, it has good friction performance, automatic braking force, large load capacity and strong ability to withstand high loads.
Automobile brake pads refer to the friction material fixed on the brake drum or brake disc that rotates with the wheel. The friction plates and friction pads are subjected to external pressure to generate friction, thereby achieving the purpose of decelerating the vehicle.
Our brake pads are asbestos free brake pads. Asbestos-free brake pads have the characteristics of low noise, safety and environmental protection, stability and reliability.
Our brake pads are asbestos free brake pads. Asbestos-free brake pads have the characteristics of low noise, safety and environmental protection, stability and reliability.
Our brake pads have three great features: First of all, it has a self-increasing force effect and a large braking force. Secondly, our brake pads are easy to integrate into the handbrake. Last but not least, our brake pads are long lasting and affordable.
.
Traditional brake pad
1.Asbestos material is highly polluting
2.Heavy wear and tear
3.Low coefficient of friction
6.Prone to noise
7.Short service life
2.Heavy wear and tear
3.Low coefficient of friction
4.Braking performance is low
VS
5.More sensitive to temperature
5.More sensitive to temperature
6.Prone to noise
7.Short service life
Non-asbestos brake lining
1.Environmental friendly
2.Strong wear resistance
3.Friction coefficient is stable
4.Strong braking power
5.High temperature resistance
6.No Noise
7.Long Lasting
Working Life | 80,000-120000 Km |
Color | black, gray, green, red |
Item Name | brake lining |
Model Number | 19890 19891 |
Material | non-asbestos |
Packing | natural packing |
Brand Name | LongYun |
Application | truck, trailer, bus |
Applicable Models | DAF F 3200 DAF F 3600 DAF 95 DAF 95 XF |
Certification | ISO9001/TS16949 |
Warranty | 1 year |
Price | 11.15 $ /set |
Model | ALL |
Place of Origin | China |
MOQ | 50 sets |
Temperature℃ | 100 | 200 | 300 | 350 |
Specified Friction Coefficient | 0.36 | 0.36 | 0.36 | 0.36 |
Allowable Deviation | ±0.08 | ±0.10 | ±0.12 | ±0.14 |
Wear rate | ≤0.25 | ≤0.45 | ≤0.75 | ≤0.85 |
Product Introduction
Product Name | Brake Lining 19890 | ||||||
Brand Name | Longyun | ||||||
Material | Non asbestos ceramic, Non-asbestos carbon fiber | ||||||
Place of Origin | China | ||||||
Car Model | DAF F3200 DAF F 3600 DAF 95 DAF 95XF | ||||||
Size | 195*200*18.4/12.0 mm | ||||||
Warranty | Six Month | ||||||
Certification | ISO9001/TS16949 | ||||||
MOQ | 50 Sets | ||||||
Packing | Neutral box | ||||||
Delivery TIME | 7~10 Days | ||||||
Background | After decades of development, drum brake pads have been widely used in the automotive field |
Marketing | Drum brake pads remain popular on many vehicles due to their reliability and strong stopping power, especially rear wheels. Compared with disc brake pads, drum brakes can have a smaller inner surface of the brake drum, so they are more popular on large load-bearing vehicles that require strong braking power |
Working Principle | Drum brakes use the friction between the stationary brake pads in the brake drum and the inner surface of the brake drum that rotates with the wheel speed, thereby, achieving the braking effect. When you step on the brake pedal, the force of your foot will push the piston in the brake master cylinder, generating pressure, which is then transmitted to the piston of each brake cylinder through the brake fluid, pushing the brake pads to rub against the inner surface of the brake drum to achieve the purpose of braking. |
Precautions | To ensure safety, drum brakes require regular inspection and maintenance |
Features | Non-asbestos material. Durable, long rotor life. Exceptional stopping power. Low dust level. Works quietly . Inner packing: carton, outer packing, standard export carbon. |
We are your best option
State-of-the-art equipment
We have advanced mixing systems, heat pressing systems, and most importantly, a complete testing system to ensure that all products
have perfect quality.
have perfect quality.

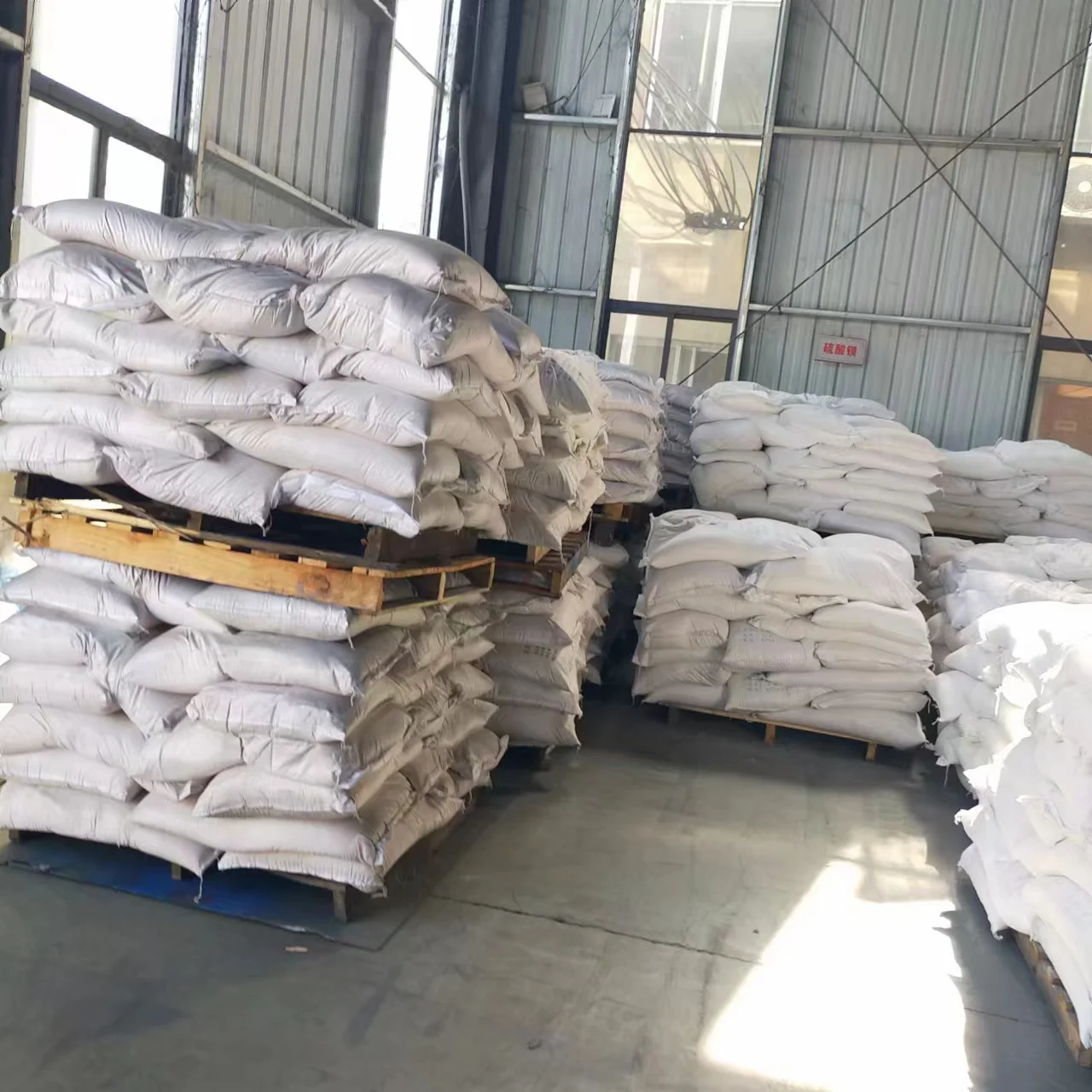

High Quality Raw Materials
We have adopted German technology and developed over a hundred formulas to meet the demands of different types of vehicles.
Quality Control
We have a rigorous quality control system in place,we ensure that all products meet the requirements of our customers.

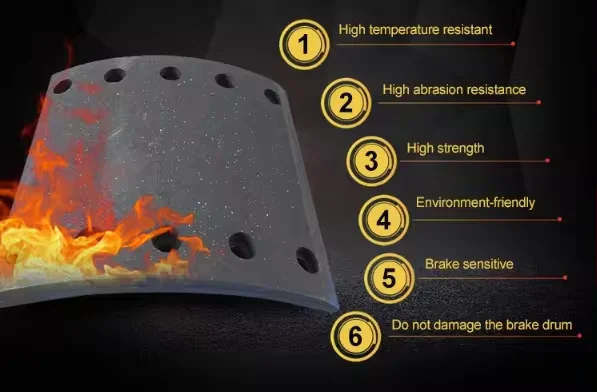

Features
Low noise
the asbestos-free brake pad material is stable, the friction coefficient is uniform, and it is relatively quiet during braking.
Safety and environmental protection
Asbestos-free brake pads do not contain asbestos, lead and other harmful substances, making them safer and more environmentally
friendly to use.
friendly to use.
Stable and reliable
Asbestos-free brake pads are made of non-asbestos organic composite materials, with stable friction coefficient and long service
life.
life.
Product management
Products : Automotive Disc Brake Pads
Drum brake pads should be replaced every 50,000-80,000 kilometers. Brake pads are wearing parts, so pay special attention to them. However, you can determine the brake pad replacement cycle based on your driving habits. Generally speaking, vehicle brake pads need to be replaced when their thickness is worn to one-third of their original value. Failure to replace the brake pads in time will cause the vehicle to lose control and affect driving safety.
Product specifications
Products : Automotive Disc Brake Pads
Our company is engaged in professional brake pad production. During the production process, certified raw materials, latest technology and 100% quality control are used. As a brake pad manufacturer, we pay close attention to quality and production. Our products are non asbestos ceramic and non asbestos carbon fiber.
Packaging & Delivery
●We are professional in production of brake lining as well as packing and shipping.
●We usually use neutral packing, also can be customized according to your requirements.
Company Profile
●Hubei Longyun Auto Co., Ltd. is located in Zaoyang industrial park, covers an area of 10,000 square meters, more than 300 employees.
●Our main product brake linings have been used by many famous vehicle and brake manufacturers and we have been selected as an excellent supplier.
●Our company always adheres to the policy "Quality Foremost, Reputation Oriented".We have won the trust of clients from home and aboard.
●Our products have been exported to more than 50 countries, including Egypt, South Korea, Israel, Pakistan, and various countries in Africa.
●We have always maintained a good business relationship with our clients and our services have been well received by them.

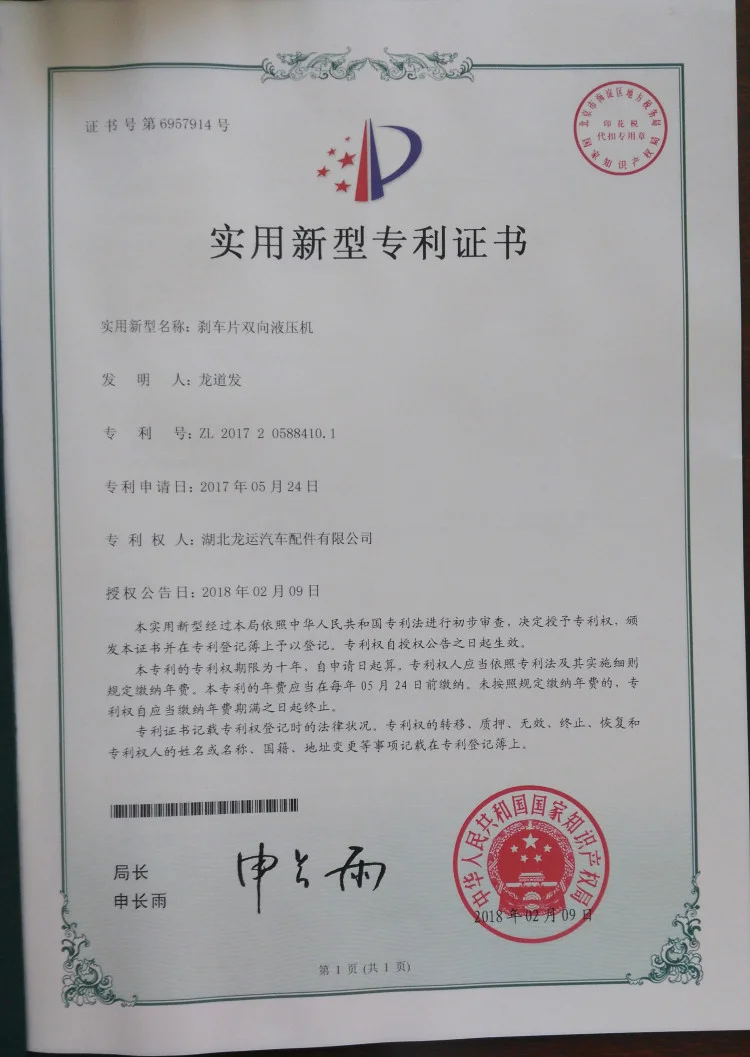

●The Utility Model Patent Certificates of External arc grinder for producing brake lining.
●Brake lining bi-directional hydraulic press machine.
●High speed mixer for producing brake lining.
●Drilling machine for the processing of automobile brake.
●Brake lining circular hydraulic press machine, etc.

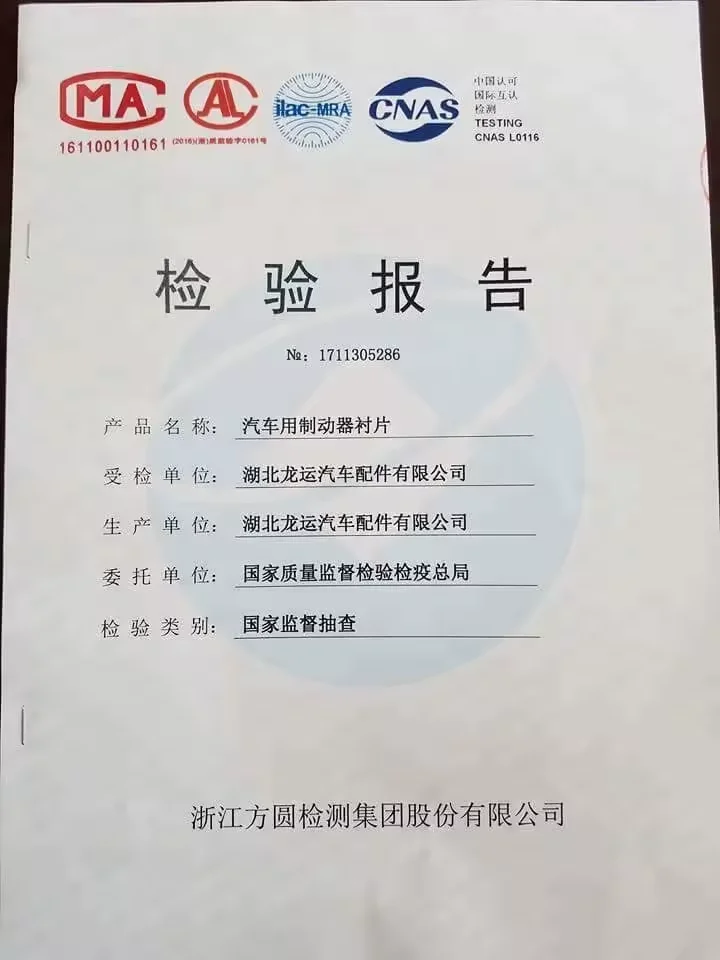

●Inspection Report On Brake Lining Of Automobile Brake.
●National Production License For Industrial Products.
FAQ
● What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
●What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
● What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
●How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.
● Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Any question else, Contact me at once!
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
●What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
● What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
●How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.
● Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Any question else, Contact me at once!
