Industrial Dust Suppression Anti-Smog Riot Water Vehicle Gun Fog Cannon
$1,399.00-1,980.00

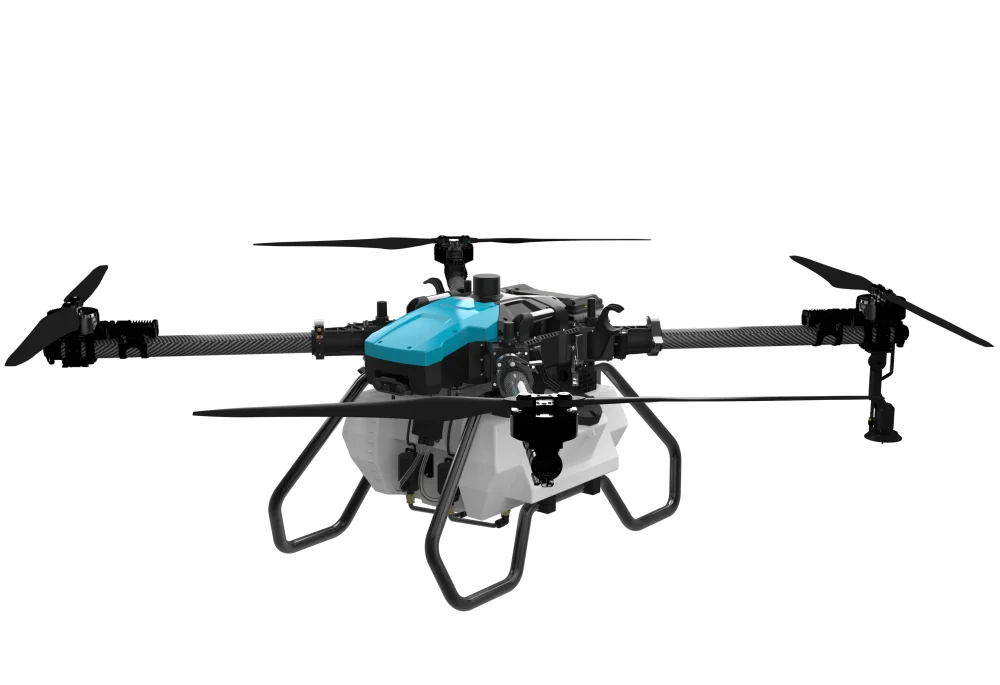

Large power sprayer agriculture spray machine drone price agro drone agriculture sprayer agriculture drone
- Category: >>>
- Supplier: Linyi Yuequn International Trading Co. Ltd.
Share on (1601205357130):
Product Overview
Description
Product Description

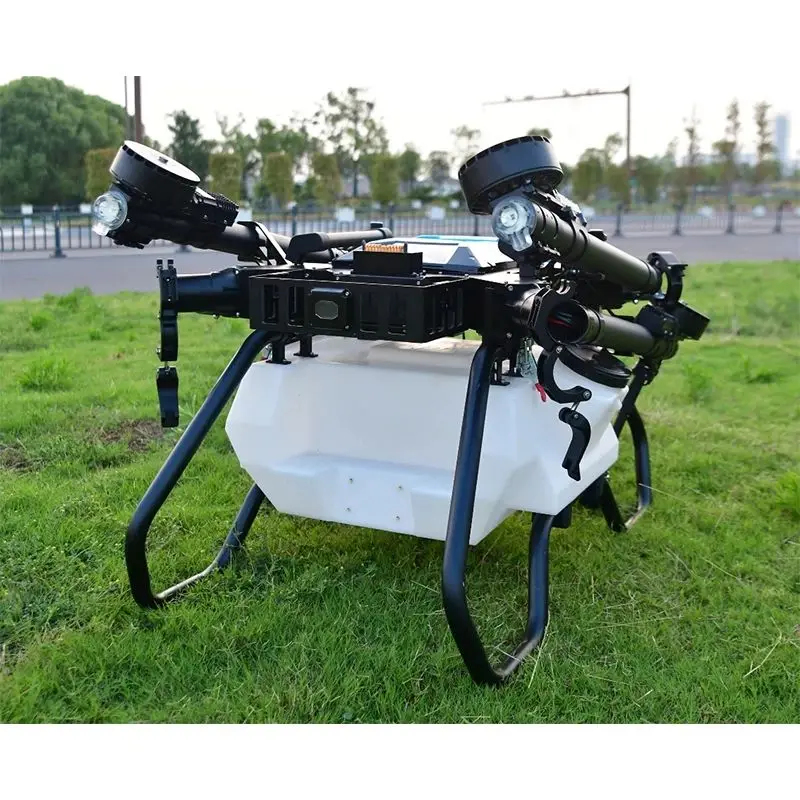

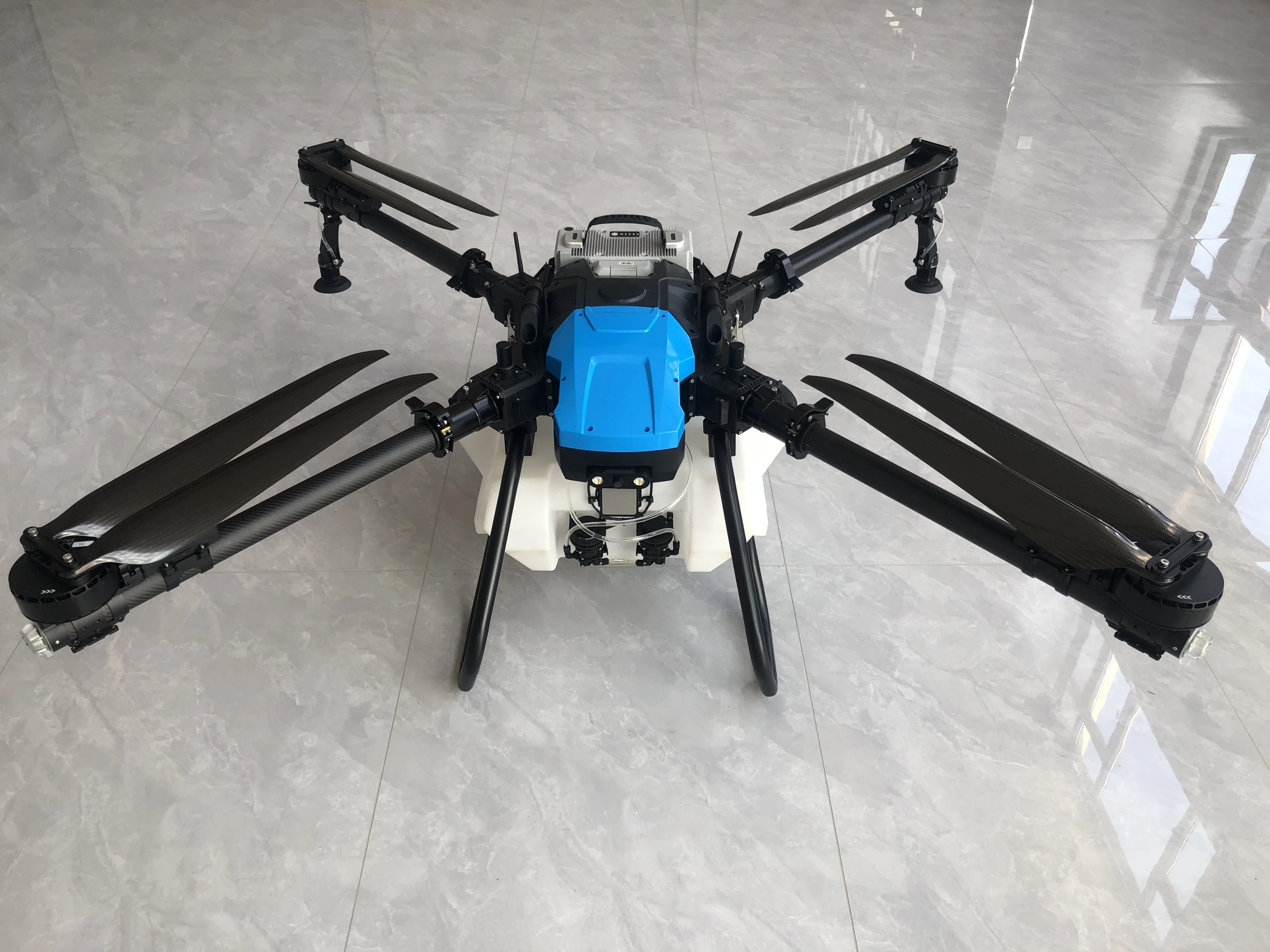

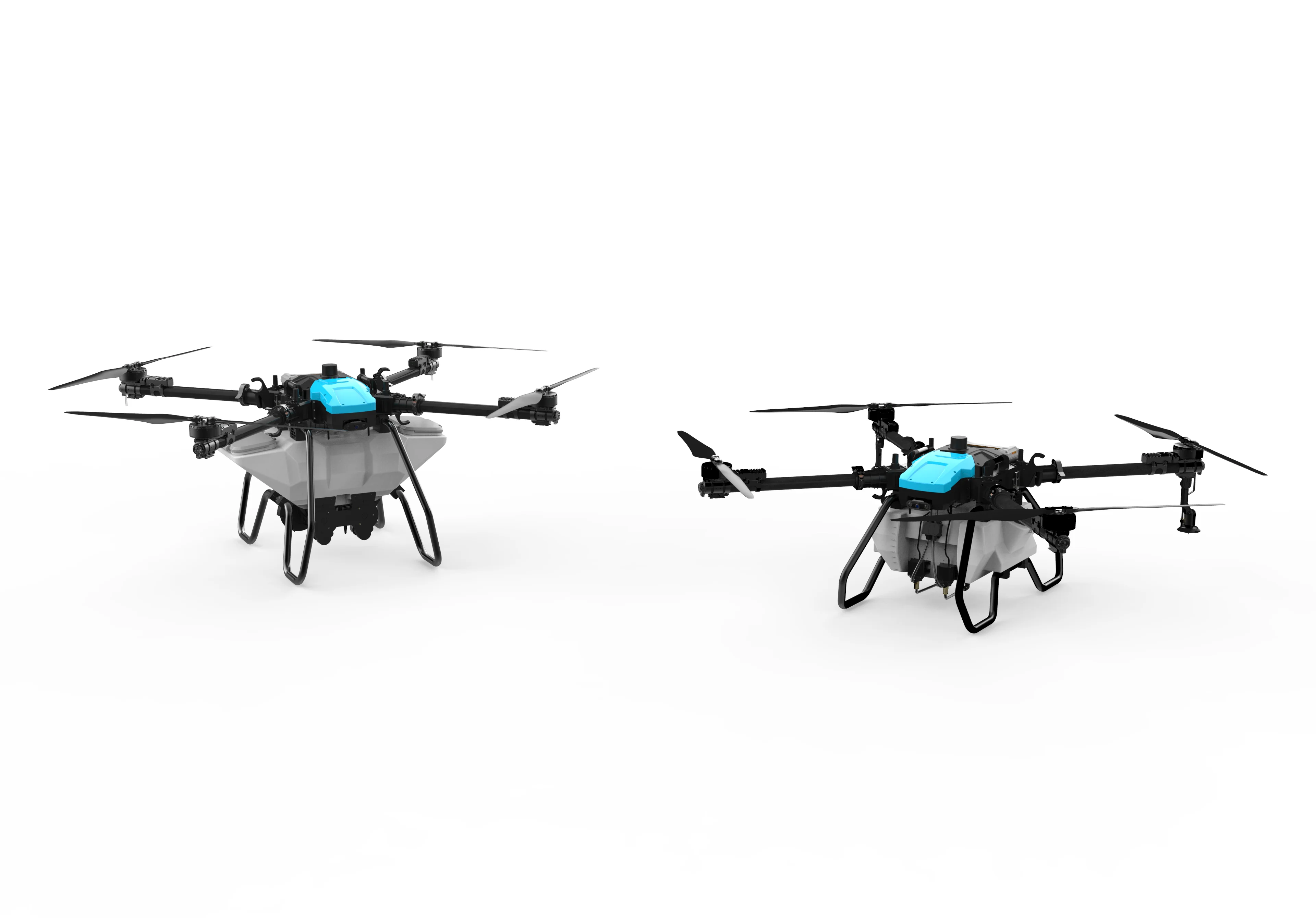

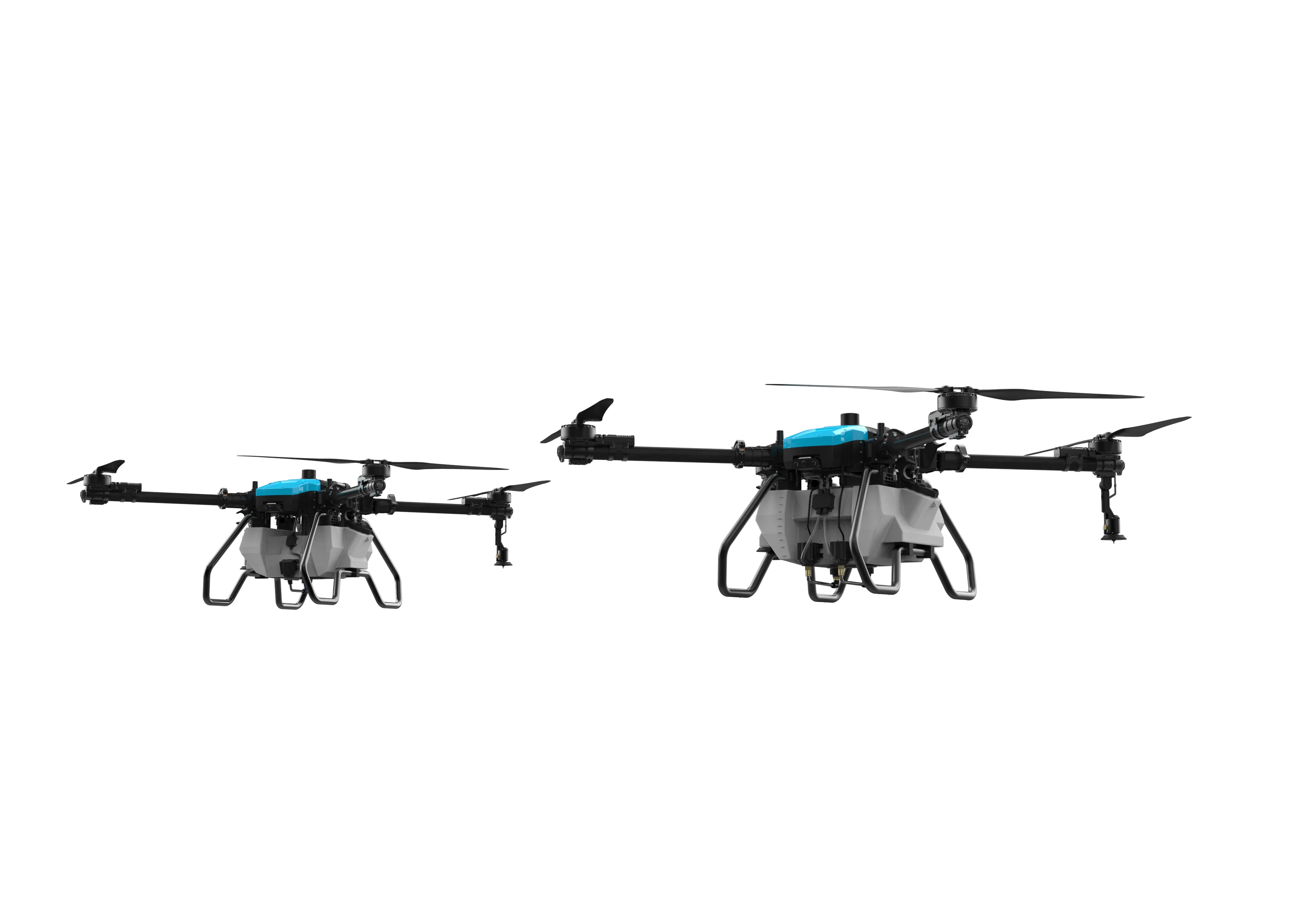

4 Axis agriculture drone
Basic parameters | Maximum wheelbase：1925mm | Pesticide box capacity：5X L |
Battery | Physical dimension：1465*1475*595mm | Folded size：770*985*700mm |
Chargig time | Machine quality (including battery)：4X KG | Power Battery：18S28000mAh |
Charger output power | Maximum take-off mass：9X KG | Maximum spreading take-off weight：1XX kg |
Power system | Power system：X11P | Propeller：48in |
Hover time (no load)：20.5min （@30000mah 4XKG） | spray hover time：9min （@30000mah 8XKG) | |
Enable RTK positioning: Horizontal ±10 cm, Vertical ±10 cm | RTK positioning not enabled: Horizontal ±60cm, Vertical ±30cm | |

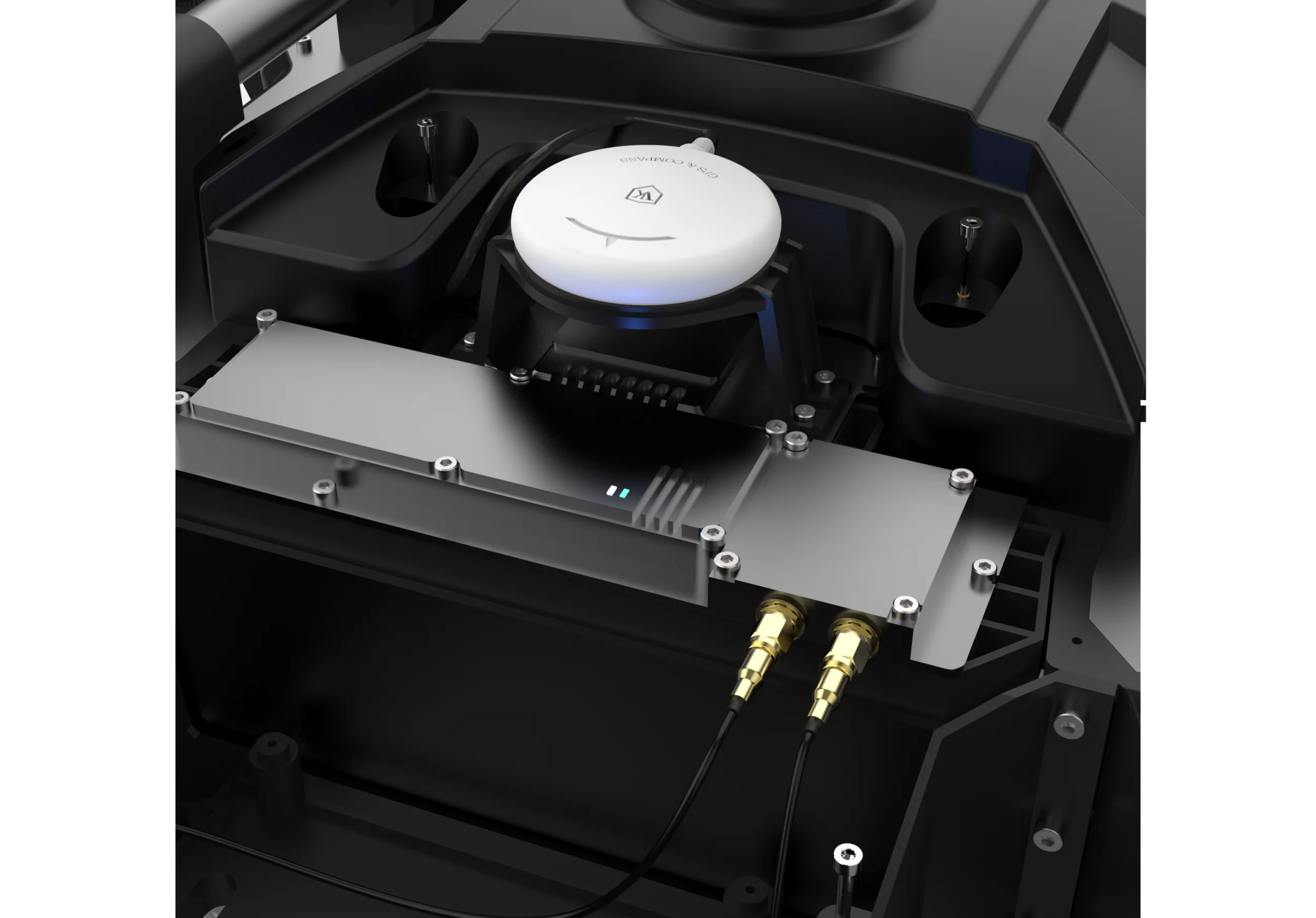

JIYI K++V2 | GNSS+RTK | |
Spraying width | Ground imitation radar + forward obstacle avoidance radar | H12 remote control |
AB point operation mode (RTK version) | Autonomous route operation mode | |
Wind resistance | manual mode | |
Diaphragm pump*2 pressure nozzle 8 nozzles (Optional diaphragm pump*2+centrifugal nozzle*2) | spray flow：8-10L/Min | |
Fold dimension | Maximum spray width: 10 meters (Relative working height 2.5M) | Spraying efficiency: 33 hectare/hour |
smart spreader | Spreading speed: 70-140L/min | |
Spreading width 8 meters (relative operating height 4M) | Material box volume 6X L | |
Battery system | 18S30000mAh | weight ：14KG |
Charger | Input voltage AC110-240V or 380V | Maximum charging power：9000W |
Maximum charging current：120A | Weight: about 13KG |
Details Images

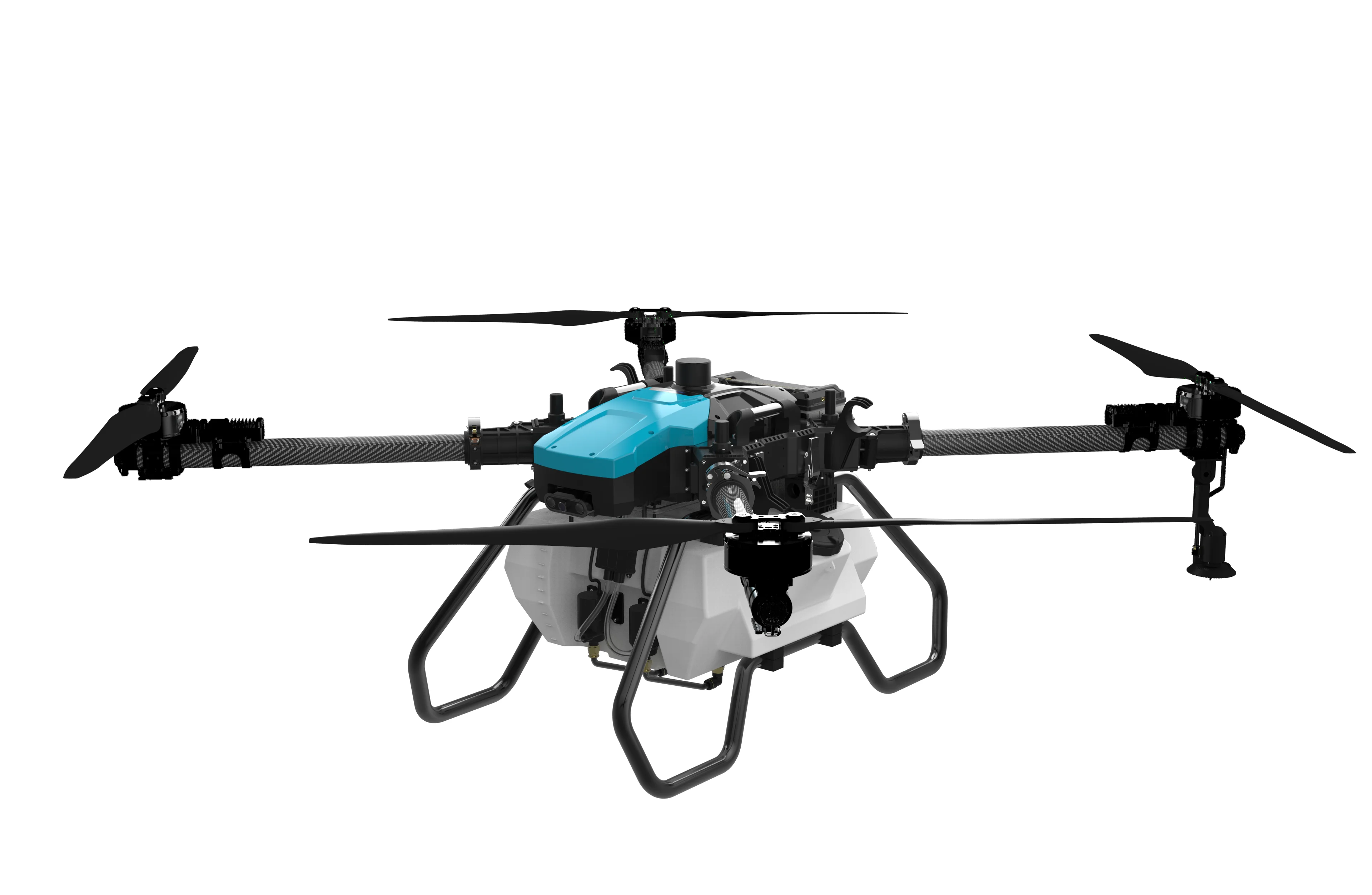

spraying system

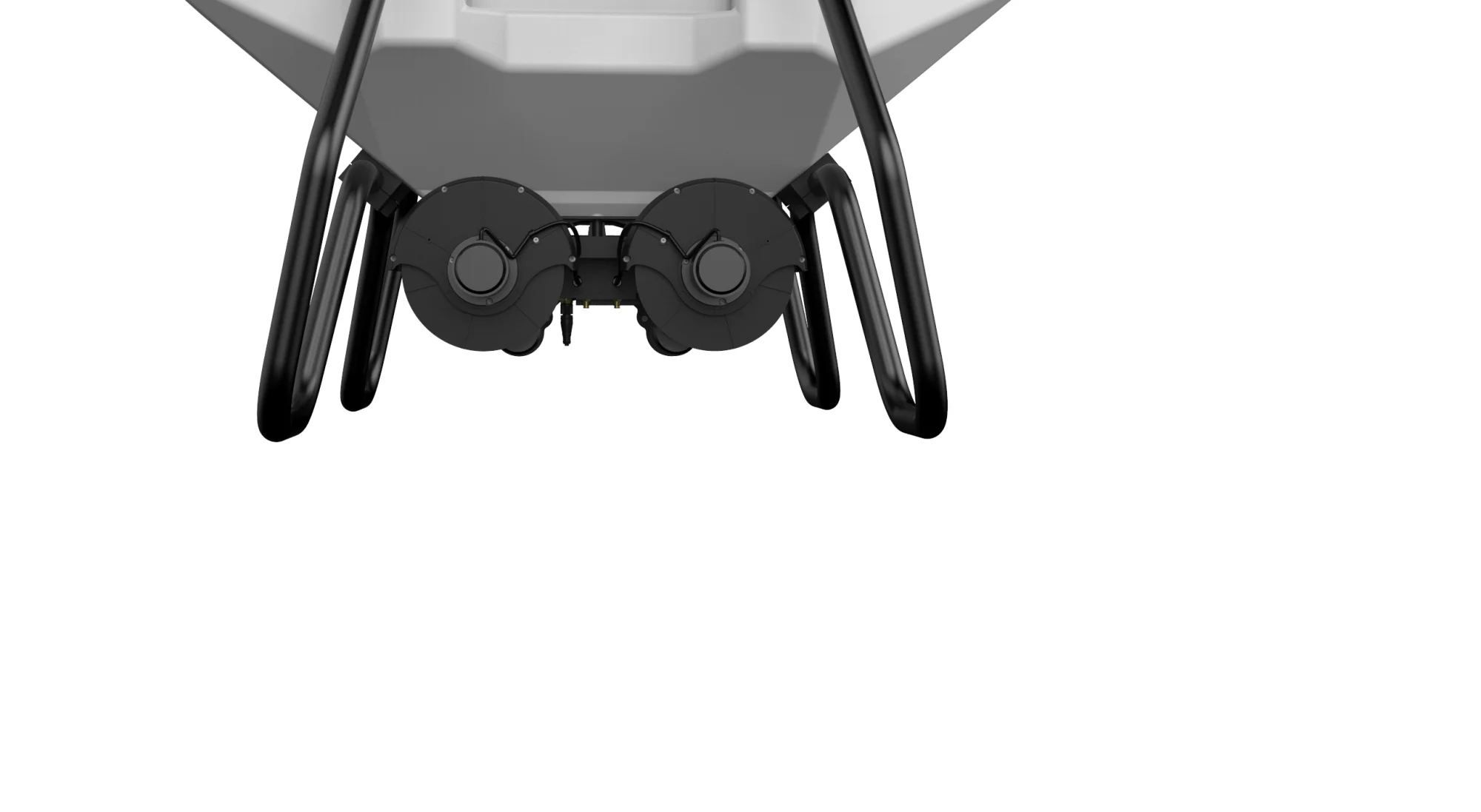

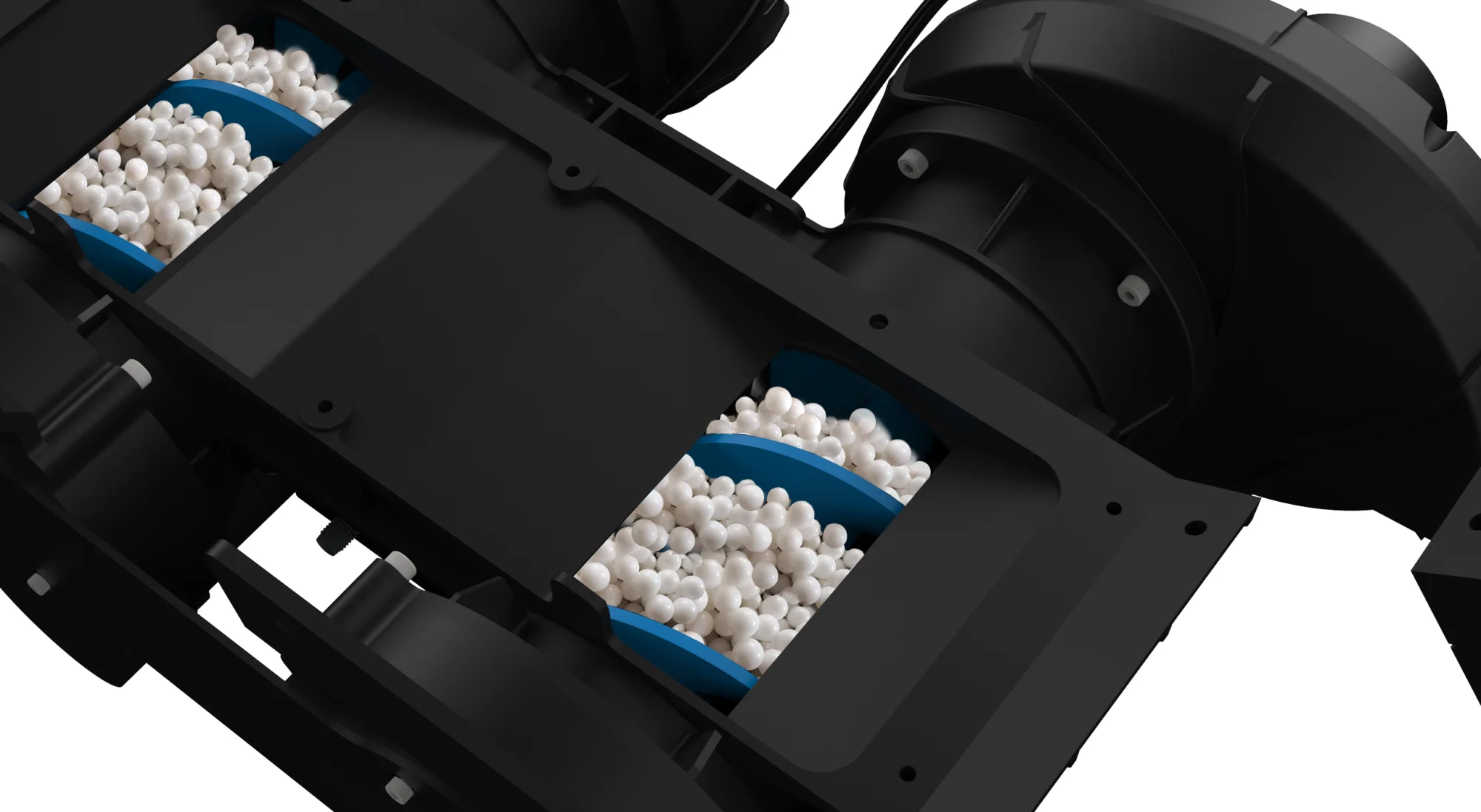

spreading system
Company Profile
SHANDONG YUEQUN INTELLIGENCE TECHNOLOGY CO.,LTD
.
Shandong Yuequn Intelligence Co., Ltd. founded in 2014 . The products agriculture drone ,cleaning drone ,transport drone ,police drone ,firefighting drone , aerial photography drone , Intelligent robots and so on. At the same time, these drones have been awarded many national patents and also with CE, FCC ,ISO certifications.
Yuequn owns a high quality technology R&D and production team, a number of middle and high level engineers, strict quality inspection and supervision system. We adhere the high starting point product of design, high quality requirements, high standard services and strive to use cutting-edge technology and humanistic services, to create a world-class brand.
We hope our products can create new miracles for the development of your career!
We look forward to long-term cooperation with you sincerely!
