High Efficiency 10kw Solar Energy System From Solar Power Factory With Good Quality Solar Generators
- Category: >>>
- Supplier: Bluesun Solar Co. Ltd.Bluesun Ltd.
Share on (1601205360831):
Product Overview
Description
Products Description

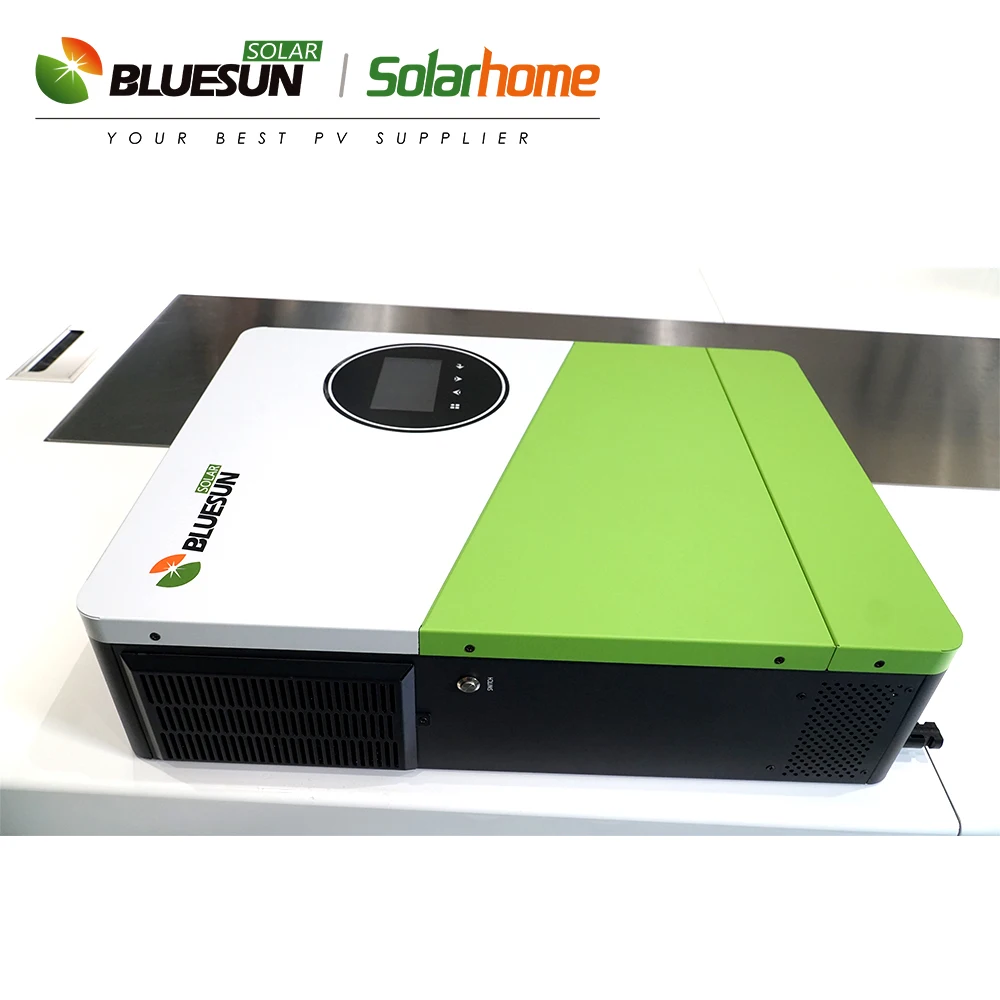

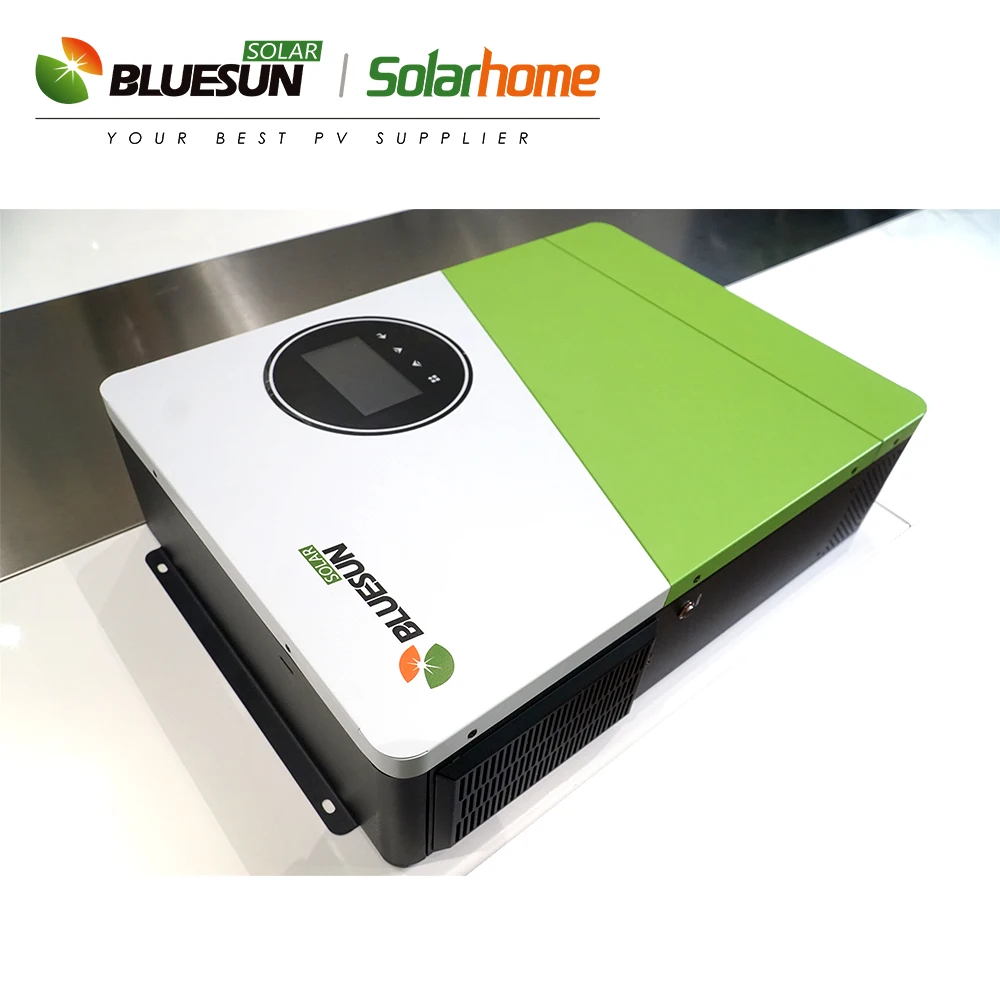

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger tooffer uninterruptible power support with portable slze. Its comprehensive LCD display offers user-configurableand easy-accessible button operation such as battery charging current, AC/solar charger priority, andacceptable input voltage based on different applications.

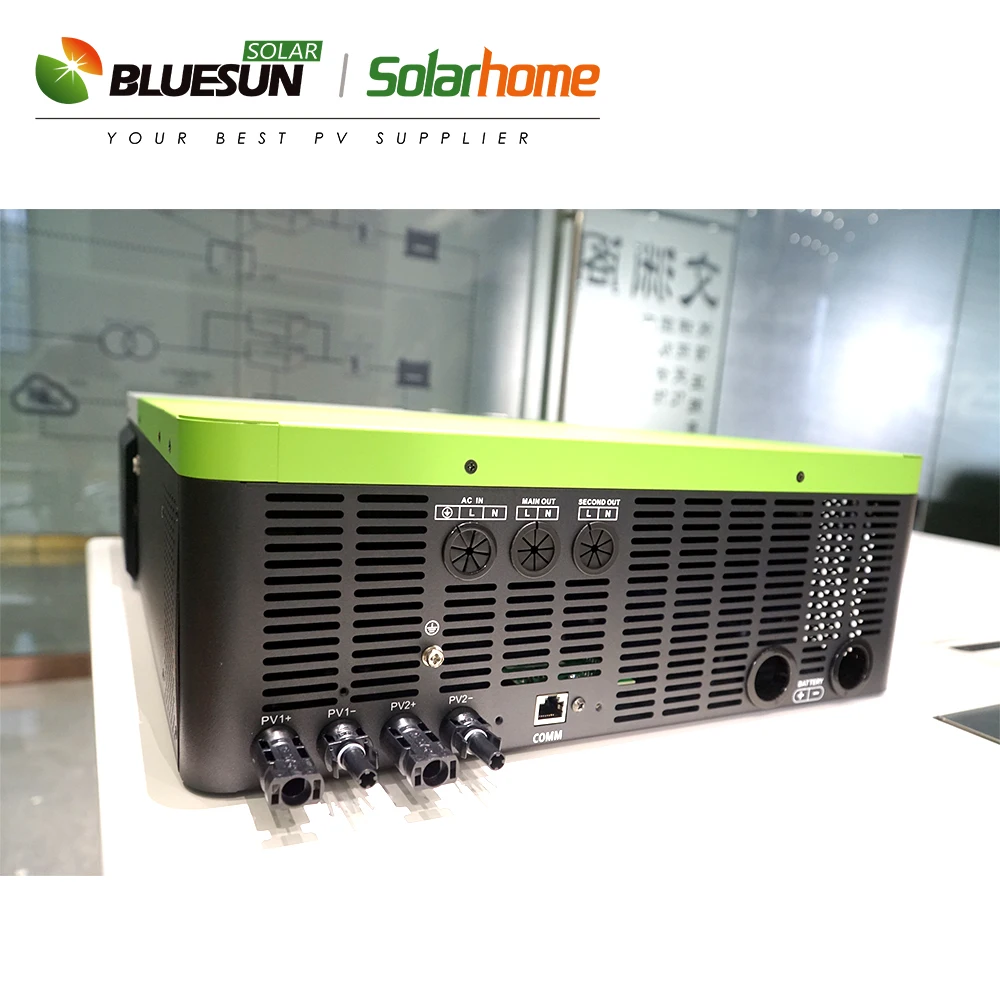

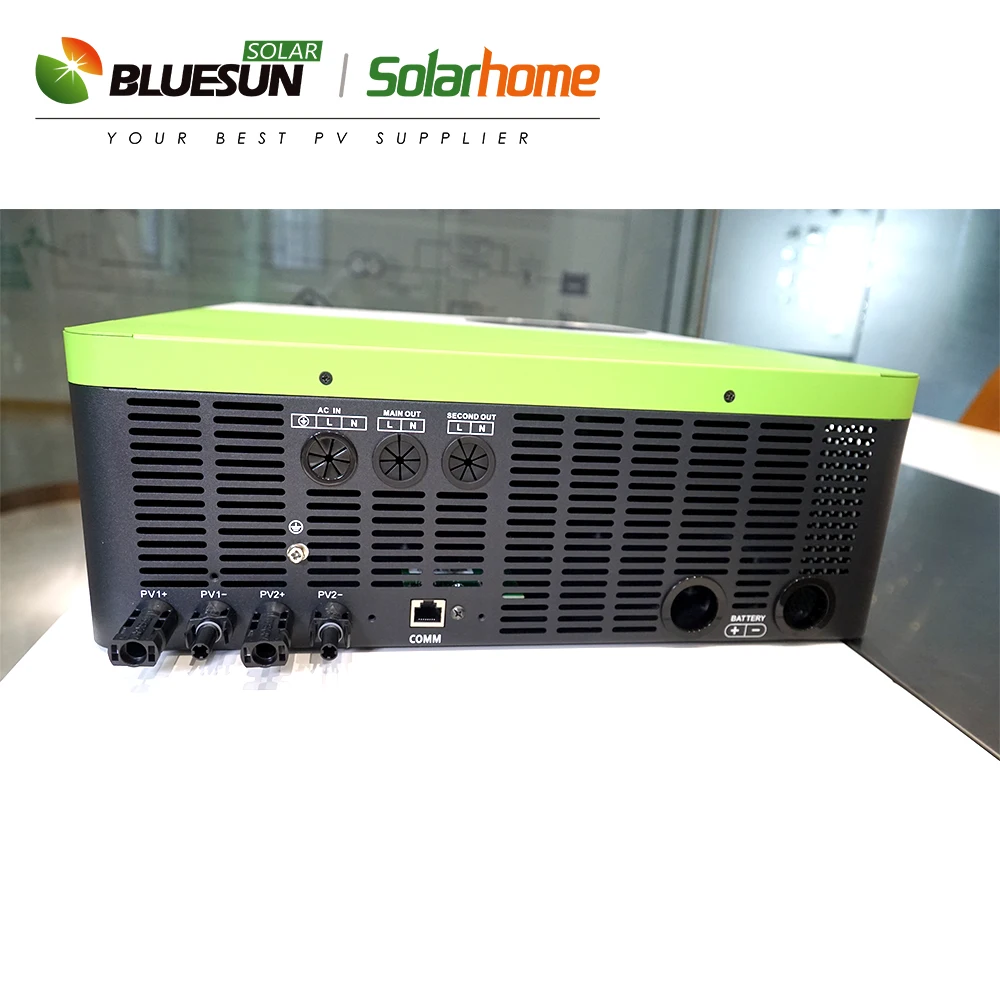

Configuration Details
1 | LCD display | 8 | Main output |
2 | Status indicator | 9 | Second output |
3 | Charging indicator | 10 | PV1 and PV2input |
4 | Fault indicator | 11 | RS-232/WIFI/Remove LCD communication port |
5 | Touch Function buttons | 12 | Battery input |
6 | Power on/off switch | 13 | Anti dust kit |
7 | AC input |
Technical Specifications
Features
* Pure sine wave solar inverter(on/off grid)
* Inverter running without battery
* Output power factor 1.0
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom
* High PV input voltage
* range(90~500VDC) WIFI&GPRS available for IOS and Android
* Built-in anti-dusk kit for harsh enviroment
* Built-in 180A(for 10.2KW)MPPT solar charge
* Smart battery charge design to optimize battery life
* One-click restoration to factory settings
* Dual output
* Built-in lithium battery automatic activation
* Touch buttom
MODEL | BSM-10200LV-48 | |
Phase | 1-phase | |
Maximum PV Input Power | 10200W | |
Maximum Solar Charging Current | 160A | |
OFF-GRID OPERATION | ||
AC INPUT | ||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC / 180VAC | |
Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | |
Maximum AC Input Current | 50A | |
Nominal Operating Frequency | 50/60Hz | |
Surge Power | 20400W | |
PV INPUT(DC) | ||
Maximum DC Voltage | 500VDC | |
MPPT Voltage Range | 90VDC~450VDC | |
Number of MPPT Trackers/Maximum Input Current | 2/18A | |
BATTERY MODE OUTPUT(AC) | ||
Nominal Output Voltage | 48VDC | |
Output Wavefrom | Pure sinewave | |
Efciency(DC to AC) | 94% | |
BATTERY & CHARGER | ||
Nominal DC Voltage | 48VDC | |
Maximum Solar Charging Current | 160A | |
Maximum AC Charging Current | 140A | |
PHYSICAL | ||
Dimension,D X W X H | 530*420*160 | |
Net Weight(kgs) | 14.8 | |
INTERFACE | 16.3 | |
Commnuication Prot | RS232/WIFI/GPRS/LITHIUM BATTERY | |
Bluesun Project
Packing & Delivery
Solar Exhibition

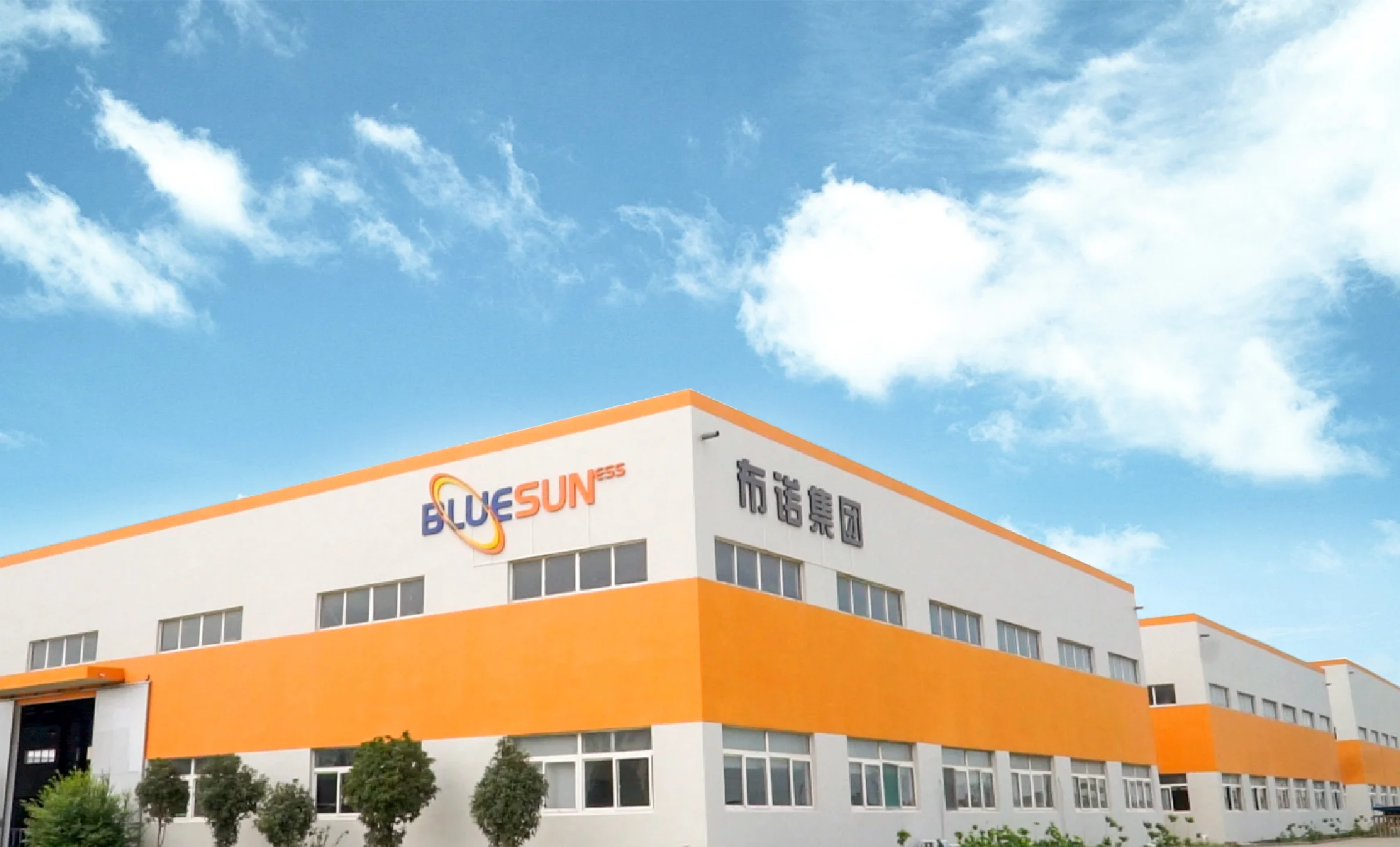

Advantages of Bluesun
Bluesun, found in 2004, as a famous photovoltacic manufacturer in the world, is devolted to the R&D and the production of crystalline silicon solar cells and modules for 18 years. Bluesun’s business footprint covers more than 100 countries and regions around the world, with more than 1000 industry- leading partners, two overseas warehouses. And the historical shipments exceeded15GW. We aim to become the most trusted PV company through continuous innovation and excellent management.
