Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00

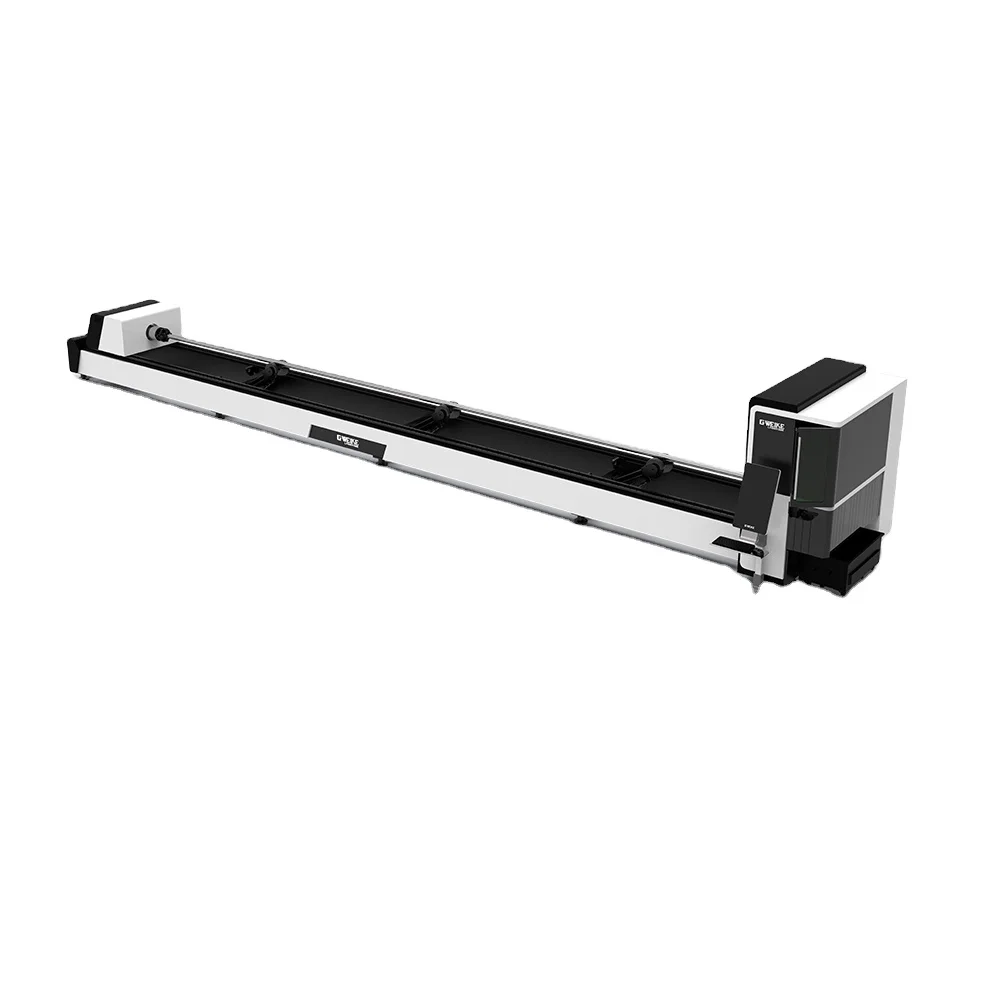

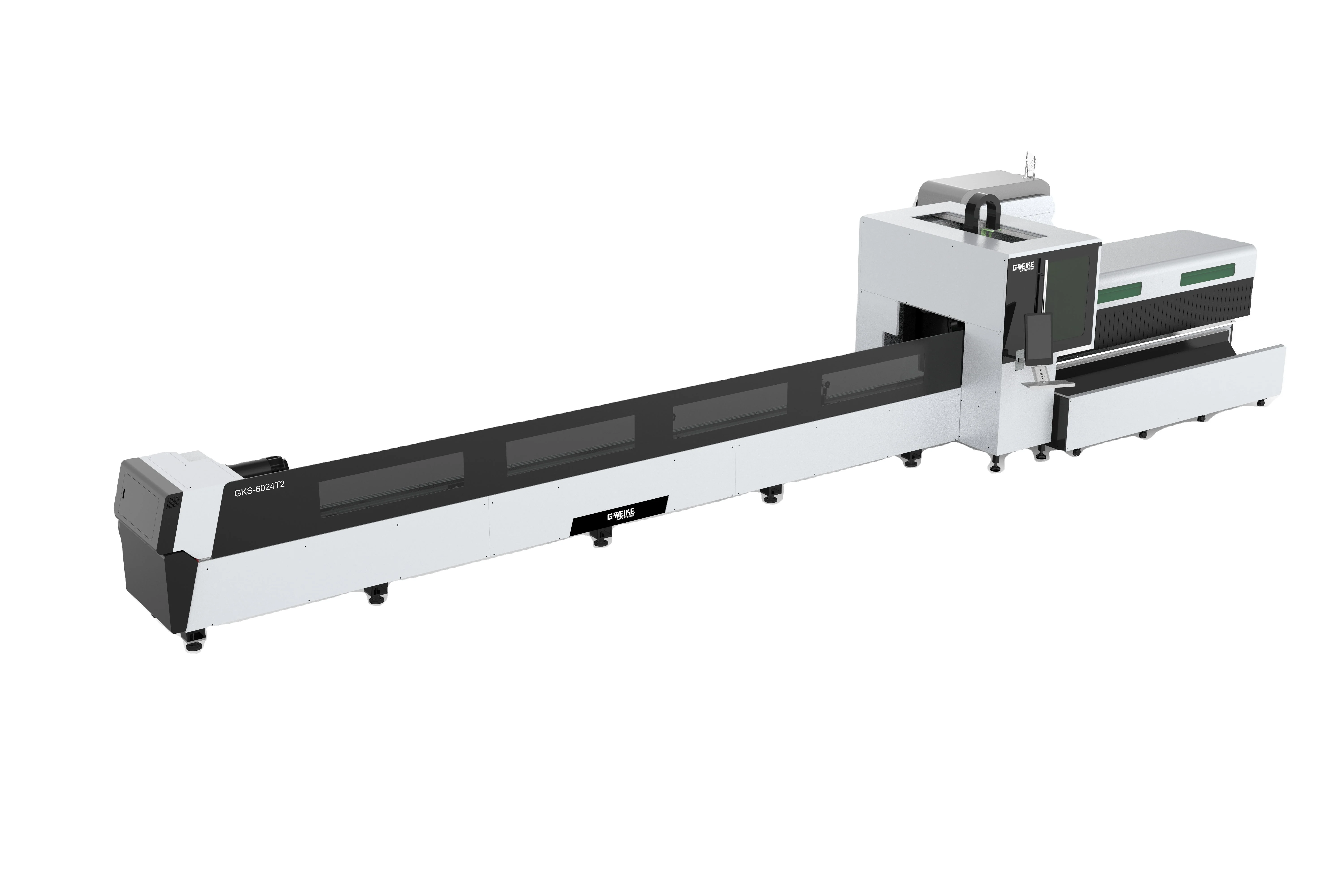

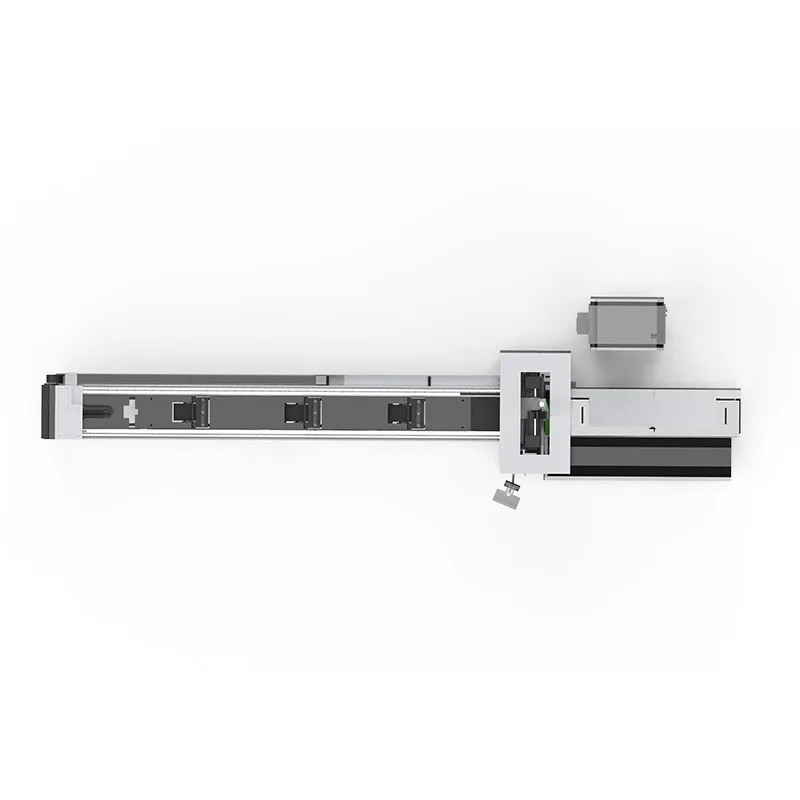

Factory sales 6016 precision laser pipe cutting machine 6 meters long 160mm diameter metal pipe cutting
- Category: >>>
- Supplier: Jinan Spc Laser Co. Ltd.
Share on (1601205378045):
Product Overview
Description
Product Description
Specification
Model | LF6016T2 |
Pipe diameter range (diameter of circumscribed circle) | Φ160mm（Round tube） Φ10-Φ160mm（Square tube） |
Maximum pipe length | 6500mm |
X-axis travel | 420mm |
Y-axis travel | 6500mm |
Z-axis travel | 195mm |
W-axis rotation angle | n*360 |
W axis maximum speed | 140RPM |
X / Y / axis positioning accuracy | ±0.05mm |
X / Y / axis repeat positioning accuracy | ≤0.03mm |
X axis maximum moving speed | 120m/min |
Y axis maximum moving speed | 120m/min |
X / Y maximum acceleration | 1G |
Chuck | Pneumatic |
Maximum load of chuck | 80kg |
Guide rail width | 25MM |
Lubrication type | Automatic oiling |
Power available | 1500-3000W |
Dimension | 8710*2320*2200mm³ |
Total Weight | 4T |
GKS-6016T2 Main Specification | ||||||
No. | Name | Quantity | Brand | |||
1 | Laser source | 1 set | Raycus | |||
2 | Laser head | 1 set | Raytools auto focusing | |||
3 | Machine body | 1 set | Gweike | |||
4 | Gear and Rack | 1 set | TaiwanApex/YYC (Choose according to inventory) | |||
5 | Reducer | 1 set | France Motovario | |||
6 | Cutting length | mm | Φ160mm（Round tube） Φ10-Φ160mm（Square tube） | |||
7 | Exhaust Smoke System | mm | China | |||
8 | Guide rail | 1 set | Taiwan Lapping | |||
9 | Electronic Components | 1 set | France Schneider | |||
10 | Pneumatic Components | 1 set | Japan CKD/Taiwan AirTec | |||
11 | Control system | 1 set | FSCUT3000S | |||
12 | Water chiller | 1 set | Hanli | |||
13 | Control cabinet | 1 set | Gweike | |||
14 | Auto lubrication | 1 unit | Gweike | |||
15 | Industrial computer | 1 unit | HP | |||
Packing & Delivery
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box：Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3.Whole film
packaging machine： Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that
the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template. 4. Wooden
box at the bottom of a solid iron socket for easy handling.
2.Fumigation wooden box：Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3.Whole film
packaging machine： Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that
the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template. 4. Wooden
box at the bottom of a solid iron socket for easy handling.

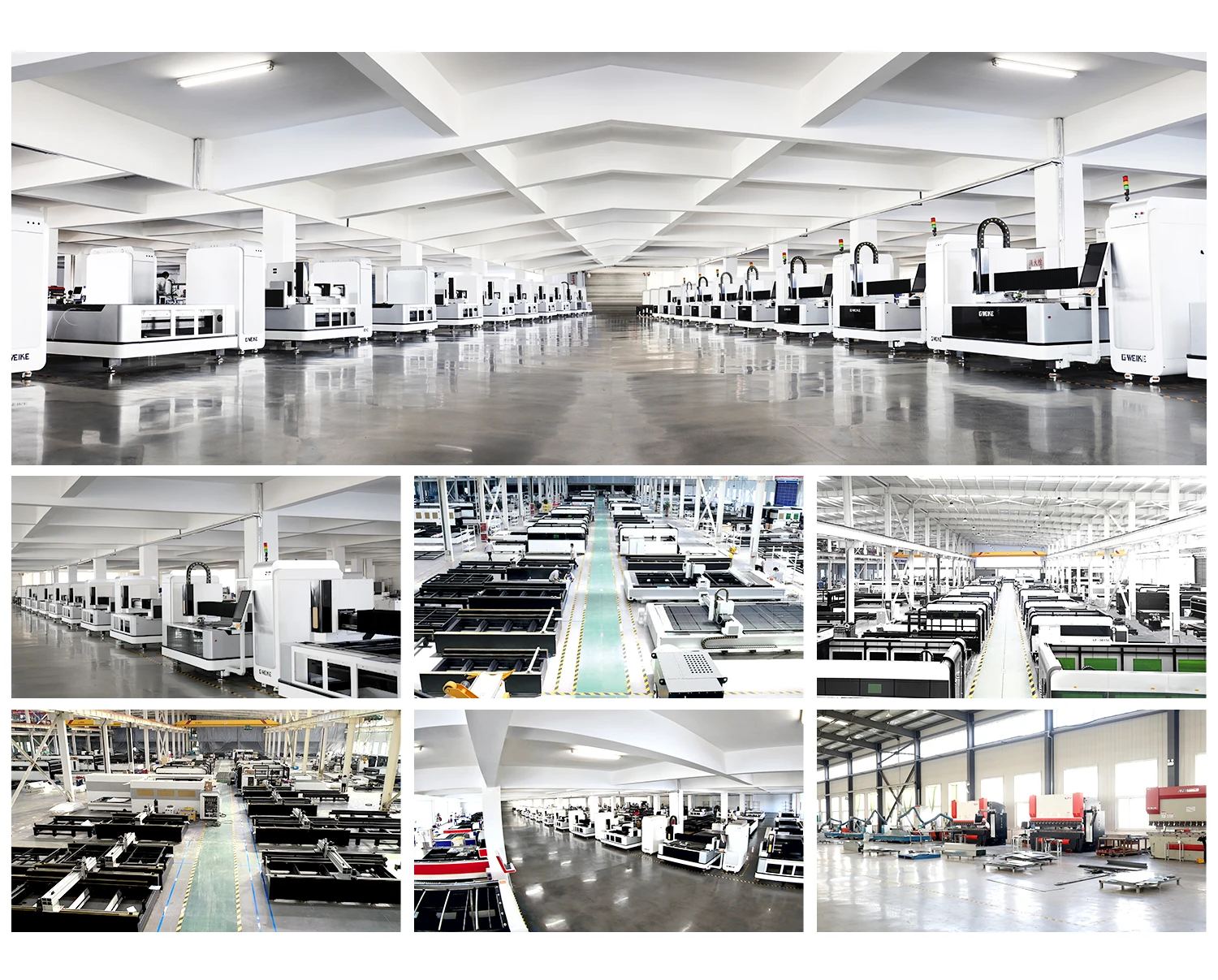

Company Profile
FAQ
Guarantee period:
Our product quality guarantee period is 12 months from the B/L date. During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers with spare parts at a cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and show operation details on condition that you provide the round-trip air tickets, visa formalities, food, and accommodation. In turn, your engineers can come to our factory to learn the installation, operation, and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows the best performance, and then we will ship out.
2. Our elite teams can provide you with professional, customized, and all-around services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email, or Telephone.
How can we provide you with efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
Our product quality guarantee period is 12 months from the B/L date. During the guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers with spare parts at a cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and show operation details on condition that you provide the round-trip air tickets, visa formalities, food, and accommodation. In turn, your engineers can come to our factory to learn the installation, operation, and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows the best performance, and then we will ship out.
2. Our elite teams can provide you with professional, customized, and all-around services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email, or Telephone.
How can we provide you with efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
