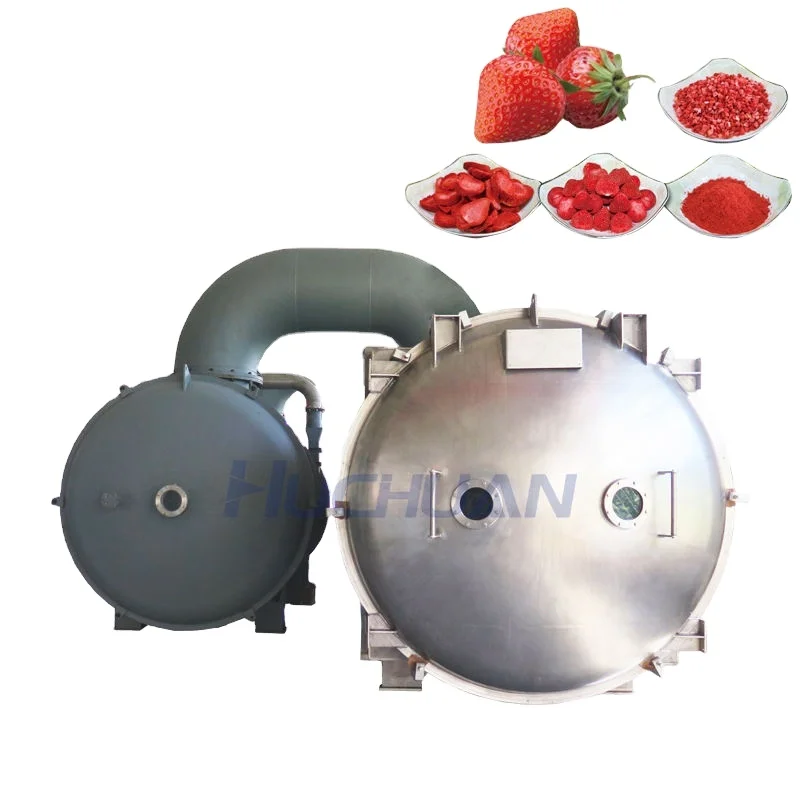

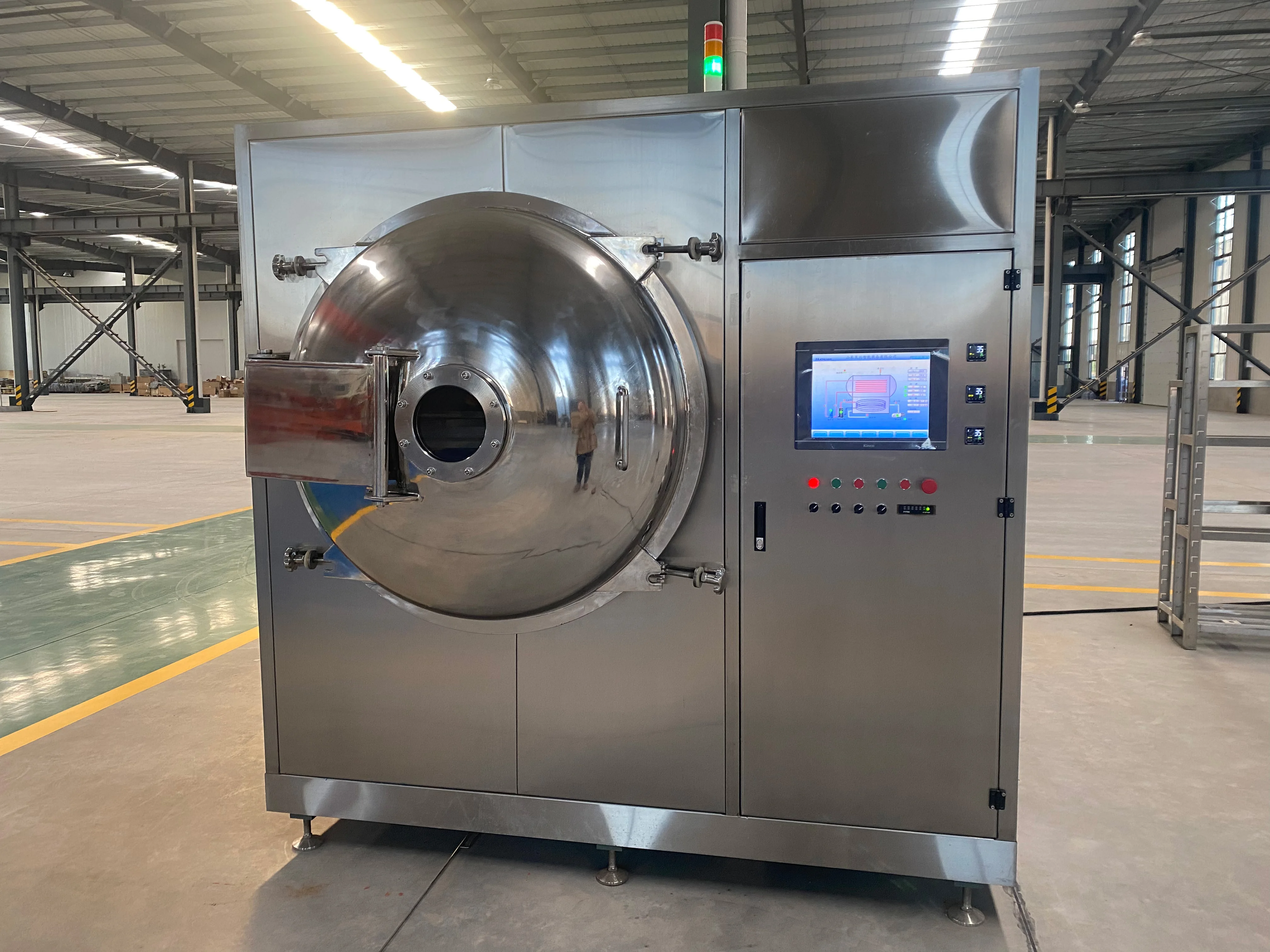

Huchuan automatic vacuum freeze dried avocado powder spinach machine fruit juice powder lyophilization
- Category: >>>
- Supplier: Shandong Huchuan Intelligent Equipment Co. Ltd.
Share on (1601205386483):
Product Overview
Description
Model No. | Dewaterability | Heating Area | Temperature Range | Material | Dimension | Cold Source | Applications |
HTFD5L-0.5㎡/R | 5L | 0.5 | Room temperature -95℃ | Stainless steel（SUS304) | 1.2*1.2*2.0 | Direct expansion R22 R404A | Testing machine |
HTFD50L.3㎡/R | 50L | 3 | 2.0*2.2*2.0 | ||||
HTFD150L-10㎡/R | 150L | 10 | Φ1.8*4.5 | health careproducts, vegetables and fruits,mushrooms,aquatic products,poultry products, pet food, agricultural prod ces | |||
HTFD300L-20㎡/R | 300L | 20 | Φ1.8*6 | Direct expansion/Drum pump R507A R717 | |||
HTFD400L-30㎡/R | 400L | 30 | Φ1.8*7 | ||||
HTFD750L-50㎡/R | 750L | 50 | Room temperature -120℃ | Stainless steel/carbon steel（Q235/SUS304) | Φ2.3*7.6 | ||
HTFD1200L-100㎡/RA | 1200L | 100 | Φ2.3*11 | ||||
HTFD2500L-200㎡/RA | 2500L | 200 | Φ2.3*12.8 | ||||
HTFD3000L-240㎡/RA | 3000L | 240 | Φ2.5*12.8 | ||||
HTFD3500L-300㎡/RA | 3500L | 300 | Φ2.5*15 |
Preparatory freezer
6-8h/batch, fully meets the 24-hour freeze-drying production process, and adopts "first-in,first-out" recycling.

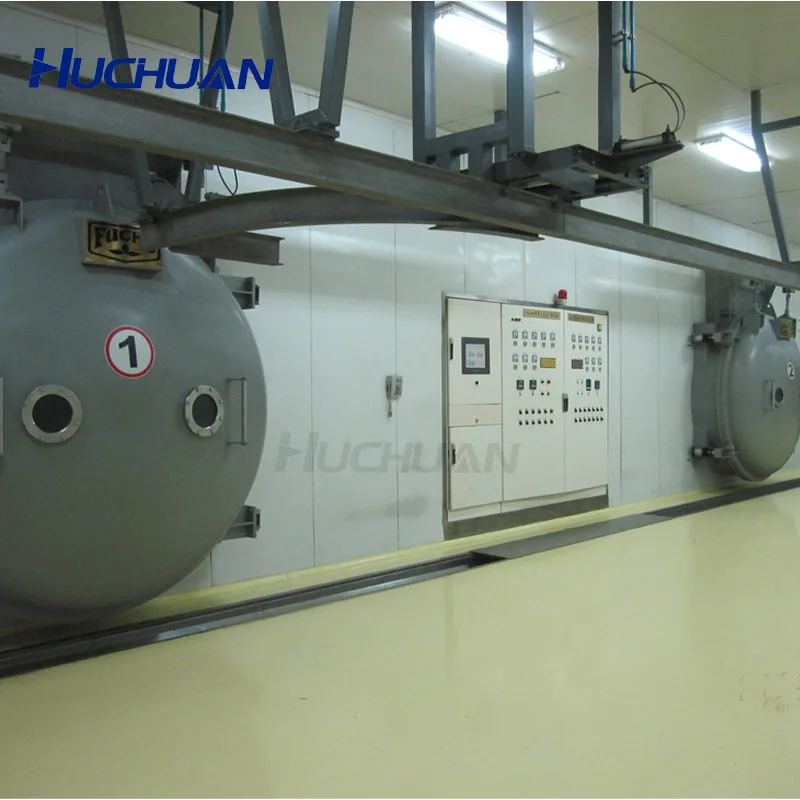

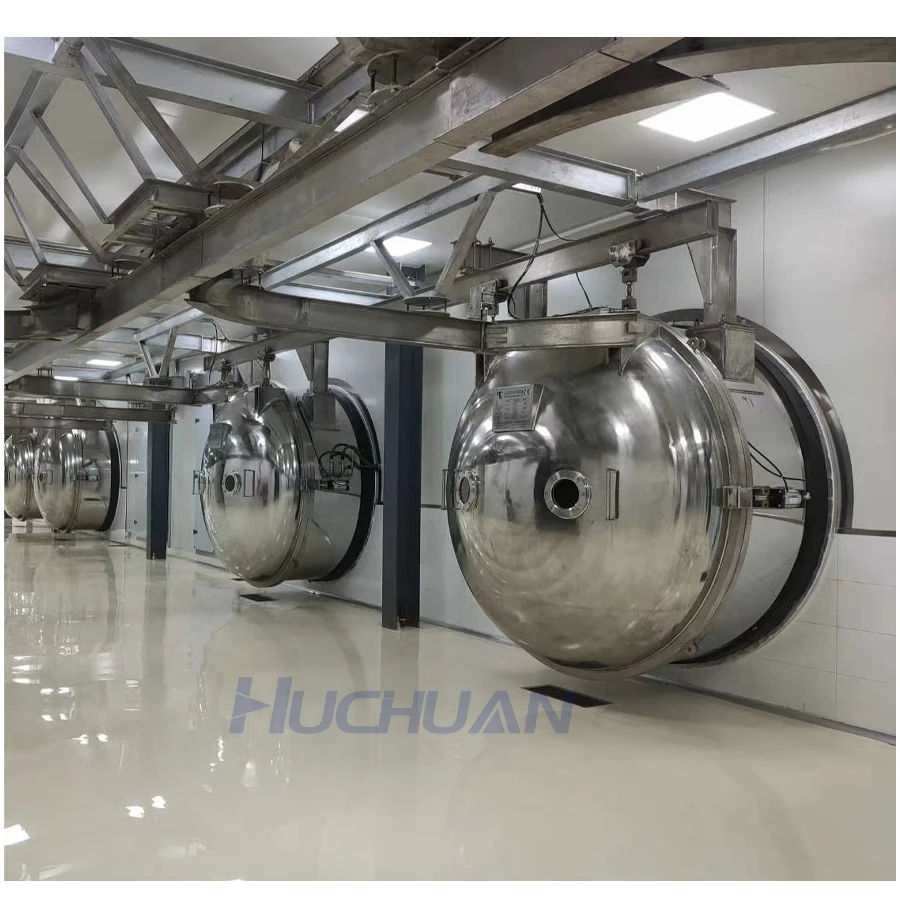

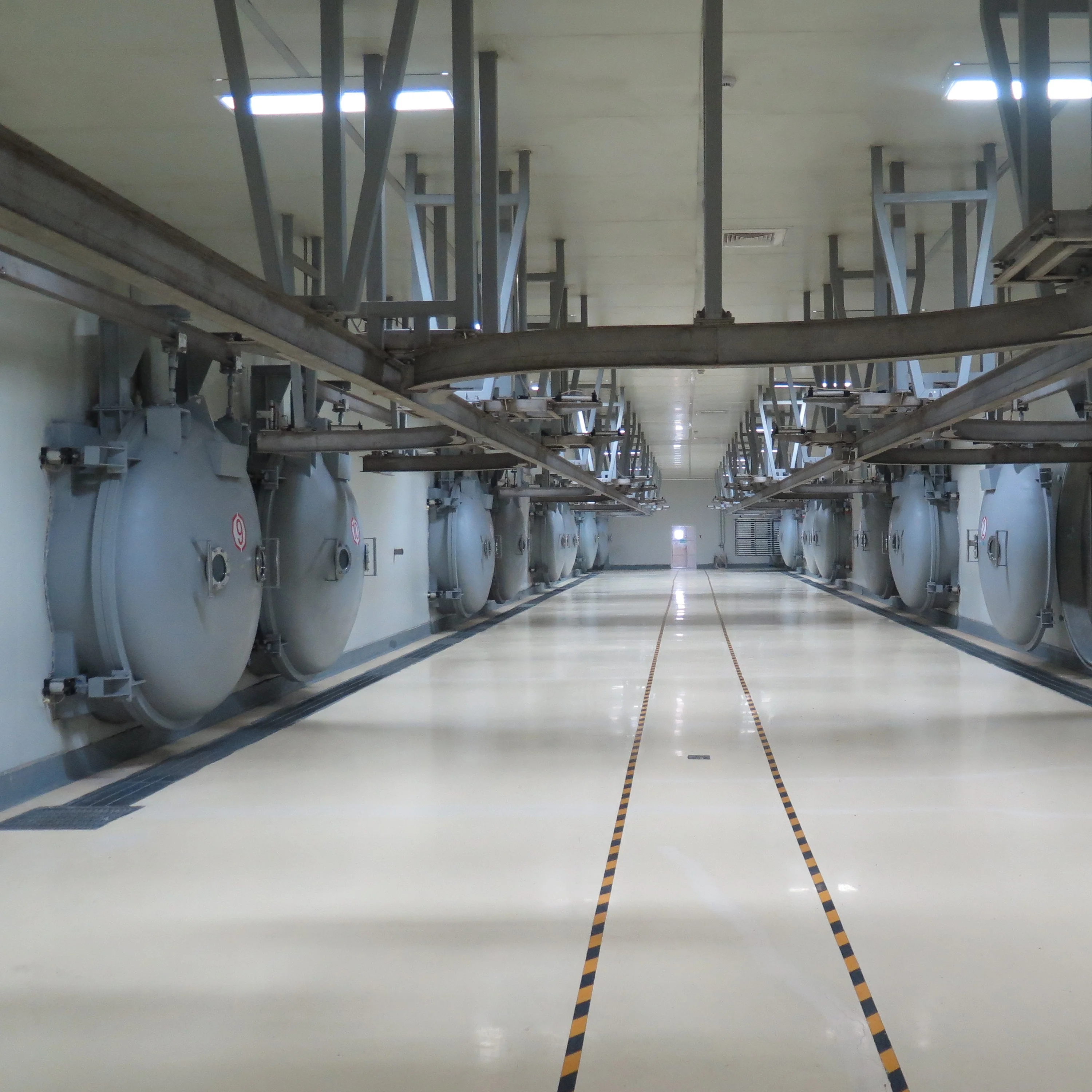

Suspension-type rail conveying system
6-8h/batch, fully meets the 24-hour freeze-drying production process, and adopts "first-in,first-out" recycling.

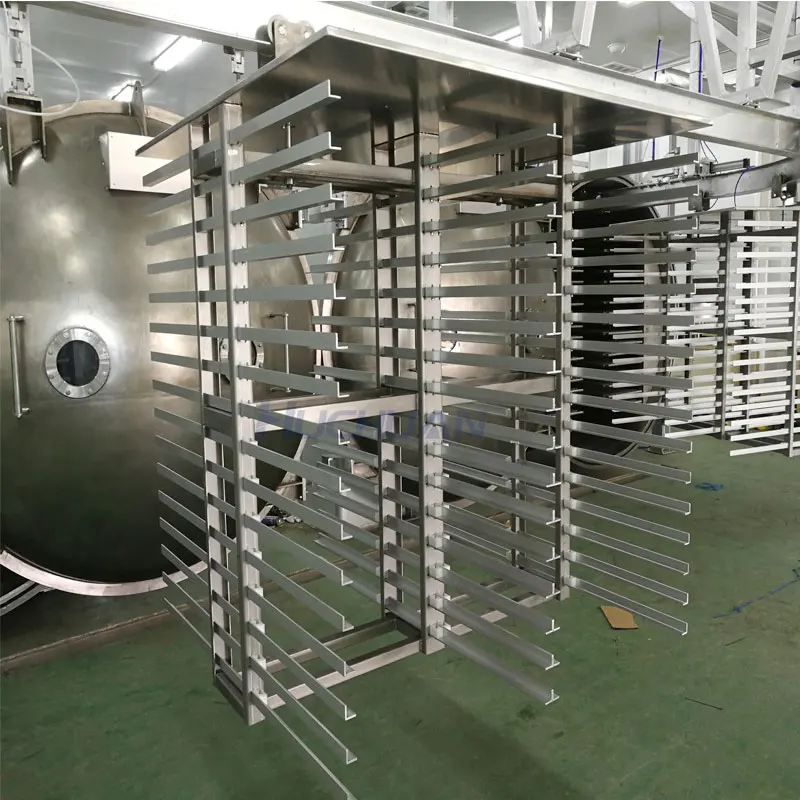

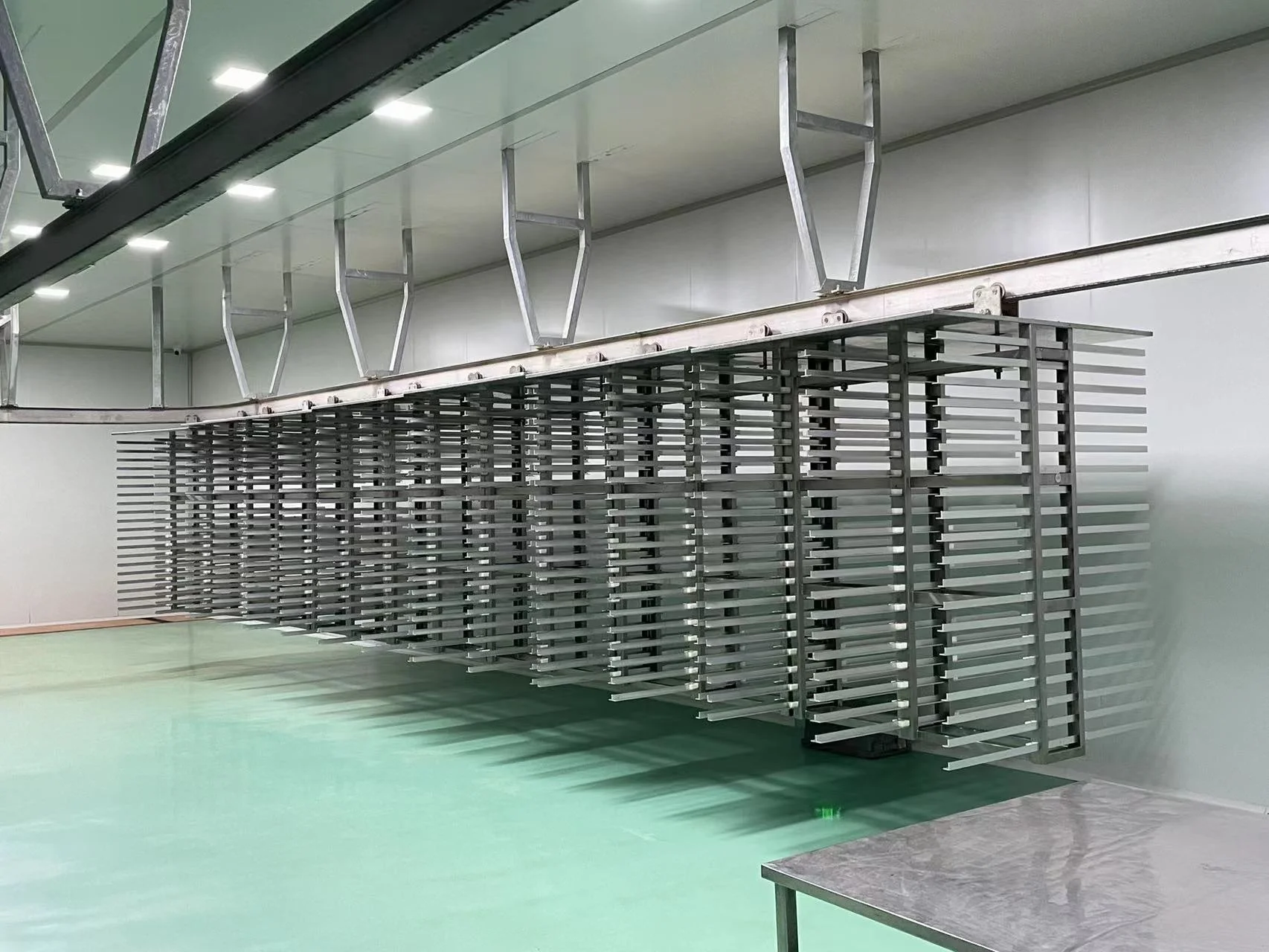

Suspension-type rail conveying system
feeder tray is filled with raw materials of predetermined weight,enters the drying chamber,
after drying, the feeder exits and unloads, the feeding system is simple, hygienic and safe.
after drying, the feeder exits and unloads, the feeding system is simple, hygienic and safe.
Advantage
The FD machine of HCILEP adopts modular design and assembly, including
FD/CT cabin, heating plate, CT condenser,etc.

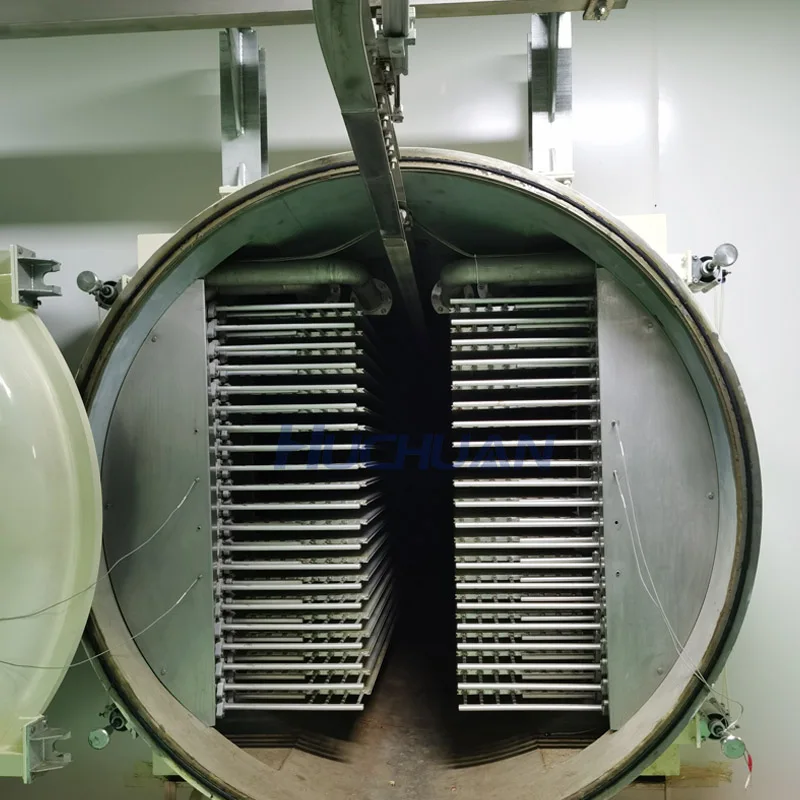

* FD chamber components:
* FD chamber components:
Round or square chambers, with one side or two sides opening doors.
Manual or electric push-pull door opening methods for products to enter and exit the drying chamber.
The link of the auxiliary system of FD equipment is set at the end of the drying chamber and the safe area,
and there is no auxiliary system in the clean area.
* CT condenser assembly:
* CT condenser assembly:
Built-in condenser, TOYO TR technology, hot shelling water for defrosting, the highest efficiency of condensing
and vaporizing ice, leading technology, automatic defrosting, short defrosting time, and fast draining.
* Heating plate assembly:
Double-sided radiation heating design, shell and tube circulation, pressure resistance 1.2Mpa,plate surface
* Heating plate assembly:
Double-sided radiation heating design, shell and tube circulation, pressure resistance 1.2Mpa,plate surface
temperature <±0.5℃,super boiling point operation.
Made of aluminum alloy, the surface is anodized, and the film thickness is more than 12μm.
Advantages of modular design:
* Minimize the on-site installation time cycle and help start production as soon as possible.
* After the module is assembled,test and test can be carried out.
* Easy to transport and install.
* Easy maintenance.
* Minimize the on-site installation time cycle and help start production as soon as possible.
* After the module is assembled,test and test can be carried out.
* Easy to transport and install.
* Easy maintenance.
1. How is you factory production experience ?
13 years production experience on food machinery. Leading supplier in China.
2.What can you product type of product?
Shandong Huchuan Intelligent Equipment Co., Ltd. is a high-tech enterprise that specializes in the research, design, production, sales, and service of food freeze drying machine and freeze drying systems.
3.Are your company is direct manufacturer?
Yes,we have our own factory,is a professional manufacturer of food machinery.Our company also has its own sales department, design and development department, to ensure the lowest price and the best service to bring the goods to our customers.
4.How about your after-sale service system?
provide one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation and commissioning and training services.
5. Could we visit your factory to check the machine carefully and closely?
Highly appreciated factory visiting, will provide machine testing service, face-face discussing,turnkey project design solution
6. If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-deign provided.

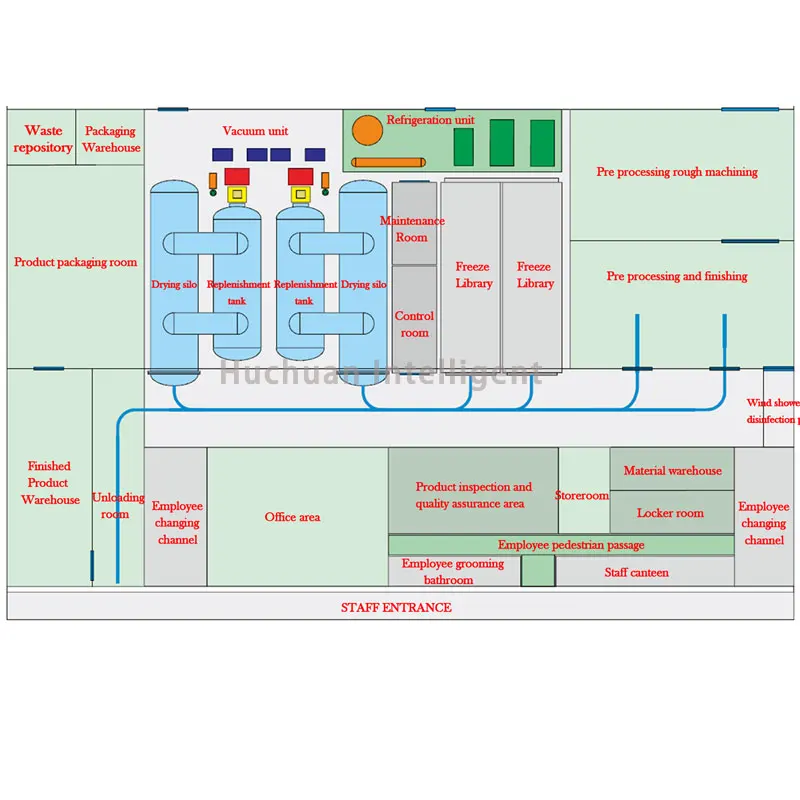

7. If we show you our layout of factory, can you help to design the whole process line?
Layout design service provided after received customer's factory layout size.
13 years production experience on food machinery. Leading supplier in China.
2.What can you product type of product?
Shandong Huchuan Intelligent Equipment Co., Ltd. is a high-tech enterprise that specializes in the research, design, production, sales, and service of food freeze drying machine and freeze drying systems.
3.Are your company is direct manufacturer?
Yes,we have our own factory,is a professional manufacturer of food machinery.Our company also has its own sales department, design and development department, to ensure the lowest price and the best service to bring the goods to our customers.
4.How about your after-sale service system?
provide one-year free warranty and lifetime maintenance service after one year. After the products are shipped overseas, we provide overseas installation and commissioning and training services.
5. Could we visit your factory to check the machine carefully and closely?
Highly appreciated factory visiting, will provide machine testing service, face-face discussing,turnkey project design solution
6. If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-deign provided.
7. If we show you our layout of factory, can you help to design the whole process line?
Layout design service provided after received customer's factory layout size.
Shandong Huchuan Intelligent Equipment Co.Ltd.
Name:Sylvia Liu
Tel/Whatsapp:008615666883905
Email:sales03@kbtfoodpack.com
