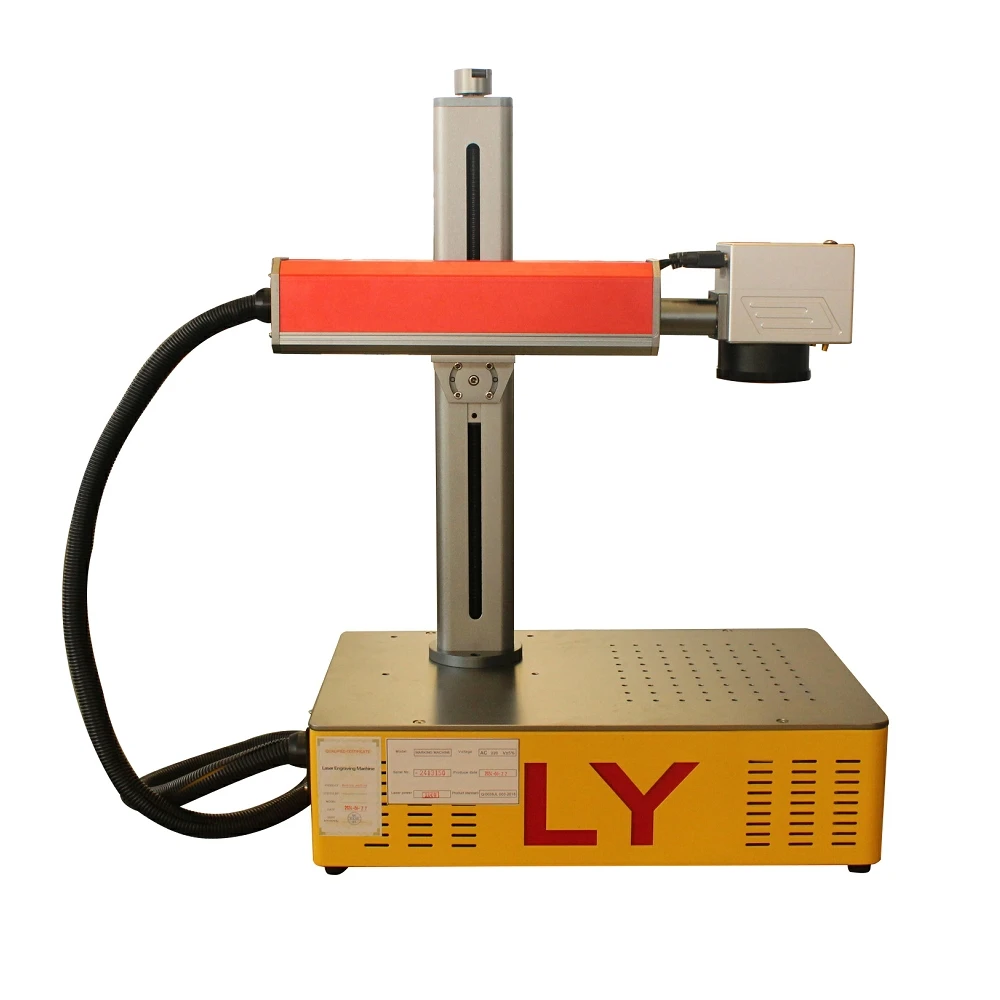

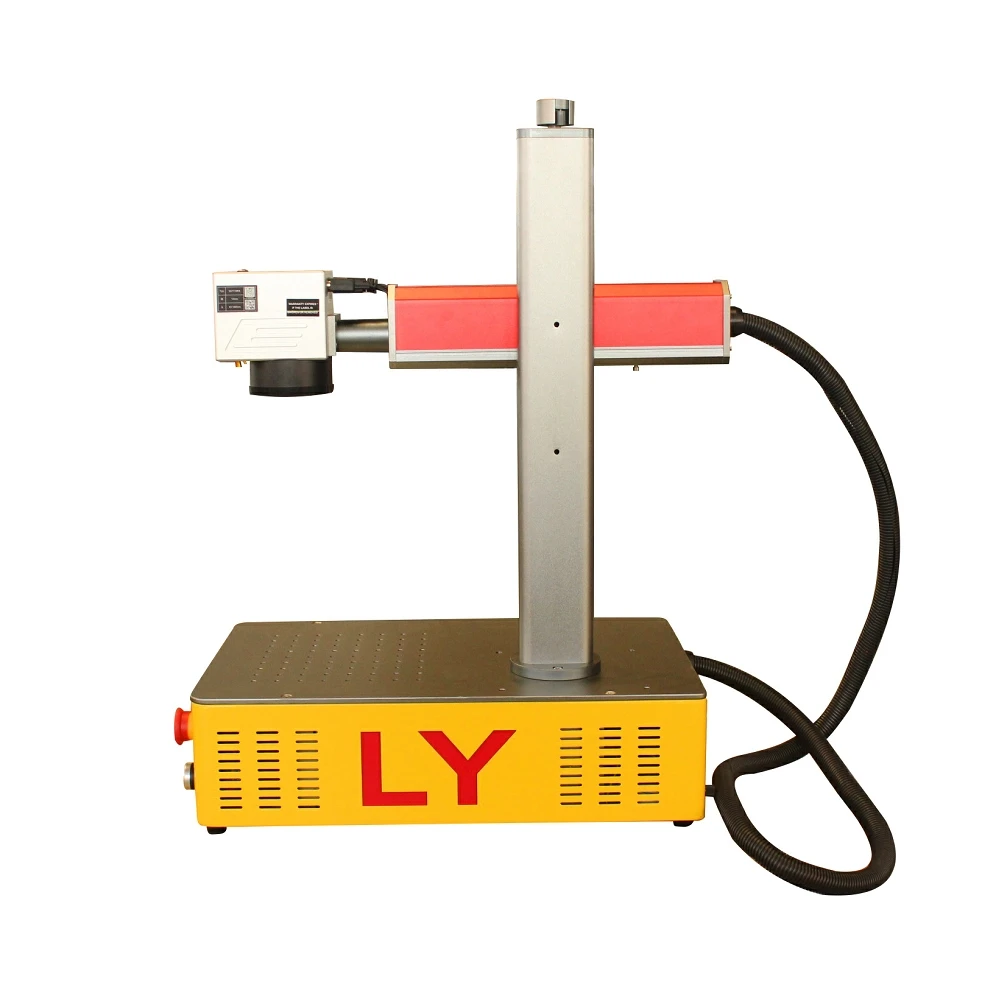

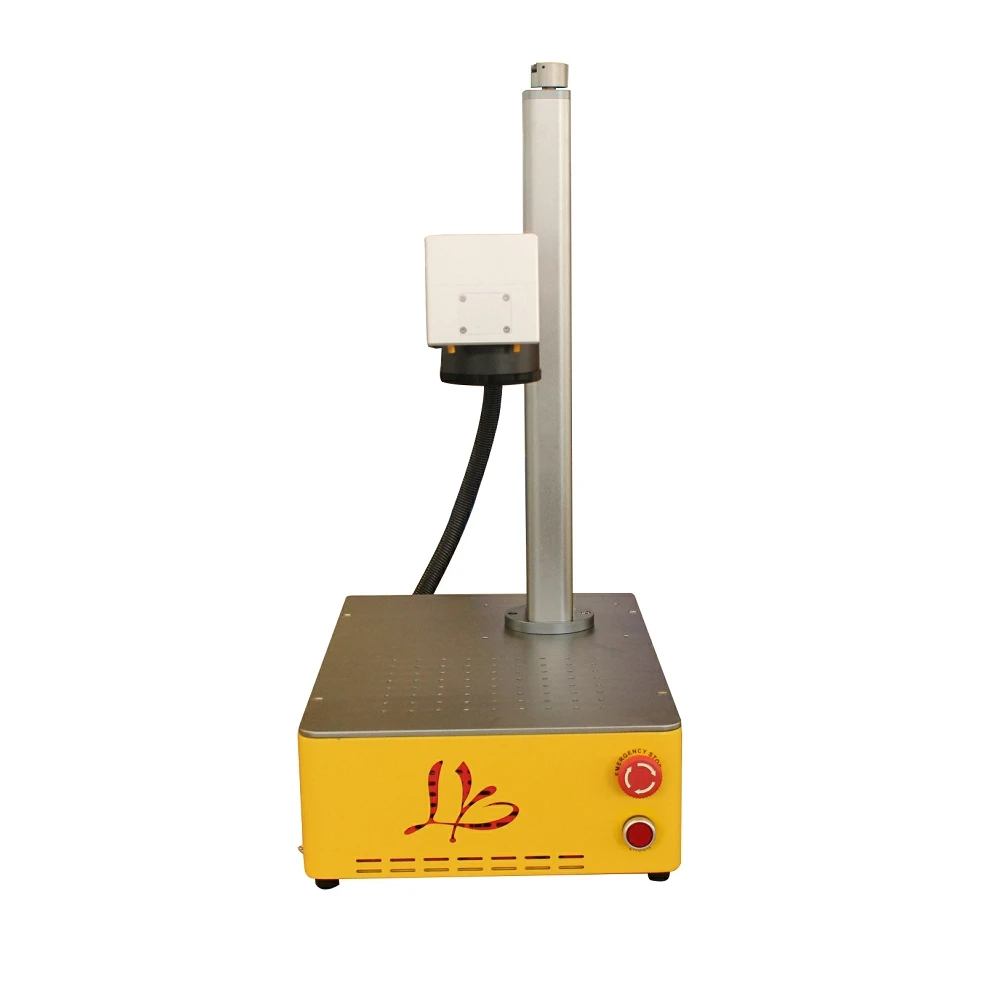

LY Desktop Fiber Laser Marking Machine Brand JPT 200W Built in 4th Axis Drive for Ceramic Plastic PVC Engraving 220V 110V
Product Description
1. Machine with special lightweight design, remove unnecessary design, maximum save shipping cost for customers.(So shippingcost won’t occupy big proportion in general budget.)

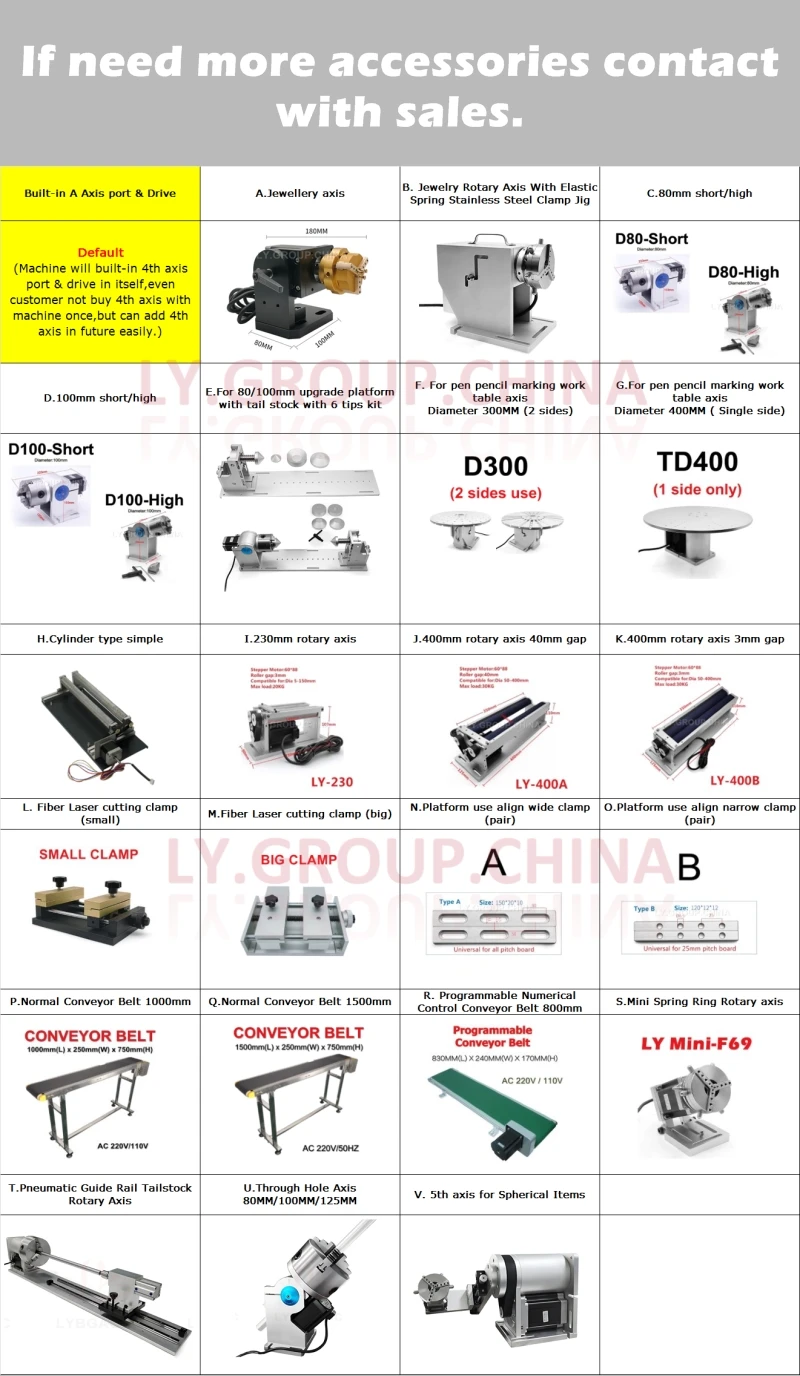

2.This machine can upgrade or add more parts, such as Rotary Axis, more Field Mirrors, more Peripheral Accessories, so can refer relative showcase, can add to shopping cart to pay directly, or leave message to seller to update total after final options confirmed. `

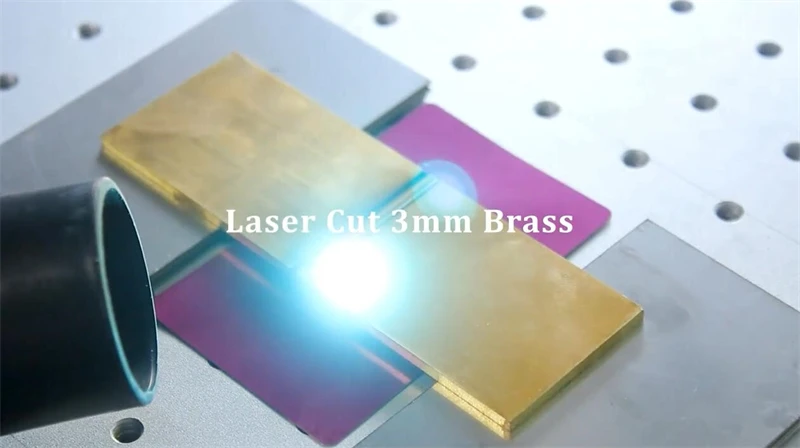

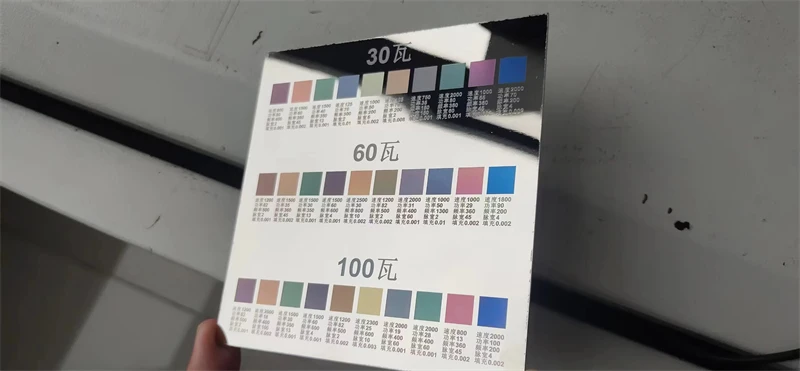

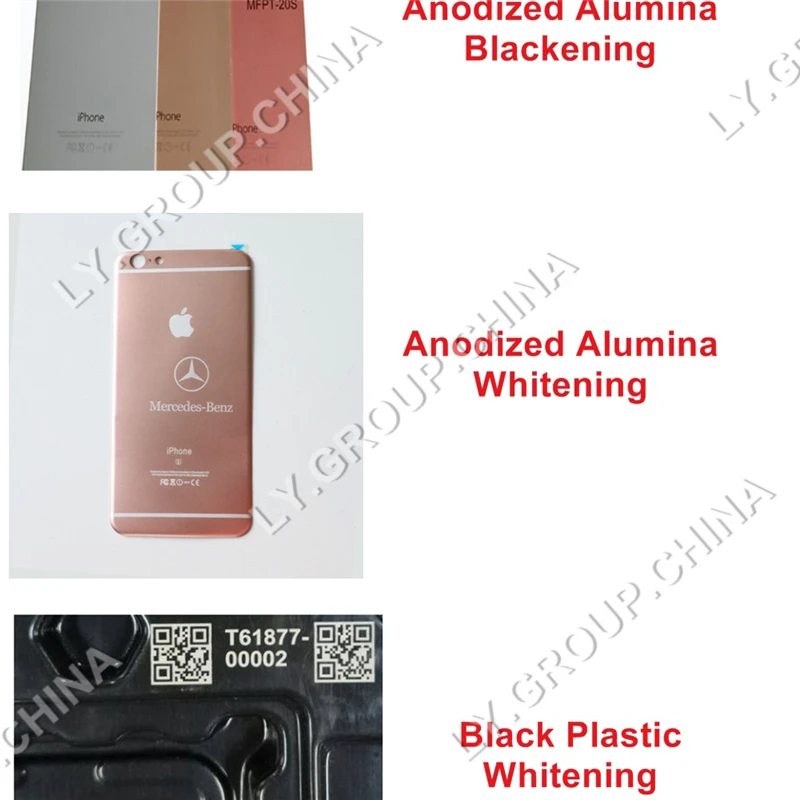

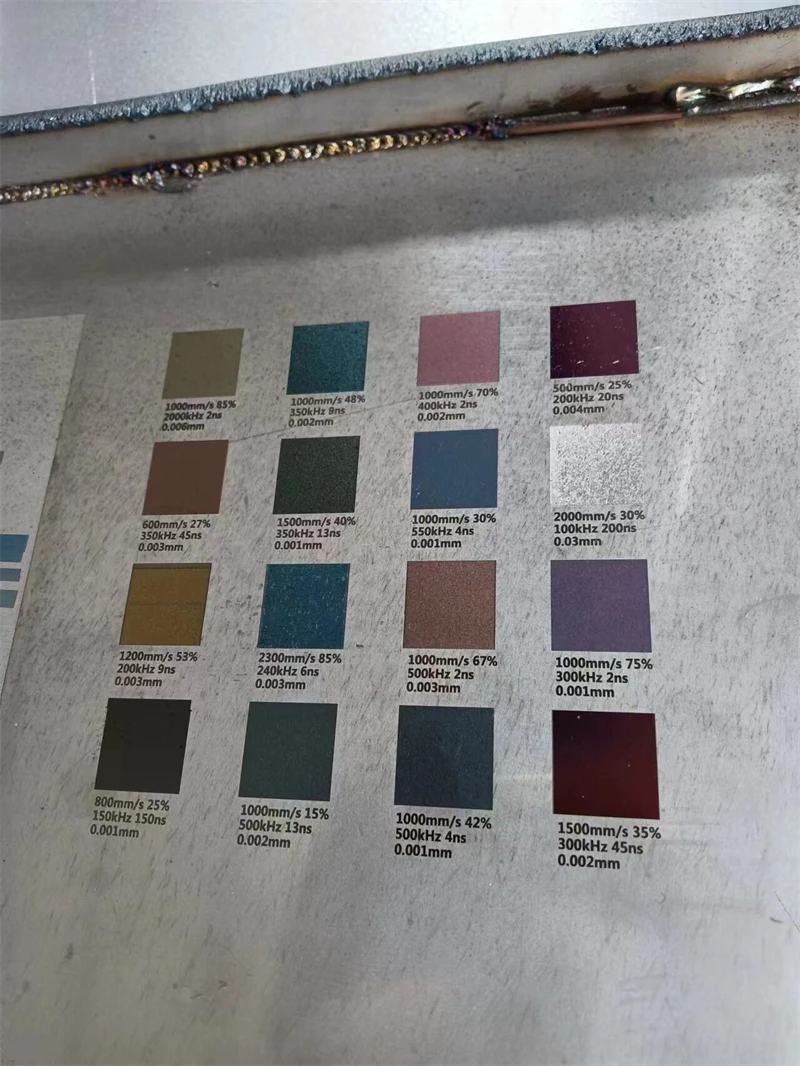

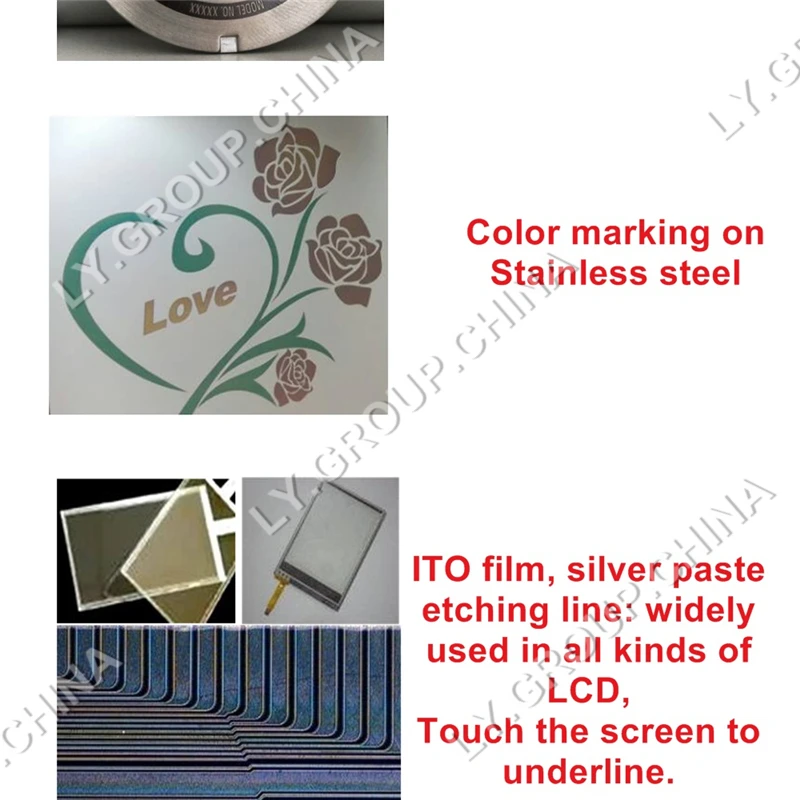

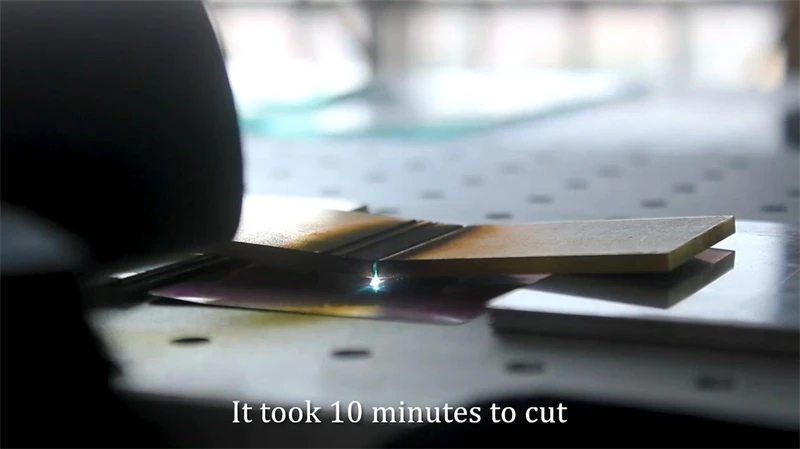

3. Our 200W machine can be used for regular marking, stainless steel color marking, and thin metal sheet cutting. In addition, many configurations still retain for upgrade options, striving to meet the needs of different customers.
Specification:
Brand | LY-Fiber-Desktop |

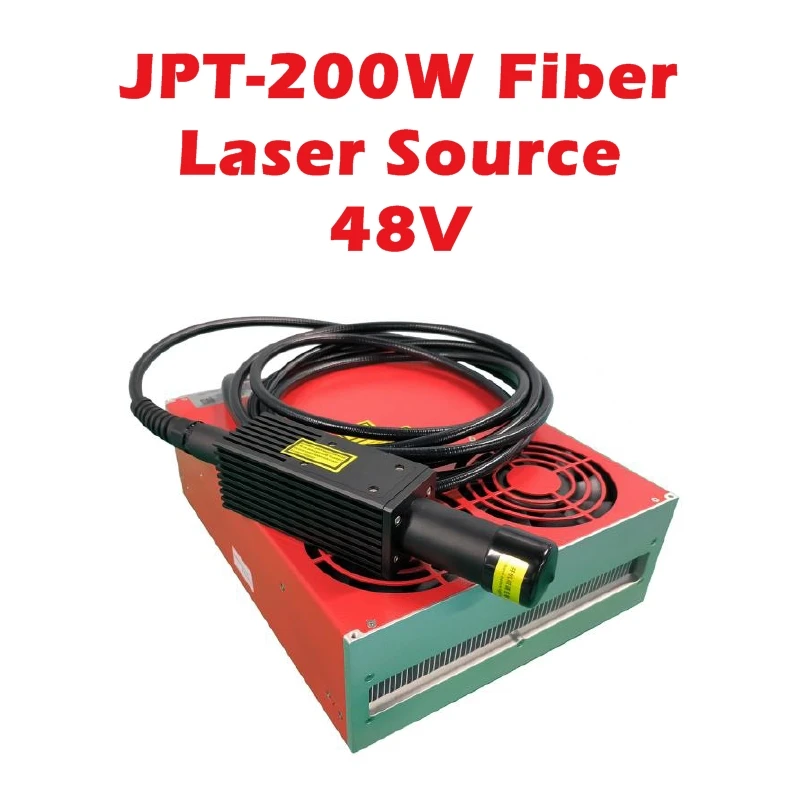

Laser power | 200W JPT 48V |
Working Area | Optional (Initial 200MM) |
Cooling Mode | Air Cooling |
Laser Wavelength | 1064nm |
Frequency of pulse Adjust Range | 1-4000 KHz |

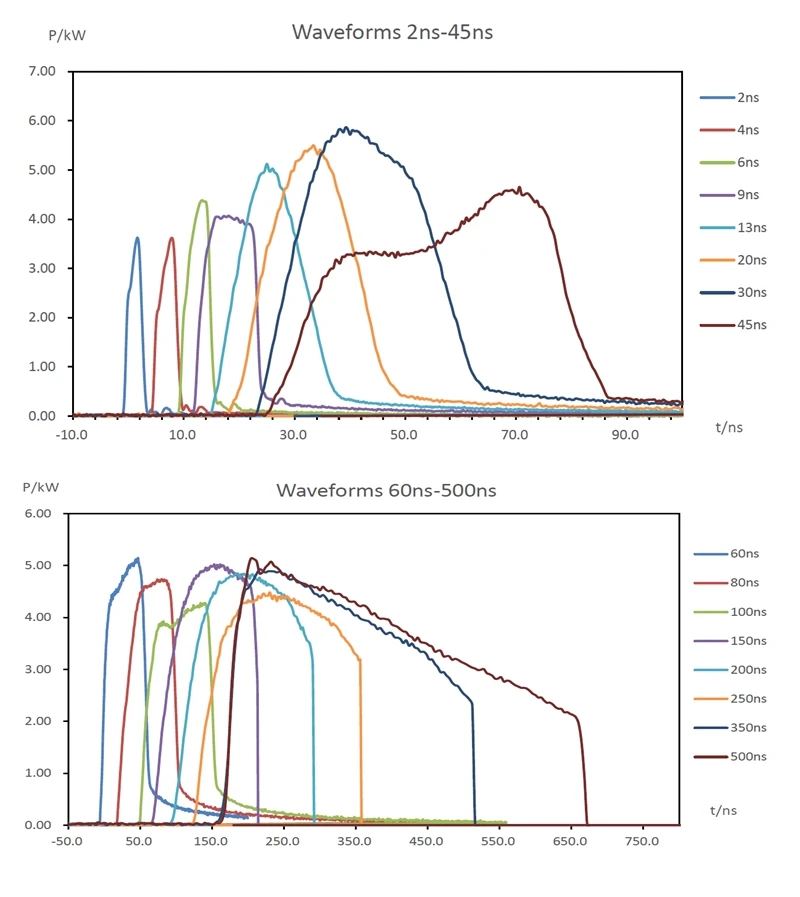

Pulse Width | 2-500ns |

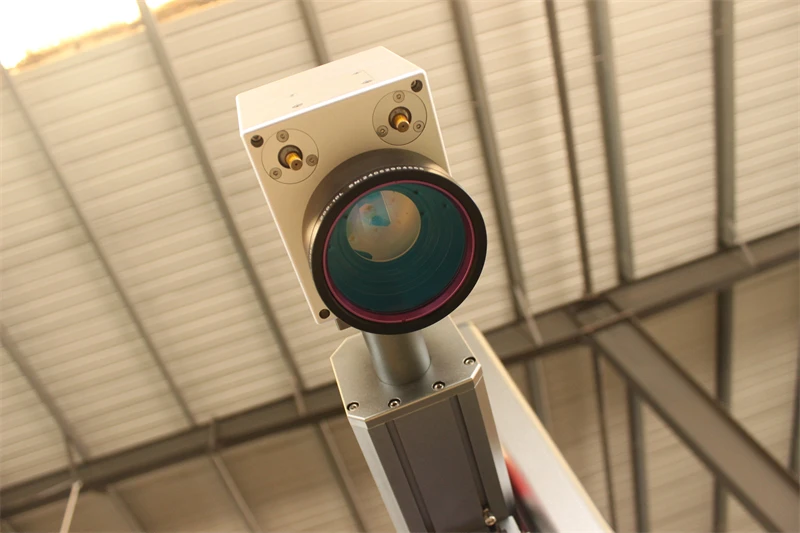

Marking Speed | ≤5000 mm/s SG7110 With Dual Red Dots |
Marking Lines | 1-10 lines |
Minimum Line Width | 0.01 mm |
Minimum Character | 0.15 mm |
Repeatability Accuracy | ±0.002 mm |
Resolution Ratio | 0.1 mm |

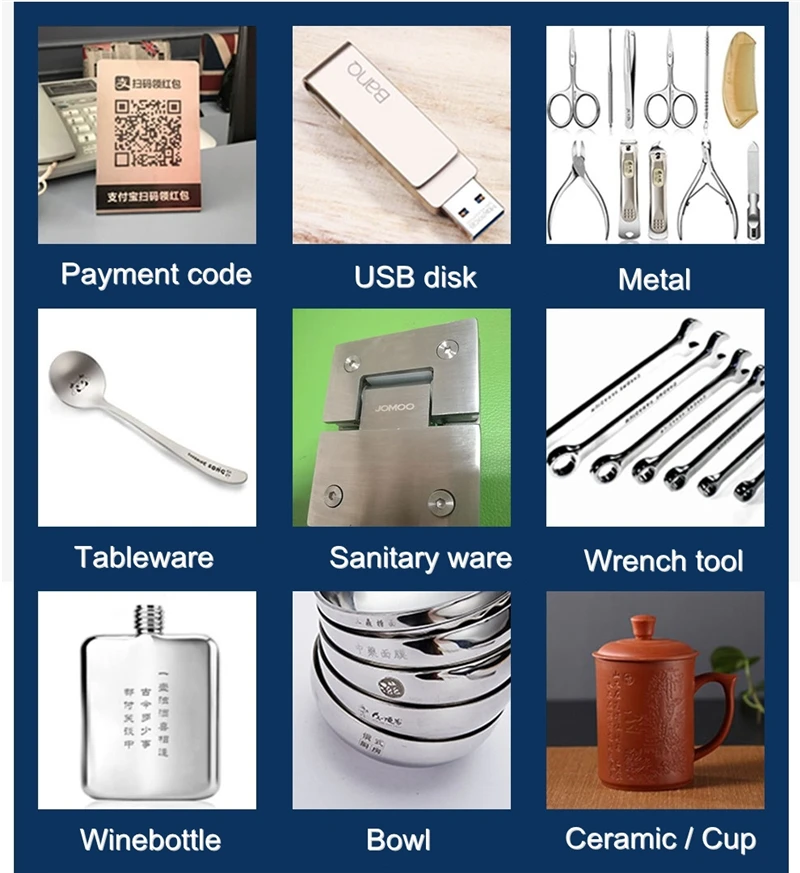

Marking Content | Text, pattern, date, bar code, etc |
Operation System | Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |

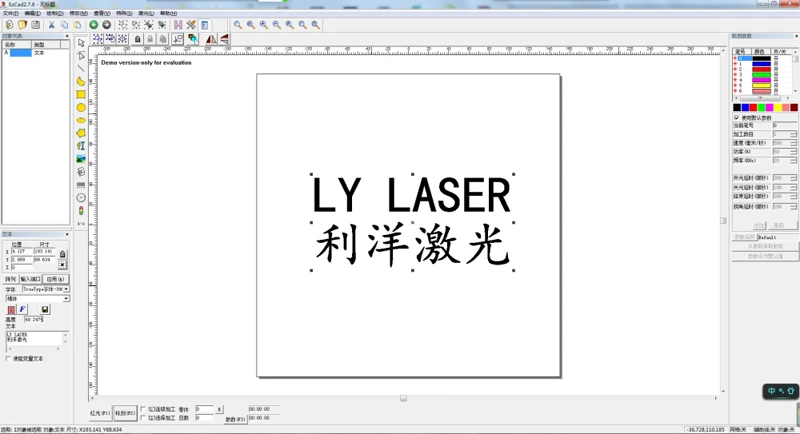

Control Software | EZCAD ENGLISH Control Software |
Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
Unit Power | ≤0.9 KW |
Operation Temperature | 0°C-40°C |
Relative Moisture | ≤ 90%, no fog |

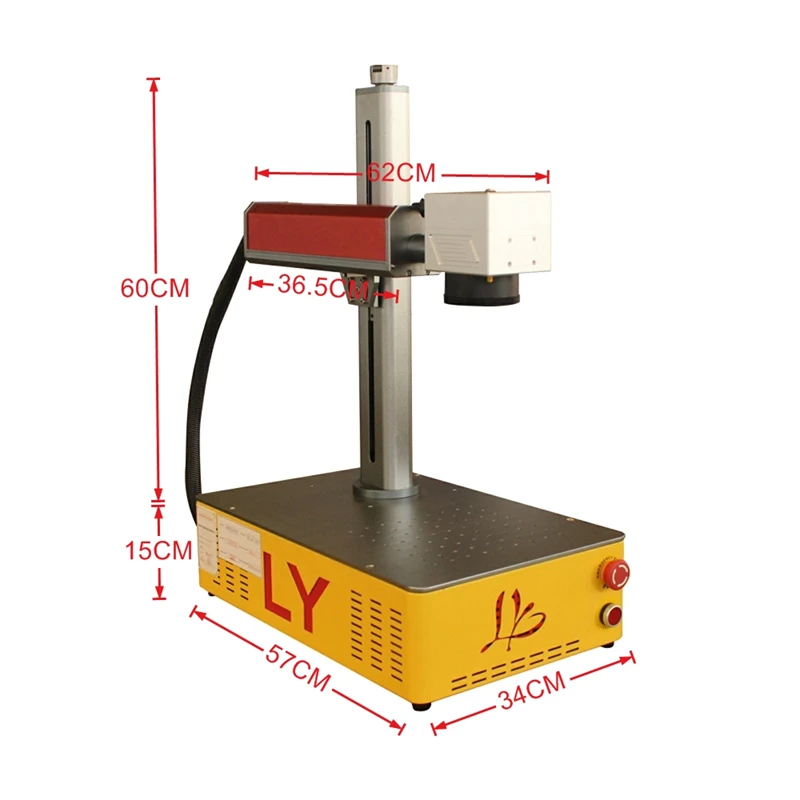

Dimensions(L*W*H) | 55 x 50 x 55 cm ( Not fixed, can be Wooden box 1 or Cartoon box 2,based on delivery channel.) |
Power supply requirements | 220 V or 110V |
Weight | 45KG |
Warranty | 24 months |
RE:
1.If want to change super high speed galvanometer SG7210 (8000mm/s),can contact with us.
2.If want to add Auto focus function can contact with us, but need to change to another shell case to make machine.
2.If want to upgrade to visual system for high efficiency industrial marking, can contact with us too.
Visual marking video as below:
Kit1:

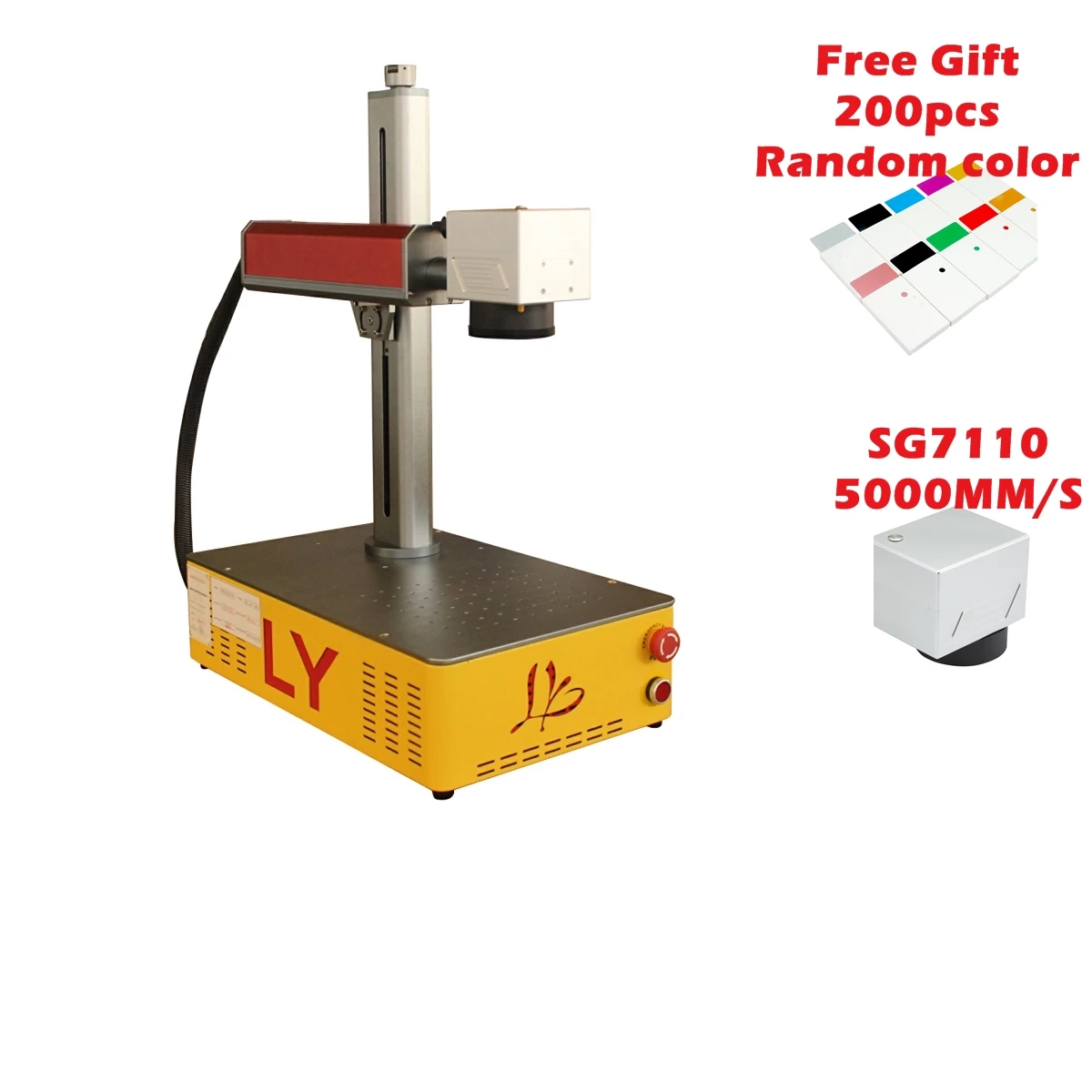

LY 200W Desktop machine with SG7110 galvanometer 200mmfield lens

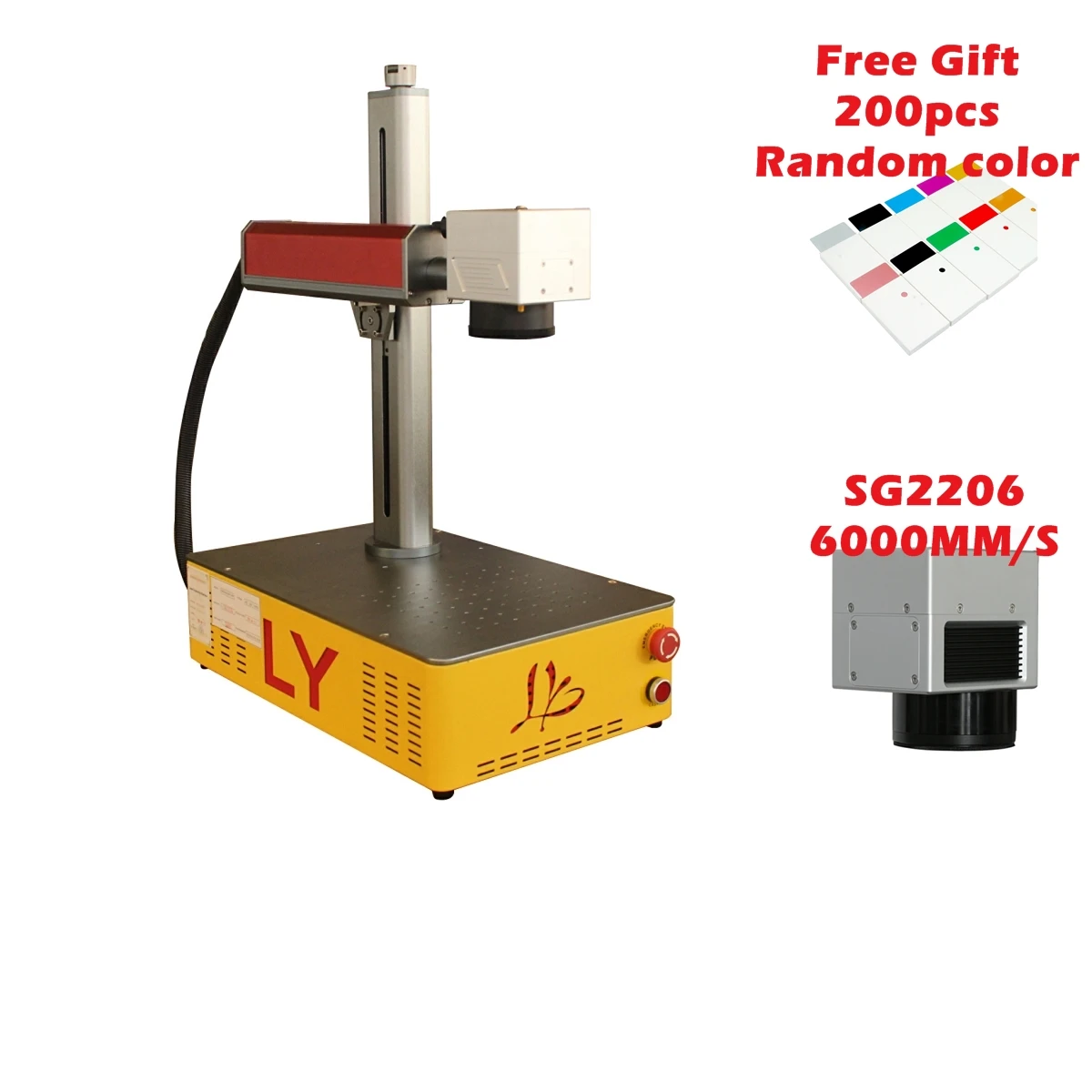

Kit2:
LY 200W Desktop machine with SG2206 galvanometer 200mmfield lens

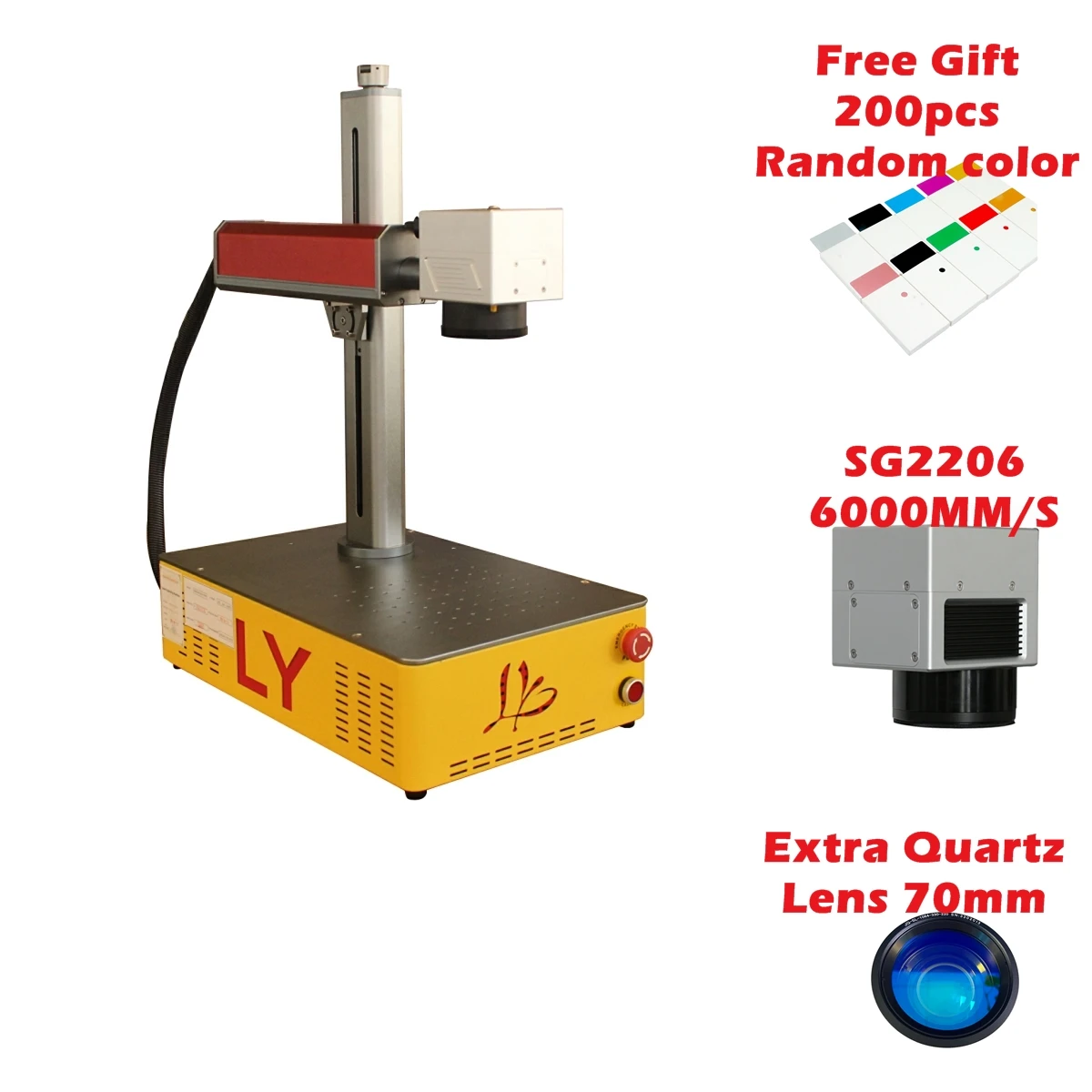

Kit3:
LY 200W Desktop machine with SG2206 galvanometer 200mmfield lens
+ Quartz 70mmfield lens(Not cheap K9 stuff lens)

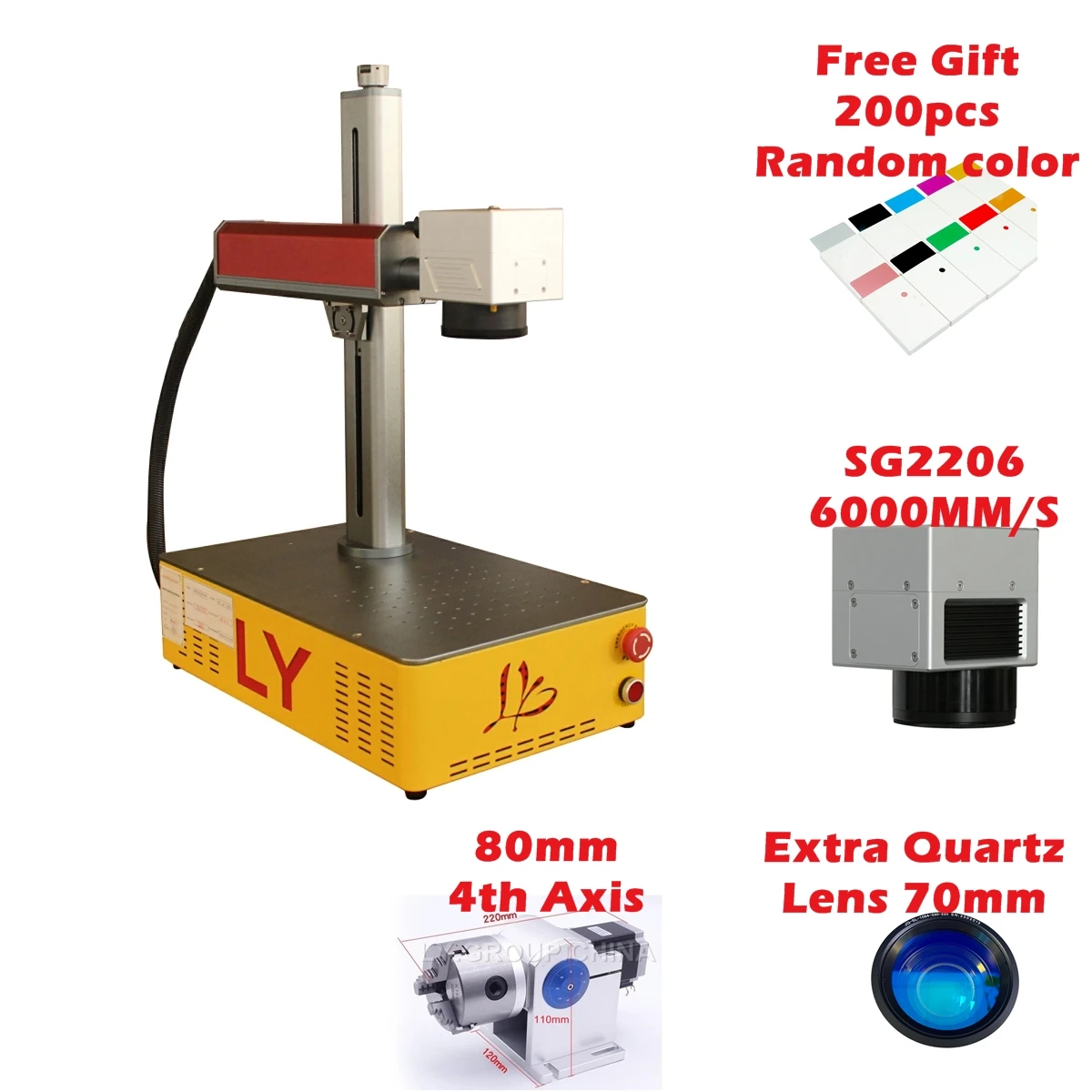

Kit4:
LY 200W Desktop machine with SG2206 galvanometer 200mmfield lens
+ Quartz 70mmfield lens(Not cheap K9 stuff lens)+D80 rotary axis(3 claws)

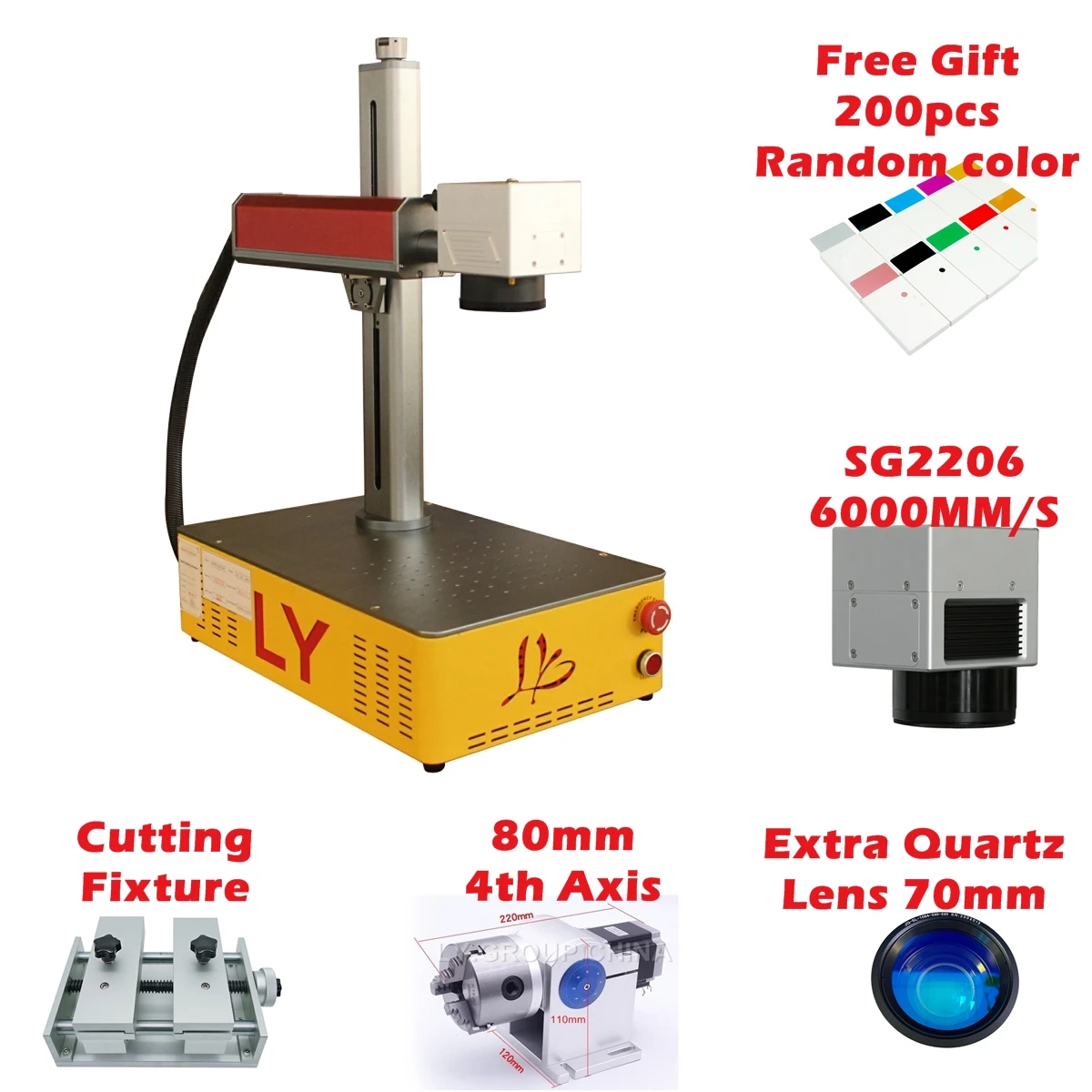

Kit5:
LY 200W Desktop machine with SG2206 galvanometer 200mm field lens
+ Quartz 70mm field lens(Not cheap K9 stuff lens)+D80 rotary axis(3 claws)+Cutting Fixture
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
Our Services
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
Company Information

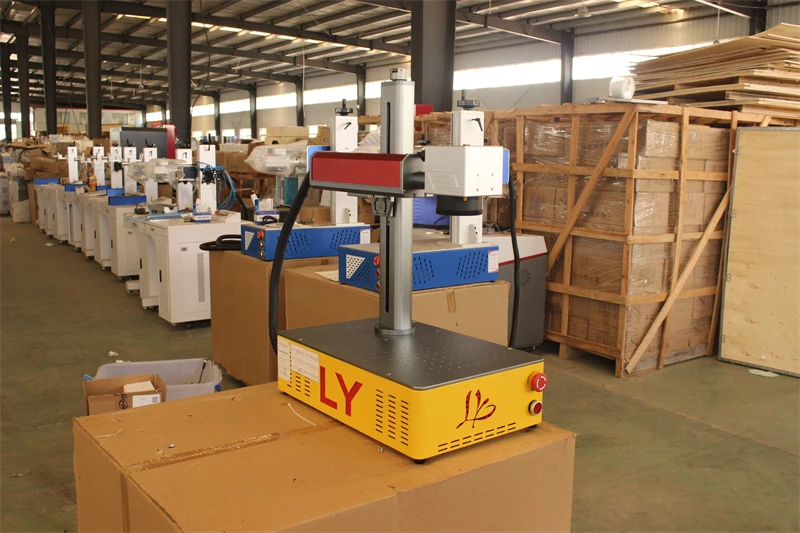

LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
