Product Overview
Description
Product Description
Specification
Model | 600W30 | |||
System Rated Voltage | 12V(9V-16VDC) | |||
Solar Module | Voc | 27.6V | ||
Vmp | >Vbat+1V | |||
Imp | 25A | |||
Workable Power | 0W~300W | |||
Wind Turbine | Rated Voltage | 12VAC（20.8VDC） | ||
Rated Current | 25A | |||
Workable Power | 0W~300W | |||
Battery | Max Charging | 30A | ||
Special Note:The following are the optimal parameter settings, please do not modify | ||||
Uunder | Over Discharge Voltage | 10.8V | ||
Runder | Over Discharge Return | 13.1V | ||
Uover | Over Charge Voltage | 15.5V | ||
Rover | Over Charge Return | 15.0V | ||
BCV | Increase Charge | 14.4V | ||
Float | Floating Charge | 13.8V | ||
Ufanbraking | Wind Breaking Voltage | 25.6V | ||
DC Load | Out Power | 0W~180W (Per one-way) | ||
Rated Voltage | 12VDC | |||
Current Max | 30A(15A*2) | |||
Conversion Efficiency | ﹥98% | |||
Operation Mode | Default to streetlight mode | |||
Environment | Temperature | 1) Working:-20℃ ～50℃; 2)Storage:-30℃ ～70℃ | ||
Humidity (°C) | 10% ～ 90% No condensation | |||
Protection Grade | IP30 | |||
Weight | G.W | 3.8KGS | ||

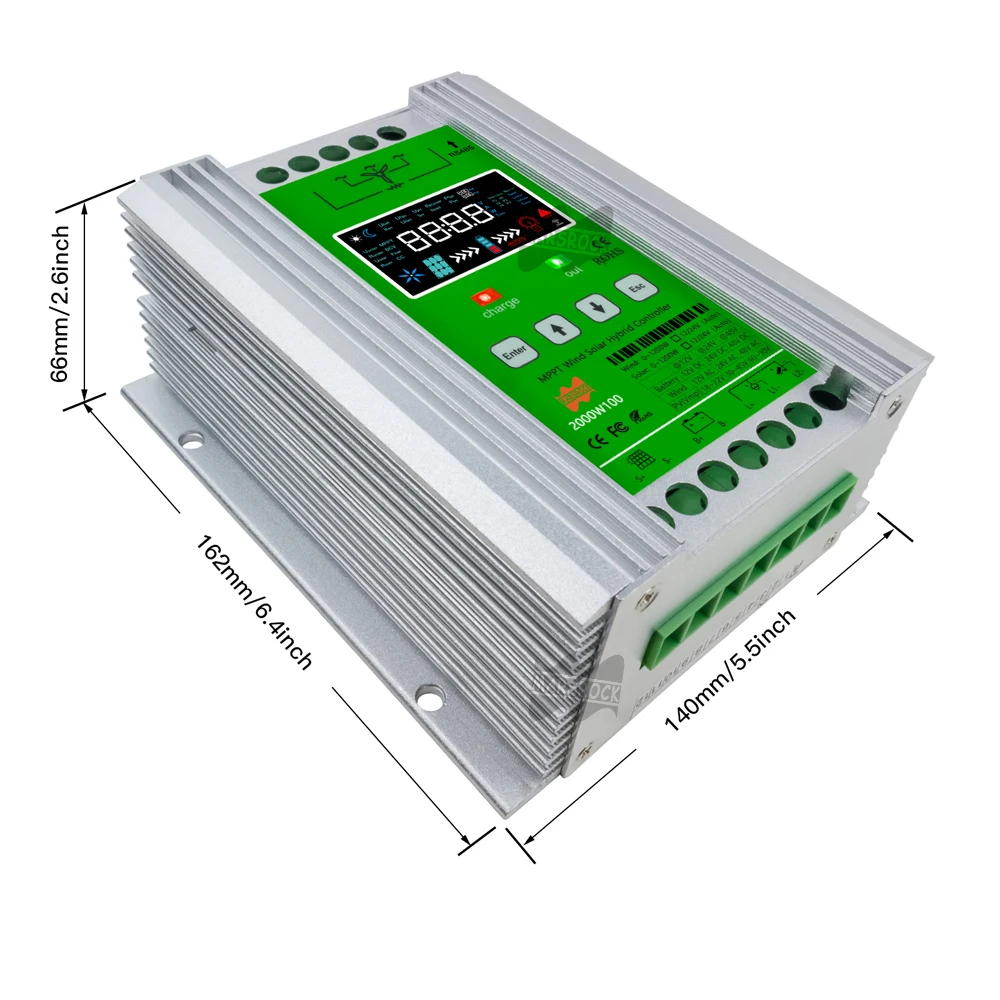

Size | Packing | 36*31*13CM/14.2*12.2*5.1Inch | ||
Product Highlights
The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring(optional).
The controller adopts color screen design, the display information is more comprehensive, the display interface is clearer, the controller supports WIFI module and GPRS module to expand and implement APP cloud monitoring(optional).
Application

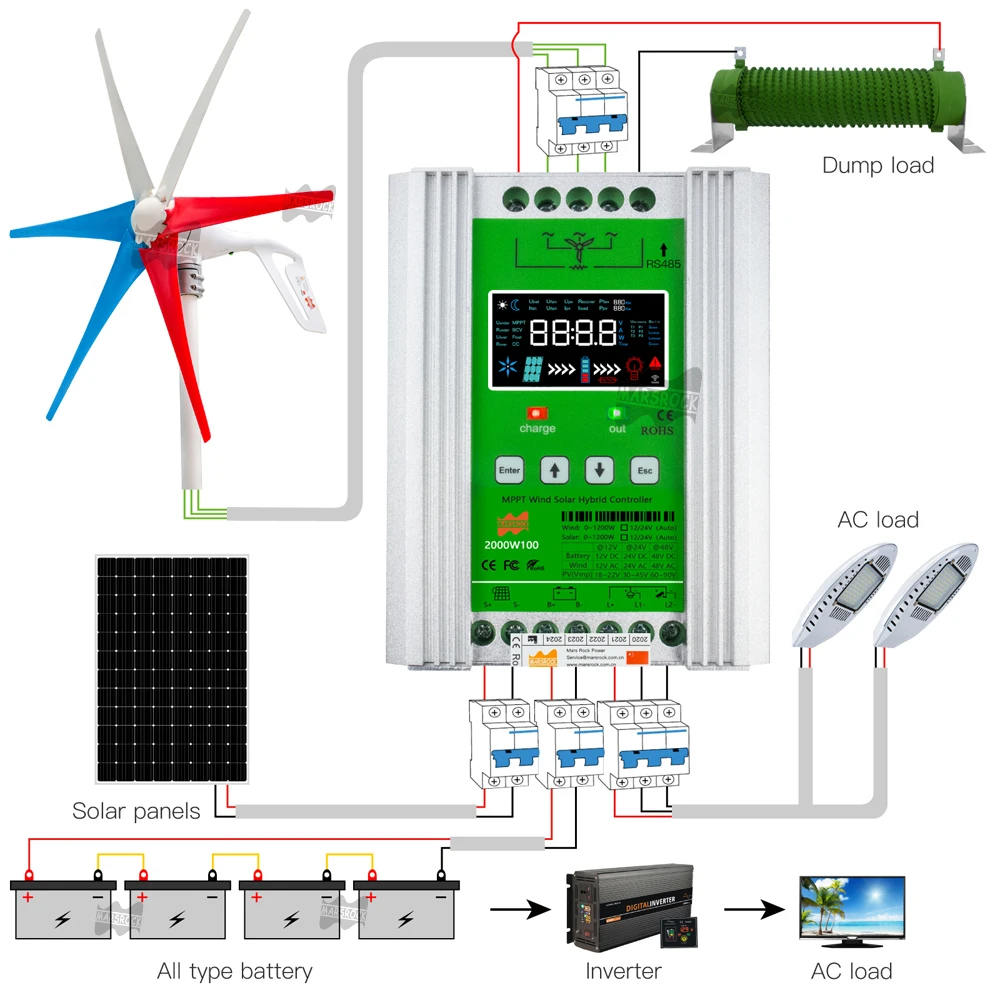

The controller is suitable for solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields
The controller is suitable for solar off-grid system, automatically controls charging and discharging, and can be applied in communication base stations, household systems, street lighting systems, monitoring and other fields
Feature

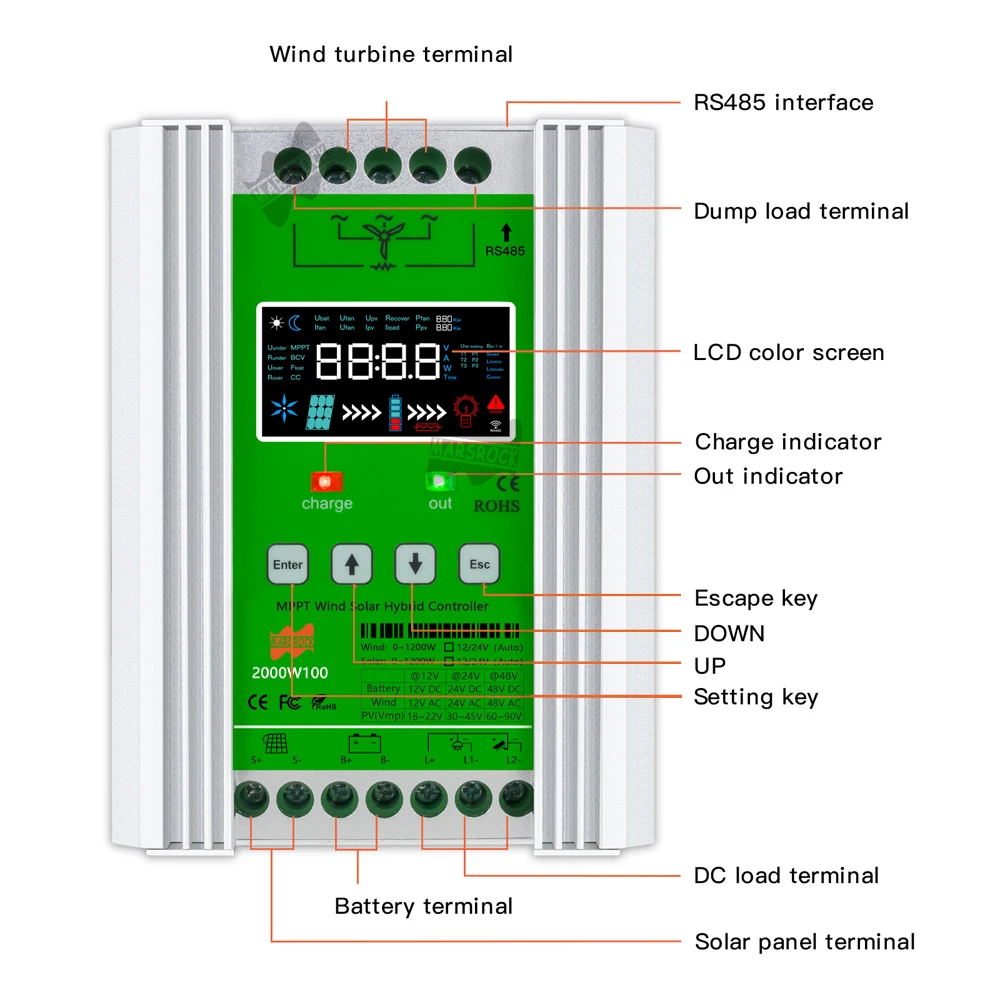

(1) The display adopts color screen design, the display information is more comprehensive, the display interface is clearer, and the 4-key man-machine interface and operation setting are more convenient;
(2) The MPPT control algorithm used for Wind charging ensures MPPT charging at low wind speed.
(3) Wind three-stage charging mode:MPPT charging; lifting charging; floating charging.
(4) Solar three-stage charging mode:CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 24V/48V battery system automatically recognizes (Optional).
(6) RS485 communication can provide communication protocol to facilitate unified management and secondary development for customer.
(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional ).
(8) The controller has comprehensive protection functions such as overcharge, over discharge and overload;
(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night;
(2) The MPPT control algorithm used for Wind charging ensures MPPT charging at low wind speed.
(3) Wind three-stage charging mode:MPPT charging; lifting charging; floating charging.
(4) Solar three-stage charging mode:CC (constant current); lifting charging; floating charging.
(5) 12V/24V battery system automatically recognizes, or 24V/48V battery system automatically recognizes (Optional).
(6) RS485 communication can provide communication protocol to facilitate unified management and secondary development for customer.
(7) The controller operating parameters can be viewed and set through the mobile phone APP( Optional ).
(8) The controller has comprehensive protection functions such as overcharge, over discharge and overload;
(9) Four battery types charging mode can be selected for operation: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate, Custom ;
(10) The controller has various load control modes, the load has two outputs, and the output power and time can be set;
(11) The controller has wide adaptability, adaptive day and night;
Packing & Delivery
Packaging Details:\tStrong cardboard boxes with enough foam
Delivery Detail:\tSamples can be delivered out within 15 days after payment
Delivery Detail:\tSamples can be delivered out within 15 days after payment
Company Profile

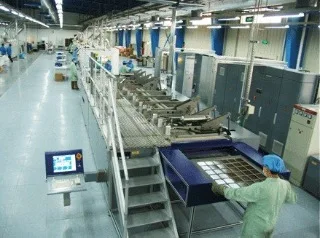

Mars Rock is located in Xiamen city of China. We achieved 1S0900t2008 quality management system certification,and our solar products have passed CE, FCC, RoHS, and National Inspection certifications and also have several national patents. Our main products are as below: Solar inverters, Lithium lifePO4 batteries all-in-one solar storage systems, and solar panels and has established Africa overseas warehouses to directly supply solar energy storage home systems, and provides local installation and after-sales services. Produce annually + 6,000,000 units UPS, inverters, EV charger & ESS. The largest scale ODM in industry.With 5,000 staffs , production floor 180,000m2 in China, 12,000m2, in Vietnam , 23,000m2. Total 350 engineers. 10 R&D departments, 12 R&D managers that every management team member has 20+ years experience industry.
