New 380V AC Power Lubricated Piston Air Compressor 37KW Natural Gas Compressor with 25bar Working Pressure Oil Lubrication Style
- Category: >>>
- Supplier: Bengbu Aot Compressor Co. Ltd.
Share on (1601205437492):
Product Overview
Description
Product Description
Product overview:
1.Product Overview: Natural gas compressors are our company's main products with mature technology and high stability, mainly including large, medium, and small natural gas compressors. The exhaust pressure ranges from o From 2MPa to 25.0MPa, the Engine displacement is from 0 From 2m3/min to 40m3/min, there are various types of compressors available for users to choose from, including Z-type, D-type, V-type, and W-type. Our company's natural gas compressor is also suitable for coalbed methane. Using natural gas compressors to boost and recover is not only beneficial for oil production, environmental protection, but also a good measure to maximize economic benefits. The main components of natural gas are methane, ethane, and gases such as carbon three and carbon four. Hydrogen sulfide and water are also mixed in it, and the composition is relatively mixed. Before entering the natural gas compressor, purification treatment is generally required to remove impurities and liquid free water.
2. Characteristics and performance: The entire machine has the characteristics of long service life, low leakage rate, safe and reliable product, and convenient maintenance.
3. Application scope: Widely used in oil fields, natural gas refueling stations, LNG factories, power plants, as well as gas supply stations and chemical plants.
2. Characteristics and performance: The entire machine has the characteristics of long service life, low leakage rate, safe and reliable product, and convenient maintenance.
3. Application scope: Widely used in oil fields, natural gas refueling stations, LNG factories, power plants, as well as gas supply stations and chemical plants.
Characteristics of performance
skid-mounted body | Compact structure, beautiful appearance, small floor area, easy lifting and maintenance. |
Unit | Large air volume, high reliability of working performance, stable operation, low vibration noise. |
Cooling System | The high efficiency air cooler is used as the cooling system to save resources, improve efficiency, and make the cooling system simple in structure and convenient in disassembly. |
Priority control panel | The control air source is provided by the high-pressure bottle group, with high safety, stable control and three-line efficient and fast charging function. |
Automatic control | Unattended automatic control can realize automatic switching of two working conditions. |
Driver | The motor USES frequency conversion soft start, the connection USES the high elastic coupling direct connection |

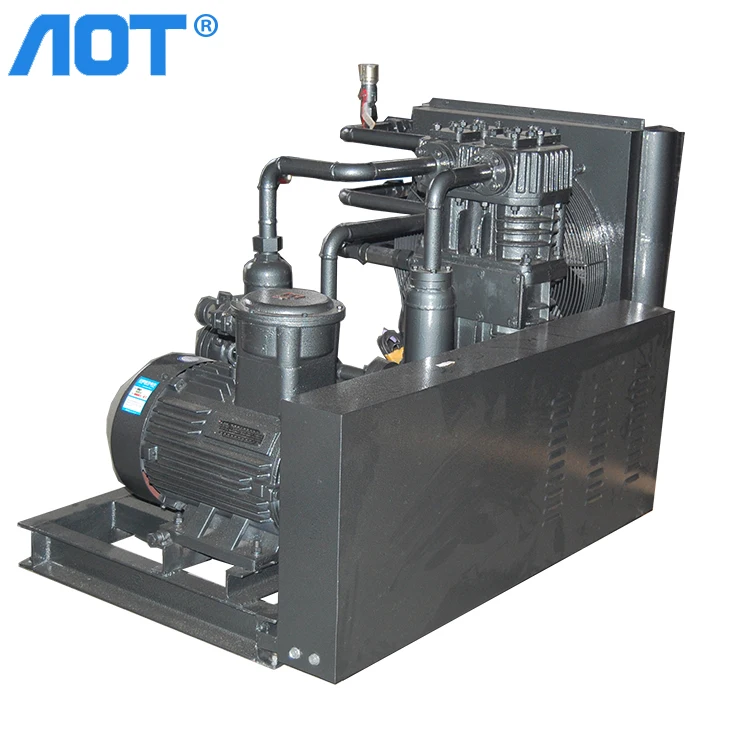

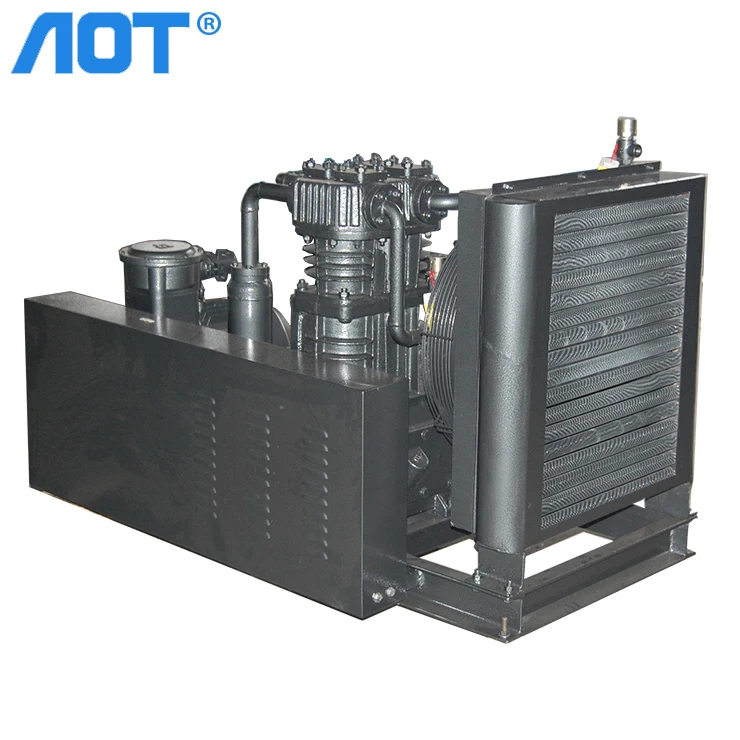

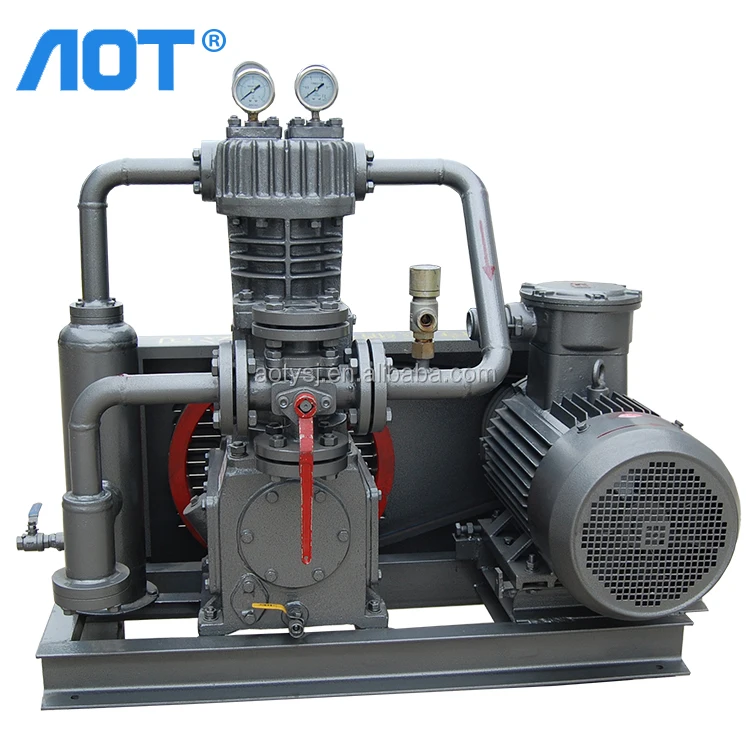

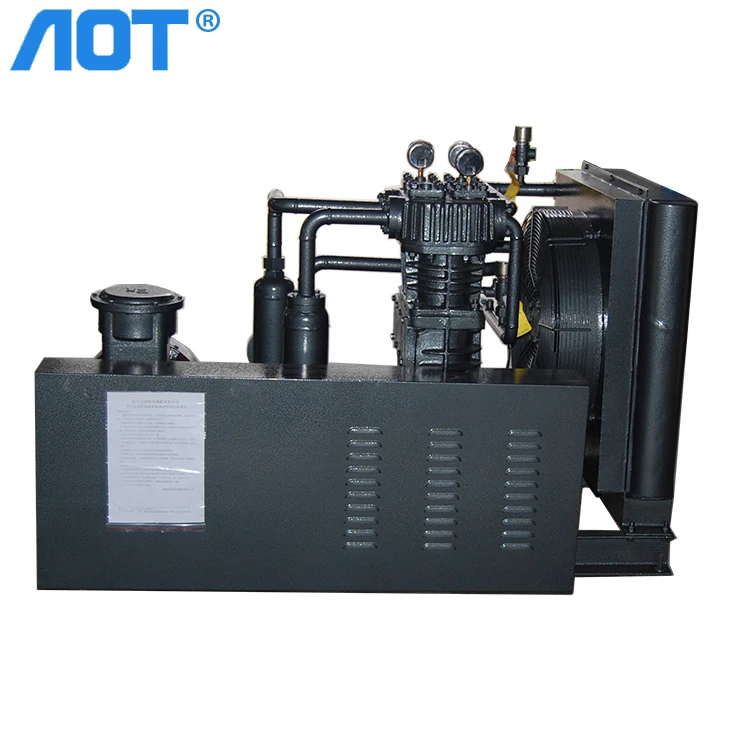

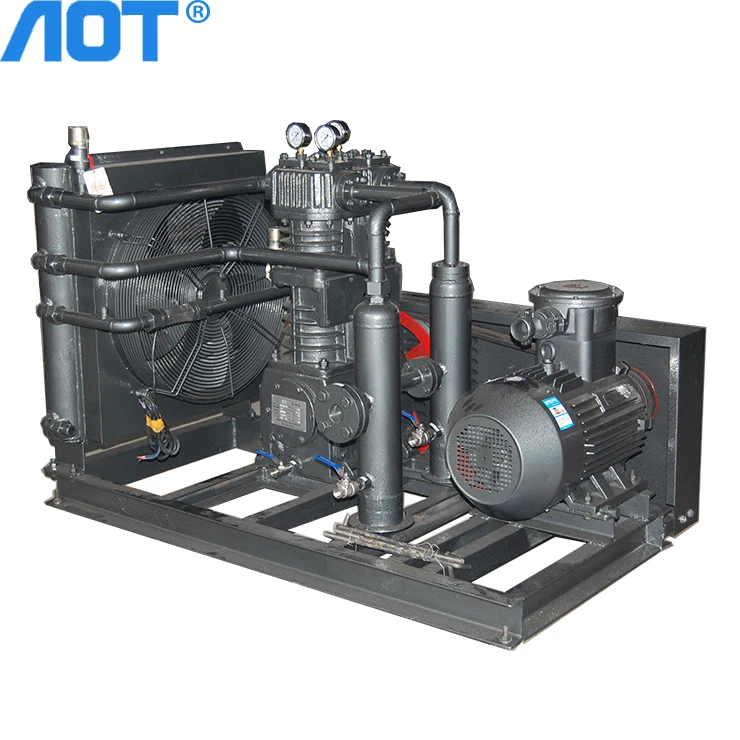

Detailed Images
Features:
The whole machine has the characteristics of safety and reliability, high stability, complete configuration and convenient maintenance
Technical Parameters
Compressor | Product Model | ZW-2.0/1-25 | |||
Type | Z Type | ||||
Compressed medium | natural gas | ||||
Nominal volume flow(Nm/min) | 3.5 | ||||
Compression stage | 3 | ||||
Cylinder number | 3 | ||||
Driving mode | Belt | ||||
Noise (sound pressure level) dB(A) | ≤85 | ||||
Cooling mode | Air cooling | ||||
Rotational speed (r/min) | 550★ | ||||
Suction pressure(mpa g) | 0.1 | ||||
Discharge Pressure(Mpa g) | 2.5 | ||||
Suction temperature (℃) | ≤40 | ||||
Discharge temperature (℃) | ≤160, (After cooling≤ambient temp+10℃) | ||||
Lubrication type | Crankshaft, connecting rod, cross head | Oil lubrication | |||
Cylinder, Packing | Oil-free lubrication | ||||
Motor | Model | YBX3-225S-4 | |||
Explosion-proof grade | DIIBT4 | ||||
Rotational speed (r/min) | 1480★ | ||||
Rated voltage (V) | 220 | ||||
Rated frequency(Hz) | 50 | ||||
Rated current (A) | 121.38 | ||||
Rated power (KW) | 37 | ||||
Compressor size (L×W×H) mm | ≈2800×1600×1600★ | ||||
Weight(kg) | ≈2500★ | ||||
Scope of supply
No. | Name | Number |
1 | Compressor host | 1 |
2 | Explosion-proof motor | 1 |
3 | Gas-liquid separator | 1 |
4 | Shared chassis | 1 |
5 | The relief valve | 1 |
6 | Belt | 1 set |
7 | Piping components | 1 set |
8 | Random spare parts | 1 set |
9 | The technical documentation | 1 set |
10 | Non explosion proof control cabinet | High inlet pressure automatic alarm shutdown Low inlet pressure automatic alarm shutdown |
Our Company
Certifications
Why Choose Us
Packing & Delivery
FAQ
Q1: Why choose us?
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
A: Bengbu AOT Compressor Co., Ltd., is specialized in Special Gas Compressor. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Anhui, China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 30 to 60 days, if urgently order, please contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 15 years.
Q6: What's payment term?
A: T/T, L/C, Western Union, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours online service available. 48hours problem solved promise.
Q8: How about your after-sales service?
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
A: Installation Services and online instructions. Well-trained engineers available to overseas service.
