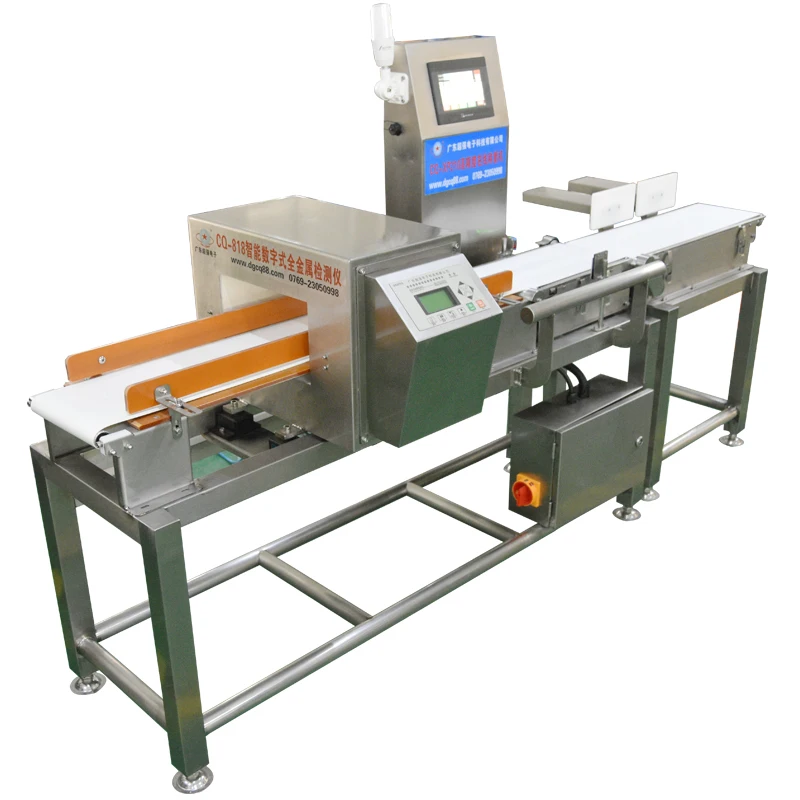

Automatic Combination machine Touch Screen Check Weigher And Metal Detector For Food Industry

Automatic Combination machine Touch Screen Check Weigher And Metal Detector For Food Industry

Category: >>>
Supplier: Hunan Jinlian Cloud Information Technology Co. Ltd.

Price:$6,200.00 - $6,700.00

Quantity:

Product Overview

Description

Products Description

Combo Food Metal Detector and Online Checkweigher Scope of Application:

Food, medicine, aquatic products, toys, clothing, shoemaking, chemical, leather, knitting, printing and other industries detect metal impurities mixed in products or raw materials during the production process. Such as: iron, non-magnetic metal objects (gold, silver, copper, aluminum, stainless steel and other non-ferrous metals can be detected), improve product production quality and reduce harm, and effectively ensure that the products that flow into the hands of consumers are safe, reliable and assured products .

It is suitable for testing whether the weight of a single product is qualified,whether the product is missing or too much. Widely used in food, medicine, daily chemical, industrial manufacturing, orinting,materials Streaming and other indus stries.

Nine selling points：

Set parameters with one key, reject cumbersome adjustments.

100 kinds of product parameter memory storage function.

Original imported chips, equipment performance is more stable.

Filling detection coil, higher accuracy, stronger anti-interference performance.

Product effect automatic learning function, saving time and more efficient.

Reverse inspection function to quickly detect whether the product is missing.

Buzzer warning, automatic shutdown when metal foreign body is detected.

A variety of rejection devices: flip, push rod, blowing, to meet your needs.

Accurately detect 0.3mm metal foreign body, there is nowhere to hide the foreign body.

Technical parameters

Language system: English or customized

\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t

\t\t\t

Metal Detector Parameter

\t\t\t

model

\t\t\t

YW-818/910K

\t\t\t

Detection channel heiht(mm)

\t\t\t

100

\t\t\t

120

\t\t\t

150

\t\t\t

200

\t\t\t

250

\t\t\t

300

\t\t\t

350

\t\t\t

Sensitve (≥Φmm)
\t\t\t

（No load belt surface detection ）

\t\t\t

lron ball Fe diameter

\t\t\t

0.7

\t\t\t

0.8

\t\t\t

1.0

\t\t\t

1.5

\t\t\t

2.0

\t\t\t

2.5

\t\t\t

2.8

\t\t\t

Non-ferrous metals such as copper and aluminum

\t\t\t

1.3

\t\t\t

1.5

\t\t\t

1.8

\t\t\t

2.0

\t\t\t

2.5

\t\t\t

2.8

\t\t\t

3.7

\t\t\t

stainless steel diameter

\t\t\t

1.5

\t\t\t

2.0

\t\t\t

2.0

\t\t\t

2.5

\t\t\t

3.0

\t\t\t

3.3

\t\t\t

4.3

\t\t\t

Body material

\t\t\t

The whole machine is made by 304 stainless steel cold drawing process

\t\t\t

Alarm method

\t\t\t

Automatic detection of foreign objects stops,and output 12V buzzer alarm sound（A variety of rejection devices can be customized:

\t\t\tflip, pull rod, push rod, air jet, etc.）

\t\t\t

Power supply

\t\t\t

power supply:220V 50Hz power:120W

\t\t\t

weighing capacity

\t\t\t

≤20 Speed:25~30m/min(not adjustable)

\t\t\t

Working desk

\t\t\t

Height:700mm(customzable height)

\t\t\t

Metal Detector Parameter

\t\t\t

model

\t\t\t

YW-806/807

\t\t\t

Detection channel heiht(mm)

\t\t\t

100

\t\t\t

120

\t\t\t

150

\t\t\t

200

\t\t\t

250

\t\t\t

300

\t\t\t

350

\t\t\t

Sensitve (≥Φmm)

\t\t\t

lron ball Fe diameter

\t\t\t

（No load belt surface detection ）

\t\t\t

0.7

\t\t\t

0.8

\t\t\t

1.0

\t\t\t

1.5

\t\t\t

2.0

\t\t\t

2.5

\t\t\t

2.8

\t\t\t

Body material

\t\t\t

The whole machine is made by 304 stainless steel cold drawing process

\t\t\t

Alarm method

\t\t\t

Automatic detection of foreign objects stops,and output 12V buzzer alarm sound（A variety of rejection devices can be customized:

\t\t\tflip, pull rod, push rod, air jet, etc.）

\t\t\t

Power supply

\t\t\t

power supply:220V 50Hz power:120W

\t\t\t

weighing capacity

\t\t\t

≤20 Speed:25~30m/min(not adjustable)

\t\t\t

Working desk

\t\t\t

Height:700mm(customzable height)

\t\t\t

\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t\t
\t\t
\t

\t\t\t

Online checkweigher Parameter

\t\t\t

Model

\t\t\t

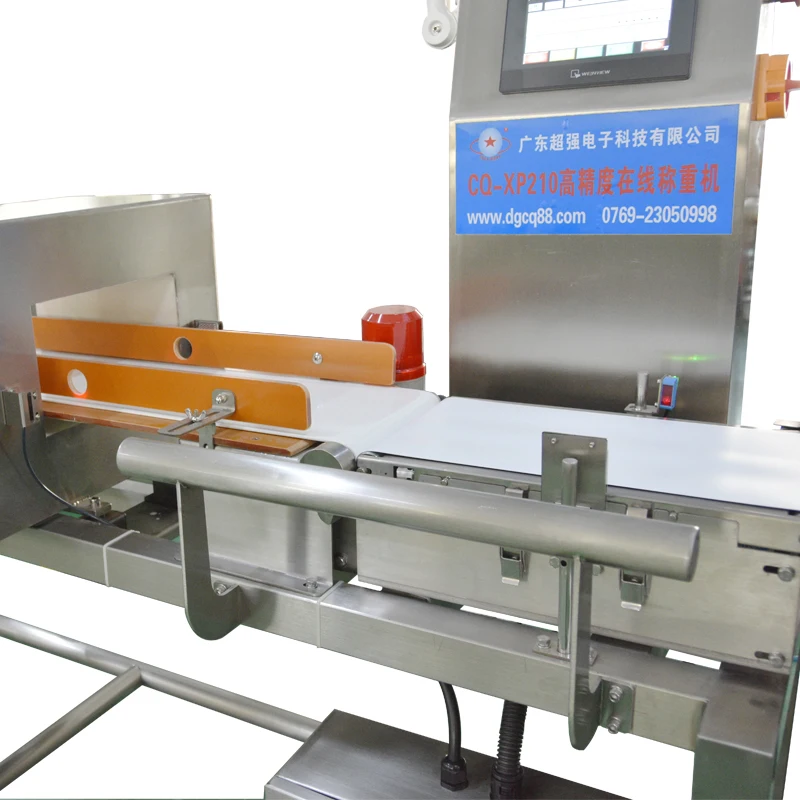

CQ-XP1010

\t\t\t

CQ-XP210

\t\t\t

CQ-XP300

\t\t\t

CQ-XP400

\t\t\t

CQ-XP500

\t\t\t

CQ-XP600

\t\t\t

Weighing range

\t\t\t

200g

\t\t\t

1000g

\t\t\t

3000g

\t\t\t

15kg

\t\t\t

40kg

\t\t\t

50kg

\t\t\t

Weighing accuracy

\t\t\t

±0.05g-±0.1g

\t\t\t

±0.3g-±0.5g

\t\t\t

±0.5g-±2g

\t\t\t

±2g-±10g

\t\t\t

±5g-±15g

\t\t\t

±8g-±20g

\t\t\t

Minimum scale

\t\t\t

0.01g

\t\t\t

0.1g

\t\t\t

0.1g

\t\t\t

Conveyor speed

\t\t\t

20-60m/min

\t\t\t

30-100m/min

\t\t\t

30-90m/min

\t\t\t

30-70m/min

\t\t\t

20-35m/min

\t\t\t

15-25m/min

\t\t\t

Sorting speed

\t\t\t

180pcs/min

\t\t\t

160pcs/min

\t\t\t

80pcs/min

\t\t\t

70pcs/min

\t\t\t

30pcs/min

\t\t\t

30pcs/min

\t\t\t

Belt height

\t\t\t

700mm±30mm

\t\t\t

700mm±30mm

\t\t\t

700mm±30mm

\t\t\t

700mm±30mm

\t\t\t

700mm±30mm

\t\t\t

700mm±30mm

\t\t\t

Weighing part

\t\t\t

250(L)*120(W)mm

\t\t\t

400(L)*210(W)mm

\t\t\t

450(L)*300(W)mm

\t\t\t

620(L)*400(W)mm

\t\t\t

900(L)*500(W)mm

\t\t\t

1200(L)*600(W)mm

\t\t\t

Rejection part

\t\t\t

400(L)*120(W)mm

\t\t\t

700(L)*210(W)mm

\t\t\t

900(L)*300(W)mm

\t\t\t

900(L)*400(W)mm

\t\t\t

900(L)*500(W)mm

\t\t\t

935(L)*600(W)mm

\t\t\t

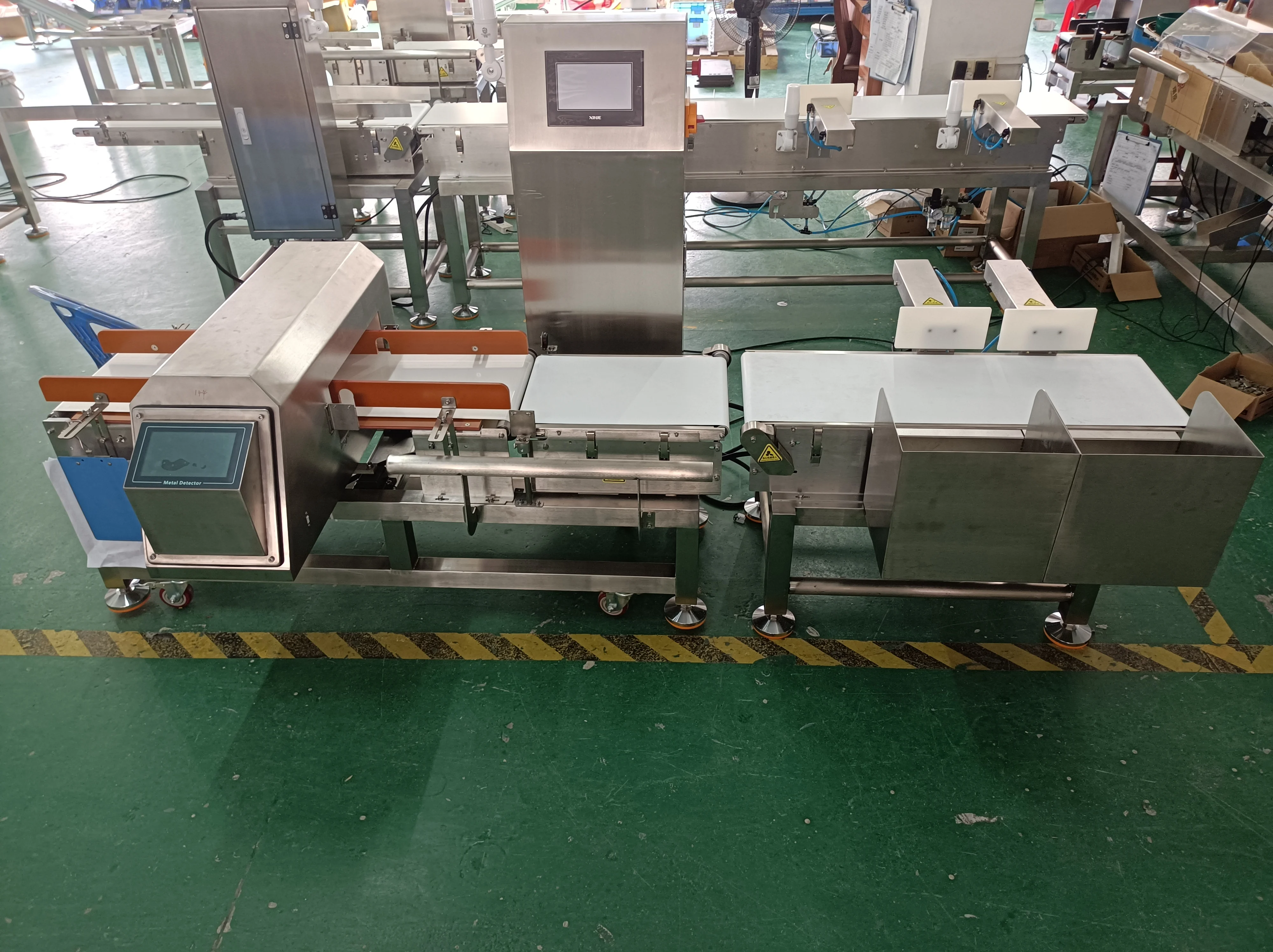

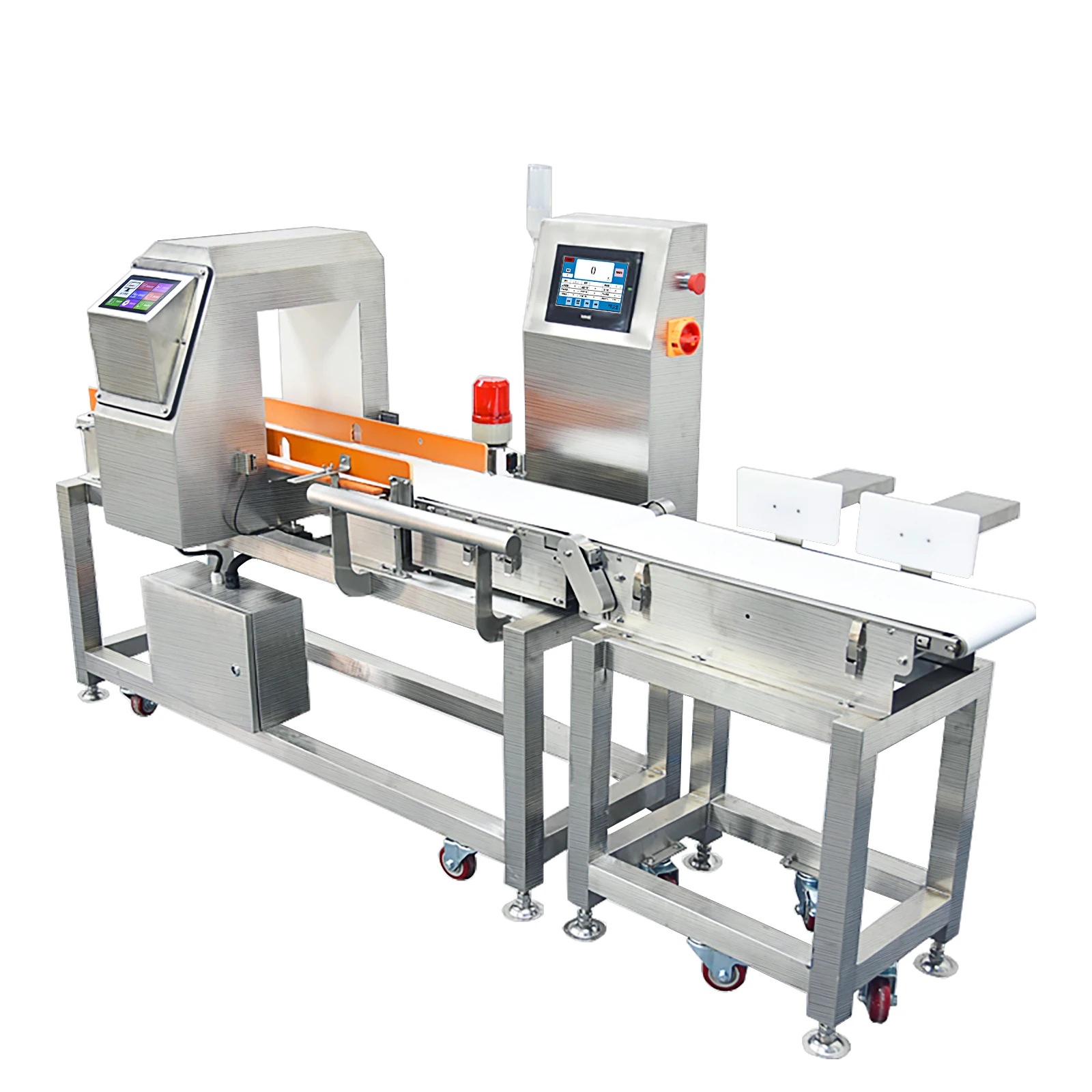

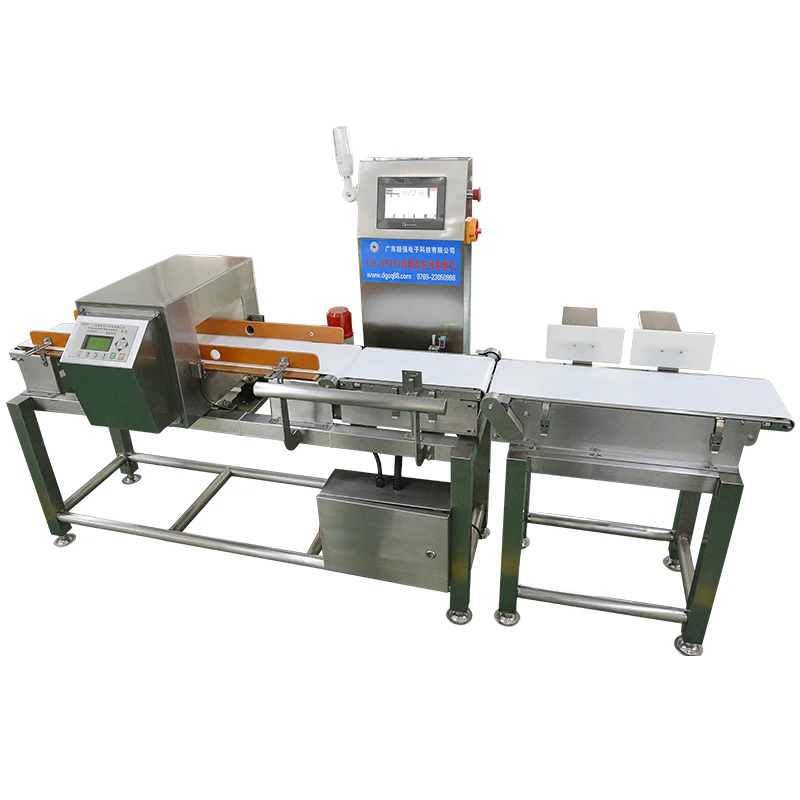

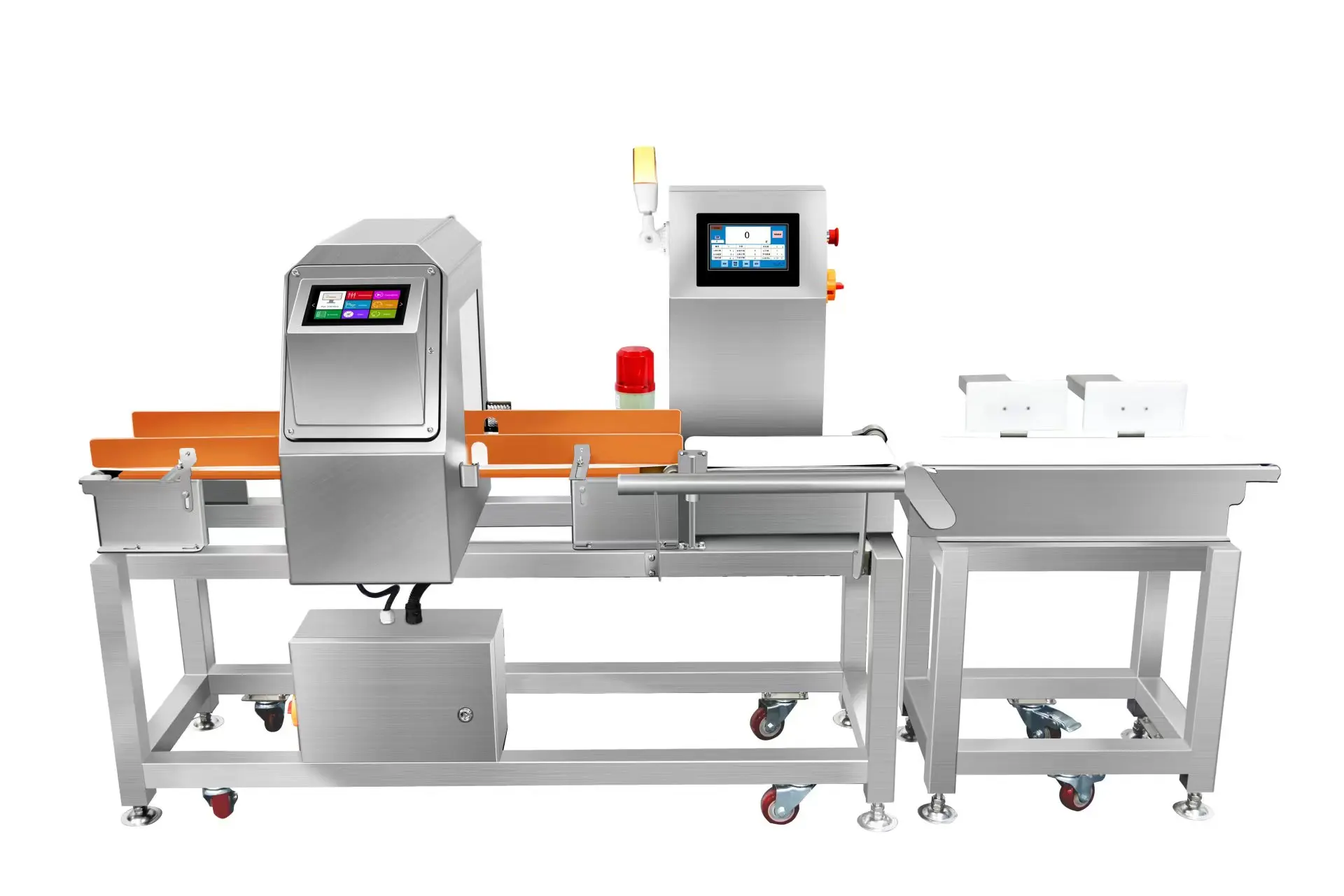

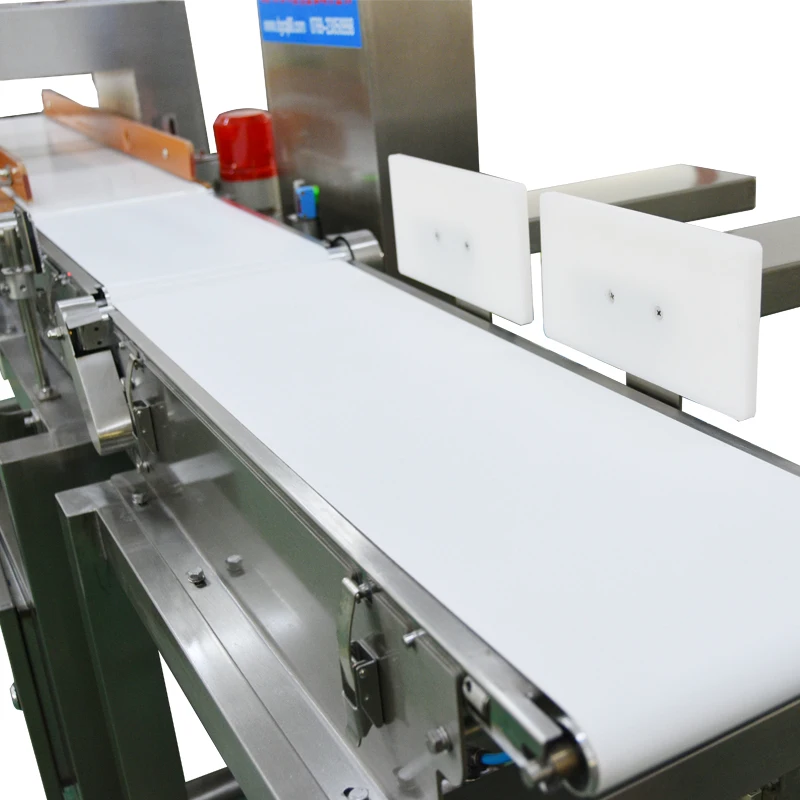

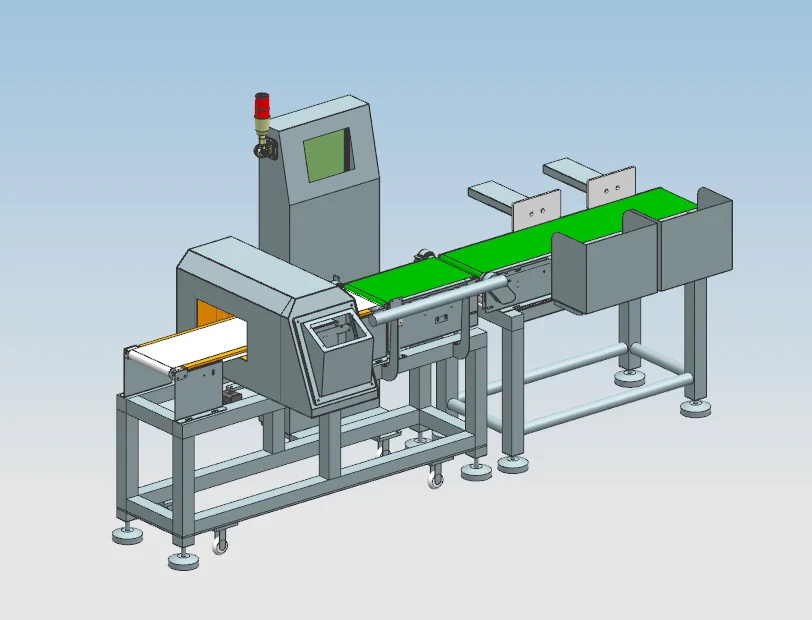

Product details

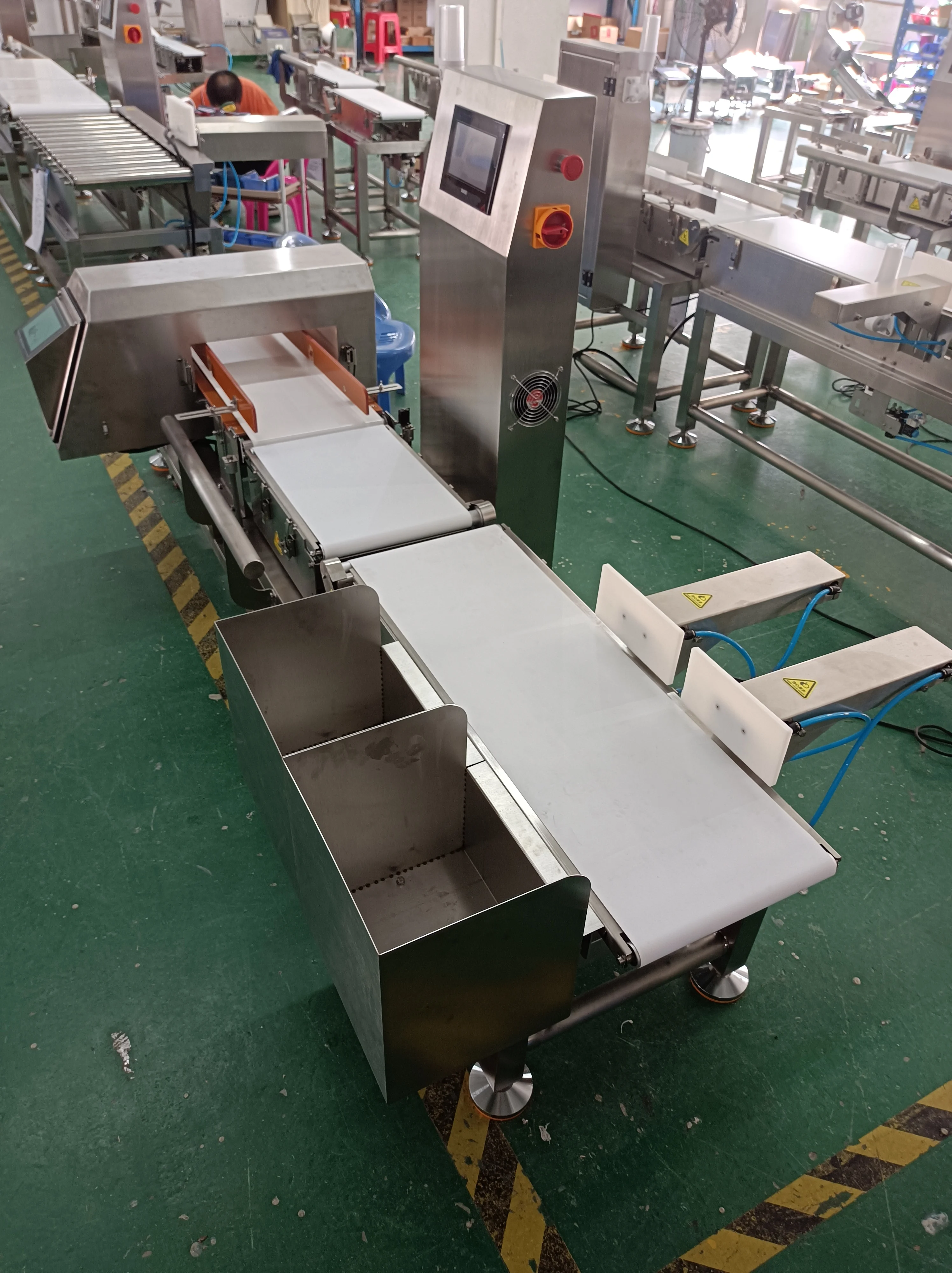

Customer Photos

FAQ

1.How long of the warranty period? Whole machine 1year. In warranty period, We will send the part free to replace the one that is broken 2.How can I trust you for the first time business ? Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba Trade Assurance service. it will protect your money during the whole stage of transaction. 3.What is your terms of payment? T/T,L/C,Western Union, etcA:T/T 30% as deposit,and 70% before delivery.We'll show you the?photos?of the products and packages before you paythebalance.or 100% L/C at sight . 4.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order? Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you updated of production details of emails and photos. 5.Are you provide product metal parts and provide us technical guidance? Wearing parts,for example, motor belt,Disassembly tool(free) are what we could provide.And we can give you technical guidance.

Please feel free to contact me if you are interested in our machines.

(24 hours online service)
