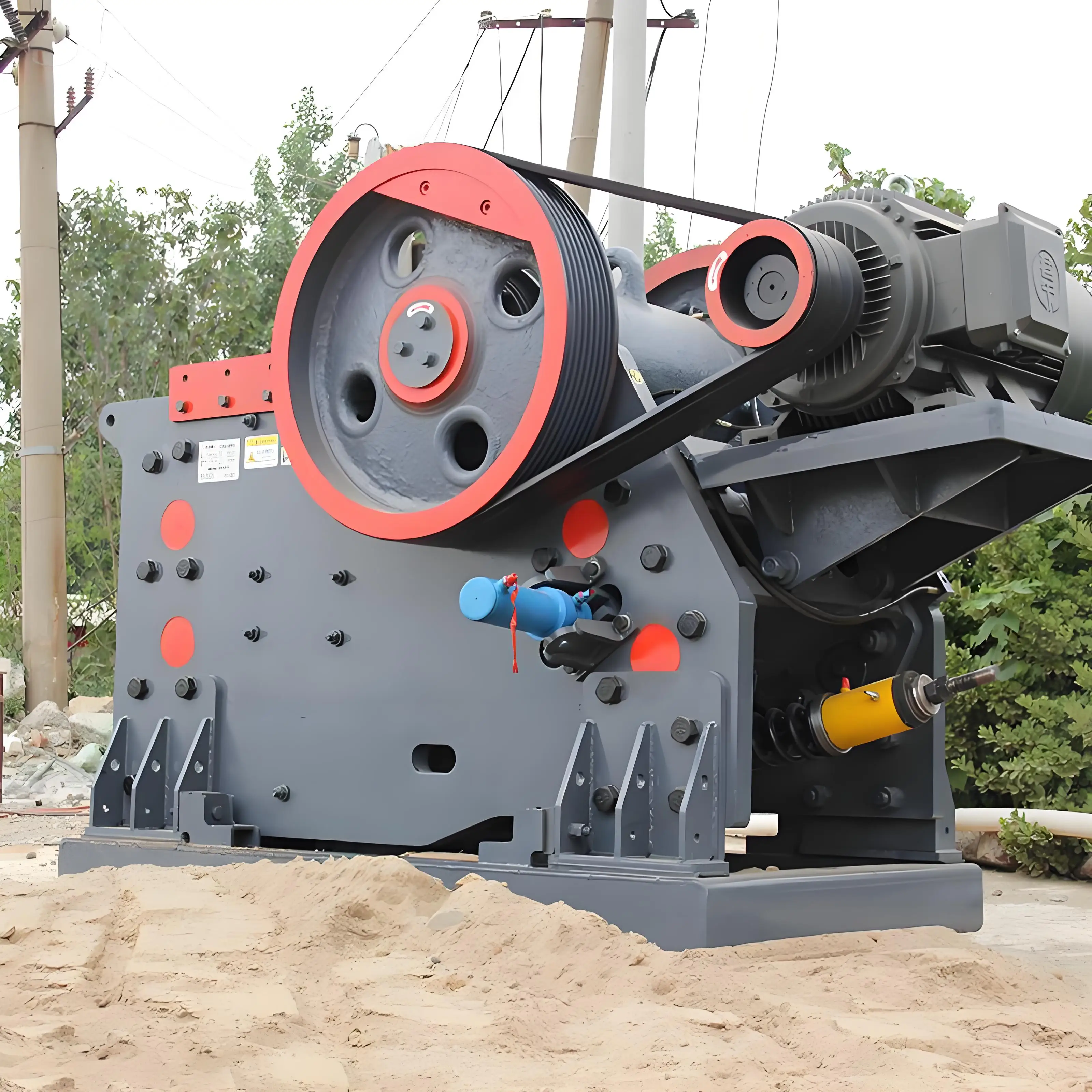

Factory Direct Sale Energy Saving Quartz Stone Limestone Durable Euro Jaw Crusher High Crushing Capacity Large Crushing Chamber
- Category: >>>
- Supplier: Henan Shaolin Heavy Machines Co. Ltd.
Share on (1601205461512):
Product Overview
Description

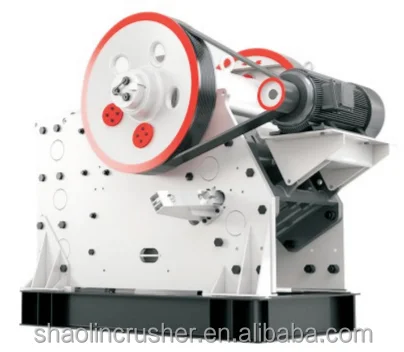

Main equipment introduction
Product Introduction:

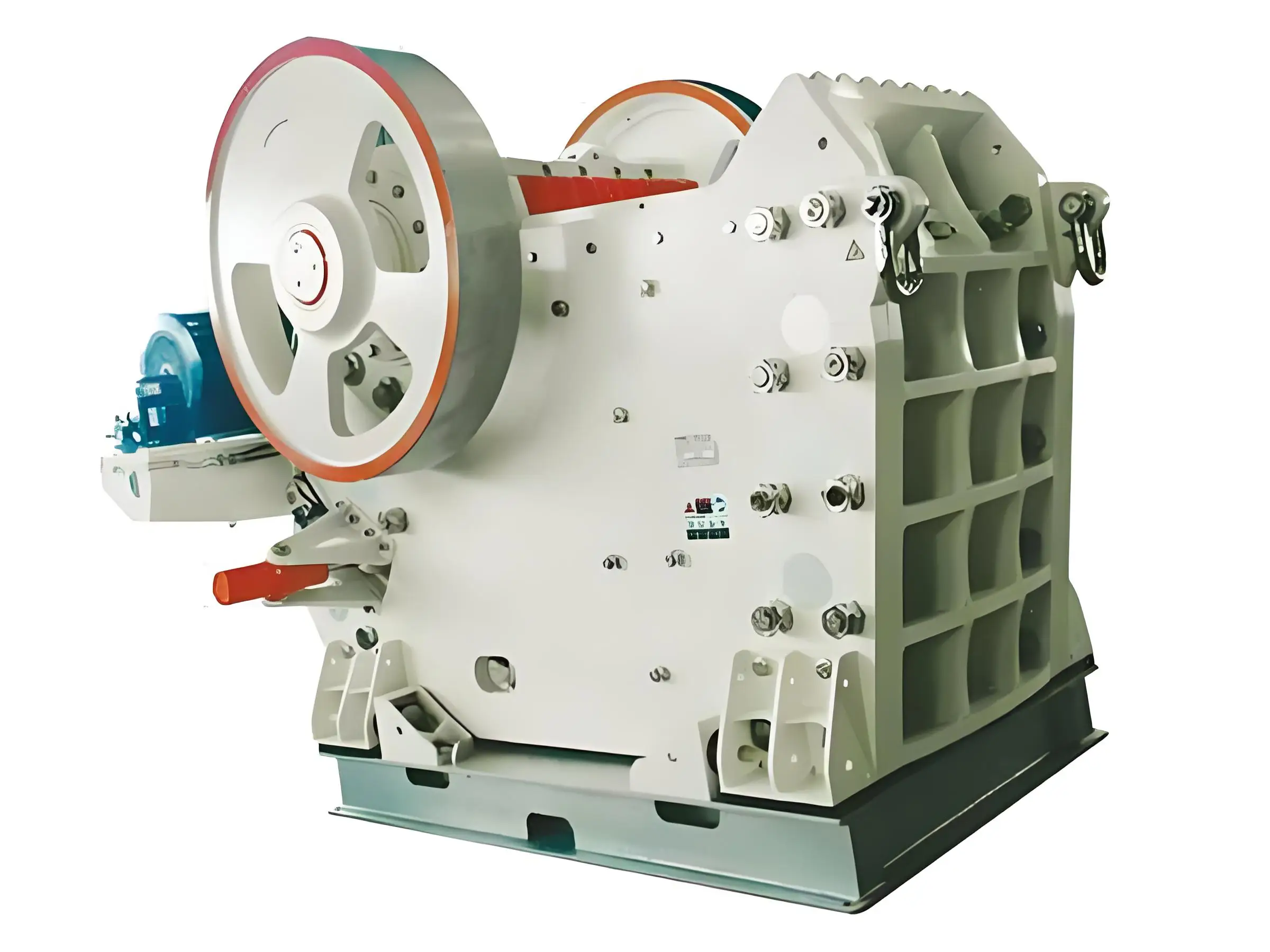

C series jaw crusher is our company in the introduction, absorption of advanced jaw
crusher technology in Europe and the United States, based on the priority design and development of a new type of jaw crusher, is
the preferred equipment for coarse crushing of various rocks.
Application field:
Widely used in metallurgy, mining, chemical industry, cement, construction, refractory materials and ceramics and other industrial
sectors.
crusher technology in Europe and the United States, based on the priority design and development of a new type of jaw crusher, is
the preferred equipment for coarse crushing of various rocks.
Application field:
Widely used in metallurgy, mining, chemical industry, cement, construction, refractory materials and ceramics and other industrial
sectors.
Product Features & Benefits
1. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.
2. Its crushing ratio is large, and the particle size of the product is uniform.
3. Gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of theequipment.
2. Its crushing ratio is large, and the particle size of the product is uniform.
3. Gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of theequipment.
4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
5. Simple structure, reliable work and low operating cost.
6.Equipment energy saving: a single motor saves energy by 15%～30%, and the system energy saving is more than twice that of the system.
7.The discharge port has a large adjustment range, which can meet the requirements of different users.
8.Low noise and less dust.
5. Simple structure, reliable work and low operating cost.
6.Equipment energy saving: a single motor saves energy by 15%～30%, and the system energy saving is more than twice that of the system.
7.The discharge port has a large adjustment range, which can meet the requirements of different users.
8.Low noise and less dust.
Introduction to process

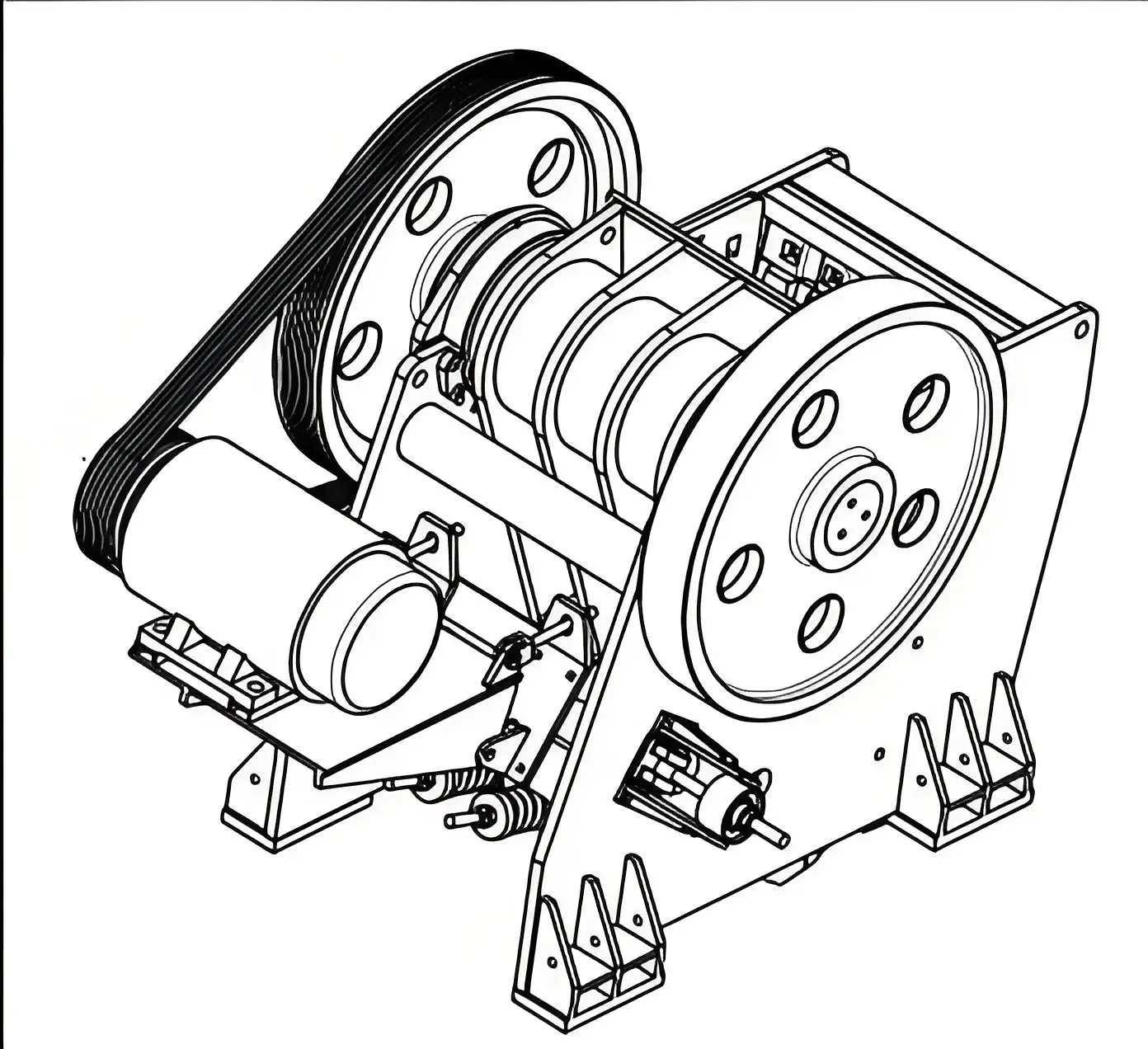

How It works:

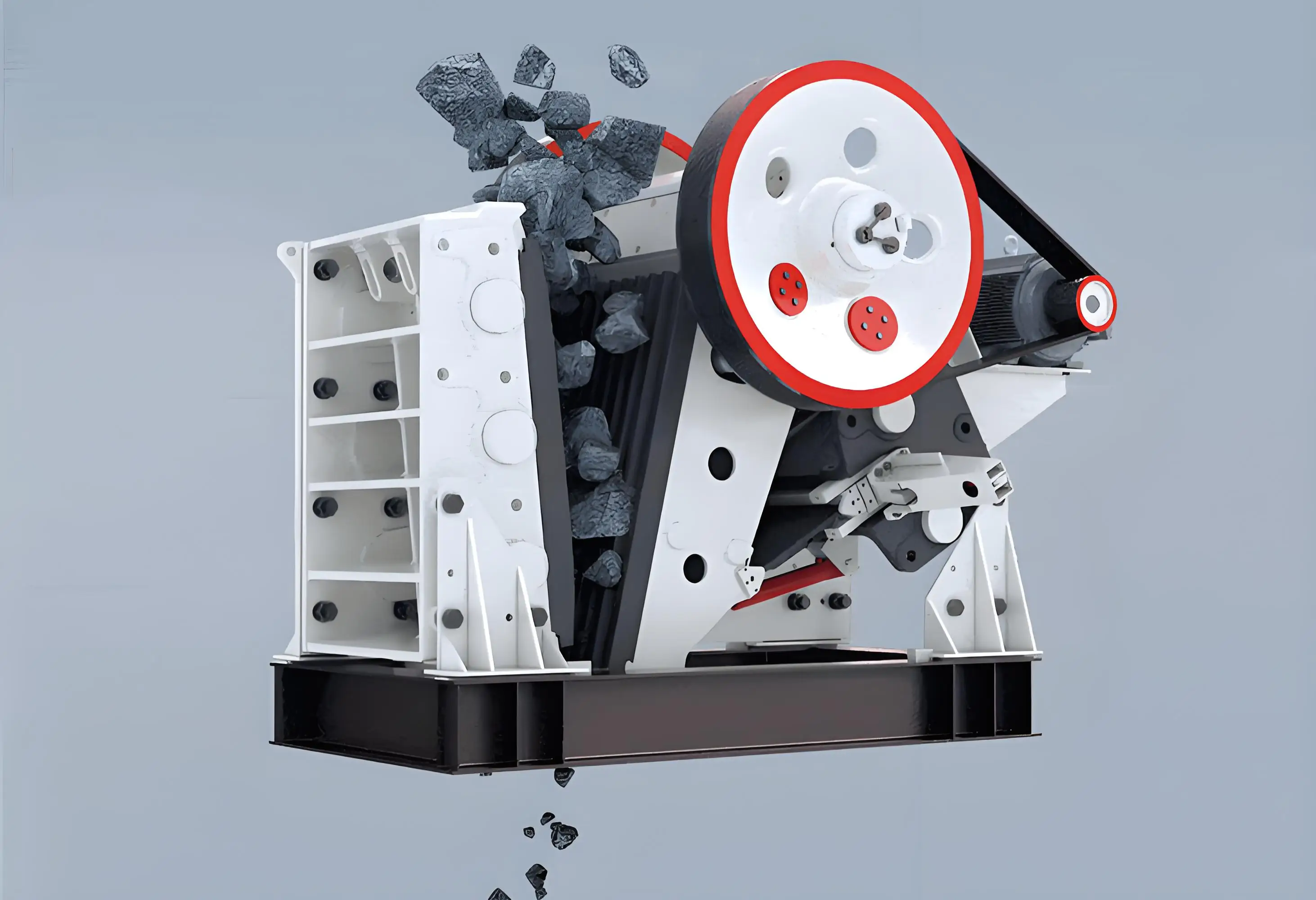

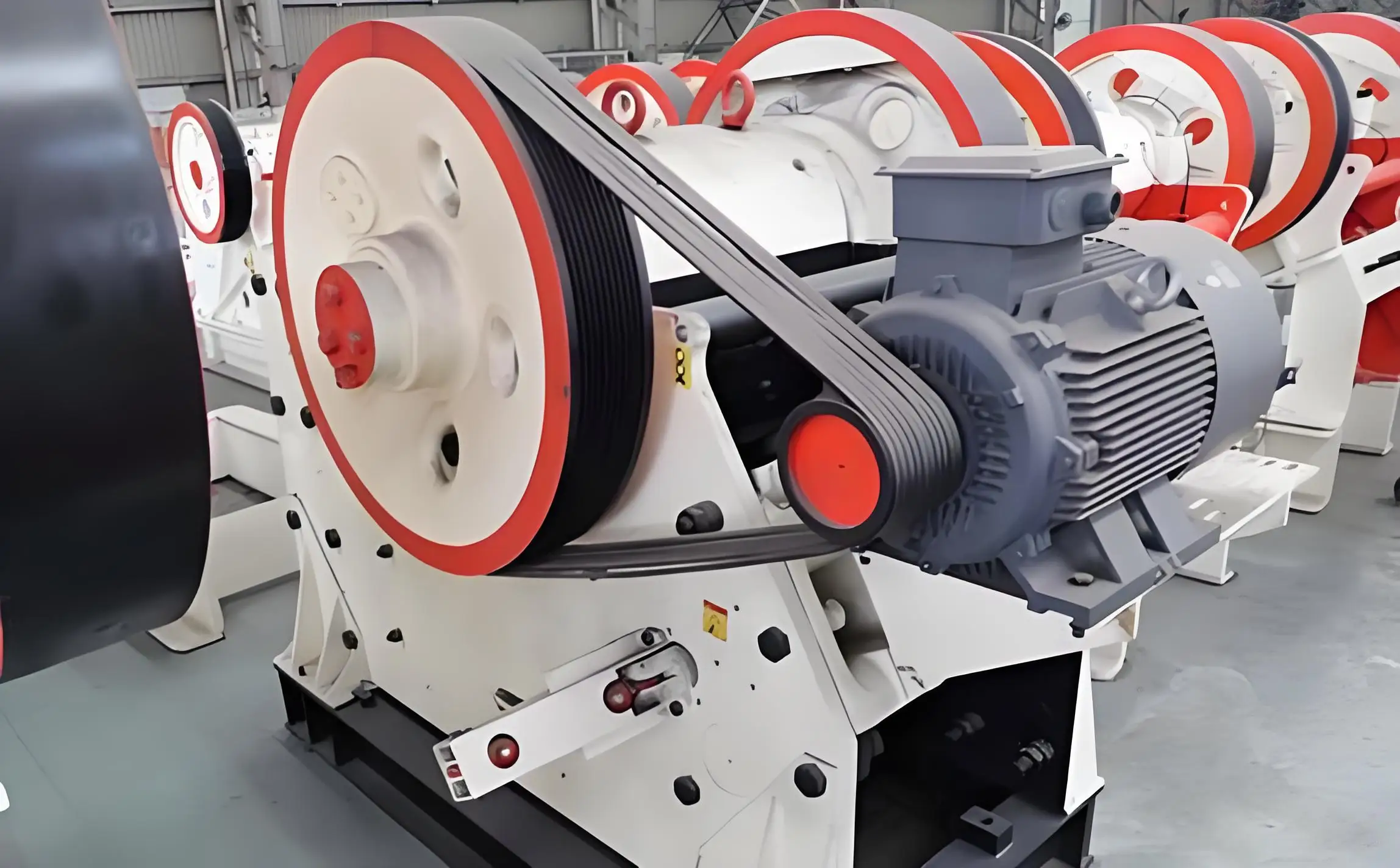

The motor drives the belt and the pulley, so that the moving jaw moves up and down through the eccentric shaft. When the moving
jaw rises, the angle between the toggle plate and the moving jaw becomes larger, so that the moving jaw plate is pushed closer to
the fixed jaw plate. At the same time, the material is crushed by extrusion, friction and grinding. When the moving jaw sinks, the
angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action
of the tie rod and spring, and the crushed material is discharged from the lower mouth of the crushing chamber of the jaw crusher.
jaw rises, the angle between the toggle plate and the moving jaw becomes larger, so that the moving jaw plate is pushed closer to
the fixed jaw plate. At the same time, the material is crushed by extrusion, friction and grinding. When the moving jaw sinks, the
angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action
of the tie rod and spring, and the crushed material is discharged from the lower mouth of the crushing chamber of the jaw crusher.
Product Parameter
Model number | Feed port size (mm) | Maximum feed size (mm) | Discharge port adjustment range (mm) | speed（r/min） | Motor power (kw) | Processing capacity (t/h) |
C80 | 800x510 | 410 | 40-175 | 350 | 75 | 55-300 |
C96 | 960x580 | 460 | 60-175 | 330 | 75 | 120-450 |
C110 | 1100x850 | 680 | 70-200 | 280 | 132 | 190-600 |
C125 | 1250x950 | 760 | 100-225 | 220 | 160 | 290-760 |
C140 | 1400x1070 | 860 | 125-250 | 220 | 220 | 325-850 |
C160 | 1600x1200 | 960 | 150-300 | 220 | 250 | 520-1200 |

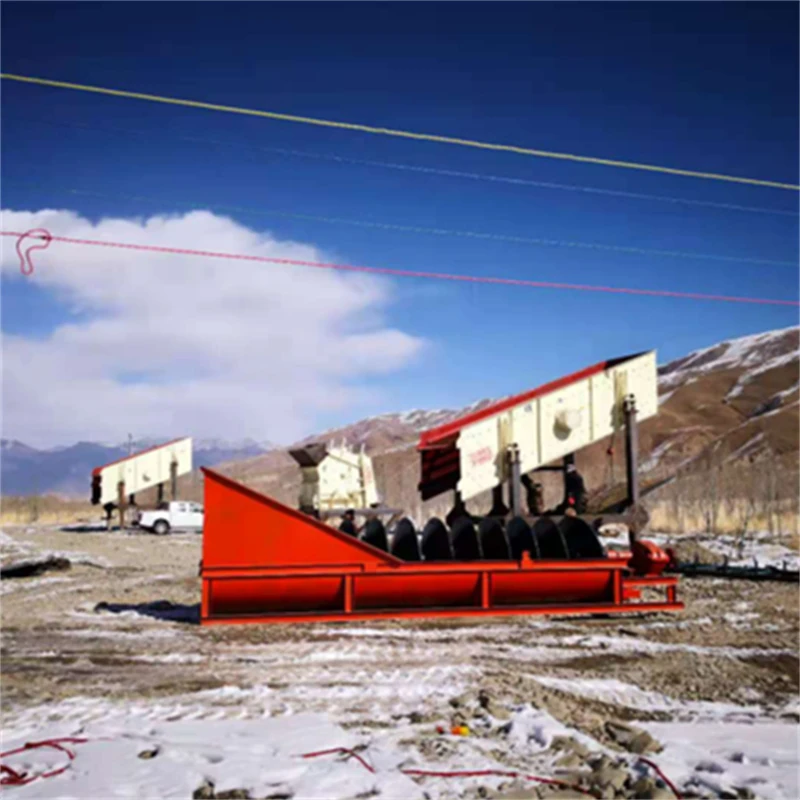

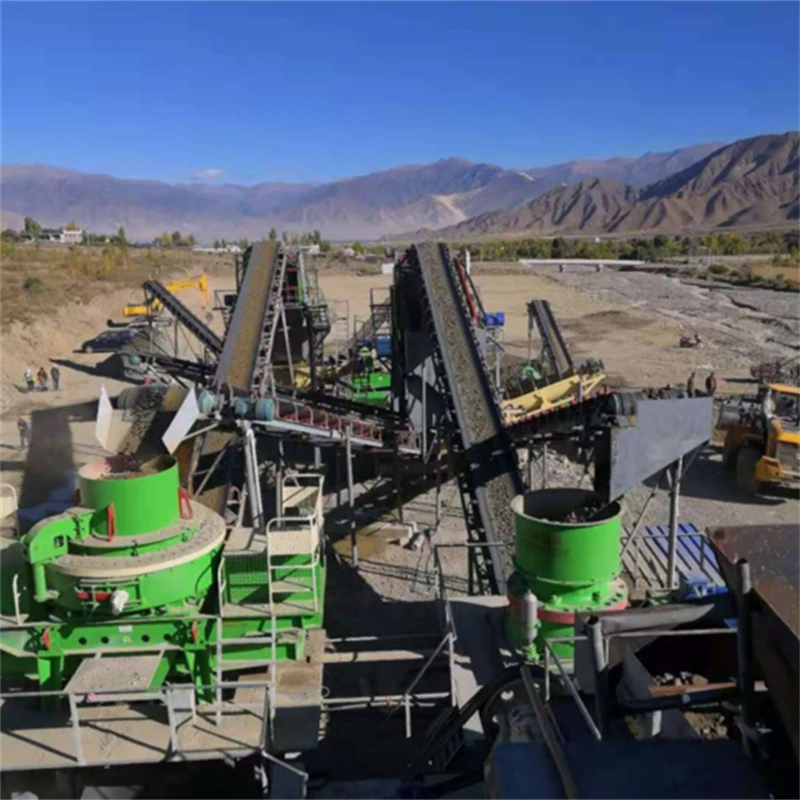

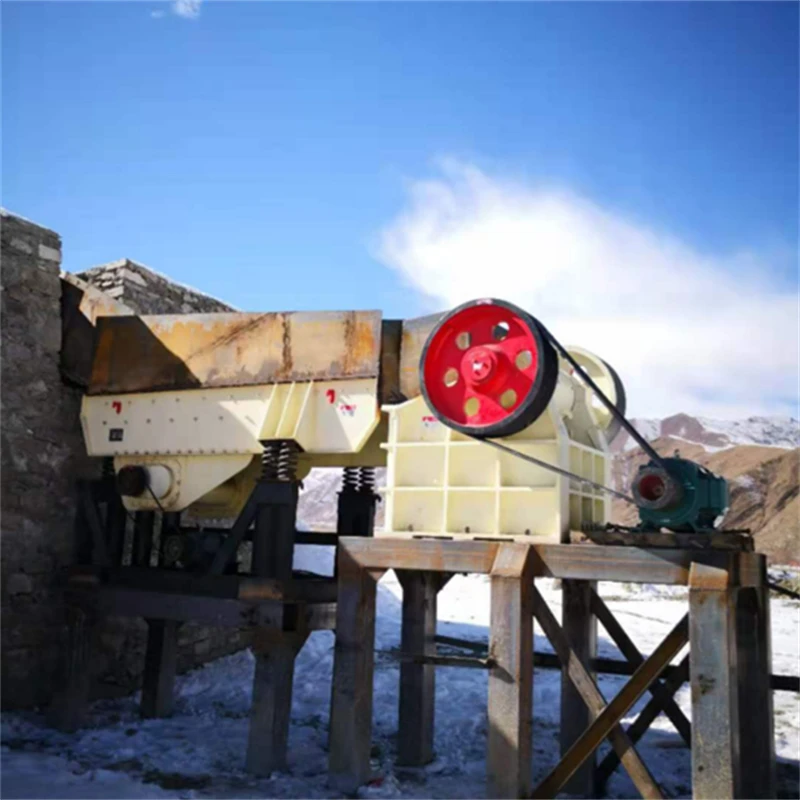

Application site

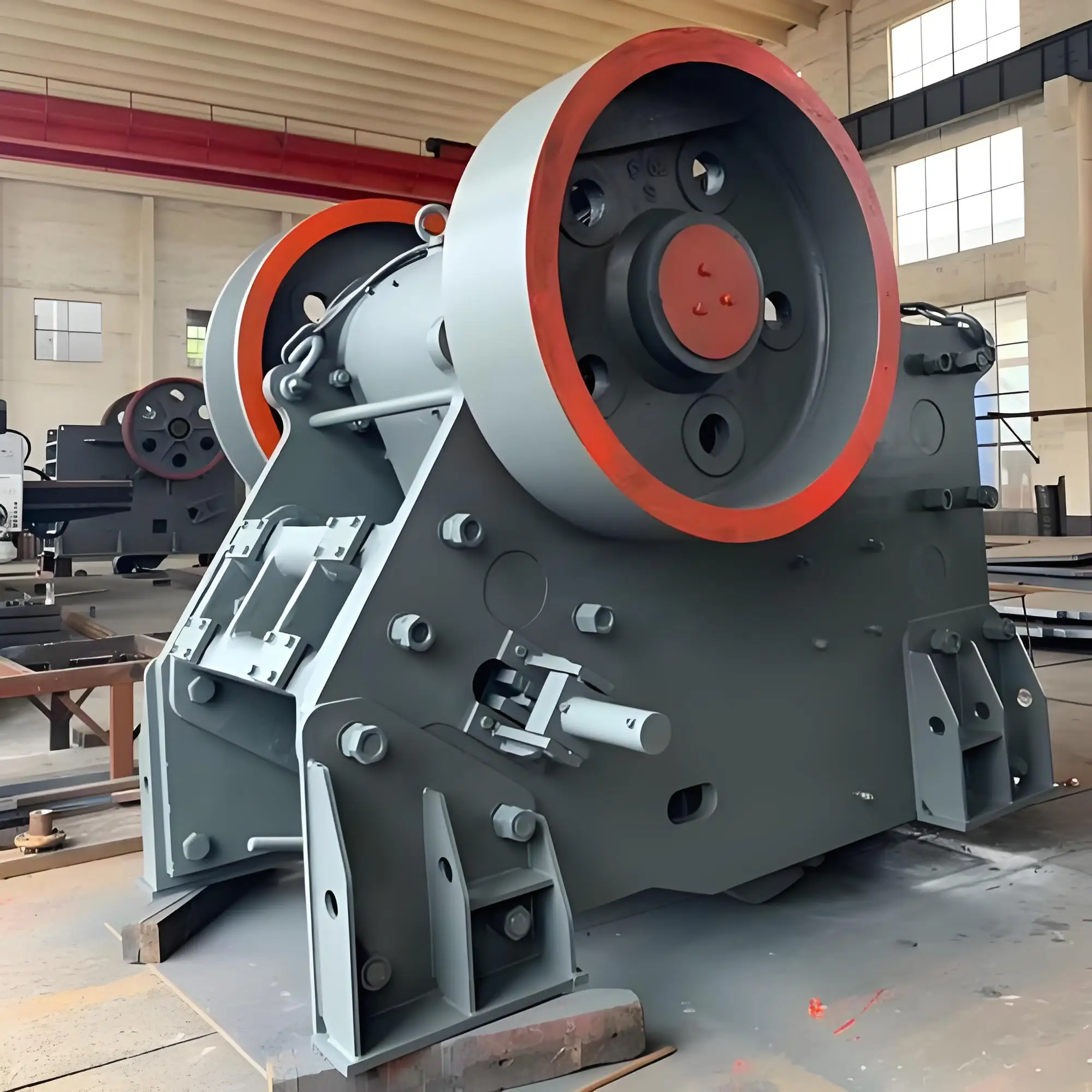

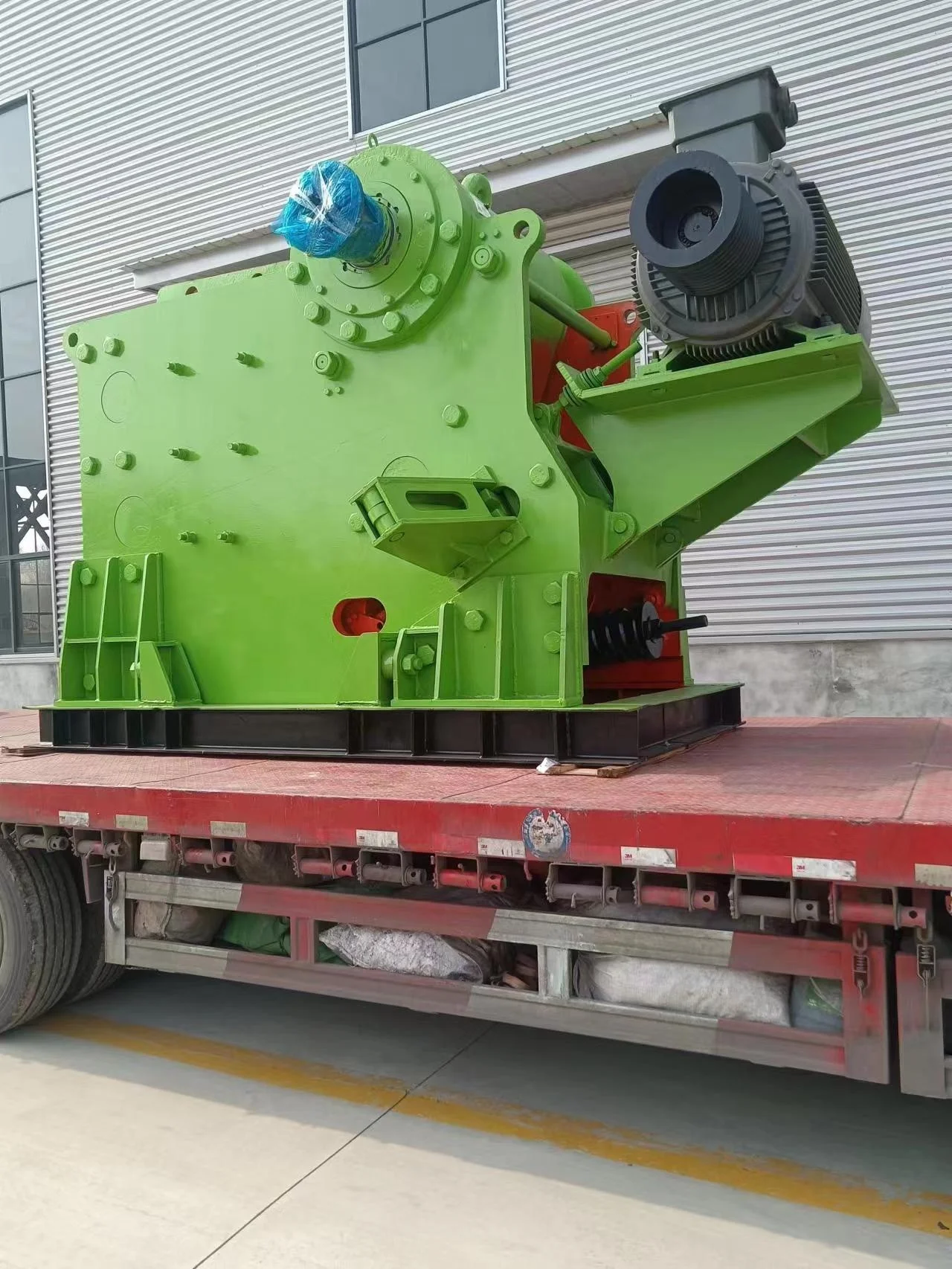

Product packaging
Customer Photos

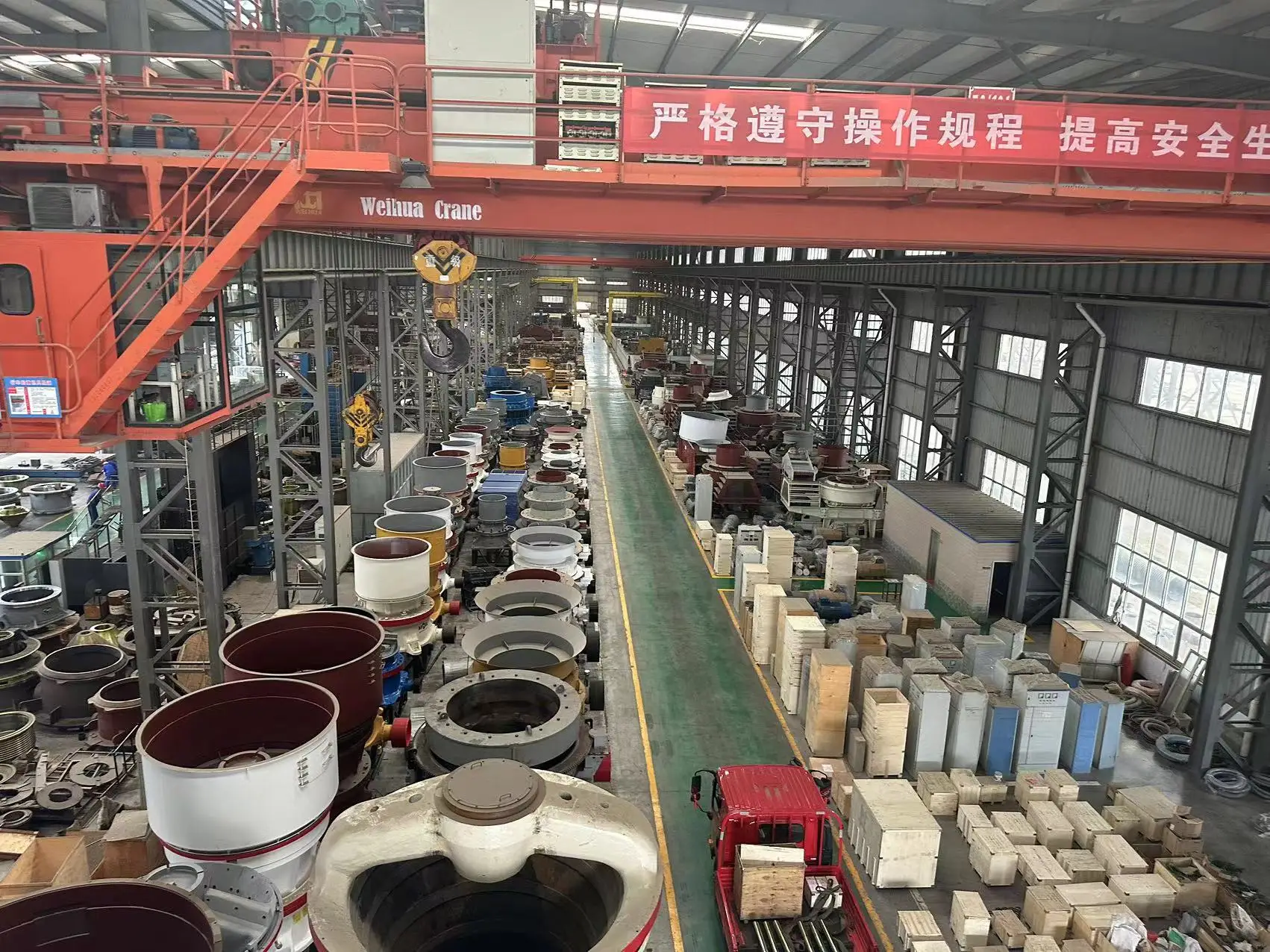

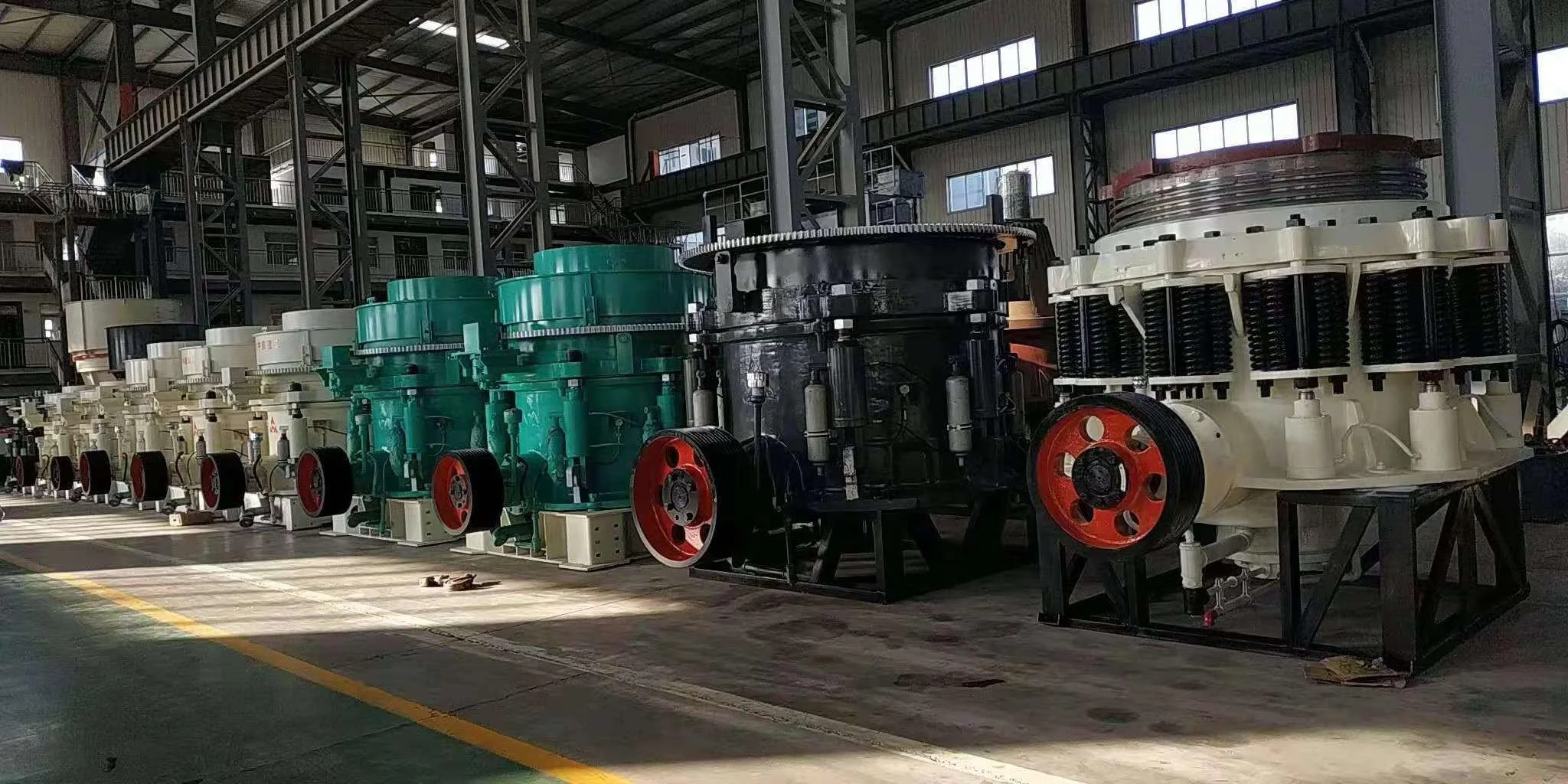

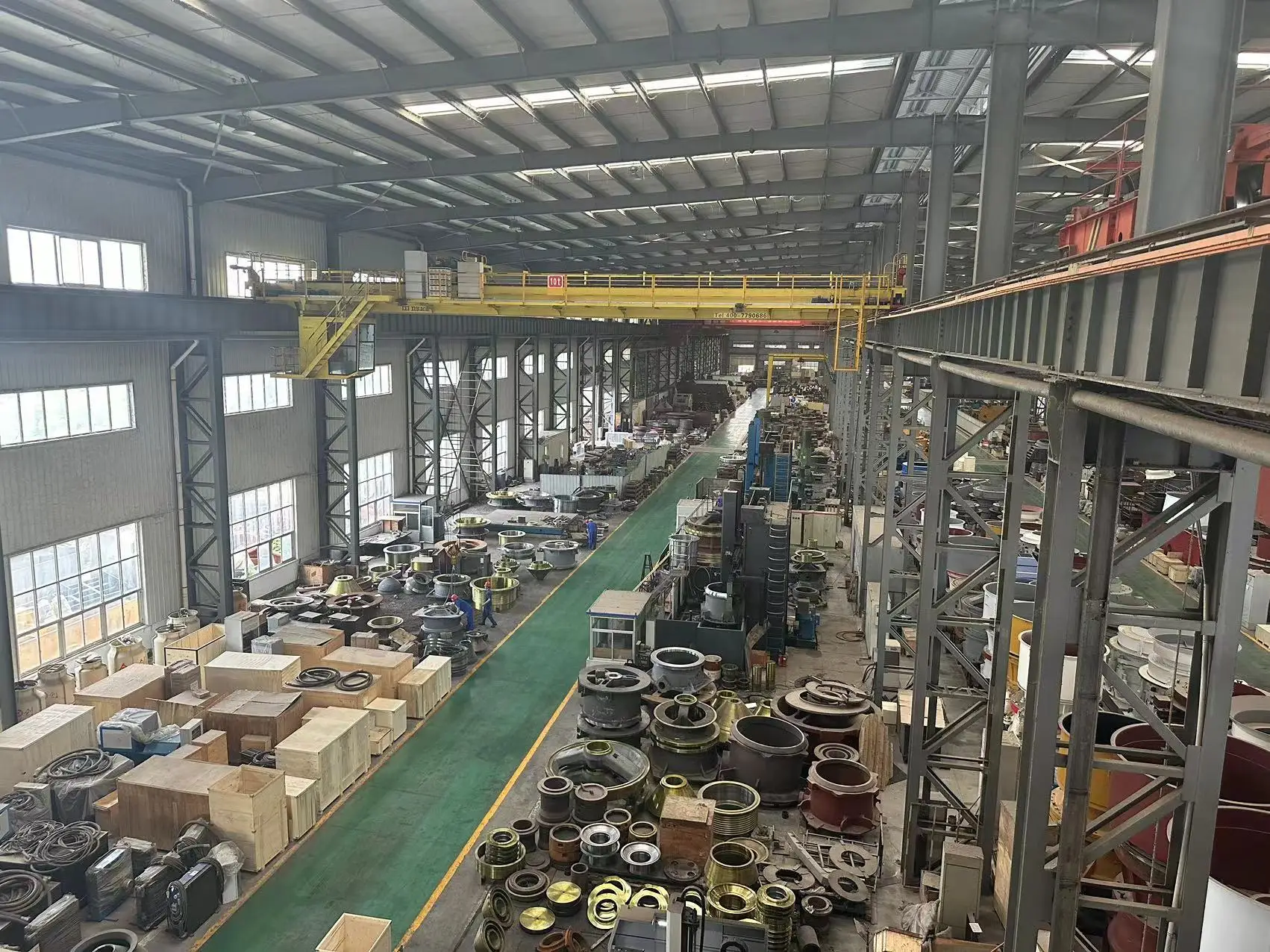

Company Profile:
Henan Shaolin Heavy Machinery Co., Ltd. is an enterprise integrating scientific research, production, marketing and service, specializing in the production of complete sets of mechanical equipment for mining, ore dressing, metallurgy and building materials. Founded in August 1973, the company has been engaged in mining machinery manufacturing for 50 years, specializing in Service in China's mining and building materials, mineral processing, metallurgy, powder and other industries, the main products are various specifications and models of crusher, ball mill, grading flotation machine, magnetic separator, dryer, rotary kiln, ultra-fine plant and other production lines, 288 kinds of products in the industry. Since 2011, the company is committed to the research and development and marketing of high-tech products, relying on scientific research units and universities, as well as domestic high-end industry associations of the expert team platform, and strive to build a set of equipment research and development, process research, technological transformation, project design, mechanical support, installation and commissioning, production and energy saving, etc., and in 2013, it gradually became the most scientific research, design, environmental protection and one-stop comprehensive mining industry in China. In 2013, it gradually became the most scientific research, design, environmental protection and one-stop comprehensive service enterprise in China's mining industry, and in 2015, its sales exceeded 300 million yuan.
For a long time, the company adheres to the design concept of leading technology and advanced equipment, and currently cooperates with 38 scientific research units in China to jointly research and develop and produce roller presses, micro powder mills, suspension furnaces and other products to provide customers with new processes, technological transformation, standard excess, energy saving and protection and environmental protection services. The company's existing product sales cover the central and western provinces and radiate across the country.
For a long time, the company adheres to the design concept of leading technology and advanced equipment, and currently cooperates with 38 scientific research units in China to jointly research and develop and produce roller presses, micro powder mills, suspension furnaces and other products to provide customers with new processes, technological transformation, standard excess, energy saving and protection and environmental protection services. The company's existing product sales cover the central and western provinces and radiate across the country.
FAQ
Q1： Are you a factory or a trading company?
A1: We are factory direct sales, the company was founded in 1973, don't worry about the shell company!
Q2: Where were your products exported to before?
A2: Our products have been exported to Africa, South Asia, South America, Middle East and so on.
Q3： How will you help customers to install the equipment?
A3： Our senior engineers will guide the installation and training service on site!
Q4： How about after-sales service?
A4： The product warranty period is 12 months!

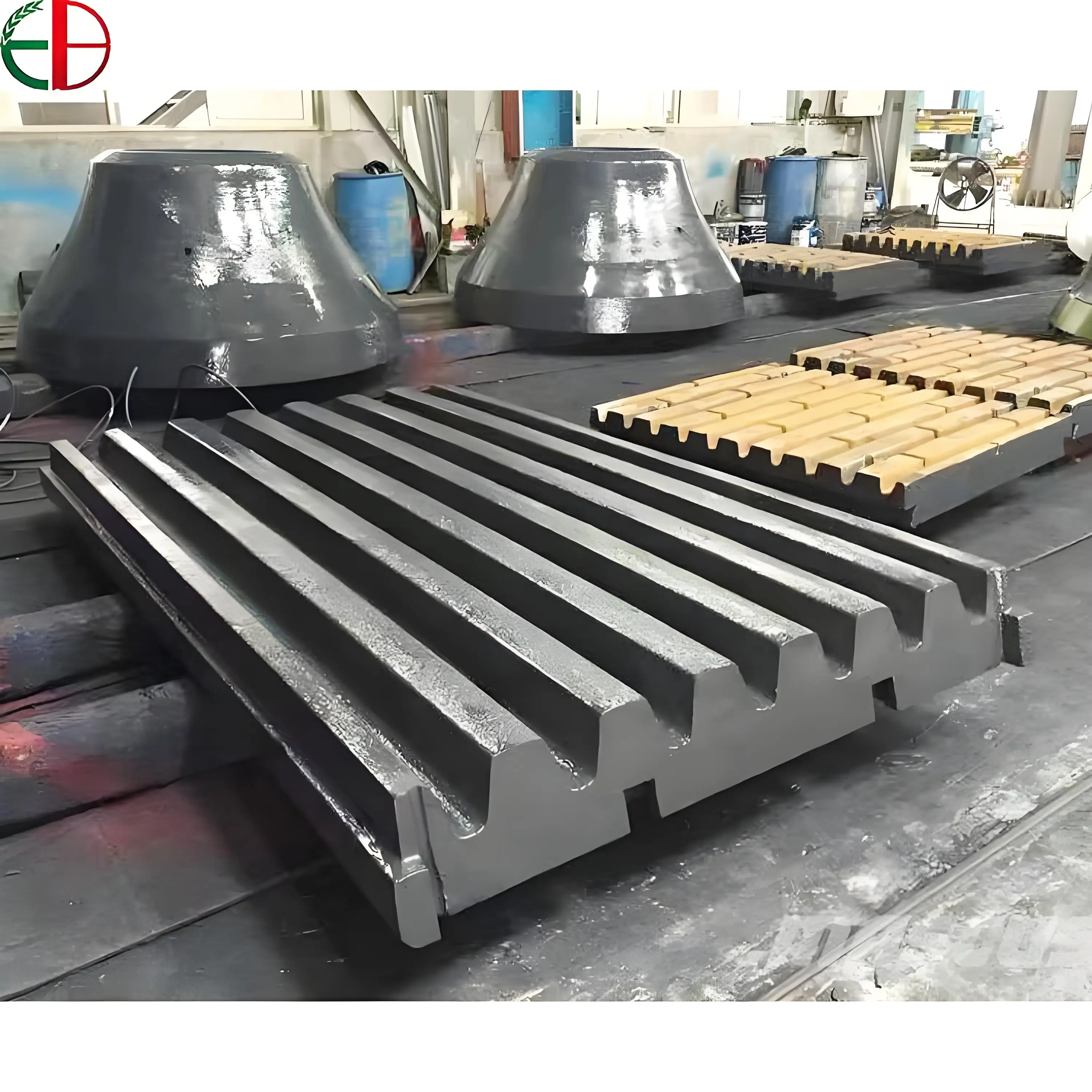

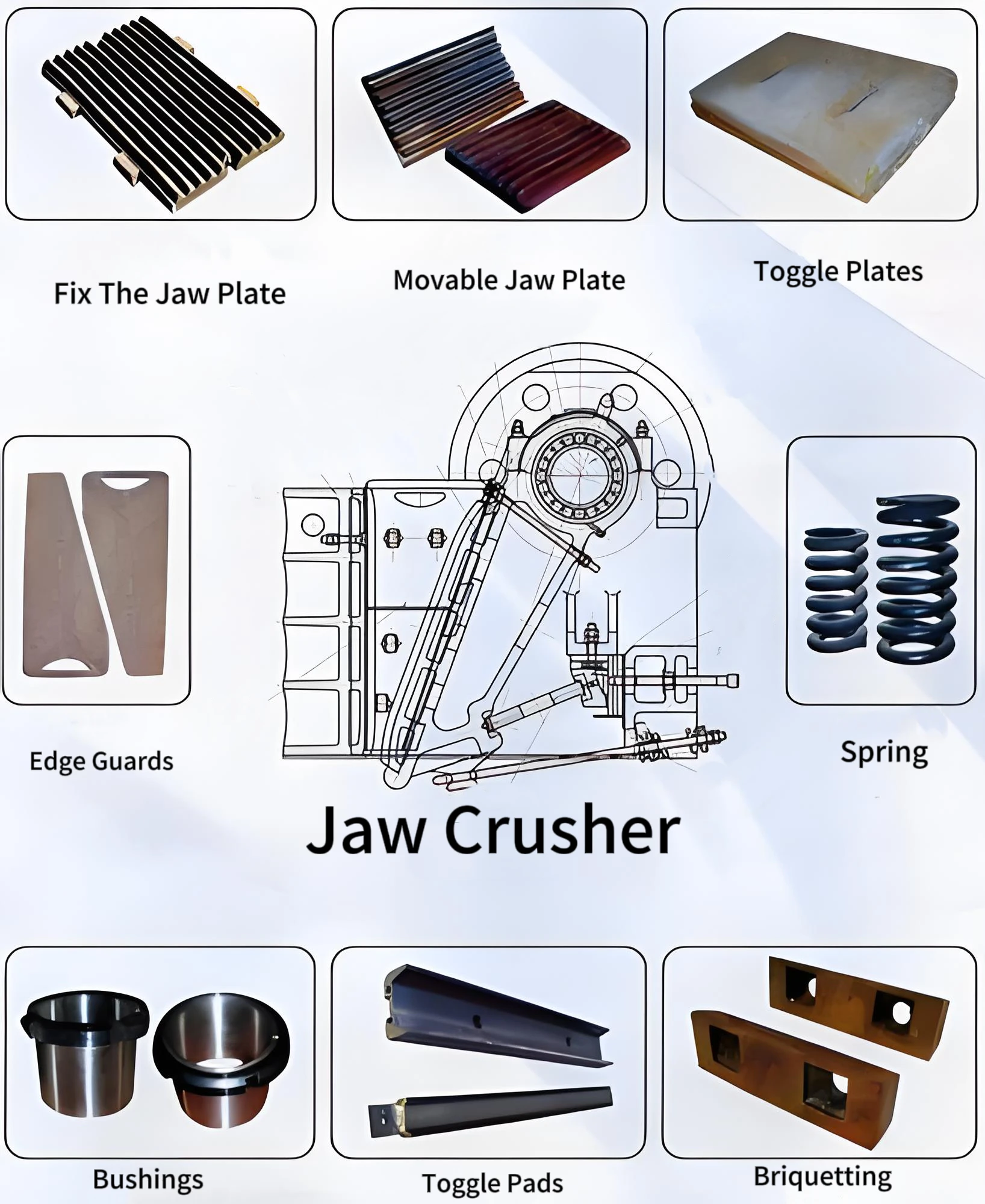

Q5：How to replace the wearing parts of the equipment?
A5: The wearing parts are purchased from our factory in China, we will train you how to replace it!
A1: We are factory direct sales, the company was founded in 1973, don't worry about the shell company!
Q2: Where were your products exported to before?
A2: Our products have been exported to Africa, South Asia, South America, Middle East and so on.
Q3： How will you help customers to install the equipment?
A3： Our senior engineers will guide the installation and training service on site!
Q4： How about after-sales service?
A4： The product warranty period is 12 months!
Q5：How to replace the wearing parts of the equipment?
A5: The wearing parts are purchased from our factory in China, we will train you how to replace it!
