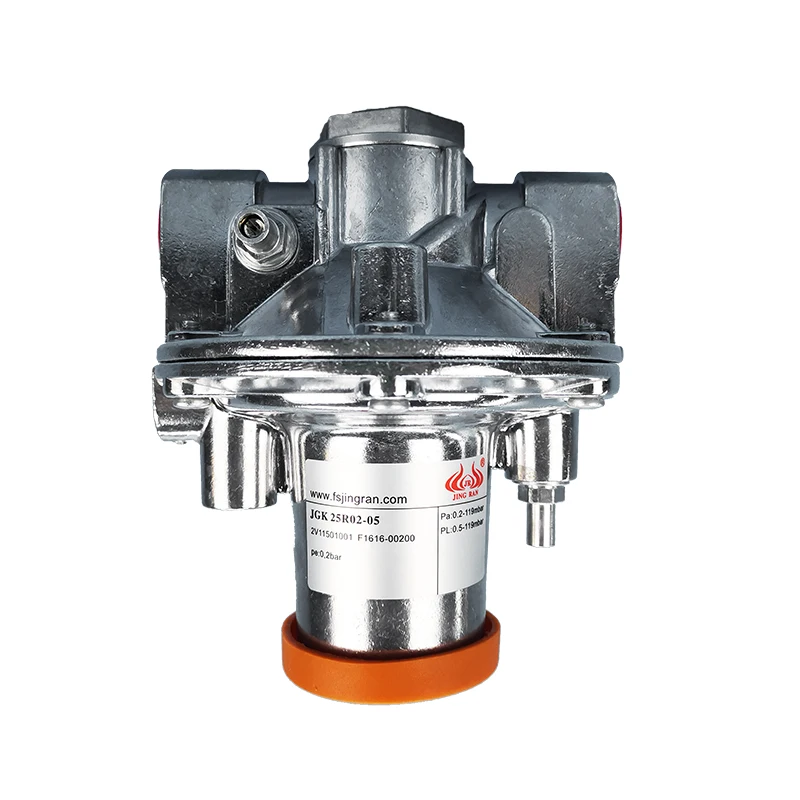

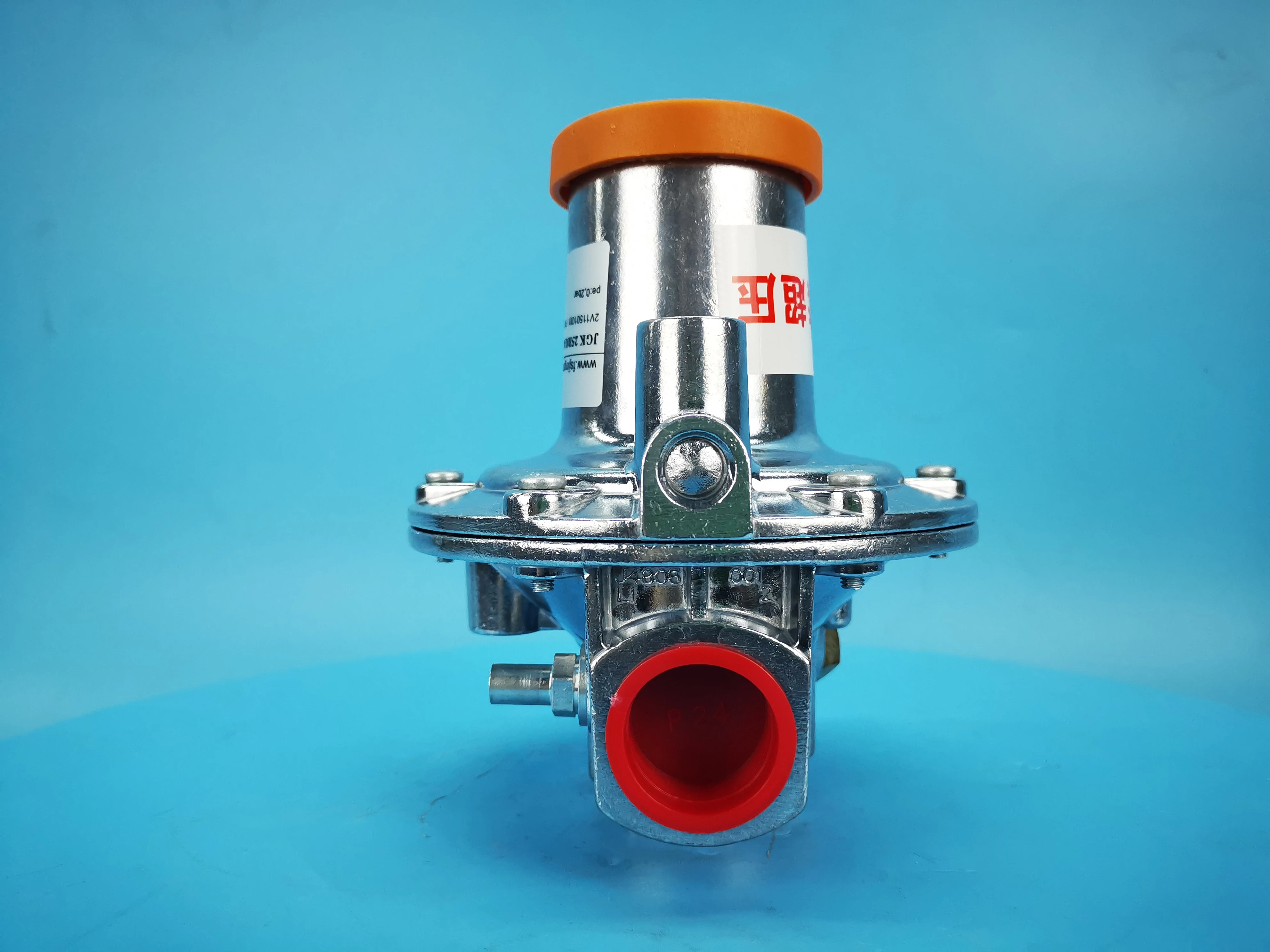

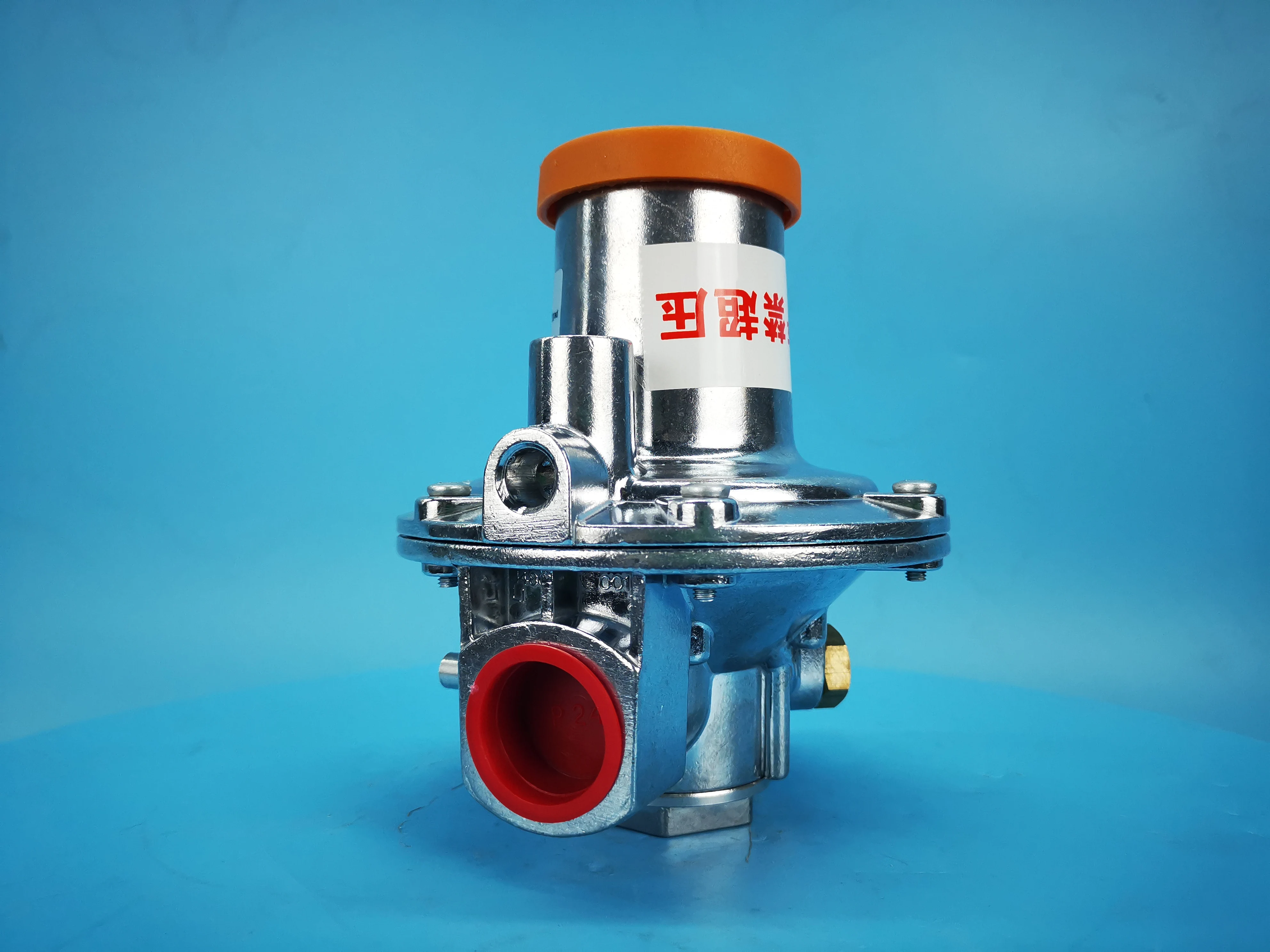

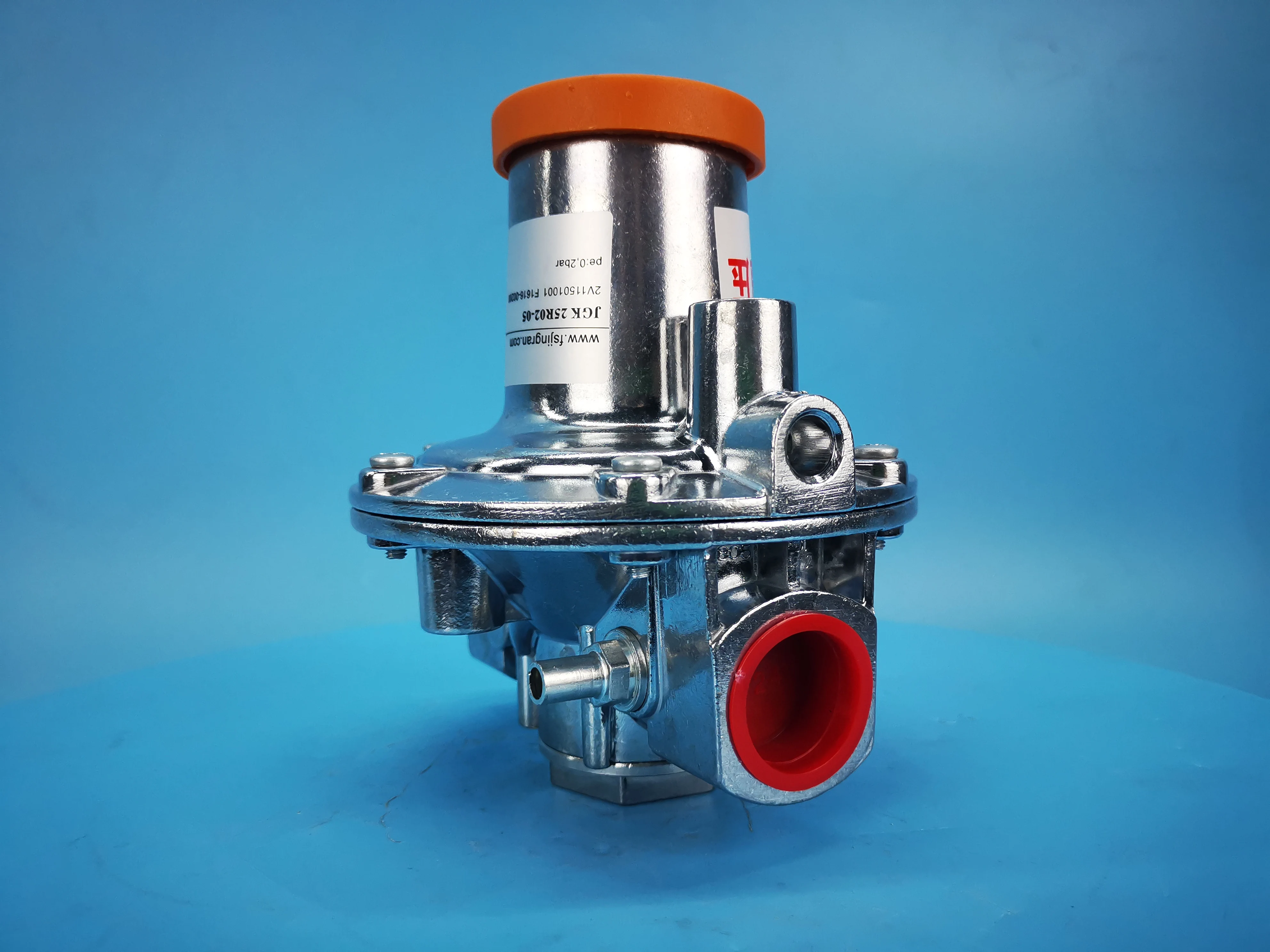

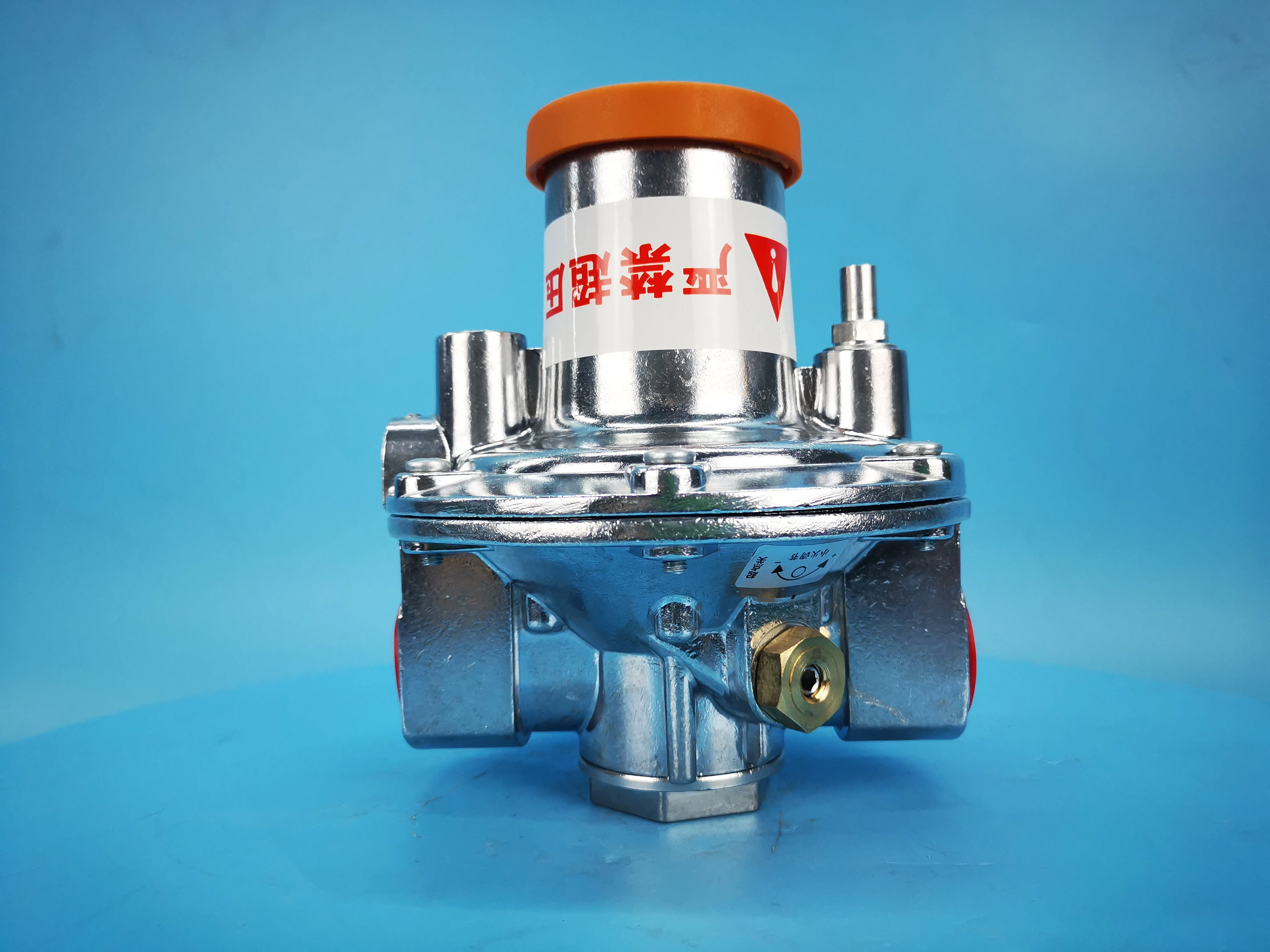

Industrial burner combustion system ratio regulator Air/gas ratio regulator Air fuel proportional valve Air ratio regulator
- Category: >>>
- Supplier: Foshan Jingran Electromechanical Equipment Co. Ltd.Foshan Ltd.
Share on (1601205467379):

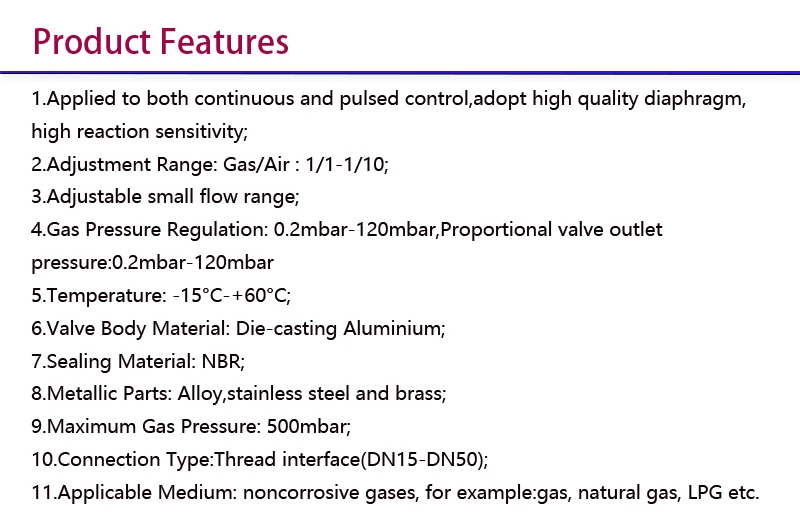

Product Overview
Description
| Type of gas | Natural gas, town gas, LPG(gaseous), biologically |
| Air control pressure | 0.5 to 120 mbar |
| Outlet pressure | 0.2 to 119 mba |
| Adjusting range at min. flow | -3 to +3 mbar |
| Ambient temperature | -20 to +60°C |
| Max. inlet pressure | <200mbar |
| Air/fuel pressure ratio | 1:1;Adjustment range: 10:1 |
| Valve disc | Plastic |
| Valve disc seal | NBR |

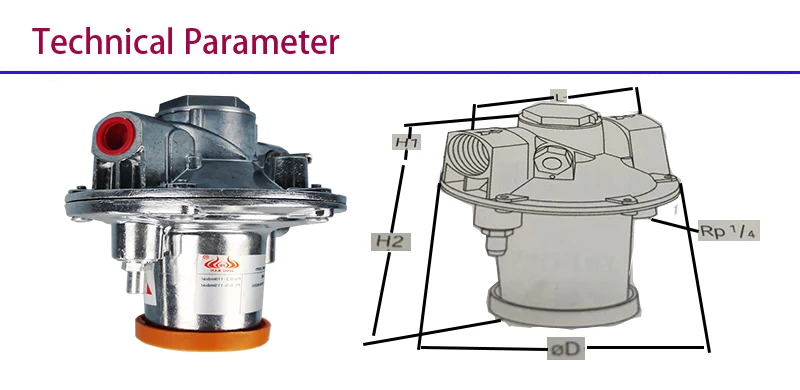

| Model | Diameeter | connection | Size | Max.inlet pressure mbar | Weight KG | |||||||
L mm | H1 mm | H2 mm | ∅D mm | D2 mm | d2 mm | k mm | Hole QTY | |||||
| JGK 15 | 15 | Rp½ | 120 | 34 | 132 | 134 | - | - | - | - | 200 | 1,0 |
| JGK 20 | 20 | Rp¾ | 125 | 34 | 132 | 134 | - | - | - | - | 200 | 1,1 |
| JGK 25 | 25 | Rp1 | 125 | 34 | 132 | 134 | - | - | - | - | 200 | 1,1 |
| JGK 40 | 40 | Rp1½ | 155 | 45 | 149 | 185 | - | - | - | - | 200 | 1,8 |
| JGK 50 | 50 | Rp2 | 200 | 52 | 167 | 234 | - | - | - | - | 200 | 2,8 |
