API Standard Non Magnetic Drill Collars NMDC
- Category: >>>
- Supplier: Dongying On-Tech Equipment Co. Ltd.
Share on (1601205476799):
Product Overview
Description
Product Description
Drill Collars are integral heavy-wall joints that are manufactured from a solid bar of modified alloy steel. The solid bars are quenched and tempered to obtain the required mechanical properties, then trepanned, drifted and threaded. All drill collars are heat-treated with hardness within 285 to 341 BHN, which are guaranteed one inch below the surface of the pipe.
Features
1. Hardness range of 285 to 341 BHN and a charpy impact value of 40ft/lbs are guaranteed for evenly distributed 16 points in any cross sections at room temperature.
2. Connections as phosphate coated father machining to protect the threads from corrosive elements and to prevent galling upon initial make -up. Thread roots are cold rolled on API and H0-90 connections.
3. Pressed steel thread protectors are supplied to all drill collar that are equipped with standard connections.
4. Manufactured strictly according to API standard.
5. Widely used in oil, gas, HDD and geothermal field.

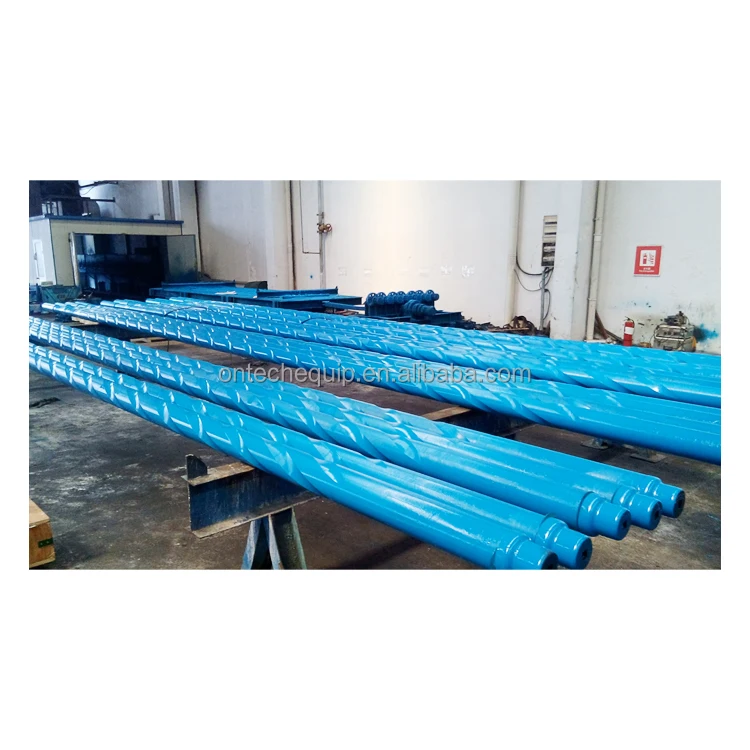

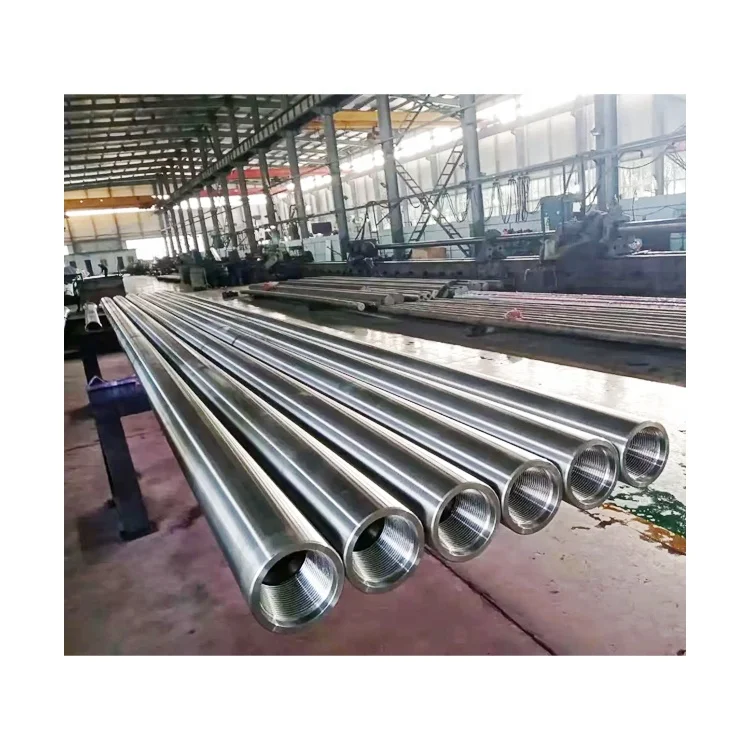

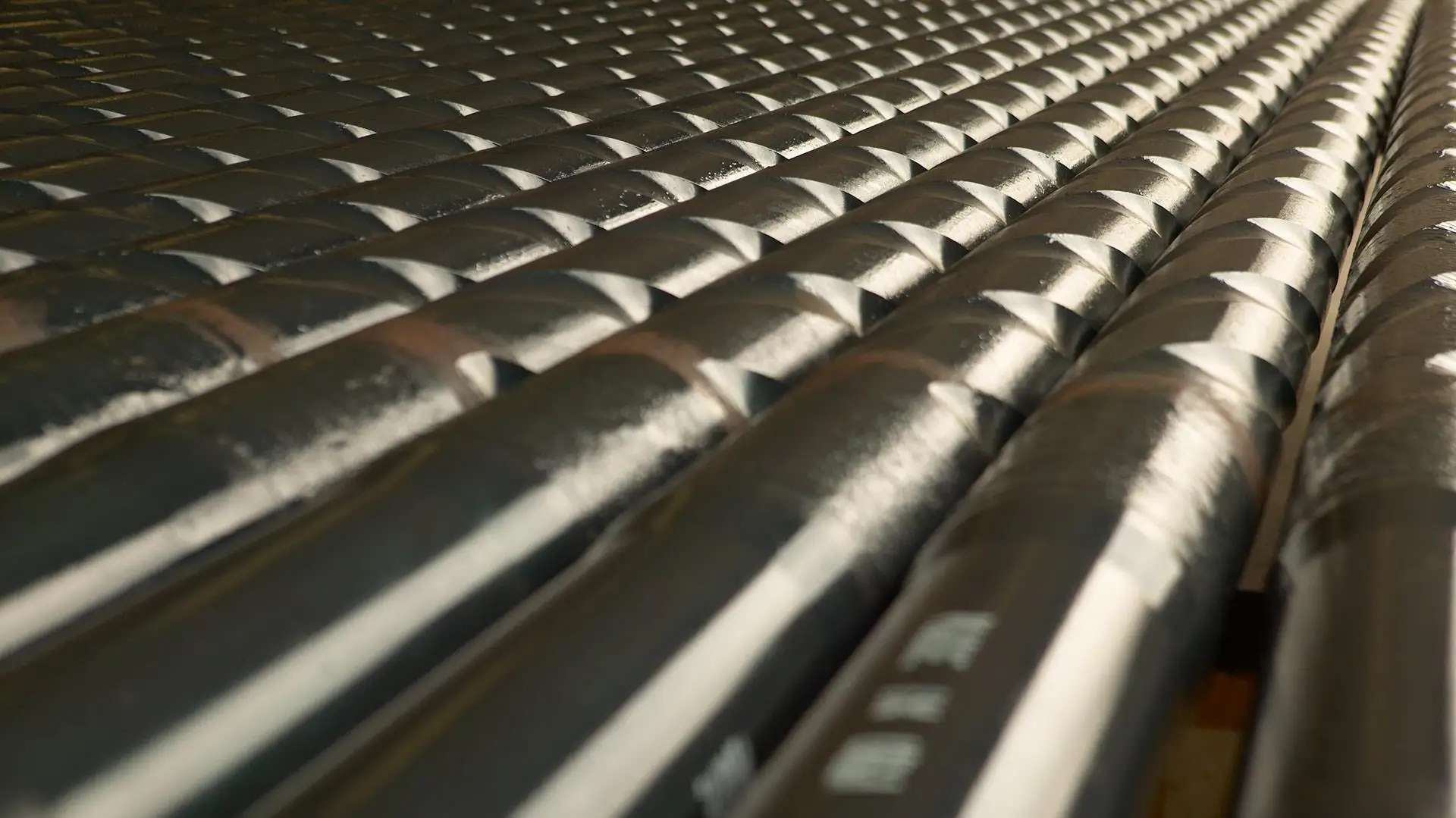

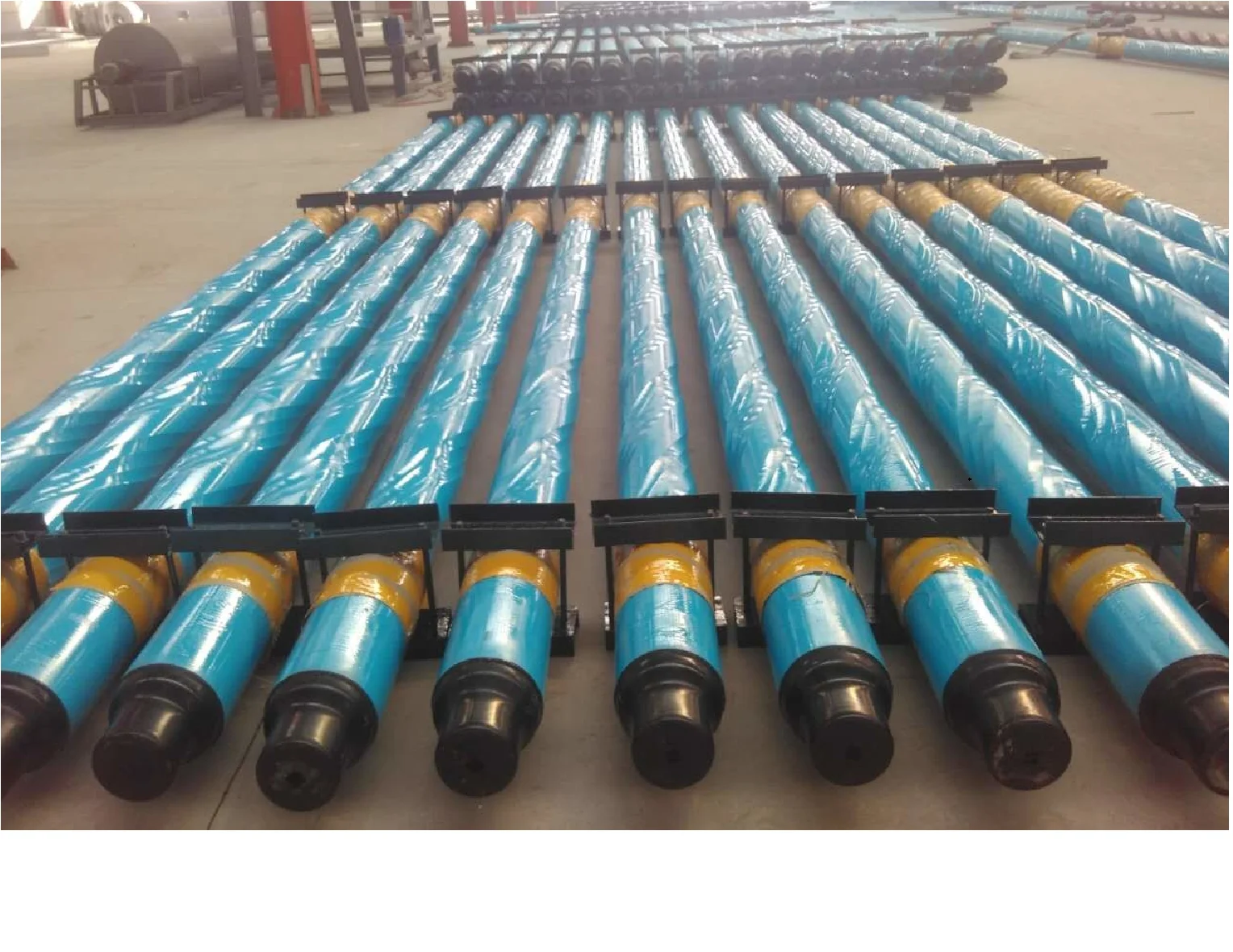

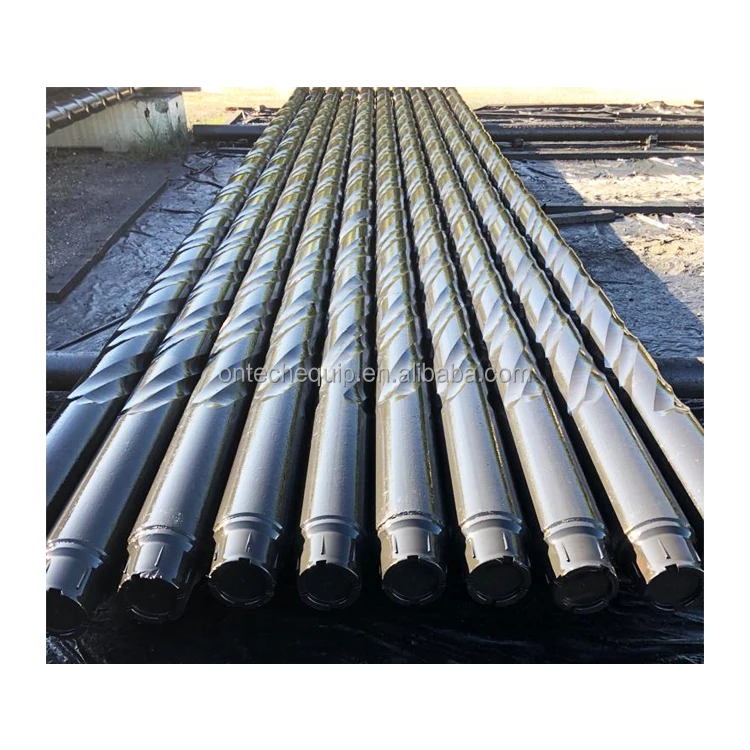

Detailed Photos
Parameter
| Size (in) | O.D (mm) | I.D. (in) | Code | Thread | Length (mm) | Weight (kg) |
| 3 1/8 | 79.4 | 1-1/4 | NC23-31 | NC23 | 9140 | 298 |
| 3 1/2 | 88.9 | 1-1/2 | NC26-35 | NC26 | 9140 | 364 |
| 4 1/8 | 104.8 | 2 | NC31-41 | NC31 | 9140/9450 | 474/490 |
| 4 3/4 | 120.6 | 2 | NC35-47 | NC35 | 9140/9450 | 674/697 |
| 5 | 127 | 2-1/4 | NC38-50 | NC38 | 9140/9450 | 725/749 |
| 6 | 152.4 | 2-1/4 | NC44-60 | NC44 | 9140/9450 | 1125/1163 |
| 6 | 152.4 | 2-13/16 | NC44-60 | NC44 | 9140/9450 | 1022/1056 |
| 6 1/4 | 158.8 | 2-1/4 | NC44-62 | NC44 | 9140/9450 | 1237/1279 |
| 6 1/4 | 158.8 | 2-13/16 | NC46-62 | NC44 | 9140/9450 | 1134/1172 |
| 6 1/2 | 165.1 | 2-1/4 | NC46-65 | NC46 | 9140/9450 | 1352/1398 |
| 6 1/2 | 165.1 | 2-13/16 | NC46-65 | NC50 | 9140/9450 | 1249/1291 |
| 6 3/4 | 171.4 | 2-1/4 | NC46-67 | NC46 | 9140/9450 | 1471/1521 |
| 7 | 177.8 | 2-1/4 | NC50-70 | NC50 | 9140/9450 | 1597/1651 |
| 7 | 177.8 | 2-13/16 | NC50-70 | NC50 | 9140/9450 | 1494/1545 |
| 7 1/4 | 184.2 | 2-13/16 | NC50-72 | NC50 | 9140/9450 | 1625/1680 |
| 7 3/4 | 196.8 | 2-13/16 | NC56-77 | NC56 | 9140/9450 | 1895/1960 |
| 8 | 203.2 | 2-13/16 | NC56-80 | NC56 or 6- 5/8REG | 9140/9450 | 2040/2109 |
| 8 1/4 | 209.6 | 2-13/16 | 6-5/8REG | 6-5/8REG | 9140/9450 | 2188/2263 |
| 9 | 228.6 | 2-13/16 | NC61-90 | NC61 | 9140/9450 | 2658/2748 |
| 9 1/2 | 241.3 | 2-13/16 | 7-5/8REG | 7-5/8REG | 9140/9450 | 2954/3054 |
| 9 3/4 | 247.6 | 3 | NC70-97 | NC70 | 9140/9450 | 3127/3234 |
| 10 | 254 | 3 | NC70-100 | NC70 | 9140/9450 | 3308/3421 |
| 11 | 279.4 | 3 | 8-5/8REG | 8-5/8REG | 9140/9450 | 4072/4210 |
| Mechanical properties: <7 inch Drill Collar: Yield Strength≥758MPa, Tensile Strength≥965MPa, Four times elongation ≥13%, Impact energy Ak≥54J (Single impact work≥47J, Average≥54J), Hardness range: 285HB~341HB ≥7inch Drill Collar: Yield Strength≥689MPa, Tensile Strength≥931MPa, Four times elongation≥13%, Impact energy Ak≥54J (Single impact work≥47J, Average≥54J), Hardness range 285HB~341HB | ||||||
| Drill collar can be customized as per customer's design. | ||||||
