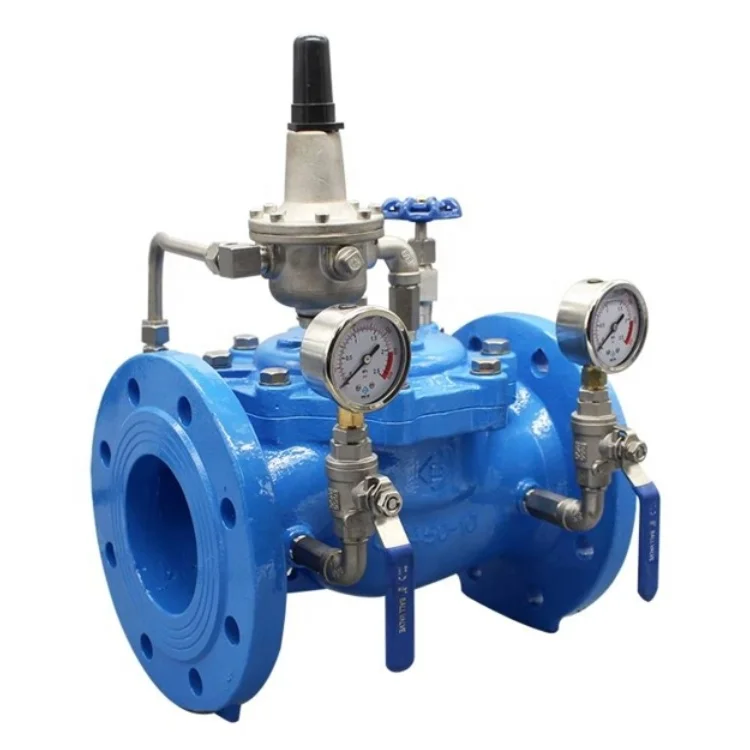

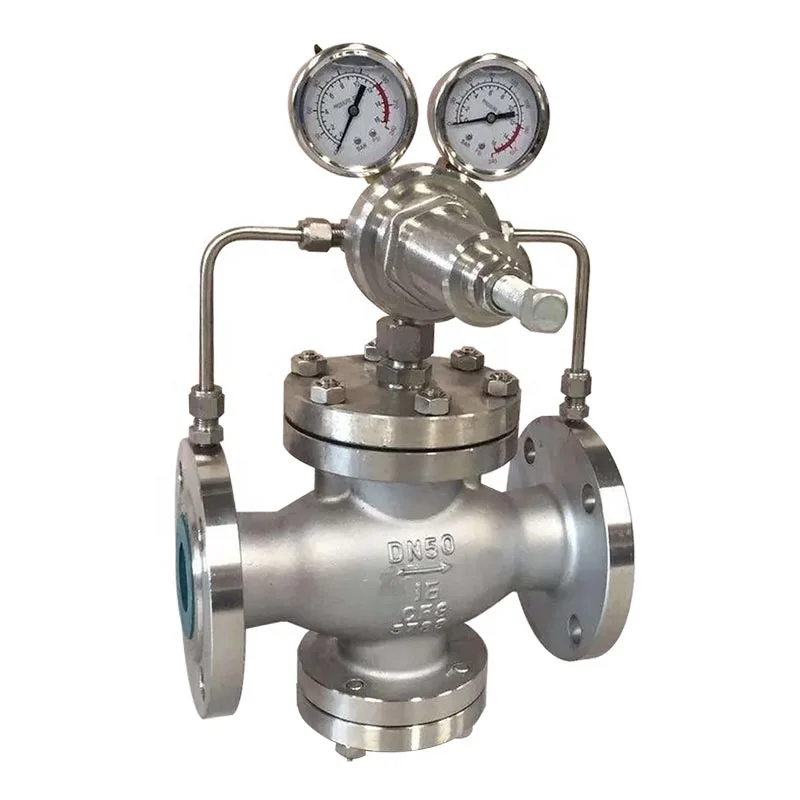

Flange End Pressure Reducing Valve

Product Overview

Description

Flange End Pressure Reducing Valve







Main technical parameters

Nominal pressure	PN10/PN16/PN25/PN40, 125LB/150LB
Flange connection standard	GB/T17241.6, GB/T9113-2010, EN1092-2. ANSI B16.10
Test standard	GB/T13927-2008, API598
Applicable media	Water, oil, gas, etc

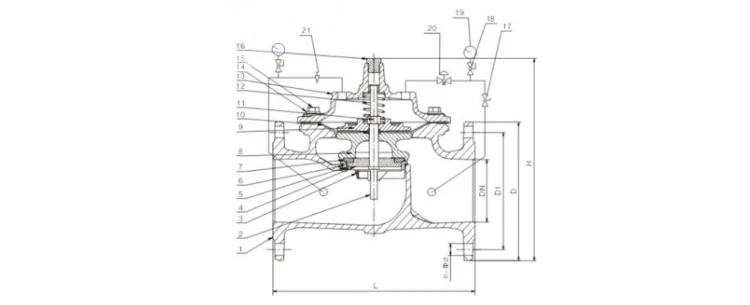

Product structure diagram

Maximum pressure conditions

Size	Max pressure (bar)	Min/Max Temp (℃)	Test Pressure (bar)
			Shell	Seat
DN40-DN1600	10.0/16.0	-10℃ +100℃	15.0/24.0	11.0/17.6

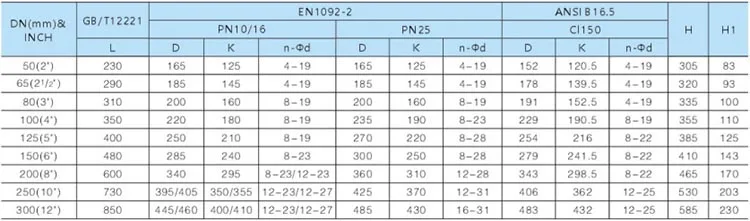

Dimensions





Ordering notice:

1.Price: The price here is only for reference, the accurate price please contact us to get.

2.Delivery time: The lead time need to calculate according to product parameters, quantity, etc. Please contact us for accurate answer.

3.After-sales service: If you have any questions after you get the product you get from us, please feel free to contact us, we have technical engineer to help you.







FAQ:

Q. Can I have my own Logo on the product?

A: Yes, OEM service is available.



Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc... Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.



Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.



Q: What's the package and how do you ship the goods?

A: Usually is wood pallet as your requst. We usually ship by sea. Airline shipping is also optional.
