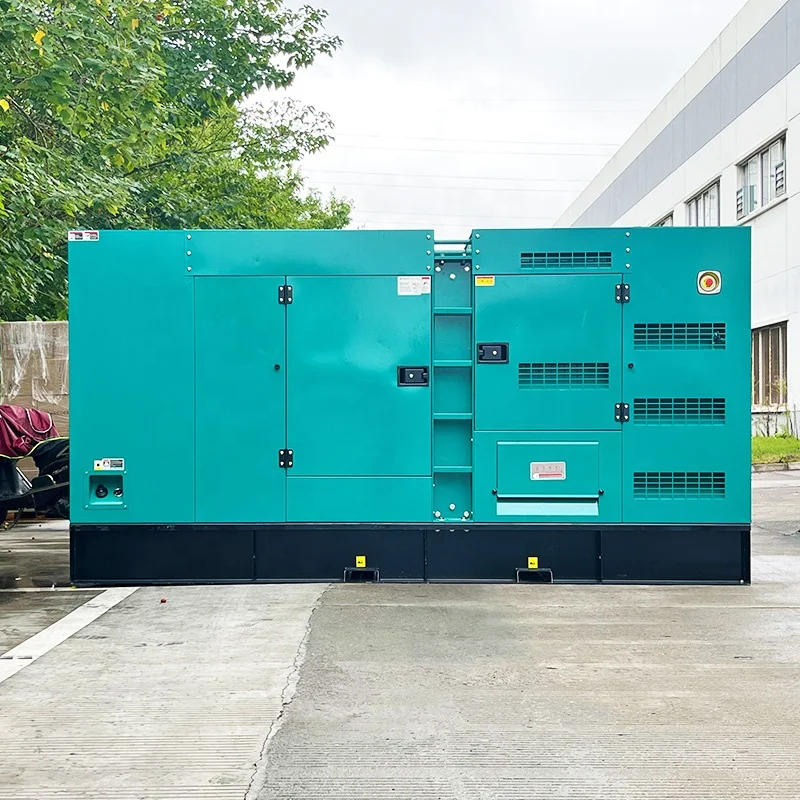

600v cummins silent outdoor use 200kva diesel generator 150kw power generator price 200 kva generators
- Category: >>>
- Supplier: Jiangsu Wellpower Generator Co. Ltd.
Share on (1601205663608):
Product Overview
Description
Company Profile
WELLPOWER GENERATORS, PROFESSIONAL POWER SOLUTION.
Jiangsu WellPower Generator Co., Ltd is one of the largest diesel generator manufacturing base in China. We supply diesel generator ranging from 5kva to 3000kva, 9000+ sets per year servicing 80 countries and region.Our goal is to provide our users affordable but reliable power solution. We are authorized GOEM of Cummins & Stamford, strategic cooperation partner of VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI.
As for certification, we are ISO9001, 14001 and 45001 certified, as well as CE.
Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us. Our team will get back with detailed solution within 24 hours.
Products Description
Open Type 160kw 200kva diesel generator with Cummins 6CTAA8.3-G2

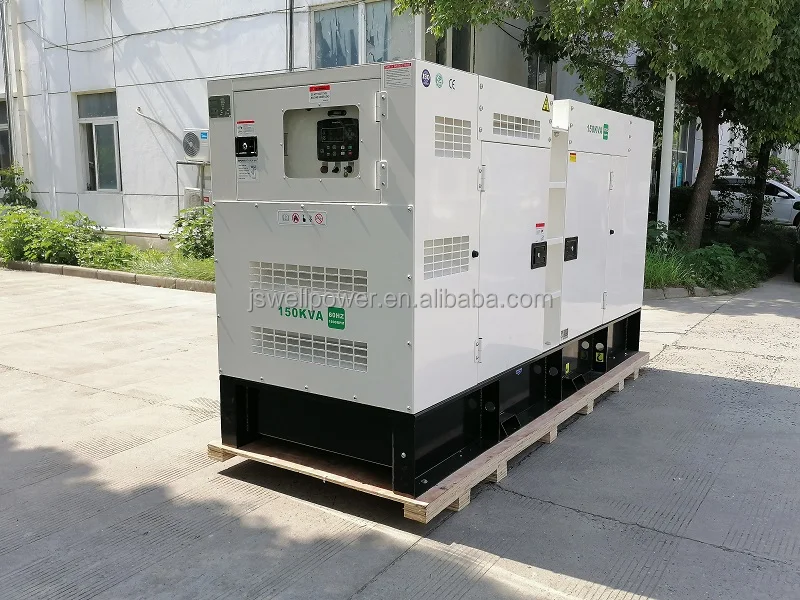

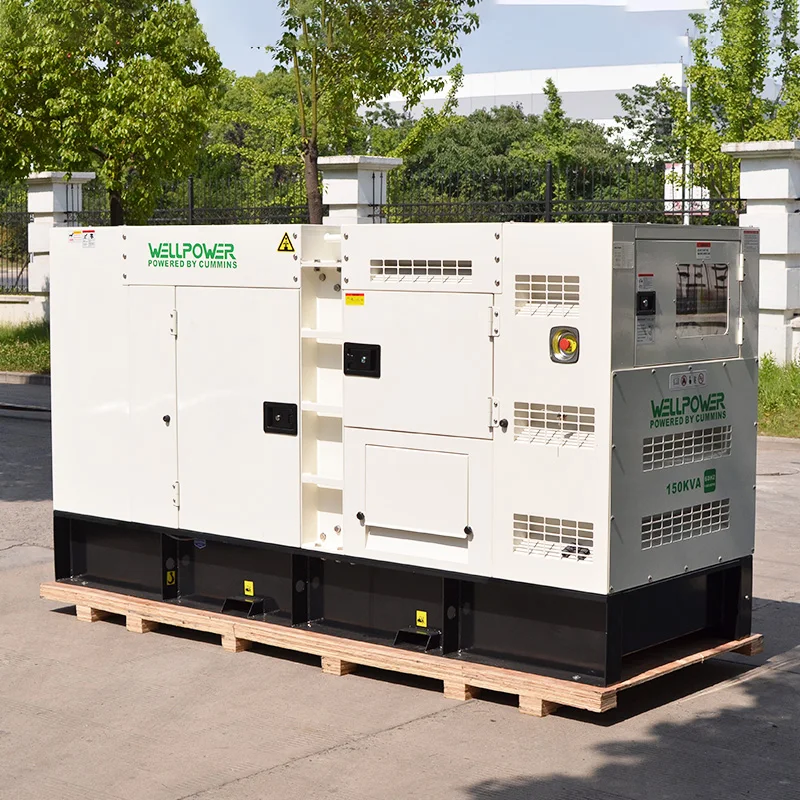

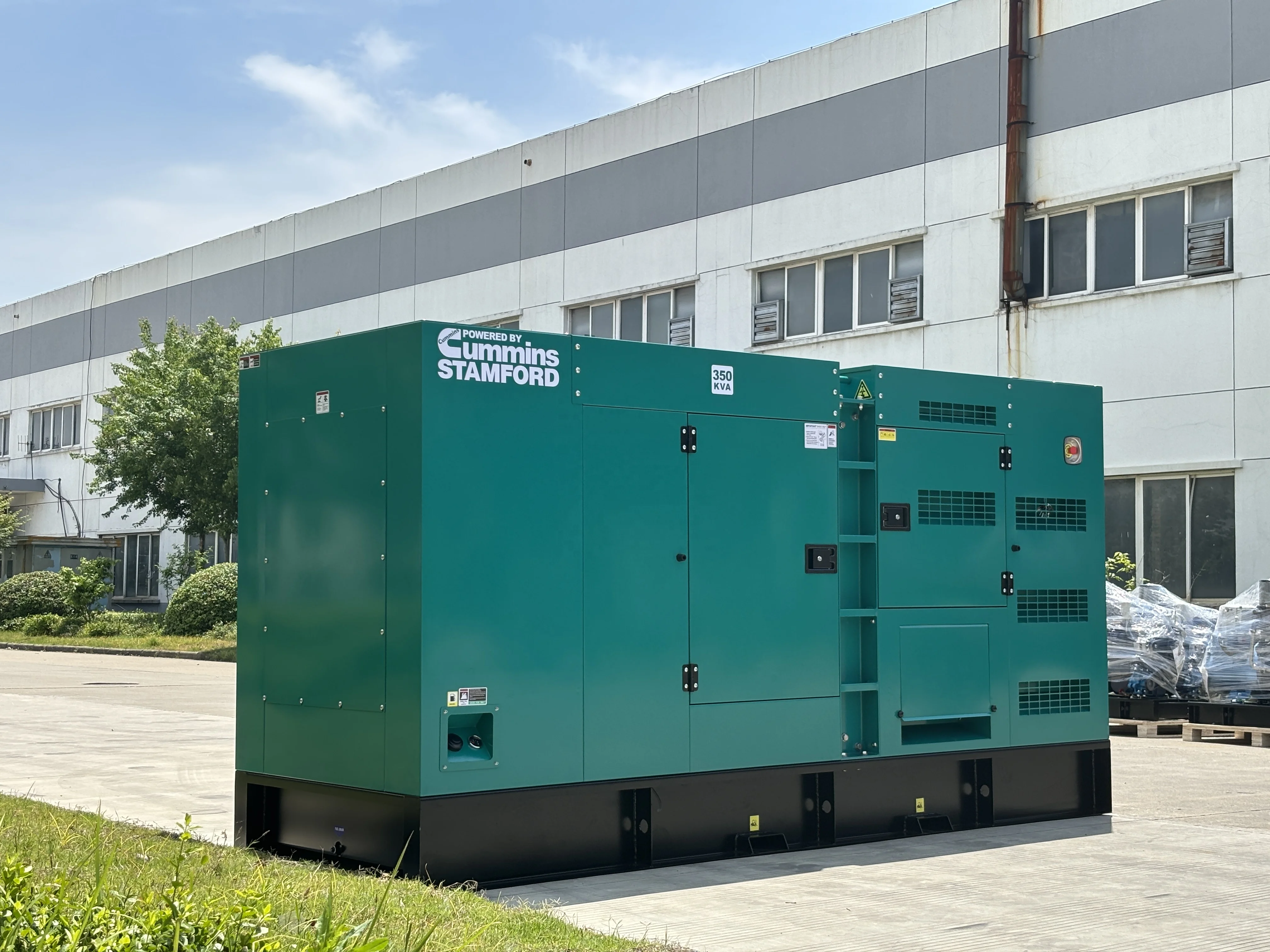

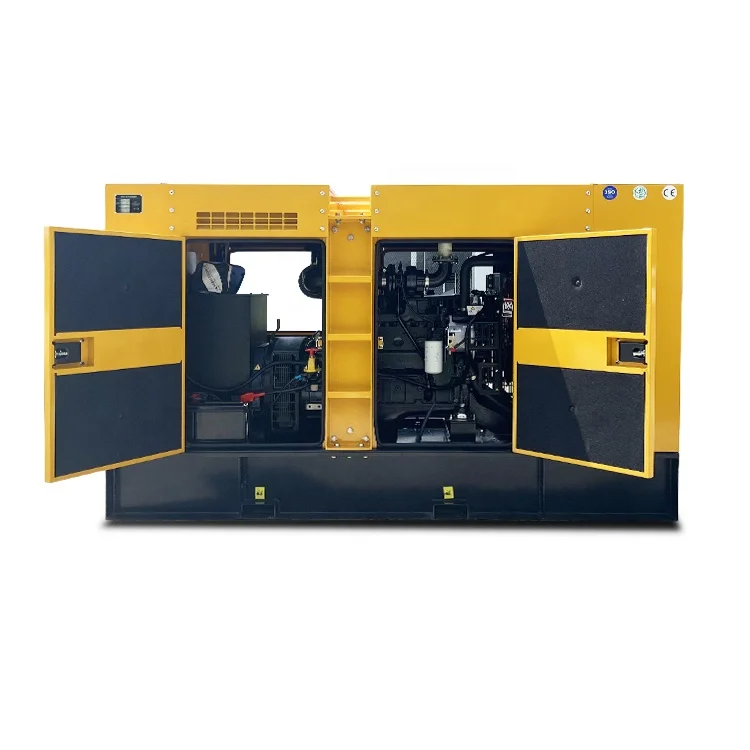

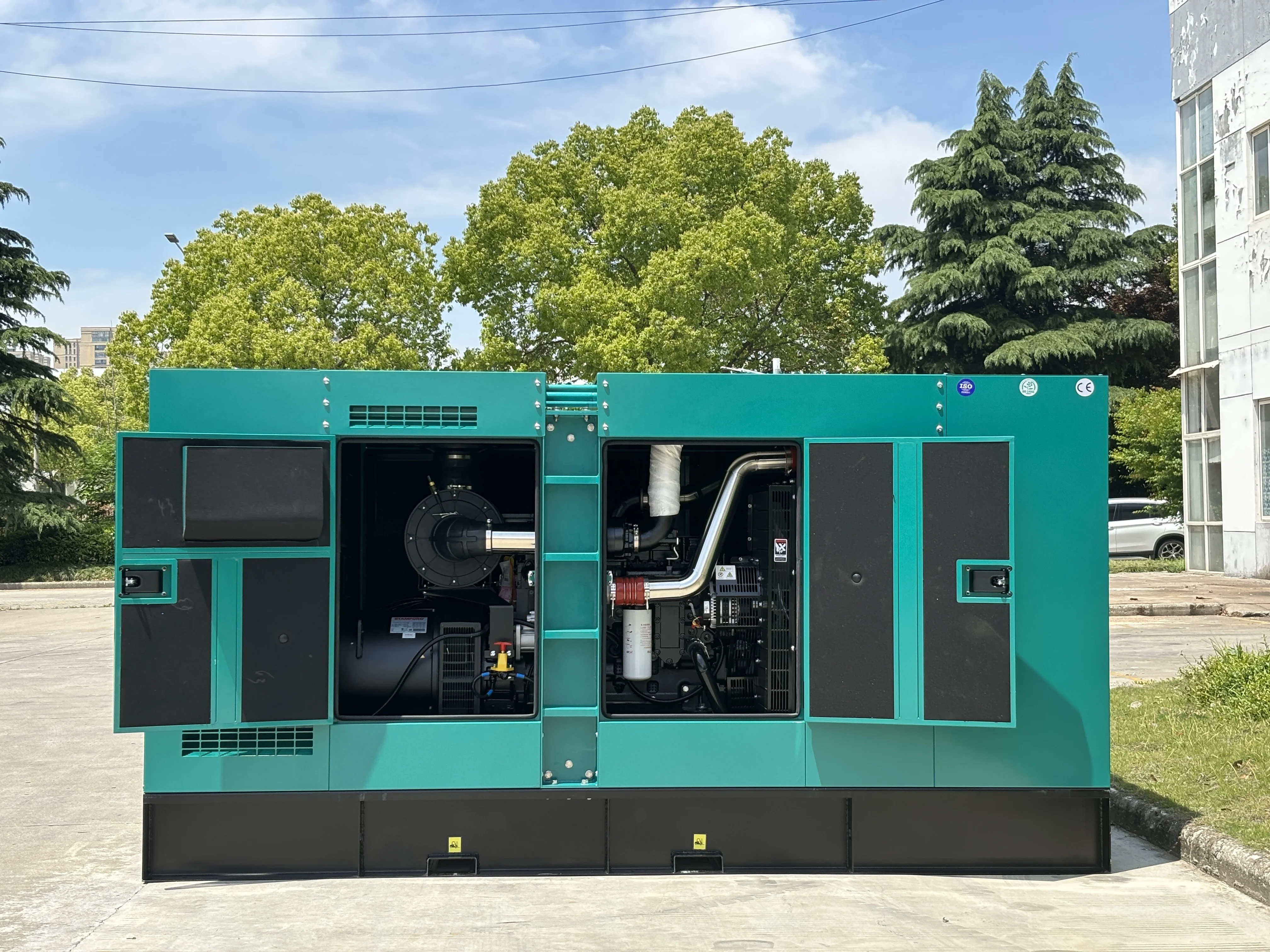

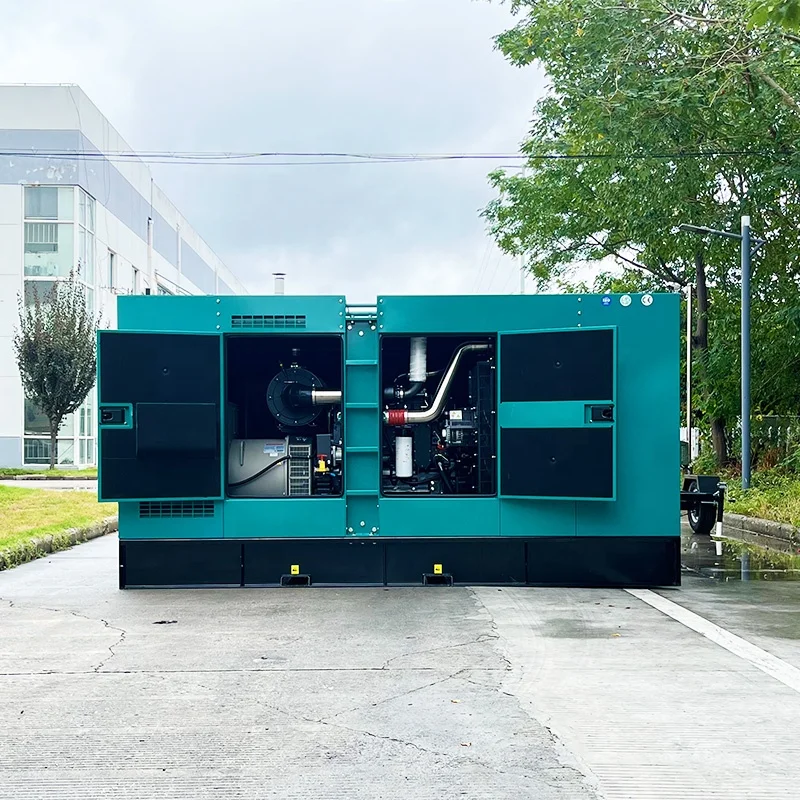

Silent Type 160kw 200kva diesel generator with Cummins 6CTAA8.3-G2

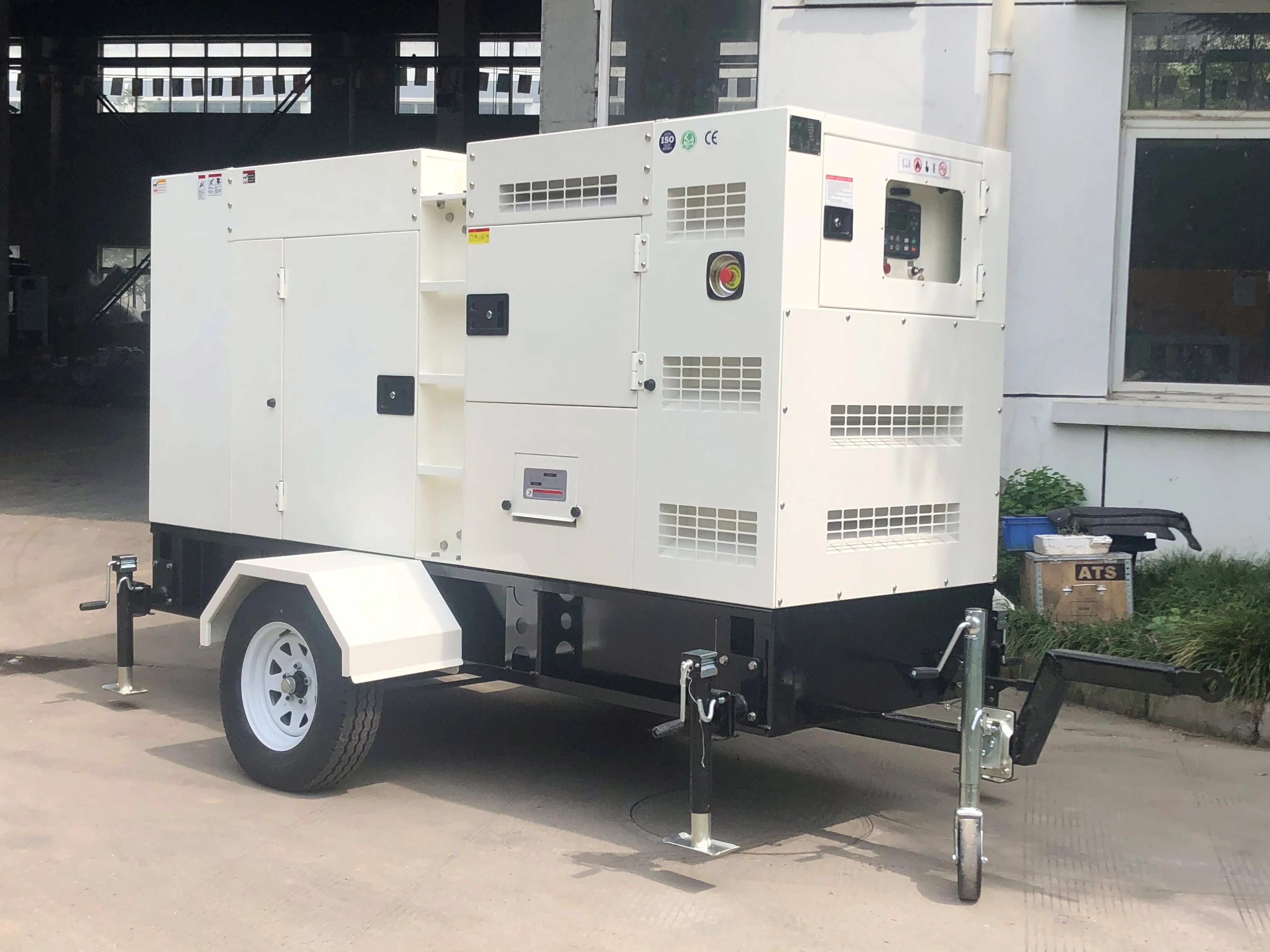

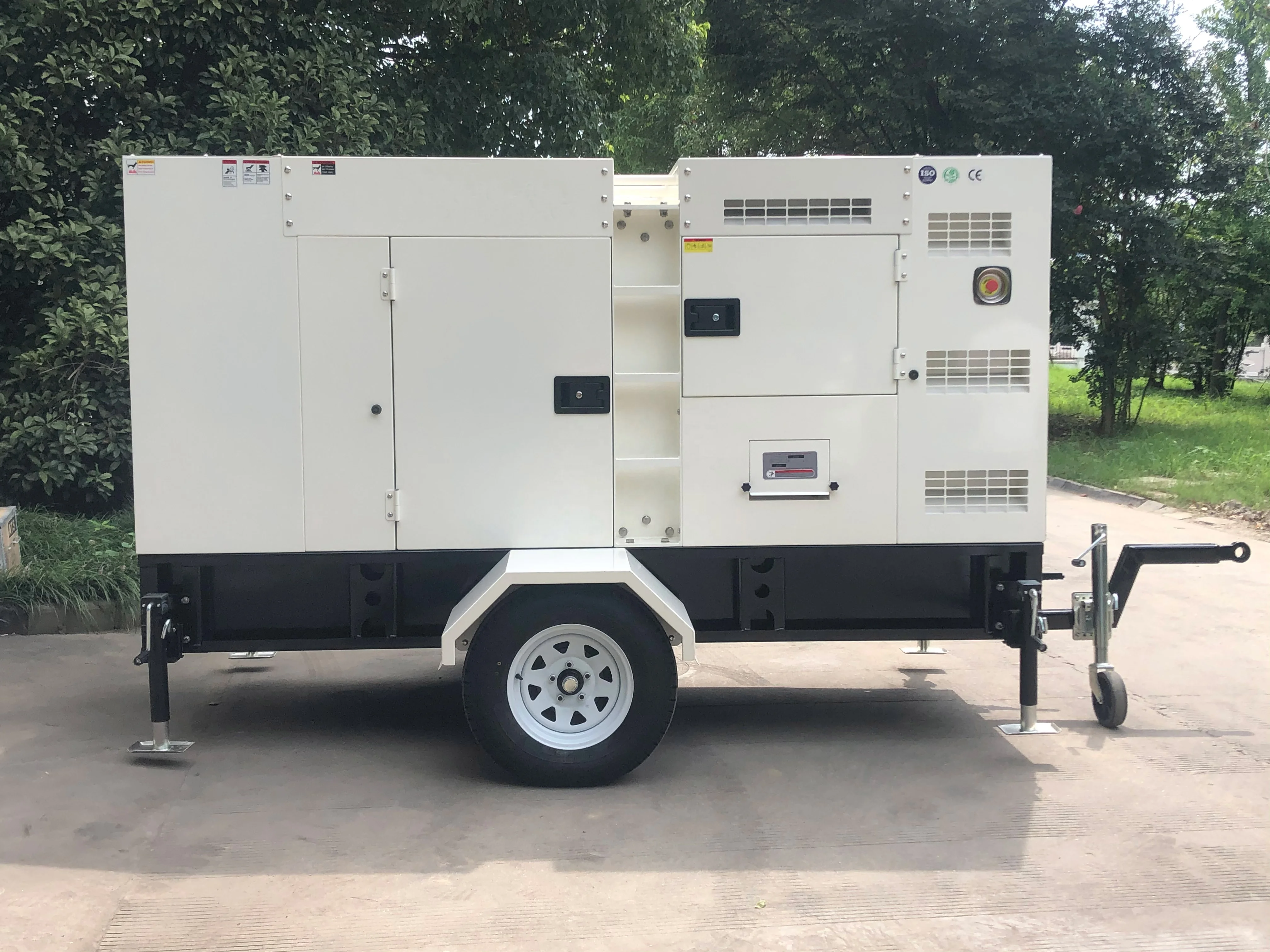

Trailer Type 160kw 200kva diesel generator with Cummins 6CTAA8.3-G2
Basic Information | ||
Genset Model | WP-C200GF 160 kva diesel generator | |
Rated Voltage | 400V-3Phase, other as request | |
Rated Frequency | 50HZ | |
P.F(COS) | 0.8 | |
Prime Power | 160KW | |
Standby Power | 172KW | |
Fuel Tank Capacity | 8~10 hours working | |
Engine | ||
Model | Cummins 6CTAA8.3-G2 | |
Power | 120KW prime/130KW standby | |
Engine Type | 6 cylinders in line, 4 cycles, direct injecting | |
Displacement | 8.3L | |
Aspiration | Turbocharged and Charge Air Cooled | |
Fuel consumption @ 100% prime | 30.0L/hr | |
Lubrication Capacity | 16.4L | |
Coolant Capacity | 10.0L | |
Alternator | ||
Brands | Stamford, Leory Somer, Mecc-alt. etc | |
Exciter Type | Self excited, with AVR | |
Power Factor | 0.8 | |
Voltage Regulation | ≥5 | |
Insulation Grade | H | |
IP Grade | IP23 | |
Supply Scope - 150 kva diesel generator | ||||
Items | Standard | Optional Parts & Function | ||
Engine | Cummins 6CTAA8.3-G2 | Automatic Transfer Switch (ATS) Water heater Lub-oil heater Separated standing fuel tank Dual wall fuel tank base 50℃-60℃ Radiator Low coolant level sensor Fuel level sensor for alternator others as request | ||
Alternator | Stamford, Leory Somer etc at request | |||
Controller | Multi parameter monitoring LED display | |||

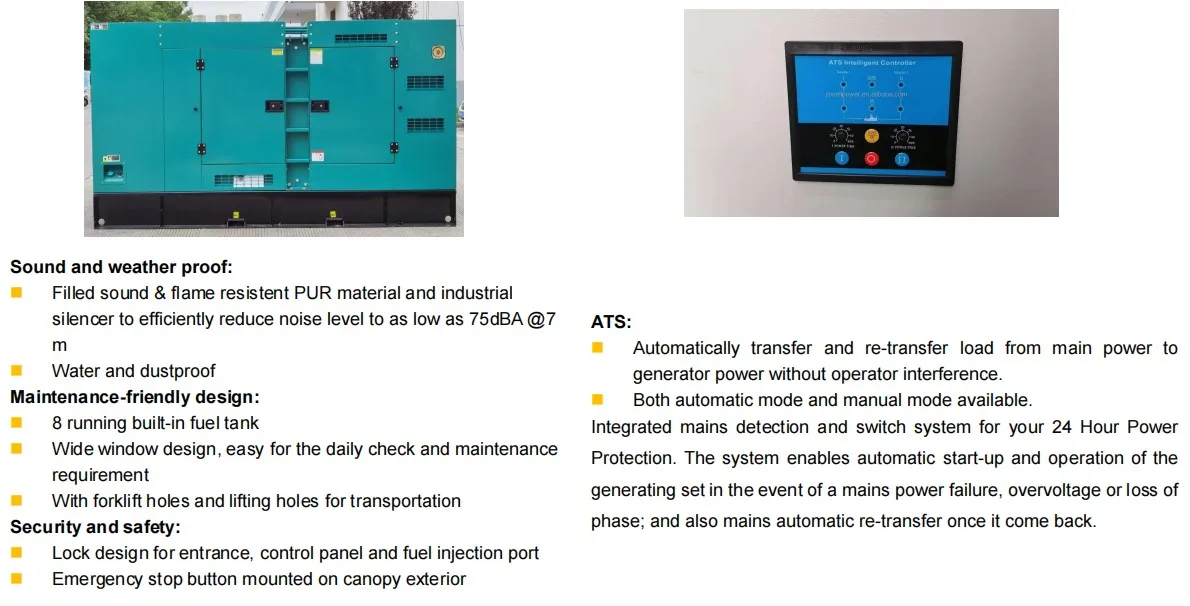

Soundproof &Weather proof canopy | color & logo customized | |||
Fuel Tank | 8- 10 working hours as standard, 12 hours, 18 hours capacity available | |||
Radiator (Water cooling) | Original Cummins Radiator | |||
Silencer | Industrial Grade | |||
Standard tool kit | Daily maintenance kit | |||
Manuals | Full set of manuals, drawings and certifications | |||
Generator Details - 200 kva diesel generator
Why Choose Us
Related Products
FAQ
1.Q: What is your MOQ of this item?
2.Q: What is the lead time?
3.Q: Is it all right to make customer's own brand name?
4.Q: Where is your Loading Port?
5.Q: What are your payment terms?
6.Q: What is your company's available production capacity?
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
