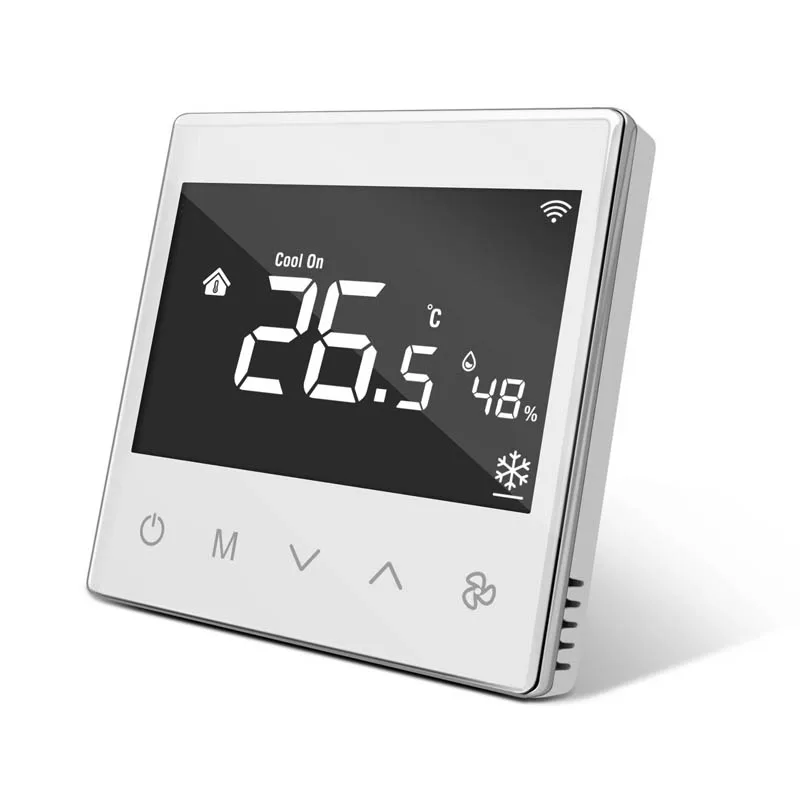

F5 4A E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System
F5-4A-E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System
F5-4A-E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System
F5-4A-E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System
F5-4A-E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System
F5-4A-E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System

F5 4A E LCD Touch Screen AC Thermostat WiFi Smart Home Indoor Temperature Controller for HVAC System

Share on (1601205690399):


Price:$28.00-38.00

Quantity:


Product Overview

Description


F5-4A-E LCD touch screen AC thermostat WiFi smart home indoor Temperature Controller for HVAC system


Fan coil thermostat is mainly applied to the central air-conditioning system or wind pipe system. Through the difference from indoor temperature and set temperature to control the fan-coil, electric valves,electric ball valves etc, then reach the purpose that adjust the room temperature andsave energy, make you feel comfort.While each products has its unique advantages and charm,will meet your individual needs.







Features:



  • Capacitive touch buttons

  • Toughened silver mirror style glass panel

  • Precise temperature calibration function

  • Black/White panel can be optional

  • Free selection of Auto/ Manual mode

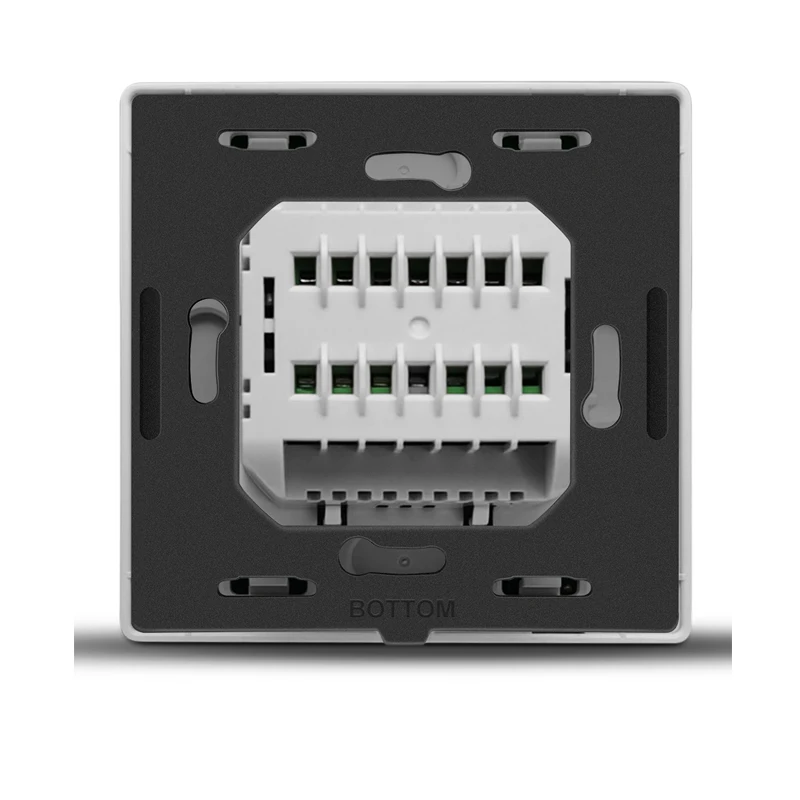

  • Easily steel frame back plate installation

  • Intelligent control the on/off of fan-coil, electrical ball valve or air valve

  • Wired Communication:RS485(Optional)

  • Wireless Communication:WiFi(Optional)

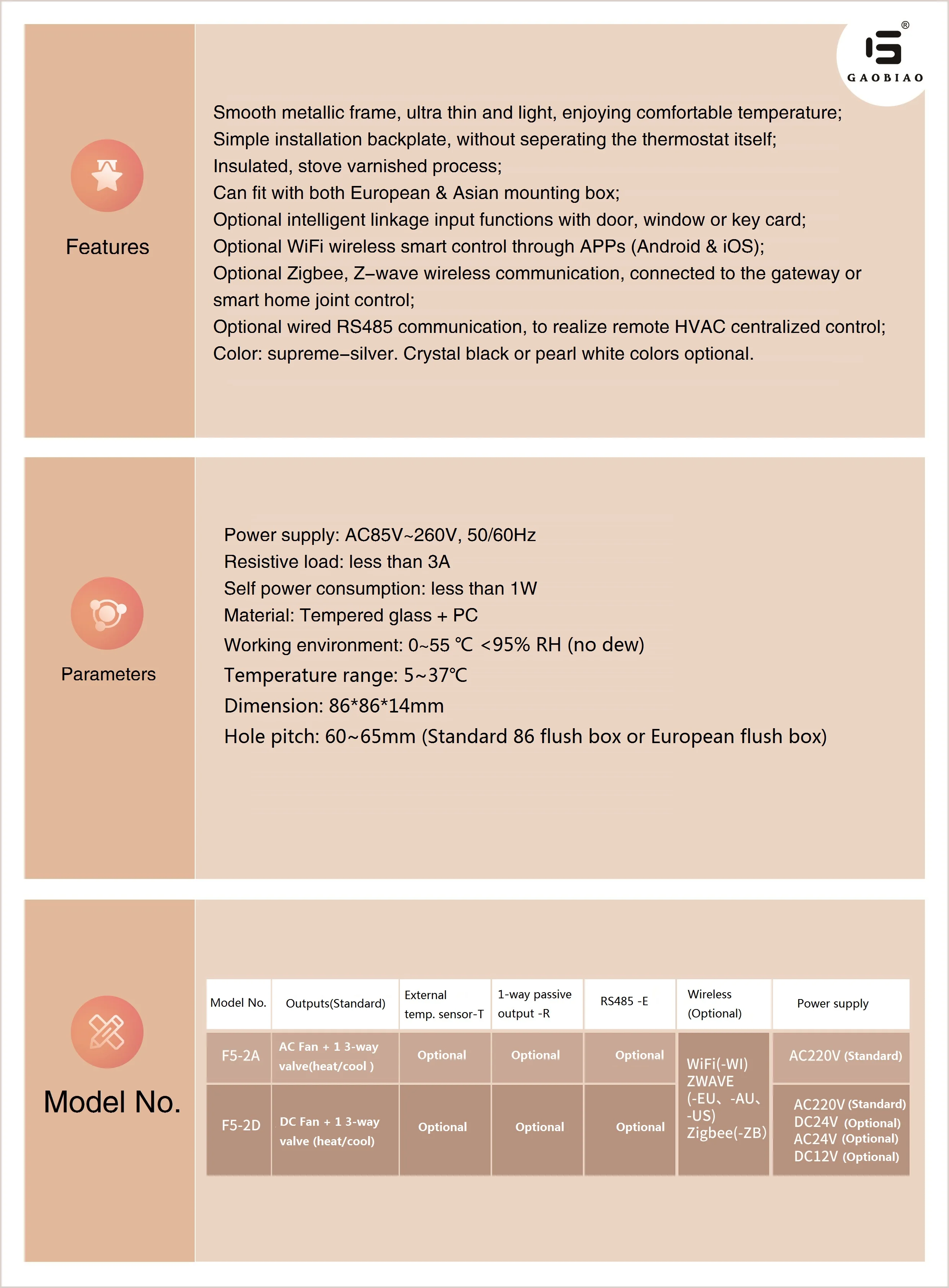

Parameters:
















































Power Supply



AC85V~AC260V / AC24V 50/60Hz



Self Consumption



< 1W



Display Temperature



±0.5℃



Temperature Setting



0~99 ℃(Adjustable)



Button Way



Capacitive touch button



Outer Shell



Toughened glass and PC+ alloy



Dimensions



86* 86mm



Hole Pitch



60-65mm(Standard 86 box)



Load Current



2 A(Resistive),1 A(Perceptive)



Working Environment



0~50℃; <95% RH(Non-condensation)

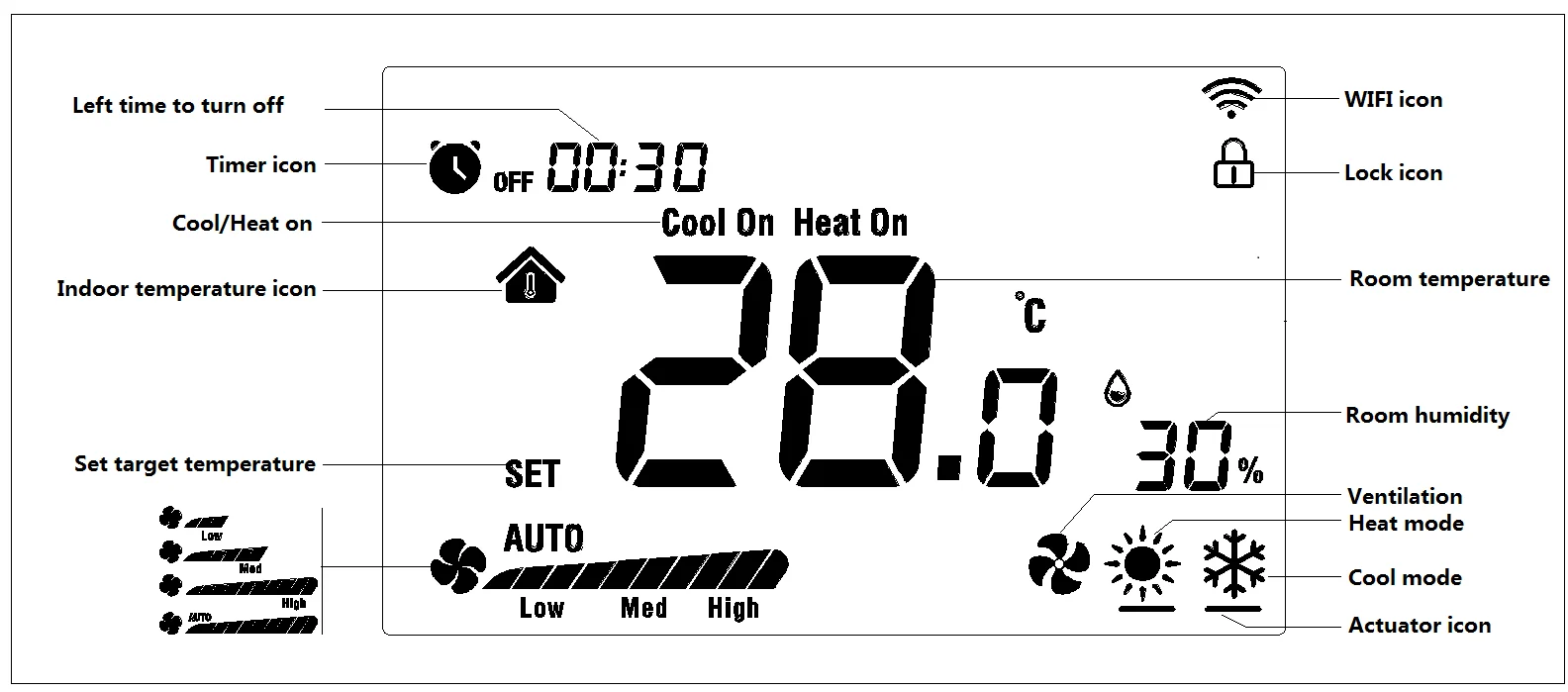

LCD Display







More products







Testing Equipment







Packaging & Shipping







Certifications


.jpg





Company Information


.jpg





Exhibition







FAQ























1.Why choose Gaupu?


  • Pass

  • 15 years’ accumulation

  • Very competitive prices

  • Superior after-sales services

  • The main R&D and produce base for automation control field at home

  • The main international ODM/OEM partners

  • Exported to Europe,Southeast Asia,Middle East,North America,South America and other countries and regions


 2.F&Q




       Q: Can I place sample order first?
       A: Yes, we will quote you different prices for small, medium and large qty.
           You can order with different price for different qty.



       Q: How to pay for the order?
       A: PayPal and T/T are preferred, so just tell us which is convenient for you.
           Then we will send you our bank information.



       Q: How long can I get my order?
       A: For standard product, we will finish production and ship within 3-5 working days.


           For bulk OEM orders, usually15~20 working days and it depends on your design.



       Q: Can you customize according to our designs and put our logo on the products?
       A: Yes, we support both standard and customized products and can put your logo on the


            products.We can do the ODM/OEM as your requirements
