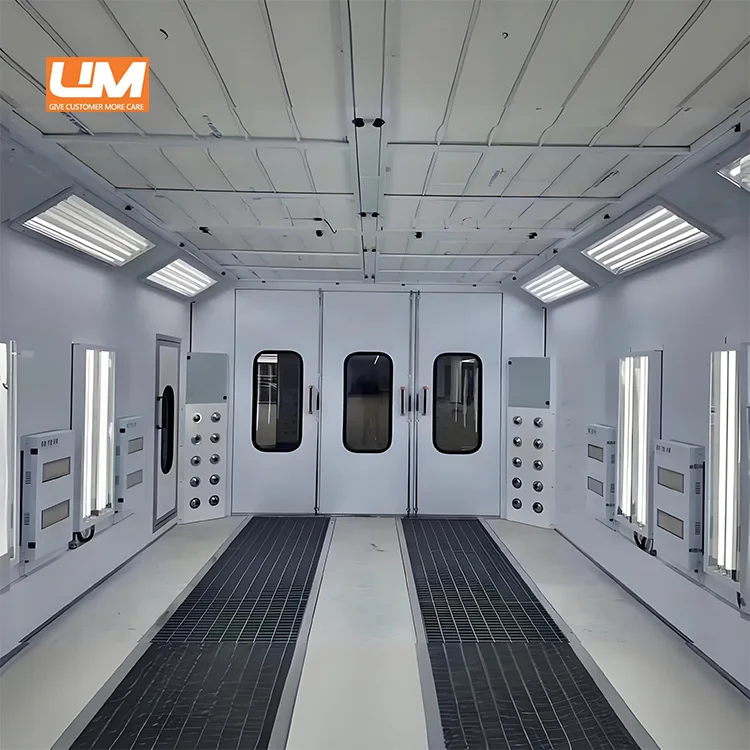

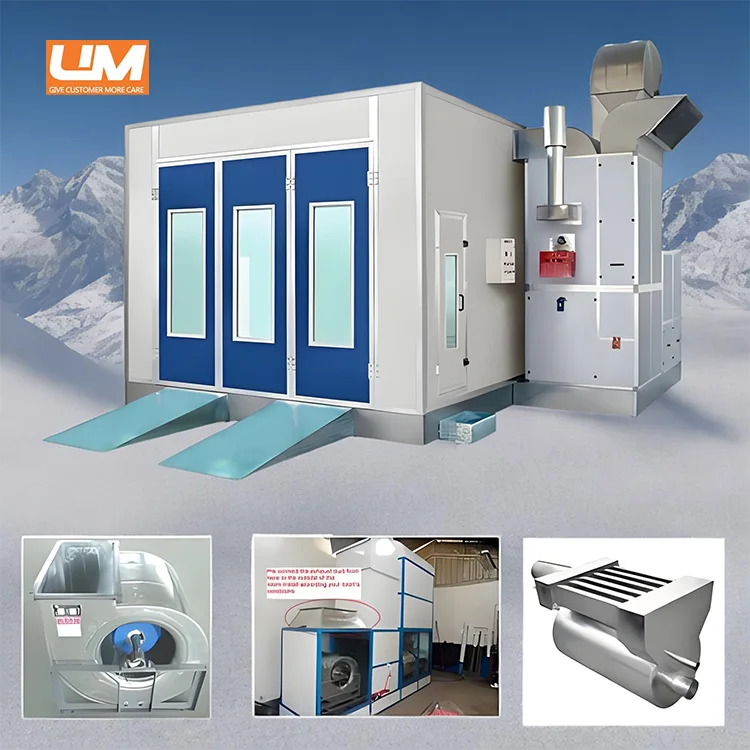

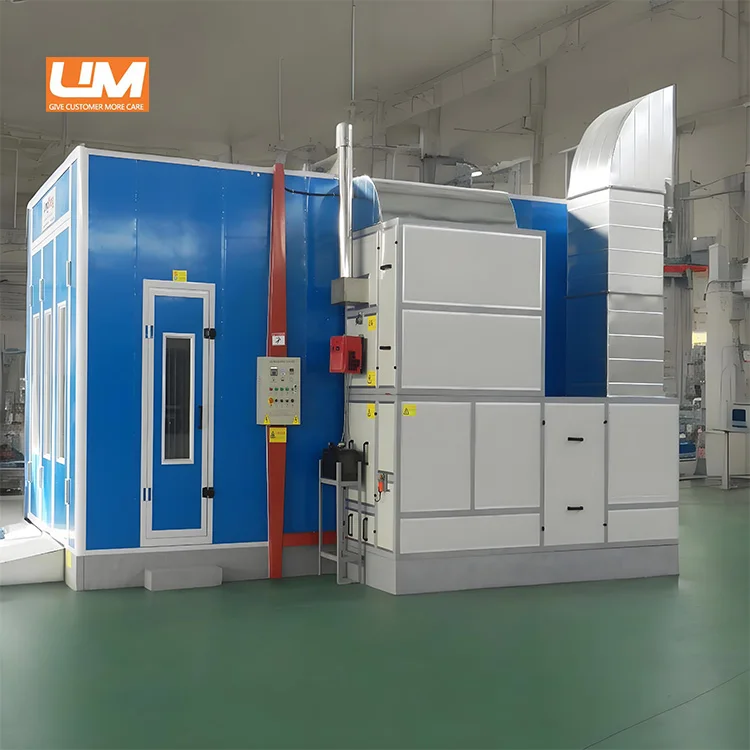

Garage Equipment Spray Booth Car Painting Camera Spraying Baking Oven Paint Cabin Downdraft Paint Booths Price
- Category: >>>
- Supplier: Shandong UM Technology Co. Ltd.
Share on (1601205695817):
Product Overview
Description
Product Description

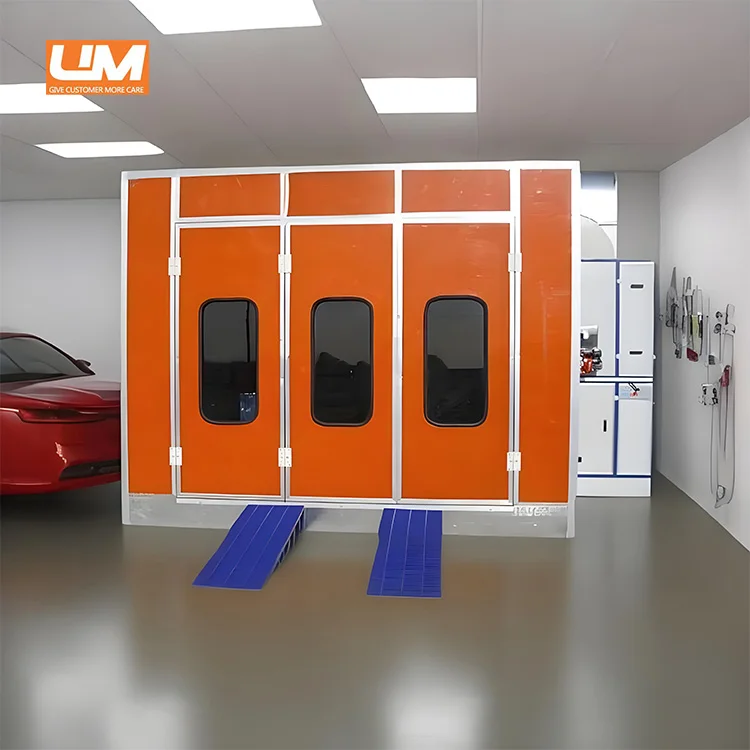

Spray booth provides a closed environment for vehicles painting with pressure controlling.
As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination.
We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spray booth for you according to your actual site.Contact us and you'll be pleasantly surprised.
As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a suitable temperature, air flow and illumination.
We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spray booth for you according to your actual site.Contact us and you'll be pleasantly surprised.
Specification
SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTH | ||||||
Outer size | 7000*5150*3250mm (L*W*H) | Inner size | 6900*3900*2600mm（L*W*H) | |||
Entry door | 2900*2500mm(W*H) | Emergency door | 700*2000mm(W*H) | |||
Power | 11KW/34KW | Voltage | 380V,50HZ,3PH or Customized | |||
Cabinet system | Wall panel | EPS colorful steel skin panel, 50mm thick, steel 0.42mm thick, tongue & groove style,compound construction, galvanized steel roof panel. | ||||
The basement made by high quality galvanized C-shaped steel design and square tubes assembling. 2 rows of grills made by flat barand round steel,30*4mm. 3 rows of diamond plates, galvanized. | ||||||
Entry door | Folding door, 3pcs, size 2900mm(W)*2500mm(H), with 5mm thick tempered glass window. | |||||
Size 700mm(W)*2000mm(H) *There is a pressure lock on the door, which will automatically open when the indoor air pressure is too large. | ||||||
Ramp | One pair of galvanized ramps, size 1800*650mm. | |||||
Air circulation system | Intake fan | Two sets of 3KW Double-intake centrifugal fan, air capacity 20000m³/h in total. | ||||
Exhaust fan | One set of 4KW exhaust fan, air capacity 12500m³/h in total. | |||||
Fan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and professional flange. | ||||||
Roof system | Beam | Made by galvanized square pipe, with supporting. | ||||
2-layer structure | The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15 galvanized square tubes, powder-coated on the surface. | |||||
Purfication system | Intake filter | Intake filter is high quality, could capture the articles larger than 10µm. | ||||
Roof filter | High efficiency filters, could capture the articles larger than 4µm. | |||||
Floor filter | The floor filter is fiberglass filter, TSP≤14mg/m³. | |||||
Heating system | Electric heating system | 8 groups infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover,total 24 tubes. Infrared heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. | ||||
Diesel heating system | RIELLO G10 diesel burner with heating exchanger, made of 1.5mm stainless steel SUS304. | |||||
Gas heating system | RIELLO FS10 gas burner with heating exchanger, made of 1.5mm stainless steel SUS304. | |||||
Lighting system | Ceiling light | 8 Units, total 32pcs, 36w LED lamp, with Light Fixtures. | ||||
Control system | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | |||||

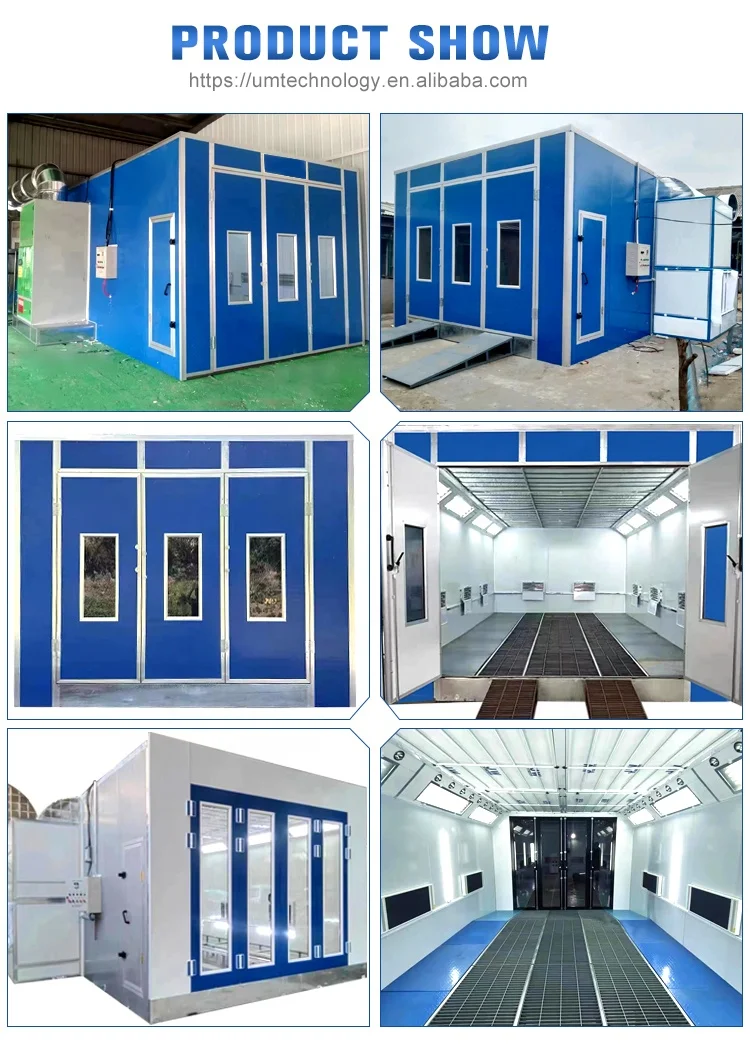

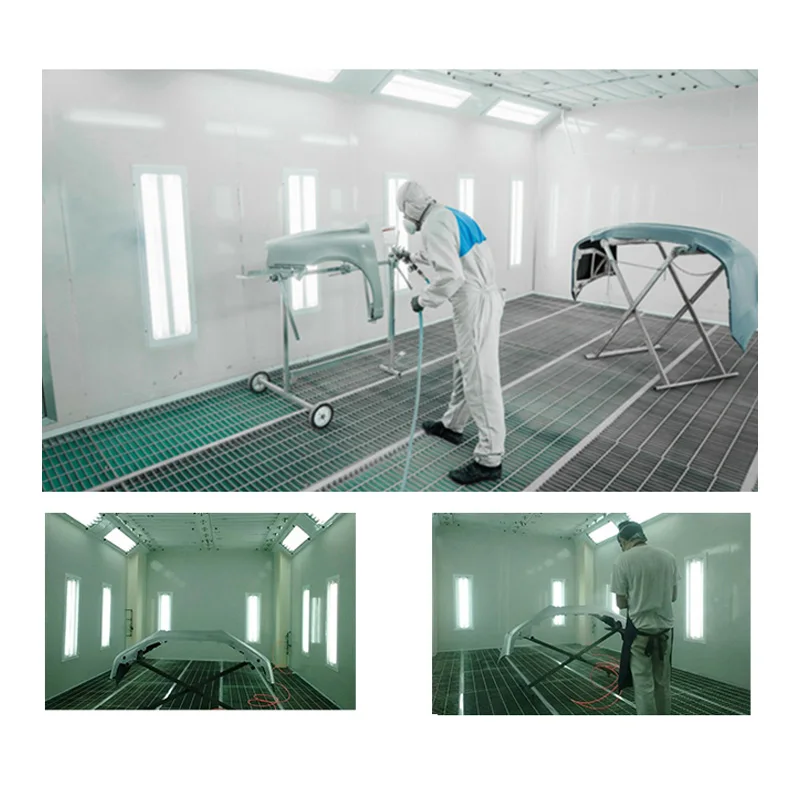

Details Images
Why Choose Us

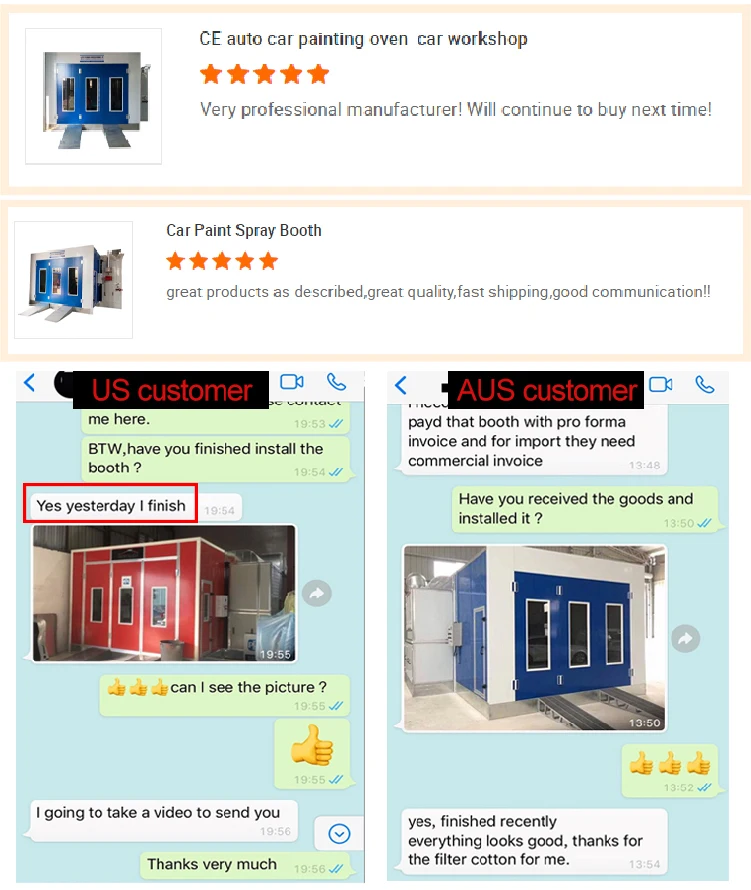

Customer Reviews

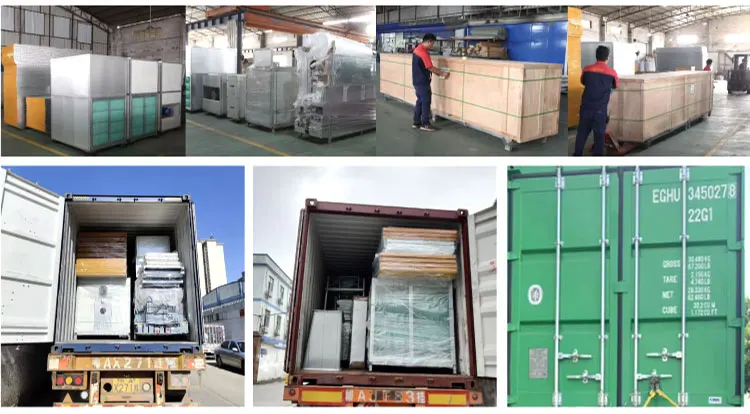

Product packaging
Delivery Details:Normonally we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
Packing Details:Standard exportation packing with polyfoam / wooden box / carton.Our package is very professional. We use the iron bracket package and it can fix the product and prevent them from broken. Moreover, every components with label and it easy for customers to distinguish.

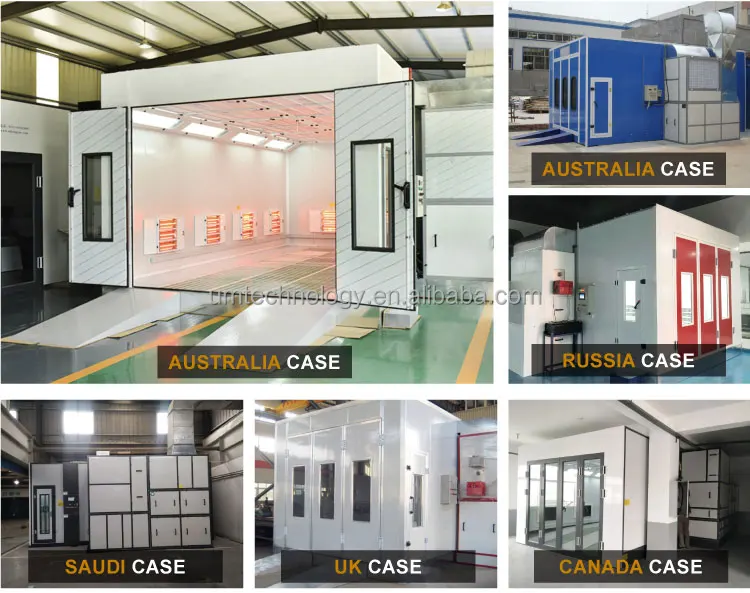

Case Display
FAQ
Q: How do you ganrantee the production quality?
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment.
A: We have an independent QC team. Our QC teams do sample inspection, part inspection during production and 100% final inspection before the shipment.
Q: As for auto spray booth,what kind of heating system do you have?
A: We have electric heating system,diesel heating system and gas heating system.It depends on which energy is more cheap in your local.
Q: What is the advantages of inlet fans and exhaust fans?
A：With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as possible.Pollution is small,it will be comfortable when people are working in the booth.
Q: Can I open the ventilator and heating system at the same time?
A: When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking.
A: We have electric heating system,diesel heating system and gas heating system.It depends on which energy is more cheap in your local.
Q: What is the advantages of inlet fans and exhaust fans?
A：With fans,the booth will have a good and rapid internal air circulation,paint fumes can be drain out as quick as possible.Pollution is small,it will be comfortable when people are working in the booth.
Q: Can I open the ventilator and heating system at the same time?
A: When spraying,ventilator works,making a good internal air circulation,paint fumes can be drain out as quick as possible,you can open infrared lamps or diesel burner if indoor temperature is very low.But when baking,ventilator is not allowed to open.heating system and ventilator can not work at the same time when baking.
Q: May I know the Lead time?
A:The lead time of our machine is 7-25 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 24 months. Parts have free replacement when damaged during this time.
A:The lead time of our machine is 7-25 days. When you order more, we need to check the production schedule.
Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 24 months. Parts have free replacement when damaged during this time.
