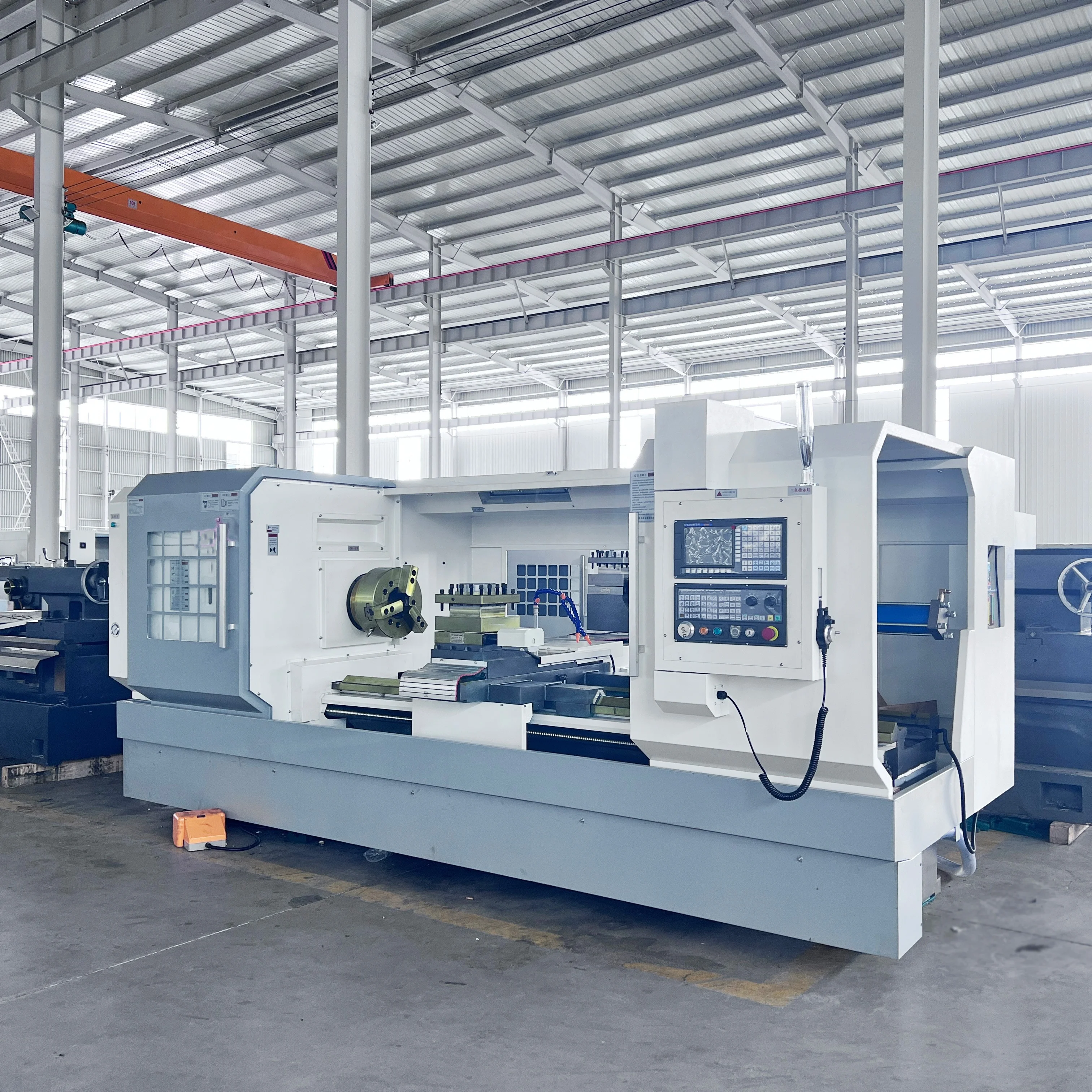

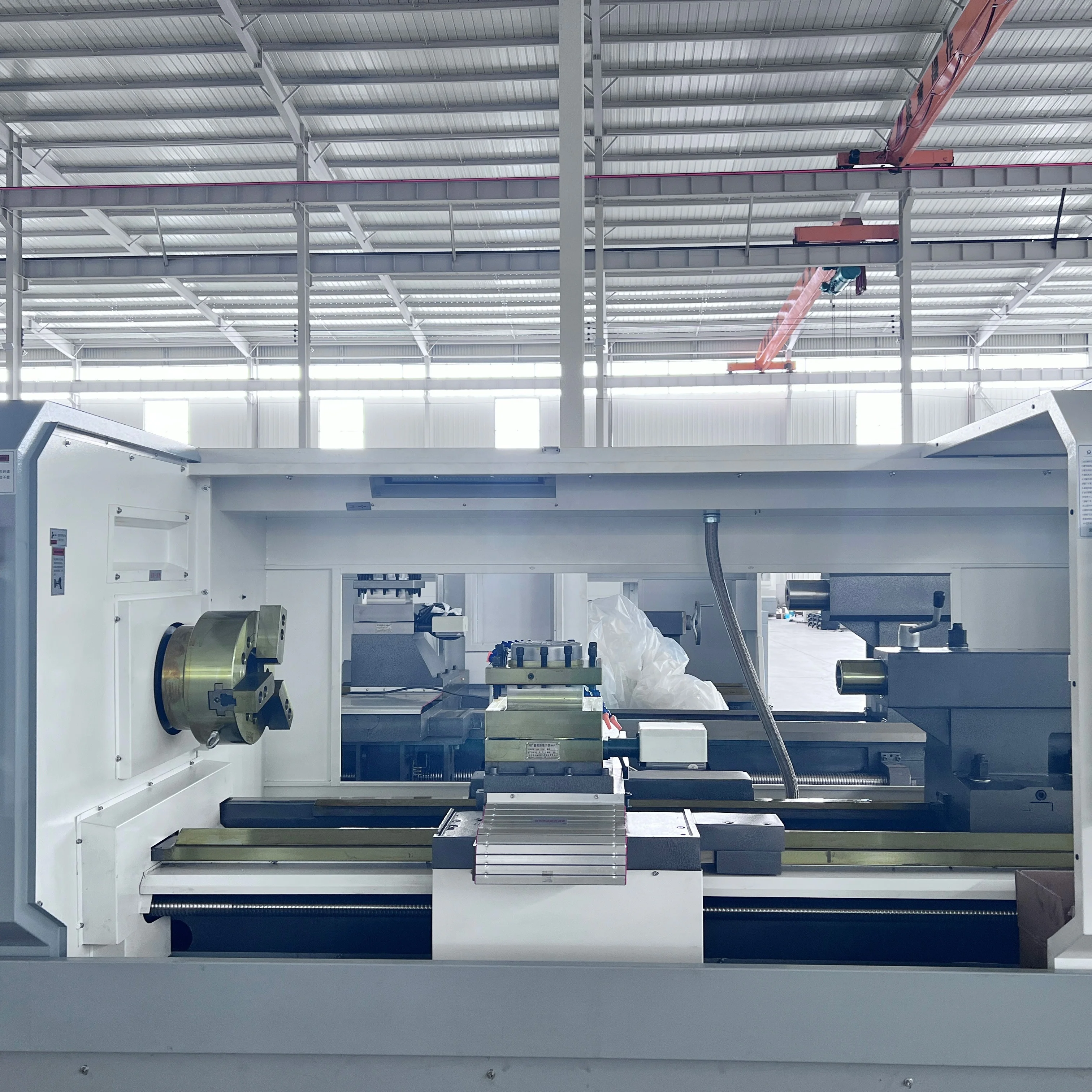

ck6150 ck6180 lathe cnc machining flat bed horizontal type turning metal lathe higher stability one piece cnc lathe machine
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.
Share on (1601205695894):
Product Overview
Description
Product descriptions from the supplier

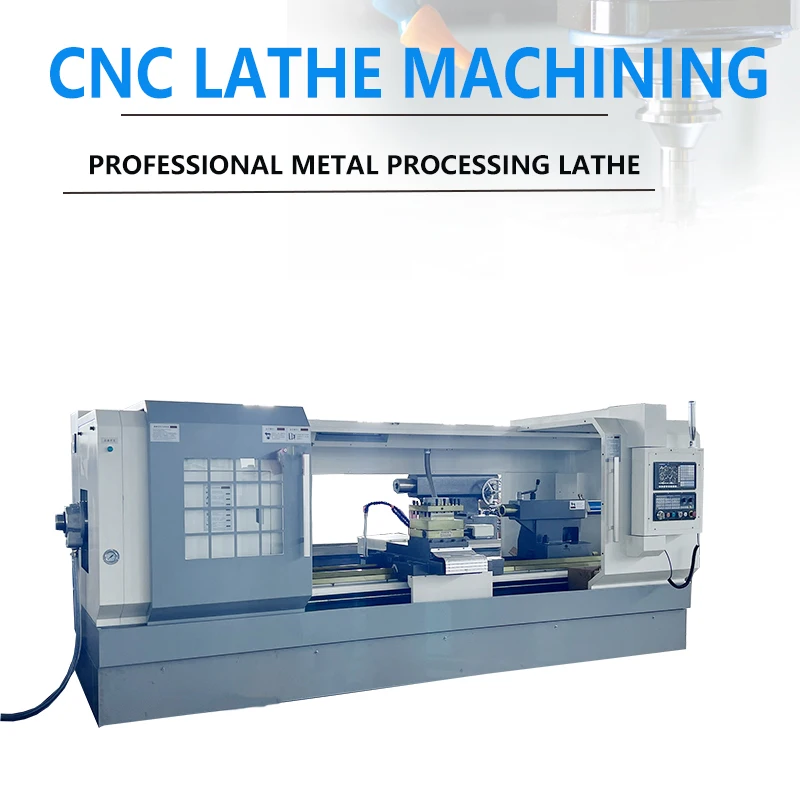

CK6180 CNC lathe can be rough machining and finishing machining of mechanical parts, simple and reliable structure, convenient operation, economic and practical.
Machine: mechanical and electrical integration design, automatic lubrication system.
Advanced structure, reasonable layout, safe and reliable, beautiful shape.
Bed: The CK6140 lathe is a split bed. The bed adopts box-type casting structure, good rigidity, the material adopts high-quality cast iron, the guide rail adopts medium frequency quenching process, the surface of the guide rail is ground by high-precision guide rail grinding, high precision, long service life.
Machine: mechanical and electrical integration design, automatic lubrication system.
Advanced structure, reasonable layout, safe and reliable, beautiful shape.
Bed: The CK6140 lathe is a split bed. The bed adopts box-type casting structure, good rigidity, the material adopts high-quality cast iron, the guide rail adopts medium frequency quenching process, the surface of the guide rail is ground by high-precision guide rail grinding, high precision, long service life.
1, this machine tool can be rough machining and finishing mechanical parts, especially suitable for automotive, military, machinery and other industries, rotary parts for efficient, large quantities, high-precision processing.
2, this machine can process steel, cast iron and non-ferrous metals and other materials.
3, this machine is also suitable for small and medium-sized batches of shaft, disc parts of the inner and outer cylinder, cone, thread, drilling, reaming and curve rotary parts of the turning process. The machining accuracy can reach IT7 level, and the surface roughness of the machined workpiece can reach Ra1.6.
The machining scope of the machine tool should be determined according to the specifications of the machine tool and its technical parameters. Machining beyond machine specifications and allowed parameters is prohibited.
2, this machine can process steel, cast iron and non-ferrous metals and other materials.
3, this machine is also suitable for small and medium-sized batches of shaft, disc parts of the inner and outer cylinder, cone, thread, drilling, reaming and curve rotary parts of the turning process. The machining accuracy can reach IT7 level, and the surface roughness of the machined workpiece can reach Ra1.6.
The machining scope of the machine tool should be determined according to the specifications of the machine tool and its technical parameters. Machining beyond machine specifications and allowed parameters is prohibited.
SPECIFICATIONS | Units | CK6163 | CK6163 | CK6180 | CK6180 | ||
Manual | HYD. | Manual | HYD. | ||||
Swing over bed | mm | 630 | 800 | ||||
Swing over cross slide | mm | 350 | 520 | ||||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000 | 1000/1500/2000/3000/4000/5000 | ||||
Guideway width | mm | 550 | 550 | ||||
Max. load capacity | T | 3 | 3 | ||||
Spindle bore | mm | 104 | 104 | ||||
Spindle bore taper | - | Metric φ120/MT5 | Metric φ120/MT5 | ||||
Spindle nose type | - | C11 | C11 | ||||
Spindle speed steps | - | VF. 3 steps | HYD. 4 steps | VF. 3 steps | HYD. 4 steps | ||
Spindle speed range | rpm | 10-1000 | 17-1000 | 10-1000 | 17-1000 | ||
Chuck | mm | φ315 3-jaw manual | φ315 3-jaw manual | ||||
Turret/tool post | - | Electric 4 position | Electric 4 position | ||||
Tool size | mm | 32 x 32 | 32x32 | ||||
X axis travel | mm | 320 | 420 | ||||
Z axis travel | mm | 850/1350/1850/2850/3850/4850/5850 | 850/1350/1850/2850/3850/4850/5850 | ||||
X axis rapid traverse | mm/min | 4000 | 4000 | ||||
Z axis rapid traverse | mm/min | 6000 | 6000 | ||||
Tailstock quill diameter | mm | φ100 | φ100 | ||||
Tailstock quill taper | - | MT5 | MT5 | ||||
Tailstock quill travel | mm | 250 | 250 | ||||
Main spindle motor | kw | 11 | 11 | ||||
Coolant pump motor | kw | 0.125 | 0.125 | ||||
Weight for 1000 | kg | 3700 | 3900 | ||||
Weight for 1500 | kg | 4100 | 4300 | ||||
Weight for 2000 | kg | 4500 | 4700 | ||||
Weight for 3000 | kg | 5300 | 5500 | ||||
Weight for 4000 | kg | 6100 | 6300 | ||||
Weight for 5000 | kg | 6900 | 7100 | ||||
Weight for 6000 | kg | 7700 | 7900 | ||||
Dimension for 1000 | mm | 3300x1750x1850 | 3300x1850 x1900 | ||||
Dimension for 1500 | mm | 3800x1750x1850 | 3800x1850 x1900 | ||||
Dimension for 2000 | mm | 4300x1750x1850 | 4300x1850 x1900 | ||||
Dimension for 3000 | mm | 5300x1750x1850 | 5300x1850 x1900 | ||||
HARDWARE DISPLAY
Shandong Weste CNC Machine Tool Co.,Ltd

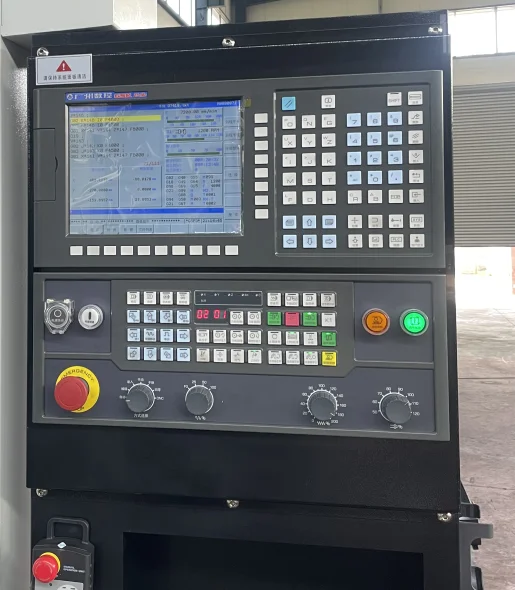

Standard:GSK controller.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.
Optional:Siemens,Fanuc,Syntec,Mitsubishi and others.

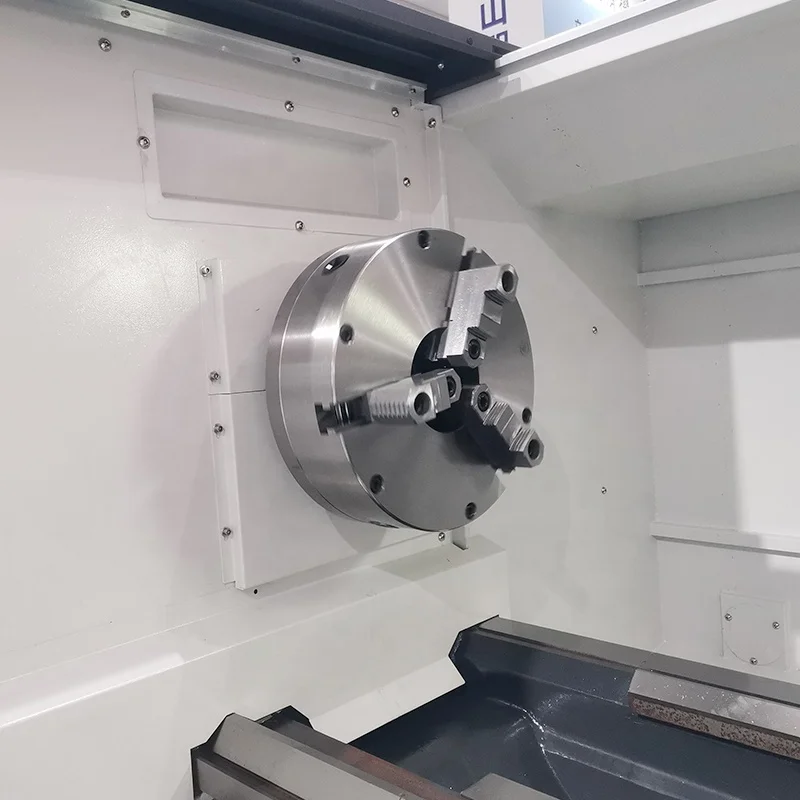

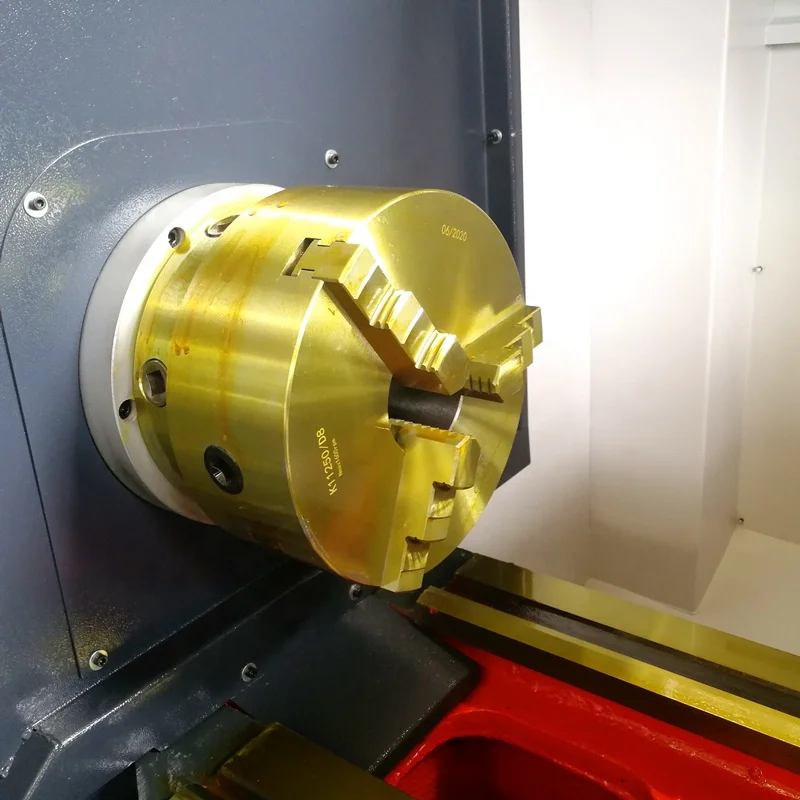

3 JAW CHUCK
The metal three jaw chuck is conducive to clamping irregular workpiece for rapid production.
Optional: hydraulic chuck

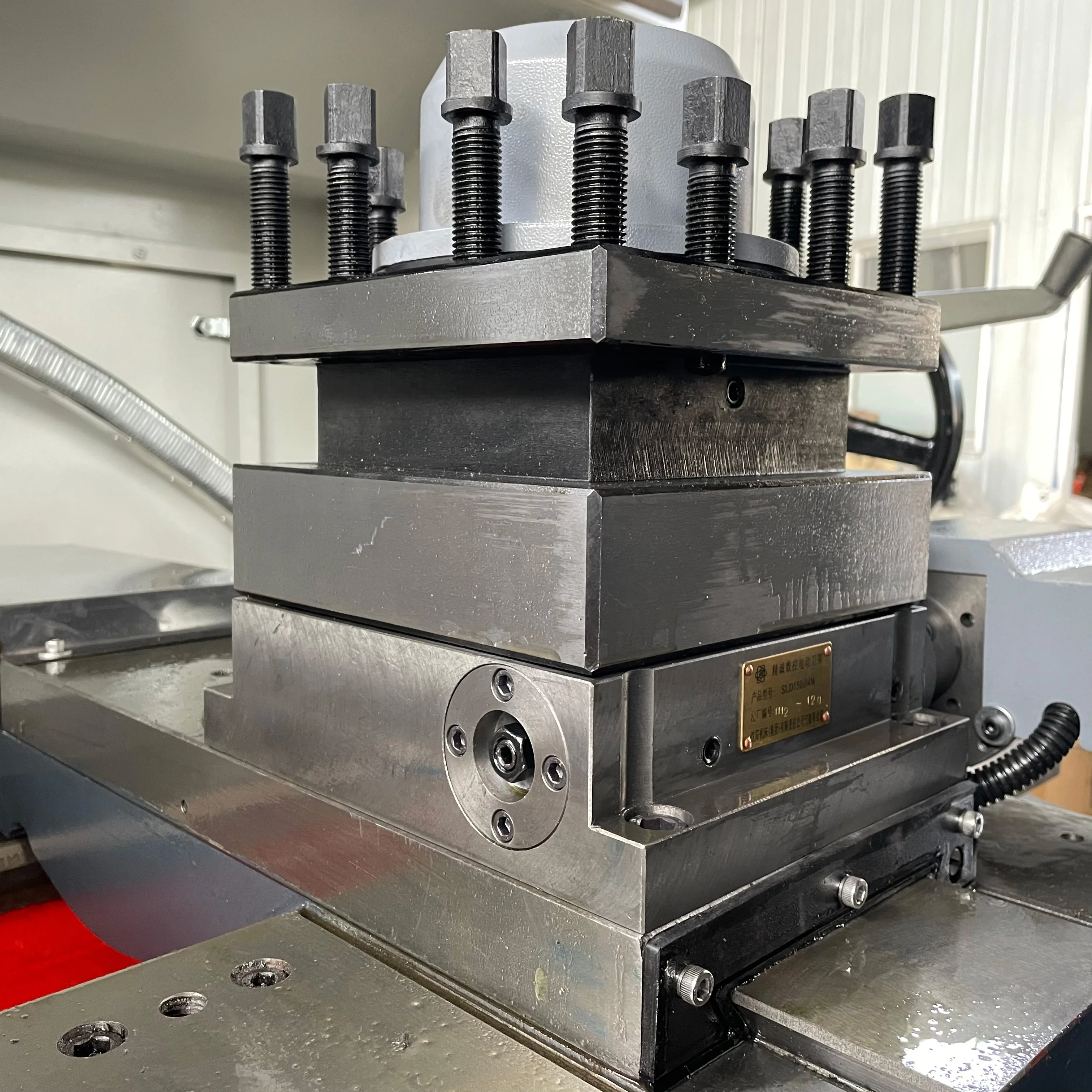

Four-stations CNC tool rest:
Change knife without lifting knife.High positioning accuracy,stability and reliability, widely application range. Optional
six-stations electric tool rest.
six-stations electric tool rest.

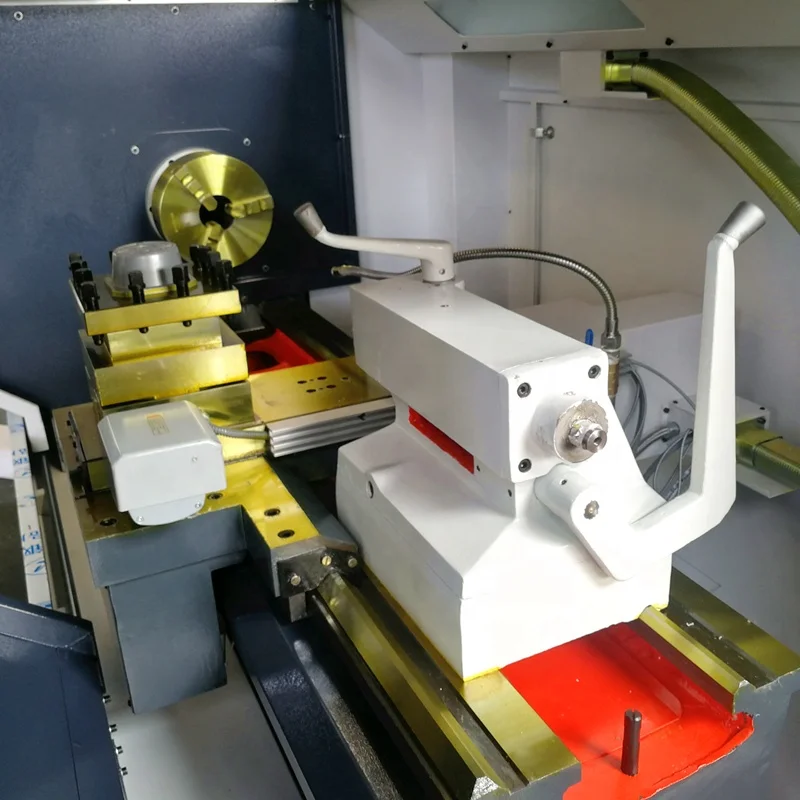

MANUAL TAILSTOCK
Optional: Hydraulic tailstock.
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and soon .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and soon .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
