Wholesale Dissolved Ozone Meter for Testing Ozone Concentration in Air Feeding Systems
- Category: >>>
- Supplier: Anhui Morhon Technology Co. Ltd.Anhui Ltd.
Share on (1601205697445):
Product Overview
Description
Products Description
Specification

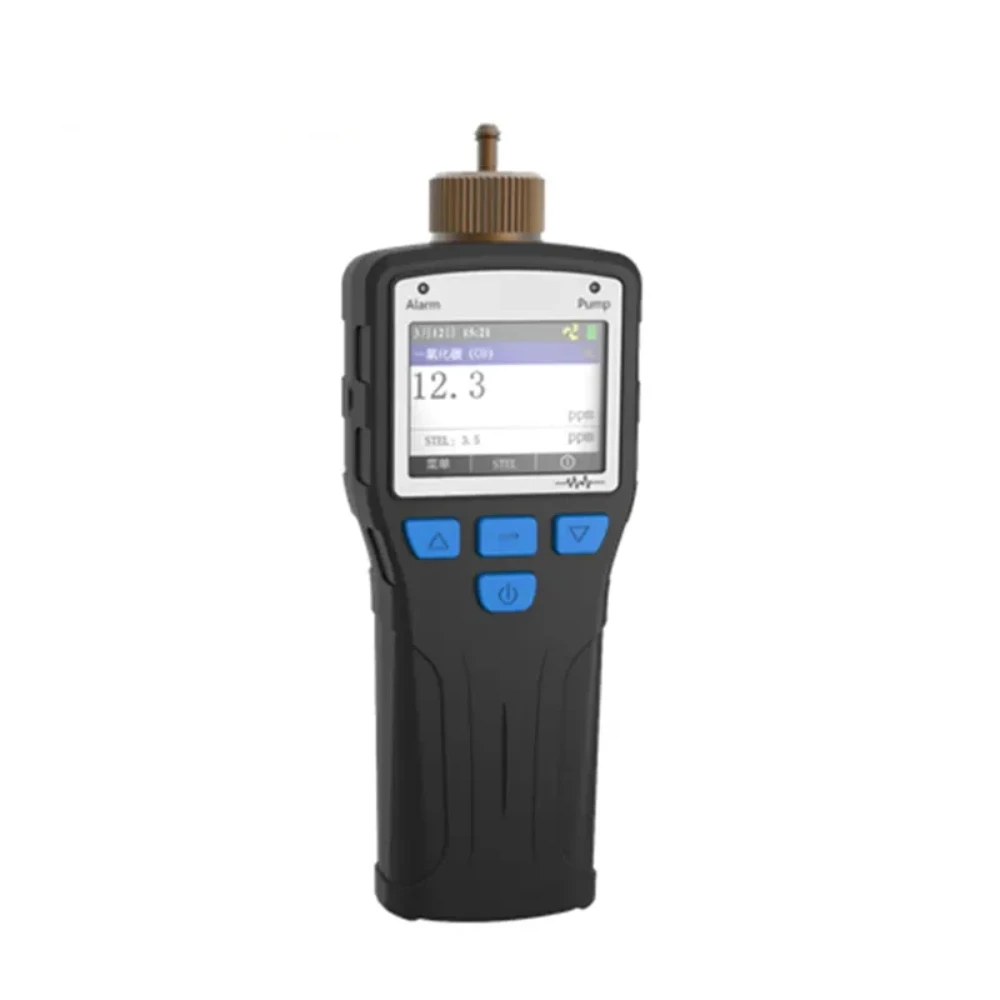

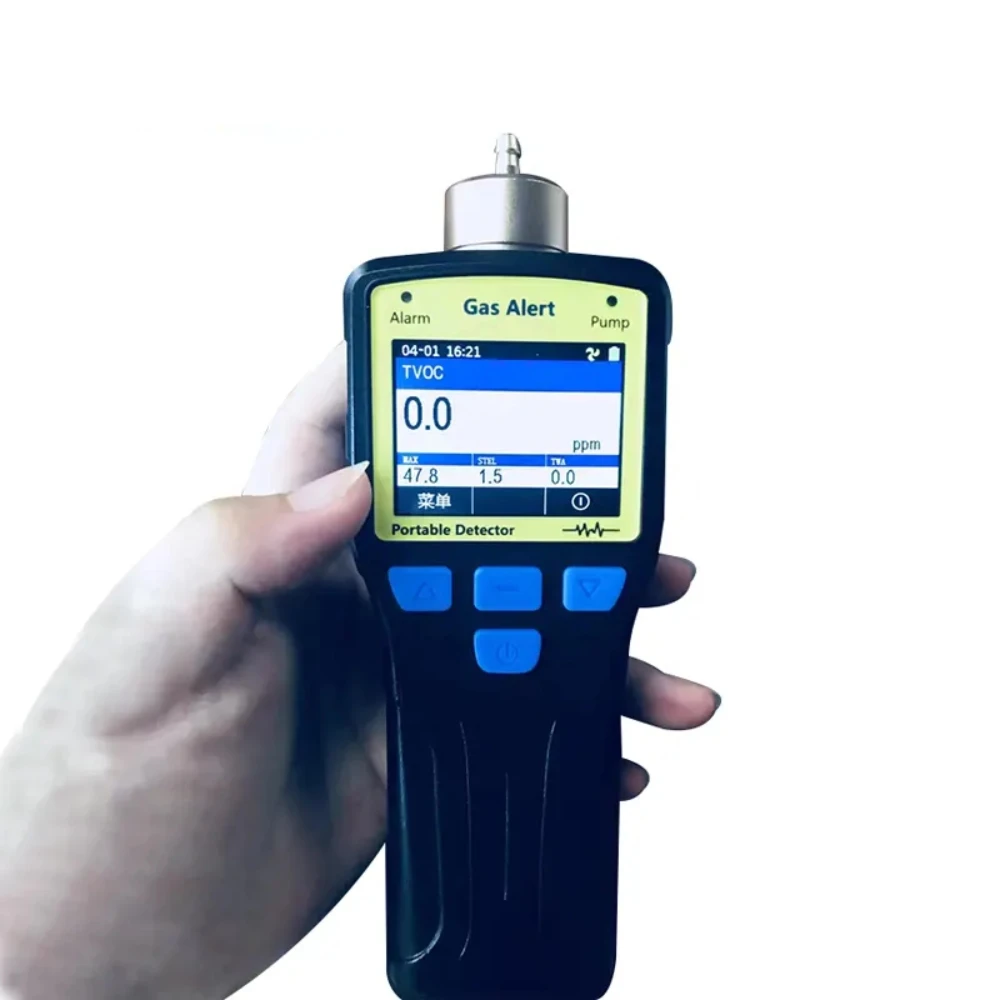

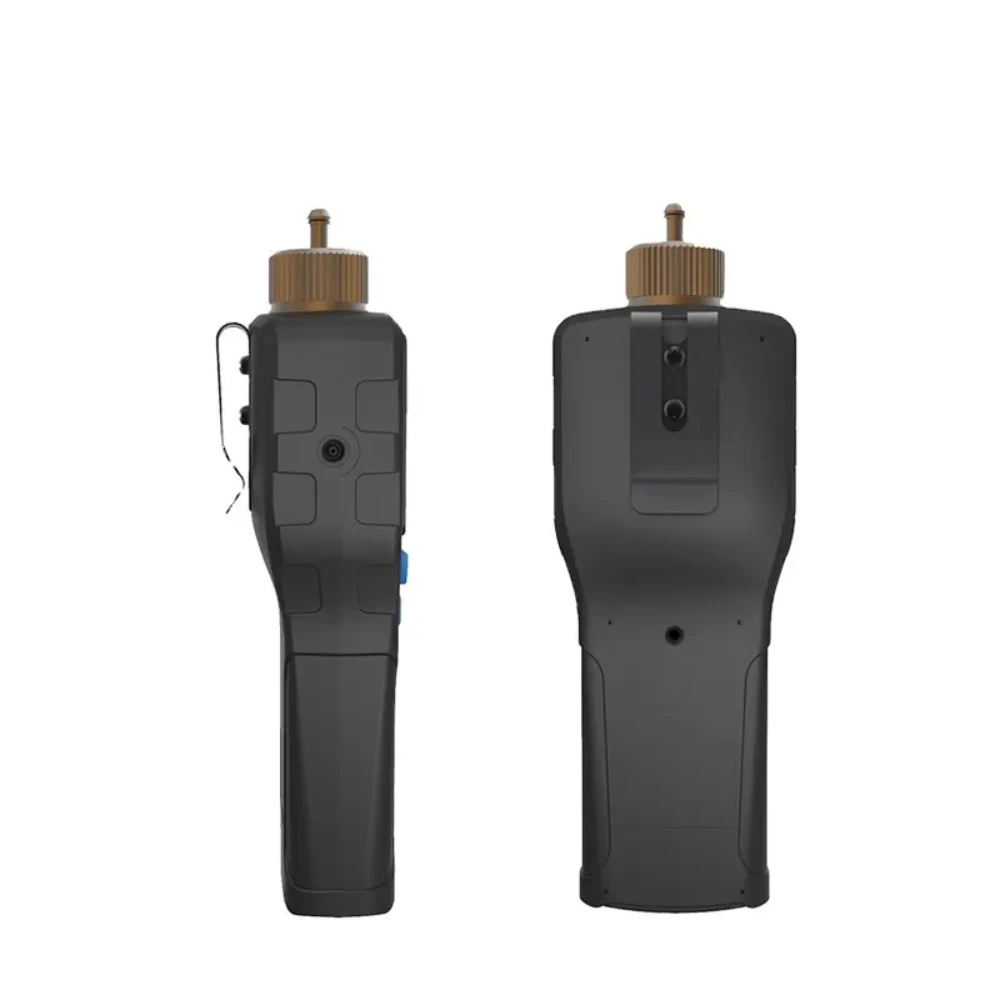

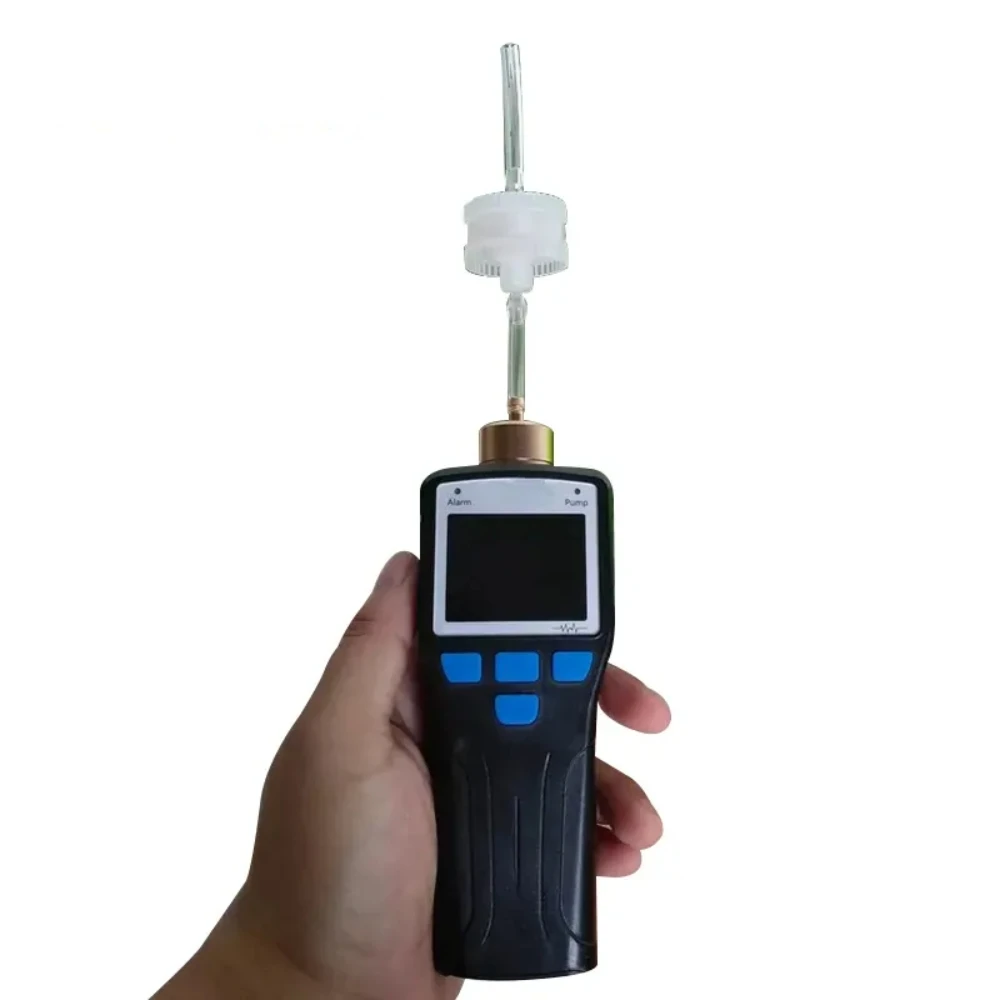

The ZP200-O3 hand-held pump suction gas detector is an intrinsically safe instrument that continuously detects the specific
concentration of ozone gas in the working environment. The alarm instrument detects the gas concentration by means of built-in
pumping mode. It adopts imported gas sensor with excellent sensitivity and excellent repeatability. The instrument adopts embedded
micro-control technology, which is easy to operate, complete in function and high in reliability. Leading level.
concentration of ozone gas in the working environment. The alarm instrument detects the gas concentration by means of built-in
pumping mode. It adopts imported gas sensor with excellent sensitivity and excellent repeatability. The instrument adopts embedded
micro-control technology, which is easy to operate, complete in function and high in reliability. Leading level.
Specification
Main Feature:
◆ Built-in air pump
Built-in powerful air pump, independent air chamber, good instrument sealing, quick response during testing, wider application.
Customizable combination 2 different gases for simultaneous detection, screen partition display.
◆ Instrument display
2.0 inch industrial color display, time, date, real-time concentration value, average concentration value display intuitive.
Optional integrated temperature and humidity parameters, inspection data at a glance.
◆Data storage
The instrument comes with a storage function, which can store more than 60,000 data, and the storage frequency can be set freely.
Optional 1G data memory card, effective storage for more than 10 years, USB2.0 data reading, detection data one-click import to
computer.
◆ Built-in air pump
Built-in powerful air pump, independent air chamber, good instrument sealing, quick response during testing, wider application.
Customizable combination 2 different gases for simultaneous detection, screen partition display.
◆ Instrument display
2.0 inch industrial color display, time, date, real-time concentration value, average concentration value display intuitive.
Optional integrated temperature and humidity parameters, inspection data at a glance.
◆Data storage
The instrument comes with a storage function, which can store more than 60,000 data, and the storage frequency can be set freely.
Optional 1G data memory card, effective storage for more than 10 years, USB2.0 data reading, detection data one-click import to
computer.
Specification
◆Super battery life
High-capacity rechargeable lithium battery for more than 24 hours of continuous use.
◆Data printing
Optional micro-printer to print test data or print historical data in real time, convenient for detecting data recor.
◆Alarm point setting
Differentiate between low concentration alarm, first level alarm point and second level alarm. point, which can be set freely
according to the actual detection environment.
◆Explosion-proof grade
ExdIICT4 Ga intrinsically safe, IP66 protection.
◆Applicable places:
Fast active detection of restricted working space, industrial workshop, experimental environment and dangerous area.
Environmental testing of pipes, chimneys, vents, tanks, reaction tanks, etc.
High-capacity rechargeable lithium battery for more than 24 hours of continuous use.
◆Data printing
Optional micro-printer to print test data or print historical data in real time, convenient for detecting data recor.
◆Alarm point setting
Differentiate between low concentration alarm, first level alarm point and second level alarm. point, which can be set freely
according to the actual detection environment.
◆Explosion-proof grade
ExdIICT4 Ga intrinsically safe, IP66 protection.
◆Applicable places:
Fast active detection of restricted working space, industrial workshop, experimental environment and dangerous area.
Environmental testing of pipes, chimneys, vents, tanks, reaction tanks, etc.
Detection gas: | Ozone-03 | ||||
Measuring range: | 0-1ppm. 0-2ppm、10ppm、100ppm | ||||
Detection principle: | Principle of electrochemical detection | ||||
Detection accuracy: | ≤±2%FS | Resolution: | 0.001ppm, 0.01ppm, 1ppm | ||
Detection method: | Pumping | Zero drift: | ≤+1% (F.S/year ) | ||
Response time: | ≤20s | Recovery Time | ≤20s | ||
Linearity error: | ≤±1% | The instrument displays: | 2.0 inch industrial color screen | ||
Alarm method: | Sound + light + vibration alarm, sound > 80 decibels, light flashing warning | ||||
Housing material: | Composite elastic rubber material, excellent hand feeling, effectively preventing falling off | ||||
Power supply: | 3.7v, 2000mAH lithium battery, fully charged for more than 24 hours | ||||
Data storage: | The instrument comes with a storage function, which can store more than 60000 data, and the frequency can be set freely. | ||||
Optional high-capacity TF memory card, USB port to export data to the computer, convenient and fast | |||||
Weight: | 300g | Instrument size: | 155*60*30mm ( length Width Thickness) | ||
Protection level: | 1P66 | Temperature range: | -20°C~+70°C(High temperature can be processed) | ||
Humidity range: | 10-95%RH No | Pressure range: | 86Kpa~106Kpa (High pressure | ||

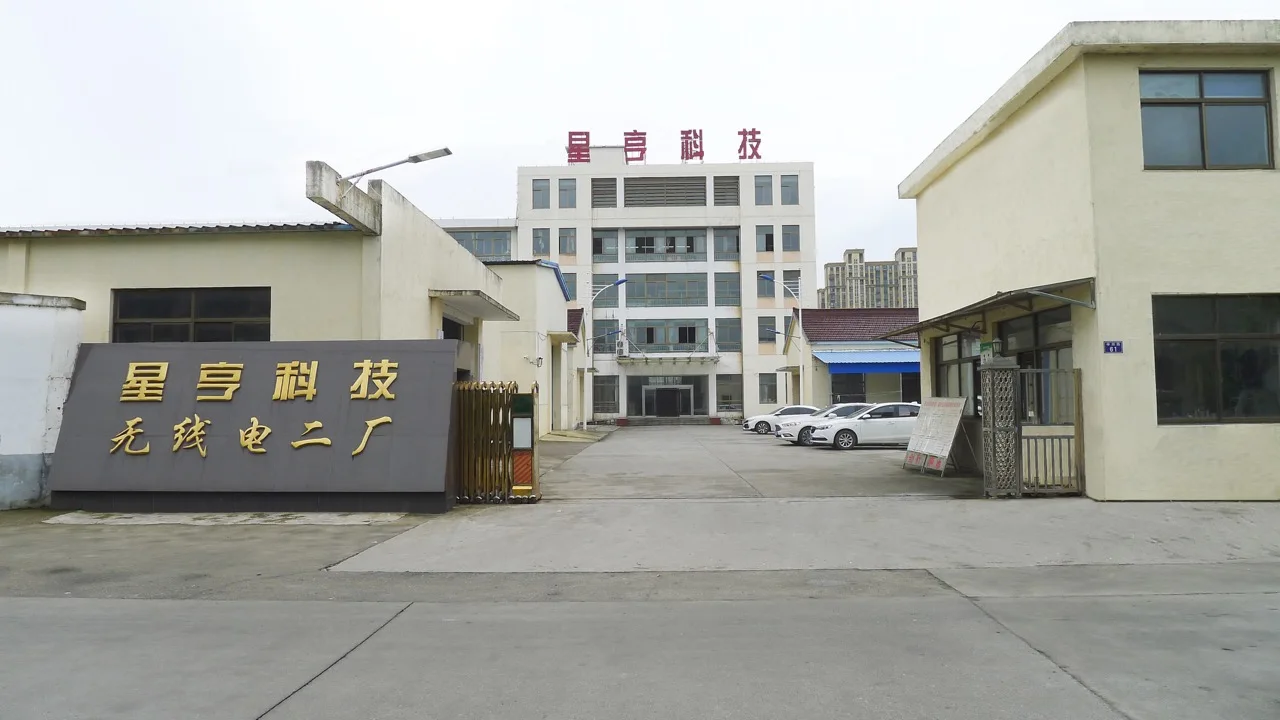

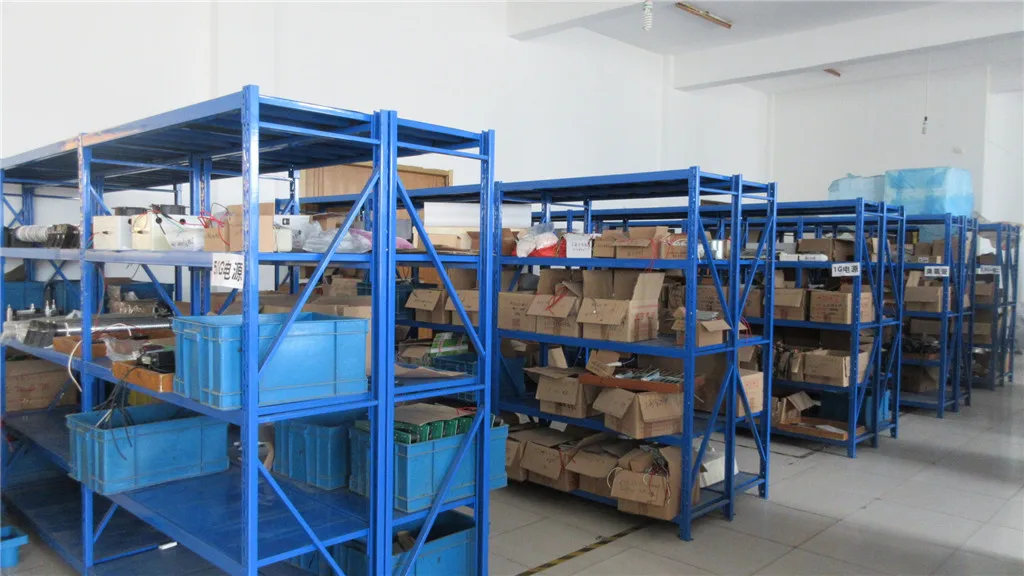

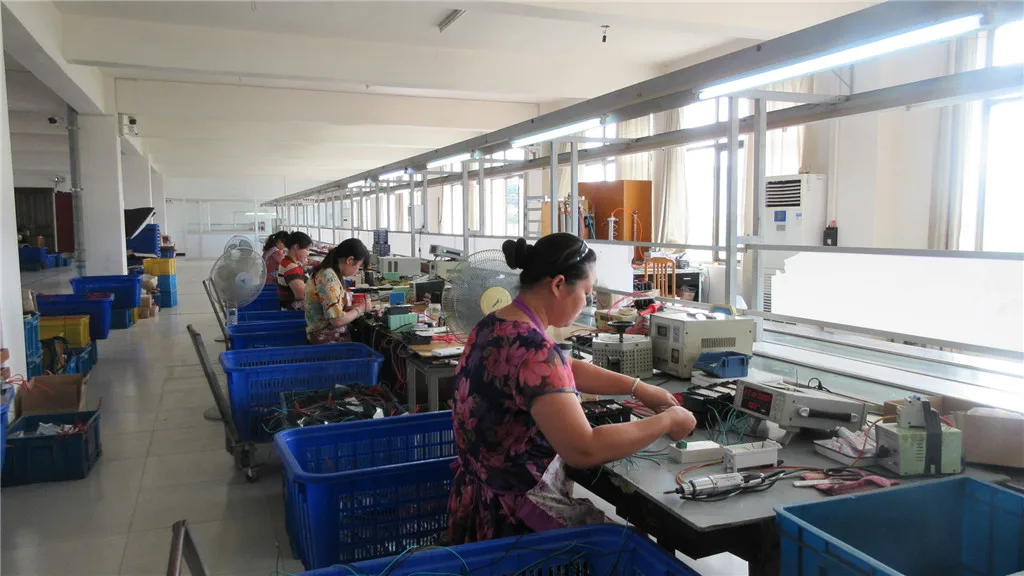

About Us
Our company is a company with 20 years of production and sales experience, the main products ozone generator and parts. Products
are strictly in accordance with ISO99001, CE and RoHS standards.
Alibaba certified factory. Have SGS certificationOur company is a company with 20 years of production and sales experience, the main products ozone generator and parts. Products are strictly in accordance with ISO99001, CE and RoHS standards.
Alibaba certified factory. Have SGS certification
are strictly in accordance with ISO99001, CE and RoHS standards.
Alibaba certified factory. Have SGS certificationOur company is a company with 20 years of production and sales experience, the main products ozone generator and parts. Products are strictly in accordance with ISO99001, CE and RoHS standards.
Alibaba certified factory. Have SGS certification
1.How do I get rid of ozone smell?
After the source of the mold is removed, ozone can be used to remove the smells left behind. Ozone can be used for mold and
mildew removal when it is administered in higher amounts. This means the A7K or Air-7000 would be the most useful solution. At
7000 mg/hr, ozone is an effective agent for mold and mildew removal.
2.How can you make ozone?
Stratospheric ozone is formed naturally by chemical reactions involving solar ultraviolet radiation (sunlight) and oxygen
molecules, which make up 21% of the atmosphere. In the first step, solar ultraviolet radiation breaks apart one oxygen molecule
(O2) to produce two oxygen atoms (2 O) (see Figure Q2-1).
3.How does an ozone generator work?
Ozone generators apply a electrical charge to the air that passes through. ... Ozone generators produce ozone by breaking apart
oxygen (O2) molecules into single atoms, which then attach to other oxygen molecules in the air to form ozone (O3).
4.How long do you run an ozone machine?
Just use a properly sized ozone machine in the room needing treatment and let it run for approximately 30 hours, vacant of people
pets or plants, shut if off and wait a couple of hours before you reoccupy the room.
5.How long does ozone last in air?
In practice the half life is usually less than 30 minutes due to temperature, dust, and other contaminants in the air. Therefore,
ozone, while very powerful, doesn't last long. It does its job and then disappears back into safe oxygen.
After the source of the mold is removed, ozone can be used to remove the smells left behind. Ozone can be used for mold and
mildew removal when it is administered in higher amounts. This means the A7K or Air-7000 would be the most useful solution. At
7000 mg/hr, ozone is an effective agent for mold and mildew removal.
2.How can you make ozone?
Stratospheric ozone is formed naturally by chemical reactions involving solar ultraviolet radiation (sunlight) and oxygen
molecules, which make up 21% of the atmosphere. In the first step, solar ultraviolet radiation breaks apart one oxygen molecule
(O2) to produce two oxygen atoms (2 O) (see Figure Q2-1).
3.How does an ozone generator work?
Ozone generators apply a electrical charge to the air that passes through. ... Ozone generators produce ozone by breaking apart
oxygen (O2) molecules into single atoms, which then attach to other oxygen molecules in the air to form ozone (O3).
4.How long do you run an ozone machine?
Just use a properly sized ozone machine in the room needing treatment and let it run for approximately 30 hours, vacant of people
pets or plants, shut if off and wait a couple of hours before you reoccupy the room.
5.How long does ozone last in air?
In practice the half life is usually less than 30 minutes due to temperature, dust, and other contaminants in the air. Therefore,
ozone, while very powerful, doesn't last long. It does its job and then disappears back into safe oxygen.
