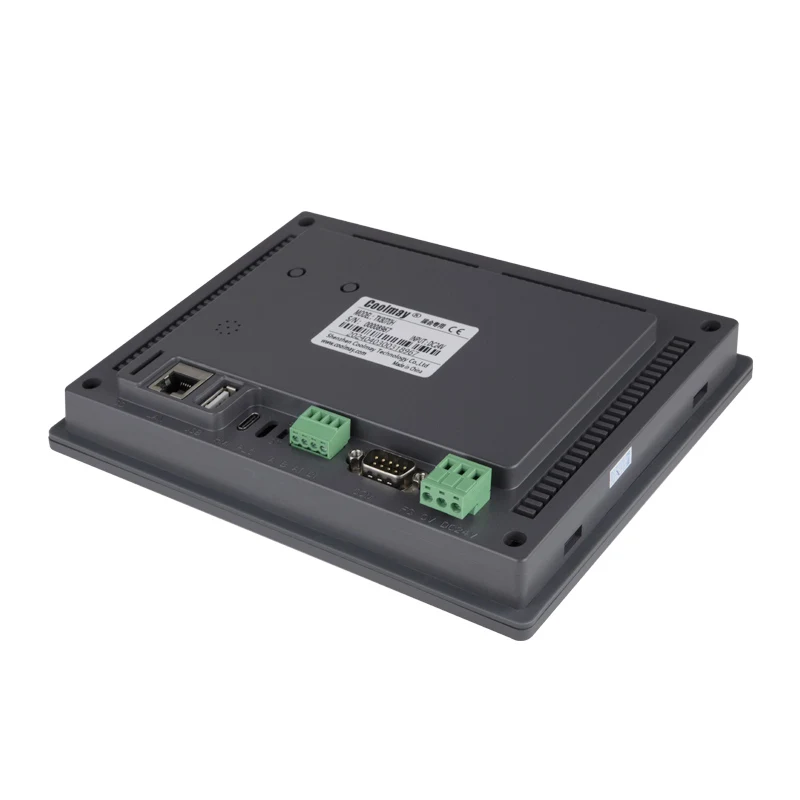

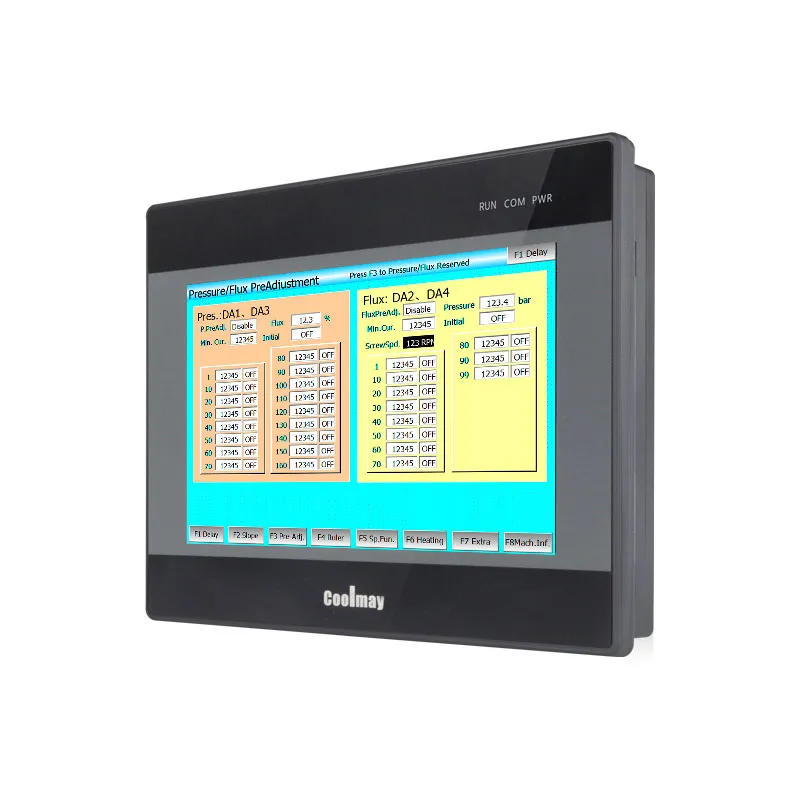

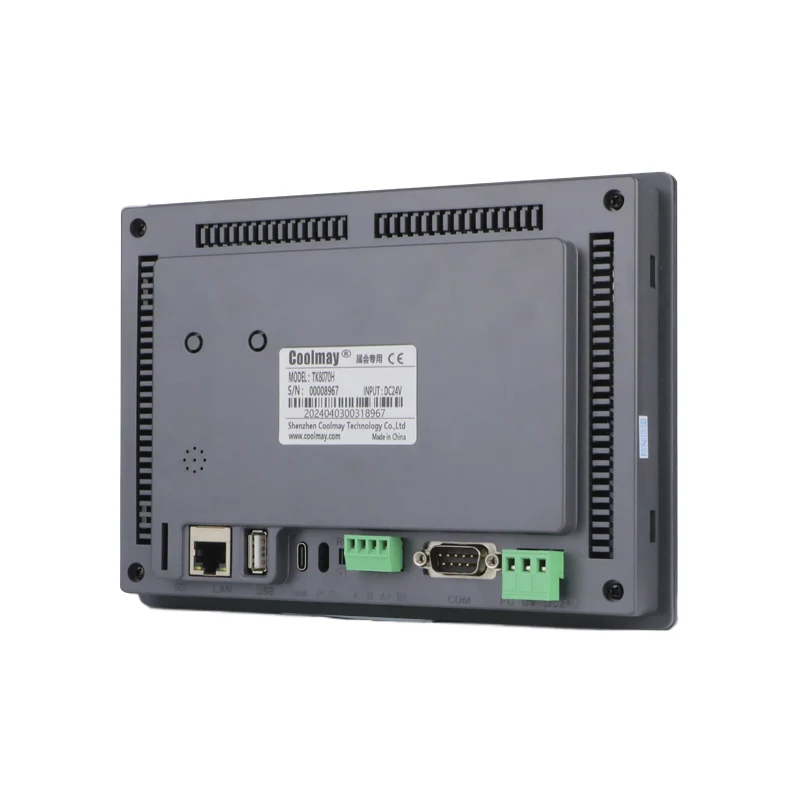

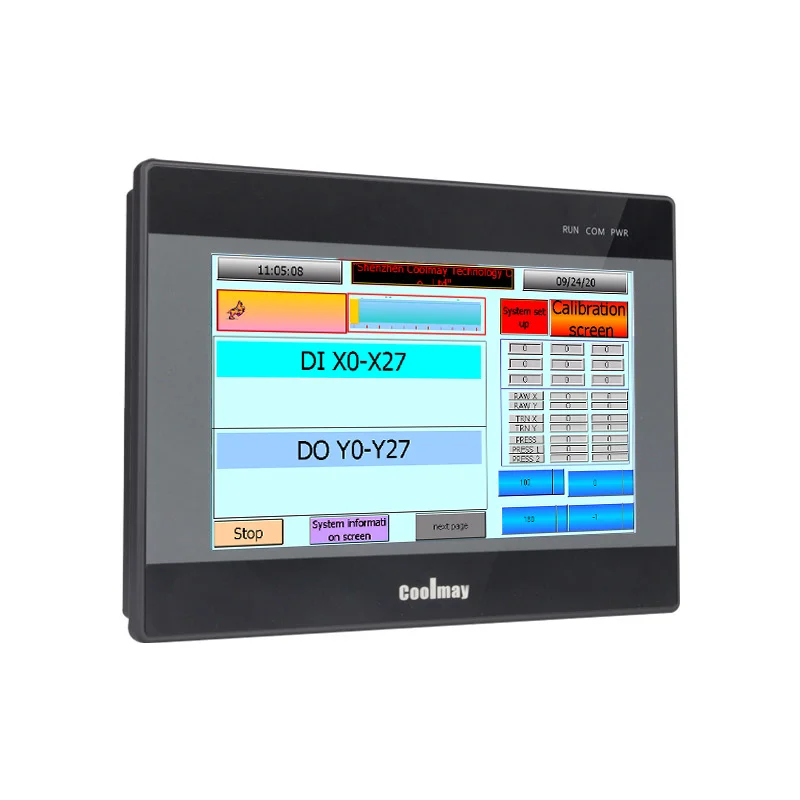

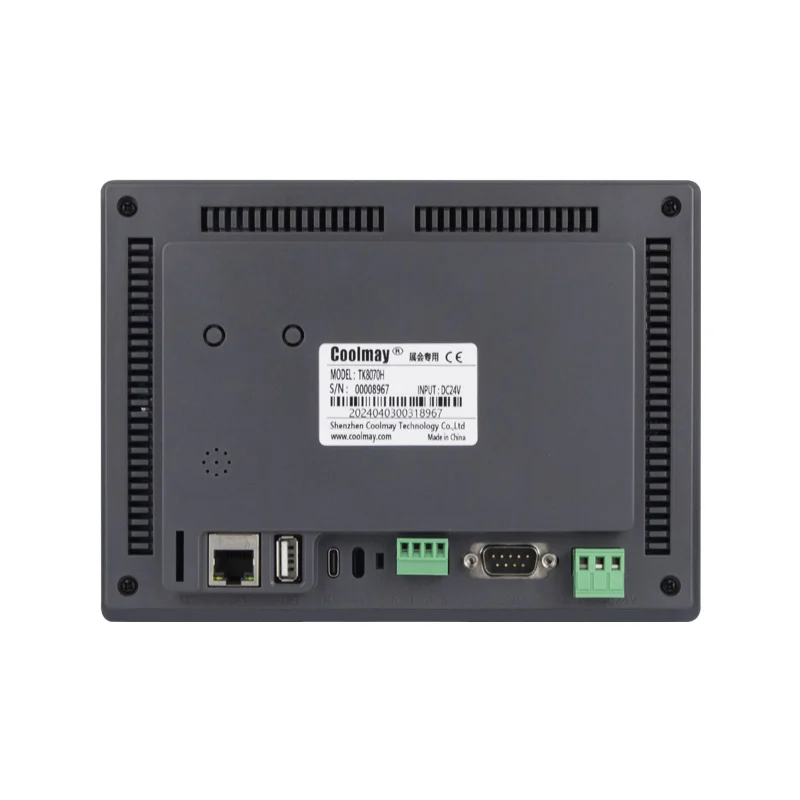

Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485
Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485

Coolmay 7 Zoll HMI touch screen LCD panel 800*480 pixels automatic control mit RS232 and RS485

Share on (1601205697543):


Price:

Quantity:


Product Overview

Description



Model
TK8070H/HD
Display panel
7.0"TFT LCD
Resolution
800*480/1024*600
Dimension(mm)
210*146*36
Cut-out size
192*138mm
Display
154*87mm
comsumption Power
200mA/24V
Weight
0.54kg
Brightness
Brightness
Colour
1677W True Color
Backlight type
LED(0-100 adjustable)
Power
12-24VDC±10%
ROM
128MB(TK8070HDand TK8100H is 256MB)
RAM
NAND Flash 128MB(TK8070HDand TK8100H is 256MB)
CPU
Dual core 1GHz
Operating system
Based on Linux system
Download port
Type-C、RS232、RS485*2 Network interface
EtherNet port
Equipped with Etheret port (supports downloading programs from the network port and supports Modbus TCP protocol
Serial port protocol
Comes with 1 RS232  and 2 RS485(Supports MODBUS protocol, free port, and conventional  PLC communication protocol
Shell material
PBT+PC
USB interface
USB 2.0X1(USB interface, can be connected to an external U disk for updating programs and uploading and downloading historical
data)
SD card
SD card is optional except for TK8037H
SD card is optional except for TK8037H
Yes
Input voltage
Normally DC24±10%VDC, it can also be specially made into DC12V/DC5Vpower input.
