DT4 YT01 SAE1006 Cathode Flat steel for Electrolytic aluminum
Cathode collector bar of electrolytic aluminum must be very low carbon content, so as to have very good electric conductivity,and to save power consumption and raise the electrolytic efficiency, because the electrowinning system is heavy DC current, the electric conductivity will decide the cost of Aluminum. DT4 DT4C DT4A DT4E YT01 cathode bar steel flat for Electrolytic aluminum are very good electric conductivity.It can improve the utilization rate of energy and more energy-saving and environmental protection.
Chemical composition of Cathode Flat steel
Grade | Chemical Composition % less than | ||||||||
DT4 | C | Si | Mn | P | S | ||||
DT4、DT4A/E/C | 0.01 | 0.1 | 0.25 | 0.015 | 0.01 | ||||
Al | Ti | Ni | Cu | ||||||
0.020∽0.80 | 0.02 | 0.1 | 0.05 | 0.05 | |||||
Grade | Chemical Composition % less than | ||||||||
YT01 | C | Si | Mn | P | S | ||||
0.0015 | 0.0013 | 0.0137 | 0.003 | 0.003 | |||||
YT01 | Cr | Ni | Al | Cu | Ti | ||||
0.0065 | 0.0084 | 0.0029 | 0.009 | 0.001 | |||||
Grade | Chemical Composition % less than | ||||||||
SAE 1006 | C | Si | Mn | P | S | ||||
0.06 | 0.04 | 0.31 | 0.008 | 0.004 | |||||
Cr | Ni | Al | Cu | Ti | |||||
0.02 | 0.01 | 0.004 | |||||||
The flat steel thickness and its allowable deviation shall comply with the requirements of Table 1. | ||
Table 1 Thickness tolerance mm | ||
Thickness | Tolerance | |
≥50~80 | +2.0 -2.5 | |
>80~120 | +2.0 -2.0 | |
>120~150 | +2.5 -2.5 | |
The width of the flat steel and its allowable deviation shall comply with the provisions of Table 2. | ||
Table 2 width tolerance mm | ||
Width | Tolerance | |
≥50~100 | +0.0 -2.0 | |
>100~200 | +0.0 -2.5 | |
>200~300 | +0.0 -3.0 | |
The bending of the length of the cathode flat bar shall comply with the requirements of Table 3. | ||||
Table 3 Curvature mm | ||||
Length direction | Degree of roughness | Distortion | ||
Thickness | ≤2mm/m | ≤1.5mm/m | ||
Width | ≤2mm/m | ≤1.5mm/m | ||
Application
1.Pure Iron for Melting
Pure iron for melting is widely used in producing various types of special alloys, such as master alloys, electric-thermal alloys, hard magnetic alloys, low-carbon stainless steel and powder metallurgy materials.
2.Pure Iron for Magnetic Materials
High purity iron is suitable to produce Magnetic Material, such as ferrite magnets, NdFeB Permanent Magnets, etc., which are widely applied in fields of electronic, electricity power mechanics, medical apparatus and instruments, toys, package, hardware mechanic, aerospace, etc.
The third generational rare earth NdFeB magnet is the most powerful permanent magnets in the current time, it is made of rare earth metal neodymium(29%-32.5%), Iron(63.95%-68.65%), non-metal element Boron, and other additions such as Dysprosium(0.6-8%), Niobium(0.3-0.5%), Aluminum(0.3-0.5%), Copper(0.05-0.15%), etc.
The third generational rare earth NdFeB magnet is the most powerful permanent magnets in the current time, it is made of rare earth metal neodymium(29%-32.5%), Iron(63.95%-68.65%), non-metal element Boron, and other additions such as Dysprosium(0.6-8%), Niobium(0.3-0.5%), Aluminum(0.3-0.5%), Copper(0.05-0.15%), etc.
3.Soft Magnetic Materials for Electronic Fields
As a kind of soft magnetic material, high purity iron owns the properties of being magnetized and demagnetized easily, and high saturation induction density, small tension force, etc., which is widely used in the production of all kinds of electromagnetic apparatuses and devices, such as electromagnetic relay, motor, etc., involving in numerous industries, such as aerospace, automotive, machinery manufacturing, electrical, electronics and other industries.
Company Profile
Beilunjubang Innovation Technology Co., Ltd,
Beilunjubang Innovation Technology Co., Ltd, a major established China and an Alibaba-Verifed manufacturer and supplier. It had been found 2007, which is now focusing on producing and selling high purity iron for remelting usage and electronic application, such as Pure Iron Billets , Pure Iron Bars, Pure Iron Rod ,they are widely used in producing high quality alloy metals, magnetic material steel etc., and we also produce Wire Rod Coils of Pure Iron , Sheet/Plate/Coils of Pure Iron .
China is a country rich in iron and other metal, so competitive cost resources of raw material and labors, enable us to supply competitive goods and quick actions and best services to the customer's requests.
Credit Trade assurance from Alibaba can make sure your payment and delivery time.
Every process will be checked by QC（QUALITY CONTROL） system.
Professional packing teams and standard packing for ocean or air transportation.
Small piece samples can be provided for free.
Professional and passion sales team.
Customized designs is available with CAD/PS drawings.
Flexible payment option :TT / LC / DP for buyers.
Every process will be checked by QC（QUALITY CONTROL） system.
Professional packing teams and standard packing for ocean or air transportation.
Small piece samples can be provided for free.
Professional and passion sales team.
Customized designs is available with CAD/PS drawings.
Flexible payment option :TT / LC / DP for buyers.
We always listen to your needs and strive to create, and manufacture products for the customers to meet your industry demands.
Our products have been exported to USA, Europe, India and Russia etc.
We look forward to working with you in all your industries products needs.
Our products have been exported to USA, Europe, India and Russia etc.
We look forward to working with you in all your industries products needs.
Equipment
Certifications
Customers
There' re a lot of loyal customers in Liaoning Province,Inner Mongolia,Zhejiang Province, Henan Province ang Jiangsu Province in domestic marketOur materials had been exported to USA, EU, India and Russia etc.

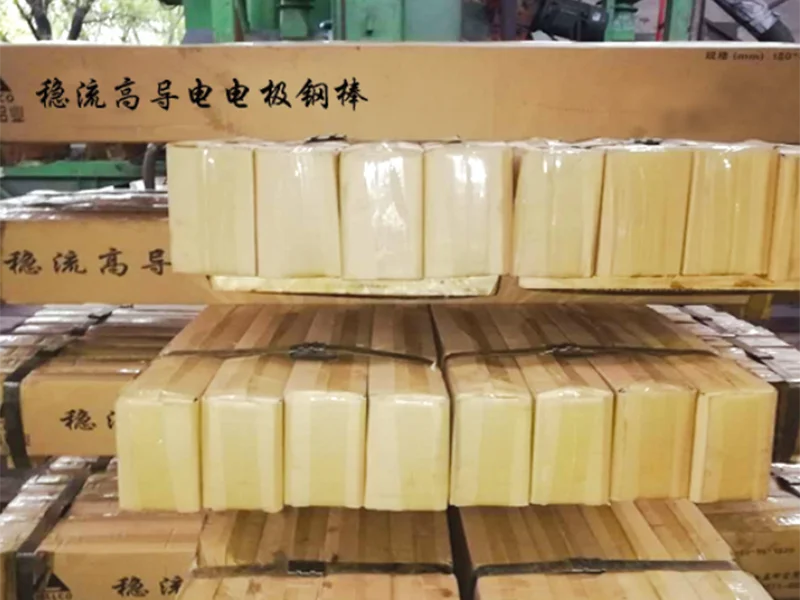

Product Packaging
