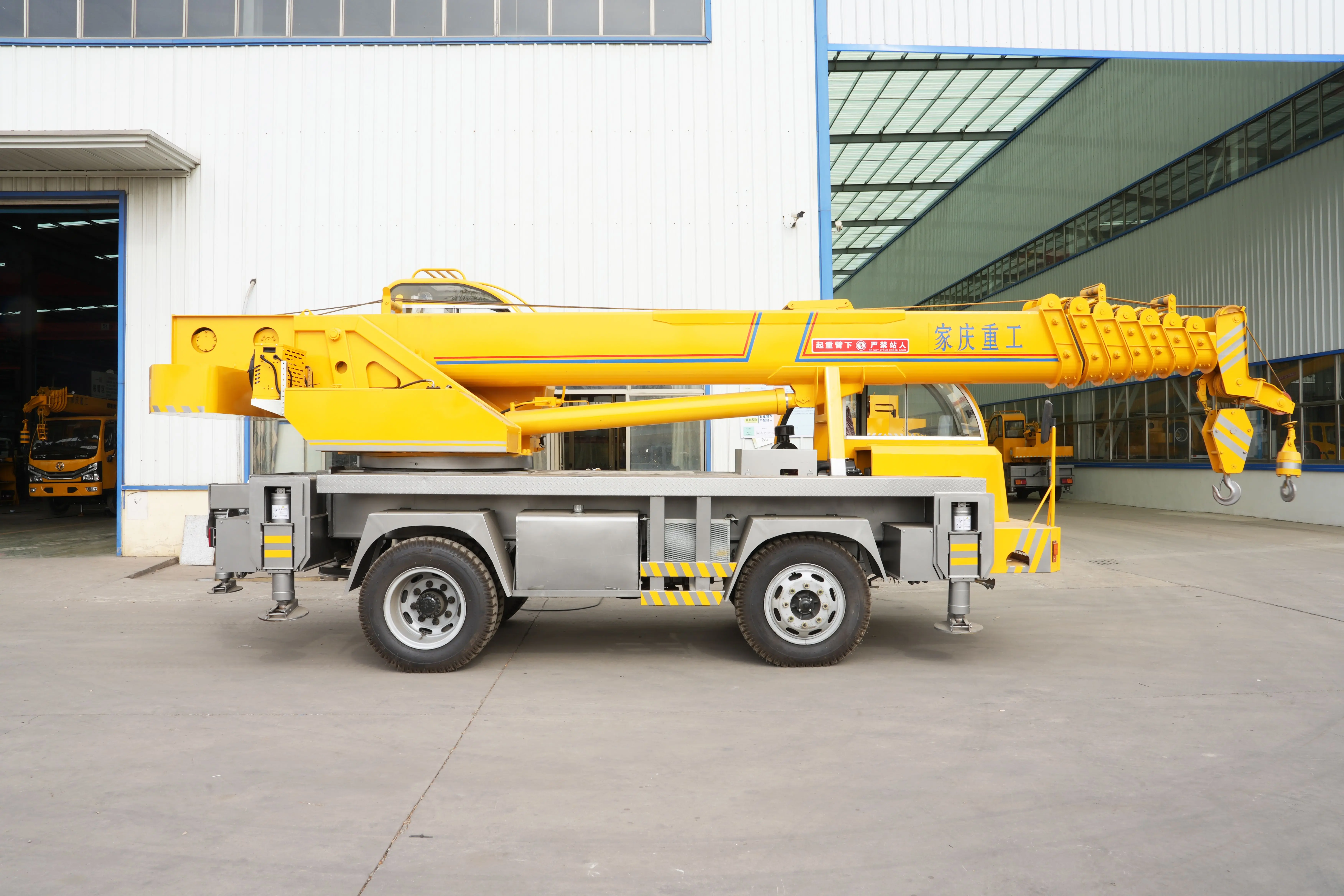

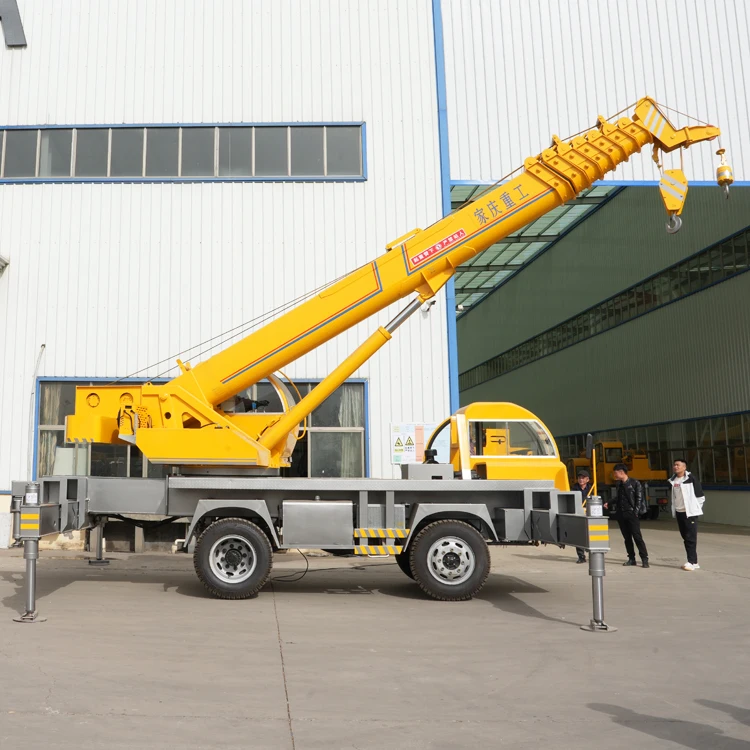

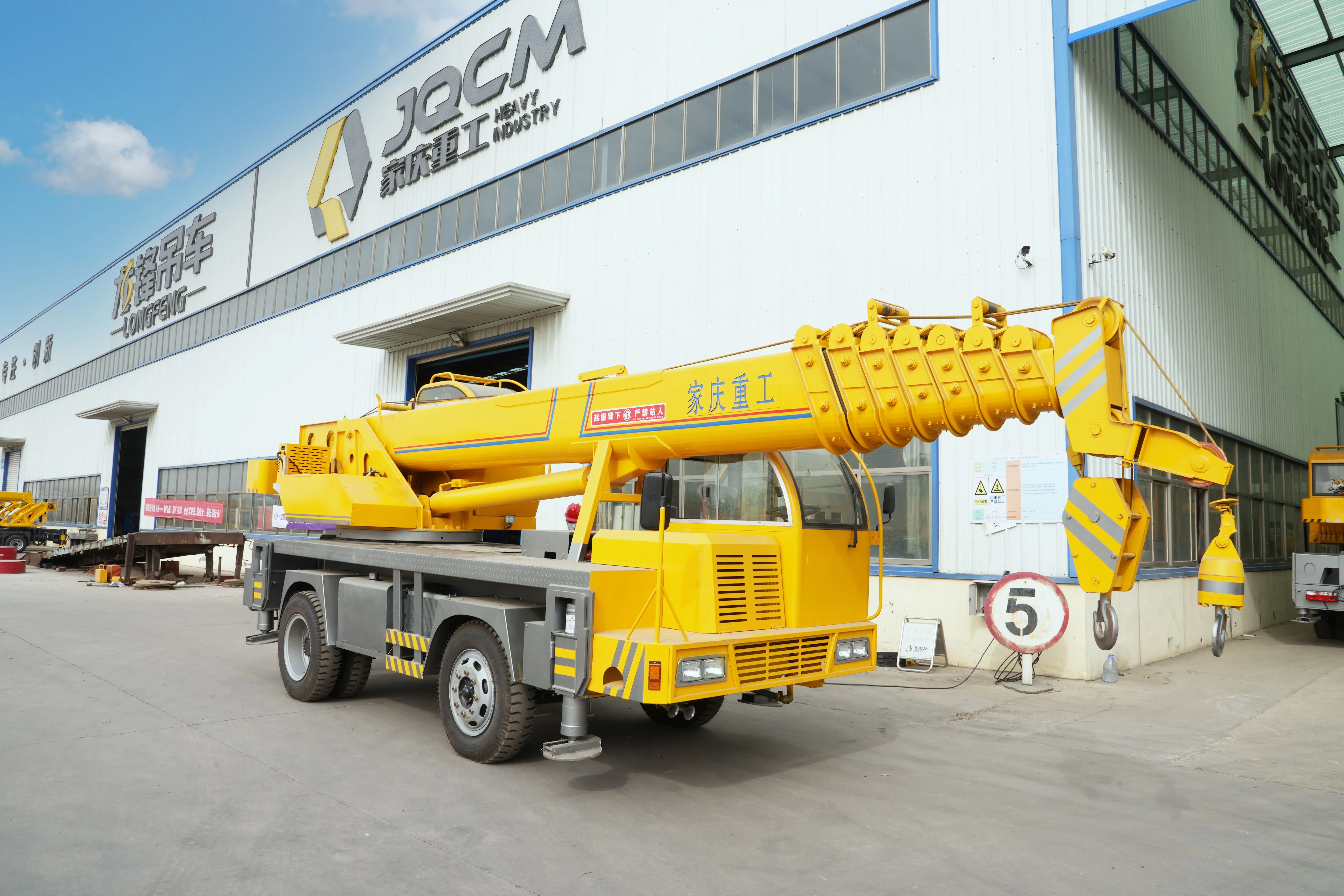

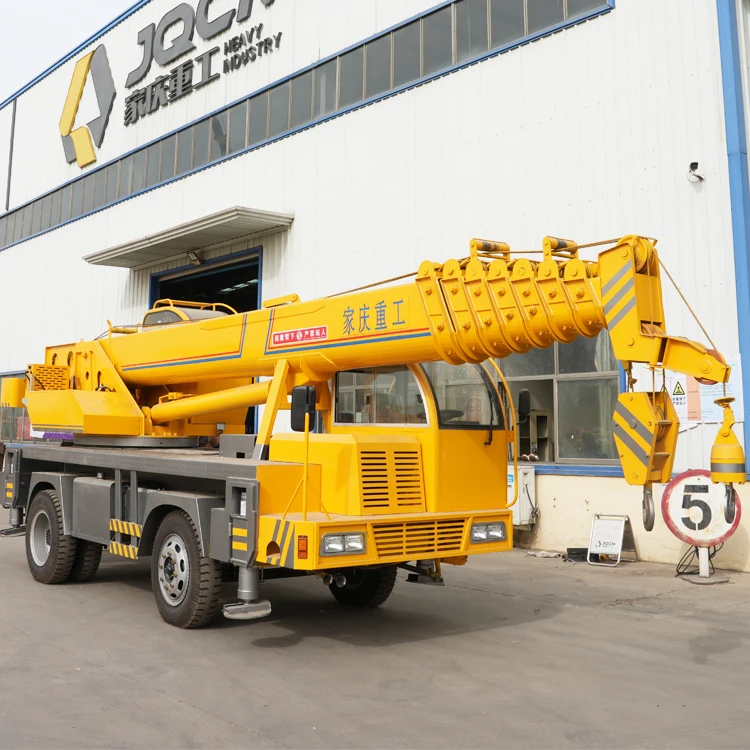

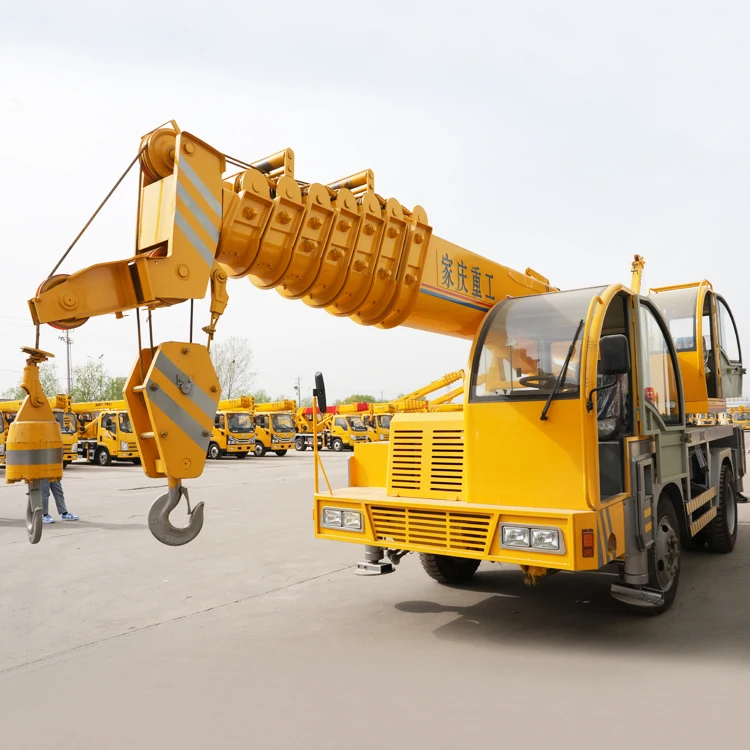

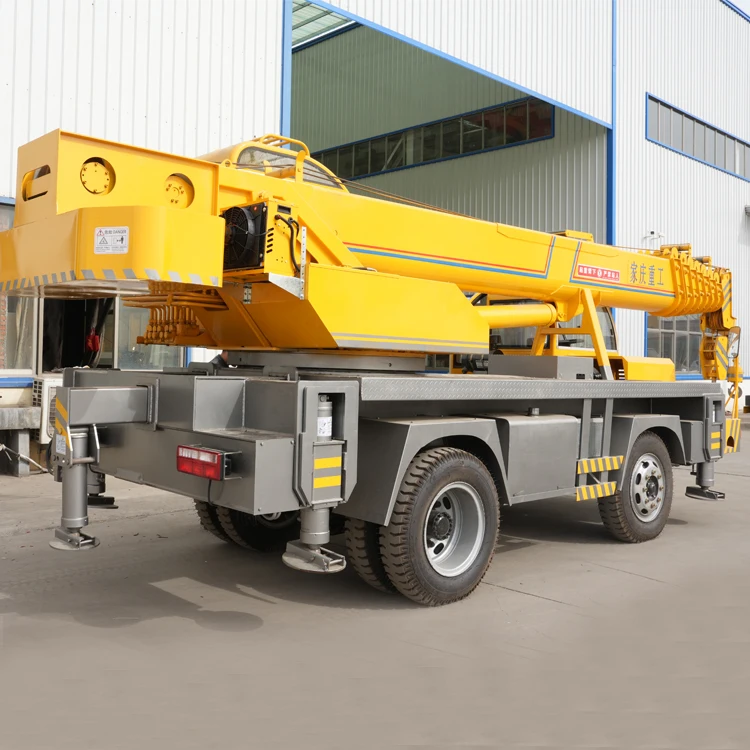

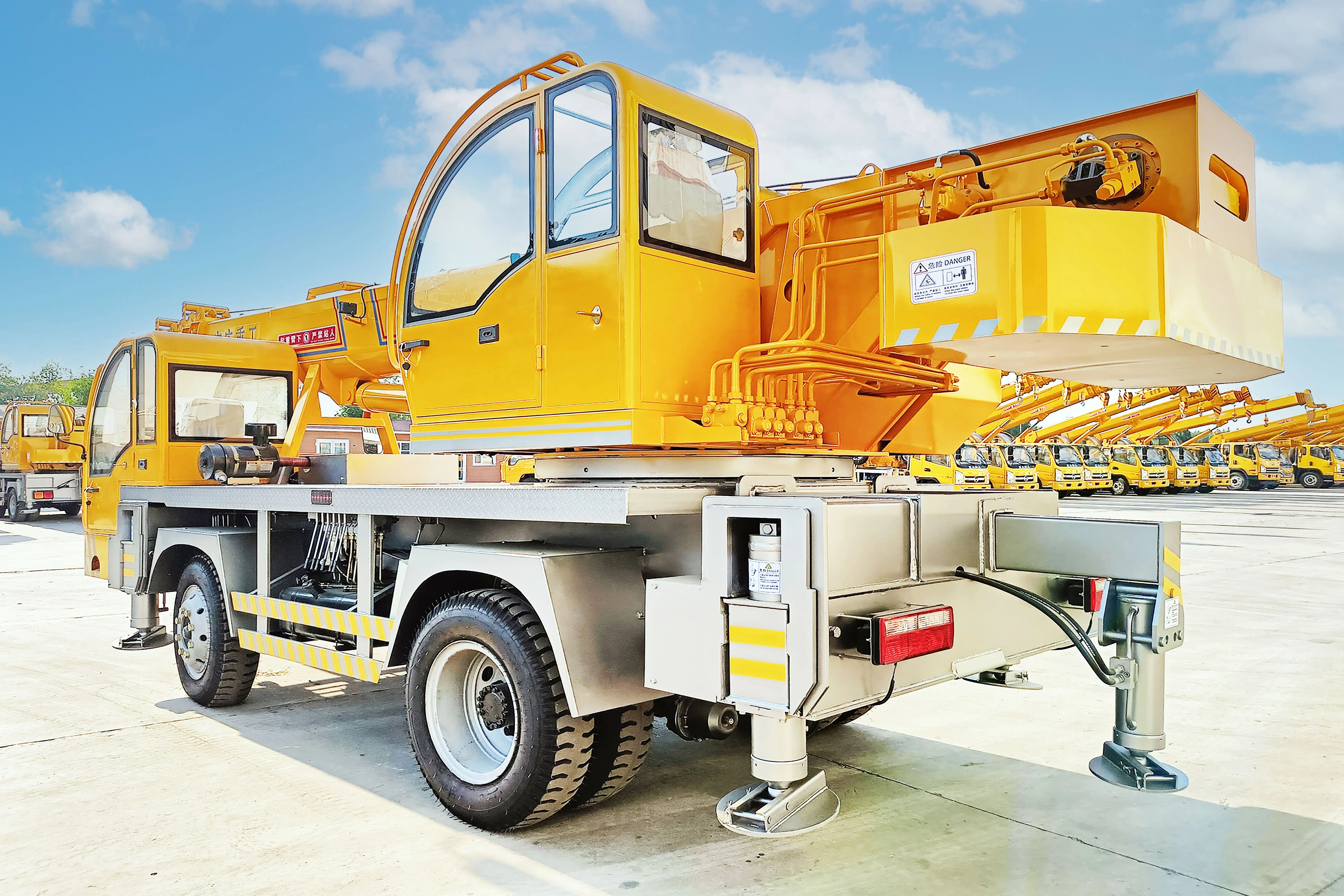

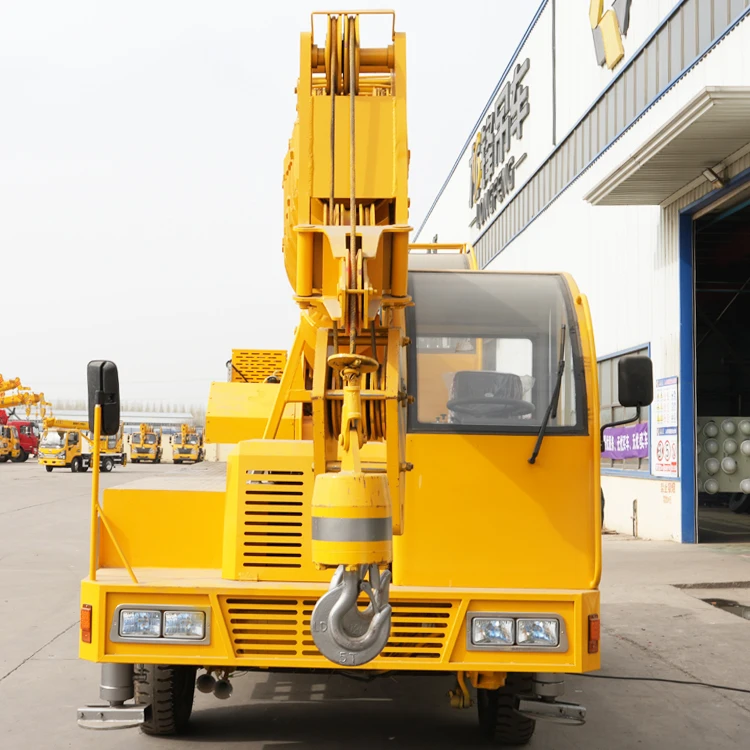

Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck
Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck

Fast delivery brand new telescopic boom truck crane truck mounted crane aerial working truck

Share on (1601205766478):


Price:$19,000.00

Quantity:


Product Overview

Description



Products Description












What advantages can we bring to you:
(1)jiaqing factory has advanced research and development means, perfect development materials, reasonable engineering and assembly tools, smooth product assembly lines, perfect quality assurance system and the highest performance cost in the world.
(2): For consumers, our products are affordable and have a long service life. The product model can meet your needs and support customization
(3): For suppliers, we provide you with sufficient profit margins. We provide you with testing to ensure the quality of the
product before leaving the factory. At the same time, we support customized colors and product brands


Product Paramenters


Jiaqing Heavy Industry's self-made 12T configuration table
brand
JQDC
Rotary mechanism
Secondary planetary steering
Chassis Model
Made by the manufacturer
Outrigger
5 fully hydraulic outriggers
total mass
14000KG
Outrigger span (transverse)
6150mm
Full crane size
8500*2150*2800mm
Outrigger span (longitudinal)
5100mm
wheelbase
2700mm
Protective devices
two-way hydraulic lock
Maximum rated lifting capacity
12000kg
Work lights
two
maximum lifting height
40m
hydraulic pump
dual pump
engine model
4108 (pressurized)
Dual use of oil and electricity
15KW-6 pole copper core motor
power
91KW
Rotation radius
1.9m
horsepower
125 horsepower
Frame size
500mm*200mm
gearbox model
Wanliyang gearbox (high and low speed)
top of posterior displacement
standard configuration
tire
825-20
Lifting operation mode
Pushrod operation
brake system
Air brake (ABS)
Rod output form
Synchronous scaling
Steering mechanism
Hydraulic directional assistance
Type of boom structure
6m * 8 section arm
Main lifting mechanism
12 ton winch
Big arm size
580mm*380mm
Auxiliary lifting mechanism
10 ton winch
Slewing bearing
1.4 meter turntable

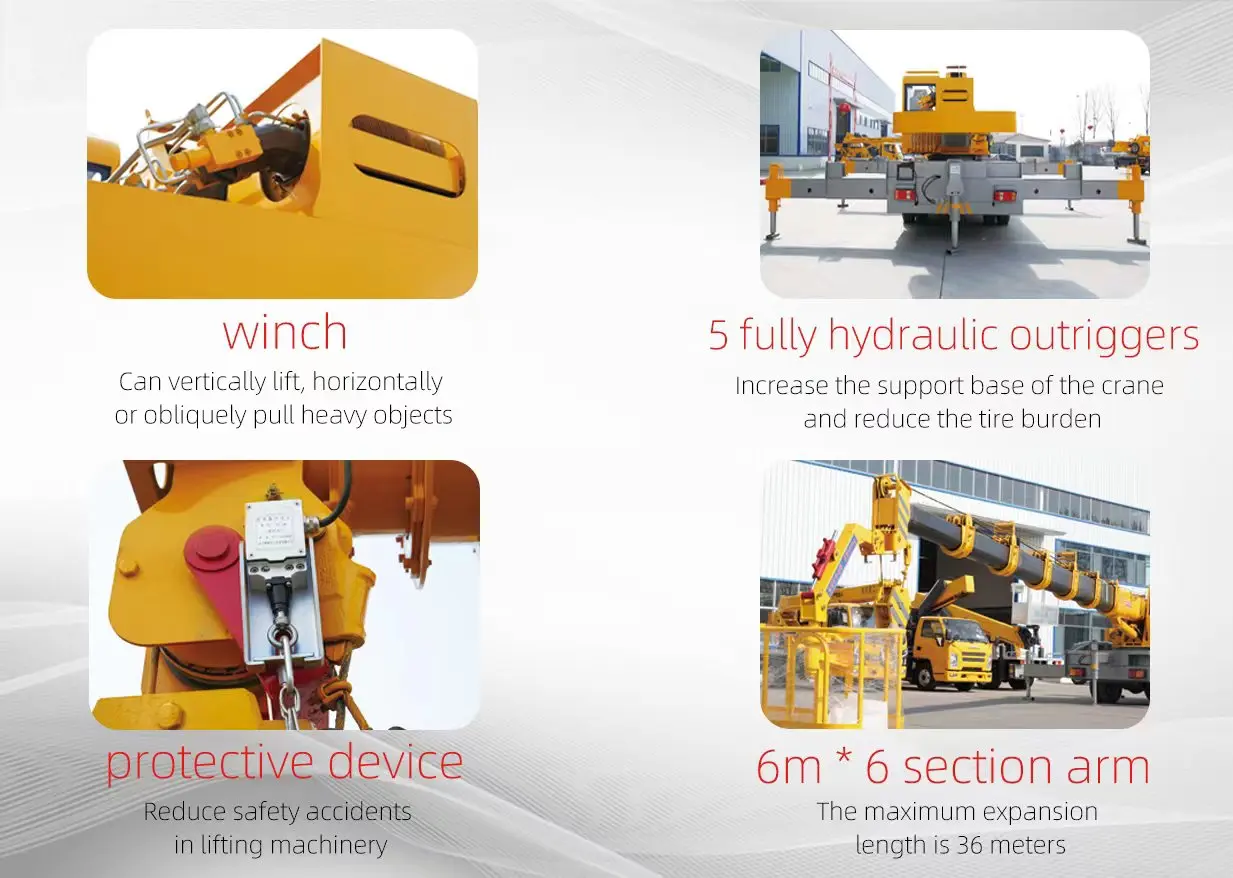

Optional configuration: upper air conditioning, lower air conditioning, weighing device, torque limiter, wireless camera, hanging
basket, air cushion seat
Product features: Equipped with a central rotator, the turntable can rotate 360 degrees at will. Equipped with a planetary reduction mechanism, the rotation is faster and smoother. Equipped with a hydraulic heat dissipation system to reduce oil temperature and improve efficiency; The driving is equipped with high and low speeds, steering wheel assistance, and air brake, making driving the vehicle easier and more flexible.


More details








if the regular color can not meet your needs,we cancustomize the color for you
we can design and customize machines of your own brand
you can choose a variety of engines,please contact customer service for more details more customized services
we can produce what you want according to your requirements


Supply ability


supply ability 200set/sets per month

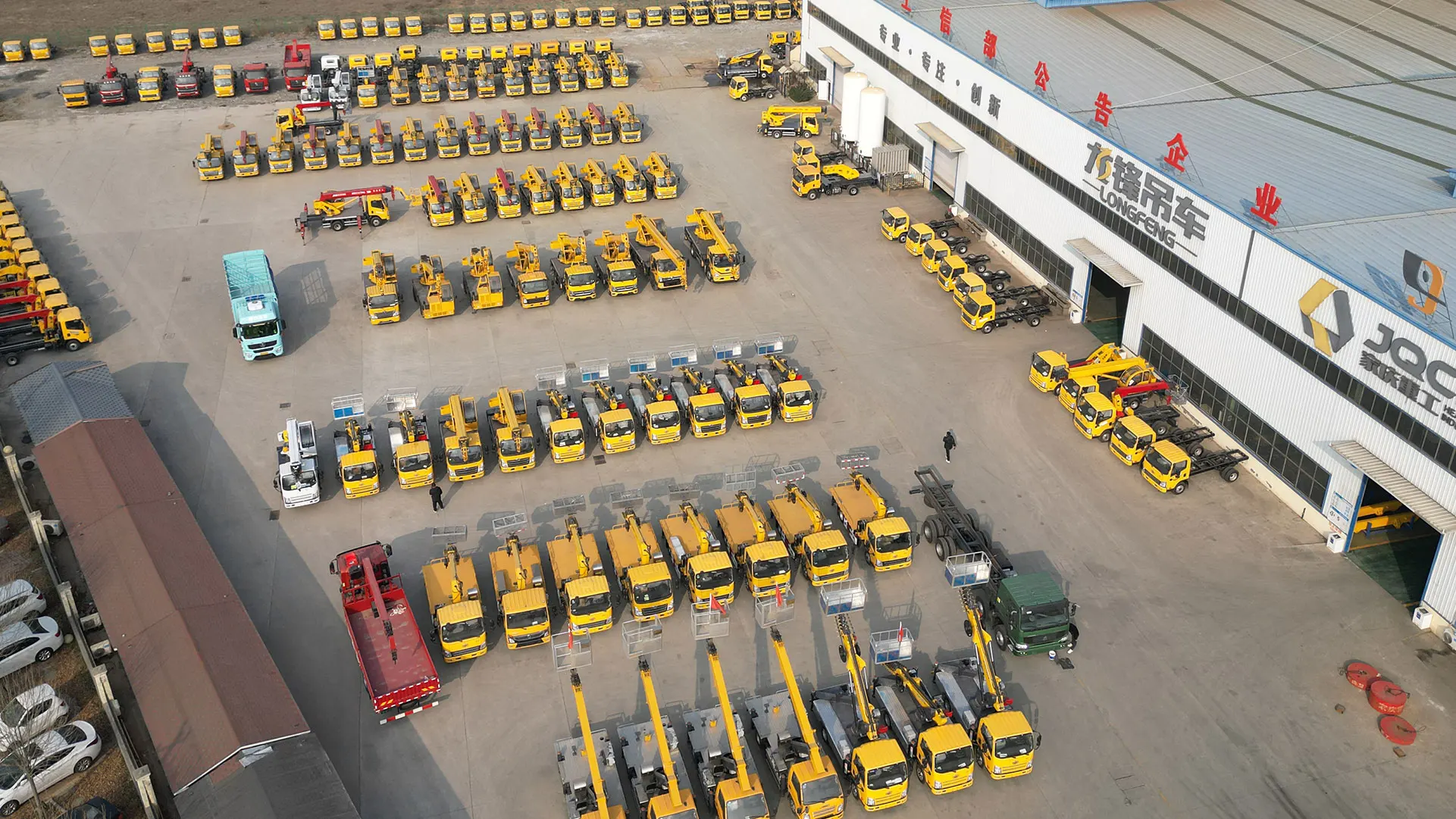

Company Profile

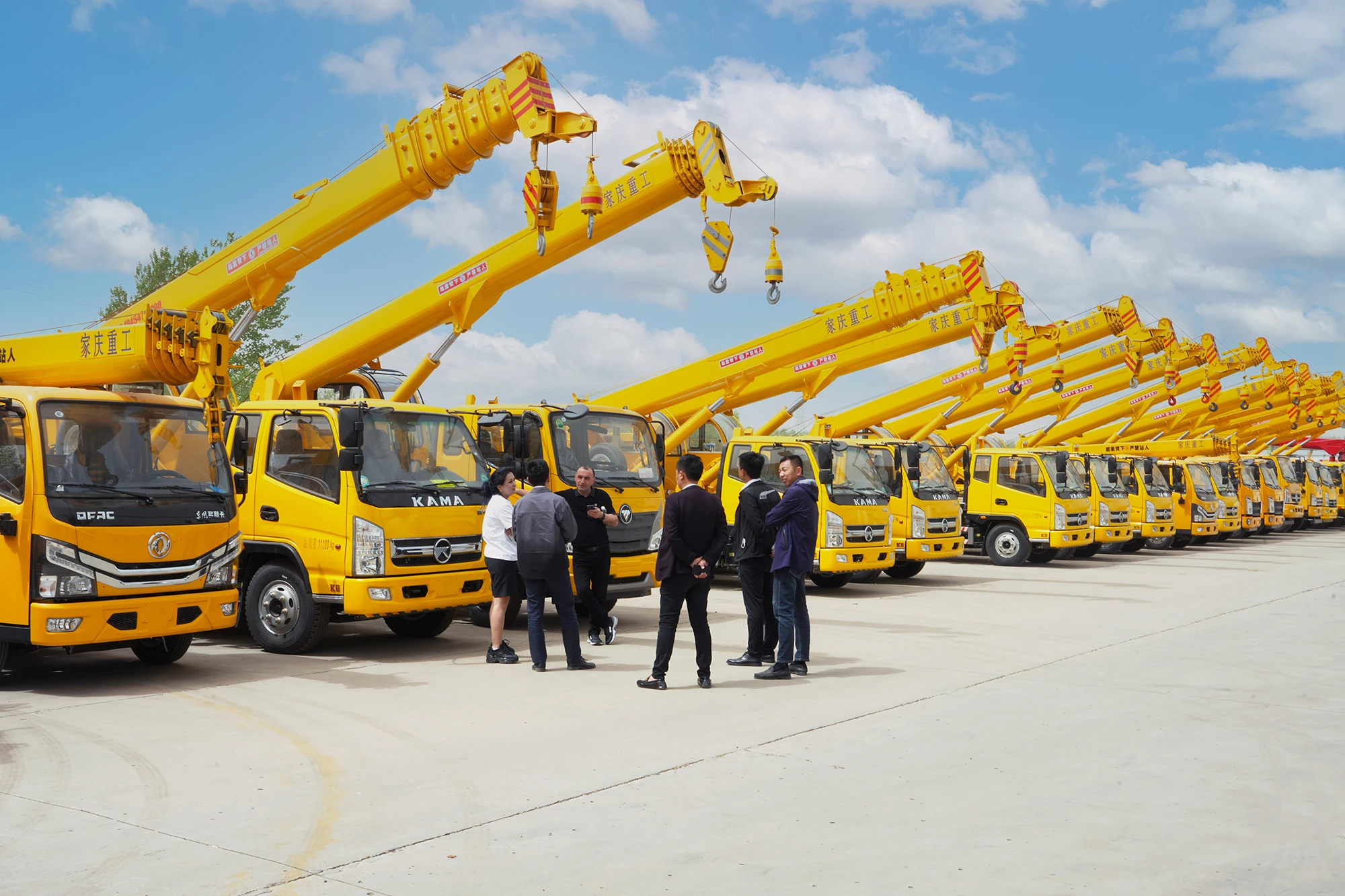

Customer visit
