WB Y2 Automatic 10 100ml Essential oil drop glass dropper nail polish car perfume Filling Machine
- Category: >>>
- Supplier: Shanghai Weibang Machinery Co. Ltd.
Share on (1601205804487):
Product Overview
Description

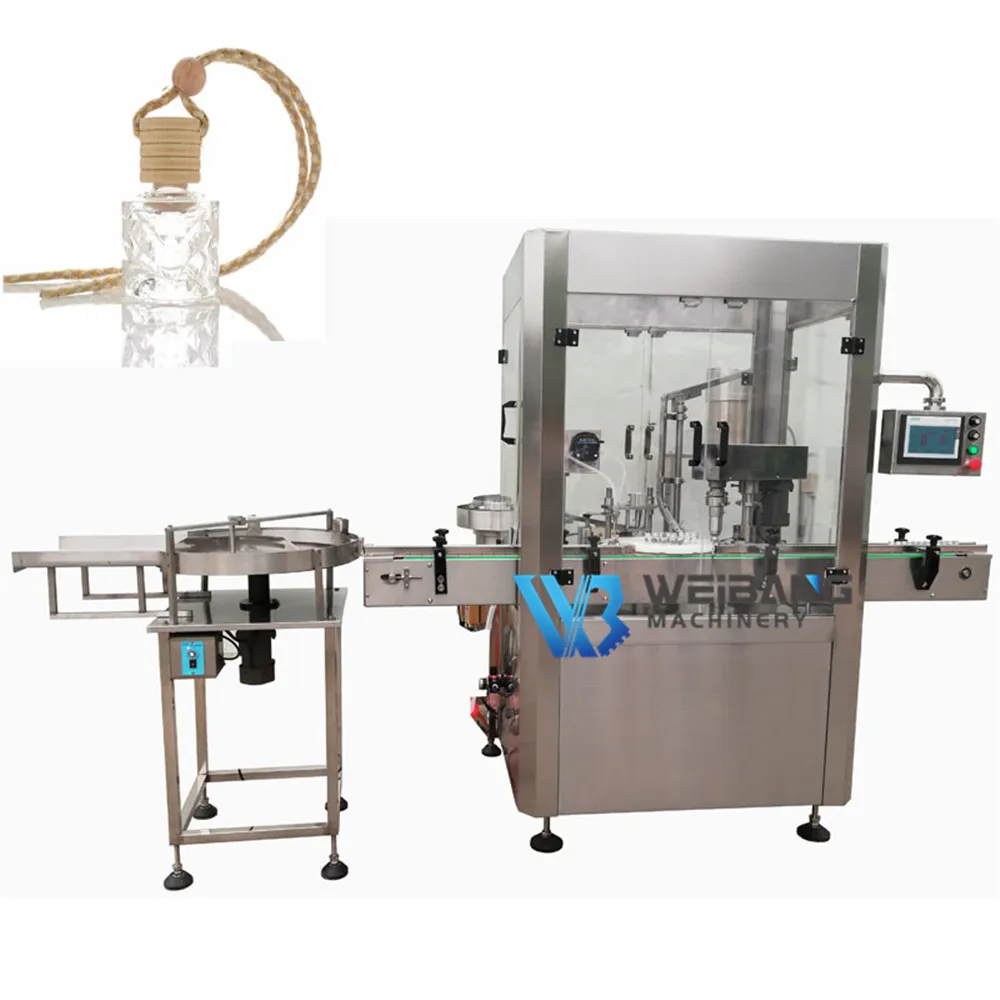

WB-Y2/4/8 WB-Y2 Automatic 10-100ml Essential oil drop glass dropper nail polish Filling Machine

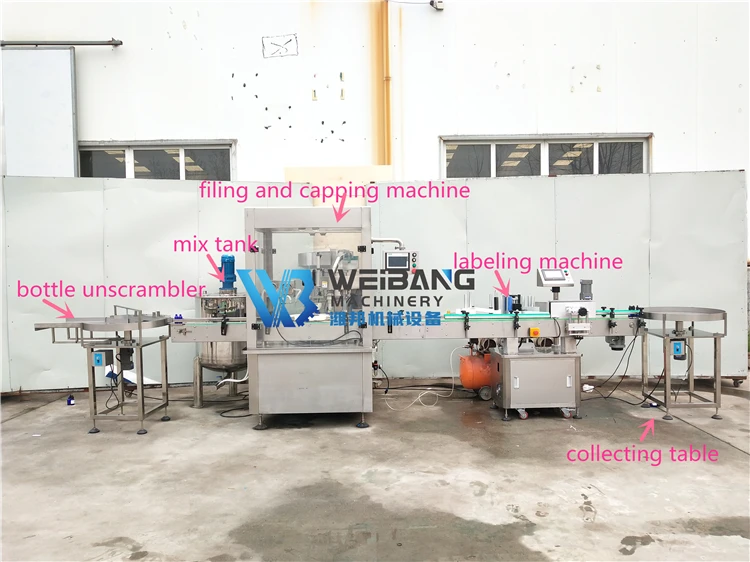

machine working flow : bottle feeder--filling and capping machine--labeling machine--collection table
PRODUCT SPECIFICATIONS
Model | WB-Y2 | WB-Y4 | WB-Y8 |
Filling head number | 2 | 4 | 8 |
Add plug /dropper head | 1 | 2 | 2 |
Capping head number | 1 | 2 | 2 |
Filling volume | 2-200ml | 2-200ml | 2-200ml |
Capacity | 5-35 bottles/min | 10-70 bottles/min | 20-80bottles/min |
Filling accuracy | ≤ ±1% | ≤ ±1% | ≤ ±1% |
Pass rate | ≥ 98% | ≥ 98% | ≥ 98% |
Power supply | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz |
Power | 1.5 KW | 1.7 KW | 2.1 KW |
Net weight | 450kg | 600kg | 700kg |
Overall dimension | L2200 × W1600 × H1600mm | L2200 × W2000 × H1600mm | L2600 × W2000 × H1600mm |

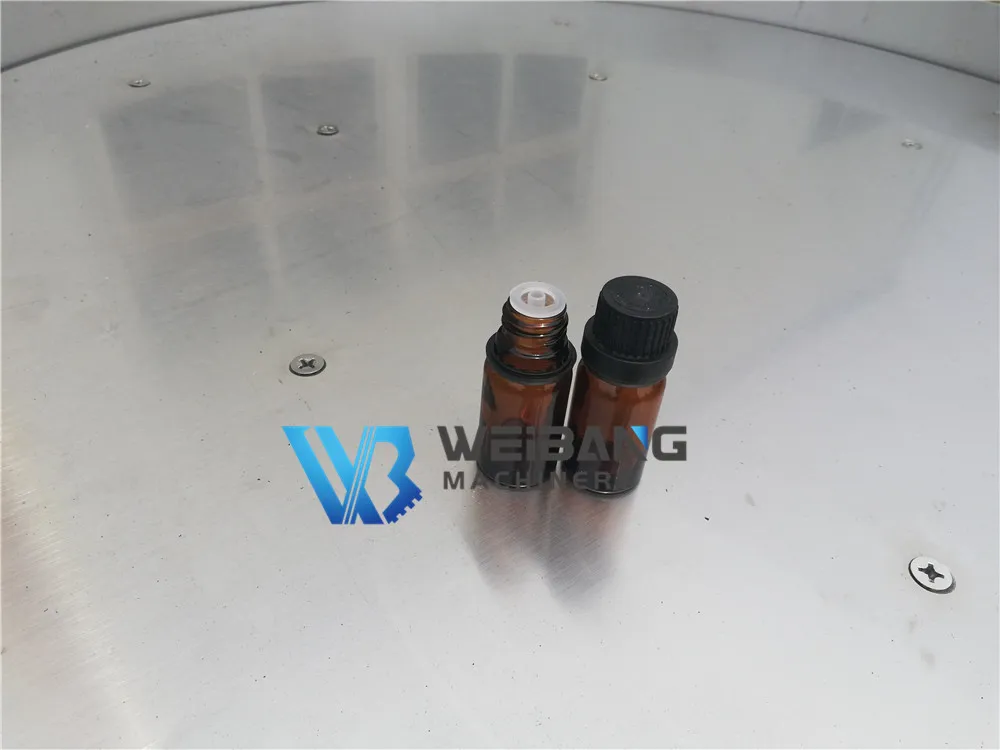

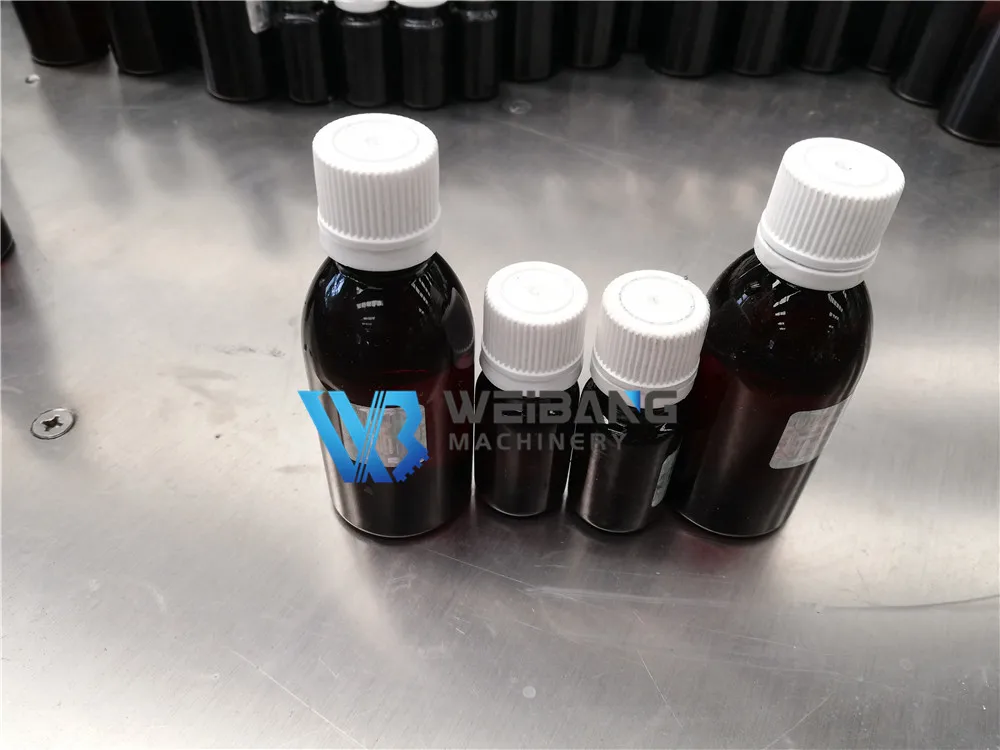

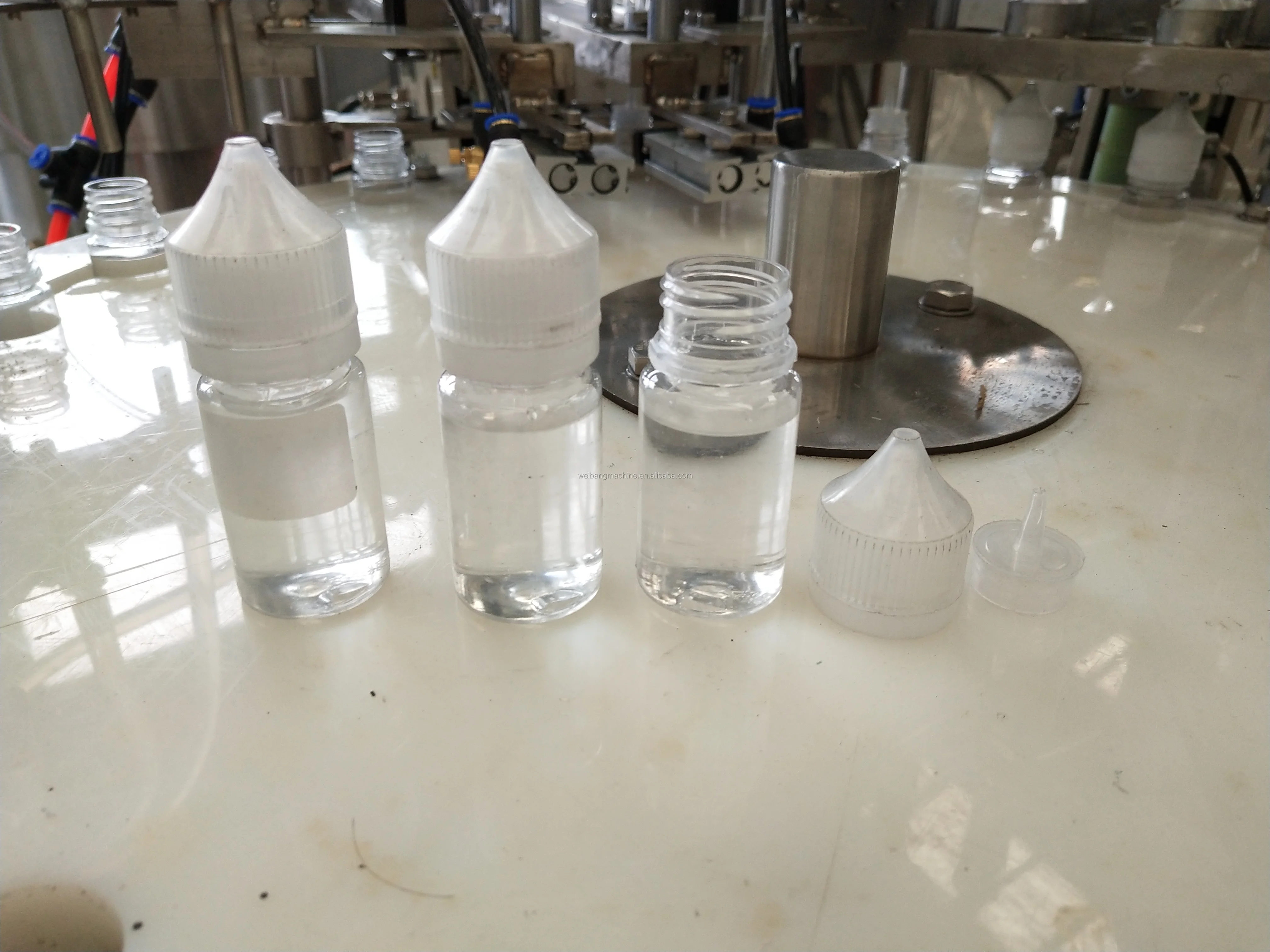

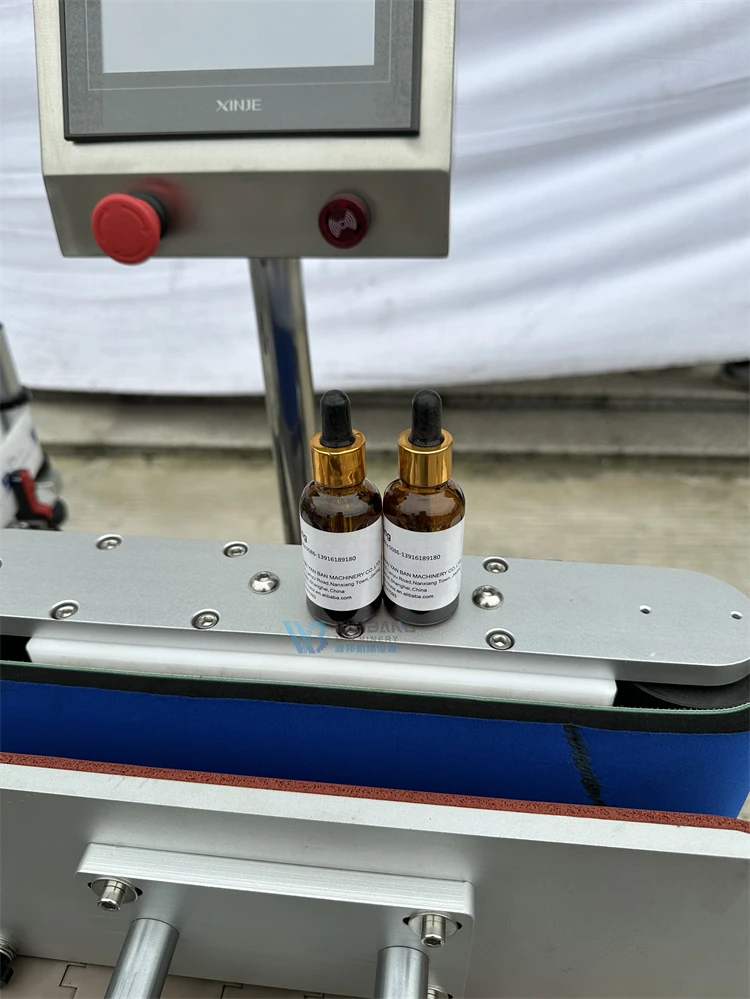

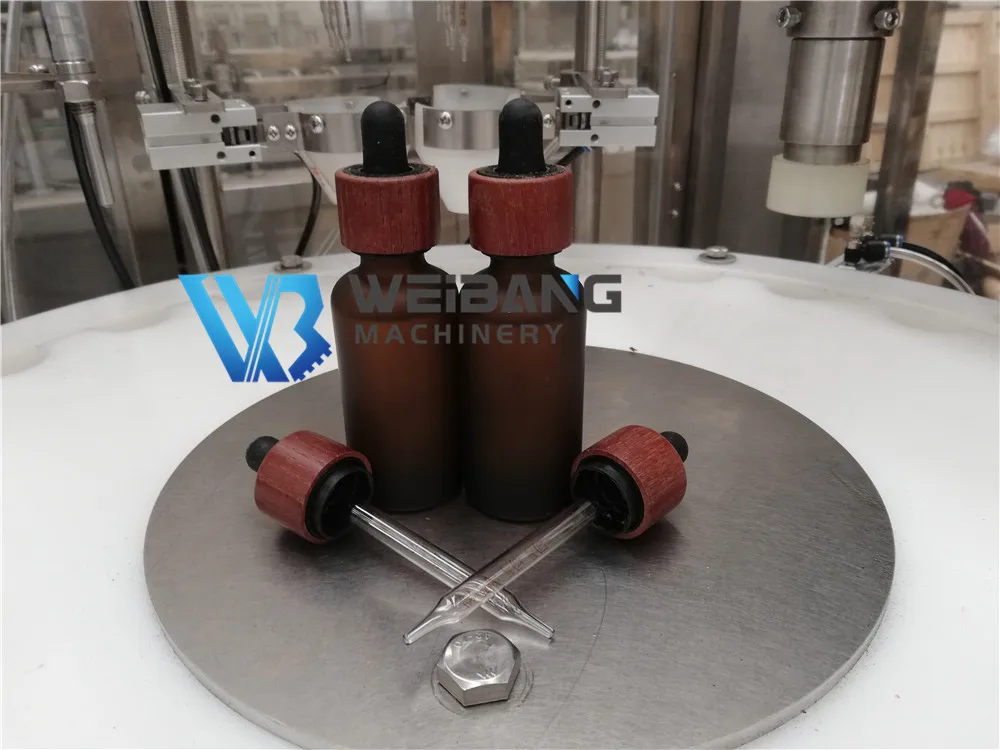

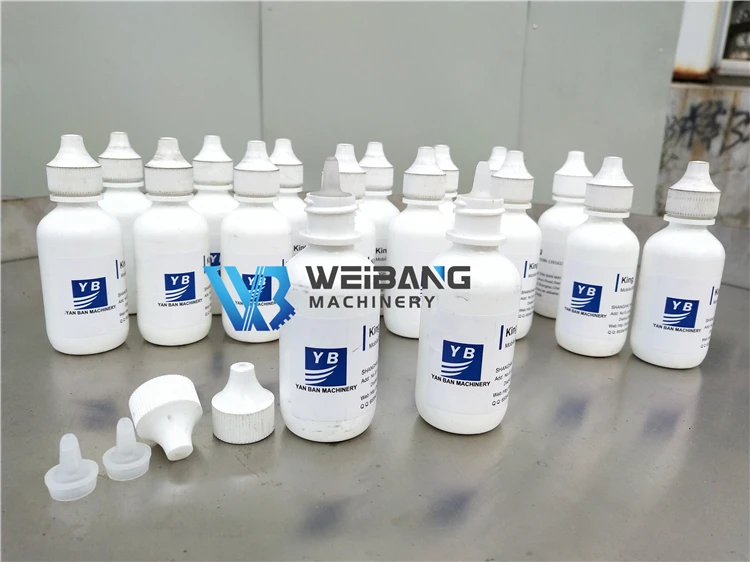

Sample
Details Images

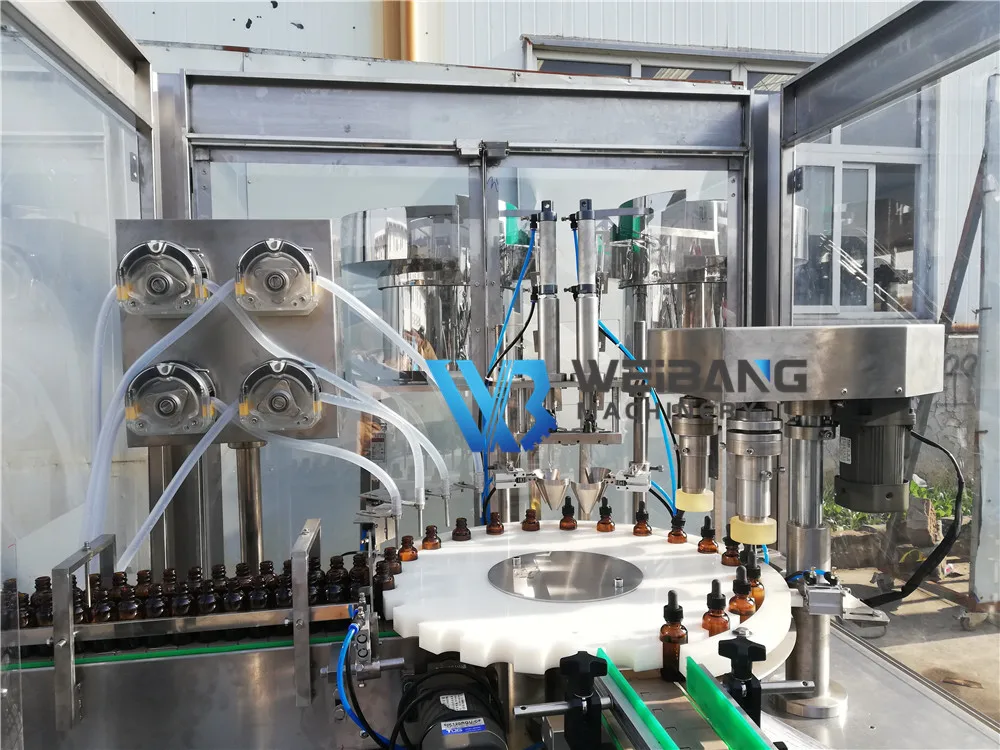

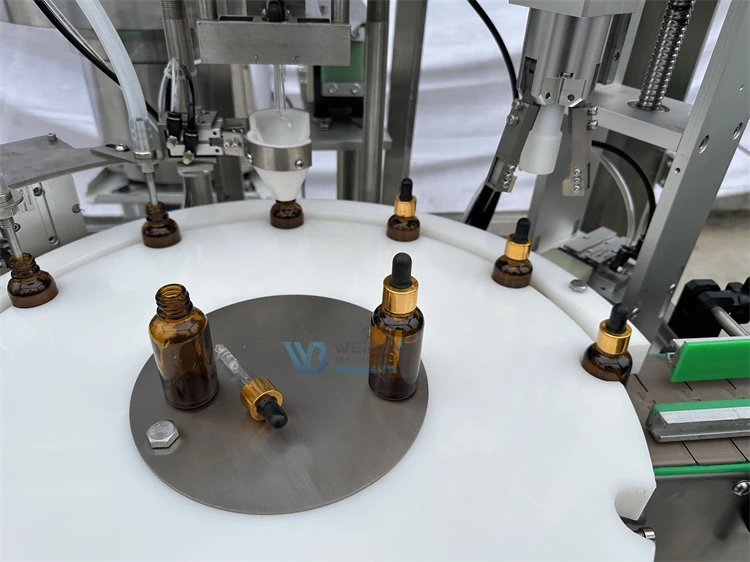

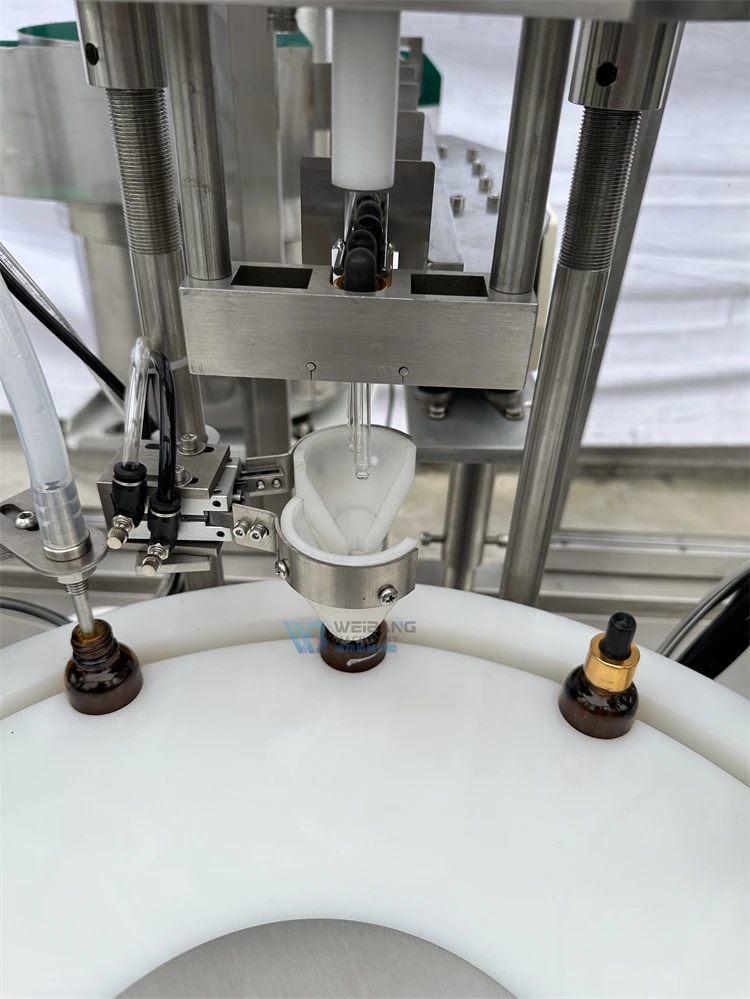

WB-Y2/4/8 automatic essential oil/eye drop filling machine
Siemens PLC control + Touch screen

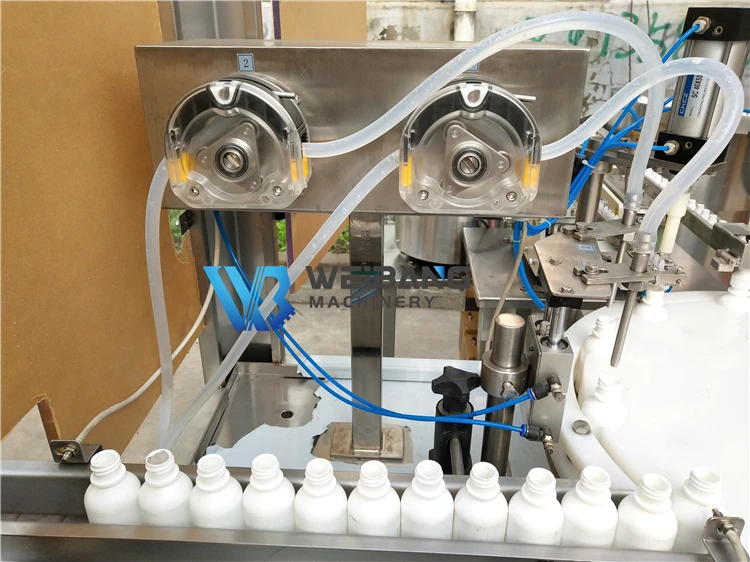

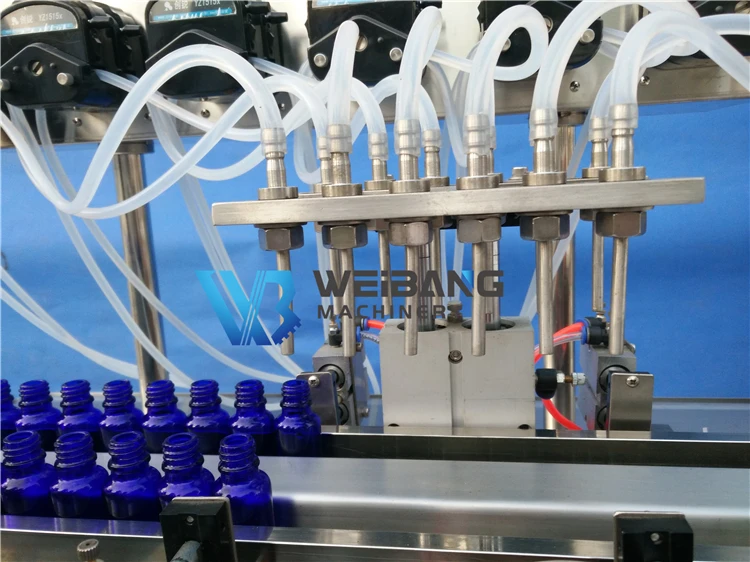

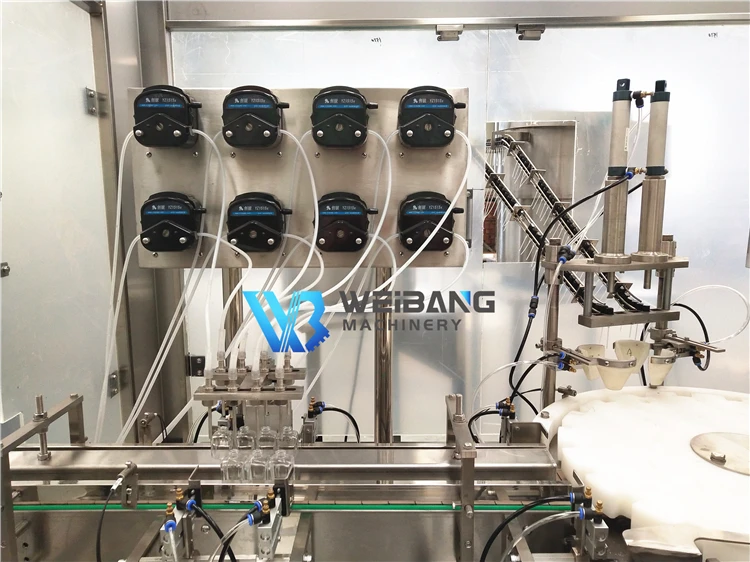

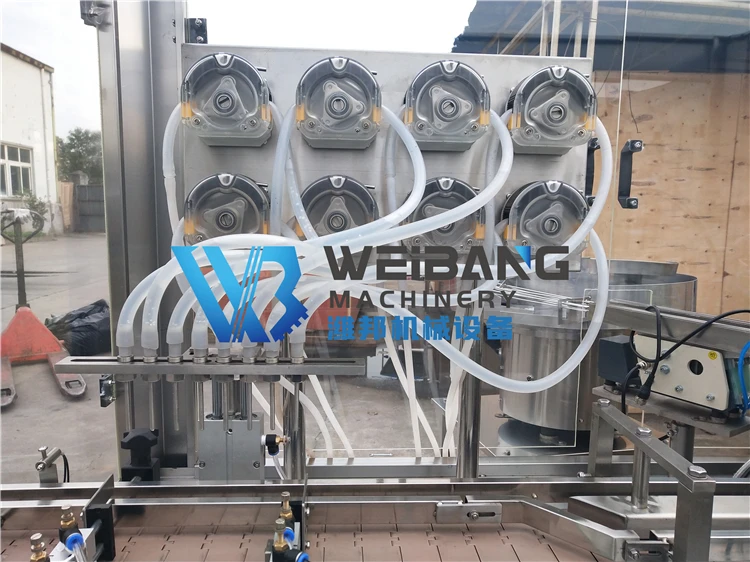

Peristaltic pump filling, optional piston pump

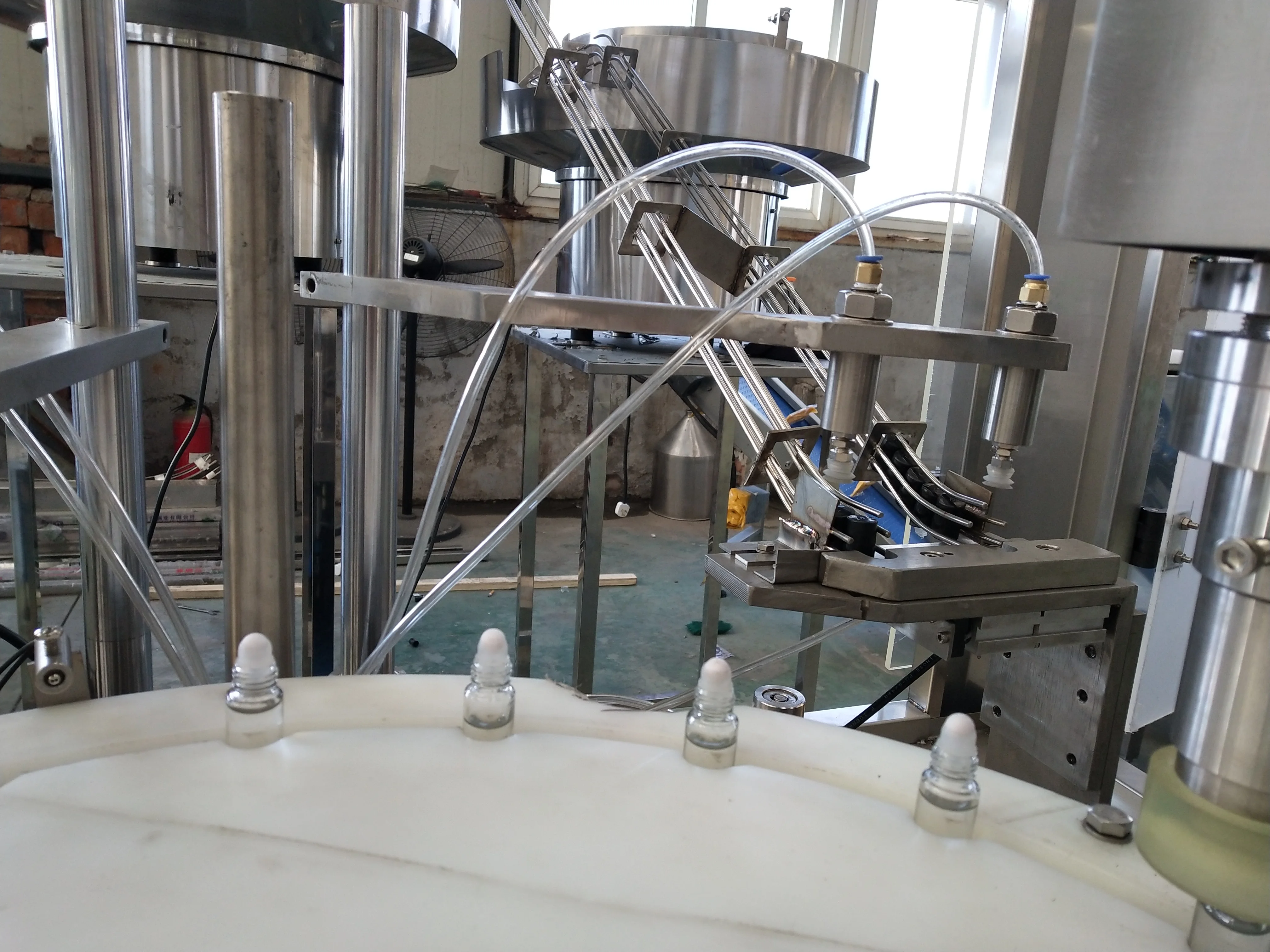

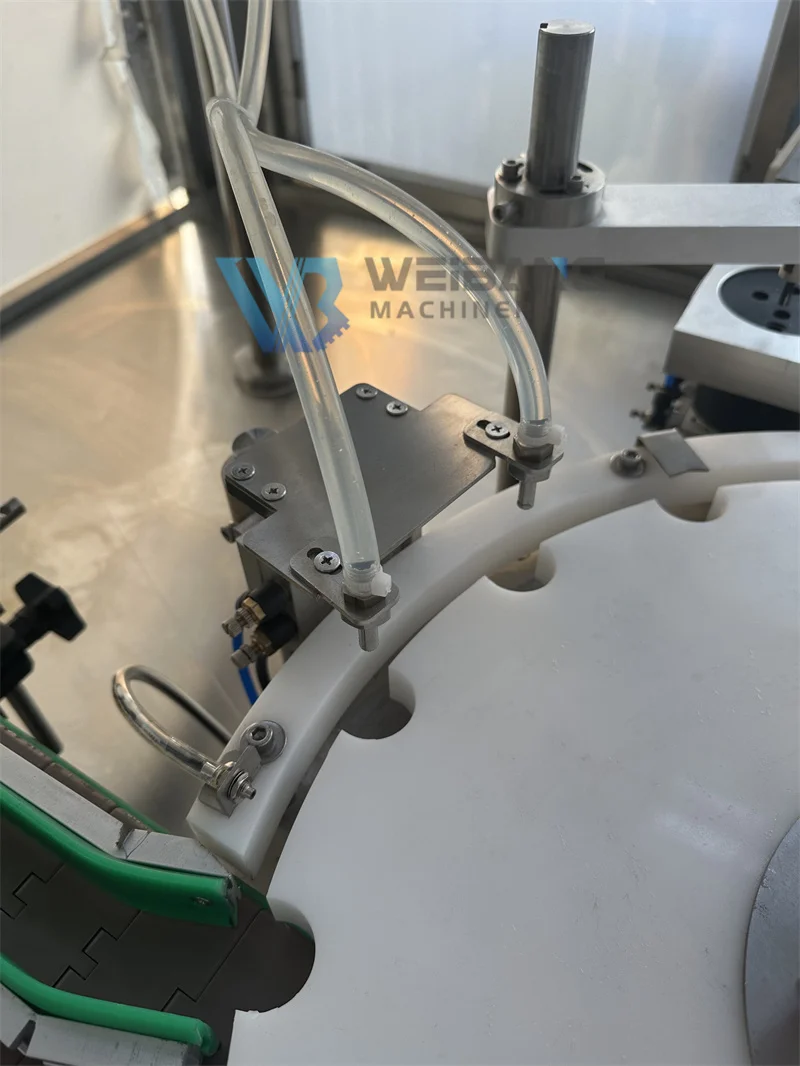

2/4/6/8/12 Filling nozzles,According to different filling speed

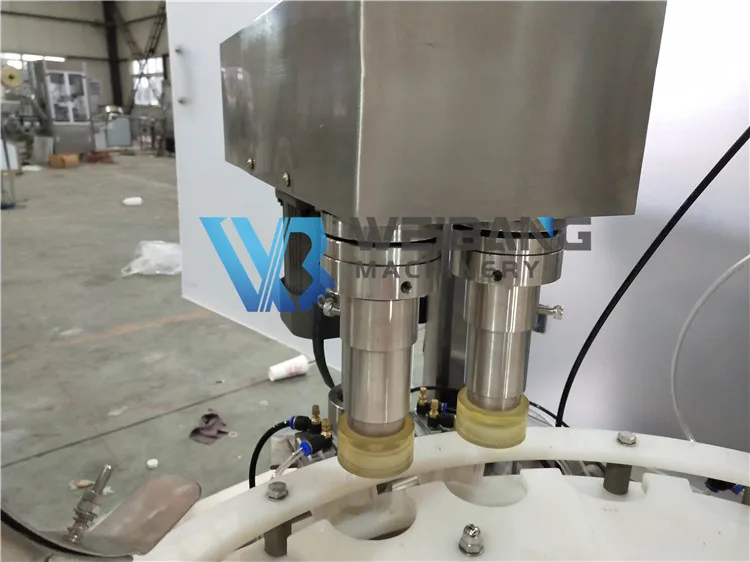

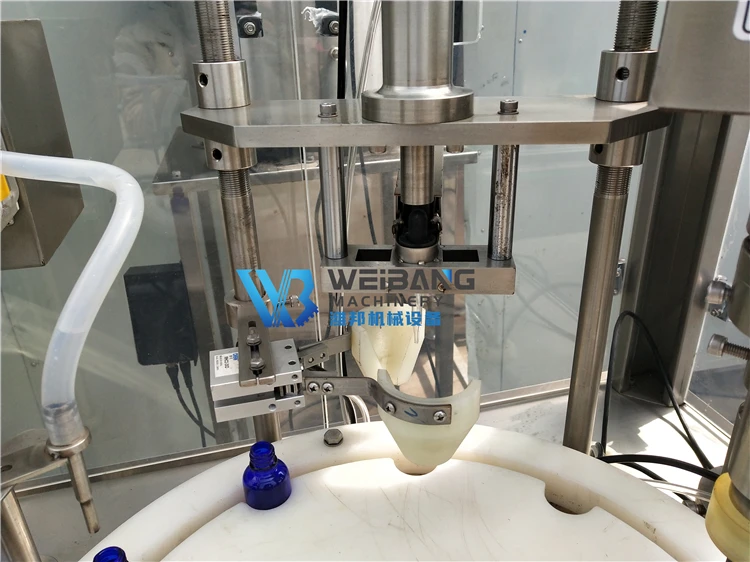

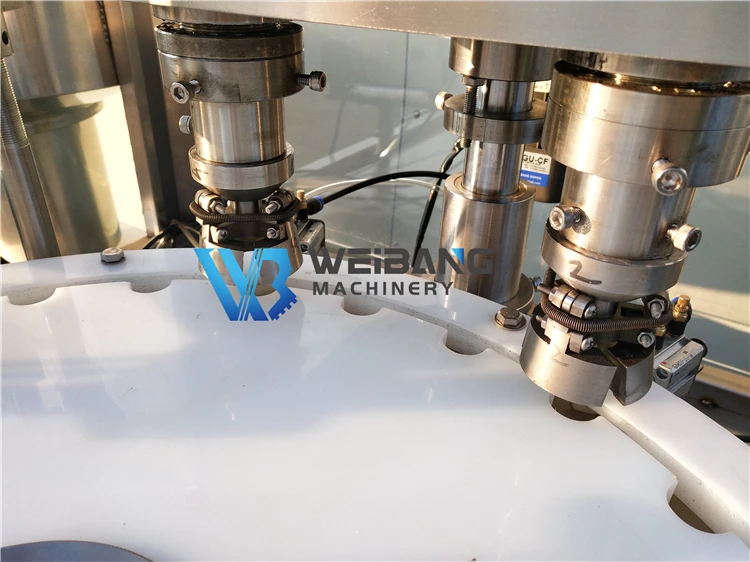

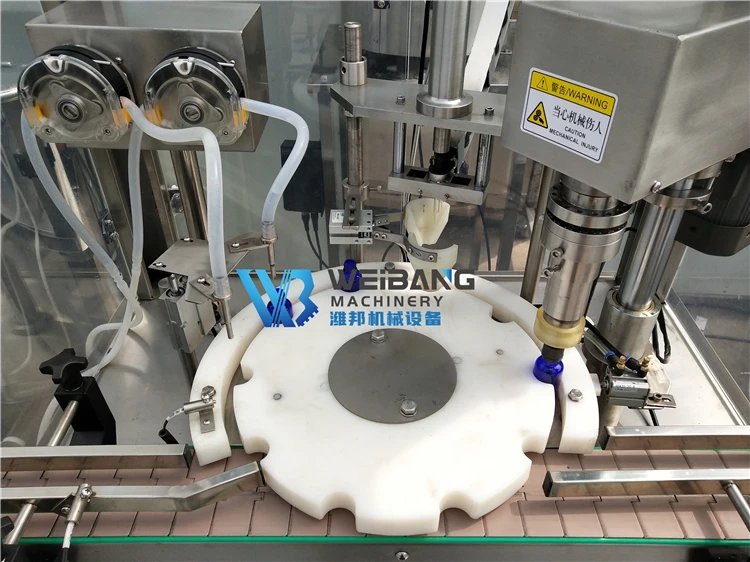

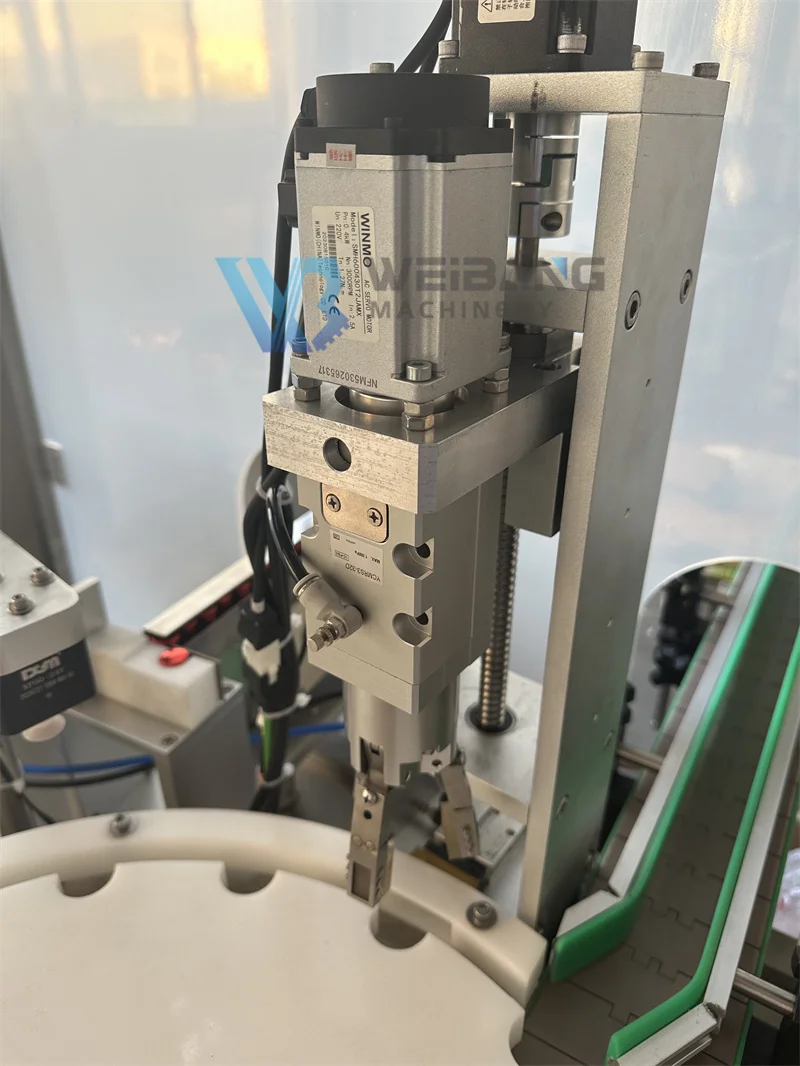

Caping device, Make different devices according to different caps

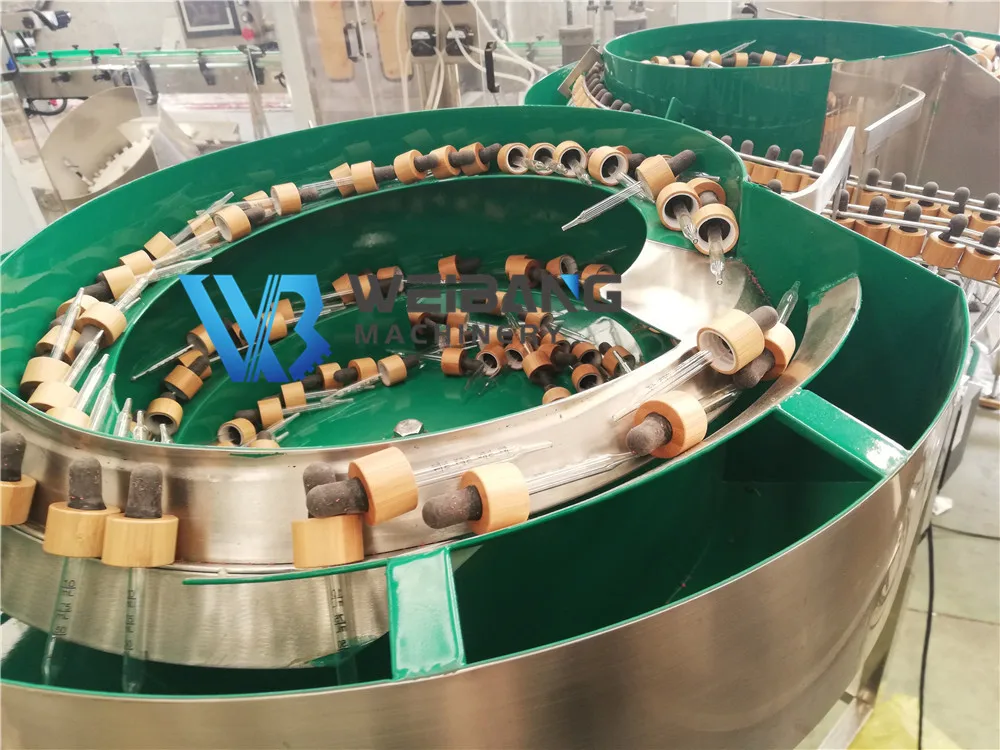

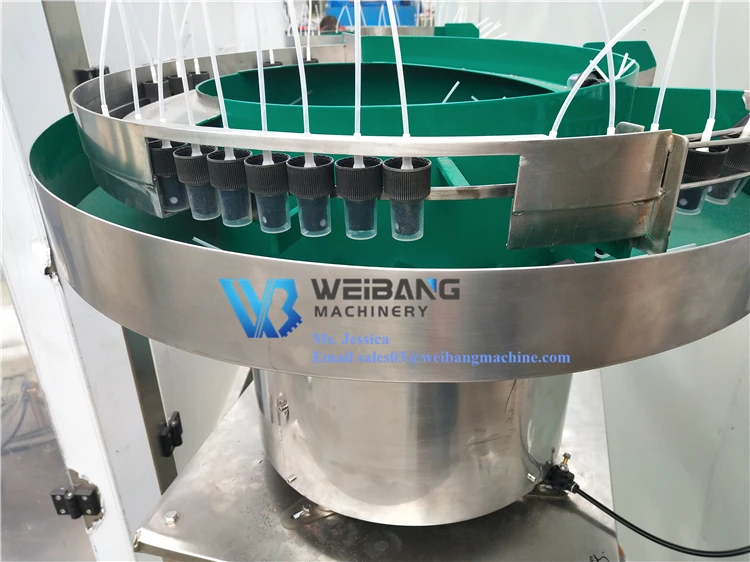

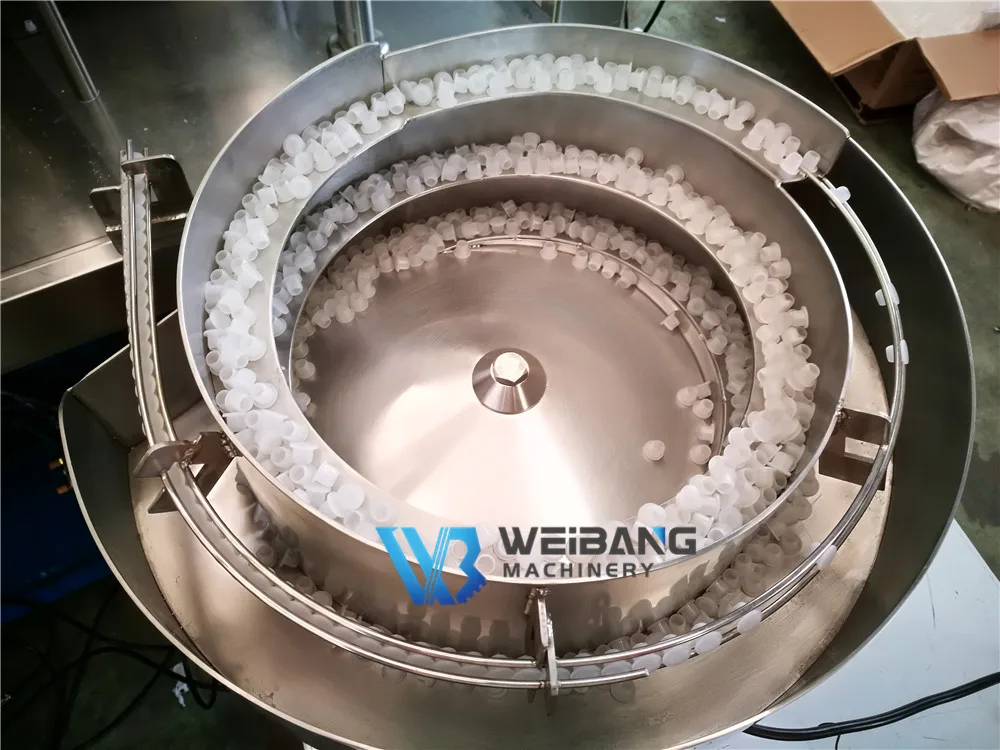

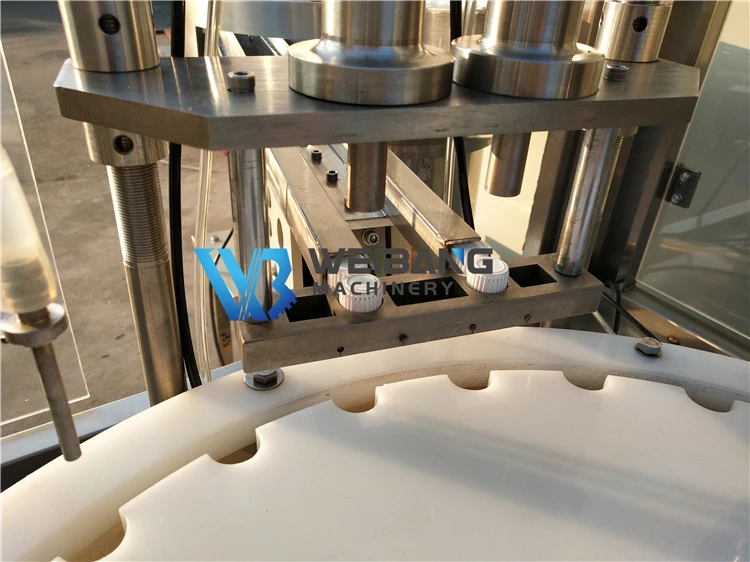

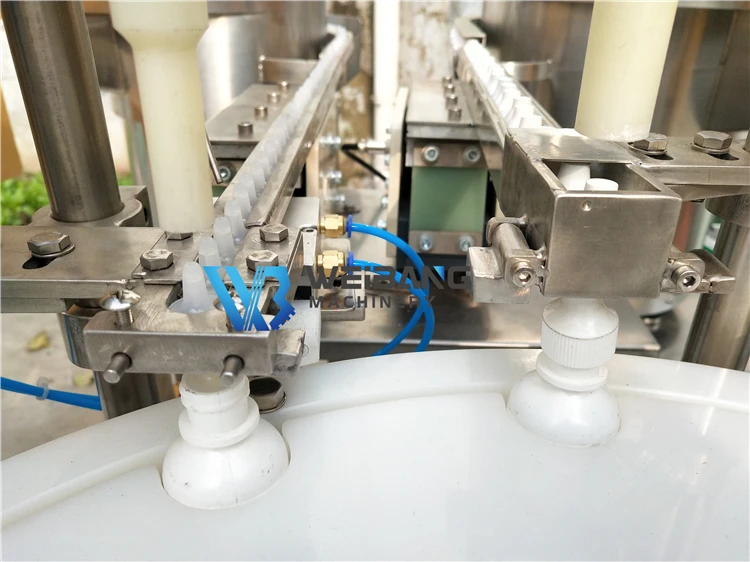

Screw caps and cap feeder,Customize according to caps size

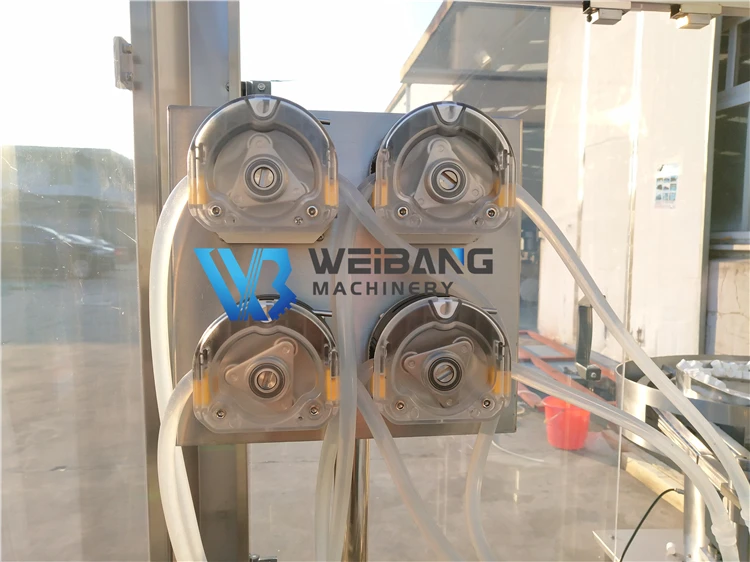

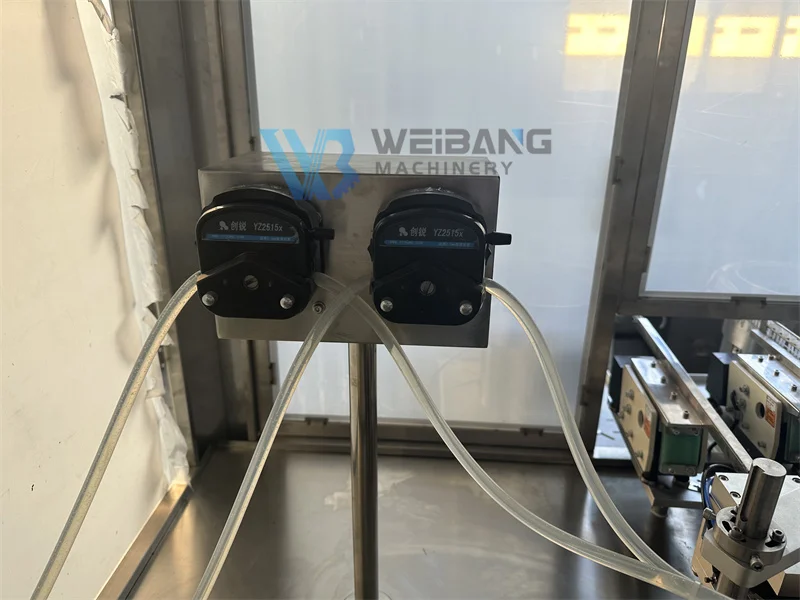

Peristaltic pump
Other filling machine and related machines
WB-JG4/6/8 automatic sauce/cream/hand sanitizer/paste filling line

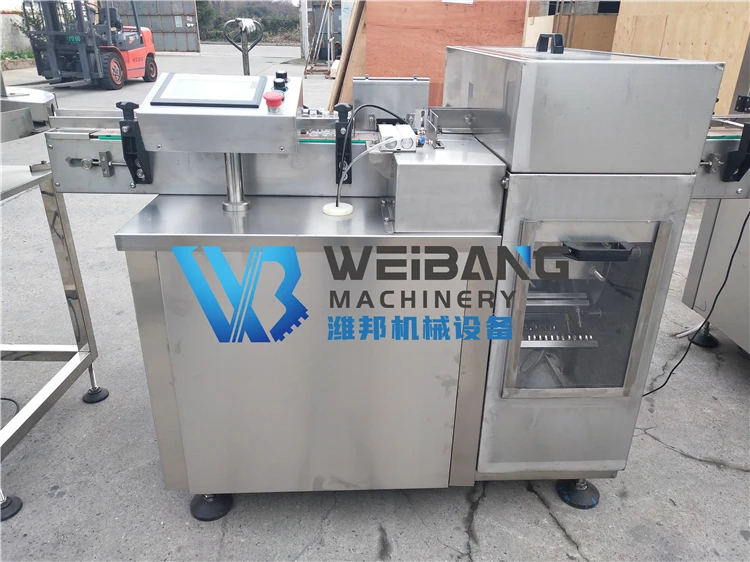

WB-TB200 automatic shrink sleeve labeling machine
*Steam shrinkage or electrothermal shrinkage are optional
*For bottle neck, body and whole bottle
bottle feeder mix tank bottle labeling machine
bottle washing machine sleeve shrink labeling machine bottle collection table
