Green PP Non Woven Fabric Lawn Geotextile for Landscaping Covering Soil Road Slope Protection Non Woven Fabric Use
- Category: >>>
- Supplier: Shandong Juyang Waterproof Technology Co. Ltd.
Share on (1601205807507):
Product Overview
Description
Products Description

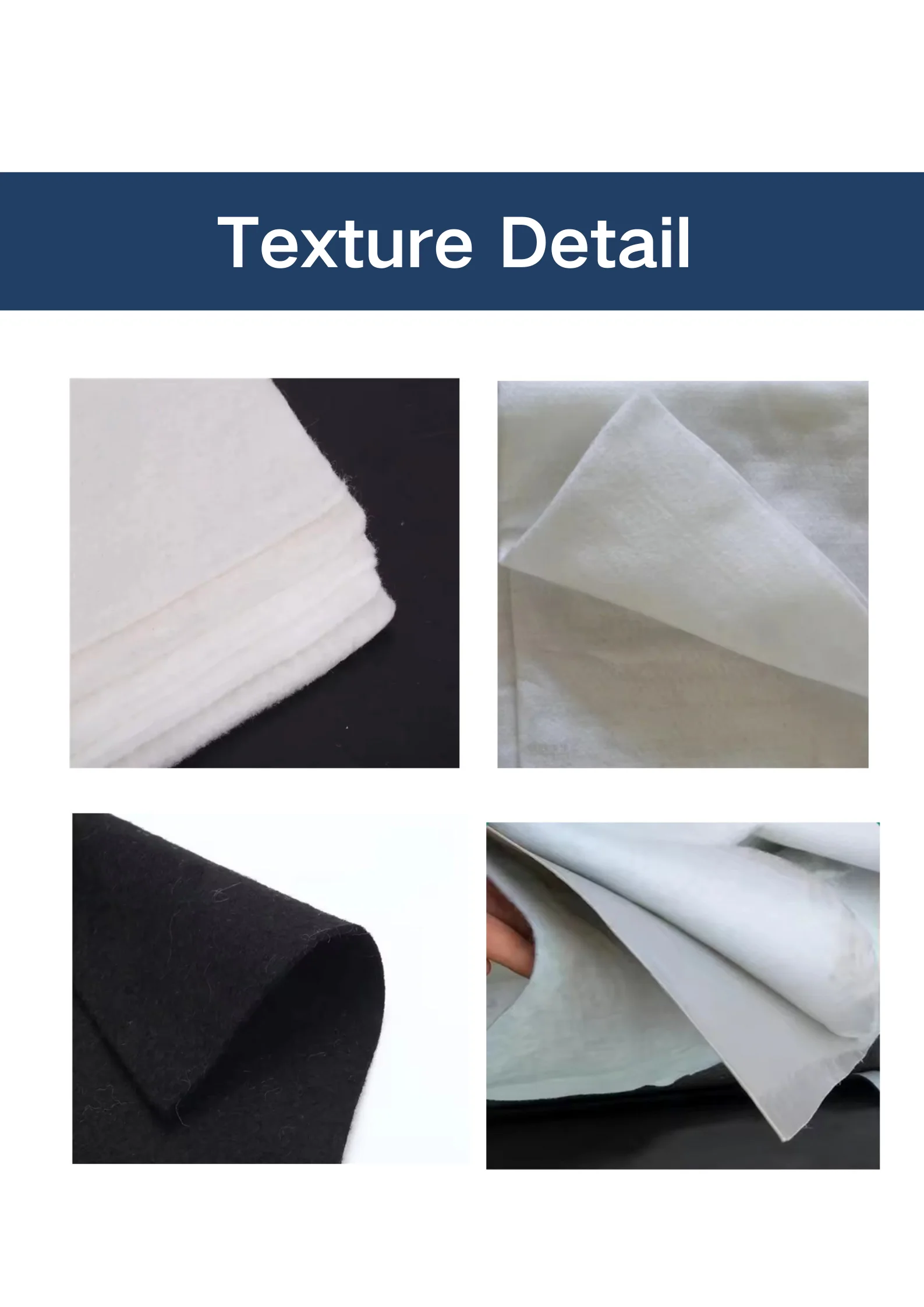

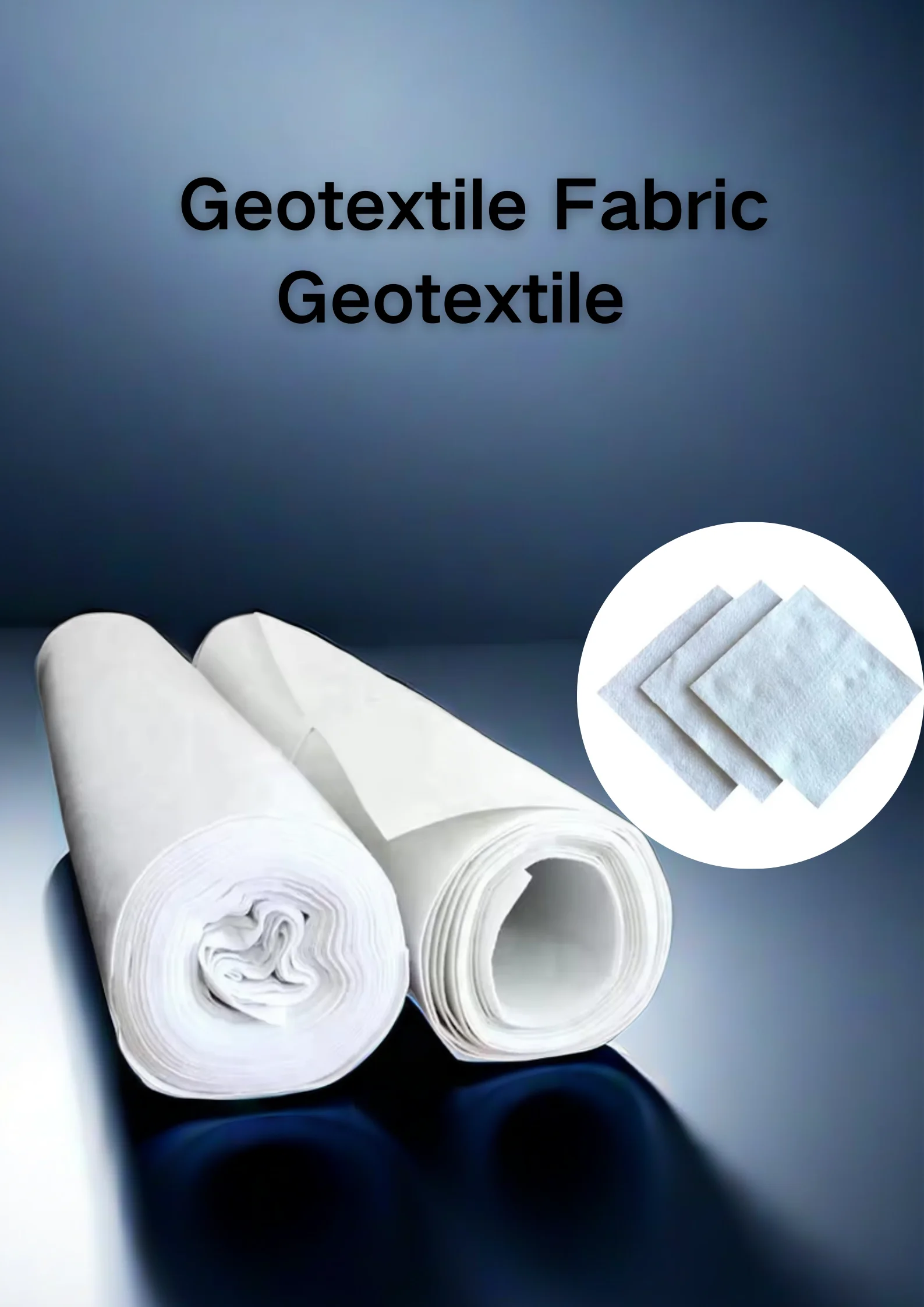

Non woven geotextile is made of polypropylene staple fibers on cross-laying equipment and needle punched equipment. It owns the advantages of acid and alkali resistance, erosion resistance, aging resistance, large strength, stable size, good filtrability etc.
Characteristic
1. High strength: due to the plastic fiber, it can keep sufficient strength and elongation in the wet state.
2. Corrosion resistance: it can in different ph value of soil and water corrosion for long.
3. Good permeability: has a gap between the fiber, therefore has good porous.
4. Good antimicrobial properties: do not damage microbes and insects.
5. Construction is convenient: because the material is qualitatively light, and soft, so delivery, laying, and construction are convenient.
2. Corrosion resistance: it can in different ph value of soil and water corrosion for long.
3. Good permeability: has a gap between the fiber, therefore has good porous.
4. Good antimicrobial properties: do not damage microbes and insects.
5. Construction is convenient: because the material is qualitatively light, and soft, so delivery, laying, and construction are convenient.
specification
Mass Weight g/㎡ | 120 | 160 | 200 | 240 | 280 | 340 | 400 | ||||||
Break Strength KN/m≥（LD） | 20 | 30 | 40 | 50 | 60 | 80 | 100 | ||||||
Break Strength KN/m≥（TD） | 15 | 22 | 28 | 35 | 42 | 56 | 70 | ||||||
Break Elongation %≤(LD,TD) | 25 | ||||||||||||
Trapozoidal Tear Strength KN≥(LD) | 0.3 | 0.45 | 0.5 | 0.6 | 0.75 | 1.0 | 1.2 | ||||||
Burst Strength KN≥ | 1.6 | 2.4 | 3.2 | 4.0 | 4.8 | 6.0 | 7.5 | ||||||
Vertical Permeability Coefficient cm/s | 10-1-10-3 | ||||||||||||
Sieve Size(095.)mm | 0.07-0.5 | ||||||||||||
Variation% | ±10 | ||||||||||||

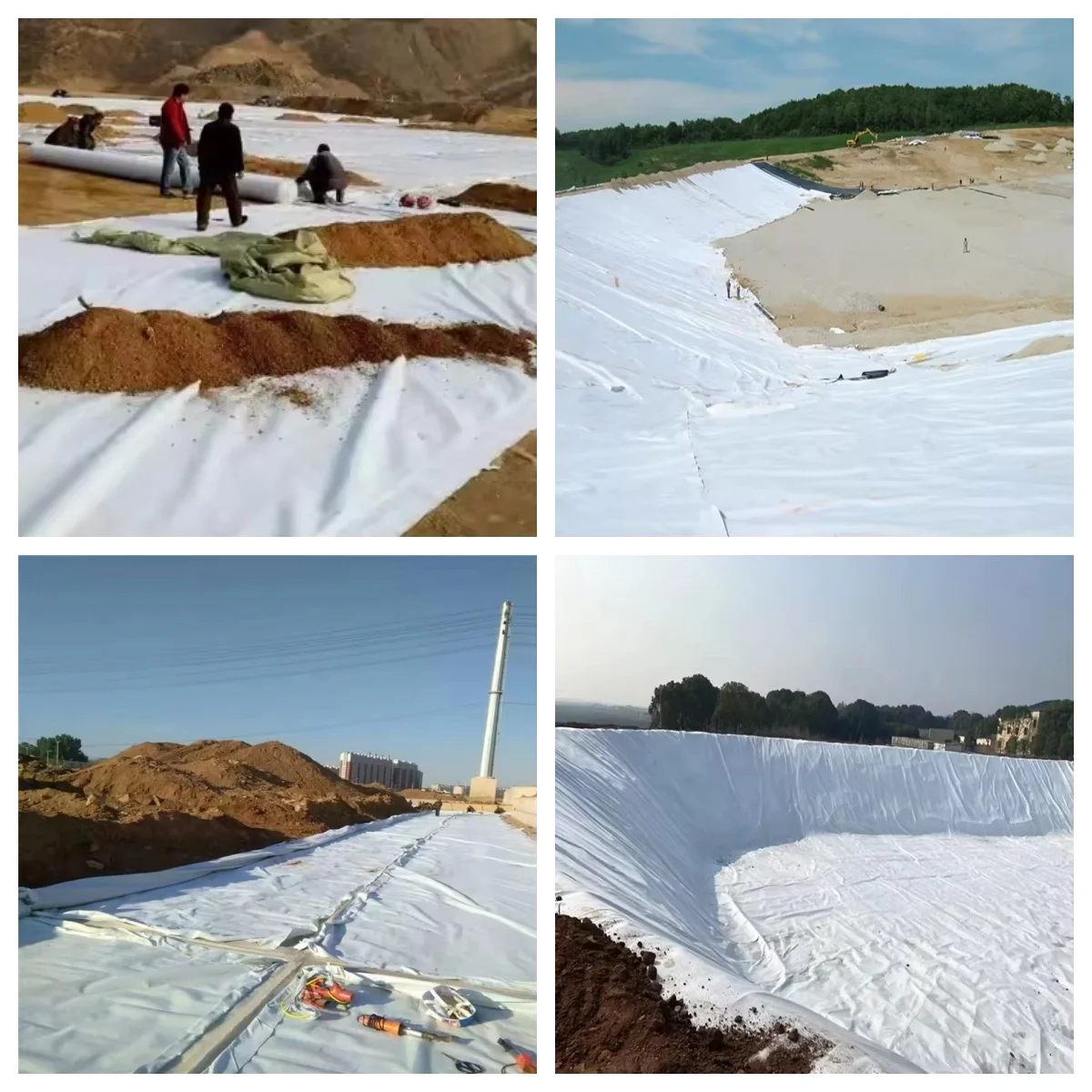

Application
1) Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, and retaining walls. At the same time preventing the clay
granule from passing, it allows the water and the gas to pass through freely.
2) Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the
groundsill, different dam materials. It isolates the soil and the gravel of two kinds of different granule pathways from the
groundsill or other buildings.
3 )Adding muscle:
The highways, railways, soil-stone dams, breakwaters, airports, backfill soil of retaining walls, slope protection, etc
distribute the earth's stress, prevent the side-displacement of the earth's body, and improve the earth's body stability.
4 )Protection
It prevents the bank from being washed out, protects the bank and the bottom, and prevents the water and soil from being washed away.
The filtration layer of the dykes, river canal, seacoast, concrete slope, and retaining walls. At the same time preventing the clay
granule from passing, it allows the water and the gas to pass through freely.
2) Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the
groundsill, different dam materials. It isolates the soil and the gravel of two kinds of different granule pathways from the
groundsill or other buildings.
3 )Adding muscle:
The highways, railways, soil-stone dams, breakwaters, airports, backfill soil of retaining walls, slope protection, etc
distribute the earth's stress, prevent the side-displacement of the earth's body, and improve the earth's body stability.
4 )Protection
It prevents the bank from being washed out, protects the bank and the bottom, and prevents the water and soil from being washed away.
Our Service
Leading Time | ||
Samples | 3Days | |
Less than 10000 square meters | 5Days | |
100000 square meters | 15 Days | |
more than 100000 square meters | To be negotiated | |
Logistics Servece | ||
We cooperate with a numberof internationally renowned logistics companies to provide you with the most economical logistics solutions while ensuring the logistics efficiency. Get your goods to your hands safely and quickly | ||
Custom Services | ||
Width | AVAILABLE | |
Length | ||
Thickness | ||
Logo | ||
Packing | ||
Technical Support | ||
7 by 24 hours all day fast response, to provide you with perfect pre-sale, sale and after-sales service. At the same time, we canalso provide you with comprehensive waterproof construction solutions according to your actual needs, and provide professional technical guidance in the construction process. | 3Days | |
Less than 10000 square meters | 5Days | |
100000 square meters | 15 Days | |
more than 100000 square meters | To be negotiated | |
Packing & Delivery
Company Profile
We established a national-standard laboratory for in-house quality control and a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Shandong Great Ocean Waterproof Technology Co., Ltd.
Shandong Great OceanWaterproof Technology Co., Ltd. is located in the government of Taitou Town, Shouguang City, the largest waterproof material base in China. Founded in 1999, it is a high-tech waterproof professional manufacturer that integrates scientific research, production, and sales in the waterproof industry.
