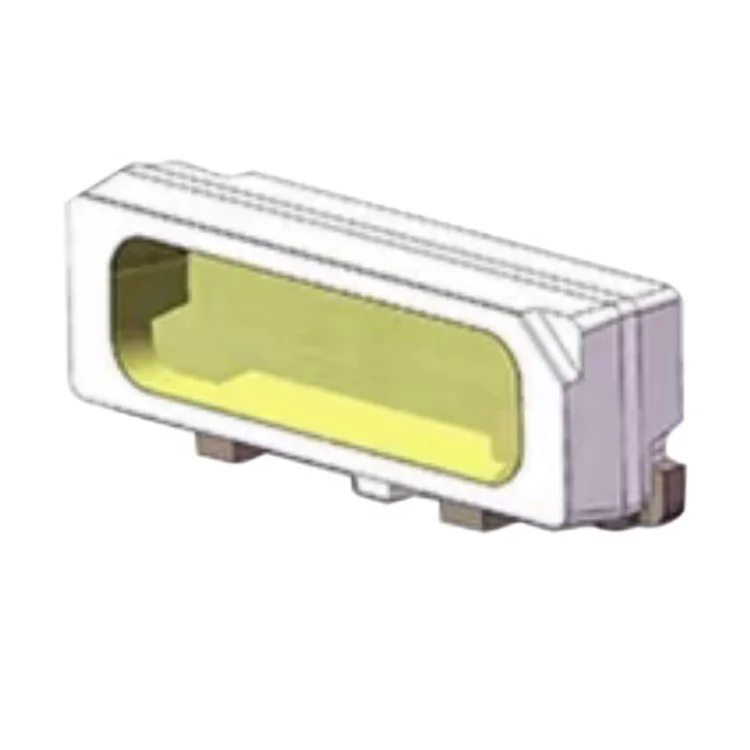

Dual Sides View Built-in IC LED Diode SMD 5720 RGB Addressable SK6805SIDE-V-D-C-RV Dream Color Programmable Two Light Emitting






Product Description

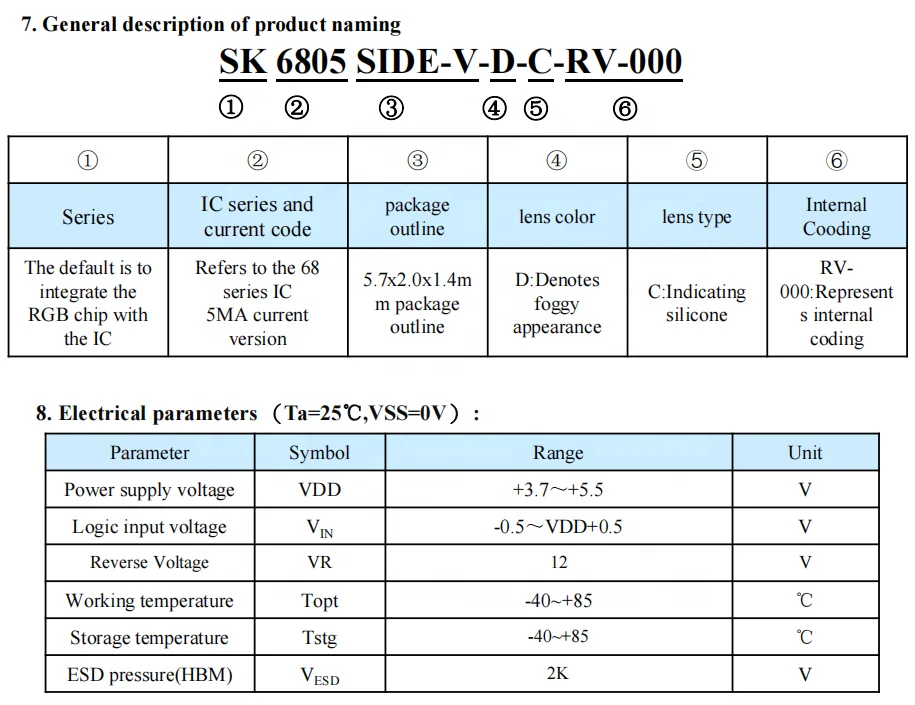

Specifications of SK6805SIDE-V-D-C-RV
LED package typeDual side View 5720 RGB SMD LED

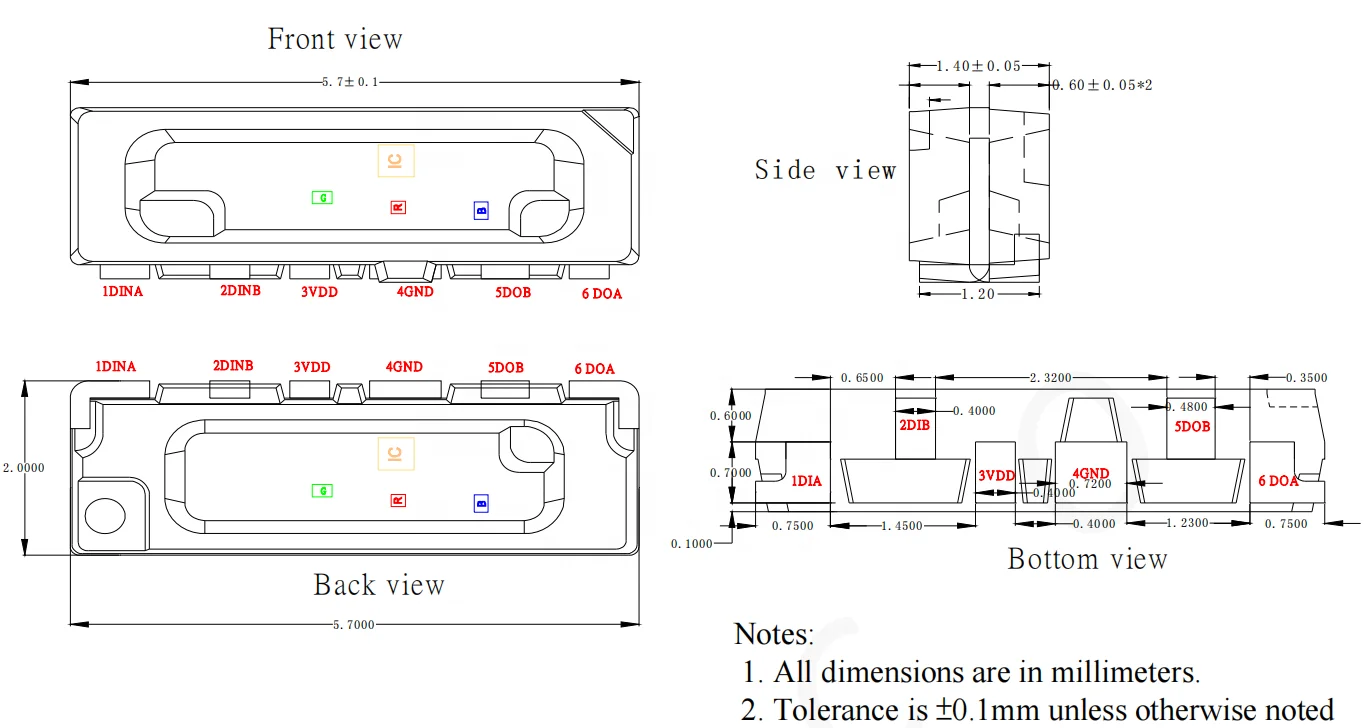

LED sizeL 5.7*W 2.0*H 1.4 mm
Emitting colorAddressable dream color RGB
Working current5mA
Forward voltageDC 5 volts
Power0.1 Watt.
WavelengthB: 460-475nm, R: 620-630nm, G: 515-530 nm
LED surface colorwhite
WarrantyTwo years
Packing1500 pieces per reel in an anti-static foiled bag

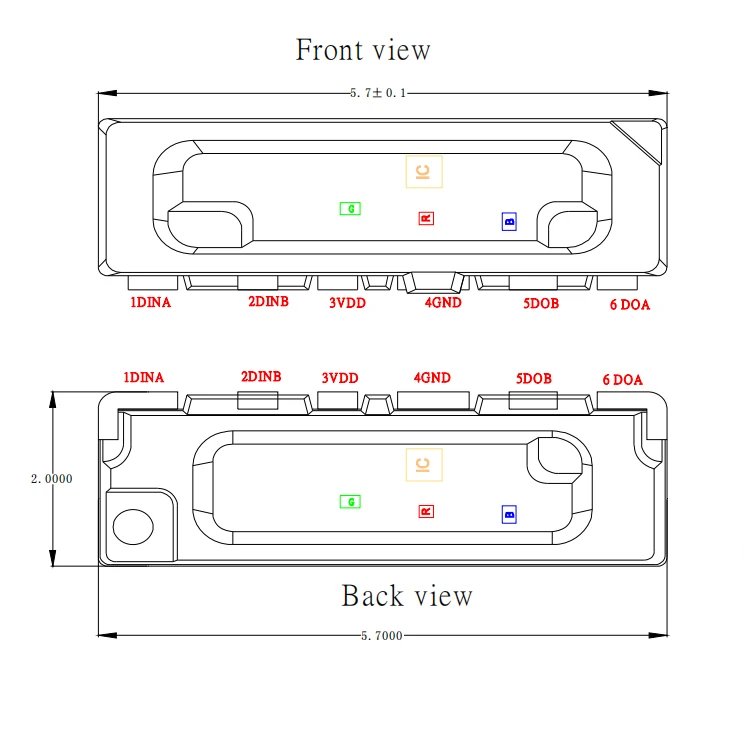

Pin configuration











































NO.Symbol
Function description

1
DINA(Front signal)


Control data signal input

2
DINB(Back signal)


Control data signal input

3
VDD


Power supply LED

4
GND


Ground

5
DOB(Back signal)


Control data signal output

6
DOA(Front signal)


Control data signal output



























































Packaging & Shipping





Packaging example







WS2812B

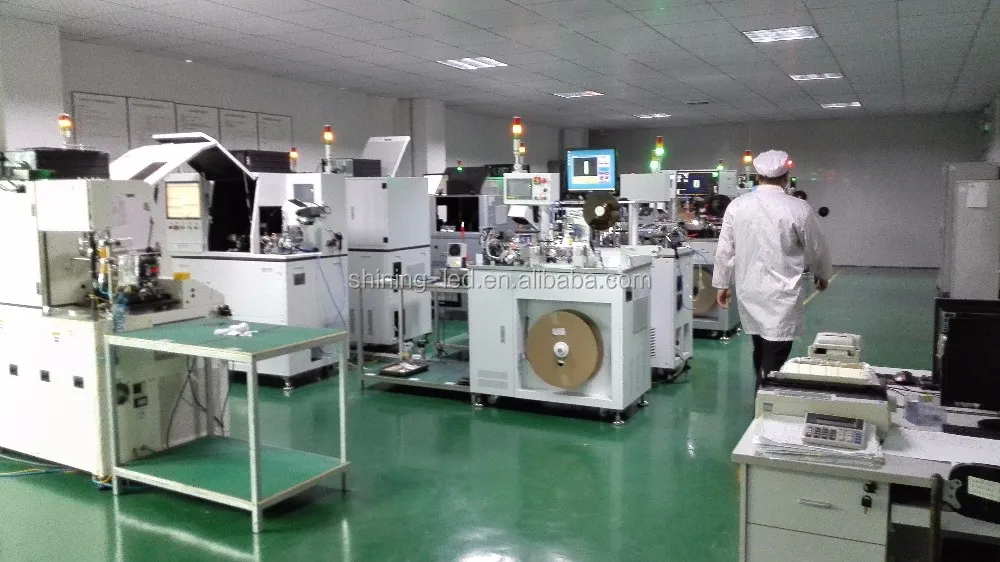

Production line


IMG_20160504_133824








IMG_20160504_133704











IMG_20160504_133754








IMG_20160504_133656











IMG_20160504_133820








Shipping ways:New Express








Payment methods





QQ20161223204245_


Competitive Advantages of our LEDs:



  • Good quality guarantee, 50000 hours lifespan, 2-5 years warranty.

  • Professional engineers and experienced workers.

  • Short delivery time, normally only 1-7 working days.

  • Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.

  • Various module type, such as SMD LED 2835 , 5630 , 3014 , 5730 , 7020 , 4014 , 2020 , 5050 , 3030 ,  3535 , 1-5W high power LED , 1-2000W integrated LED / COB LED, Diode etc.





Our Services:



  • Reply your inquiry in 24 working hours

  • Well-trained and experienced staffs to answer all your inquiries in fluent English.

  • Strict quality control procedures before shipment.

  • Customized design is available.OME and ODM are welcomed

  • Delivery the goods to our customer all over the world with speed and precision.


Note:
All the listed price is only for reference, for latest price please contact us directly:





Contact Us:



  • Name: Bruce

  • Email:  shiningopto (at) aliyun.com

  • Skype:  live:infoleds
